Repair Update: I turned the car on, wiggled the ABS wires and immediately knew I had the same problem. Once I pulled the tape off of the ABS wires, I found two wires spliced together (green and green white). Both wires broke at the splice as I was removing the tape. I respliced the wires...

I have the same problem with my '21 Mojave. Will search for the broken wire today.

Greg, Thank you for your advice. I can tell you've done this a couple of times. Enjoy your weekend.

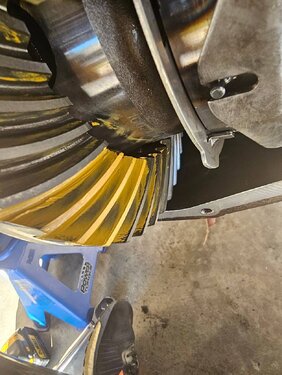

Thanks for your help. Here's a pic with pressure on the carrier applied. Enjoy the remainder of your night.

Greg, It calls for 6-10 backlash with the Yukon gears. I'm at 6. You are correct, I did not put any drag on the carrier.

Can you provide me some input? I ended up regearing Gladiator. What do you think about this gear pattern?

Thanks and enjoy your weekend. ✌️

Thanks for your input. I'll be changing the pinion bearings and crush sleeve this weekend. Hopefully the pattern looks better when I'm done.

https://drive.google.com/drive/folders/1WZhCkeIC4hnt8wEs1sQWm_hOCx0L19RJ

No. It's quite.

No.

No. It does not make noise.

Could this have been caused by me overtightening the pinion?

Thanks for the feedback. Drive and coast side pics below. https://drive.google.com/drive/folders/1WZhCkeIC4hnt8wEs1sQWm_hOCx0L19RJ

First time post. Long time lurker... I paid a local shop to regear my Gladiator and I've put 5000K miles on it since then. I over tighten the pinion while installing an Adams 1350 rear shaft and chromoly axles. Decided to check the gear pattern (attached photos). Based on the gear pattern...
