Edit. Made a few changes. Coilovers with front triple bypass. Long Arm front control arms. Changed dual rate front sway bar back to factory. Dual rate was not needed with new suspension.

Edit. Added “Pretty Princess” to the build. Wife, “what does the Pretty Princes need now”?

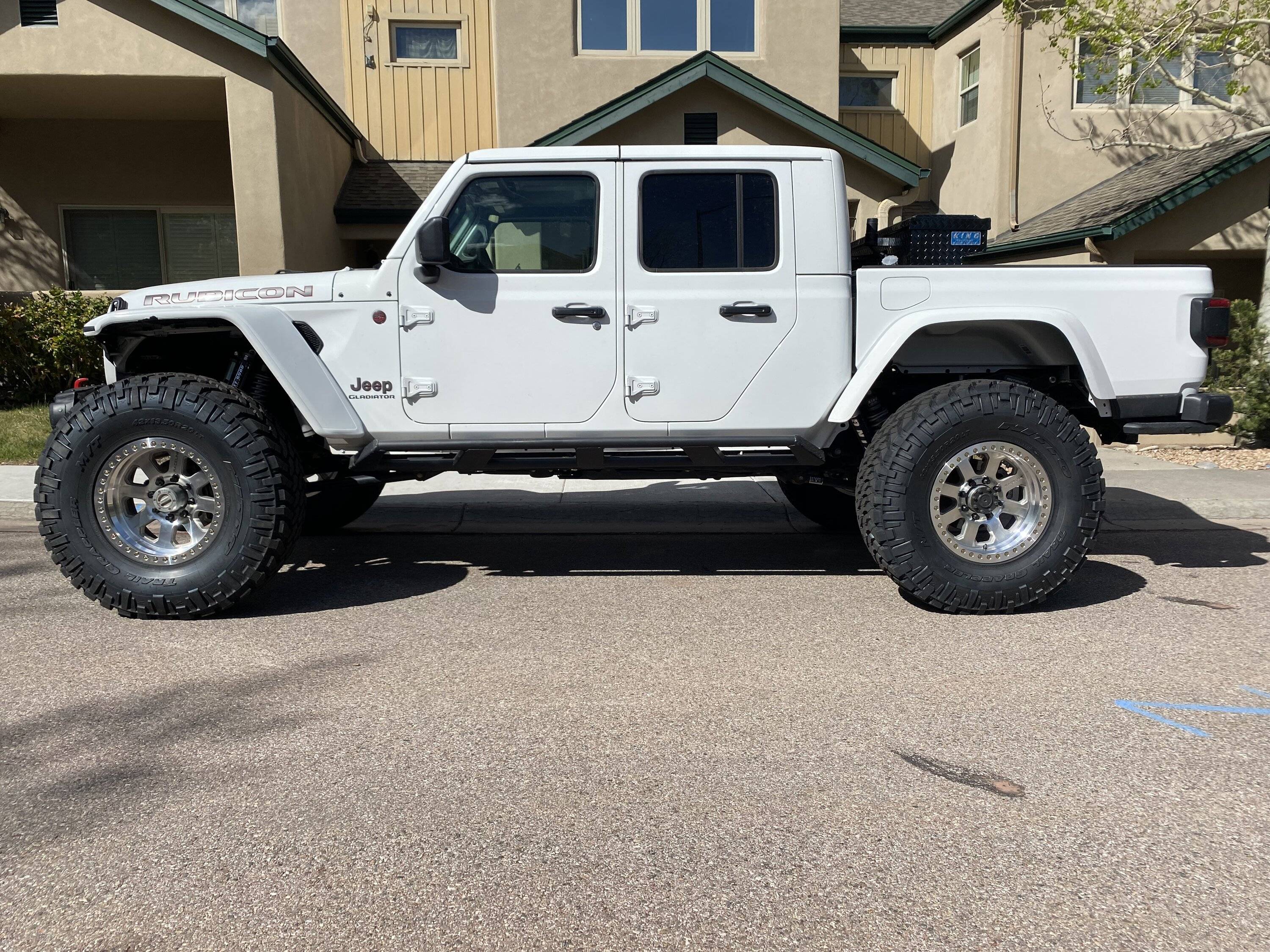

Edit. Got some 42” Nitto’s and 20x10 Raceline wheels.

2021 JTRD
Mods
Front Mopar steel bumper
Warn winch

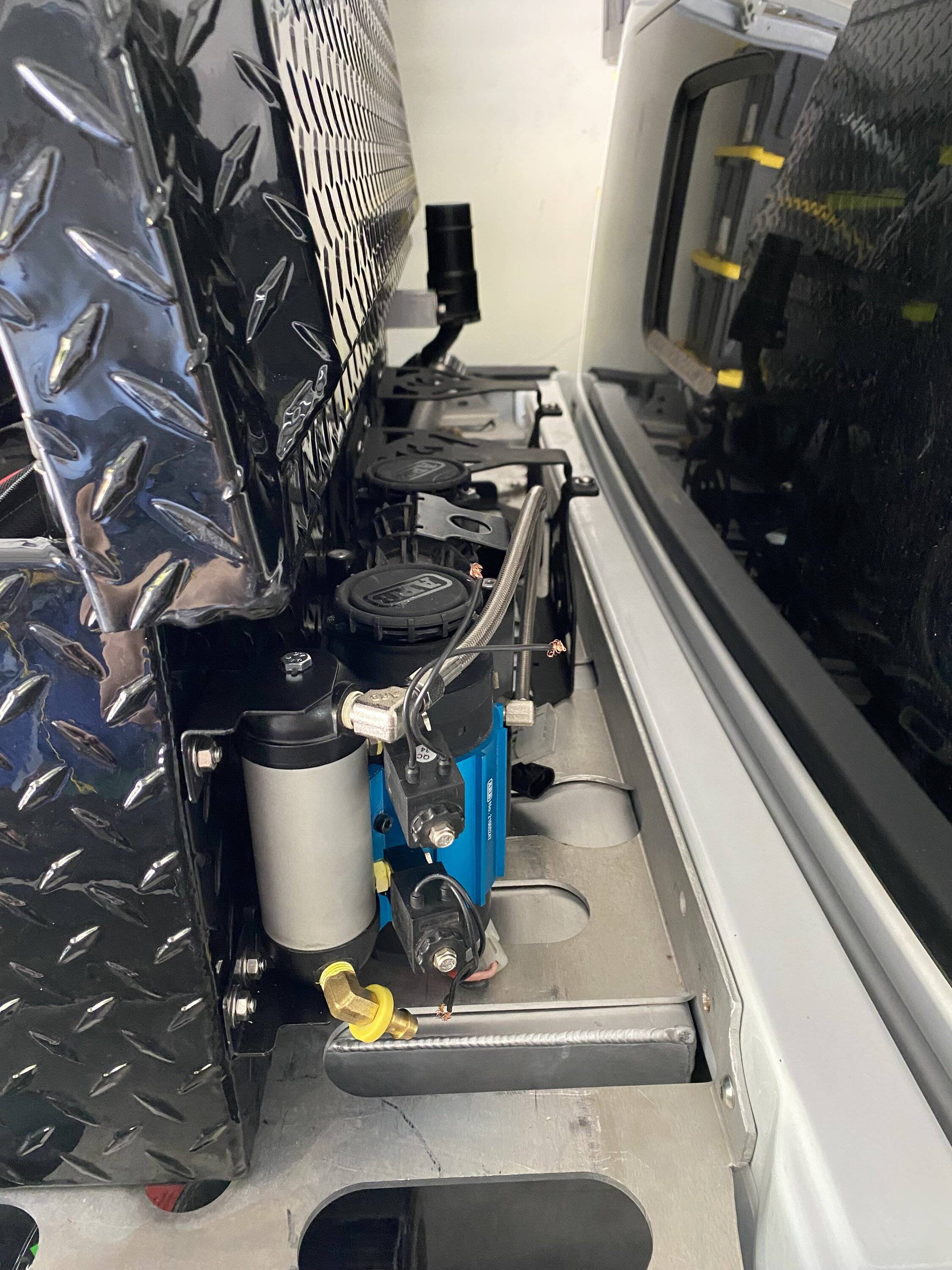

ARB dual compressor
BushWacker front flares
Red Neck ported factory box with PSC ram
Apex power steering cooler/boost kit
EVO control arms Long Arm front
EVO/King Coilovers 4 corners plus 3 tube front
SteerSmarts front/rear tract bars
Currie AntiRock rear sway bar
JE Reel front and rear driveshaft’s
KMC RG bead-locks 17x8.5 4.75BS
Yokohama 40x13.5x17 X-MT tires
Fusion 60/80 Axles 72” Wide 5.13 with ARB’s
Fusion 2.5 Ton TieRod and Draglink

The numbers:
GVW from Factory #5250 w/mods #6630
WB from factory 137” new WB 138.75”
Mod outside tire tread to tire tread 84”. Did not measure factory. Guessing 70/72”.

Started planning this build with my ‘21 JLURD about a year ago. We pull an off-road trailer. Due to the weight of the trailer, we decided that a Gladiator would be a better Build choice.

Just did a 200 mile test run. Very Happy with the set up. Only small tweaks to do. Edit LOL

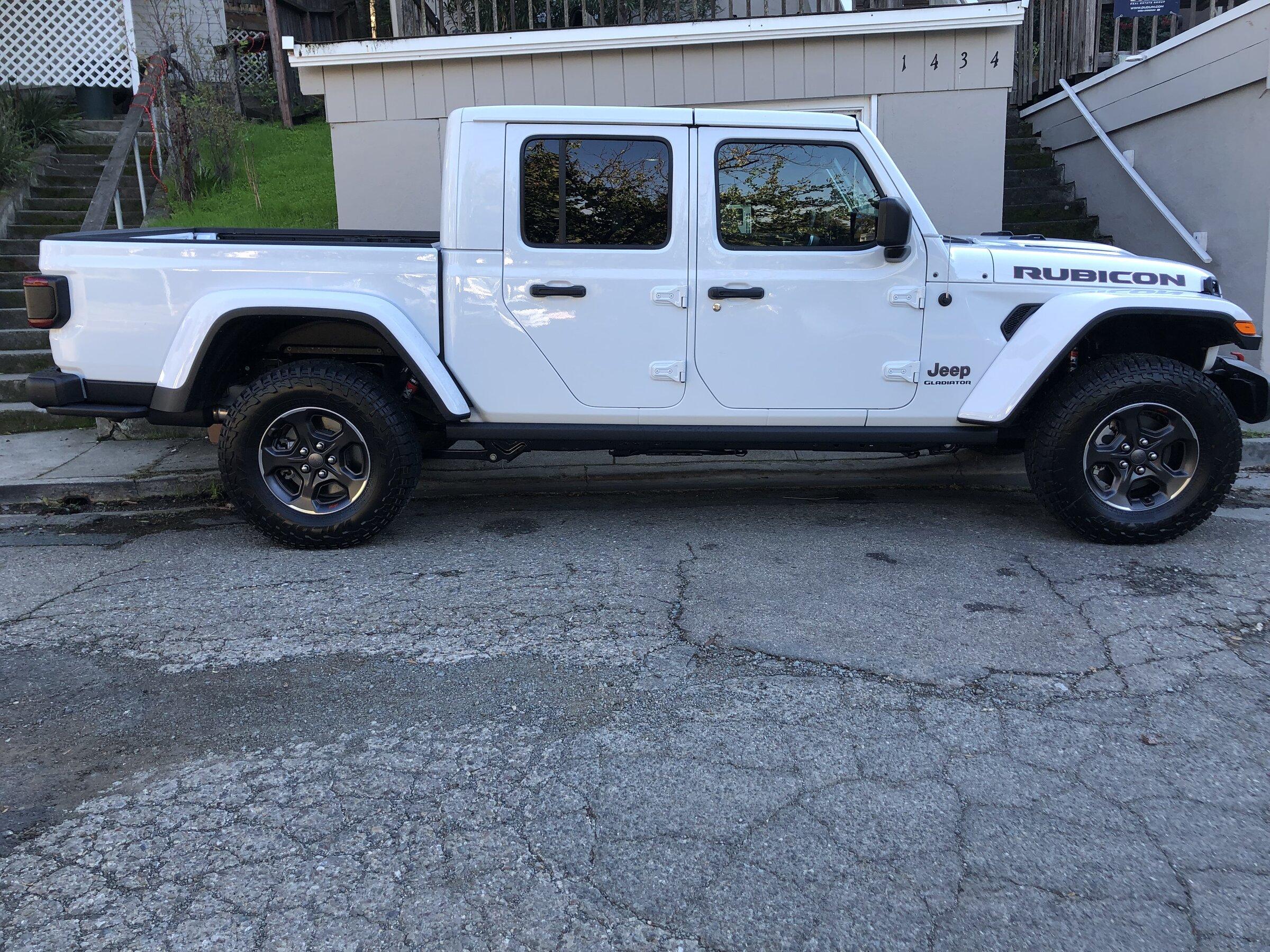

Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build 7663B89E-FD1C-4381-B39D-19E8657888B1

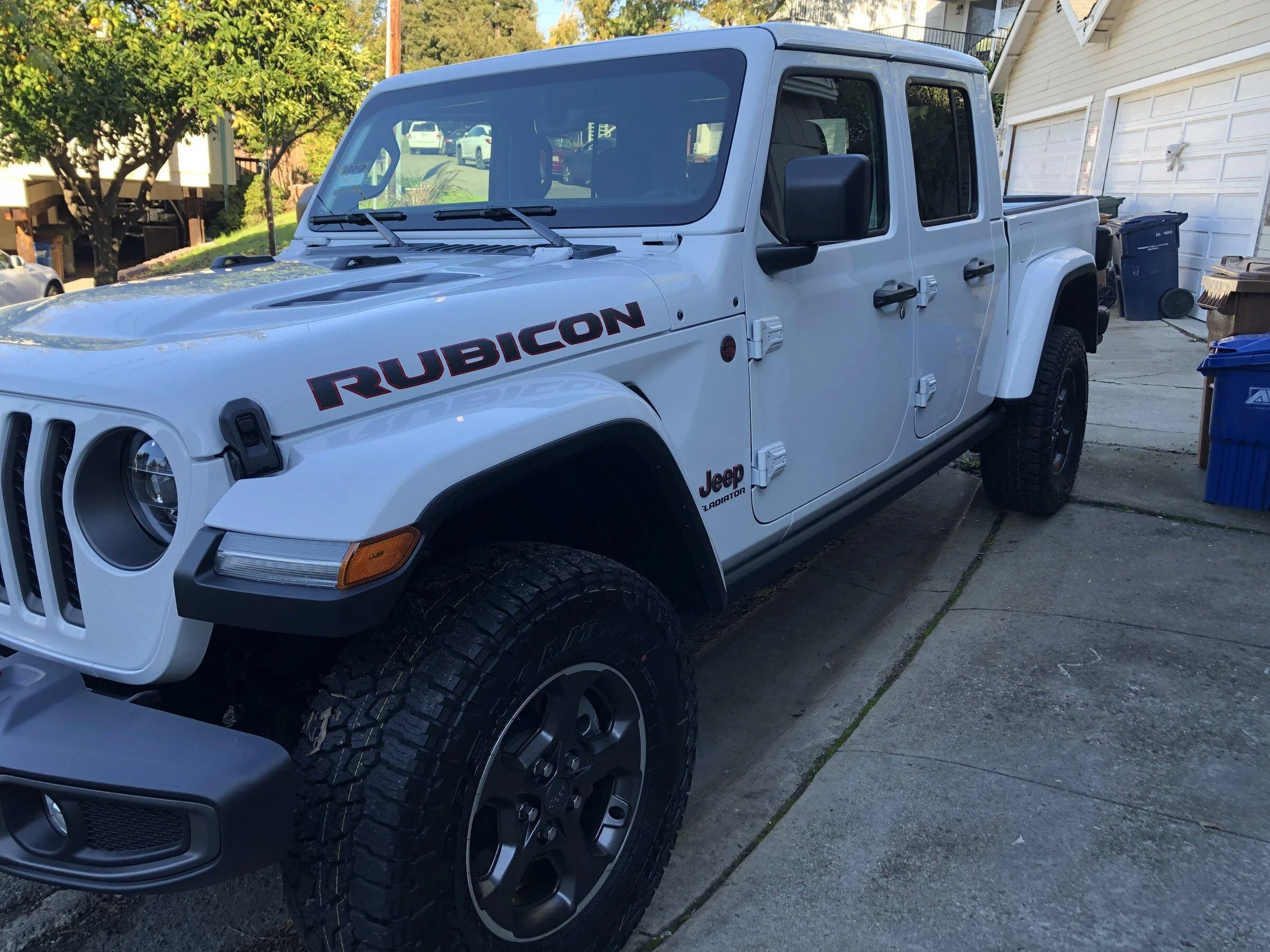

Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build B552D792-6839-44C1-B4B3-4E26F481F561

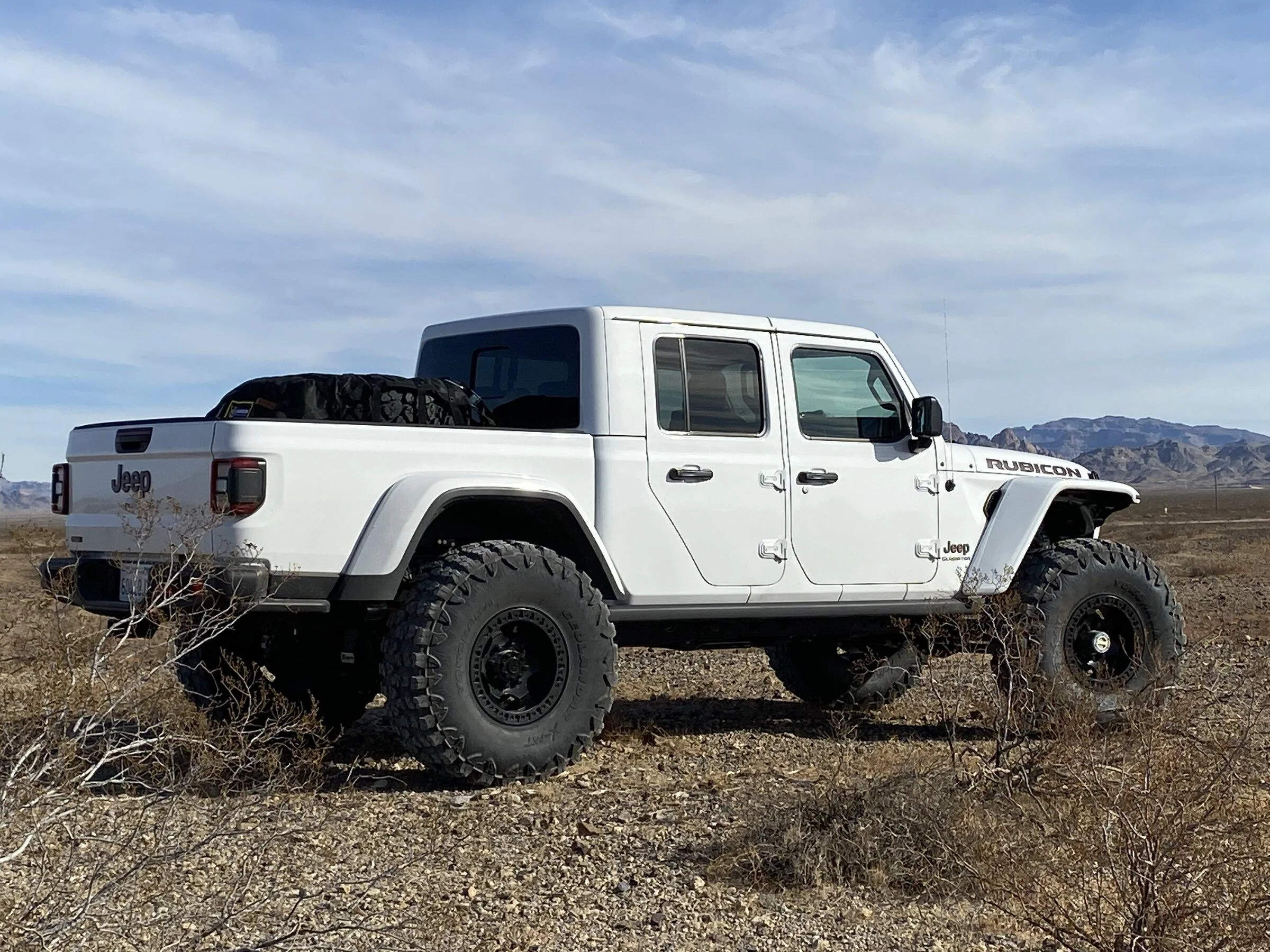

Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build 623F06C0-0667-4DC1-9E7C-30C46569E0D6

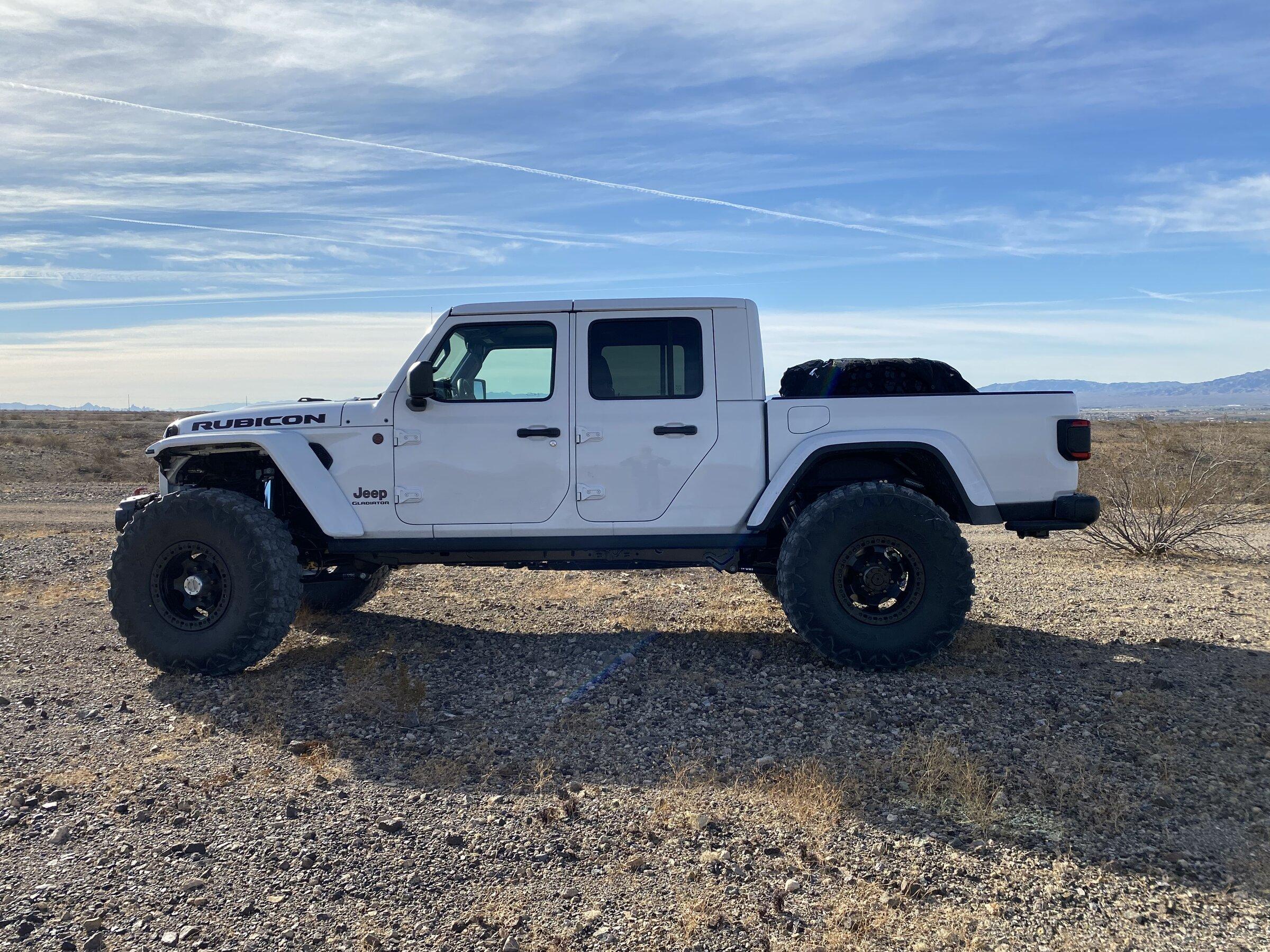

Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build 7D0EE8AB-4BD0-45CC-B0A6-AA75C48E619E

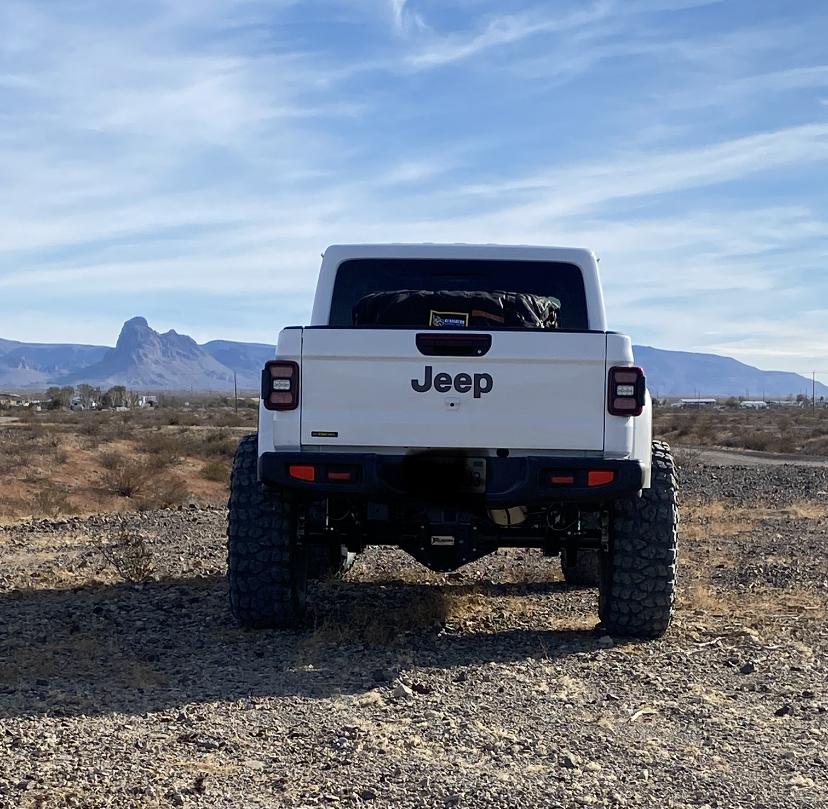

Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build 8DDDA749-4978-48B4-B7A9-4C989954D276

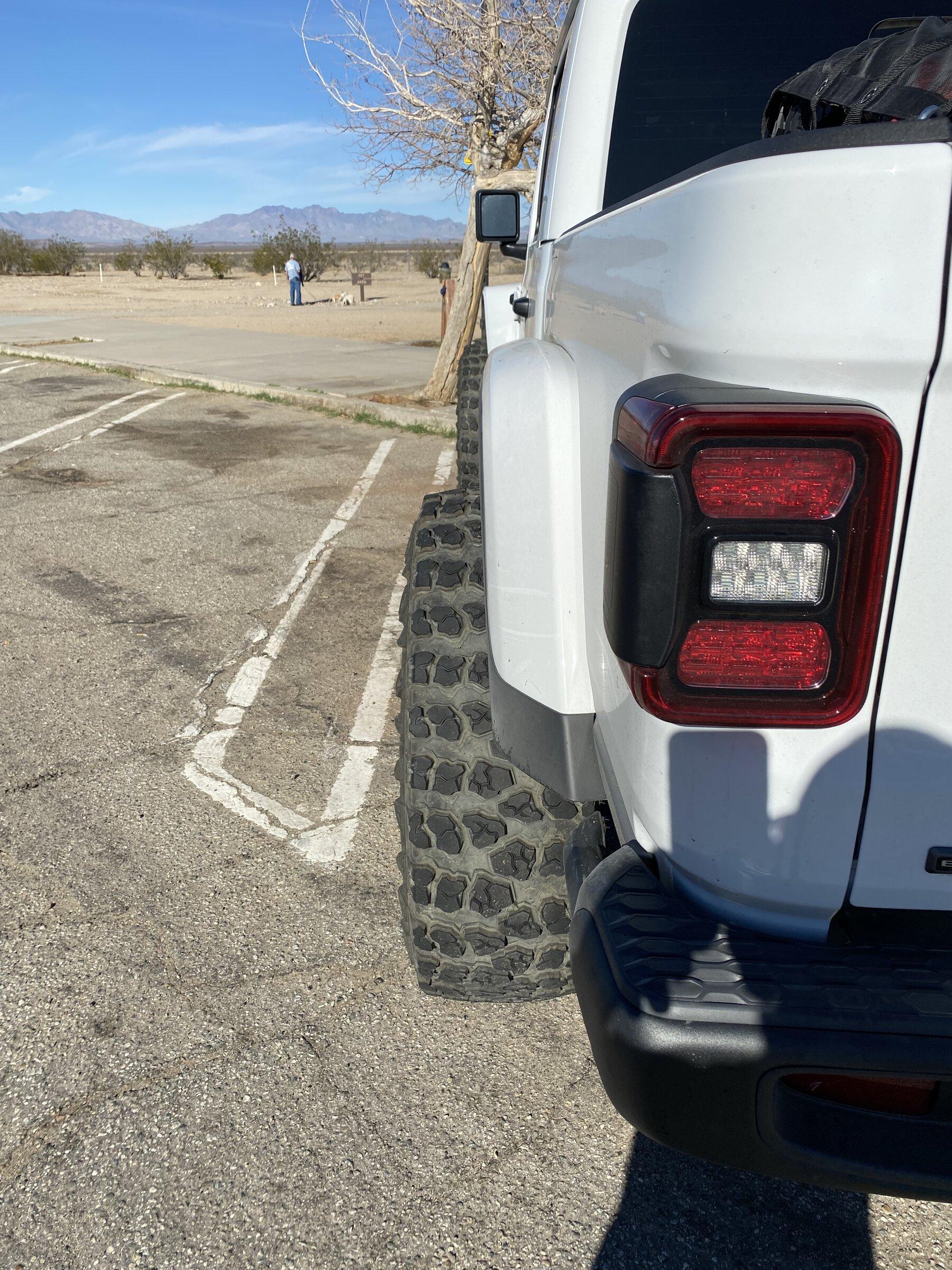

Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build 21BF1D1F-9B65-4360-835E-382E0B8CCE86

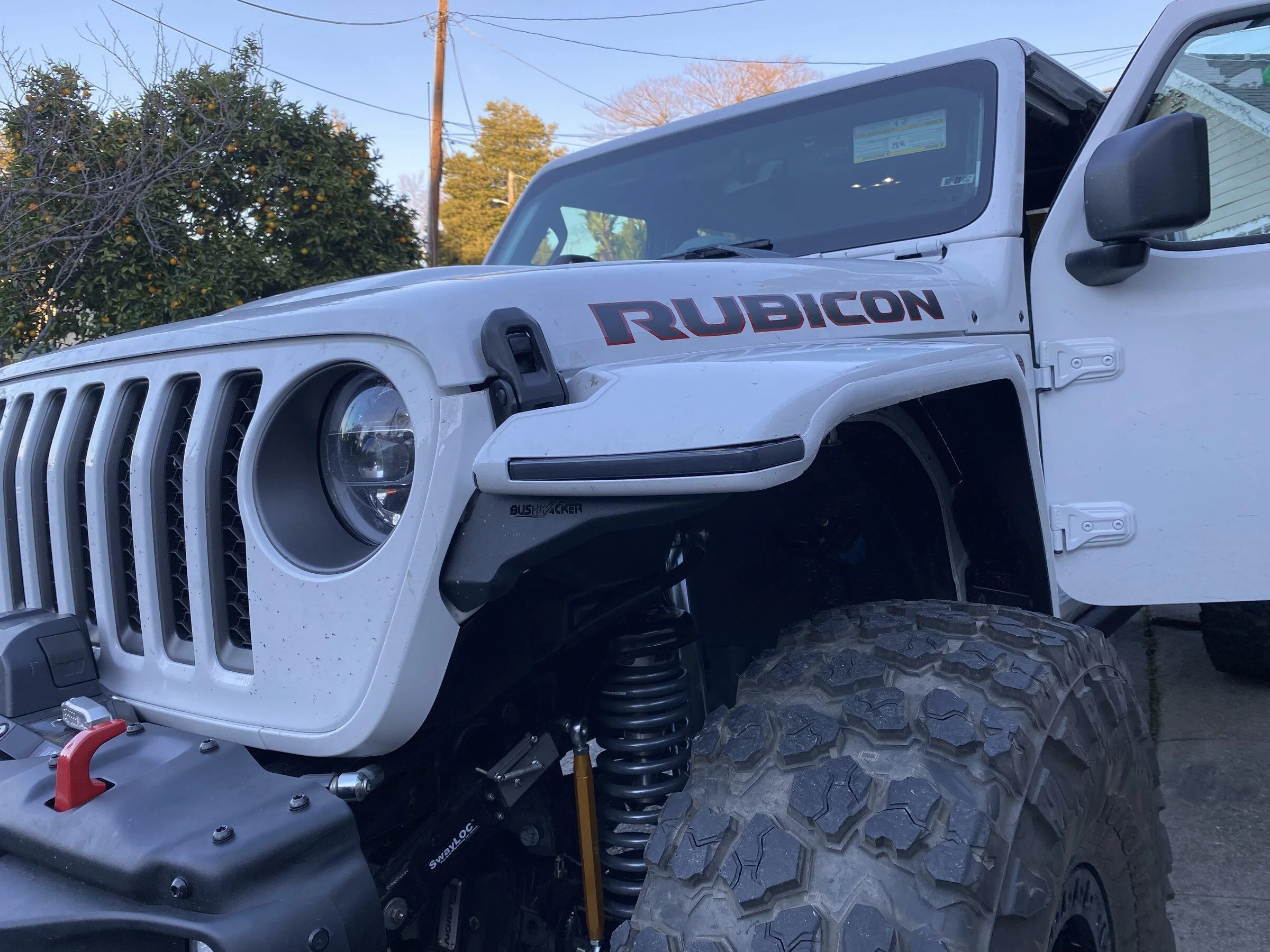

Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build 813D6B58-ADB5-4FC8-81F2-9BE689B6CDF1


Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build 7C236819-B8D0-4399-A616-40B9F79A941F




Sponsored


Last edited:

azmojave

Well-Known Member
First Name
Bobby
Joined
Nov 2, 2021
Threads
47
Messages
2,432
Reaction score
5,049
Location
Phoenix, AZ
Vehicle(s)
2021 Sarge Green Mojave
Occupation
Retired Trucker. Current Sawyer
2021 JTRD
Mods
Front Mopar steel bumper
Warn winch
ARB dual compressor
BushWacker front flares
DeckBed drawer system
AEV Dual sport coil springs front/rear
Bilstein remote reservoir shocks
ACOS front with Bump Stop
Red Neck ported factory box with ram
Teraflex front control arm drop brackets
EVO control arms
EVO front trac bar
EVO rear bump stop
SteerSmarts rear tract bar
Off Road Only front dual rate sway bar
Currie AntiRock rear sway bar
JE Reel front and rear driveshaft’s
KMC Robbie Gordon beadlocks
Yokohama 40x13.5x17 X-MT tires
Fusion 60/80 Axles 72” Wide 5.13 with ARB’s
Fusion 2.5 Ton TieRod and Draglink

Started planning this build with my ‘21 JLURD about a year ago. We pull an off-road trailer. Due to the weight of the trailer, we decided that a Gladiator would be a better Build choice.

Just did a 200 mile test run. Very Happy with the set up. Only small tweaks to do.

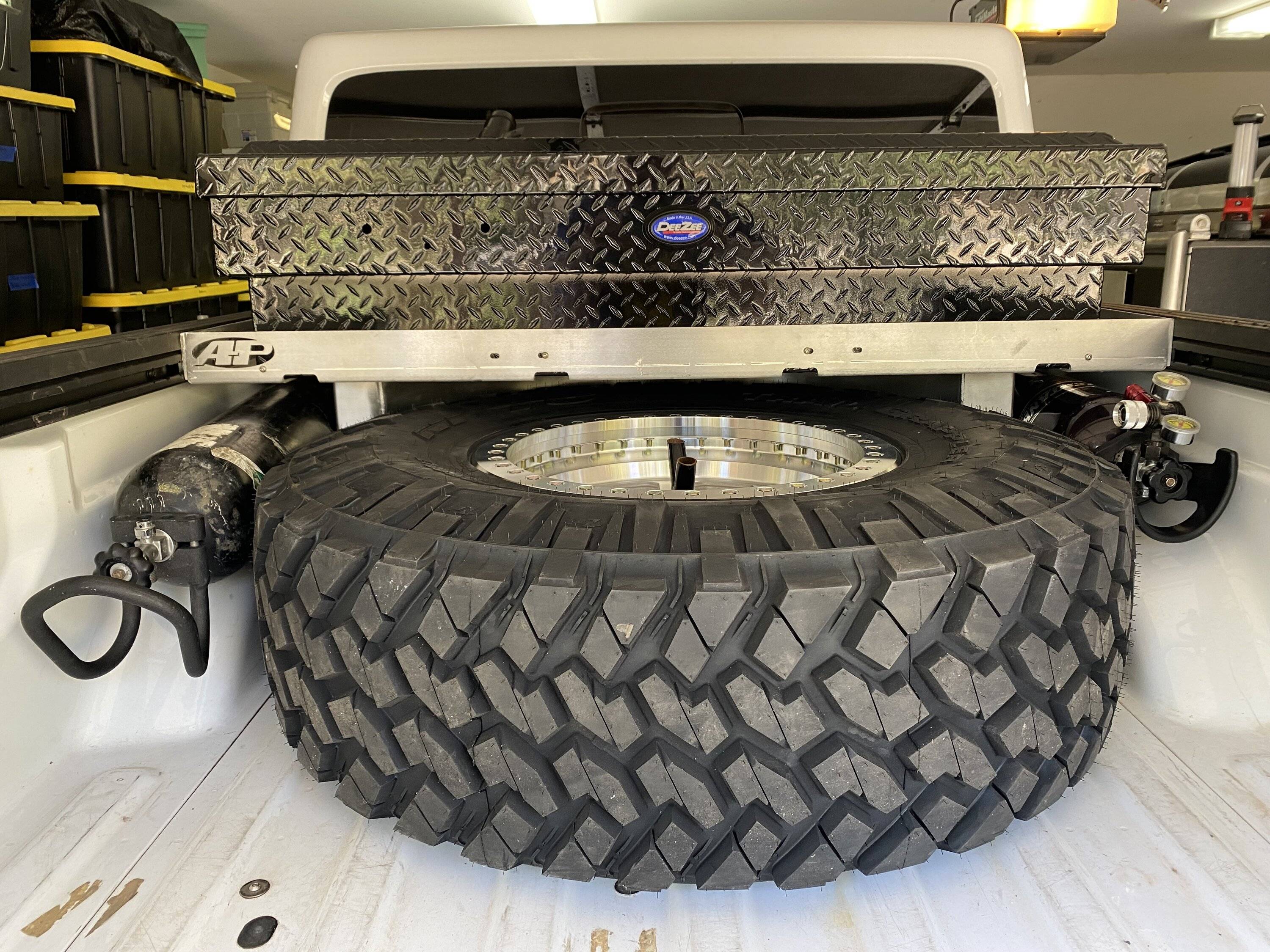

Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291
Very cool. How do you like the X-MT’s? They look gnarly.

OP
OP
NCJL

NCJL

Well-Known Member
First Name
Dean
Joined
Jul 22, 2021
Threads
27
Messages
205
Reaction score
218
Location
New Mexico
Vehicle(s)
JLURD
Build Thread
Link
Occupation
Electrical
Very cool. How do you like the X-MT’s? They look gnarly.
X-MT do look good, have an aggressive appearance. They ride good, sound not an issue. Only have 200 miles on them…
Did not balance the wheel tire combo. The X-MT is definitely a well manufactured tire to be able to cruise at 70mph non balanced.


Sponsored

azmojave

Well-Known Member
First Name
Bobby
Joined
Nov 2, 2021
Threads
47
Messages
2,432
Reaction score
5,049
Location
Phoenix, AZ
Vehicle(s)
2021 Sarge Green Mojave
Occupation
Retired Trucker. Current Sawyer
X-MT do look good, have an aggressive appearance. They ride good, sound not an issue. Only have 200 miles on them…
Did not balance the wheel tire combo. The X-MT is definitely a well manufactured tire to be able to cruise at 70mph non balanced.
I absolutely love them, but not sure it’s a good daily driver choice. But with as much wheelin I do maybe it would be alright. Haven’t heard enough input from owners.


gecko_rubi

Well-Known Member
First Name
Nicholas
Joined
Sep 19, 2021
Threads
6
Messages
132
Reaction score
199
Location
Yorba Linda, CA
Vehicle(s)
‘81 CJ-5, ‘05 LJ, ‘21 JTRD
Occupation
Architect
2021 JTRD
Mods
Front Mopar steel bumper
Warn winch
ARB dual compressor
BushWacker front flares
DeckBed drawer system
AEV Dual sport coil springs front/rear
Bilstein remote reservoir shocks
ACOS front with Bump Stop
Red Neck ported factory box with ram
Teraflex front control arm drop brackets
EVO control arms
EVO front trac bar
EVO rear bump stop
SteerSmarts rear tract bar
Off Road Only front dual rate sway bar
Currie AntiRock rear sway bar
JE Reel front and rear driveshaft’s
KMC Robbie Gordon beadlocks
Yokohama 40x13.5x17 X-MT tires
Fusion 60/80 Axles 72” Wide 5.13 with ARB’s
Fusion 2.5 Ton TieRod and Draglink

Started planning this build with my ‘21 JLURD about a year ago. We pull an off-road trailer. Due to the weight of the trailer, we decided that a Gladiator would be a better Build choice.

Just did a 200 mile test run. Very Happy with the set up. Only small tweaks to do.

Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291


Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291


Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291


Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291


Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291
Are those the Bushwacker HyperForm front fenders - did you get gladiator specific ones or install the Wrangler ones? If Wrangler, any issues with figment?


Elff

Banned
Banned
Joined
Dec 20, 2021
Threads
15
Messages
1,363
Reaction score
3,982
Location
Keebler
Vehicle(s)
TJ Rubicon, Buell XBRS
Occupation
Interwebs
Vehicle Showcase
2
I have Yokohama Geolander M/T G003s on my TJ and I have been incredibly impressed with them Rock Crawling on both dry and wet rocks. What is crazy, is how little weight they took to balance and how great they drive on the street.

Sounds like you are having a similar experience with those.
Yokohama makes some nice tires


SargeDiesel

Well-Known Member
First Name
michael
Joined
Aug 22, 2021
Threads
19
Messages
1,555
Reaction score
1,071
Location
35173
Vehicle(s)
Jeep Gladiator Rubicon Diesel
Occupation
Retired Military
2021 JTRD
Mods
Front Mopar steel bumper
Warn winch
ARB dual compressor
BushWacker front flares
DeckBed drawer system
AEV Dual sport coil springs front/rear
Bilstein remote reservoir shocks
ACOS front with Bump Stop
Red Neck ported factory box with ram
Teraflex front control arm drop brackets
EVO control arms
EVO front trac bar
EVO rear bump stop
SteerSmarts rear tract bar
Off Road Only front dual rate sway bar
Currie AntiRock rear sway bar
JE Reel front and rear driveshaft’s
KMC Robbie Gordon beadlocks
Yokohama 40x13.5x17 X-MT tires
Fusion 60/80 Axles 72” Wide 5.13 with ARB’s
Fusion 2.5 Ton TieRod and Draglink

Started planning this build with my ‘21 JLURD about a year ago. We pull an off-road trailer. Due to the weight of the trailer, we decided that a Gladiator would be a better Build choice.

Just did a 200 mile test run. Very Happy with the set up. Only small tweaks to do.

Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291


Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291


Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291


Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291


Jeep Gladiator ‘21 JTRD TugBoat/Pretty Princess Build IMG_8291
Looks great.. I think there is really something to be said for the paint matching top/fenders. I built mine that way, but seems to be the minority... really looks good on yours.


Sponsored

OP
OP
NCJL

NCJL

Well-Known Member
First Name
Dean
Joined
Jul 22, 2021
Threads
27
Messages
205
Reaction score
218
Location
New Mexico
Vehicle(s)
JLURD
Build Thread
Link
Occupation
Electrical
Are those the Bushwacker HyperForm front fenders - did you get gladiator specific ones or install the Wrangler ones? If Wrangler, any issues with figment?
Yes they are. Bought the JL kit. Only installed front.


TheSolarWizard

Well-Known Member
First Name
Memphis
Joined
Aug 5, 2019
Threads
74
Messages
2,257
Reaction score
2,174
Location
sun belt
Vehicle(s)
NachoJTD
Occupation
Solar & EV infrastructure
How much lift is this total?
why not just split the front fender?
what’s the RPM at 70 in 7th & 8th?
thanks

OP
OP
NCJL

NCJL

Well-Known Member
First Name
Dean
Joined
Jul 22, 2021
Threads
27
Messages
205
Reaction score
218
Location
New Mexico
Vehicle(s)
JLURD
Build Thread
Link
Occupation
Electrical
How much lift is this total?
why not just split the front fender?
what’s the RPM at 70 in 7th & 8th?
thanks

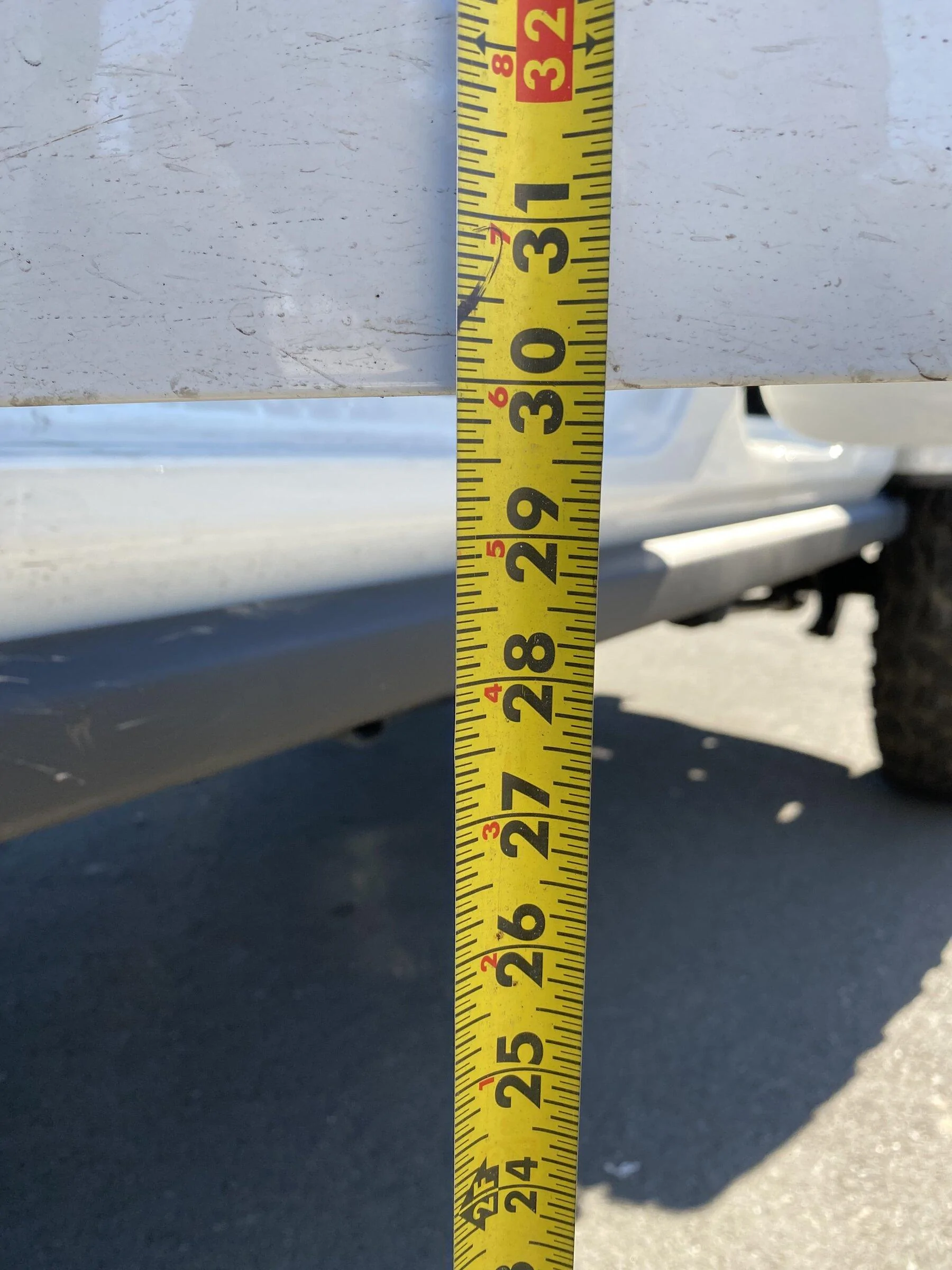

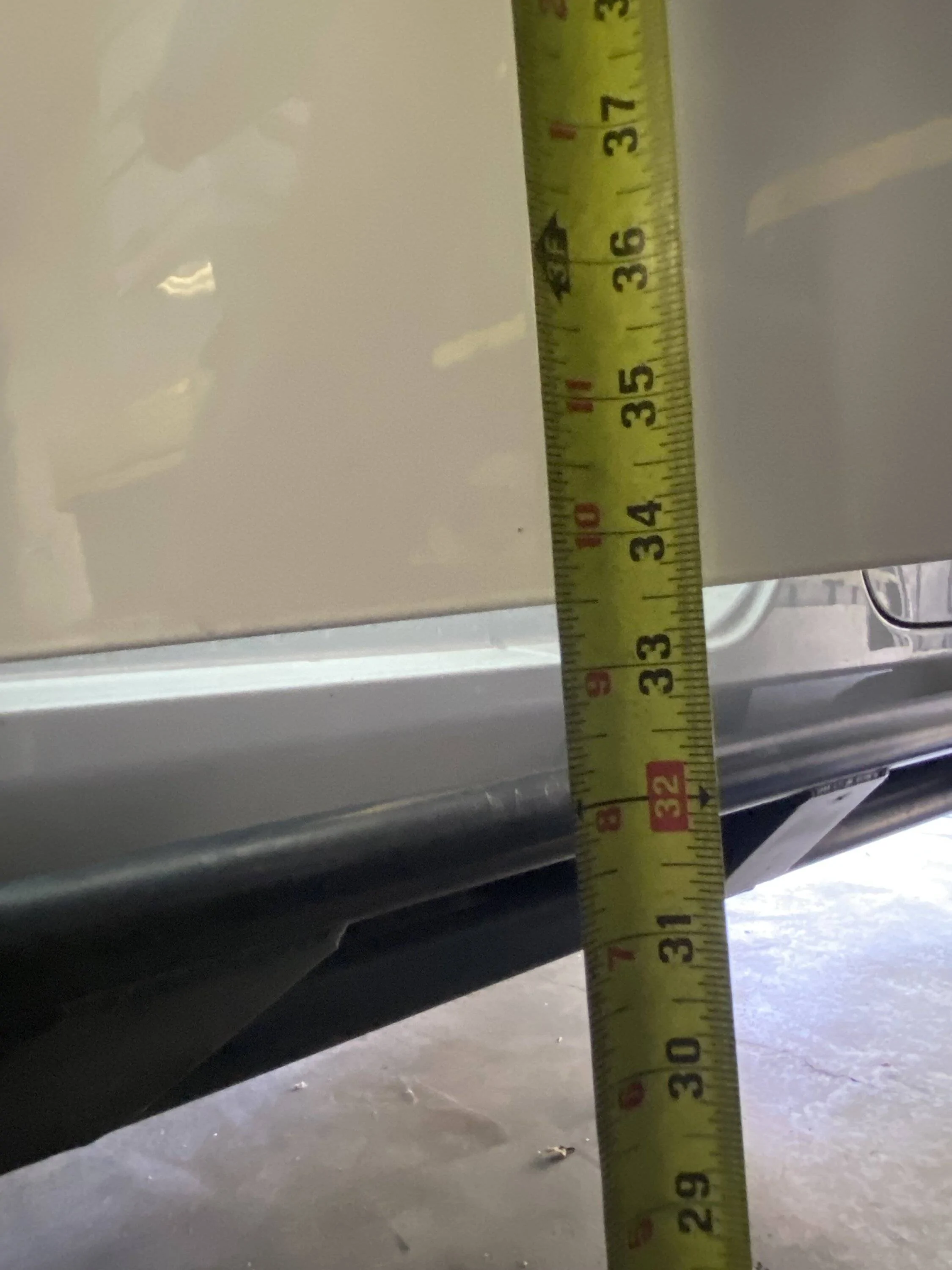

Over stock height for a stock JTRD. I have about 3.5” in suspension lift. The tire adds another 3.5”. The Fusion axles have larger tubes than stock, which also adds about a 1/2” of lift.
Total lift height is about 7.5”.

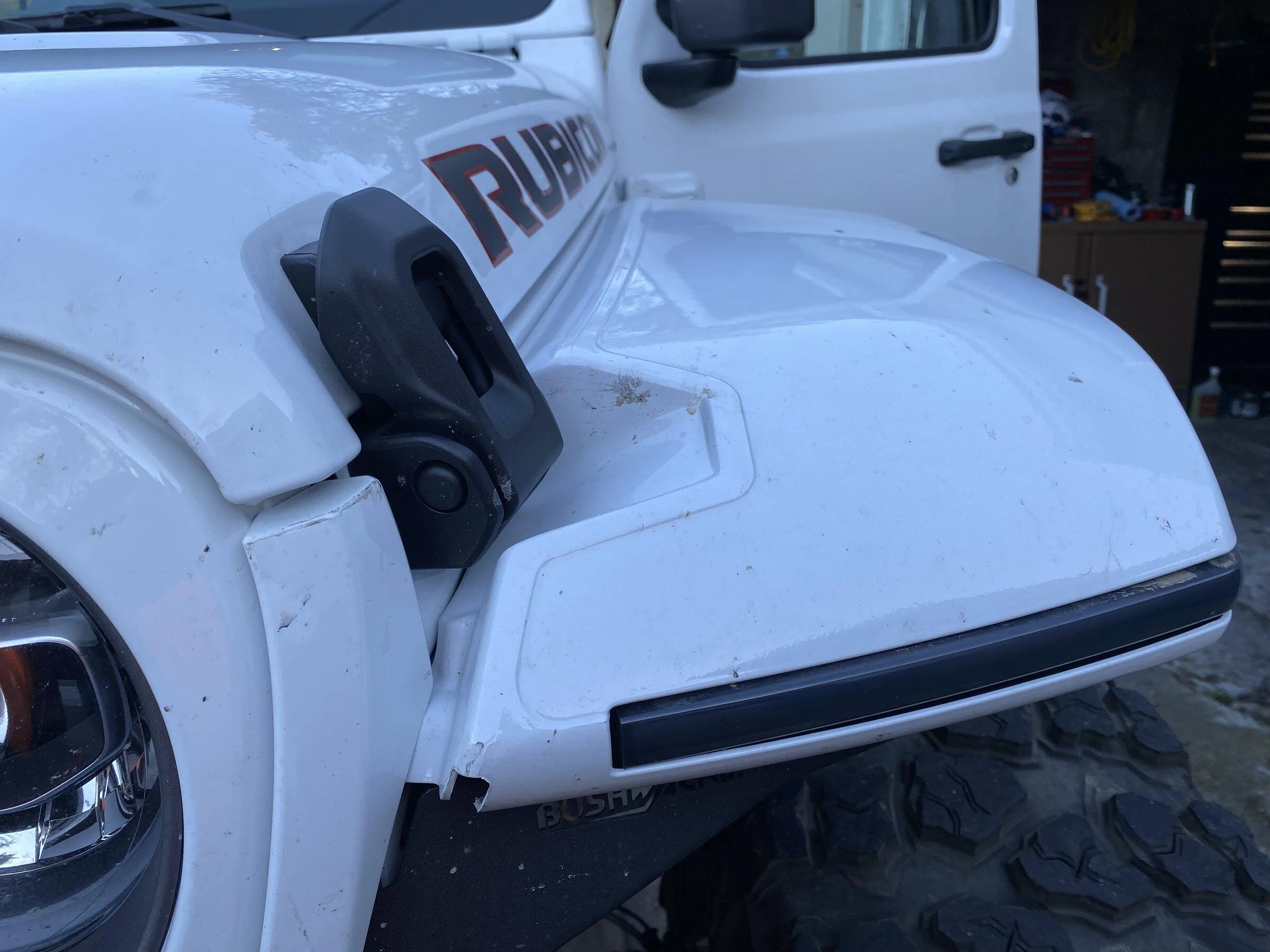

I’m not a fan of the factory front fender flares. The V at the flare to body mount traps everything. The Hyperform fenders close the V and provide a little more up clearance with additional tire coverage, although minimal.
About 2050 RPM in 8th at 70mph. Still tweaking the speedo with GPS. I will update this once confirmed.
I can say first impression with 5.13 gearing and 40’s is positive. Feels very much like stock, pulls very long steep climbs easily with limited downshifting, if at all. Still jumps from 2nd to 3rd too soon, same as factory.


TheSolarWizard

Well-Known Member
First Name
Memphis
Joined
Aug 5, 2019
Threads
74
Messages
2,257
Reaction score
2,174
Location
sun belt
Vehicle(s)
NachoJTD
Occupation
Solar & EV infrastructure
Over stock height for a stock JTRD. I have about 3.5” in suspension lift. The tire adds another 3.5”. The Fusion axles have larger tubes than stock, which also adds about a 1/2” of lift.
Total lift height is about 7.5”.
I’m not a fan of the factory front fender flares. The V at the flare to body mount traps everything. The Hyperform fenders close the V and provide a little more up clearance with additional tire coverage, although minimal.
About 2050 RPM in 8th at 70mph. Still tweaking the speedo with GPS. I will update this once confirmed.
I can say first impression with 5.13 gearing and 40’s is positive. Feels very much like stock, pulls very long steep climbs easily with limited downshifting, if at all. Still jumps from 2nd to 3rd too soon, same as factory.
thank u so much!
I think a 75-80mph cruise might be a little too high on the RPMto make me comfortable.
how is 4low stopping?

OP
OP
NCJL

NCJL

Well-Known Member
First Name
Dean
Joined
Jul 22, 2021
Threads
27
Messages
205
Reaction score
218
Location
New Mexico
Vehicle(s)
JLURD
Build Thread
Link
Occupation
Electrical
I just finished a 560 mile drive from Laughlin NV to the Bay Area CA. Average speed 70mph. 17MPG average for the trip.

1850 RPM @65MPH in 8th about 22mpg.
2050 RPM @70MPH in 8th about 18mpg.
2250 RPM @75MPH in 8th about 15mpg.
Add 500 RPM same speed in 7th.
The “about” mpg is on flat road.

65MPH is what I based my gear choice on. My long trips will be towing a 4K off-road trailer. Possibly go to 42” Nitto’s next tire purchase.
