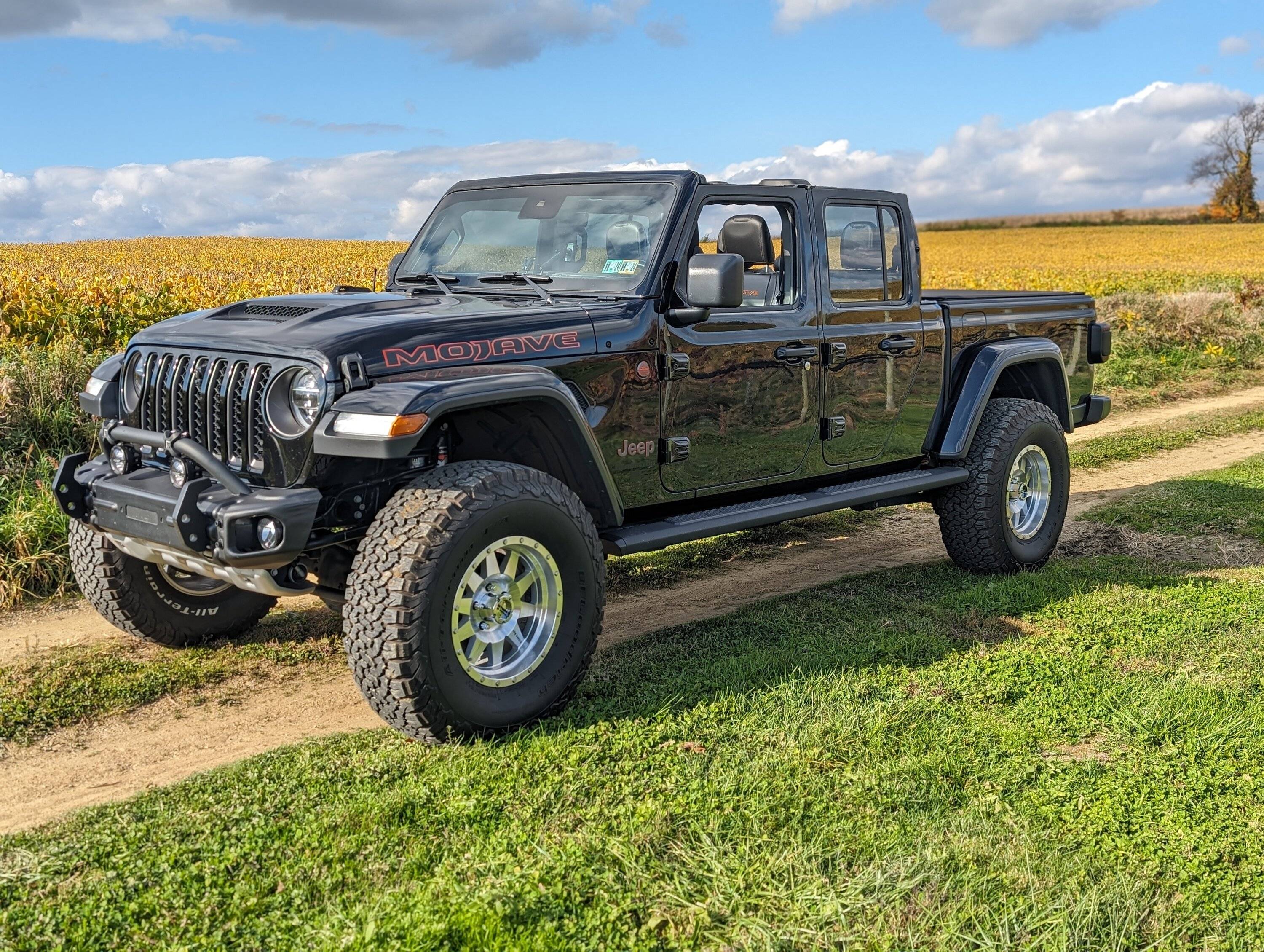

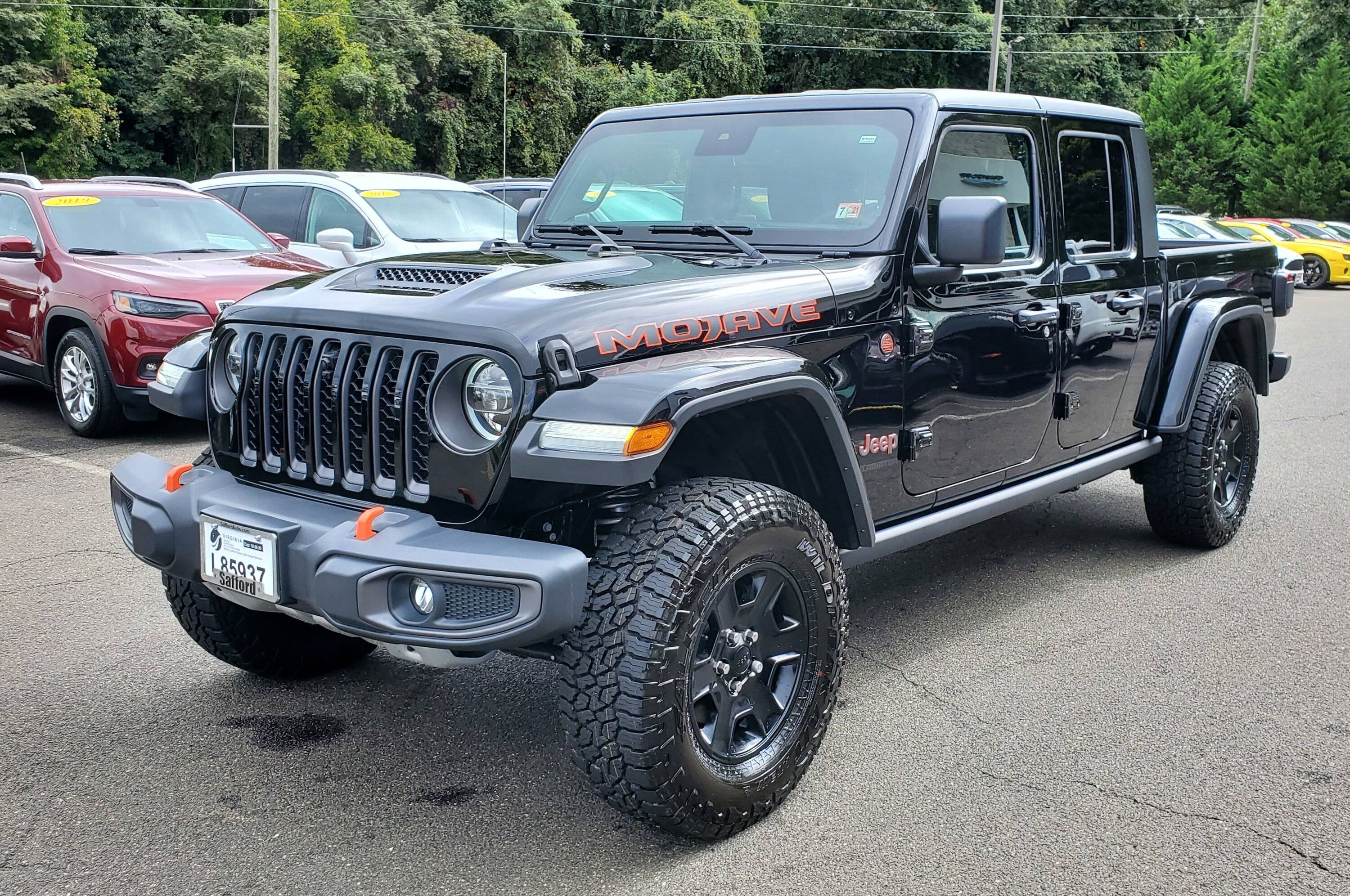

My story begins October 6th, 2020 when we traded our Punkin Orange 2018 JL Rubicon. I wanted another truck and the wife said fine as long as the top and doors come off. We knew what we wanted and found that we couldn't make a deal in Lehigh Valley so I ended up in Warrenton, Va. The Mojave was perfect, stocked full of options, off the lot and really didn't need anything but there were two issues. A 4-hour ride home to contemplate things and the bigger problem, I can't leave well enough alone.

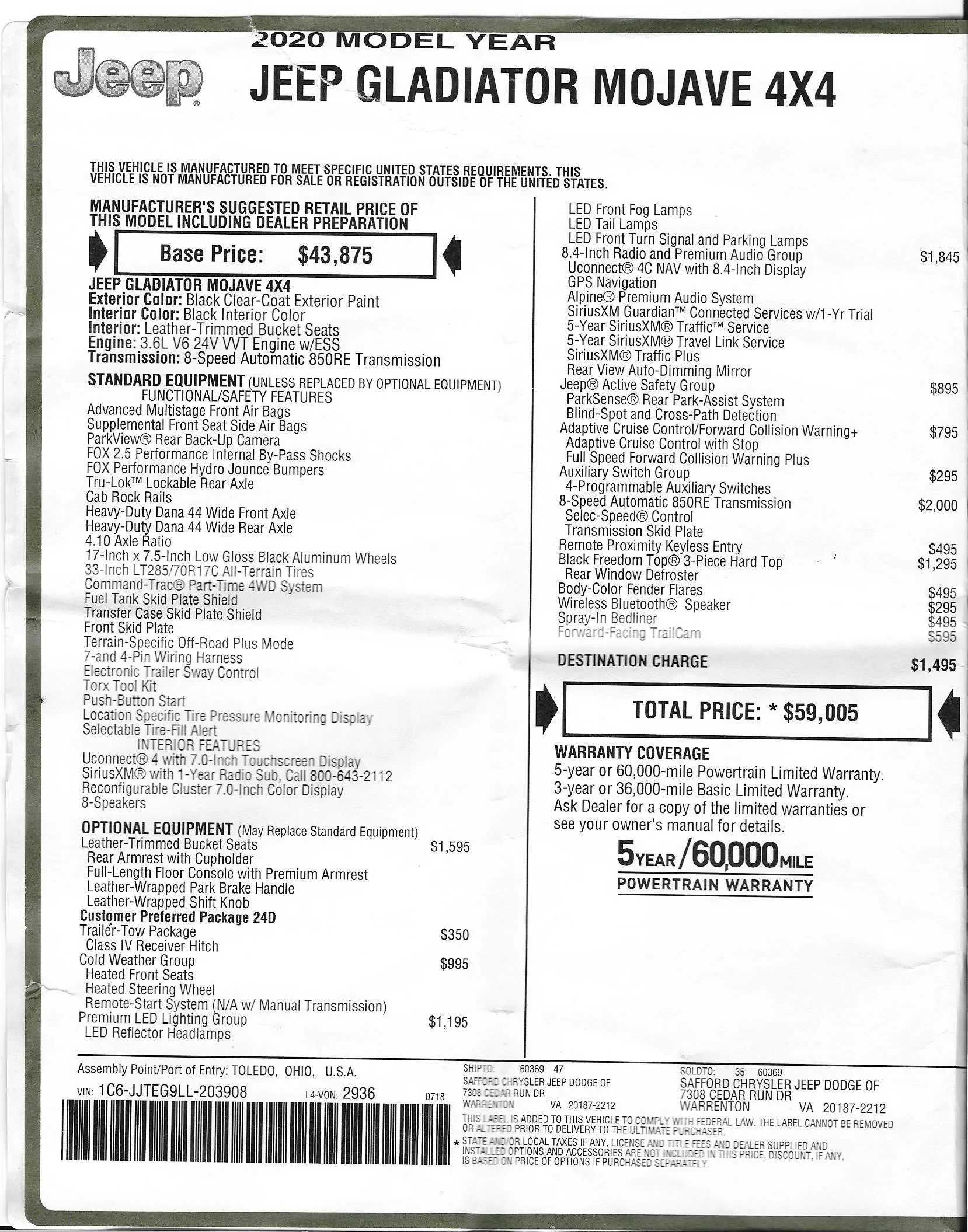

Window Sticker for Mojave.jpg
Sponsored


OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1
Last edited:
OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1
Last edited:
OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1

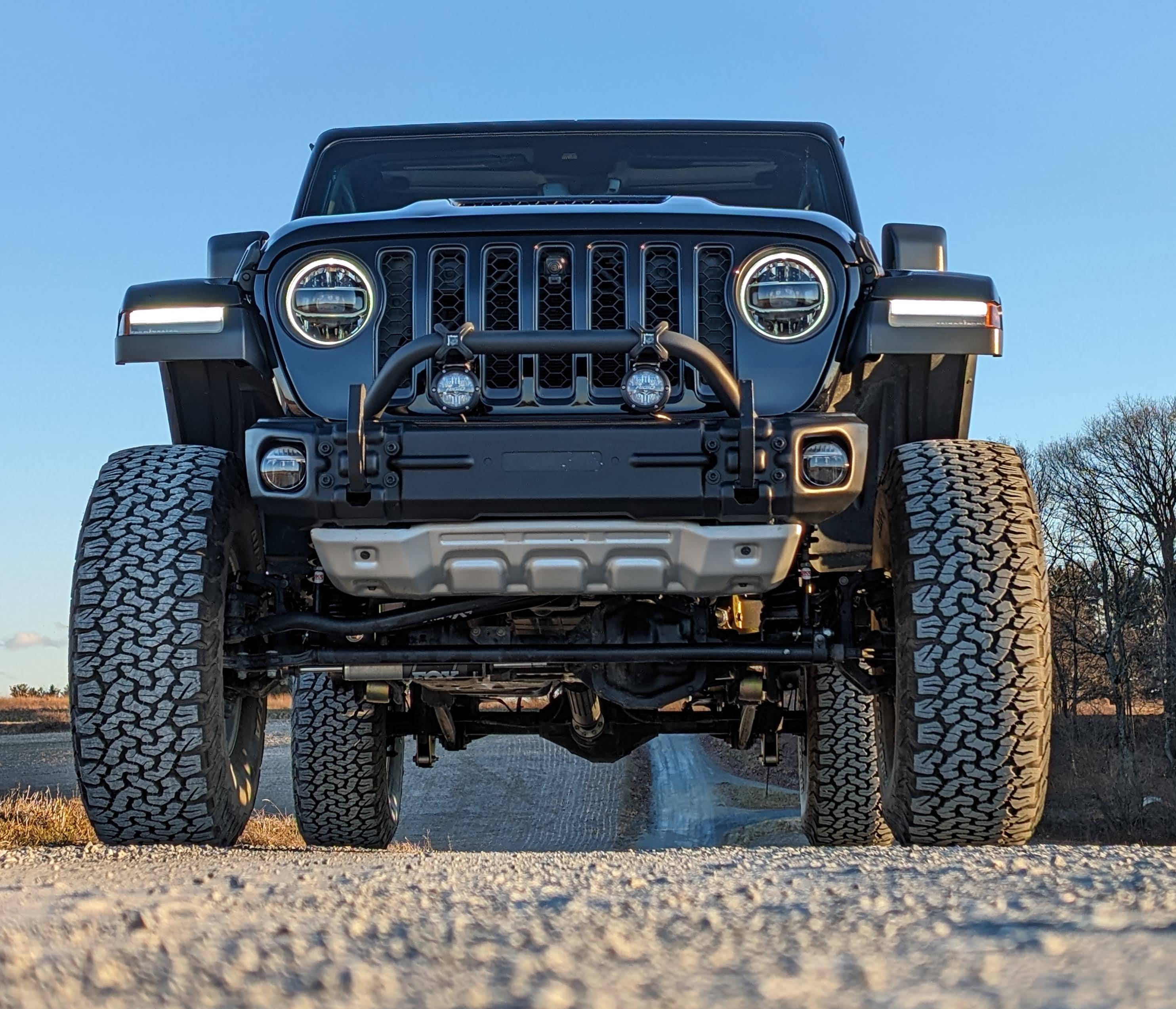

I wanted a little more clearance, so the next iteration involves a 3.5" lift. I had searched through the forum and found others who had installed the 3.5" Game Changer lifts and particularly one person who had a Mojave like mine. I checked his measurements between the 37" tires and fenders and used that information to only purchase the front springs because my rear with the 1-1/2" spacers was already taller than his. After installing the front springs, my installation was taller than his and now my Mojave sat a little higher in the front and after that things have snowballed.

After installing the springs and shock extensions, I experienced death wobble over 50 mph. I had the tires balanced and played around with tire pressures. Reading the forum provided me insight so I ordered adjustable control arms, sector shaft brace which helped but the Mojave still did not drive like I was used to which sent me the direction of geometry correction brackets.

Metal Cloak
JT Gladiator 3.5", JL Wrangler 4 Door, 4.5"/ 2 Door 5.5" True Dual Rate Coils, Front
Upper Front Stock Shock Mount Kit, JT Gladiator Mojave
Sector Shaft Brace, JL Wrangler | JT Gladiator
3" Rear Shock Extension Kit, JT Gladiator All Models
JT Gladiator Rear Replacement Brake Lines, 24.5"
JT Gladiator Upper Rear DuroSpring Replacement Bump Stops
JT Gladiator Rear Track Bar Relocation Bracket
HD Control Arm Pro'lignment Kit, JL Wrangler | JT Gladiator
JT Gladiator Rear Sway Bar Link Kit, 12.25"
JT Gladiator, 3.5" True Dual Rate™ Coils, Rear

Core 4x4
Adjustable Front Set Control Arms - Jeep, Gladiator JT, 2020, 2023 - Black × 1
Adjustable Front Axle Drag Link - Jeep, Gladiator JT, 2020, 2023 - Black × 1
Adjustable Rear Set Control Arms - Jeep, Gladiator JT, 2020, 2023 × 1

JKS
JKS Quicker Disconnects 2.5-6IN LIFT

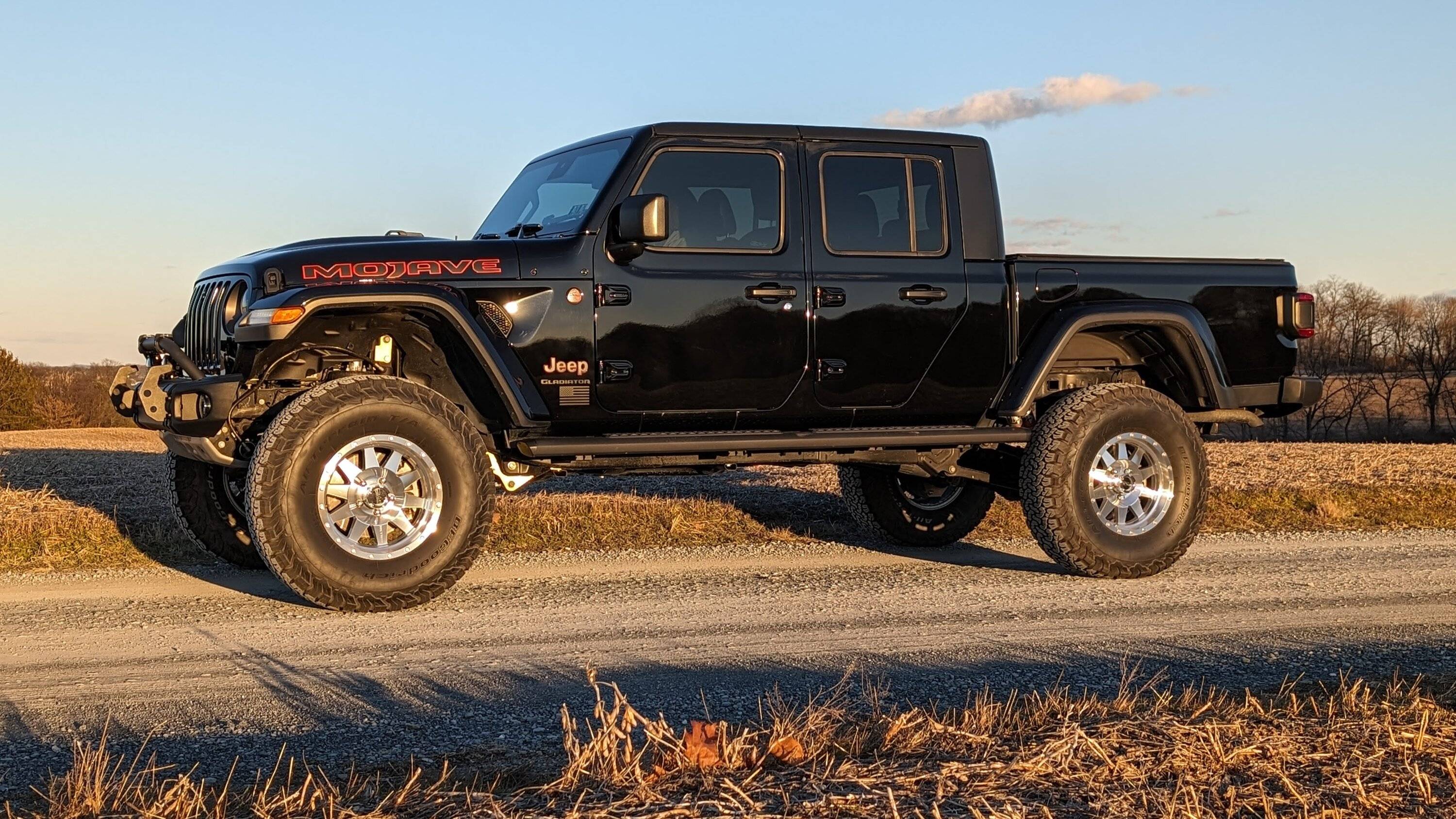

Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20240114_212006706


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20240114_212206579

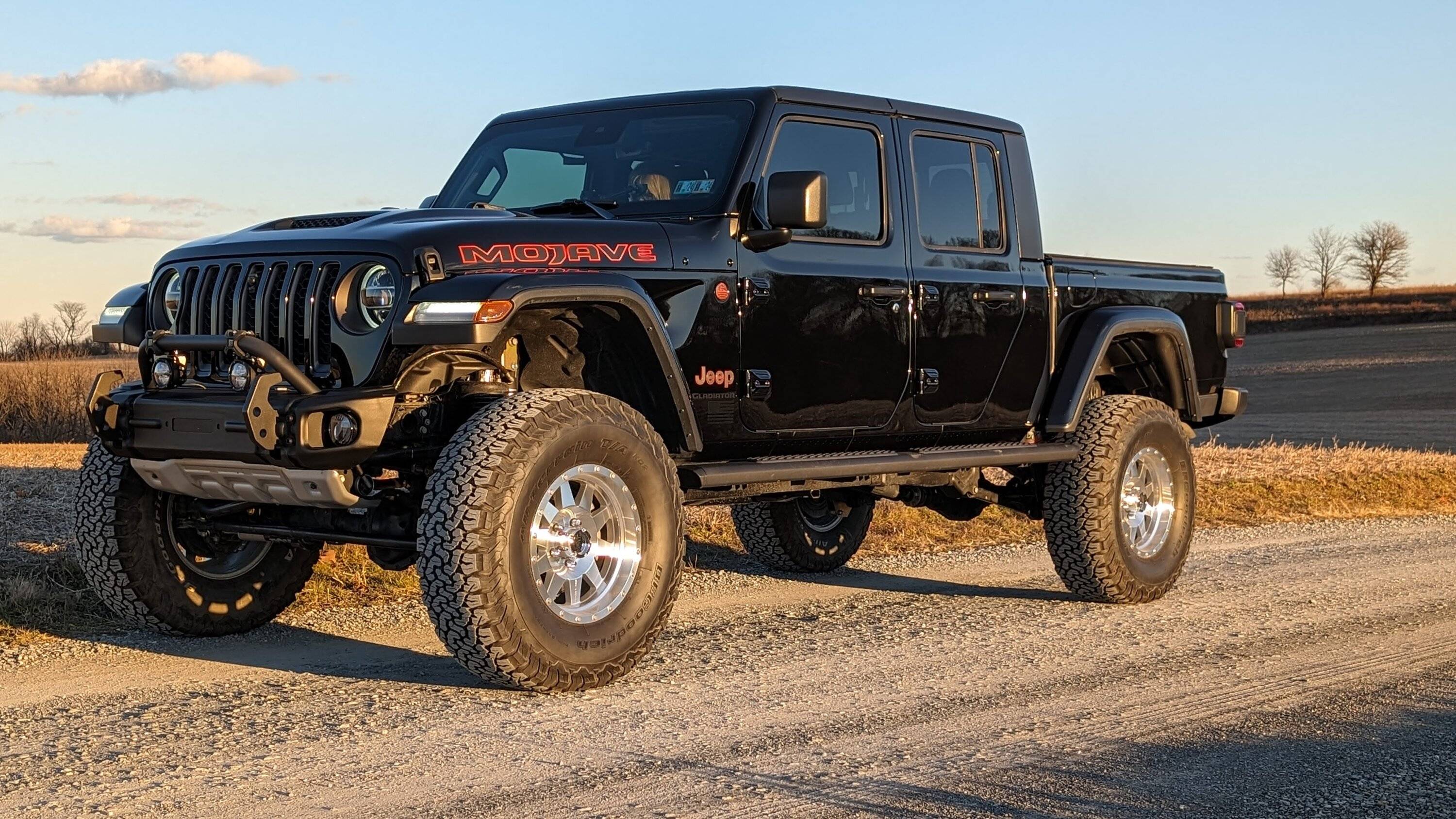

Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20240114_212018742

Last edited:
OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1

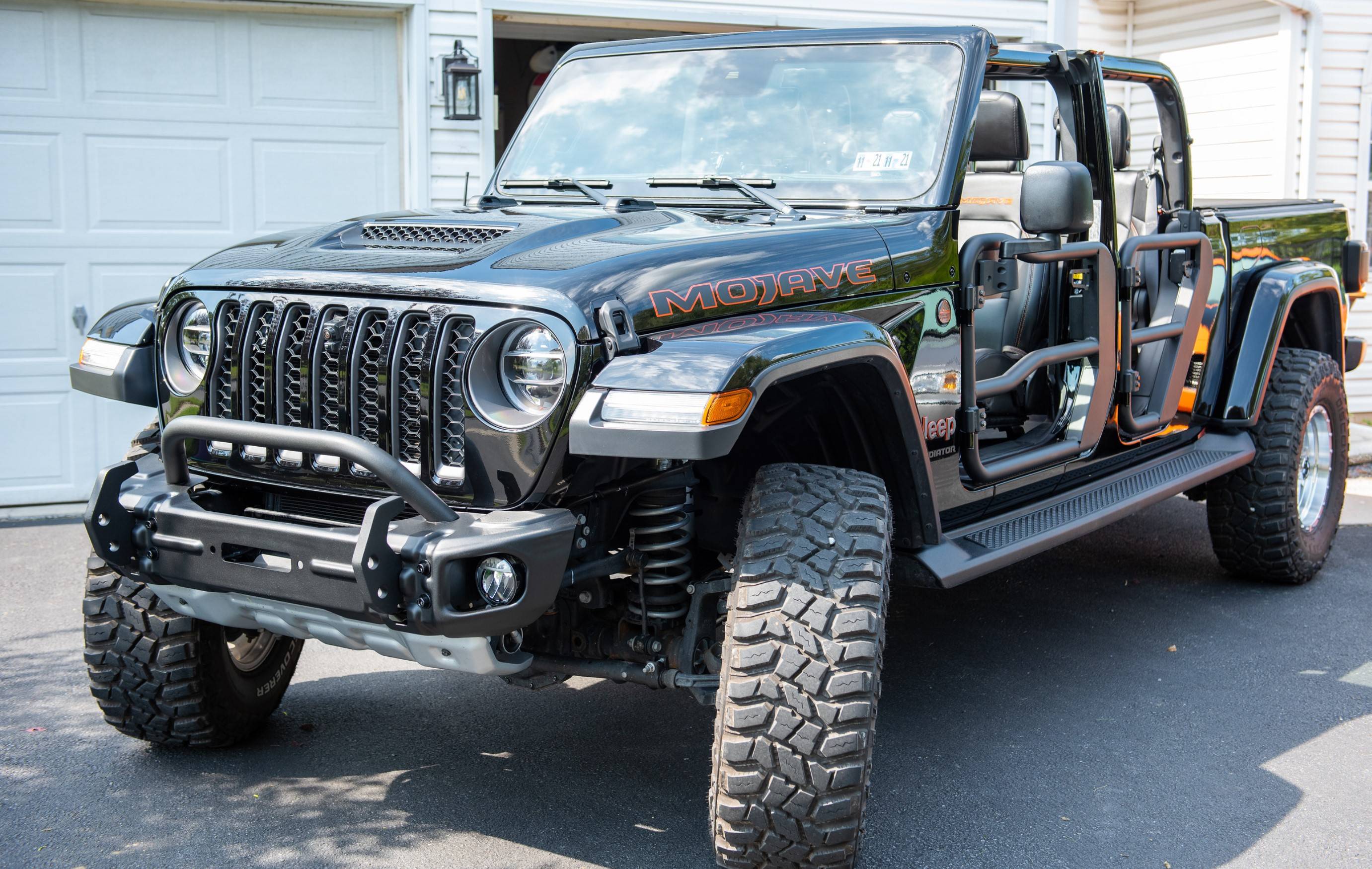

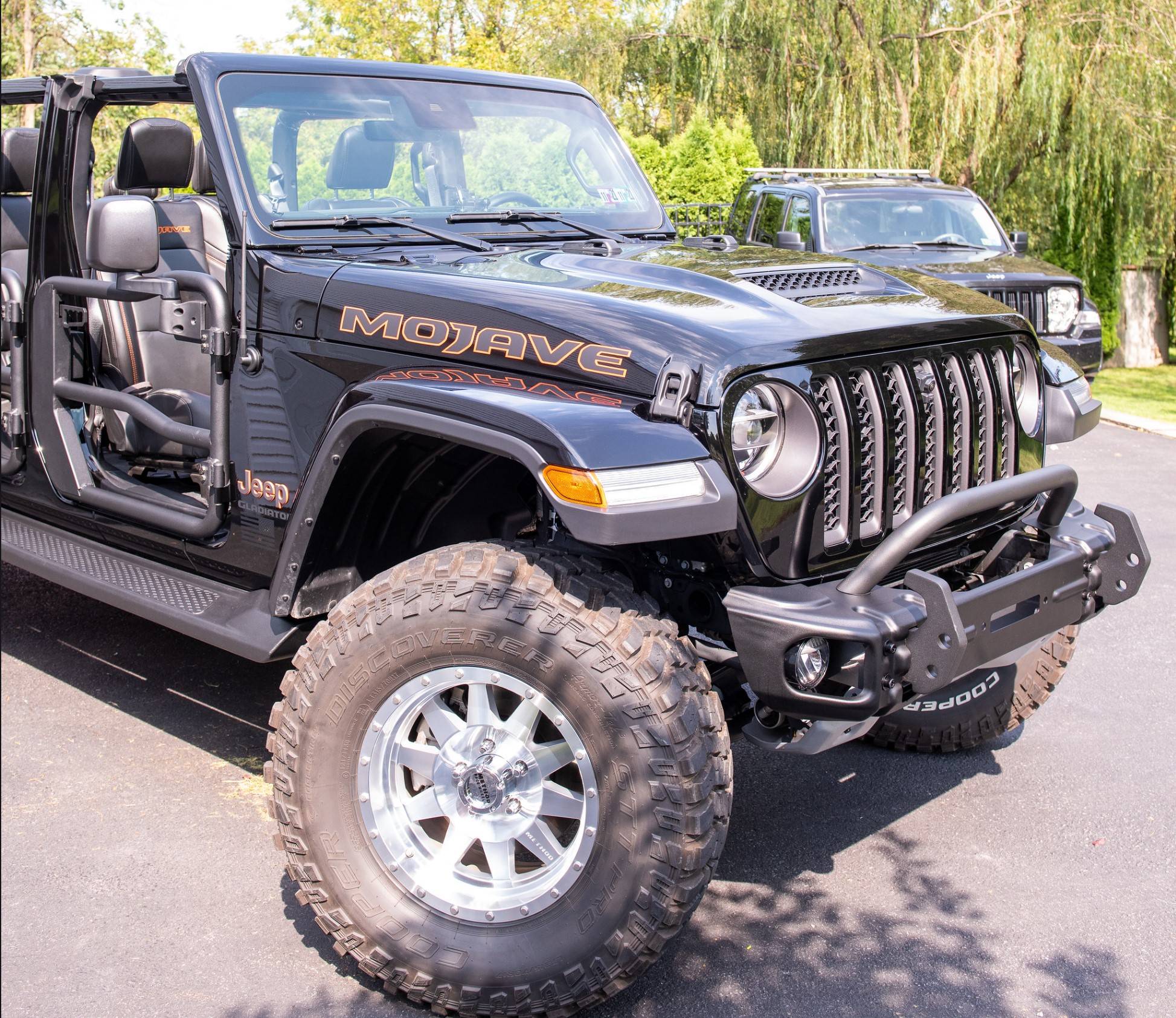

The Rugged Ridge Arcus with Overrider. What I like about the bumper is the stamped metal shell and stubby design and fairly lightweight. It mates to the Mojave skid plate without issue.

I have no plans of installing a winch, so I scoured the internet searching for blank out panels for the Arcus. I was unable to find any, so I pulled the bumper off and began my quest to make the front bumper as light as possible and eliminate the large gaping holes.

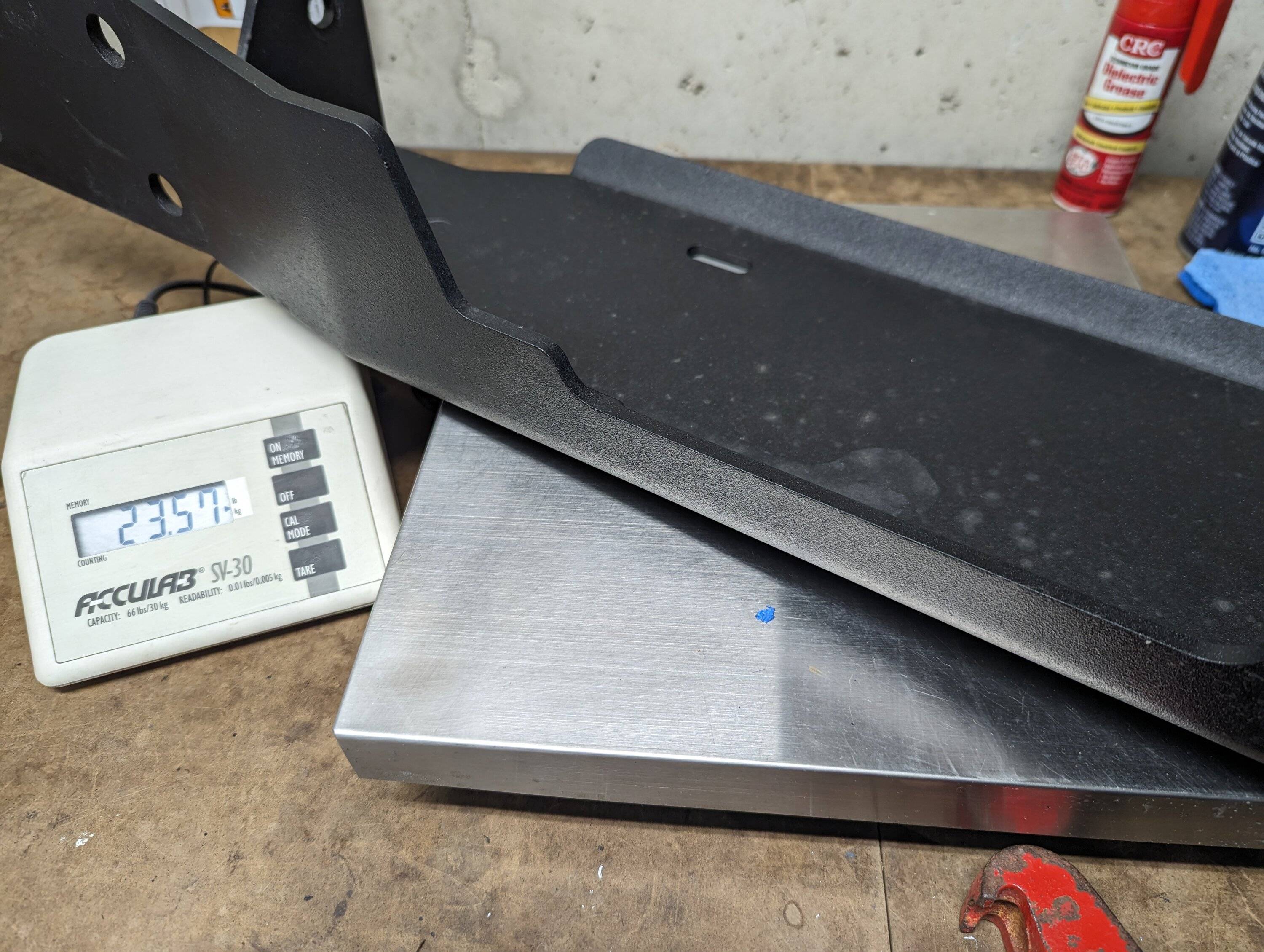

I removed the bumper and created a template that I could use to cut blank out panels. I found textured bed coating that matched the bumper. When I reinstalled the bumper, I left the 23 lbs. winch plate off.

Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone Arcus Bumper


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone Arcus Bumper1

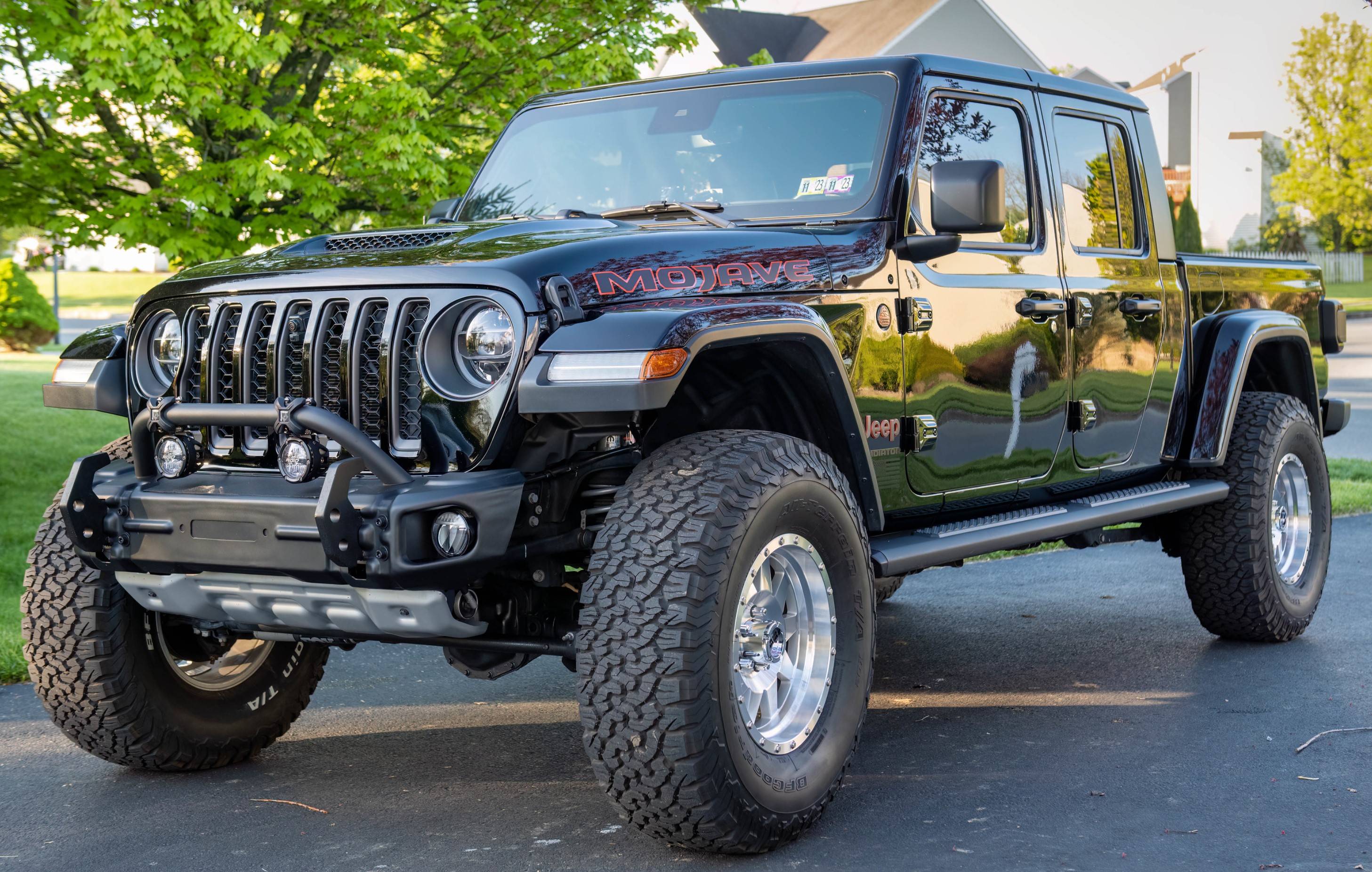

Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone Arcus with Blank Outs

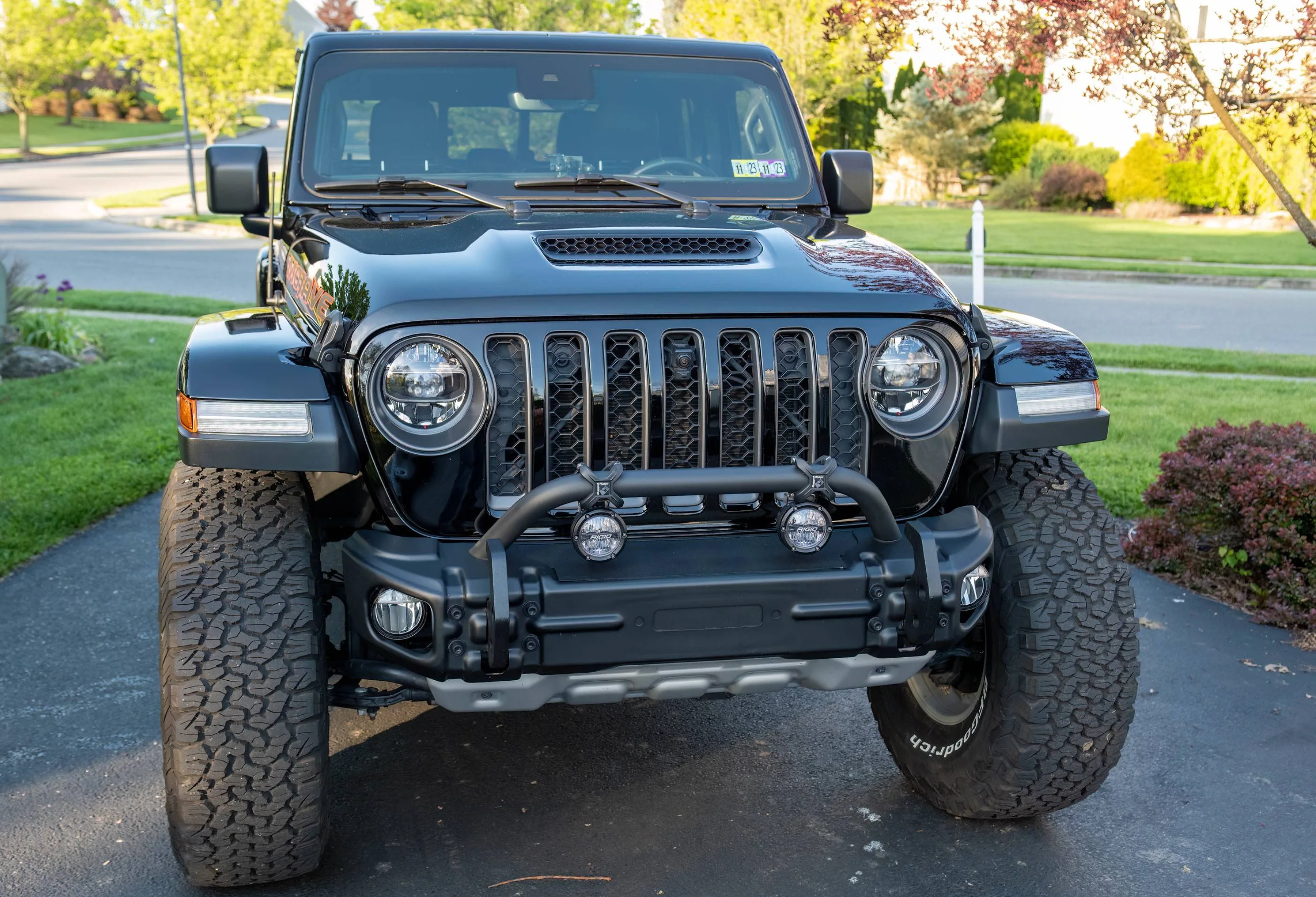

Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone Arcus with Blank Outs1









Last edited:

Sponsored

OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1
OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1

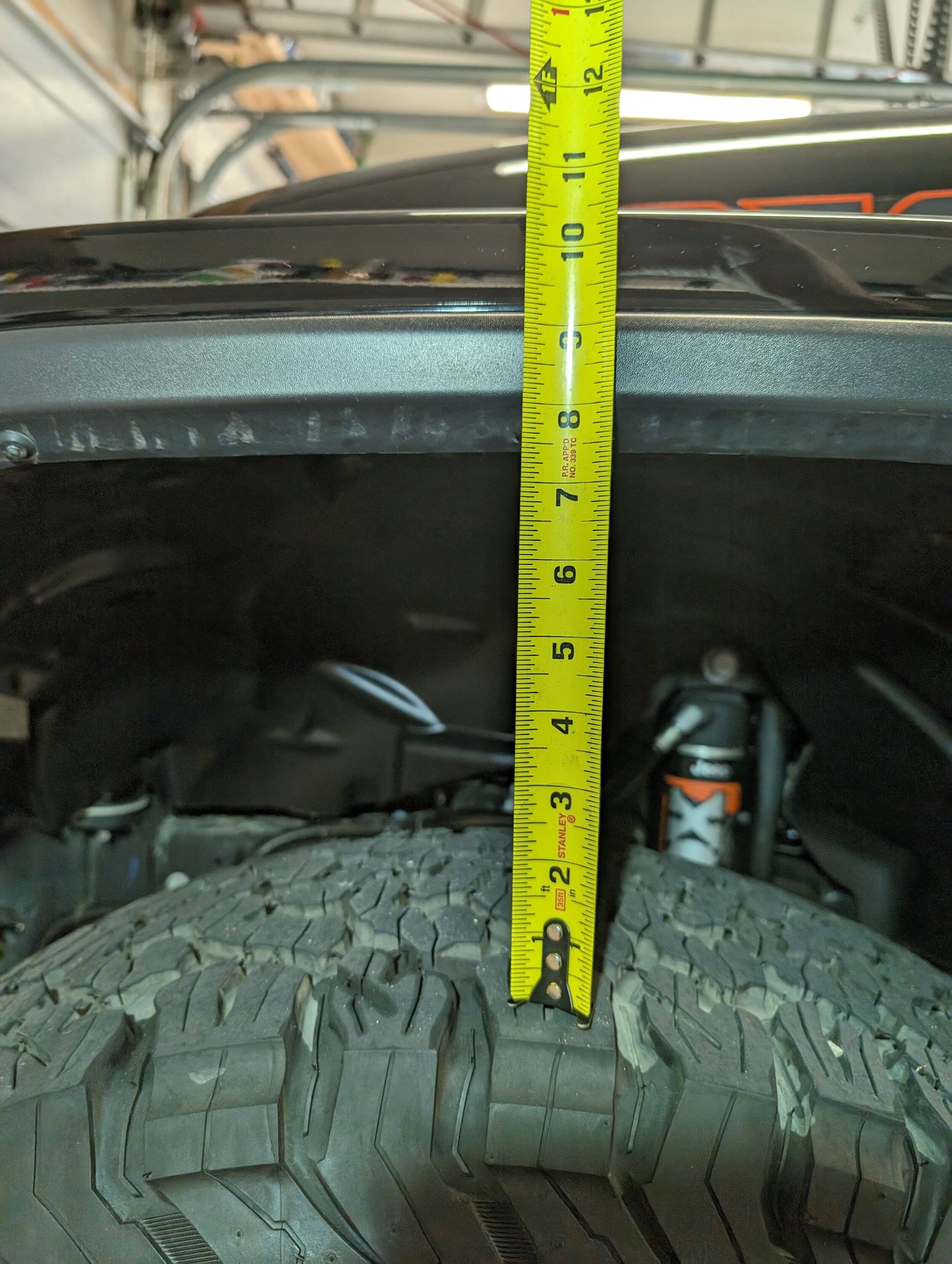

Mojave Springs, 1.5" Teraflex Front Spacers, Fat Bob's Garage 1.5" Rear Spacers, 37" x 12.5 17 BFG KO2

Clearance between tire and front fender is ~7.5"
Clearance between tire and rear fender is ~7.5





Reddout99

Well-Known Member
First Name
Bob
Joined
Oct 27, 2022
Threads
10
Messages
268
Reaction score
249
Location
Papillion, NE
Vehicle(s)
Black 2021 80th Anniv. JT Sport S
Occupation
Cad Manager
Vehicle Showcase
1

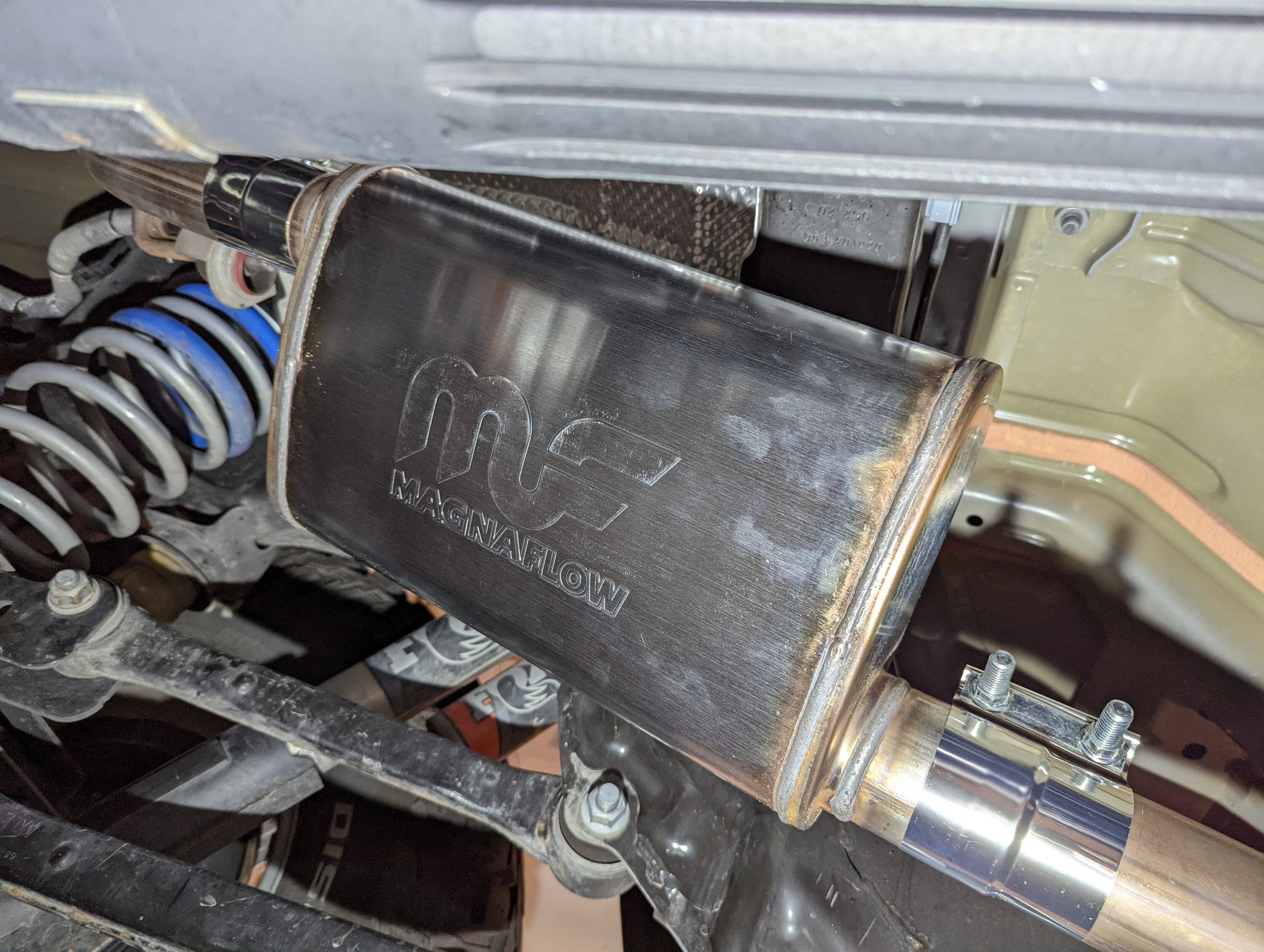

You are not kidding! Nice work and quality components. Couldn't get any sound from you exhaust video though

OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1
JT Gladiator 3.5", JL Wrangler 4 Door, 4.5"/ 2 Door 5.5" True Dual Rate Coils, Front
JT Gladiator, 3.5" True Dual Rate™ Coils, Rear with Fat Bob's Garage 1.5" Rear Spacers, 37" x 12.5 17 BFG KO2

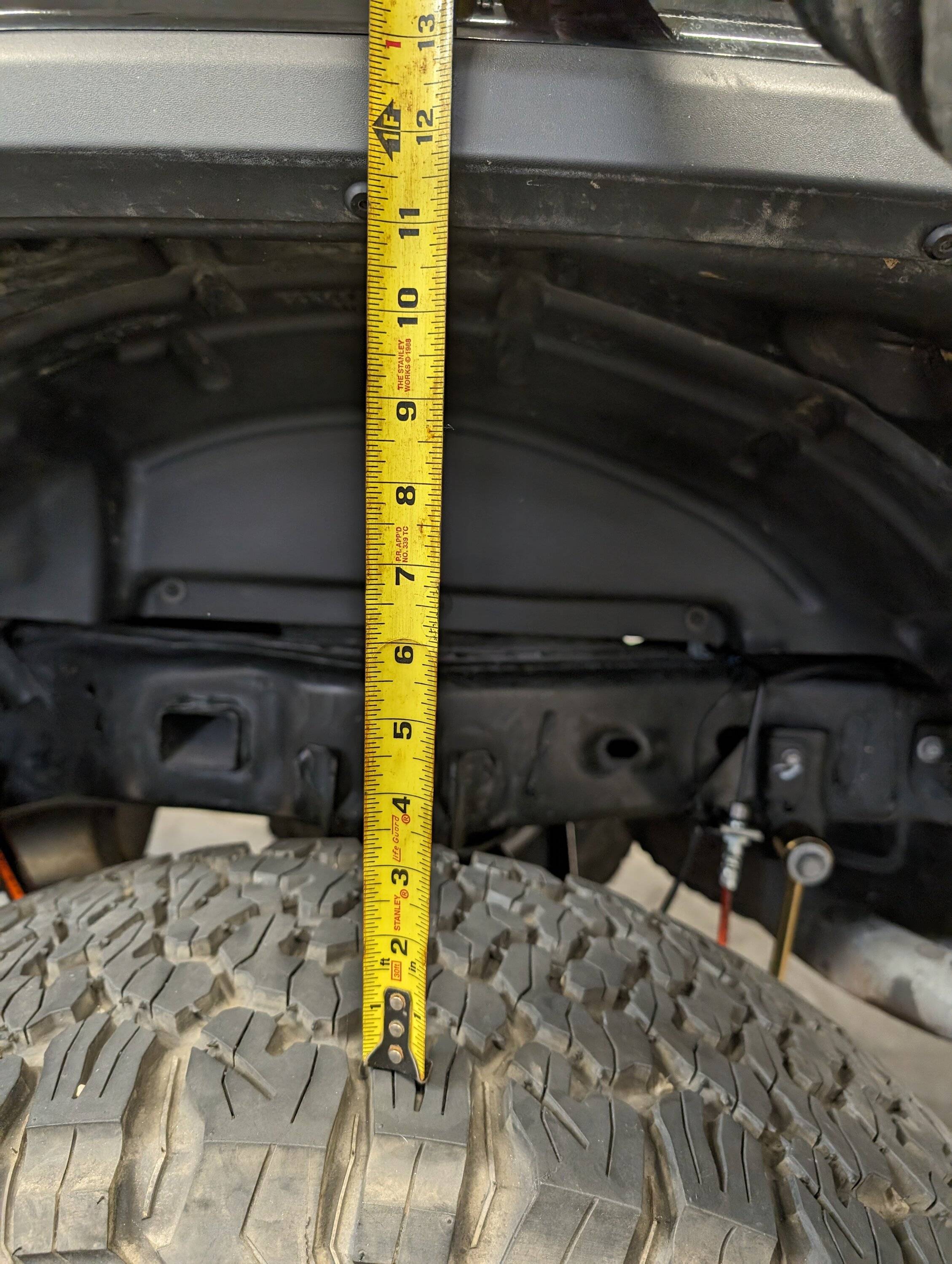

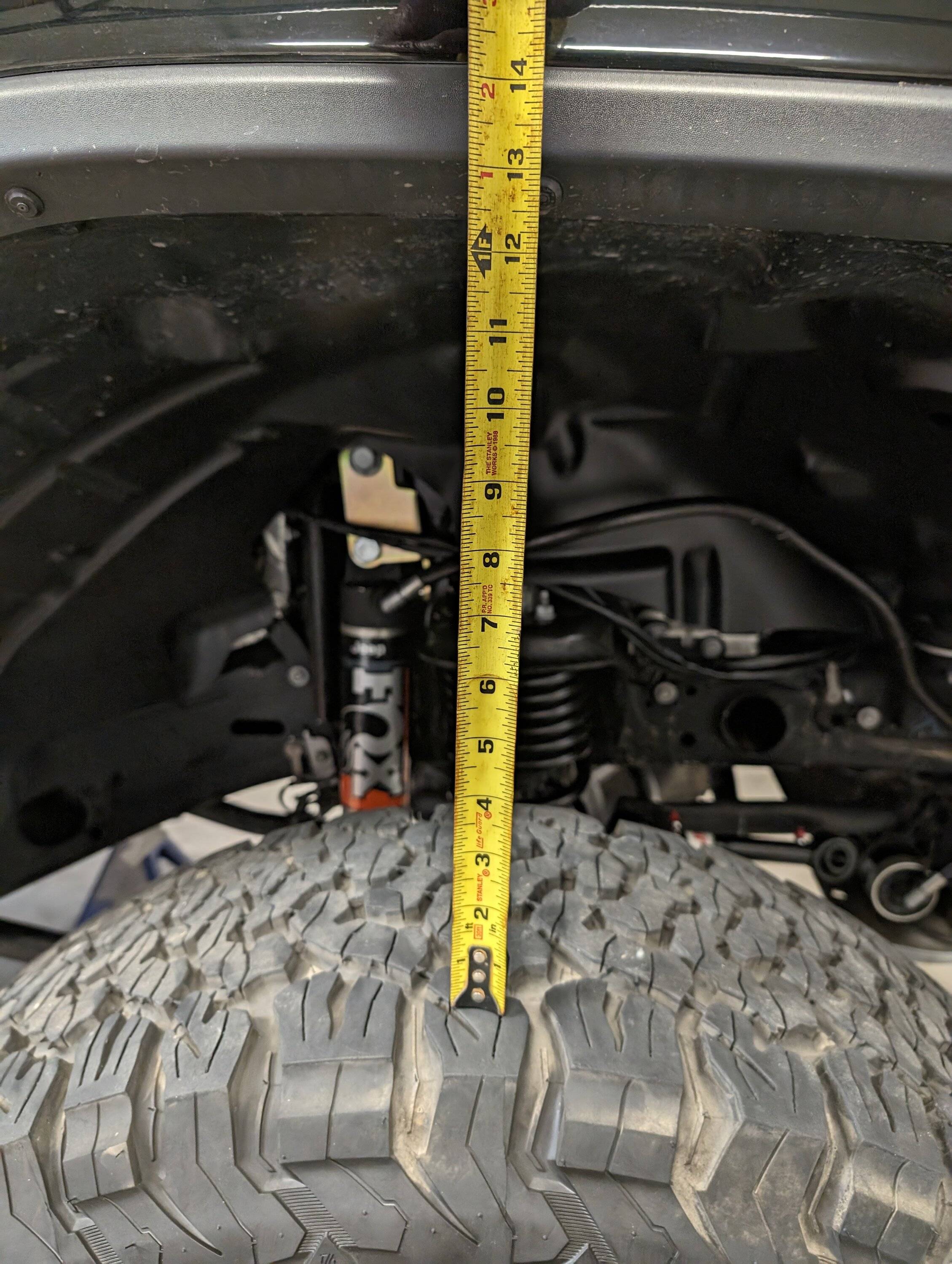

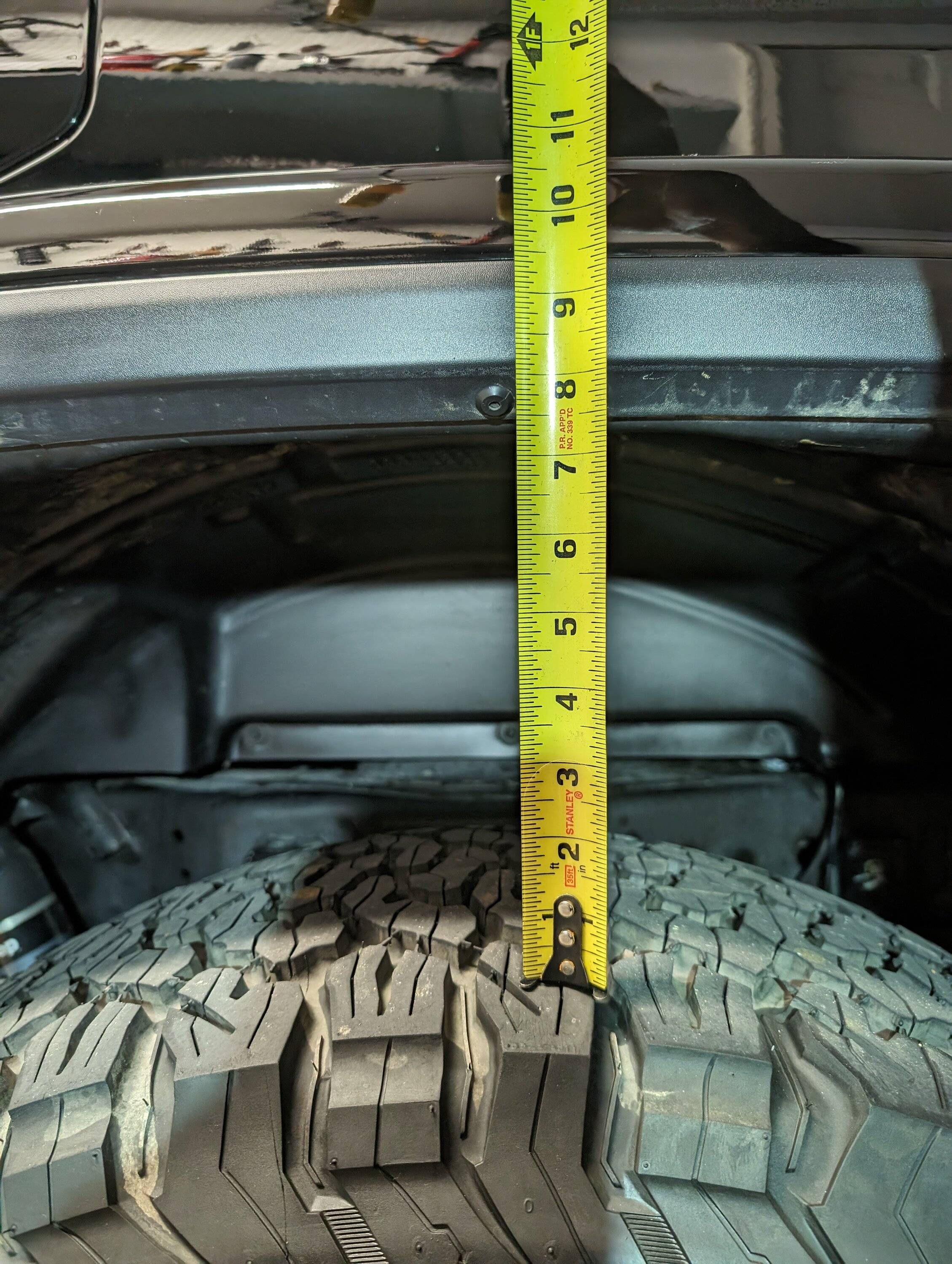

Clearance between tire and front fender is ~12.25"
Clearance between tire and rear fender is ~11.5"

Not realizing the amount of lift I would end up with I chose to keep the spacers however after driving it and the amount of rake, I will either remove the spacers or use 3/4".

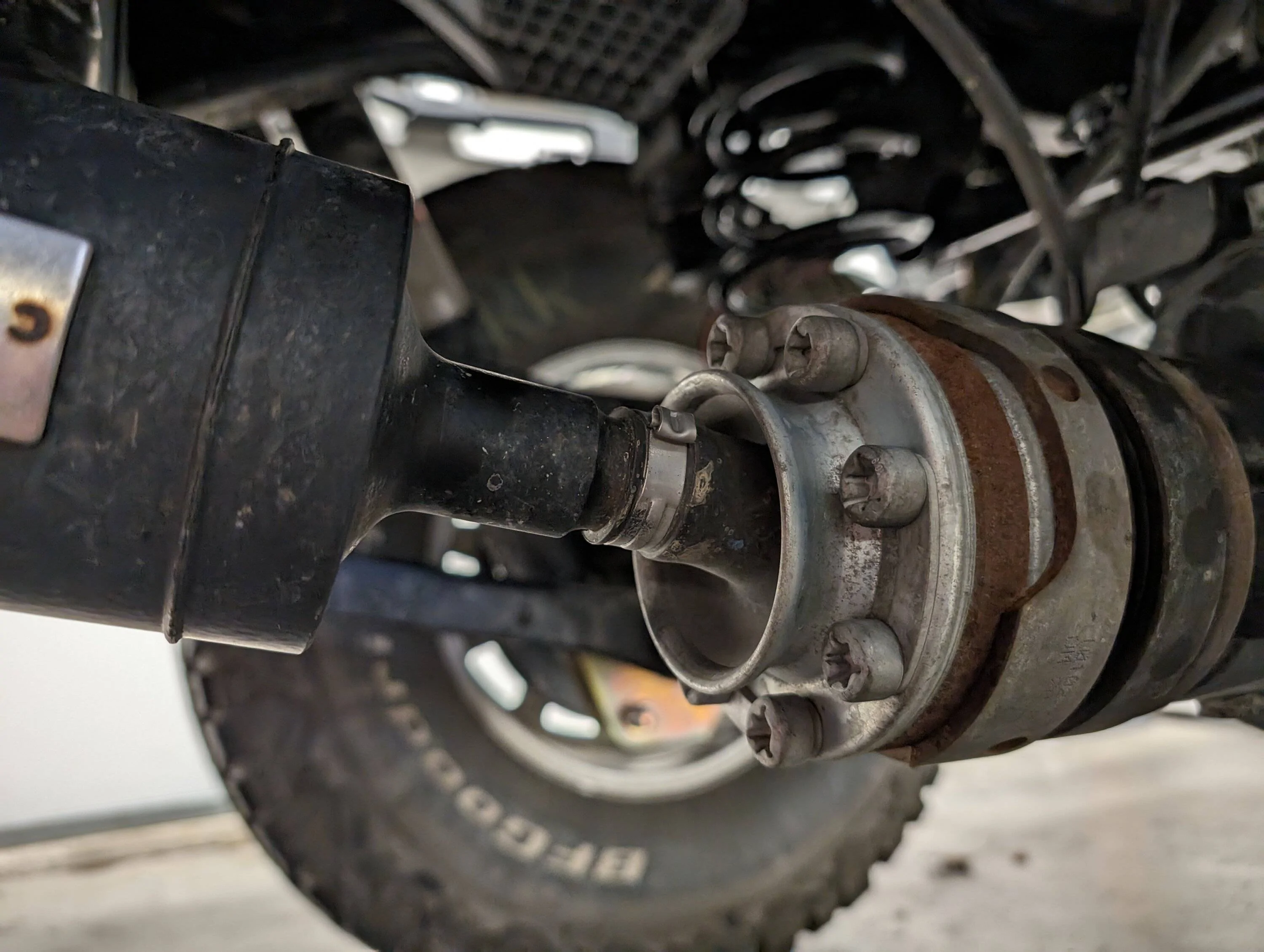

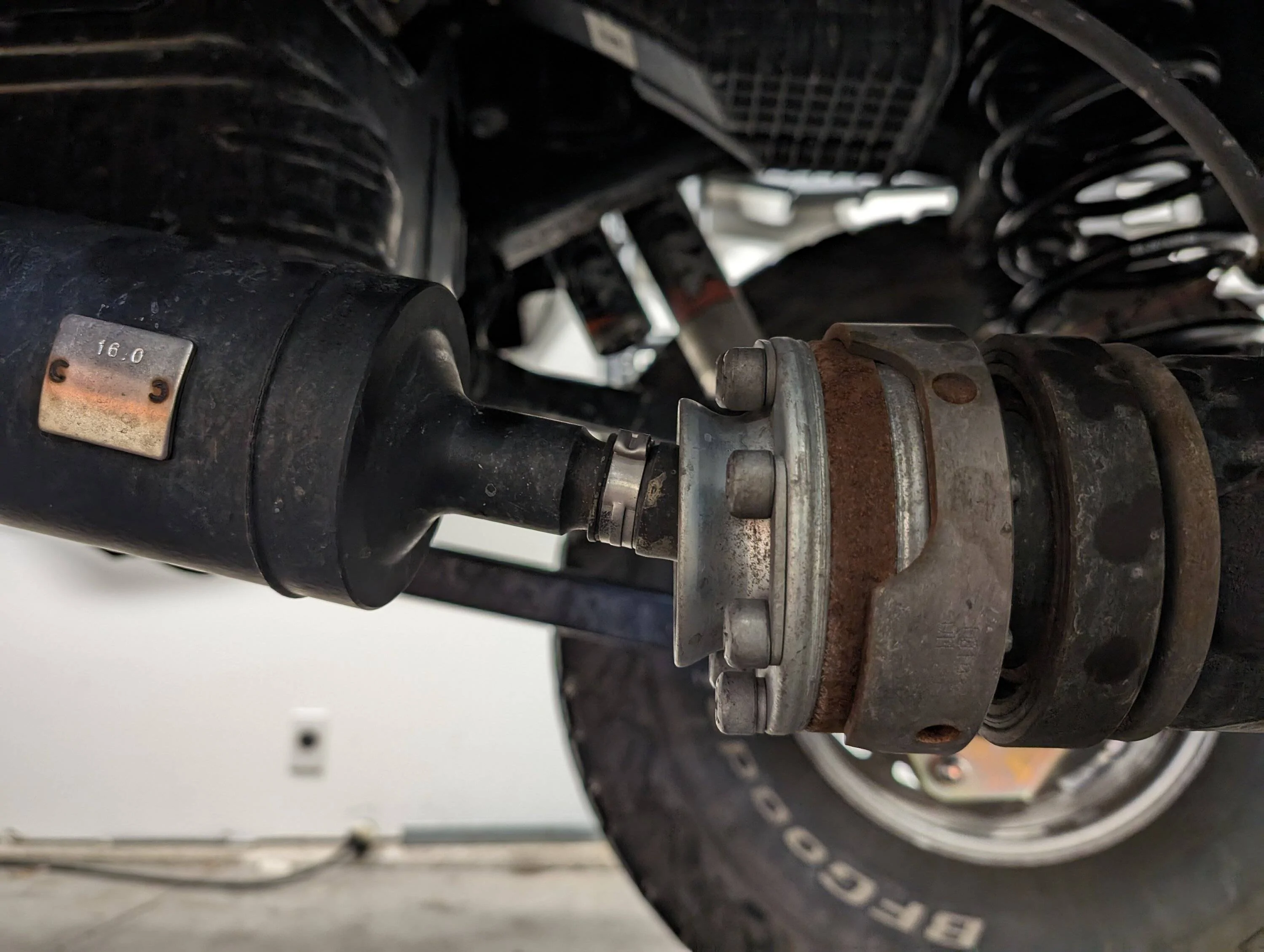

The overall lift in the rear ends up being 5.5" over stock height. The rear drive shaft was on an angle of 13.8 degrees. I then installed a RockJock Driveshaft Carrier Bearing Drop Kit which reduced the angle to 12.3 degrees.

Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231216_220721151


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20240114_171612606





Last edited:
OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1
You are not kidding! Nice work and quality components. Couldn't get any sound from you exhaust video though
That's odd, I just checked, there is no sound until 40 seconds into the video.


Sponsored

Reddout99

Well-Known Member
First Name
Bob
Joined
Oct 27, 2022
Threads
10
Messages
268
Reaction score
249
Location
Papillion, NE
Vehicle(s)
Black 2021 80th Anniv. JT Sport S
Occupation
Cad Manager
Vehicle Showcase
1
Maybe I was just impatient

OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1

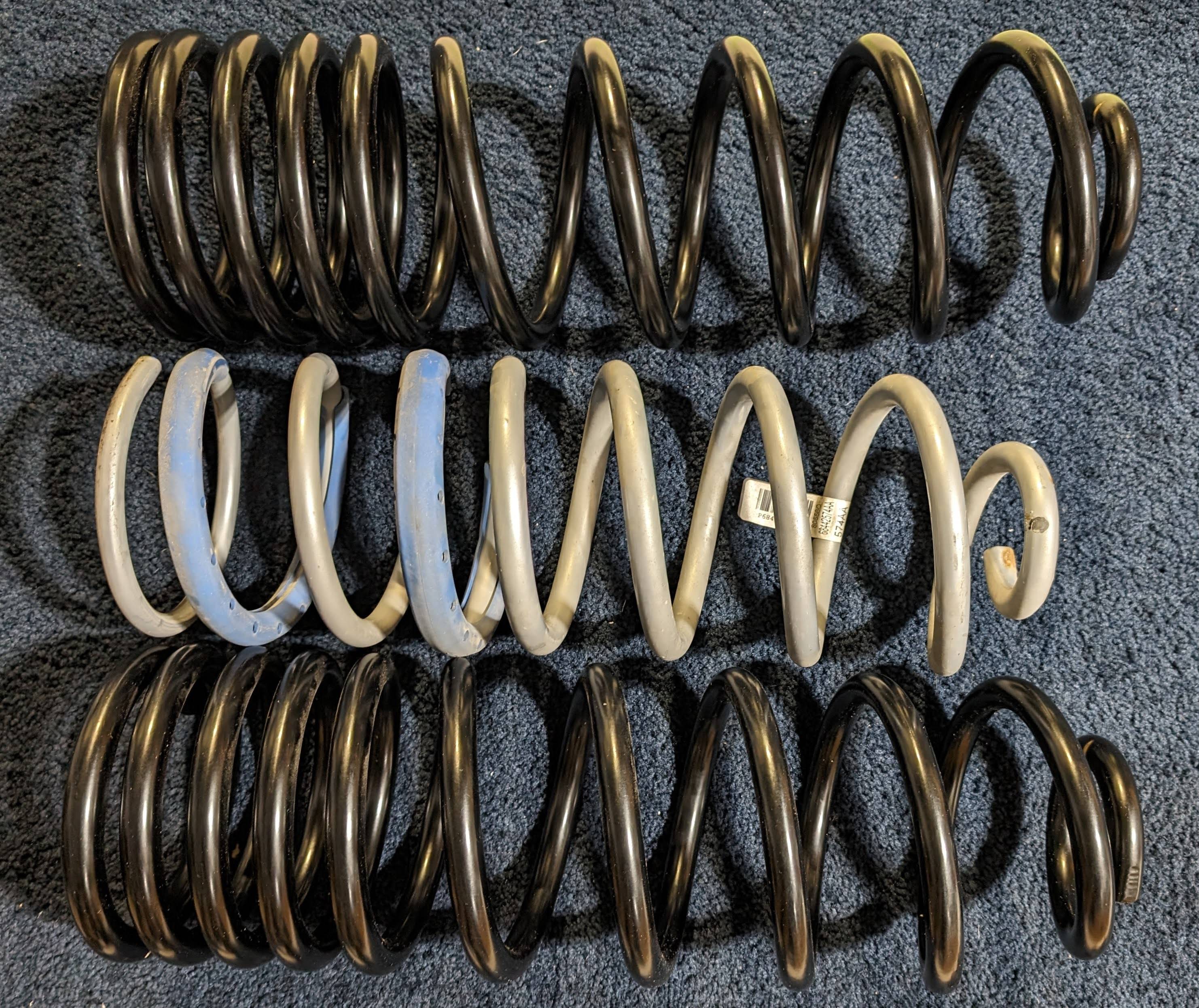

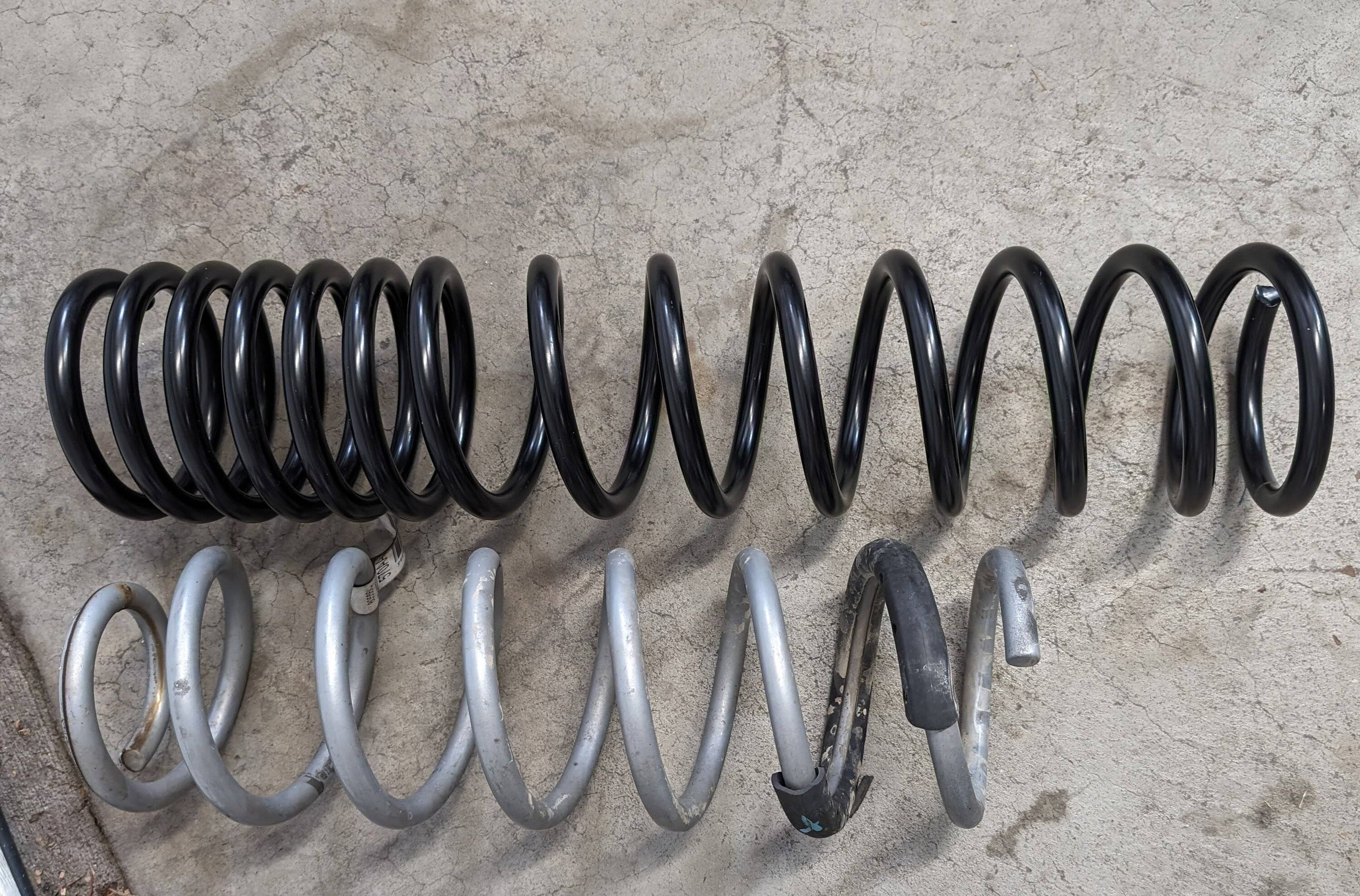

About the Springs
How do the springs compare?
Mojave Front Springs - 17.5"
3.5 Game Changer Front Springs - 23"
Mojave Rear Springs - 18.75"
3.5 Game Changer Rear Springs - 20"

I also noticed that the Metal Cloak springs are slightly stiffer than the Mojave springs.

Placing a 195 lb load on the springs
Metal Cloak compresses 7.6mm
Mojave compresses 9mm


About the Shock Extensions

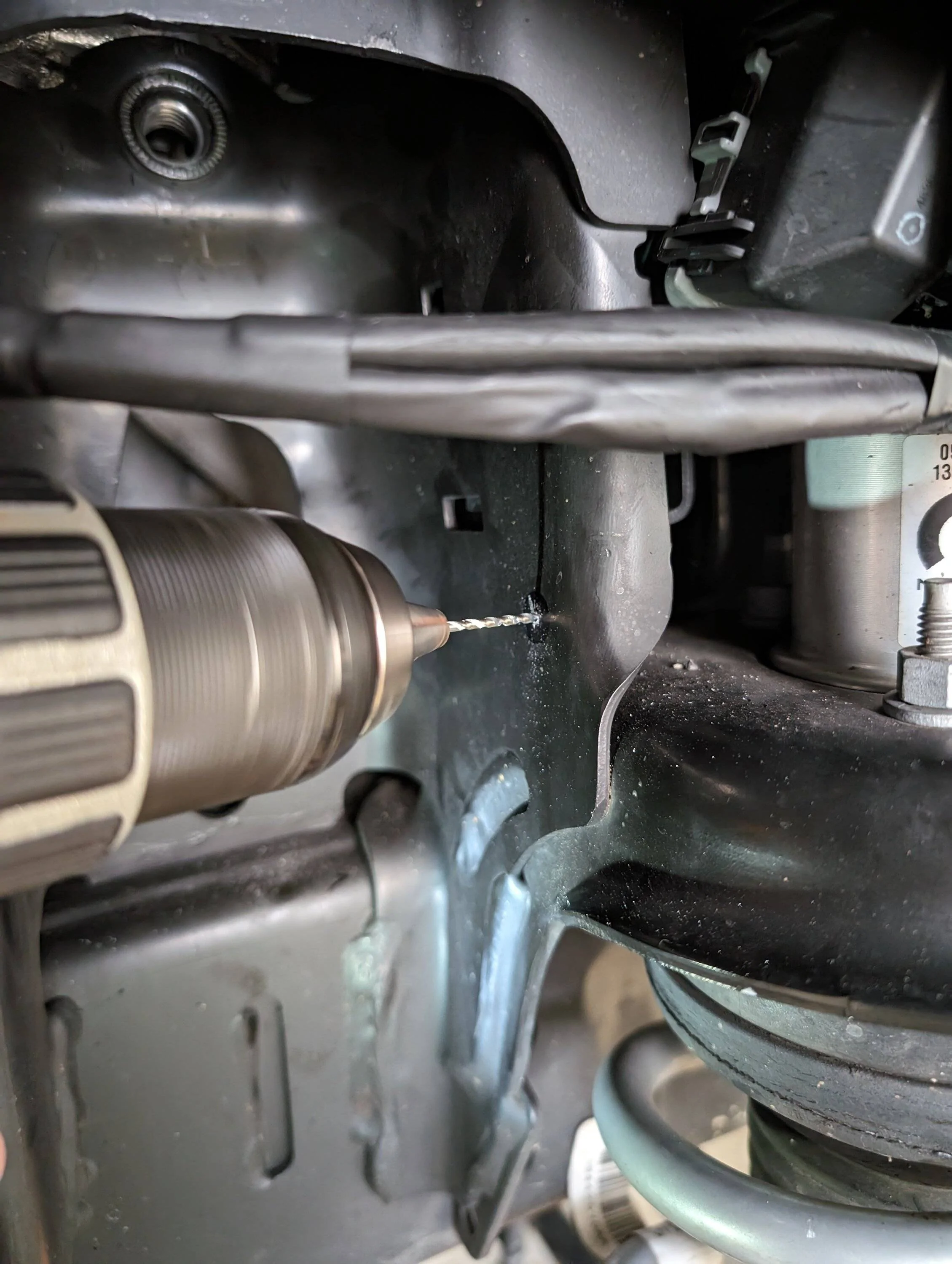

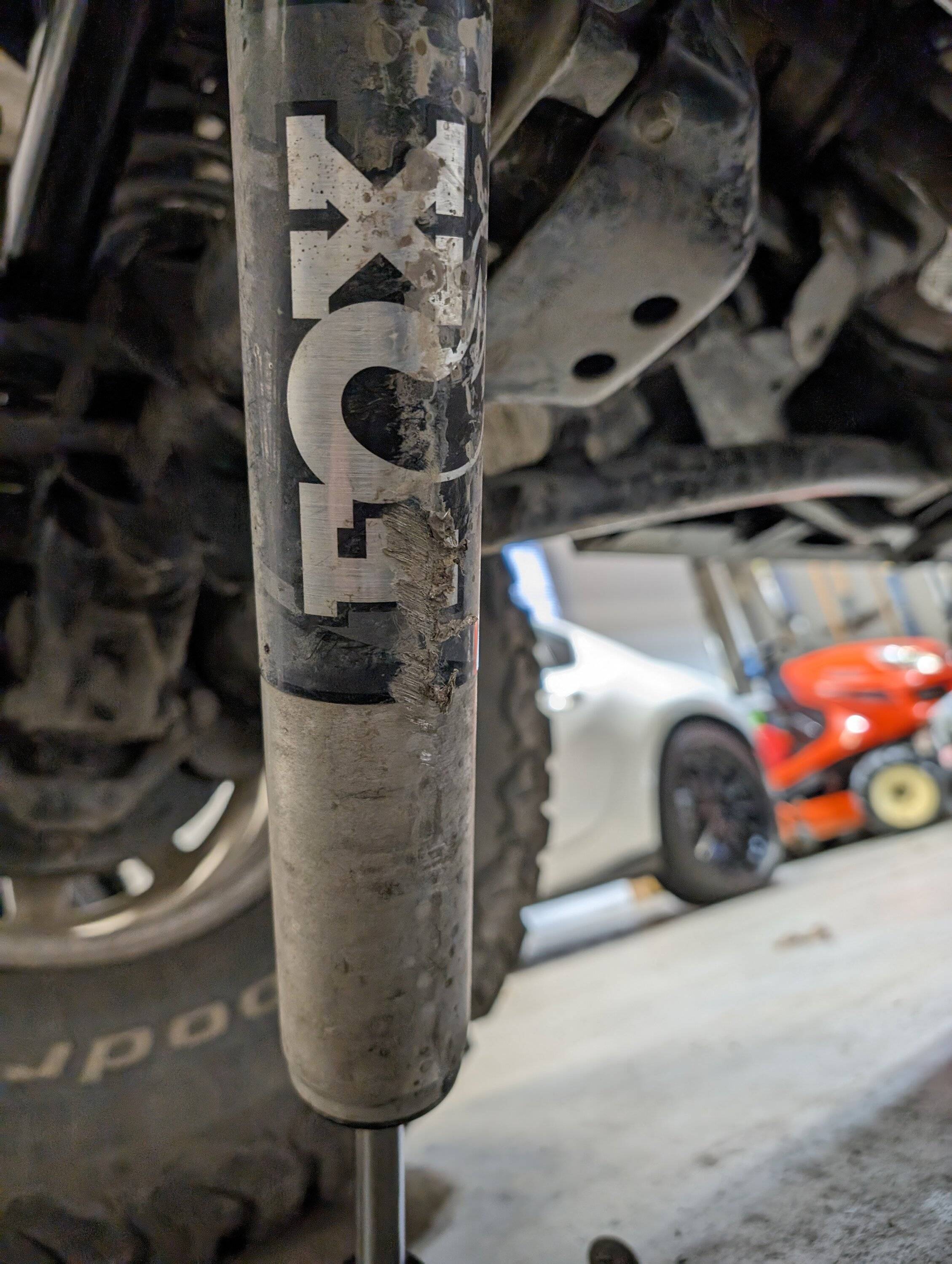

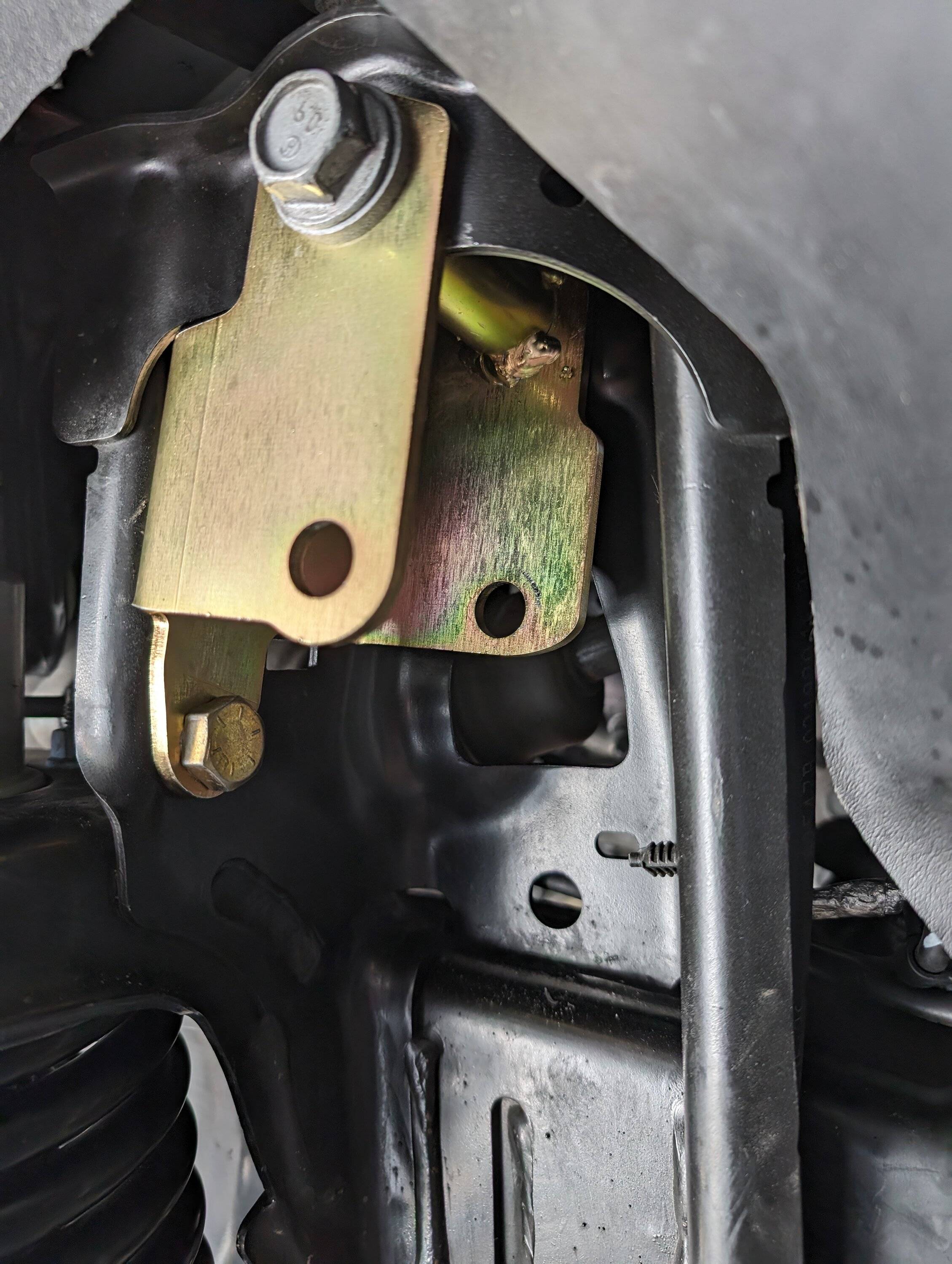

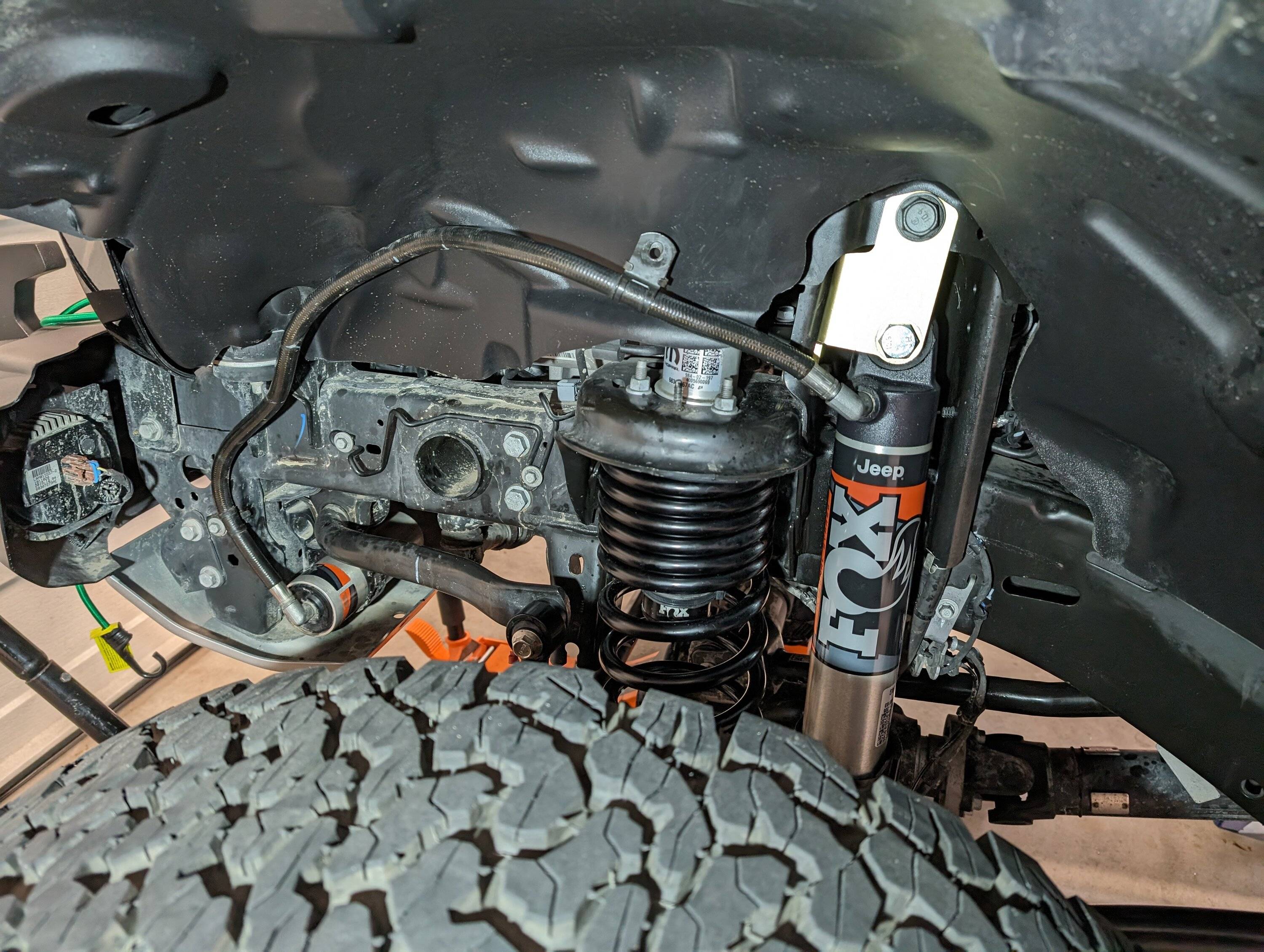

I chose to reuse the factory Fox Mojave shocks, so it ordered the Upper Front Stock Shock Mount Kit, JT Gladiator Mojave. What I discovered while installing is relocating the shock to a lower position places the hose for the reservoir in a bind. I ended up swiveling the hose upward allowing a natural bend. The hose now rests against the fender liner and although they are stiff, I may find clips to secure them to the liners

Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231216_150315134


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231216_181120047


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231216_220413963

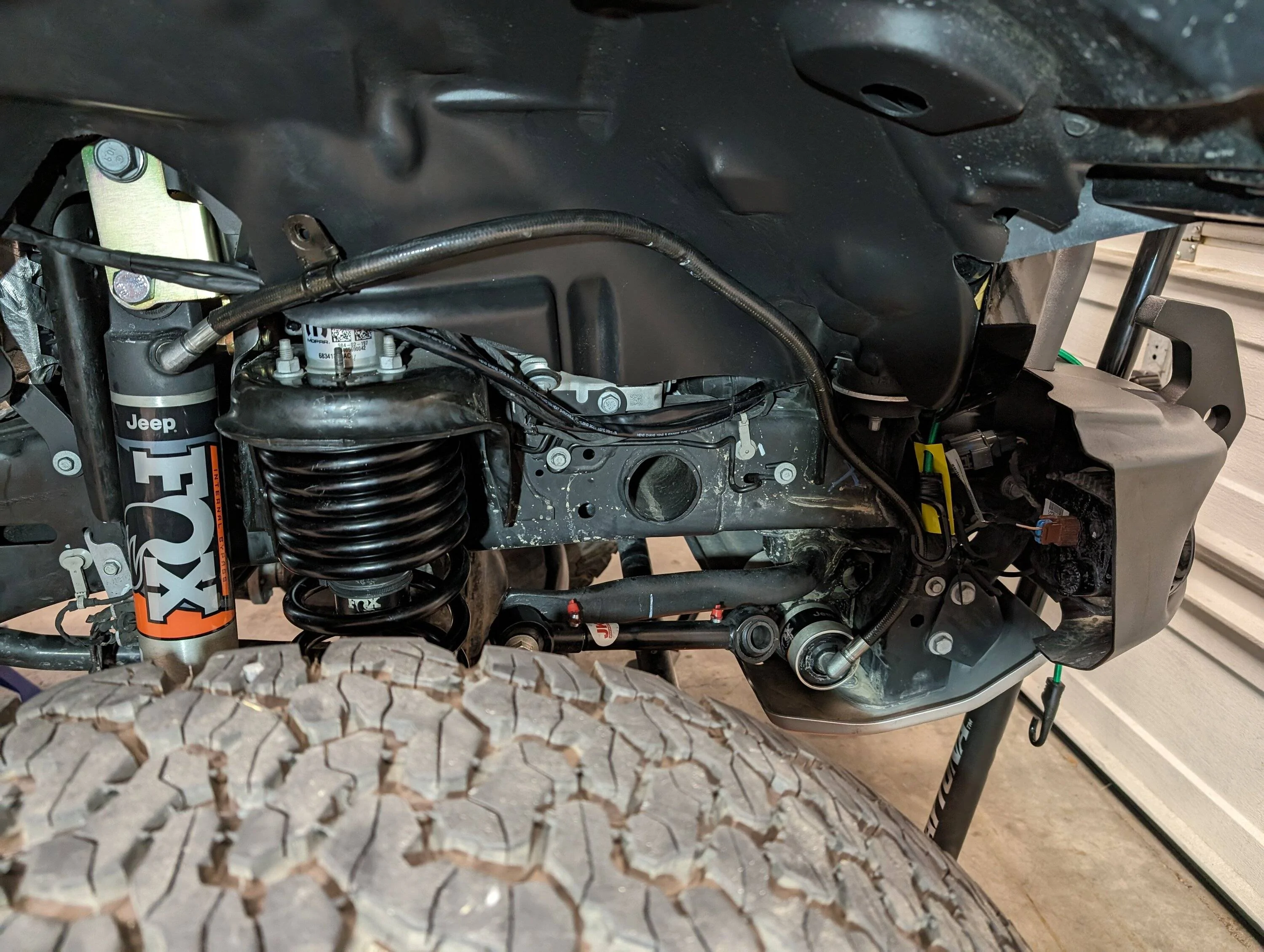

Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231216_220400213


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231216_161540965


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20240113_173251745

OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1

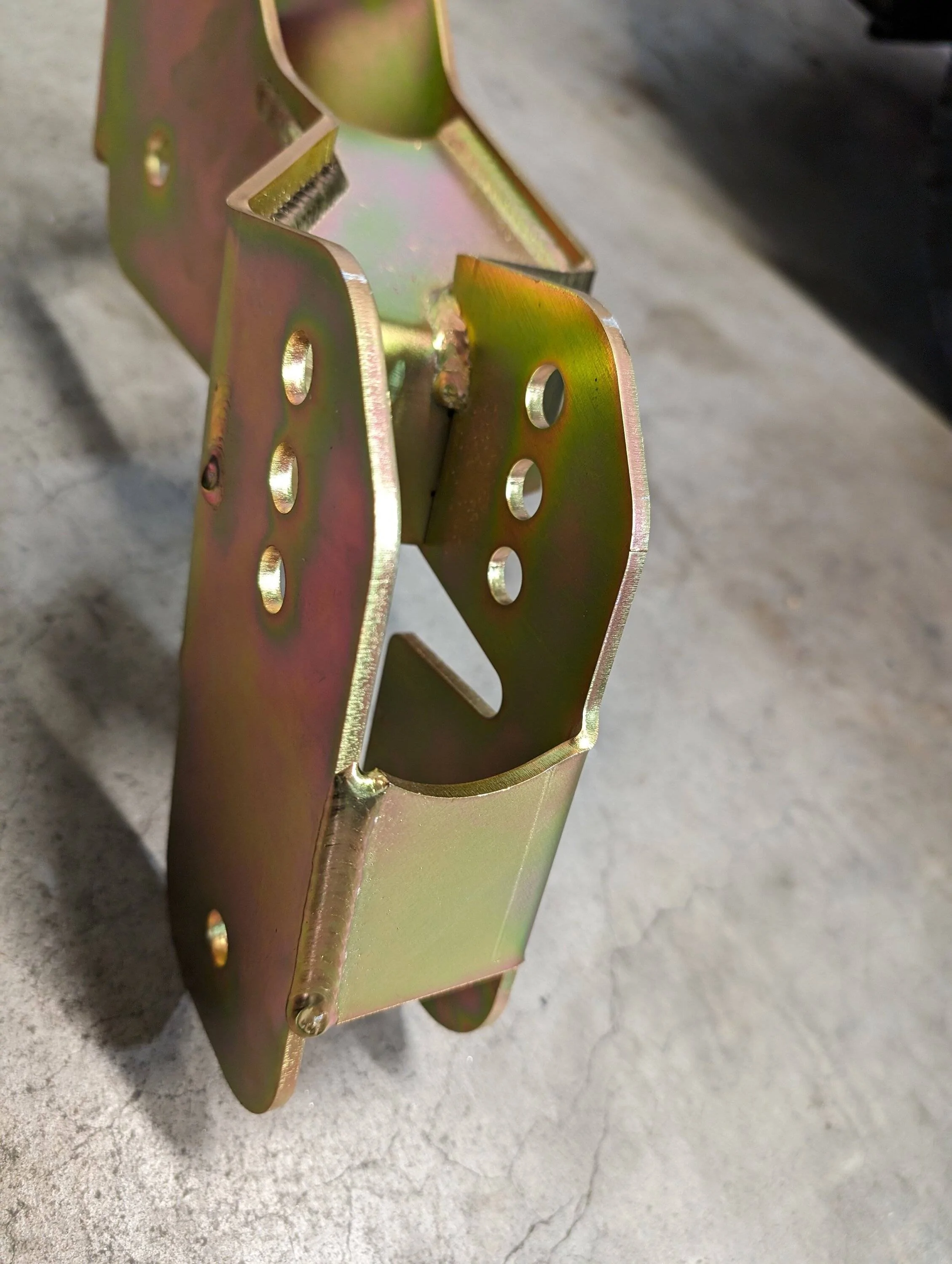

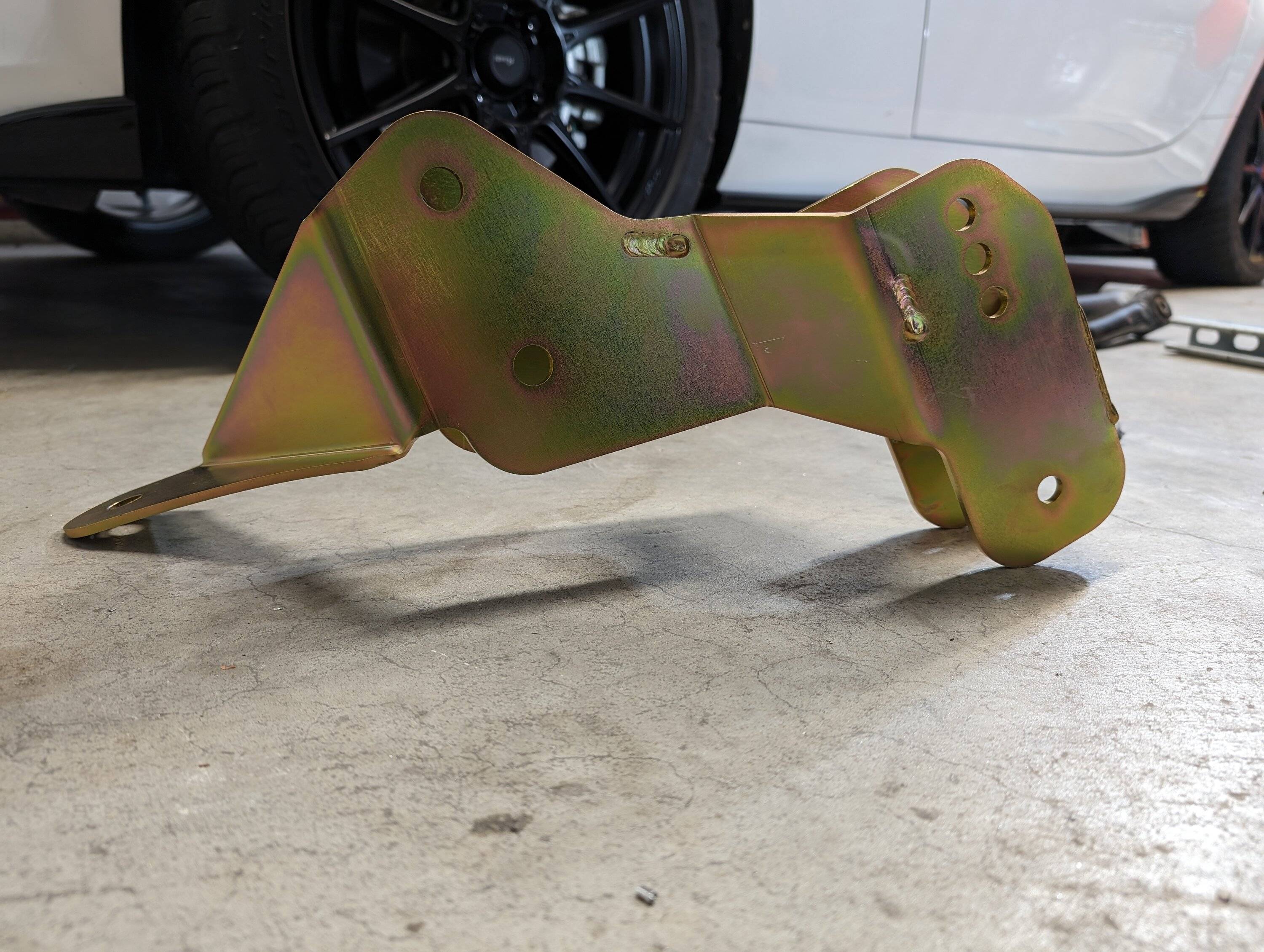

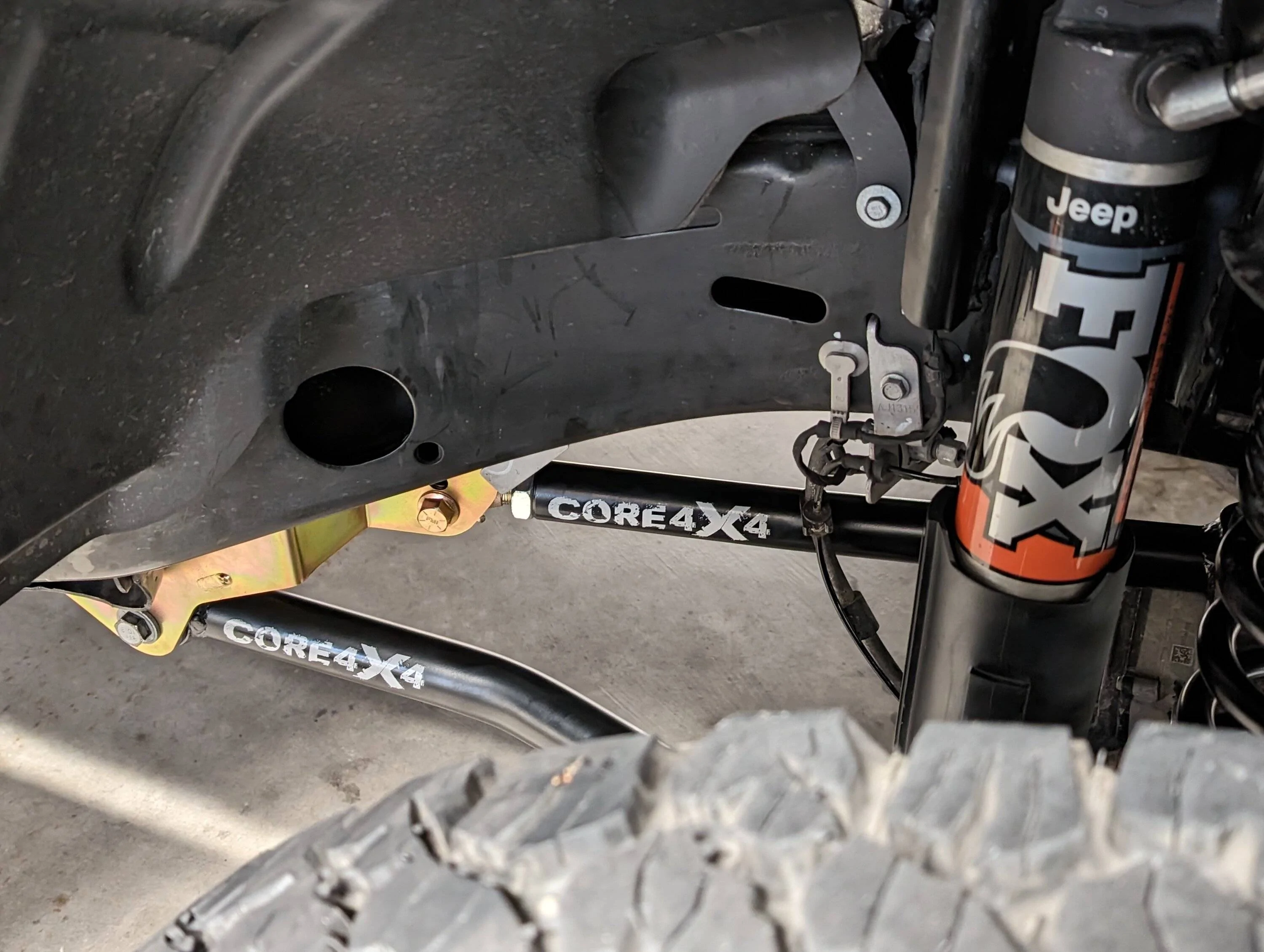

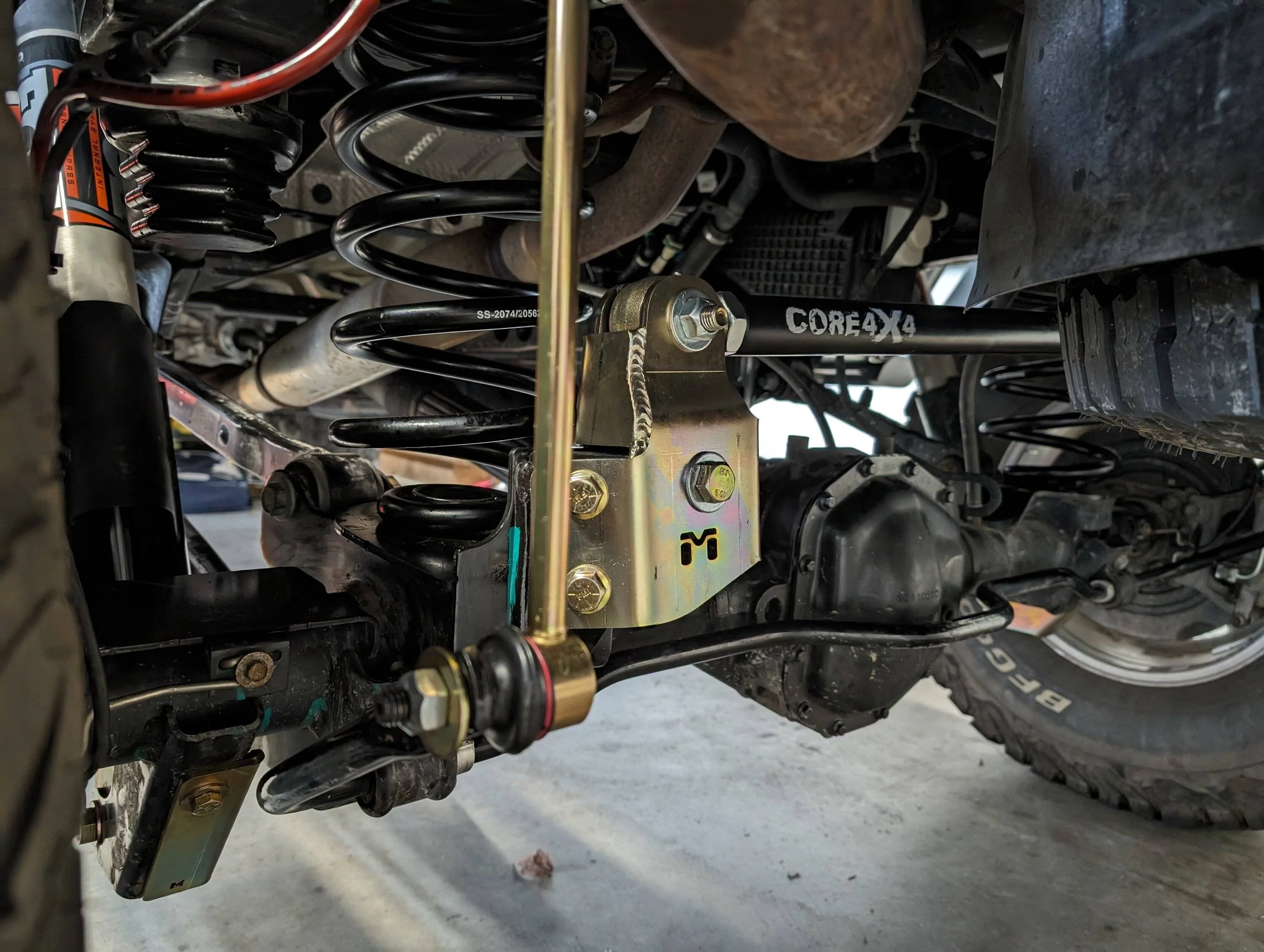

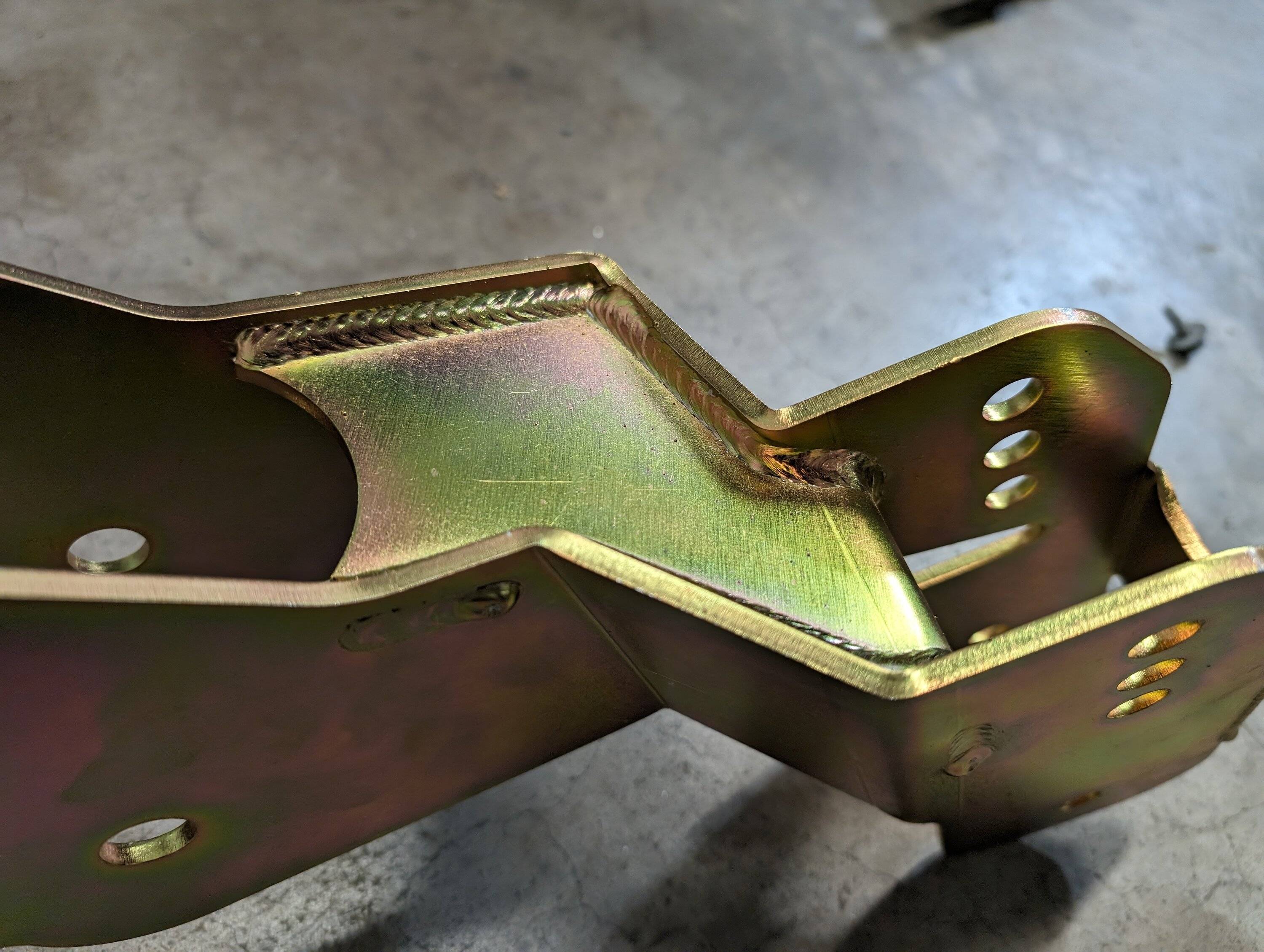

The MetalCloak geometry correction brackets HD Control Arm Pro'lignment Kit, JL Wrangler | JT Gladiator was an easy installation. The brackets are stout, and everything lined up as it should have.

Reading the forum, I have heard the concerns for the brackets being a potential hangup, but should they become damaged, they are easy enough to replace. My scrapes and impacts seem to occur in other areas.

A steering stabilizer relocation is on my list to do.

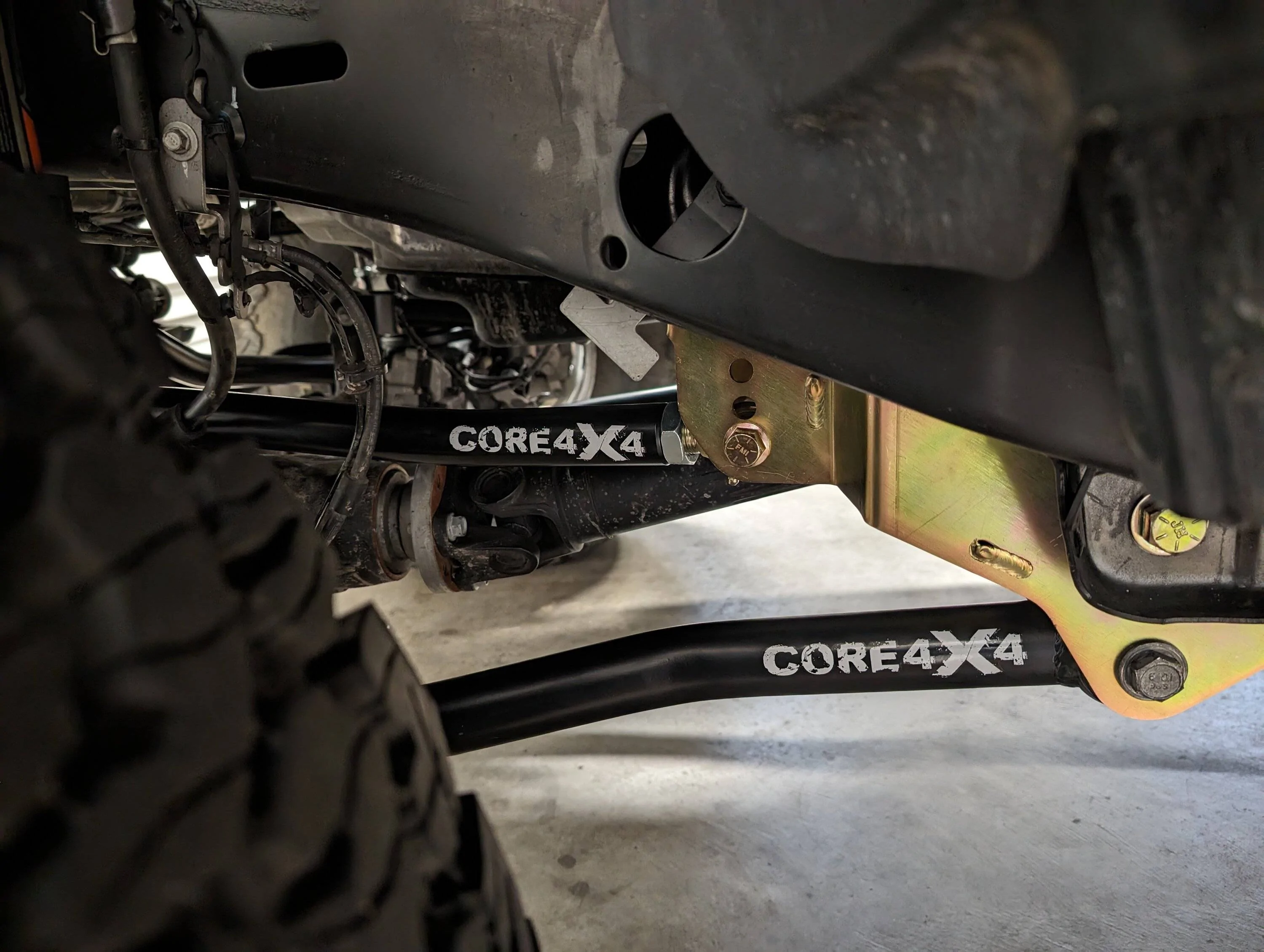

Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231227_154839384


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231227_154848069


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231227_154853708

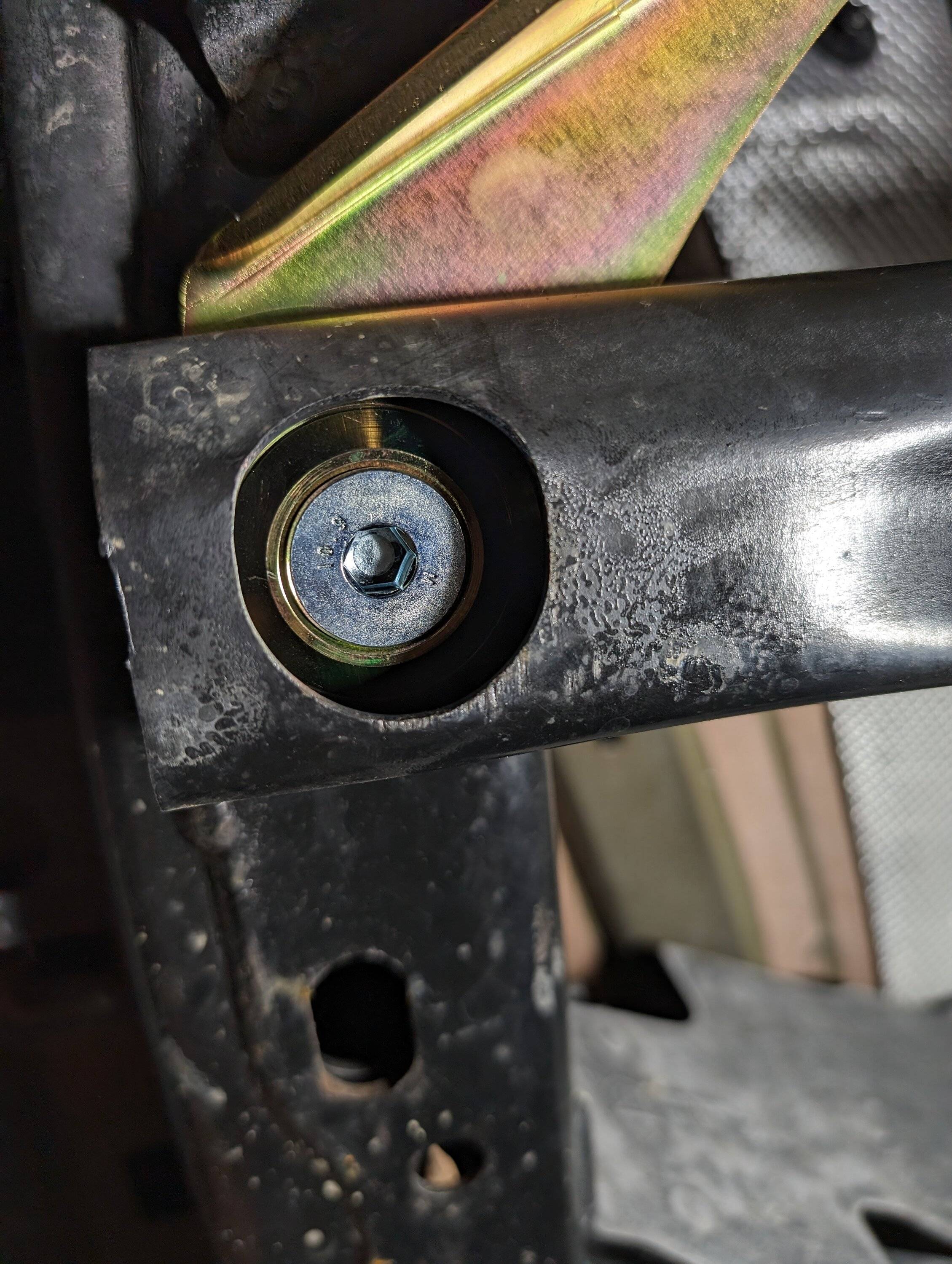

Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231227_155549748


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231227_193549467


Jeep Gladiator 2020 Black Mojave Build - I can't leave anything alone PXL_20231227_194050938









OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1

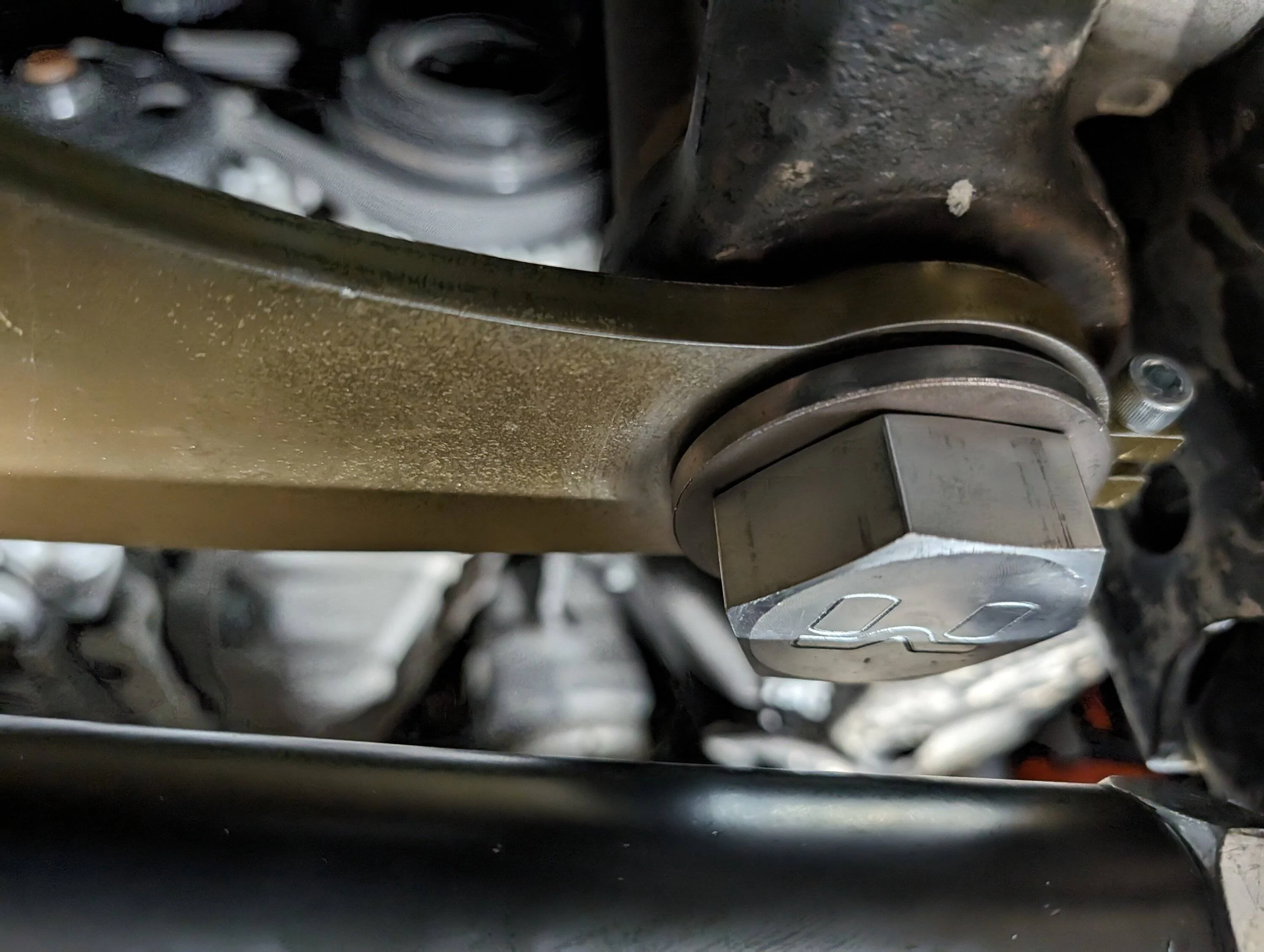

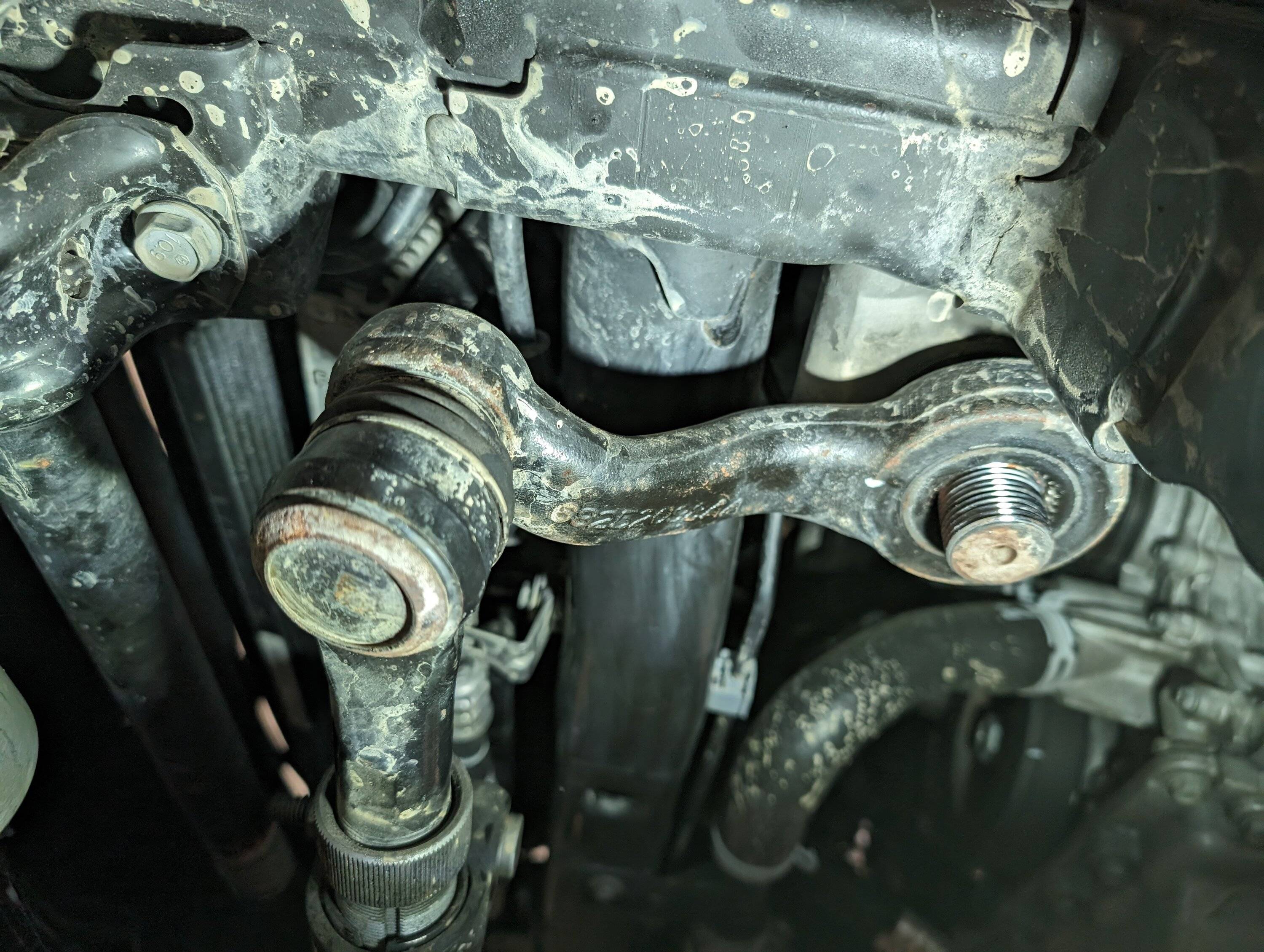

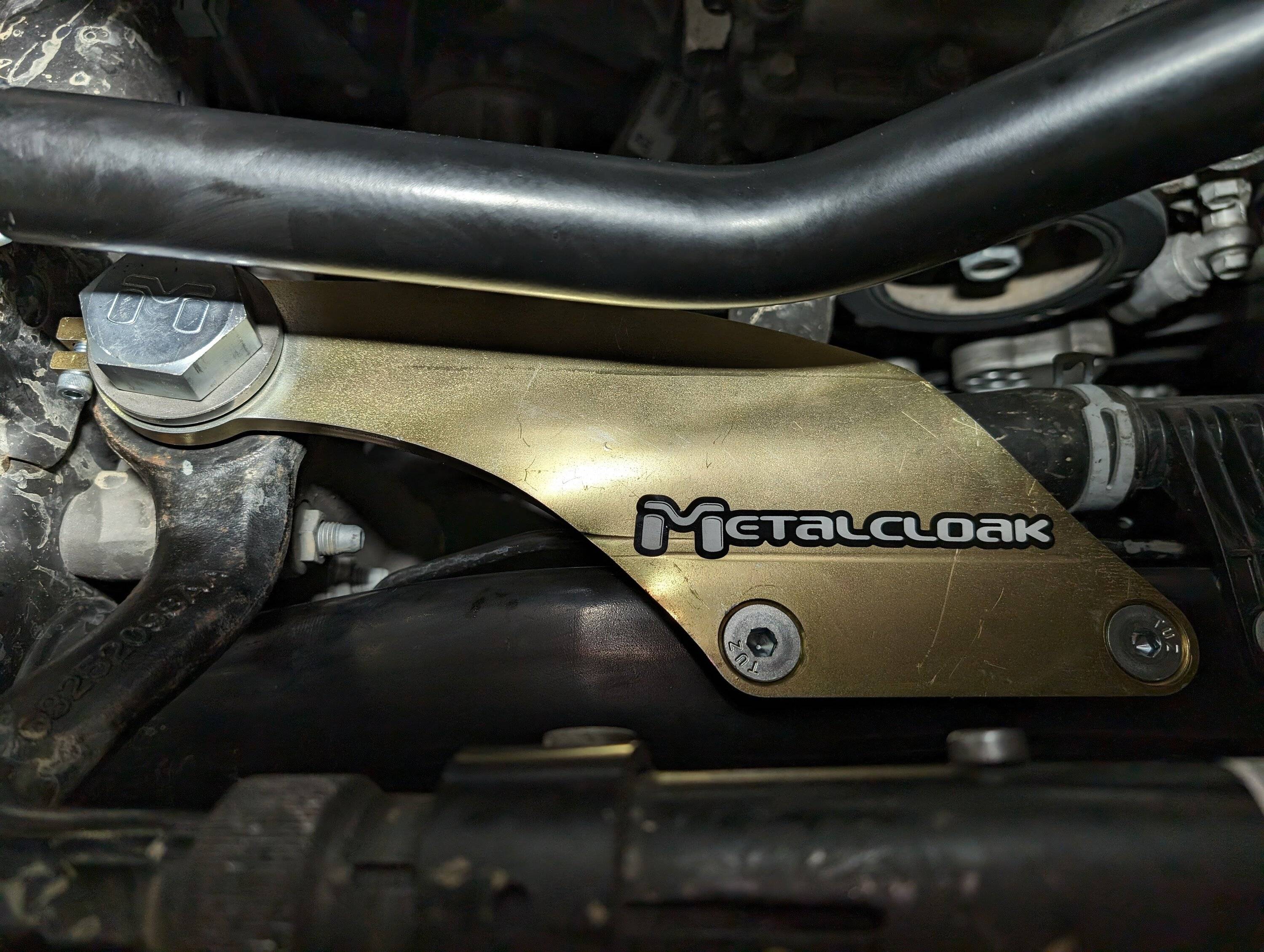

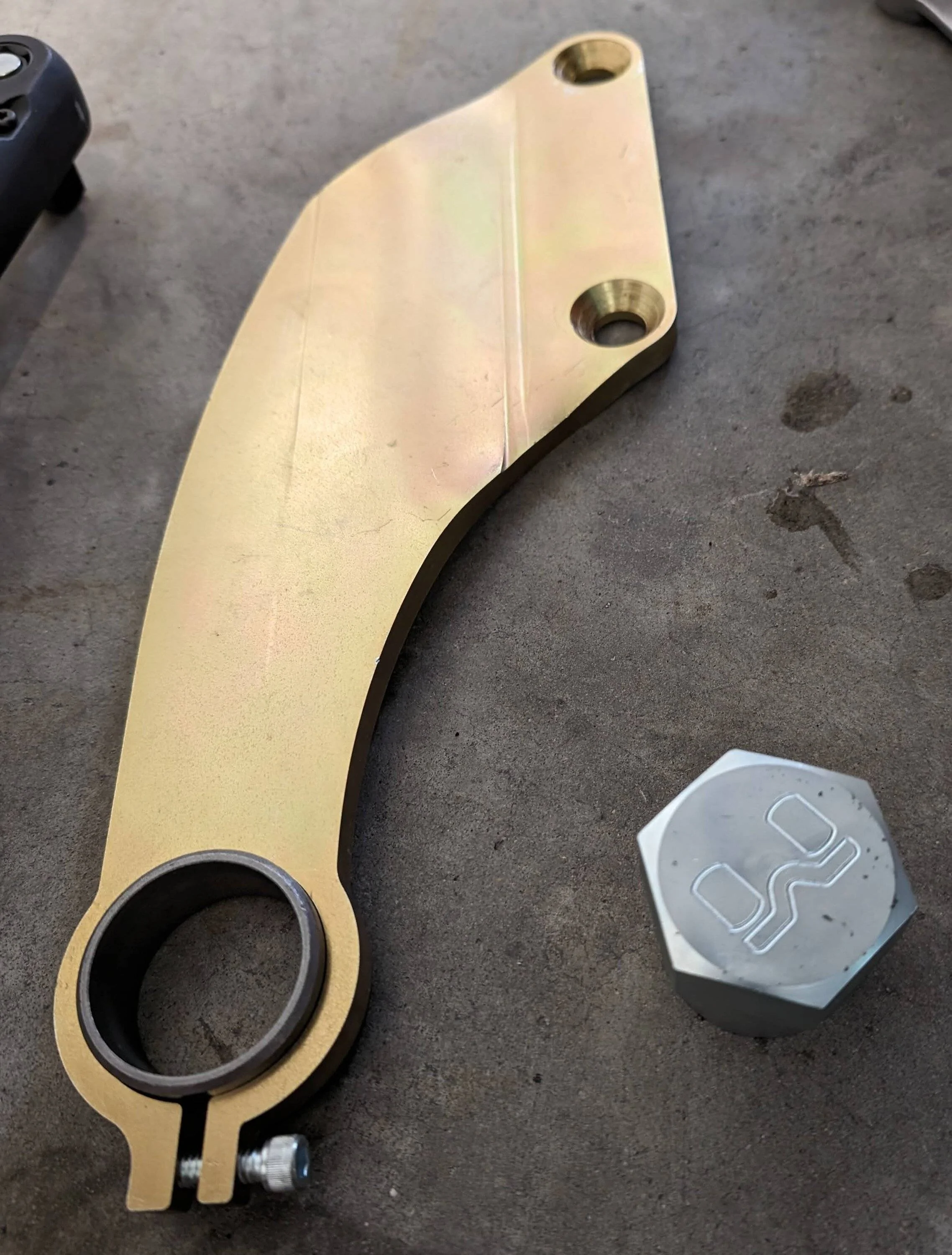

The MetalCloak Sector Shaft Brace, JL Wrangler | JT Gladiator was also a straightforward installation. Read the instructions and prepare ahead of time. Most of my focus was worrying about removing the nut. I had ordered the 42 mm socket and socket adapter, and I picked up a heat gun to break down the Loctite. The one thing I missed was the drill bits. I was good up to 1/2" but I had to make a run to Ace Hardware to pick a 5/8" and 11/16".

PXL_20231223_164808742 (1).jpg







OP
OP
ruscopin

ruscopin

Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
20
Messages
101
Reaction score
113
Location
Whitehall, Pennsylvania
Vehicle(s)
2020 Gladiator Mojave
Occupation
Fire Protection Engineer
Vehicle Showcase
1
The MetalCLoak JT Gladiator Rear Track Bar Relocation Bracket was also straight forward. I used a rubber mallet to put it in its place as it was a tight fit. I used a 3/8" extension bar through the hole above the M to help center it the placed the bolt through and tightened to hold it in place while drilling the 4 holes.
