2020 Jeep Gladiator Specifications Sheet & Feature Availability

JAY

Staff member
Joined
Jan 13, 2015
Messages
714
Reaction score
1,887
Location
Jeep Gladiator Forum
Vehicle(s)
JT
Build Thread
Link
Occupation
Admin

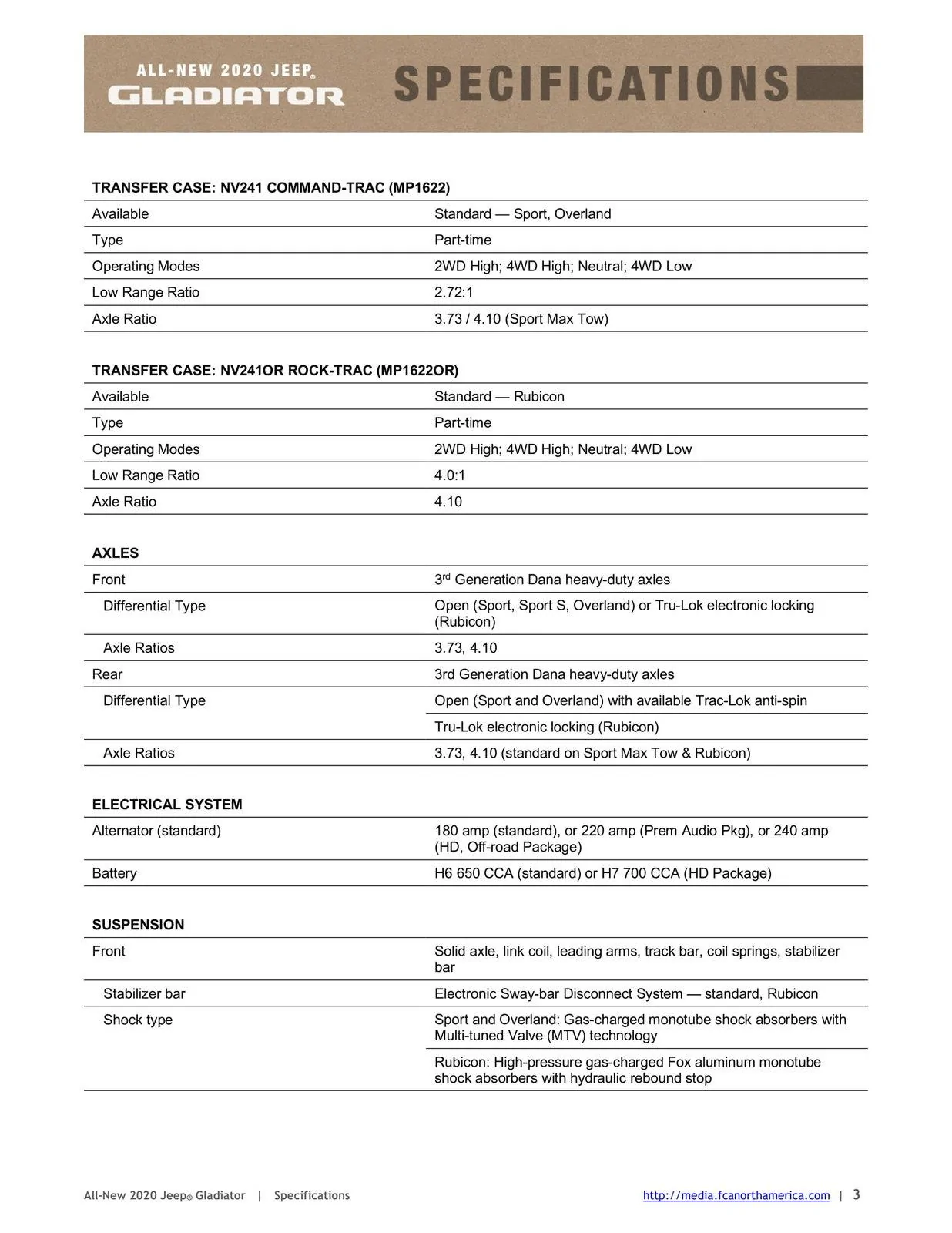

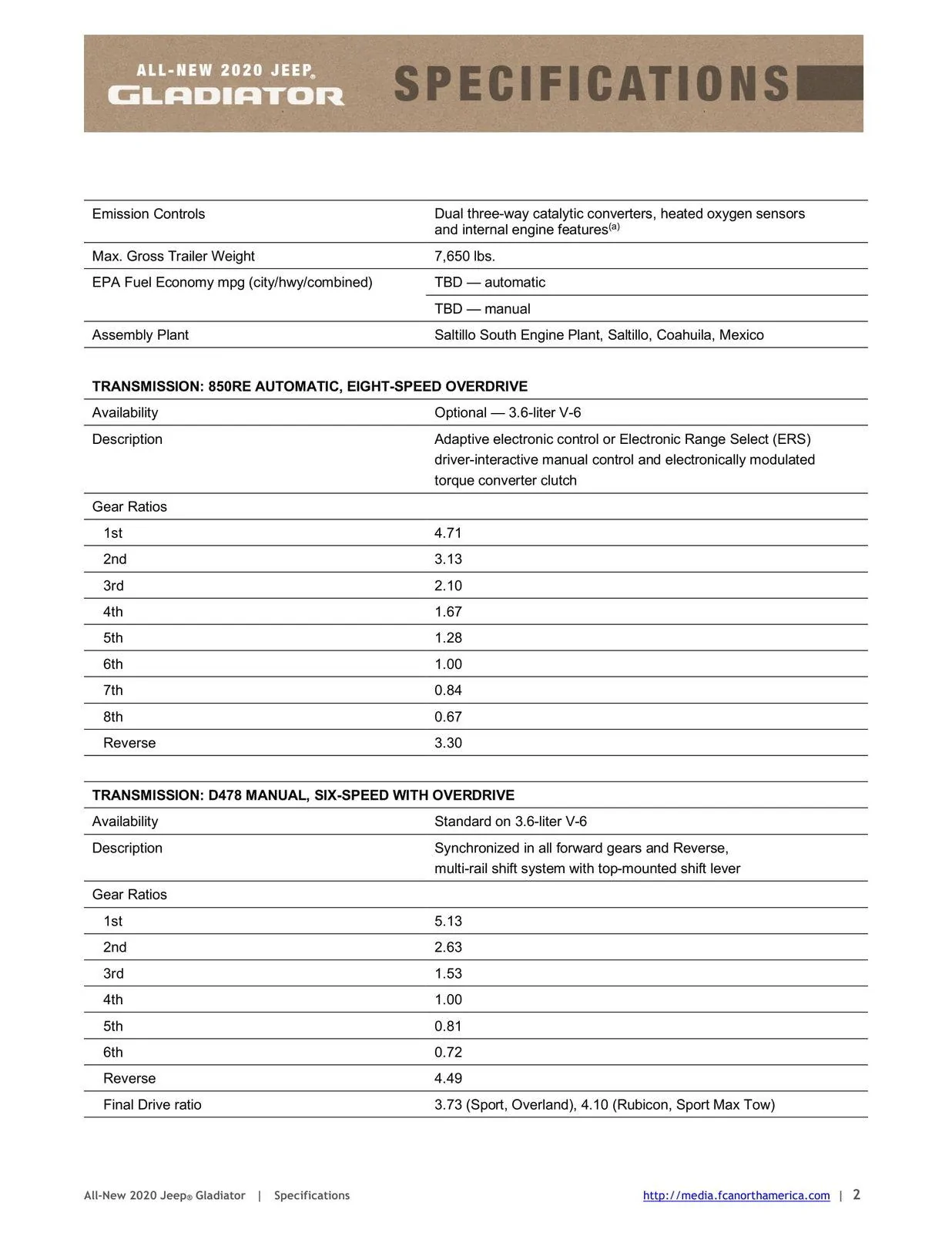

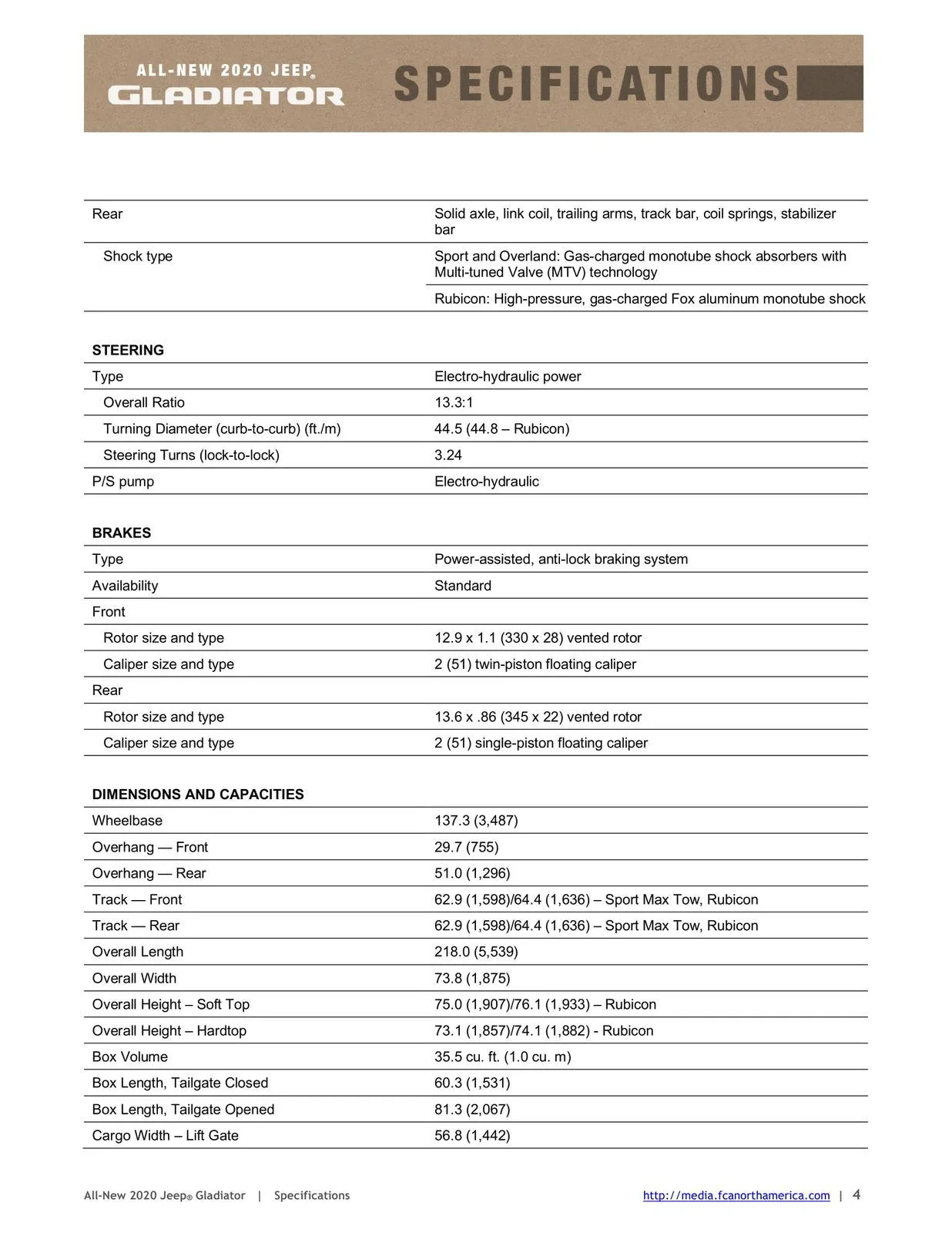

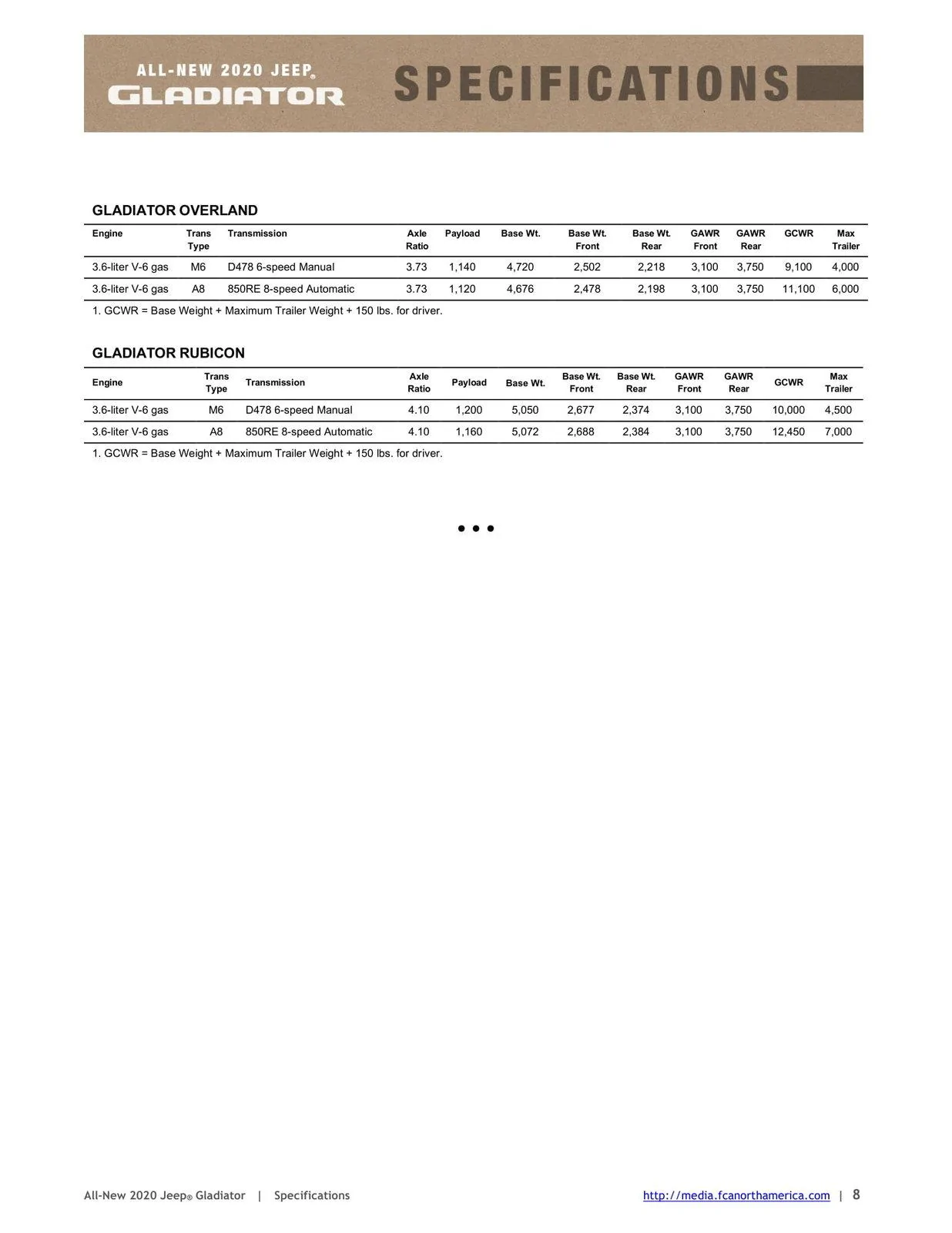

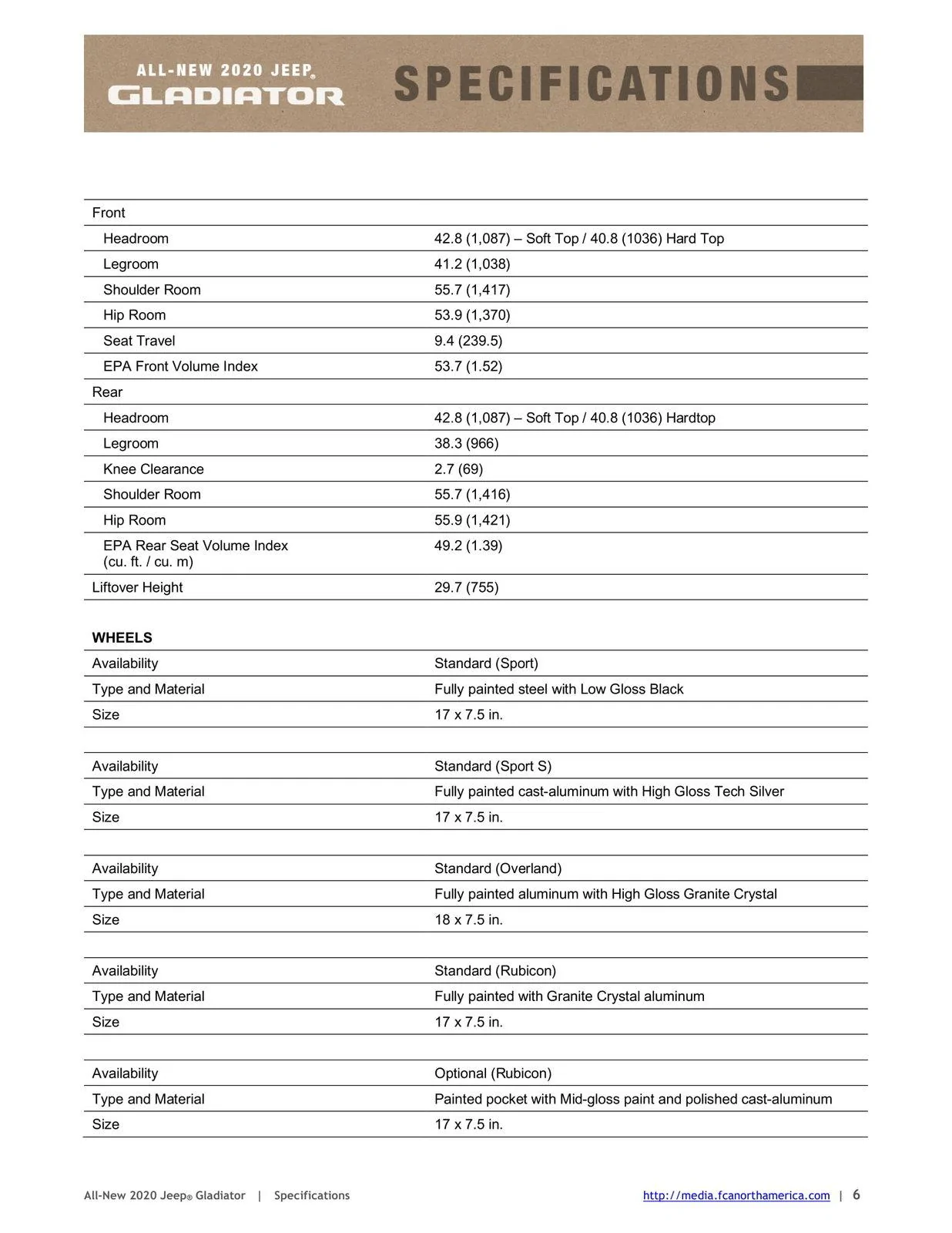

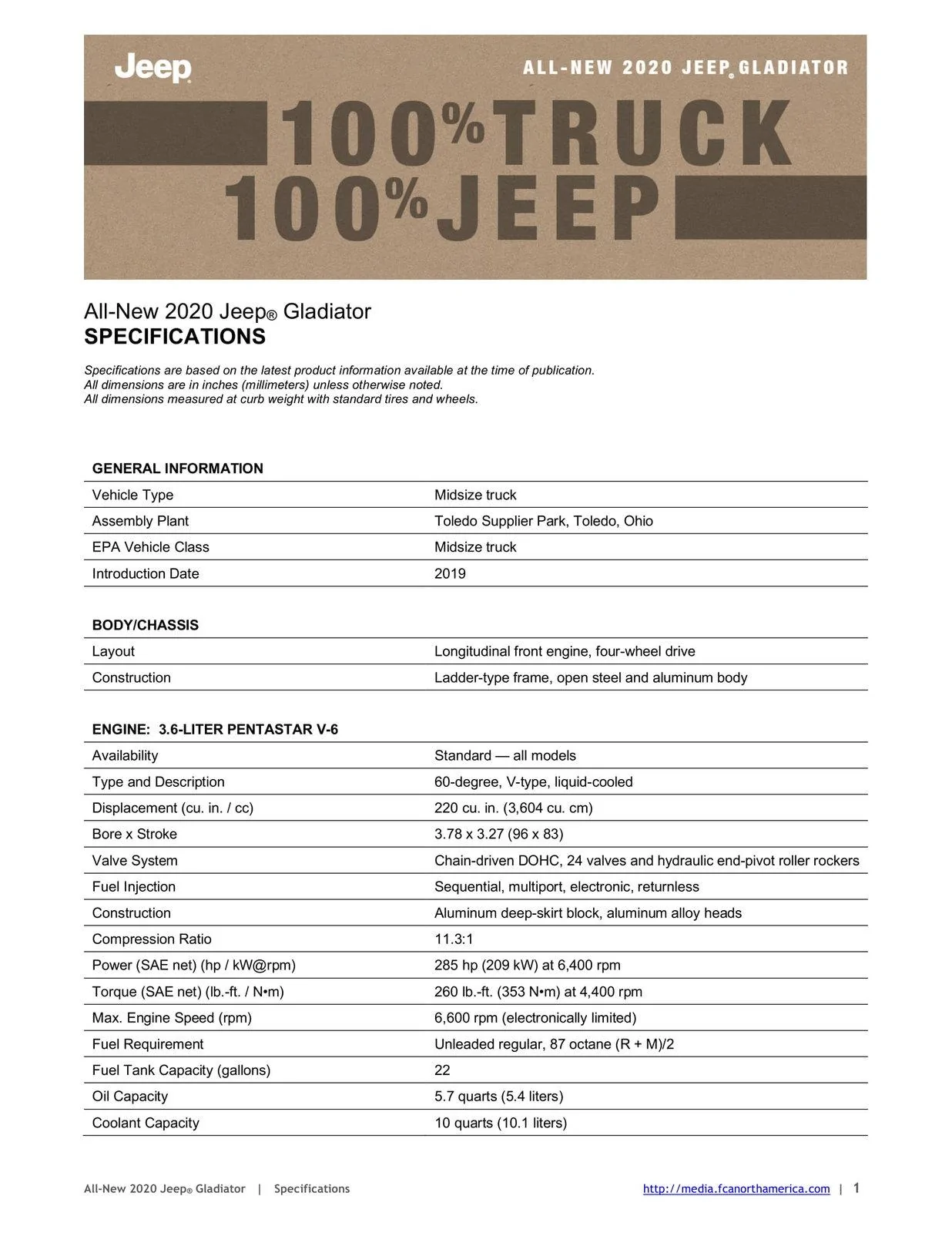

2020 JEEP GLADIATOR SPECIFICATIONS SHEET

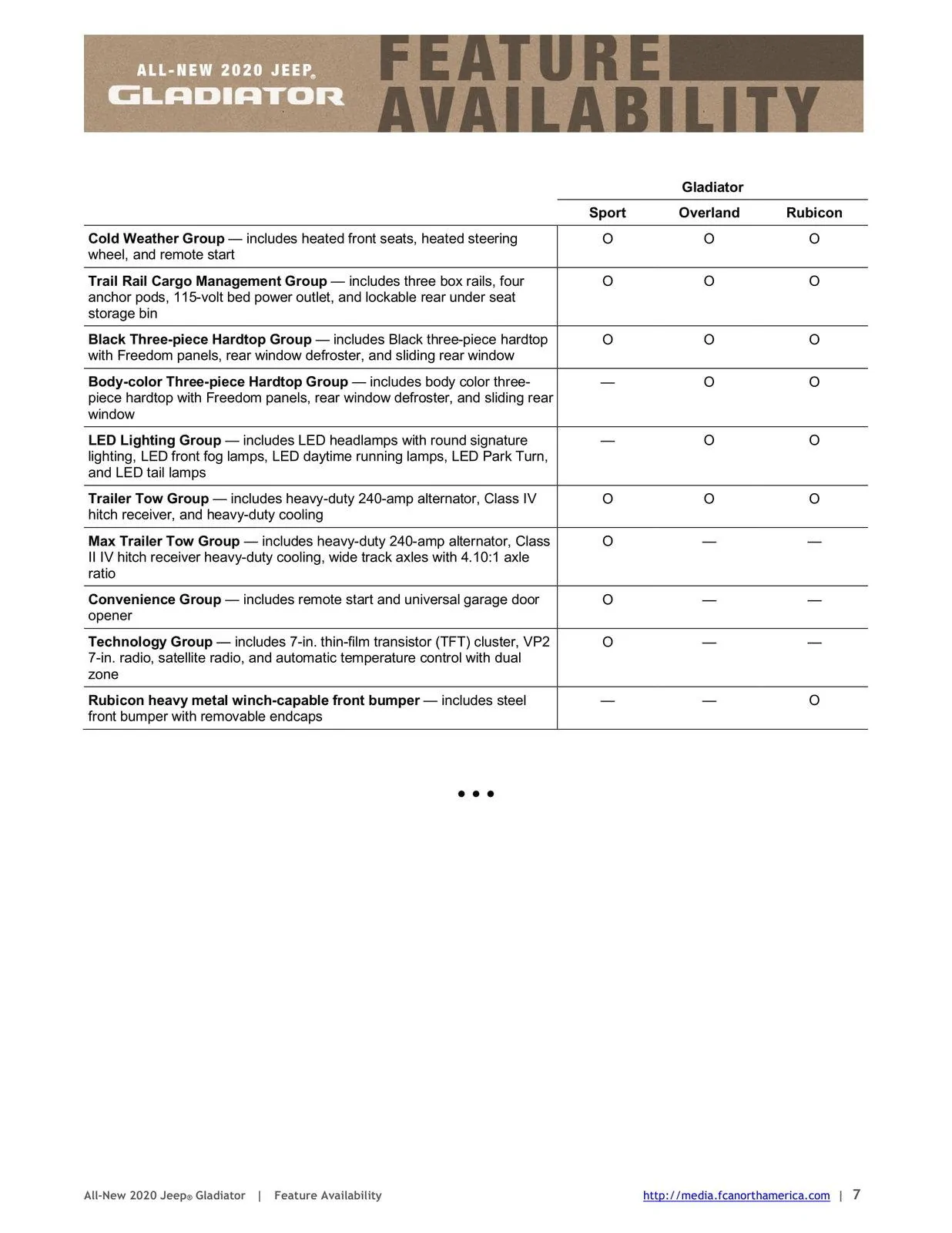

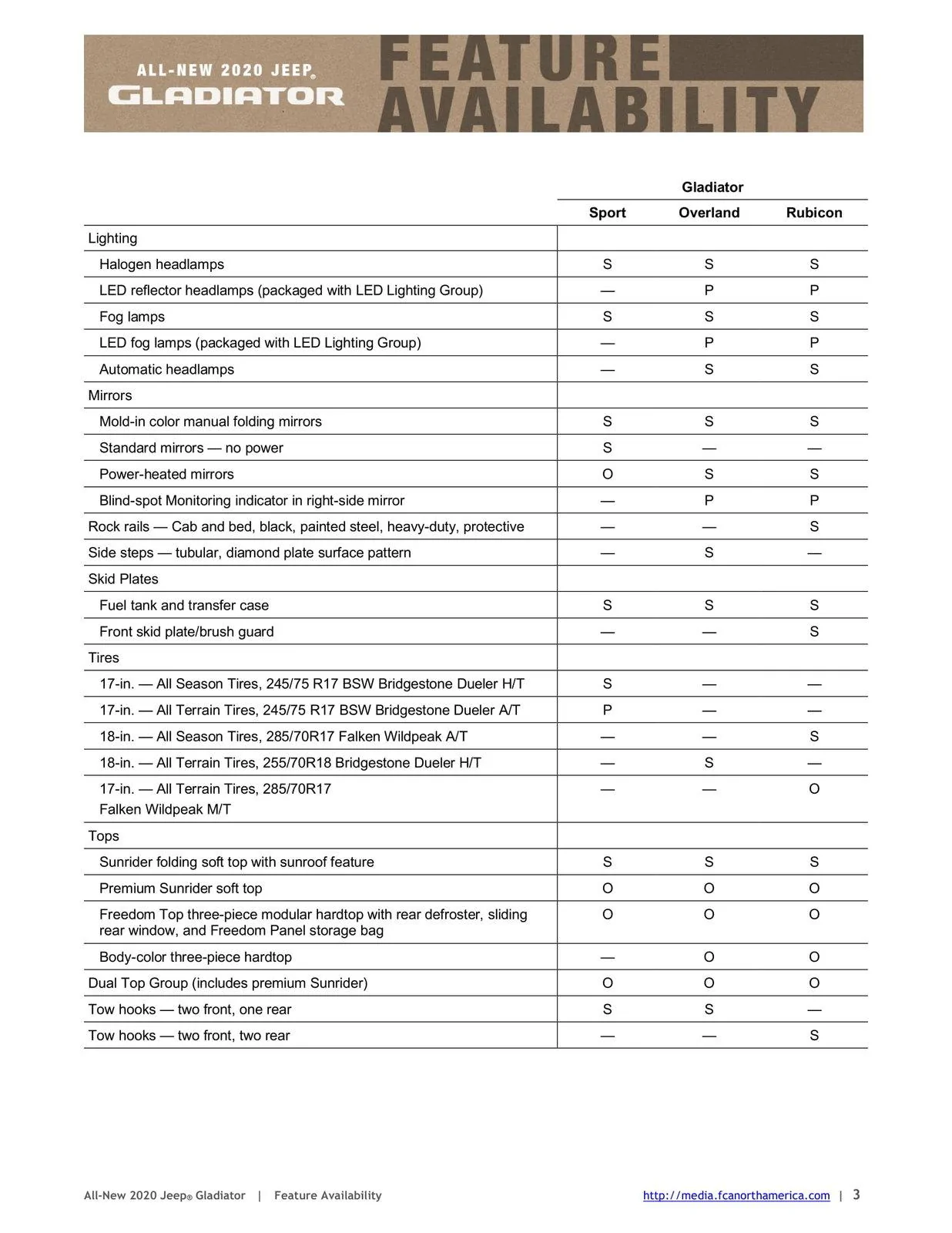

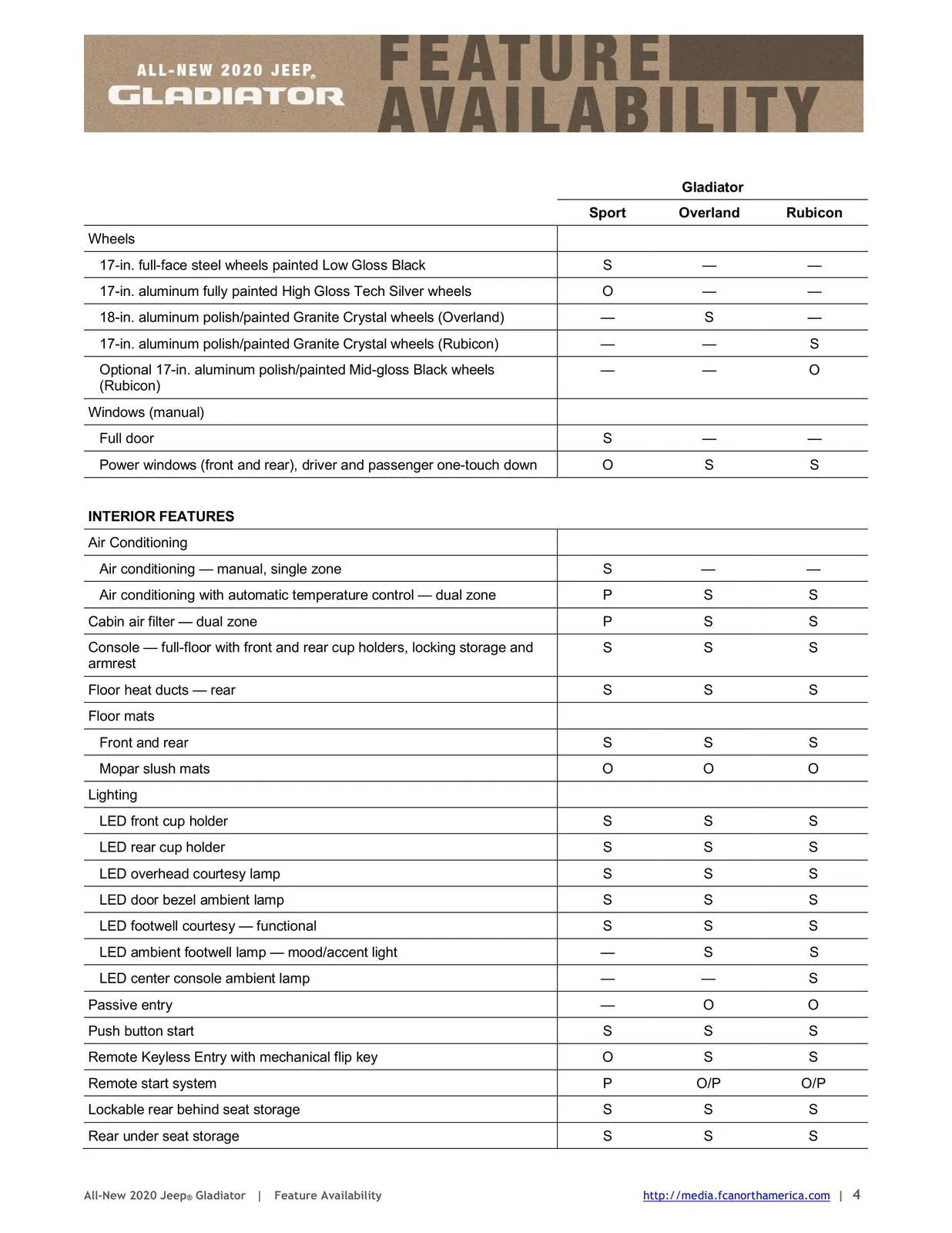

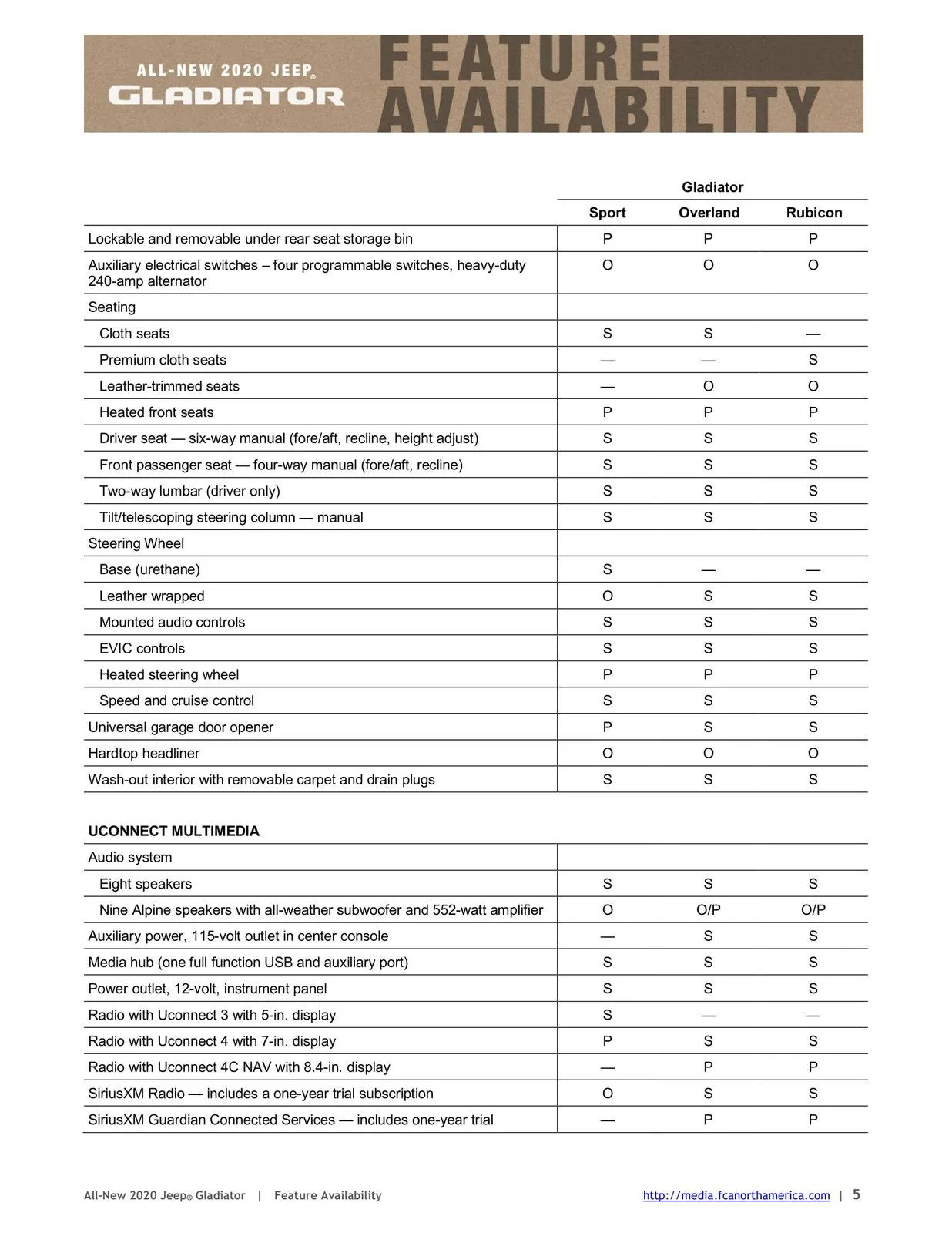

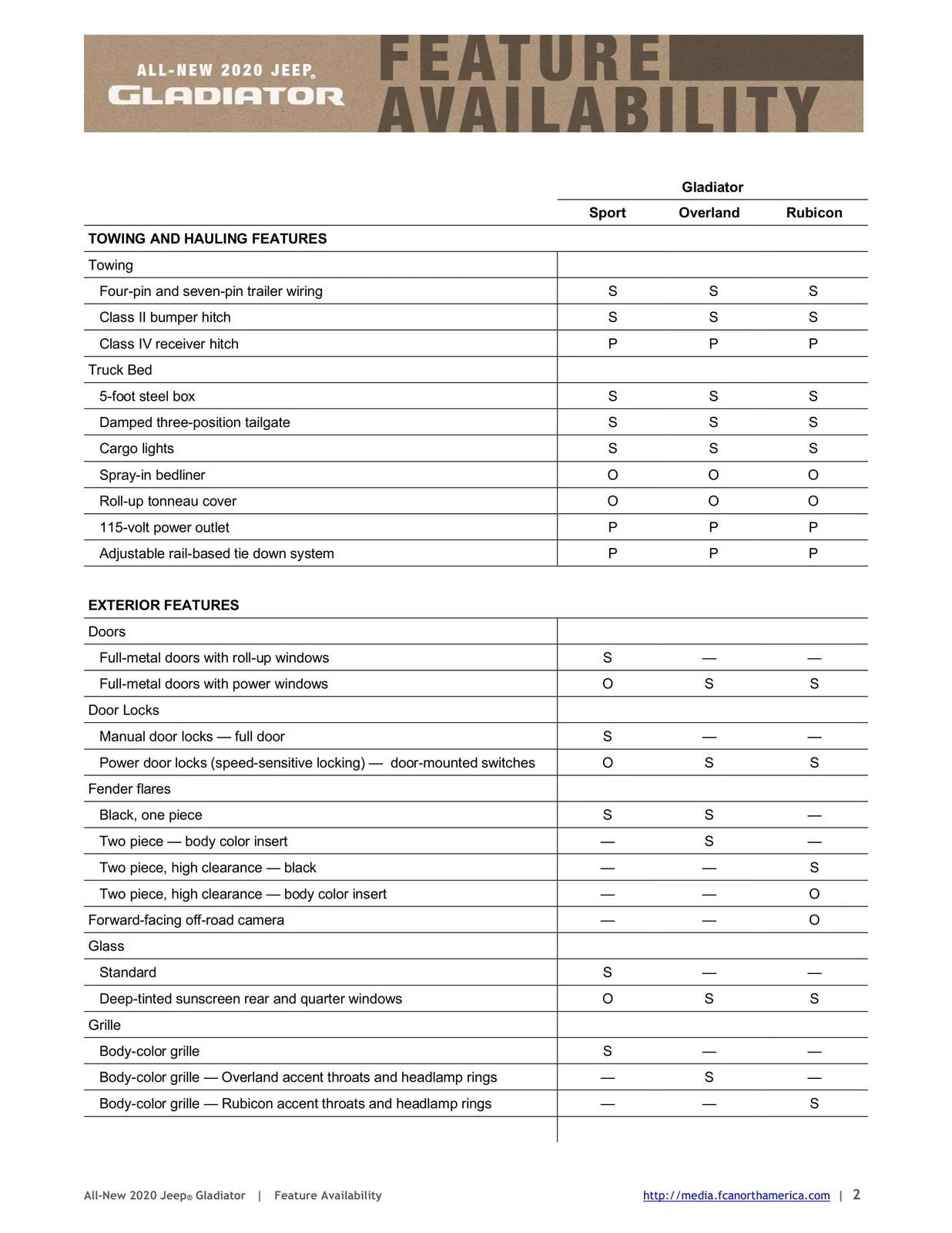

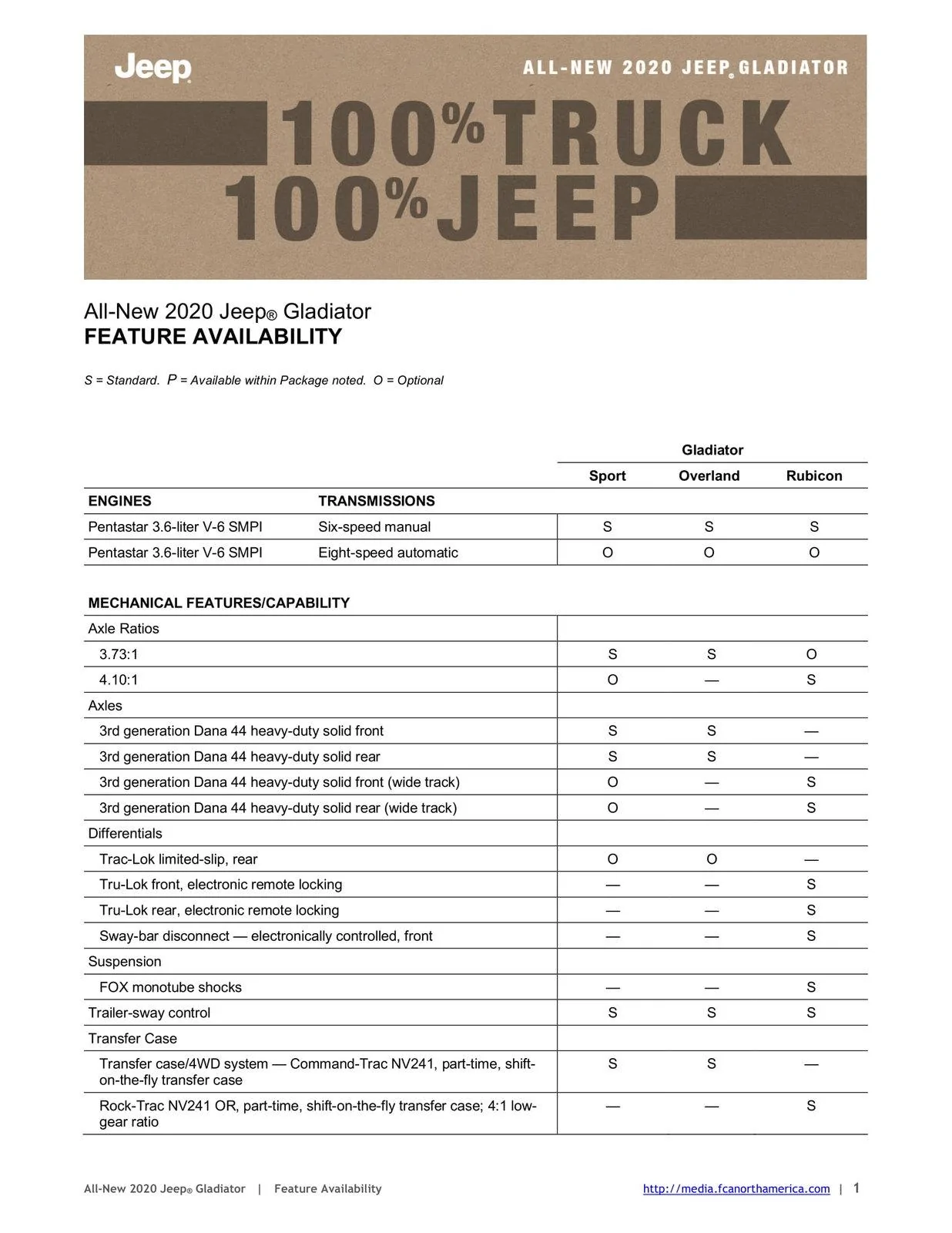

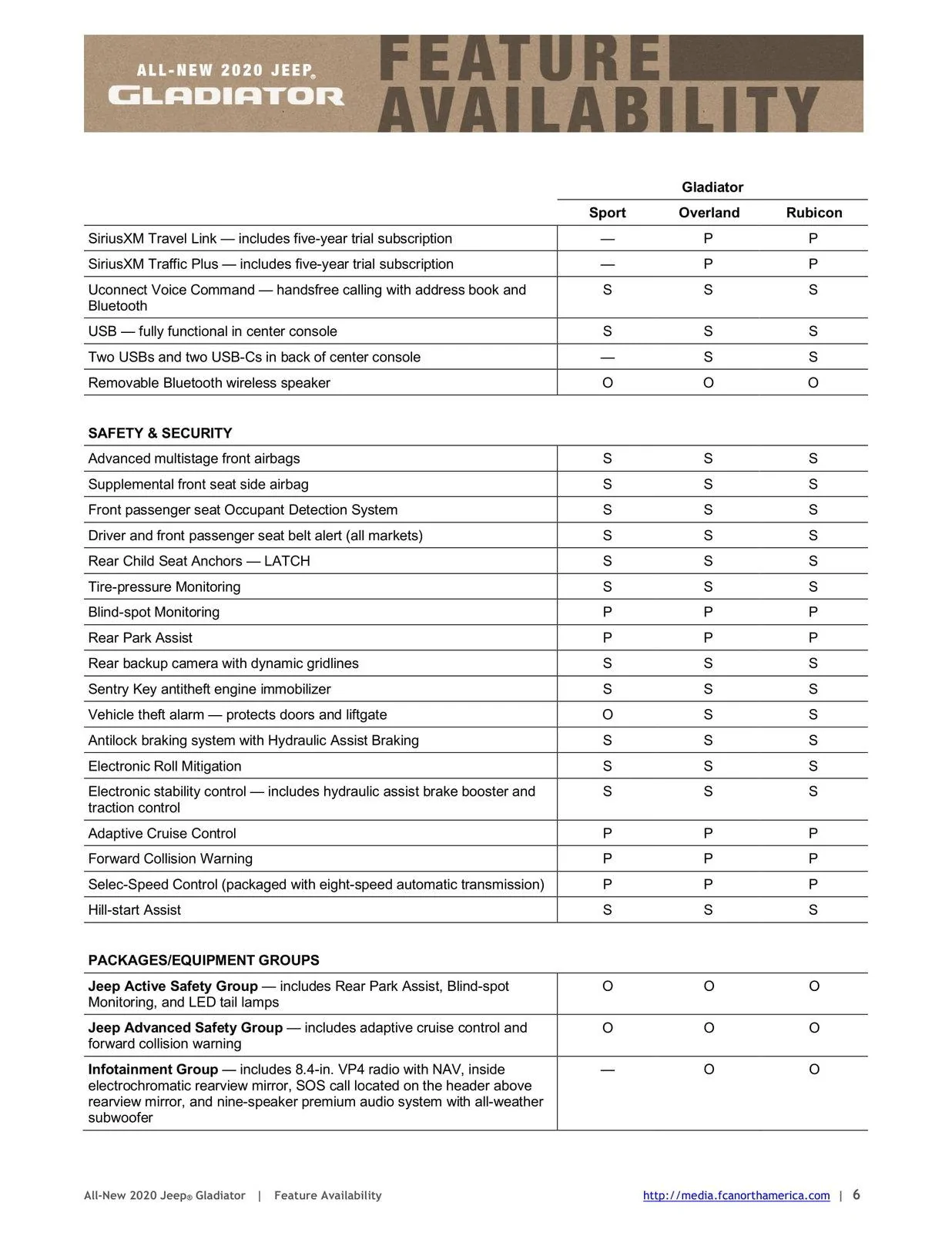

2020 JEEP GLADIATOR FEATURES AVAILABILITY



Advertisement





Troybilt

Well-Known Member
First Name
Troy
Joined
Jun 1, 2016
Messages
1,488
Reaction score
2,233
Location
Ohio
Website
troynemitz.smugmug.com
Vehicle(s)
2020 JTR
Occupation
Parks Operations
Payload and towing varies by great numbers depending on transmission and model. The Rubi will tow 7,000 max with 1,160 payload.


Moabite

Well-Known Member
Joined
Sep 26, 2018
Messages
271
Reaction score
398
Location
Moab
Vehicle(s)
2020 JT Rubicon

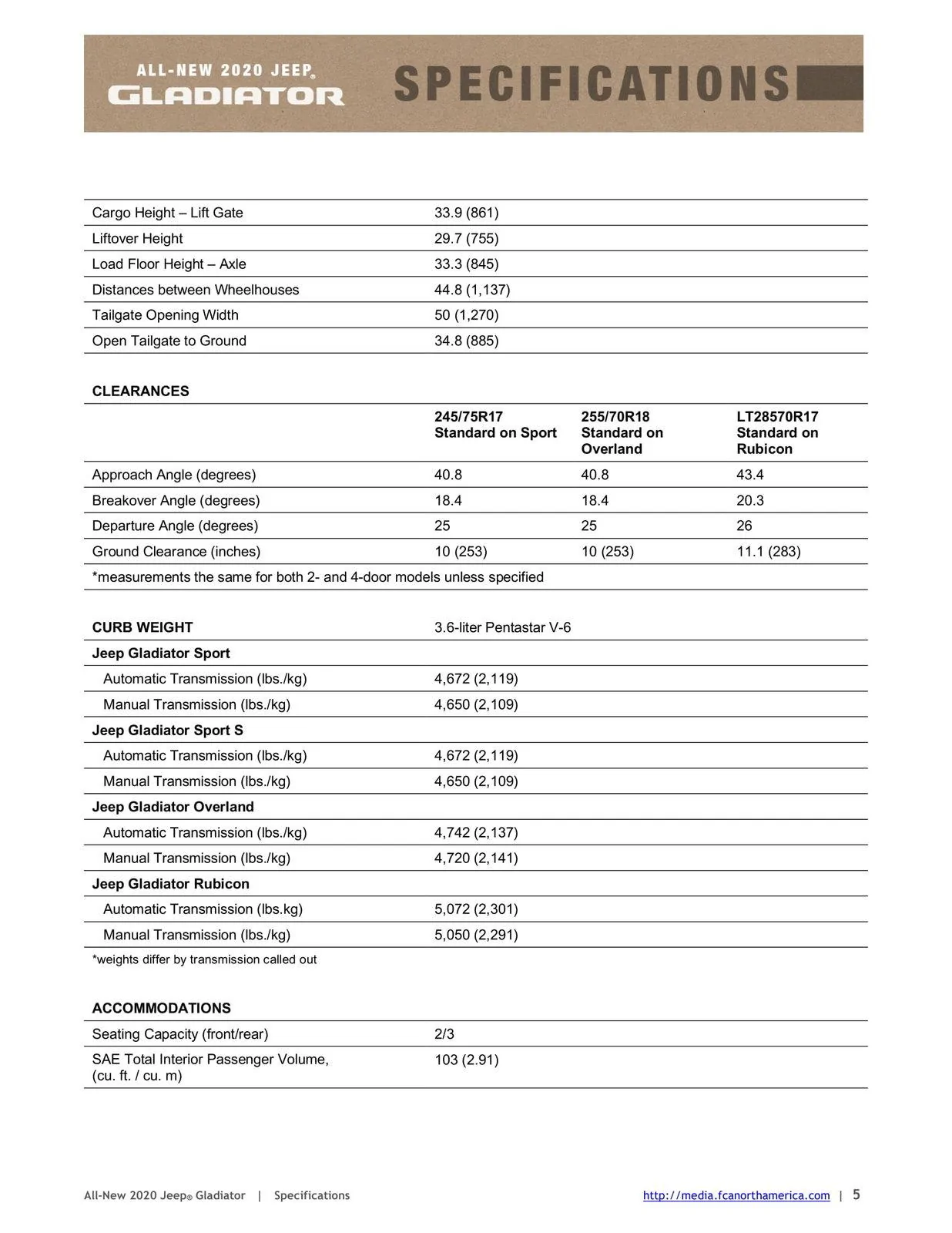

Under Clearances: "Measurements the same for both 2-door and 4-door models." Hmmm


WareAmI

Member
Joined
Nov 26, 2018
Messages
18
Reaction score
22
Location
Texas
Vehicle(s)
1965 Chevelle, 2015 Yamaha R6
Under Clearances: "Measurements the same for both 2-door and 4-door models." Hmmm
I noticed that two maybe it will be a late available one like the JL


eternus

Well-Known Member
First Name
Jody
Joined
Mar 23, 2018
Messages
892
Reaction score
785
Location
Longmont, CO
Vehicle(s)
2021 Sting-Gray Sport S Max Tow
Build Thread
Link
Occupation
Product Manager
The Max Tow on Sport really makes it much more doable for me... you get the wide axles and better ratio, the main reason I would really push to get a Rubicon. I'm pleased and more confident I can order a Sting-Gray version as soon as its available... even if they price the Rubicon out of my range I can still get the good stuff. (c: (Just need to read back through to see where P and O is not available for the Sport S.

The Overland is a major disappointment to me... but it's a good "Limited" package for people that want to feel fancier in their Jeep.


jacob66999

Member
Joined
Nov 28, 2018
Messages
22
Reaction score
8
Location
Florida
Vehicle(s)
1997 TJ Wrangler

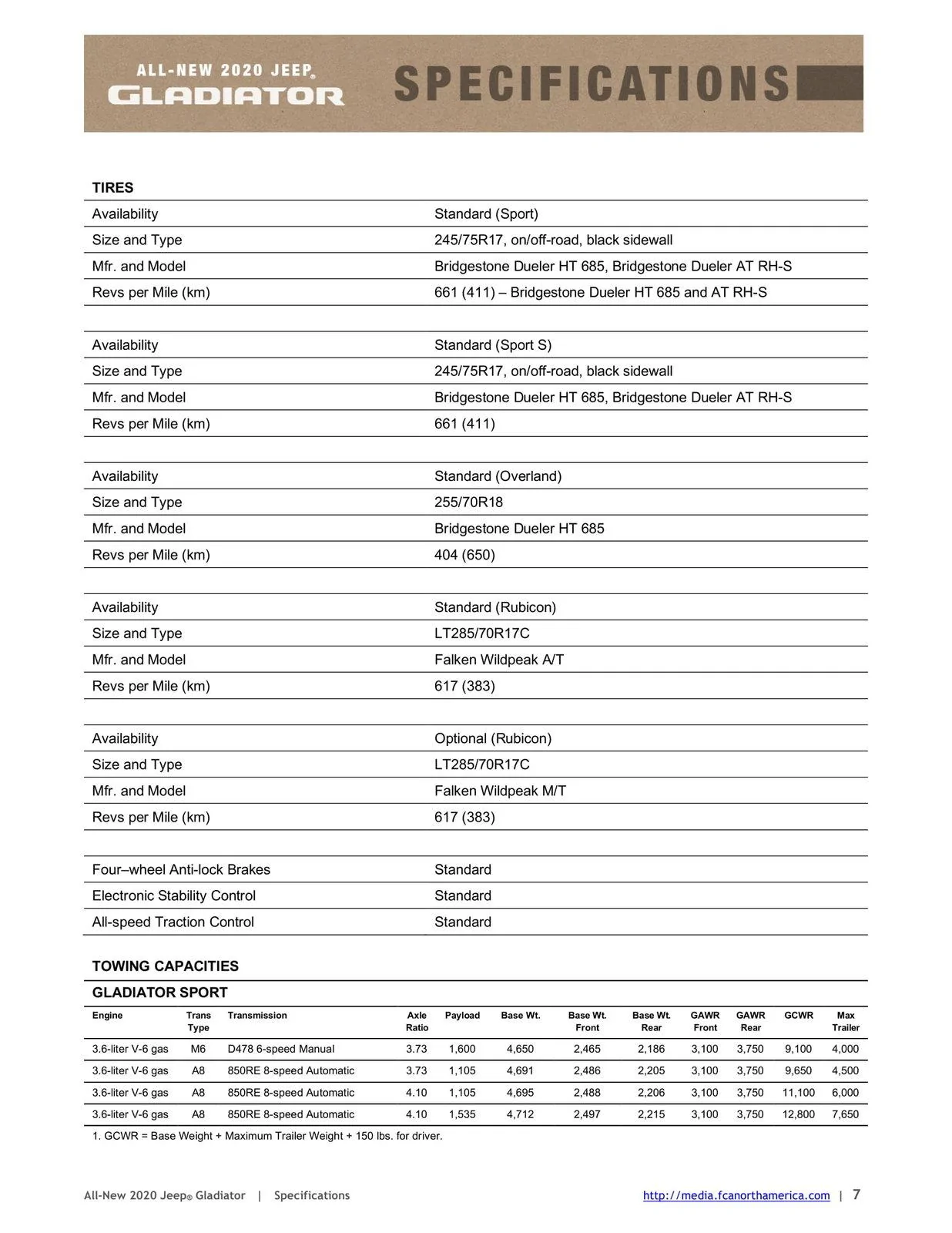

Can anyone explain the difference in payload, base weight and max trailer for 8 speed auto with 4.10 axles on the sport? I assume the higher capacity #'s are for the max tow package, but how do you get 4.10 axles without the max tow package?

Edit: I see the 4.10 axles are an option. So I guess not 4.10 axle option with the manual?


eternus

Well-Known Member
First Name
Jody
Joined
Mar 23, 2018
Messages
892
Reaction score
785
Location
Longmont, CO
Vehicle(s)
2021 Sting-Gray Sport S Max Tow
Build Thread
Link
Occupation
Product Manager
Can anyone explain the difference in payload, base weight and max trailer for 8 speed auto with 4.10 axles on the sport? I assume the higher capacity #'s are for the max tow package, but how do you get 4.10 axles without the max tow package?

Edit: I see the 4.10 axles are an option. So I guess not 4.10 axle option with the manual?
It looks like the 4:10 ONLY comes with the Rubicon or the Sport if you get the Max Tow. I don't imagine you can get only the 4:10 on its own. (Sort of like the 3.73 only coming with the Tow package in the Wranglers.)

My question about that Max Tow is... why the wide axle? Is it to give a broader base and make it more stable? I presume yes there, but then I wonder if it means I could put 35" tires on a Sport without a lift. Or if I also have to have the high line fenders as well.


jacob66999

Member
Joined
Nov 28, 2018
Messages
22
Reaction score
8
Location
Florida
Vehicle(s)
1997 TJ Wrangler
4
It looks like the 4:10 ONLY comes with the Rubicon or the Sport if you get the Max Tow. I don't imagine you can get only the 4:10 on its own. (Sort of like the 3.73 only coming with the Tow package in the Wranglers.)

My question about that Max Tow is... why the wide axle? Is it to give a broader base and make it more stable? I presume yes there, but then I wonder if it means I could put 35" tires on a Sport without a lift. Or if I also have to have the high line fenders as well.
4.10 is listed as "O" (option for the sport). Presumably it can be had without the max trailer package, but maybe its not the "wide axle?" The discrepancy in the tow capacities both with 8 speed autos and 4.10s leads me to believe the 4.10 is available as a stand alone option without the package.


eternus

Well-Known Member
First Name
Jody
Joined
Mar 23, 2018
Messages
892
Reaction score
785
Location
Longmont, CO
Vehicle(s)
2021 Sting-Gray Sport S Max Tow
Build Thread
Link
Occupation
Product Manager
The announcer guy mentioned big brakes... and I know the JLUR had big brakes. Can we confirm, do ALL Gladiator have the bigger brakes set up? (I'm having less and less reasons to buy a Rubi if that's the case.)


ralphtt

Active Member
First Name
Ralph T
Joined
Nov 27, 2018
Messages
35
Reaction score
20
Location
NE Tennessee
Vehicle(s)
2020 Jeep Gladiator Rubicon,
Occupation
Retired
May have missed it but is there no option for trailer brakes . . . ?


eternus

Well-Known Member
First Name
Jody
Joined
Mar 23, 2018
Messages
892
Reaction score
785
Location
Longmont, CO
Vehicle(s)
2021 Sting-Gray Sport S Max Tow
Build Thread
Link
Occupation
Product Manager
May have missed it but is there no option for trailer brakes . . . ?
Oh, no i mean big brakes on the Jeep itself. I already have a brake controller... so I'm fine just integrating it in the new truck. My JK rotors were small... the JL Rubicon got the big brake kit, the JL Sport & Sahara, as I understand, use the same size rotors as my JKU.

I heard him mention the brakes with regard to towing (not trailer brakes) and I presumed it to mean bigger rotors. I want the big rotors on the Sport if I am towing with it as well.
