2021 Mojave Overlanding Build

unixxx

Active Member
Joined
Dec 15, 2019
Messages
39
Reaction score
48
Location
Cali
Vehicle(s)
Gladiator Mojave, Grand Cherokee SRT
Build Thread
Link
Occupation
Engineer
I've been following the forum for a while now and figured I'd start my build thread.

We just got our 2021 Mojave in December and have been planning out our overlanding build. The goal is to build an overlanding rig that is off-road capable and can sustain us off the grid for a few days. Every modification will need to be evaluated in the context of reliability, weight/payload, and handling.

Relevant factory options
  • 8-Speed Automatic
  • Selec-Trac Full Time 4WD
  • 4.10 Axle Ratio
  • Trailer Tow Package
  • Hard Top
  • Trail Rail System
  • Truck Bed AC Outlet
  • TrailCam
  • Auxiliary Switches
Completed mods
  • Mopar Trailer Brake Controller
  • Mopar All Weather Floor Mats
  • Mopar Satin Black Grille
Upcoming mods
  • Hardtop Headliner
  • Tazer JL Mini
    • Disable ASS
    • Enable hood alarm
    • Possibly enable front ParkSense
  • Rock lights and under hood light
  • Front hitch receiver
  • Warn 9.0RC Winch
    • Hitch mounted
  • RLD Canopy
    • String Gray body
    • String Gray windowed back door
    • Black solid side doors
  • Roofnest Falcon RTT
Possible transplants from other trims
  • Front ParkSense - EU
  • Front locker - Rubicon
  • Sway bar disconnect - Rubicon

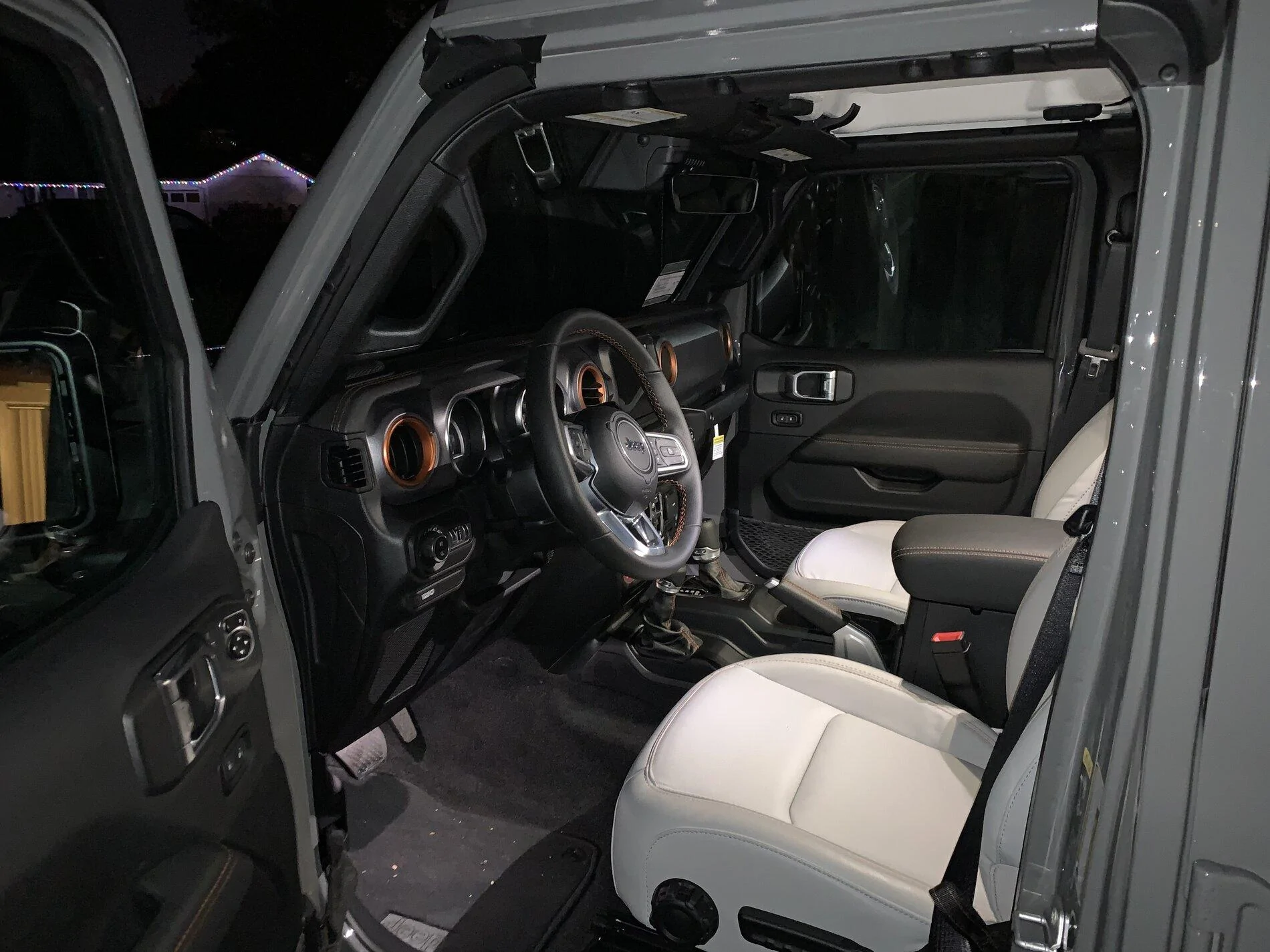

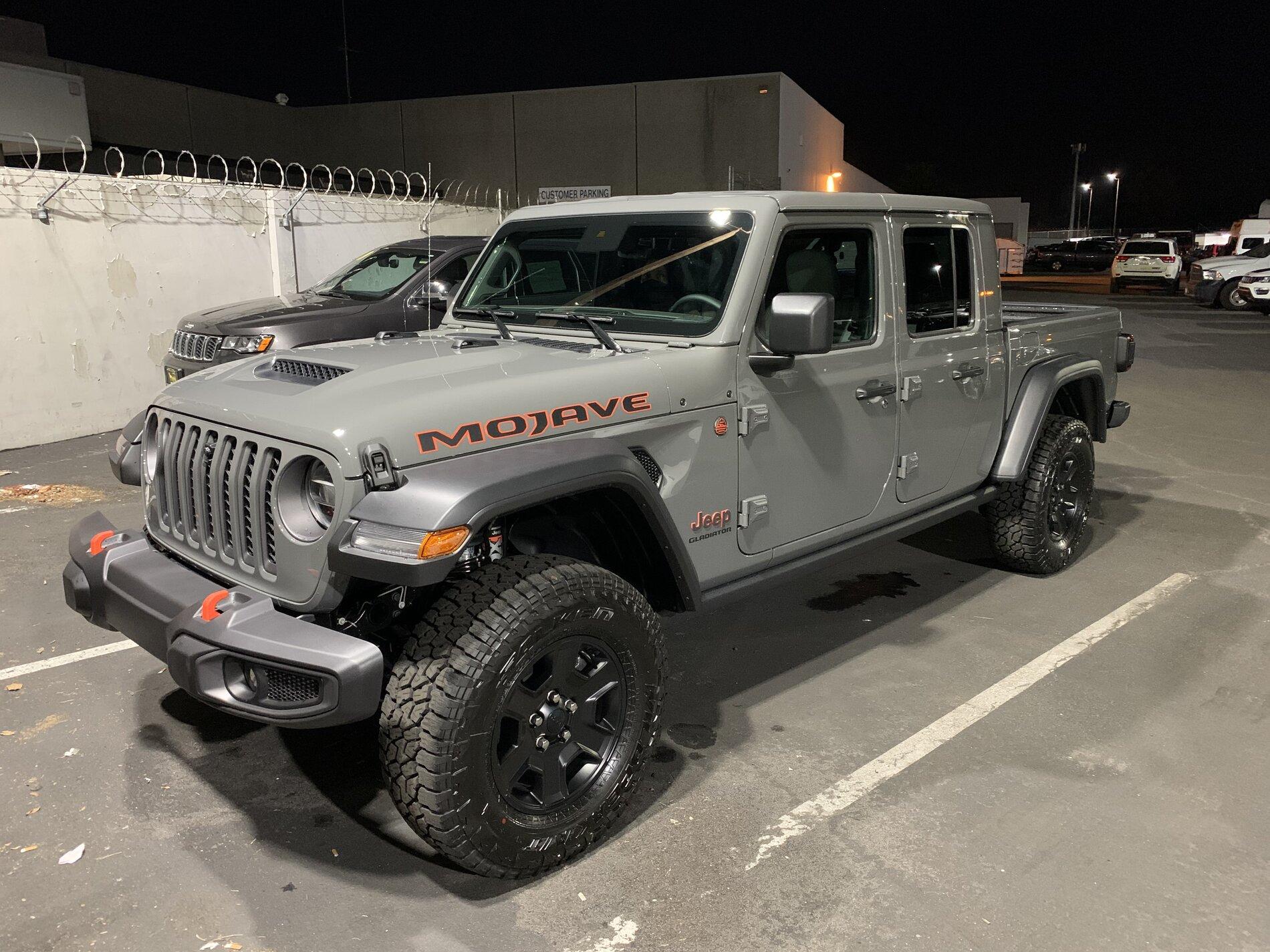

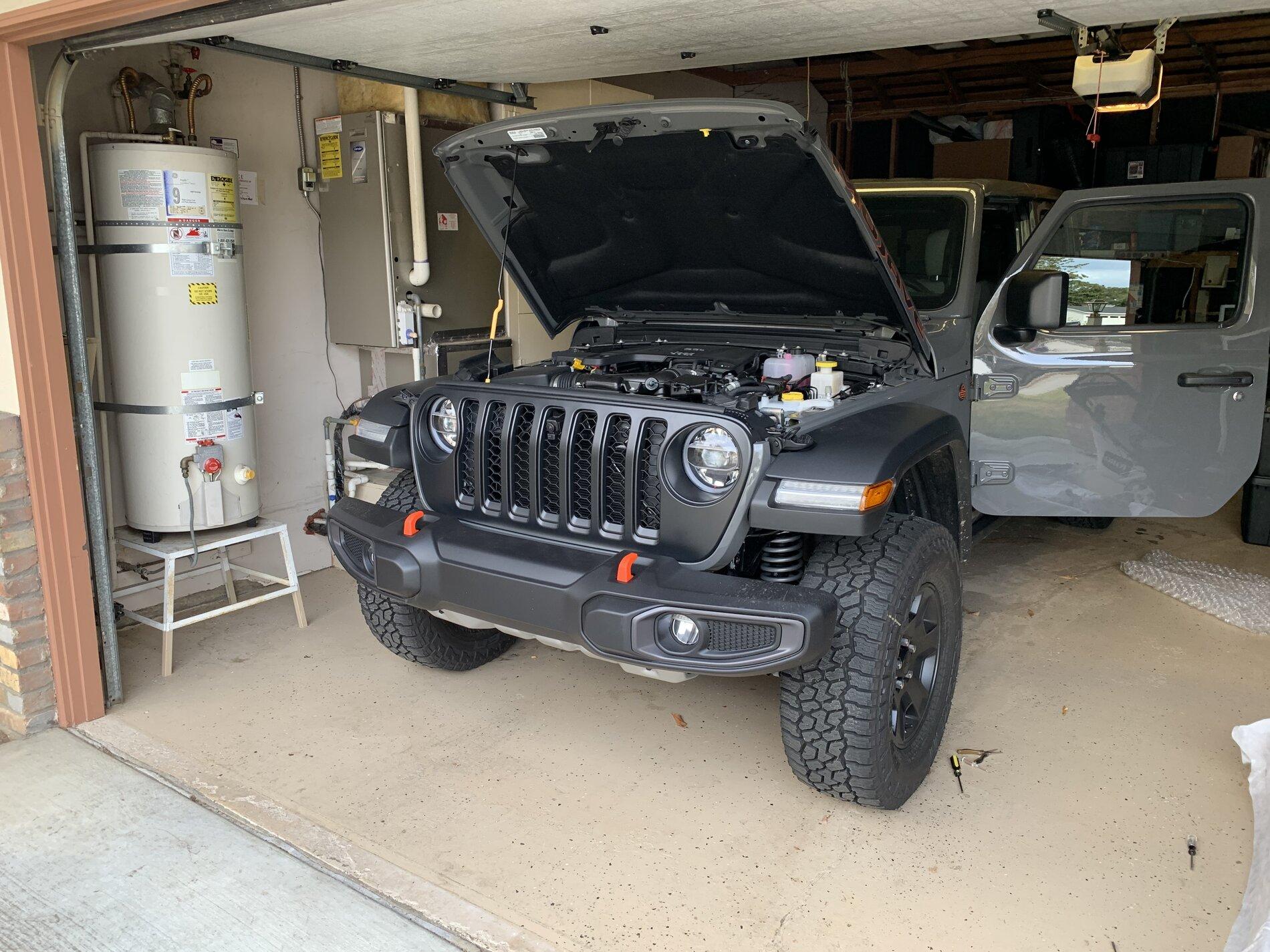

Just off the truck in December. Sting Gray exterior, Steel Gray interior.








Advertisement


Last edited:
OP
unixxx

unixxx

Active Member
Joined
Dec 15, 2019
Messages
39
Reaction score
48
Location
Cali
Vehicle(s)
Gladiator Mojave, Grand Cherokee SRT
Build Thread
Link
Occupation
Engineer
  • Thread starter
  • Thread Starter
  • #2

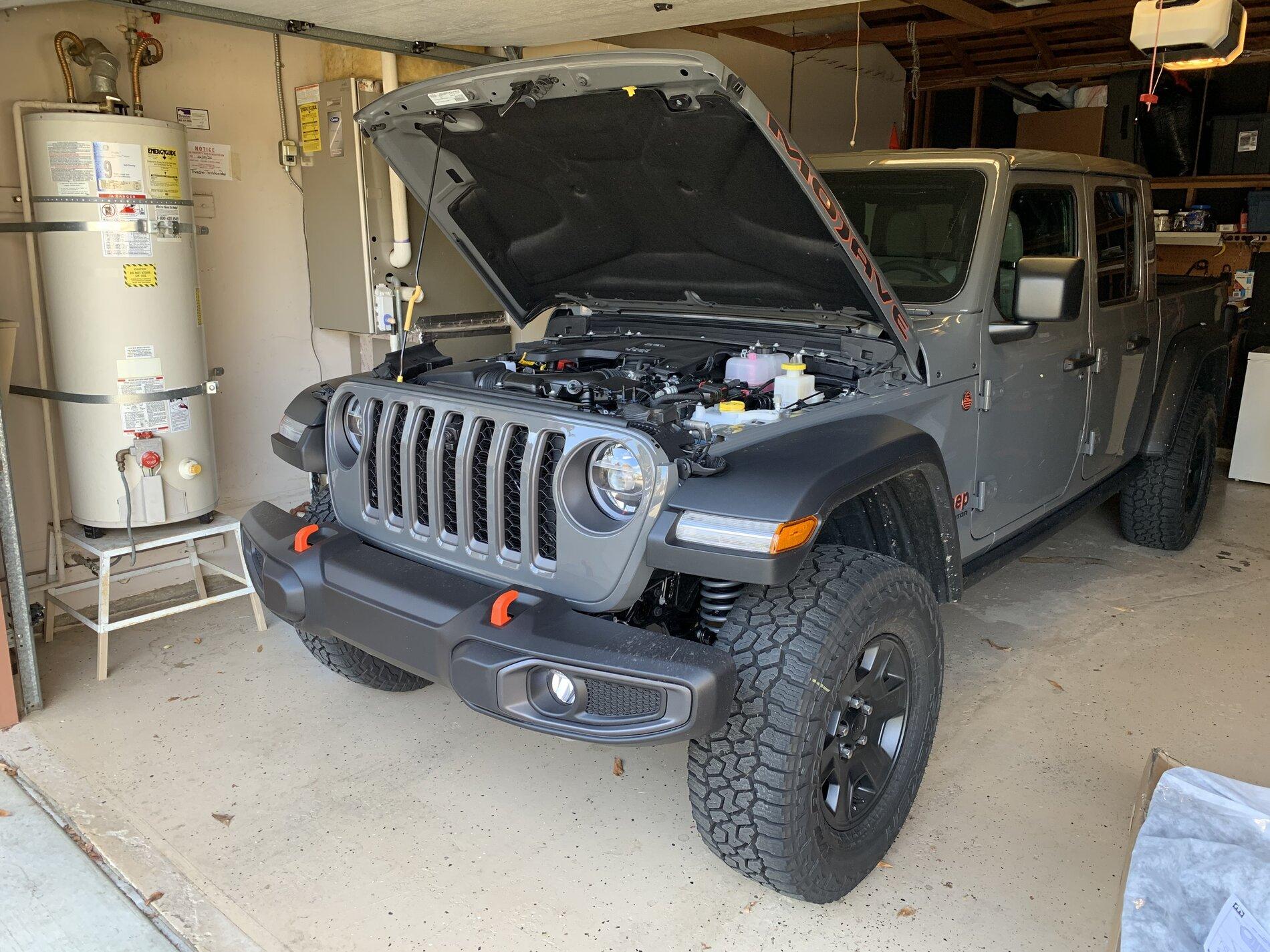

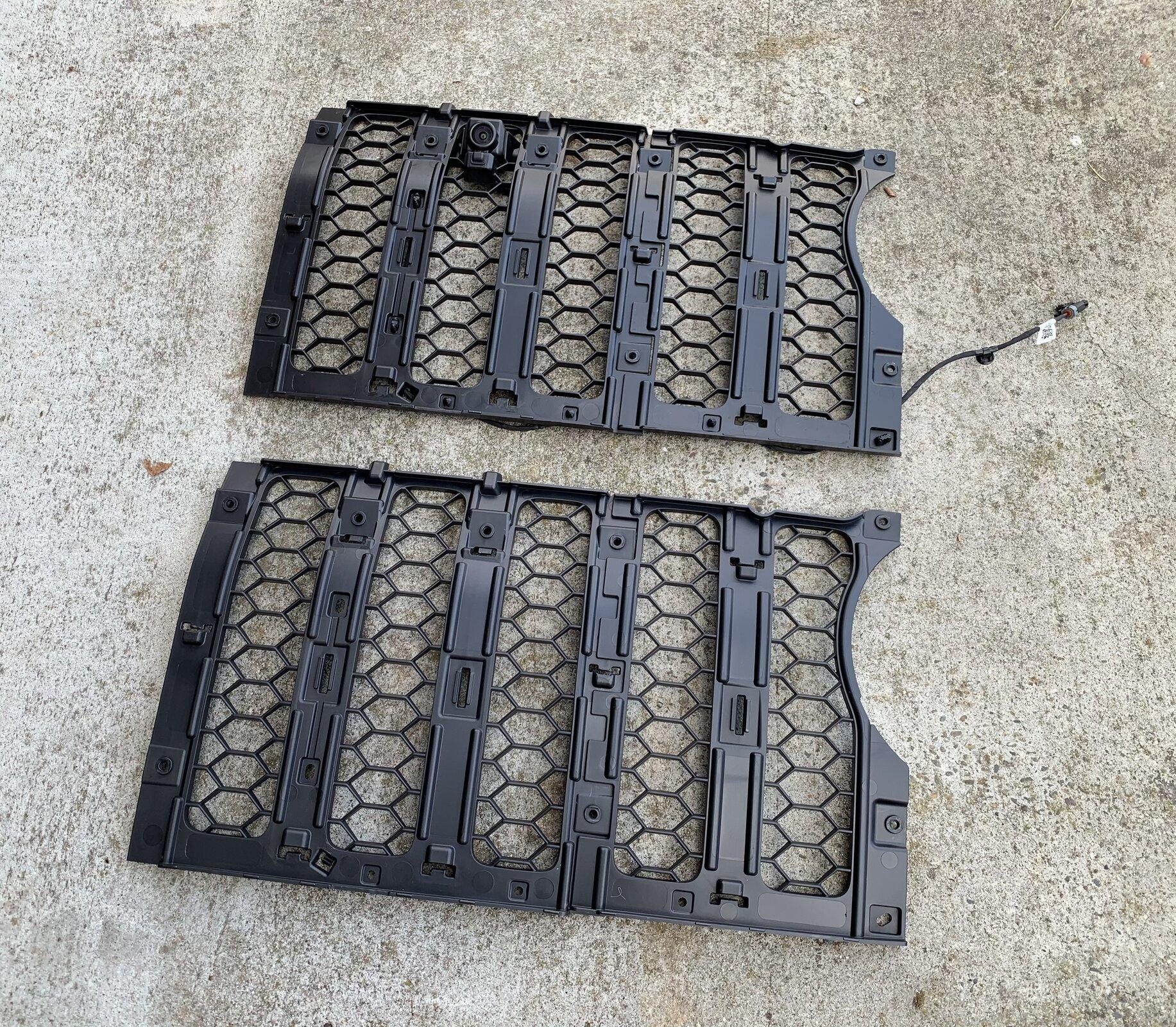

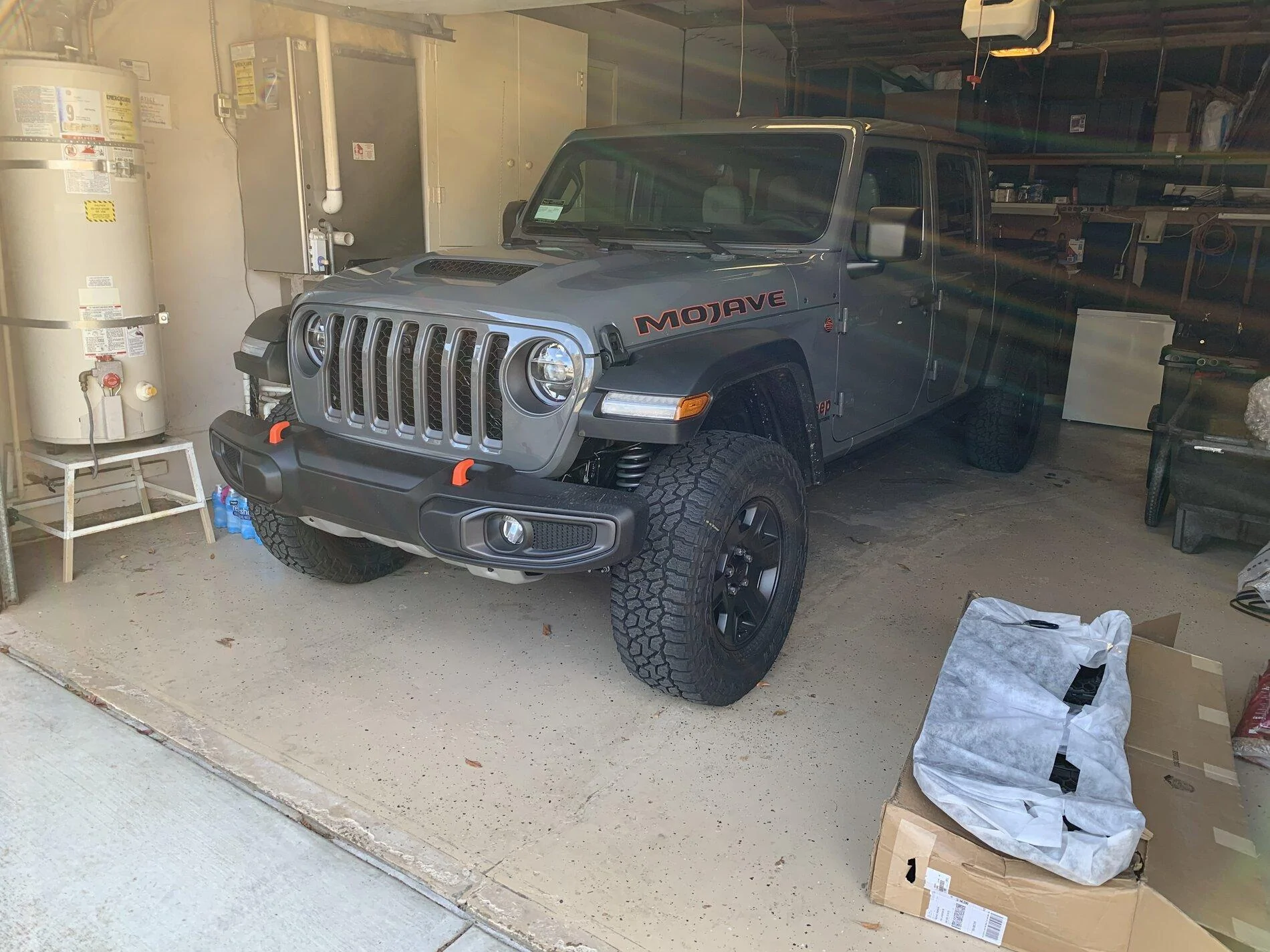

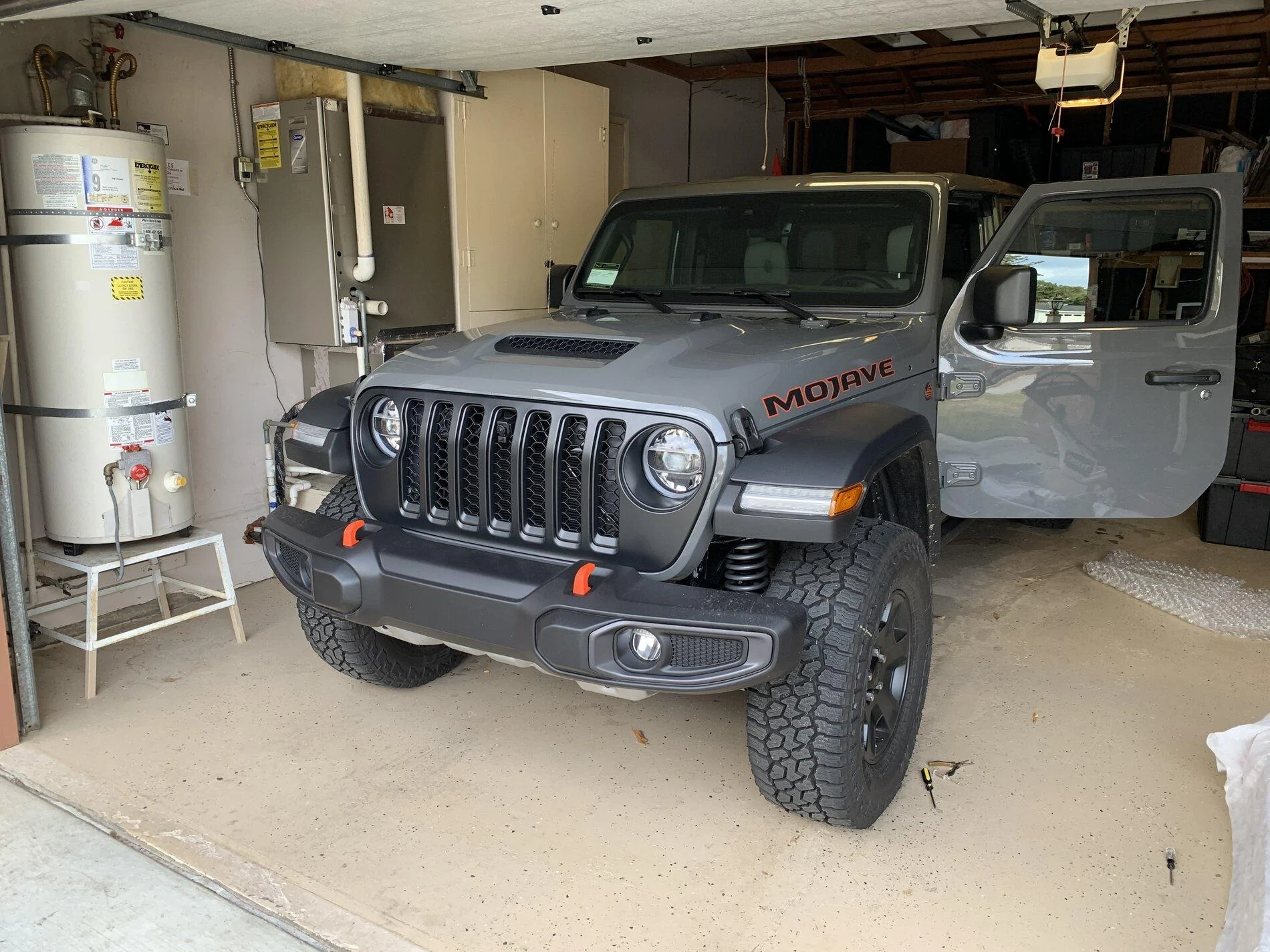

Our first mod was to swap the stock paint matched grille for the Mopar Satin Black Grille. We wanted the satin black from the factory but it can't be ordered with the TrailCam. Had to transfer the TrailCam from the old grille to the new grille.

Got the grille from @AllMoparParts.com

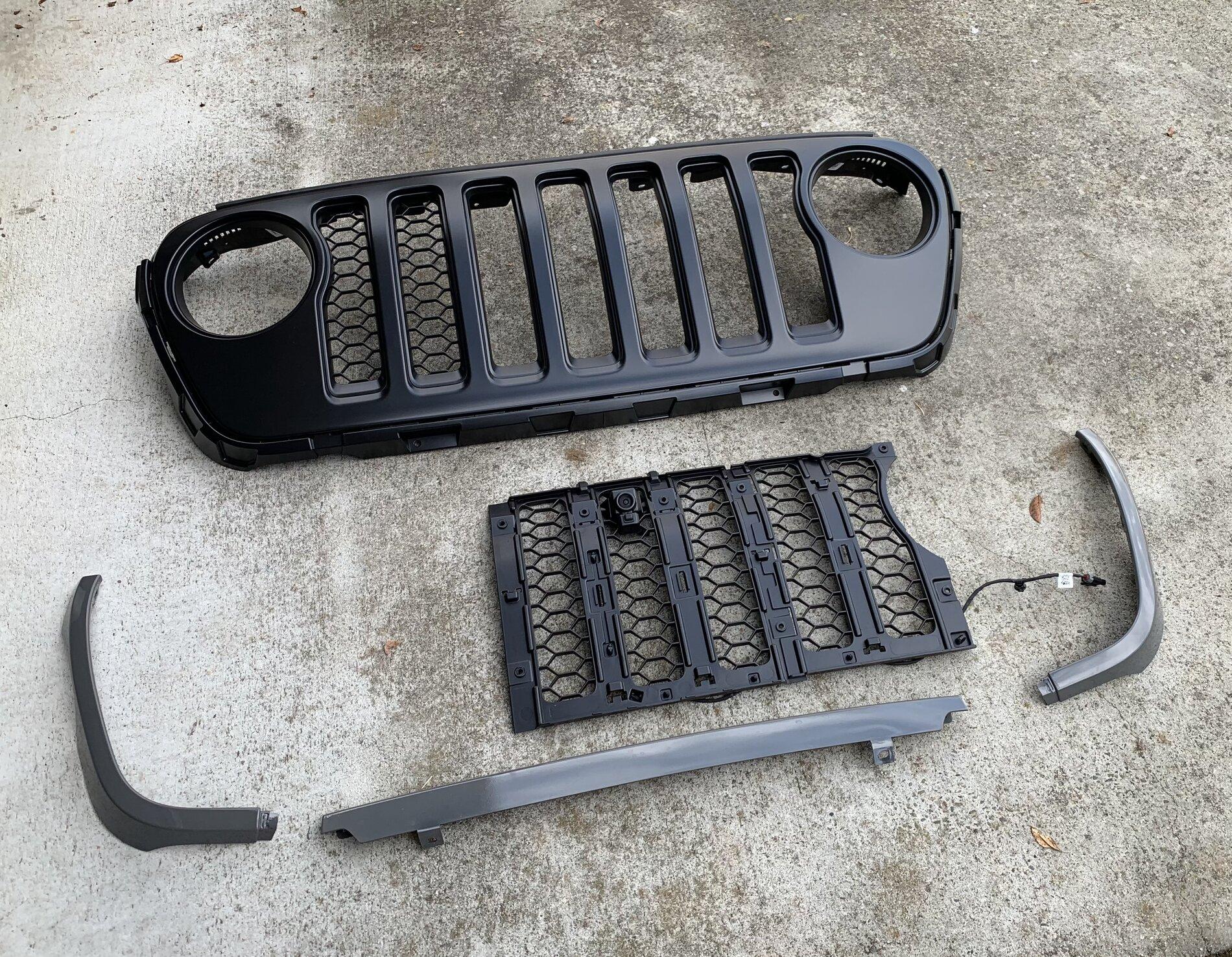

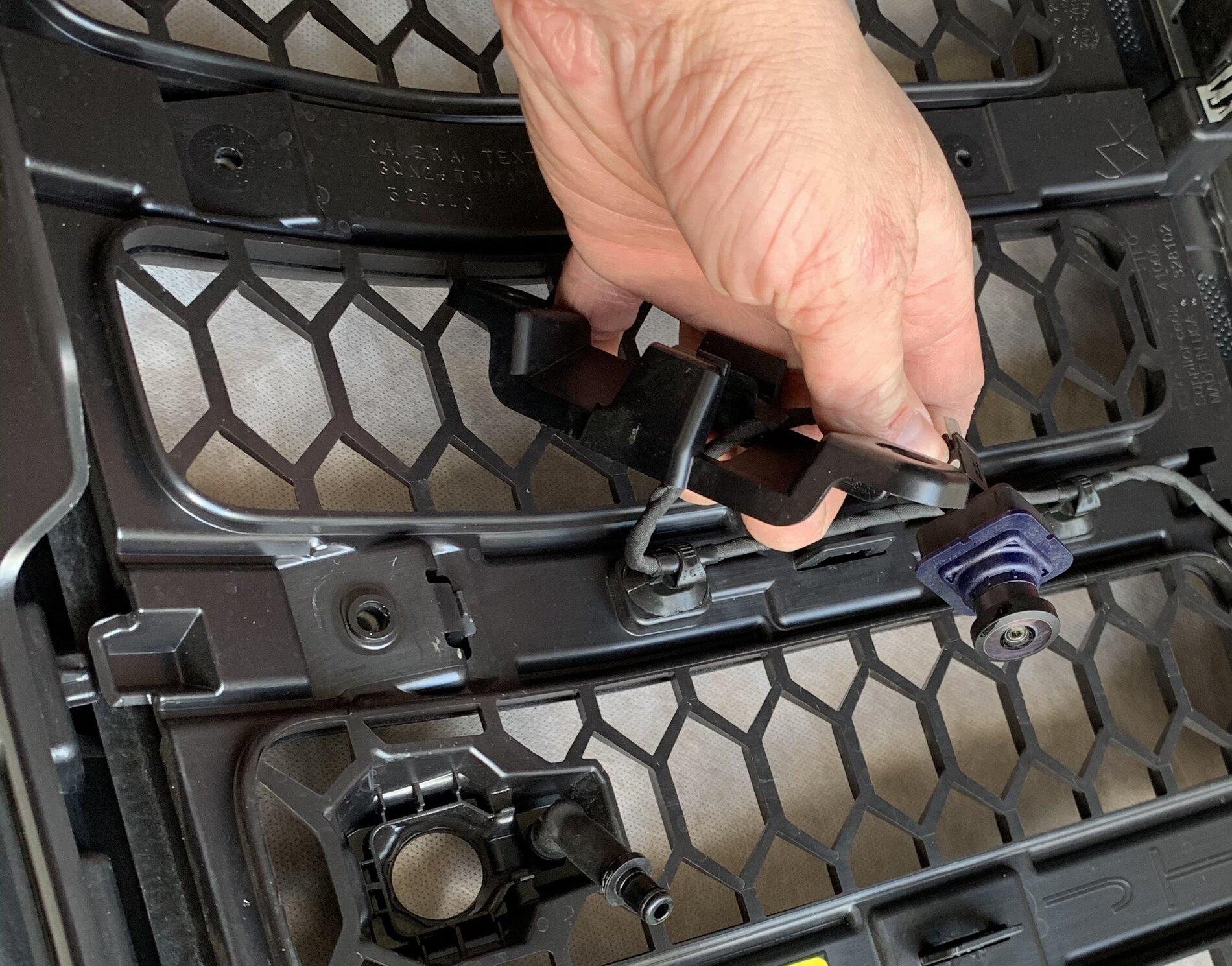

Swapping the original trim pieces and TrailCam mesh into the new satin black grille.






Last edited:
OP
unixxx

unixxx

Active Member
Joined
Dec 15, 2019
Messages
39
Reaction score
48
Location
Cali
Vehicle(s)
Gladiator Mojave, Grand Cherokee SRT
Build Thread
Link
Occupation
Engineer
  • Thread starter
  • Thread Starter
  • #3

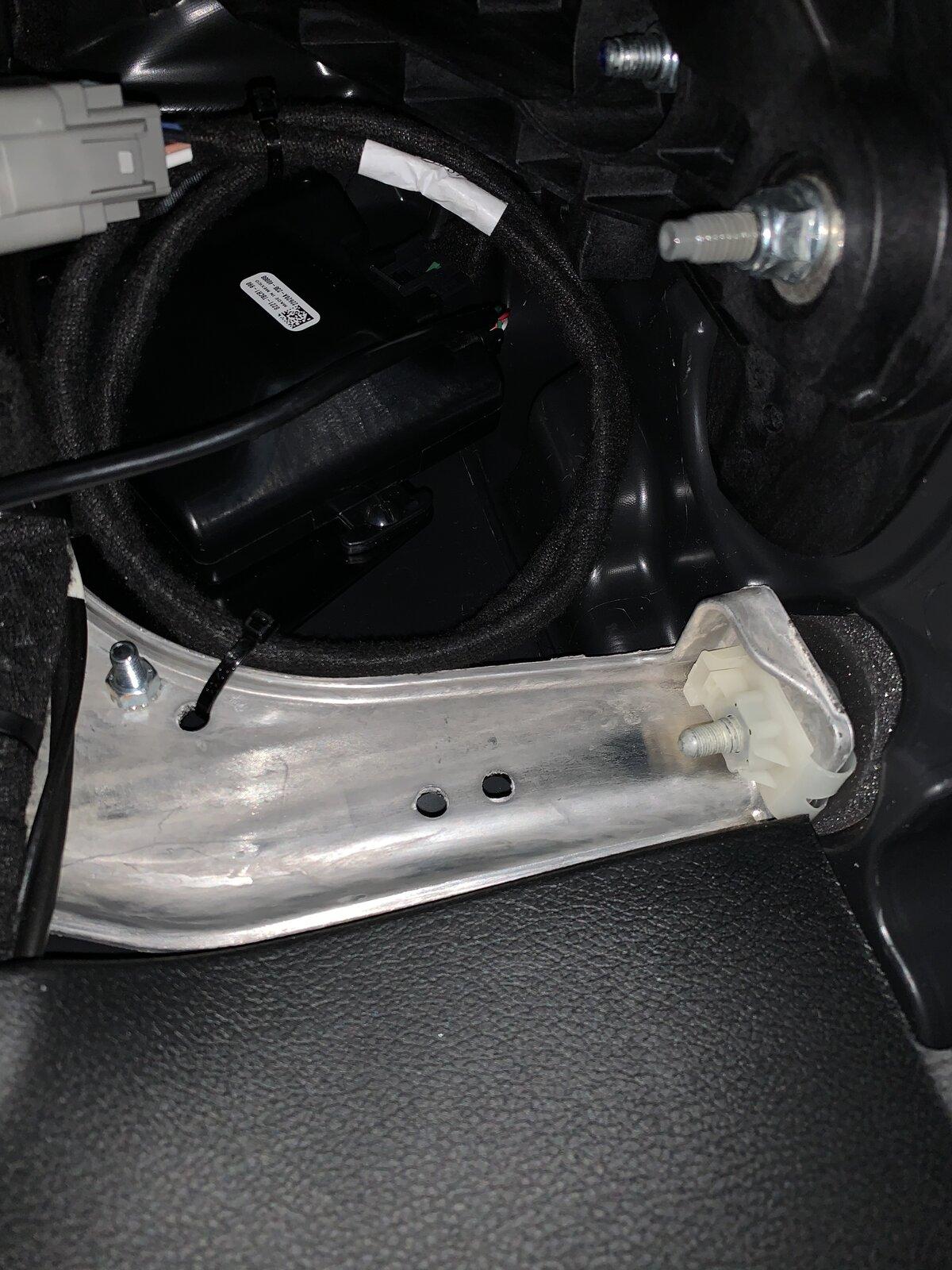

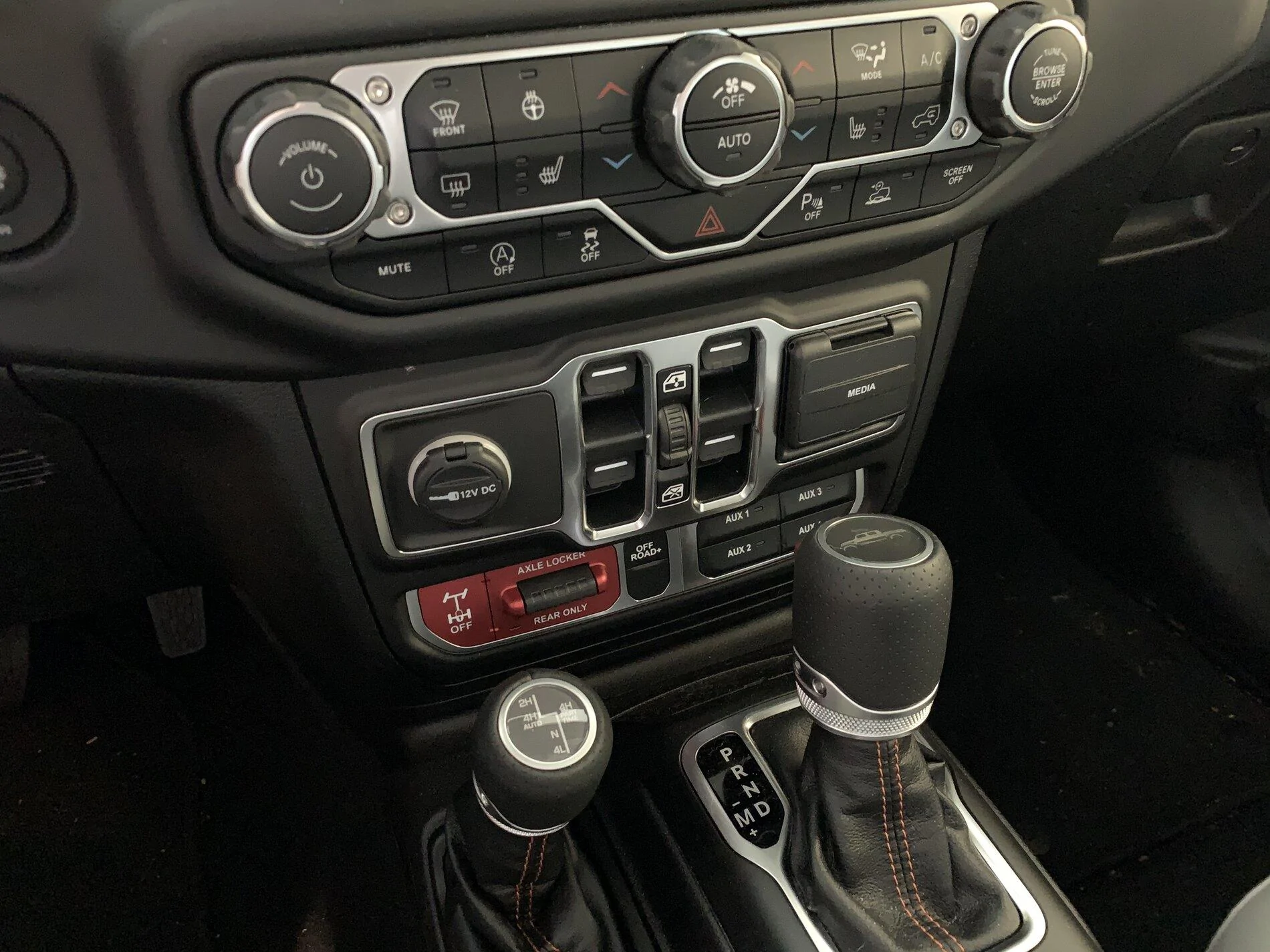

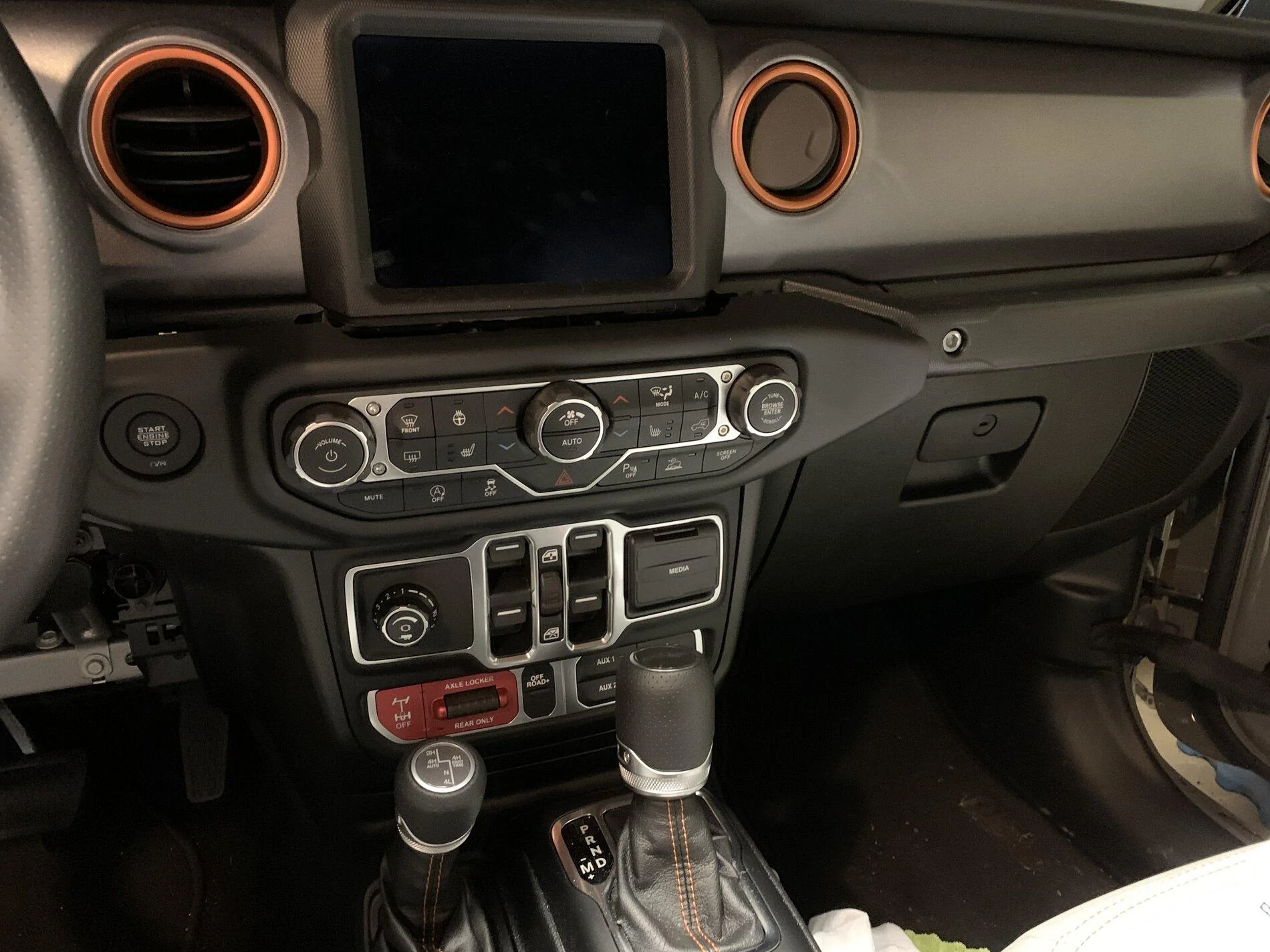

Next the Mopar Trailer Brake Controller. Getting the 12V outlet out of the dash panel and mounting the controller and wiring under the dash at the height of the master cylinder was interesting...

Got the brake controller from @AllMoparParts.com





The knob wiring is barely long enough while the brake wiring is excessively long. Also, not sure why they went with Deutsch looking connectors and Tesa tape for the brake wiring and barely automotive grade connectors and sheathing for the knob wiring.

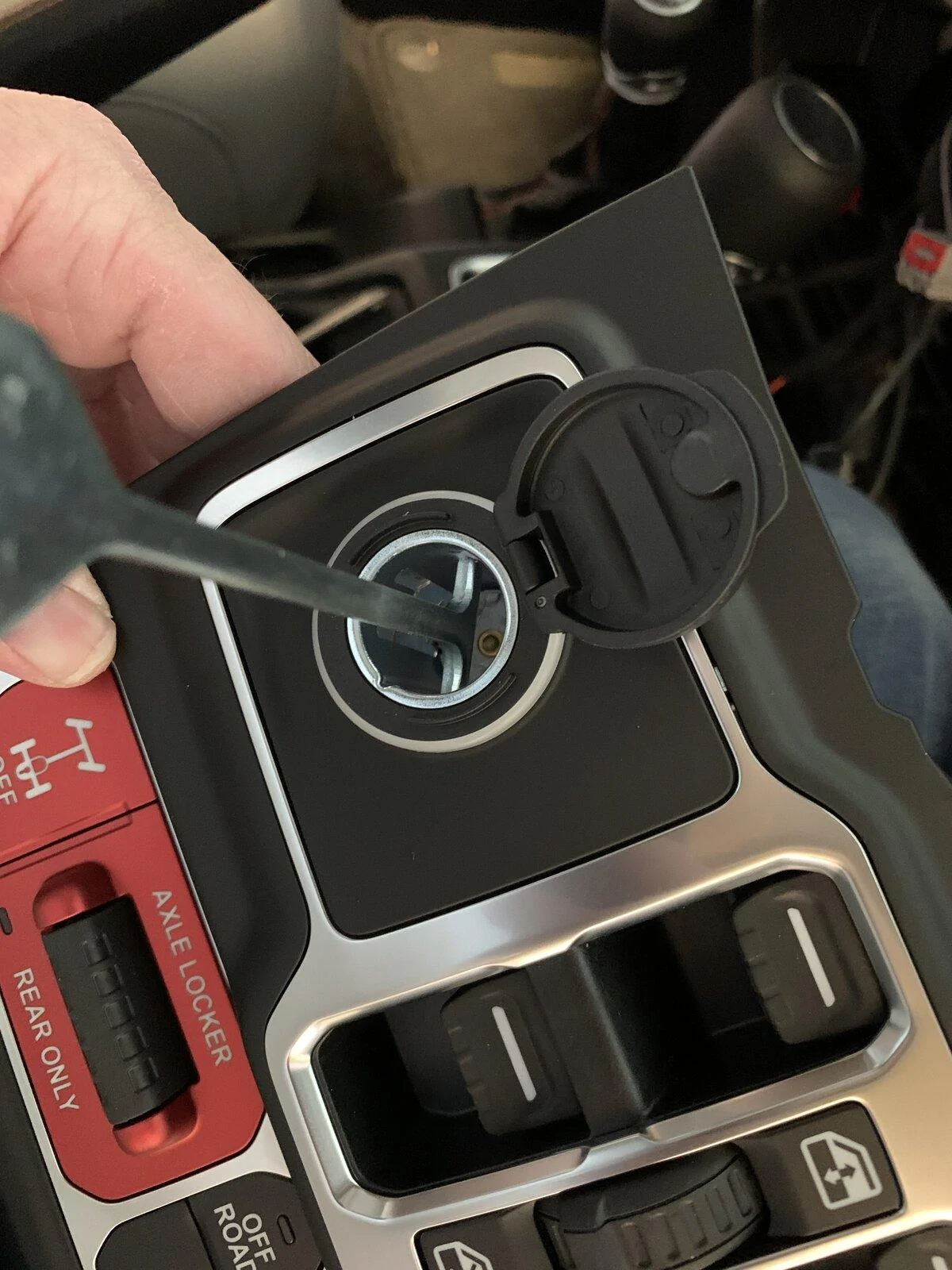

Dorman 57450 Lighter Socket Removal Tool




Last edited:
OP
unixxx

unixxx

Active Member
Joined
Dec 15, 2019
Messages
39
Reaction score
48
Location
Cali
Vehicle(s)
Gladiator Mojave, Grand Cherokee SRT
Build Thread
Link
Occupation
Engineer
  • Thread starter
  • Thread Starter
  • #4

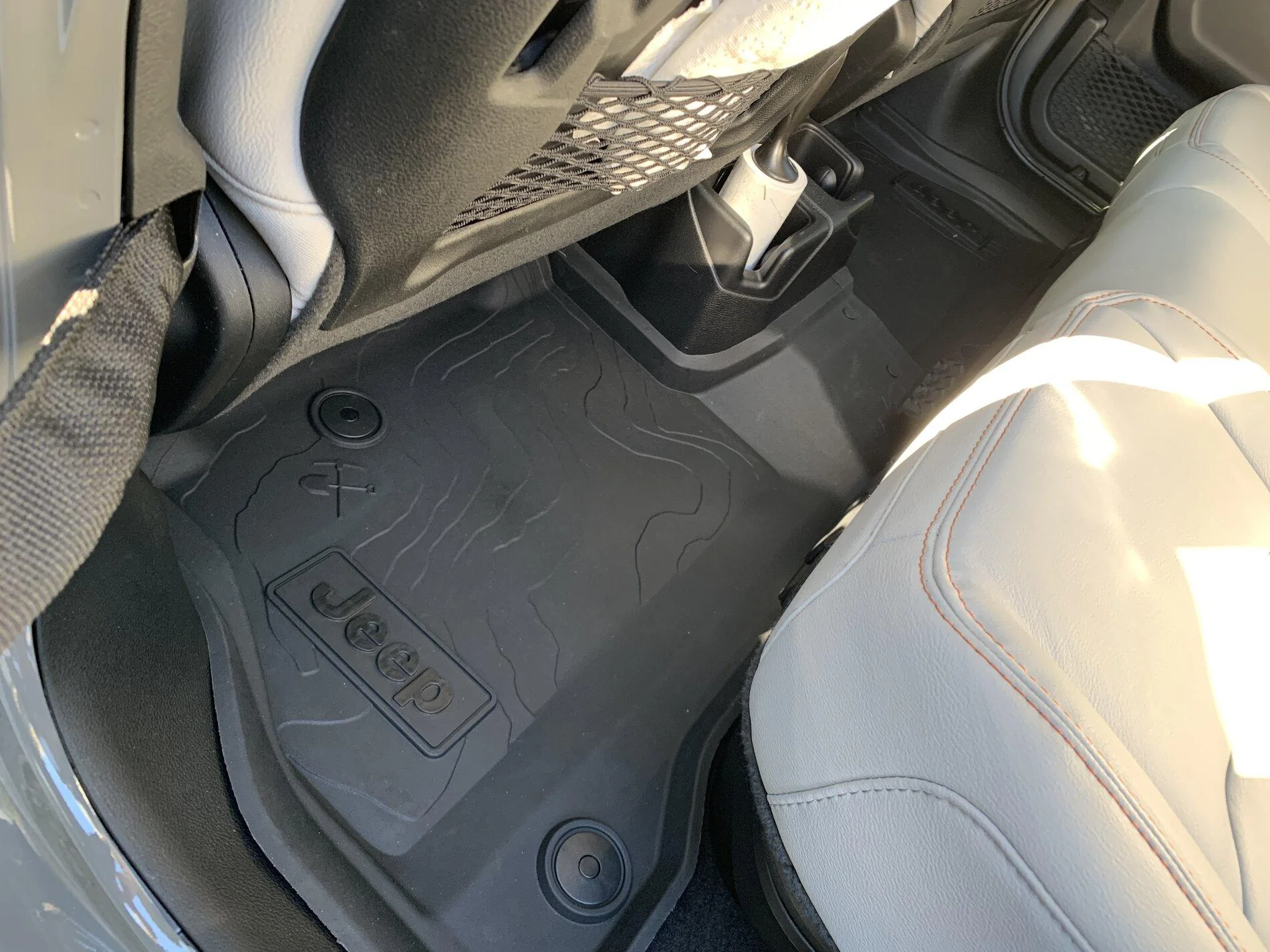

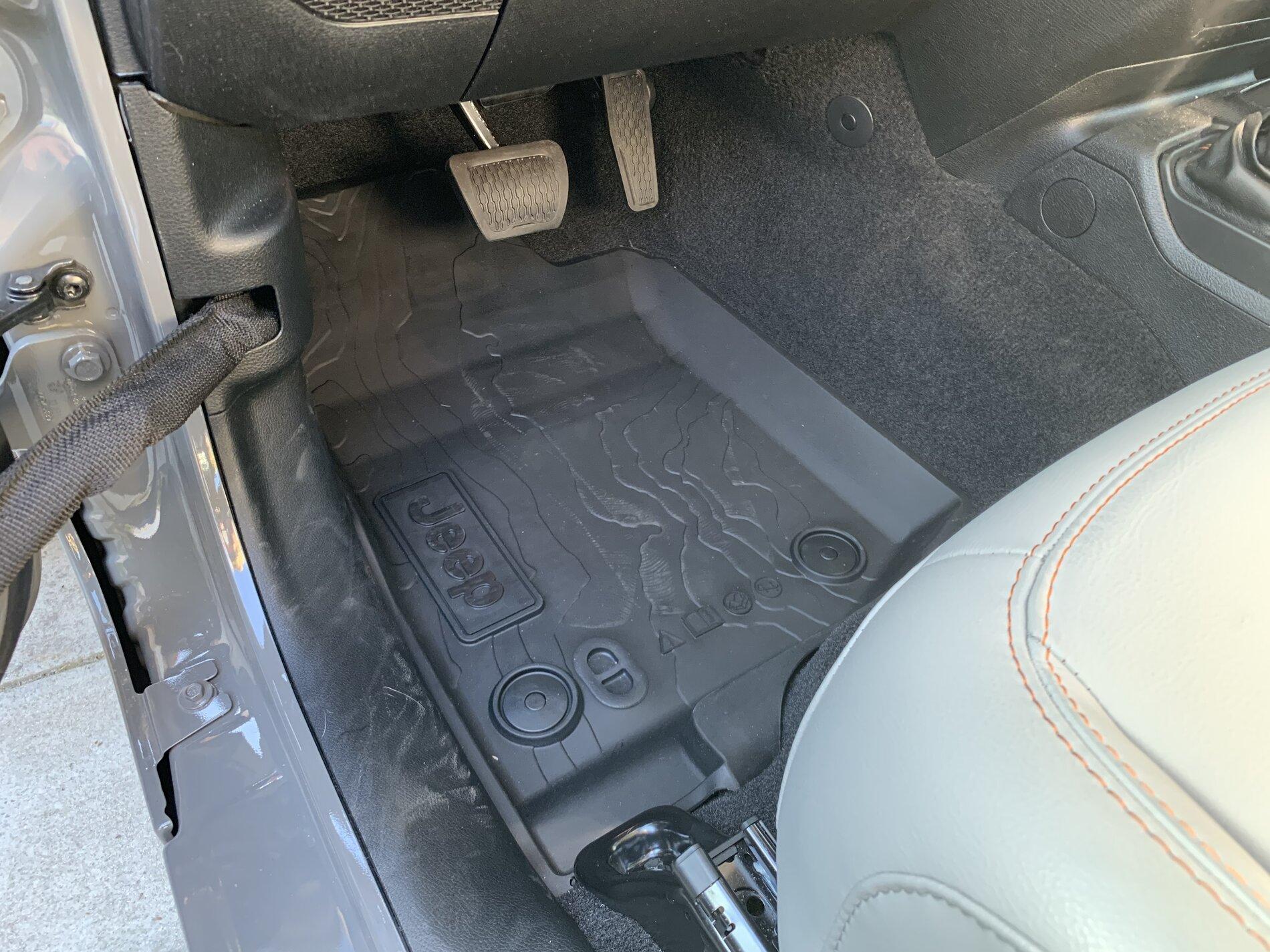

Installed the Mopar All Weather Floor Mats. Went with the black lettering instead of the red to not clash with the orange Mojave accents

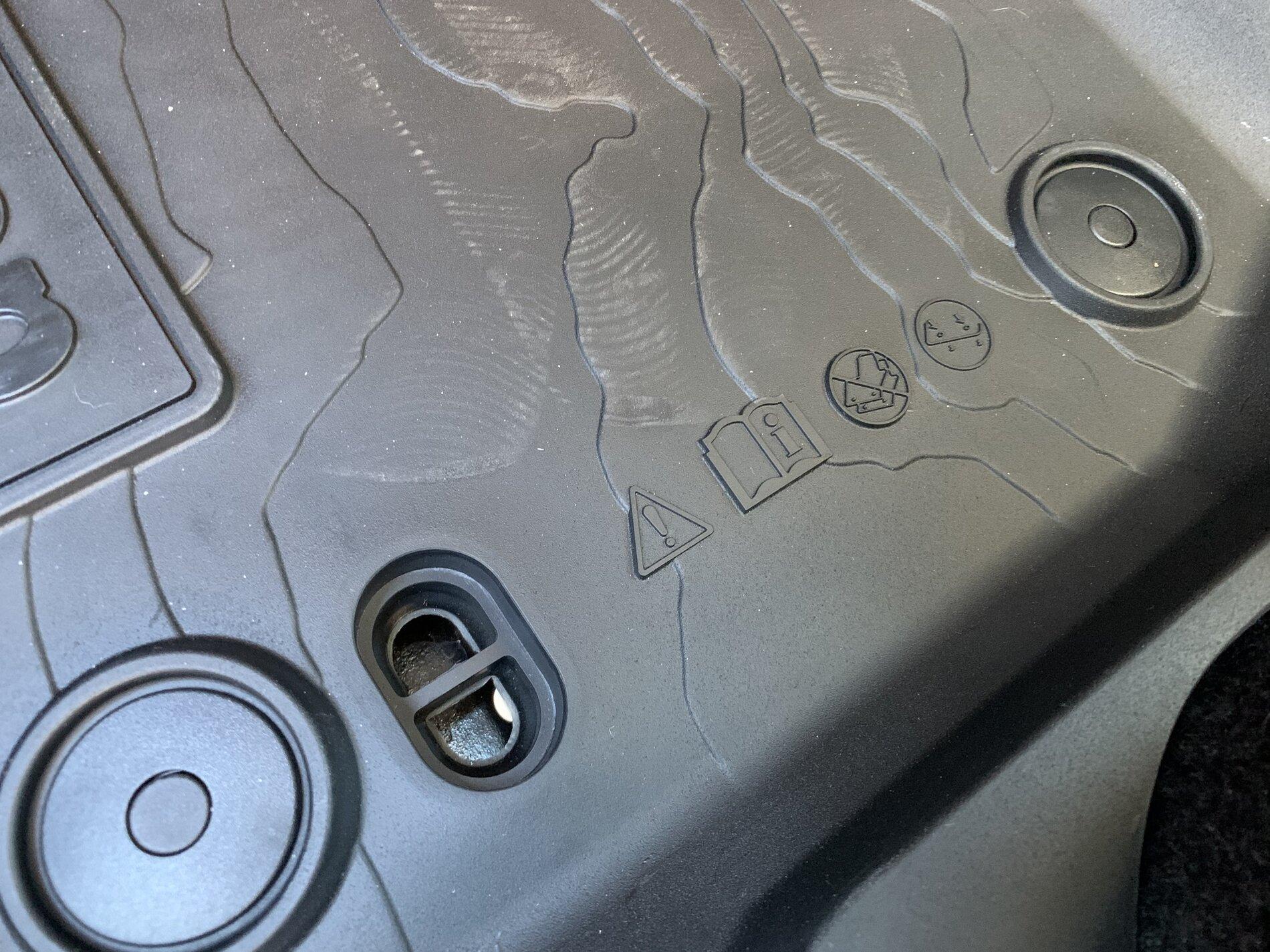

The floor drain in the front mats is very cool.



bakenatj

New Member
First Name
Nathan
Joined
Jan 23, 2021
Messages
4
Reaction score
6
Location
Iowa
Vehicle(s)
2021 Gladiator Mojave
Love the floor mats, I am going to have to put those in mine!

I just bought my Mojave a week ago today, wanting to set this up for a base camp truck. Super excited to get this truck outfitted for Overlanding/hunting.

OP
unixxx

unixxx

Active Member
Joined
Dec 15, 2019
Messages
39
Reaction score
48
Location
Cali
Vehicle(s)
Gladiator Mojave, Grand Cherokee SRT
Build Thread
Link
Occupation
Engineer
  • Thread starter
  • Thread Starter
  • #6
Love the floor mats, I am going to have to put those in mine!

I just bought my Mojave a week ago today, wanting to set this up for a base camp truck. Super excited to get this truck outfitted for Overlanding/hunting.
The floor mats are very nice. I love how Jeep puts so much thought into the details.

It’s looking like an ideal platform for overlanding. The Pentastar, 8-spd ZF, and D44’s should be incredibly reliable. Will be interesting to see the long term durability of the Selec-Trac TC.

Congrats on your Mojave!

Last edited:

bakenatj

New Member
First Name
Nathan
Joined
Jan 23, 2021
Messages
4
Reaction score
6
Location
Iowa
Vehicle(s)
2021 Gladiator Mojave
The floor mats are very nice. I love how Jeep puts so much thought into the small details.

It’s looking like an ideal platform for overlanding. The Pentastar, 8-spd ZF, and D44’s should be incredibly reliable. Will be interesting to see the long term durability of the Selec-Trac TC.

Congrats on your Mojave!
Thanks man, I love the truck so far. Your setup looks awesome. I am new to this and excited to learn all about it.


dickeldan

Active Member
First Name
Scott
Joined
Sep 18, 2020
Messages
40
Reaction score
42
Location
Leawood, KS
Vehicle(s)
2021 Mojave
Occupation
photographer
Will be following! I have the exact same Mojave that I got at the end of Dec. Luckily mine came with the black grill. I want to do a little overlanding so will be watching to see what you add. Only thing I've added so far are some nfab steps, linex bed, and undercover ultra flex cover for bed.


XJhawk

Well-Known Member
First Name
Bob
Joined
Jun 17, 2020
Messages
96
Reaction score
140
Location
Dallas, Tx
Vehicle(s)
2020 Gladiator Mojave
Occupation
Sales Manager
Definitely watching here. I have the Sting Gray Mojave.
Mine also will be an overlanding build.
I have a home in Palm Springs that we are retiring to in 3 years....so the desert definitely plays into my future


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Messages
731
Reaction score
747
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
I put a Curt front receiver on my Mojave, had to trim the remote shock res. bracket basically cutting off one bolt hole, and had to remove the nutsert for that bolt. Trim the bracket right and it lines up with the curt bracket so the one bolt holding it is solid can’t move as the hitch bracket holds it in place. Putting hitch on was about a ten minute job after that, putting the skid plate on took hours as I trimmed a bit at a time, until just about done I realized you have to cut out a big square and the hitch fits fine, frame of receiver hitch is right up against skidpkate, very solid....Jack
.


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Messages
731
Reaction score
747
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
I really like the Roofnest Falcon standard size, not too heavy only 6 inches high and aluminum with mounting tracks all around, I’ve changed my plan to sleeping inside my cap and am building a stove/ sink slideout under bed and mounting Blizzard refrig ontop of driver side wheel well to be accesible from inside, rear, and through side window no slide needed.

OP
unixxx

unixxx

Active Member
Joined
Dec 15, 2019
Messages
39
Reaction score
48
Location
Cali
Vehicle(s)
Gladiator Mojave, Grand Cherokee SRT
Build Thread
Link
Occupation
Engineer
  • Thread starter
  • Thread Starter
  • #12
I put a Curt front receiver on my Mojave, had to trim the remote shock res. bracket basically cutting off one bolt hole, and had to remove the nutsert for that bolt. Trim the bracket right and it lines up with the curt bracket so the one bolt holding it is solid can’t move as the hitch bracket holds it in place. Putting hitch on was about a ten minute job after that, putting the skid plate on took hours as I trimmed a bit at a time, until just about done I realized you have to cut out a big square and the hitch fits fine, frame of receiver hitch is right up against skidpkate, very solid....Jack
.
Great info! Still trying to decide between the Curt and Draw-Tite. It looks like the Curt is lower profile but the Draw-Tite is stronger. Will probably go with the Curt for better approach angle.

https://www.curtmfg.com/part/31086



https://www.draw-tite.com/product/65079_front-mount-receiver


OP
unixxx

unixxx

Active Member
Joined
Dec 15, 2019
Messages
39
Reaction score
48
Location
Cali
Vehicle(s)
Gladiator Mojave, Grand Cherokee SRT
Build Thread
Link
Occupation
Engineer
  • Thread starter
  • Thread Starter
  • #13
I really like the Roofnest Falcon standard size, not too heavy only 6 inches high and aluminum with mounting tracks all around, I’ve changed my plan to sleeping inside my cap and am building a stove/ sink slideout under bed and mounting Blizzard refrig ontop of driver side wheel well to be accesible from inside, rear, and through side window no slide needed.
Nice! Yeah, we'd definitely go with the standard size Falcon. I like the Falcon for how low profile it is and the standard size for how it doesn't hang over the edge of the bed.

OP
unixxx

unixxx

Active Member
Joined
Dec 15, 2019
Messages
39
Reaction score
48
Location
Cali
Vehicle(s)
Gladiator Mojave, Grand Cherokee SRT
Build Thread
Link
Occupation
Engineer
  • Thread starter
  • Thread Starter
  • #14

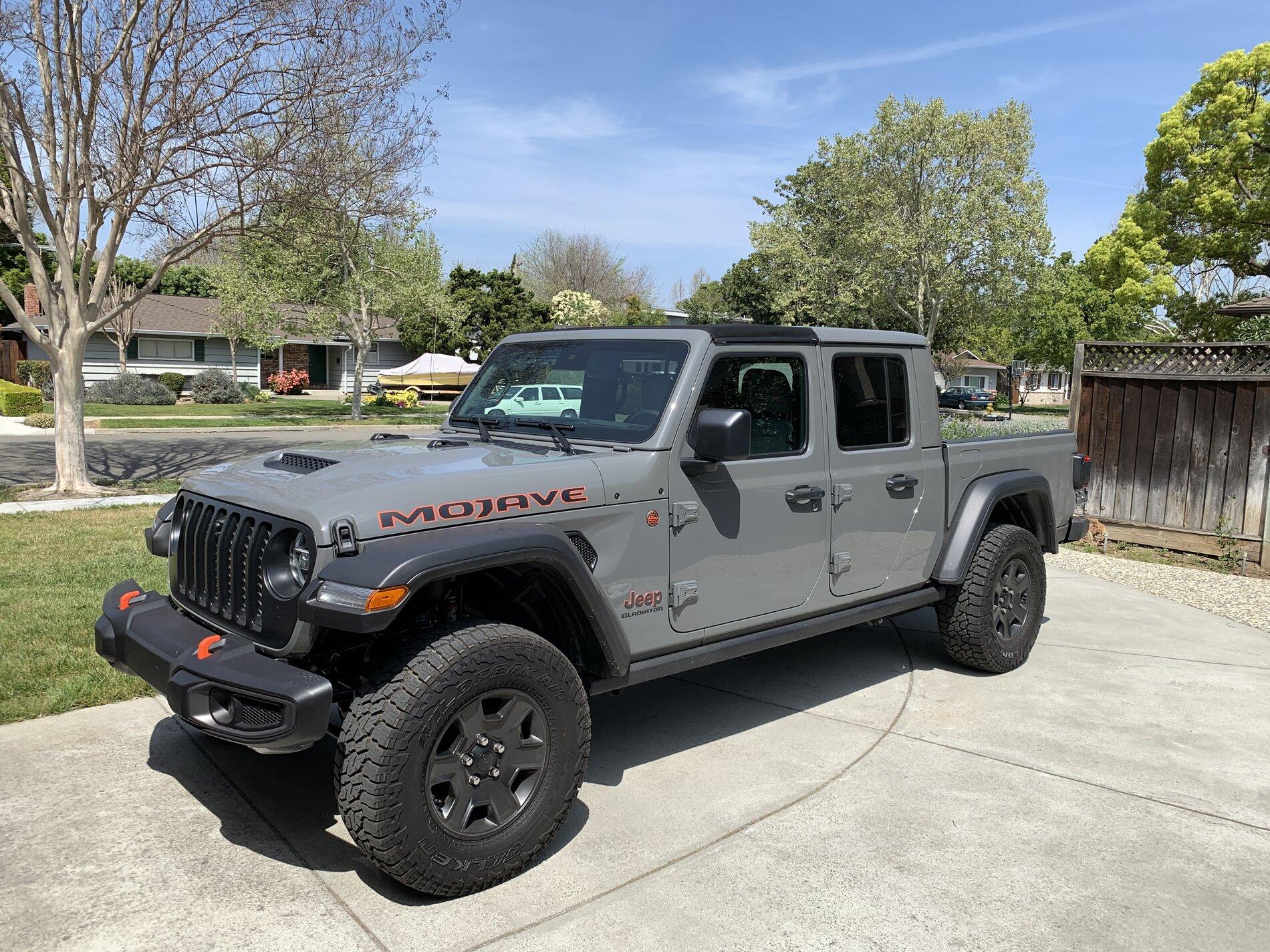

Last weekend we took a drive through the hills with the Freedom Panels removed. Having those panels removed was amazing so we immediately ordered a @Bestop Sunrider for Hardtop to install this weekend.

It takes less than 10 sec to put up or down from the driver's seat. When it's closed, there's really no wind noise until around 70 mph, at which point it's only mild. When it's opened, you can't tell it's there. It's completely out of your visual field and makes no additional noise. The build quality is amazing, it really feels stock. The only downside is it does get hotter than the Freedom Panels since it's black and has no insulation.


OP
unixxx

unixxx

Active Member
Joined
Dec 15, 2019
Messages
39
Reaction score
48
Location
Cali
Vehicle(s)
Gladiator Mojave, Grand Cherokee SRT
Build Thread
Link
Occupation
Engineer
  • Thread starter
  • Thread Starter
  • #15
Placed the order for the @RLD Design USA Cap. Went with the paint-match cap, paint-match rear door, and black side doors.

Ordered the cap from Rhino Adventure Gear. Cody is great guy to work with.

Delivery won't be until around July...

These are the closest images I could find for how it will look, except our rear door will be paint matched.
