3.5” overland plus tweak questions

hockeymonkeymark

Well-Known Member
First Name
Mark
Joined
Feb 18, 2021
Threads
6
Messages
50
Reaction score
33
Location
Midlothian, TX
Vehicle(s)
2021 JT Rubicon
Occupation
Firefighter
@Clayton Off Road

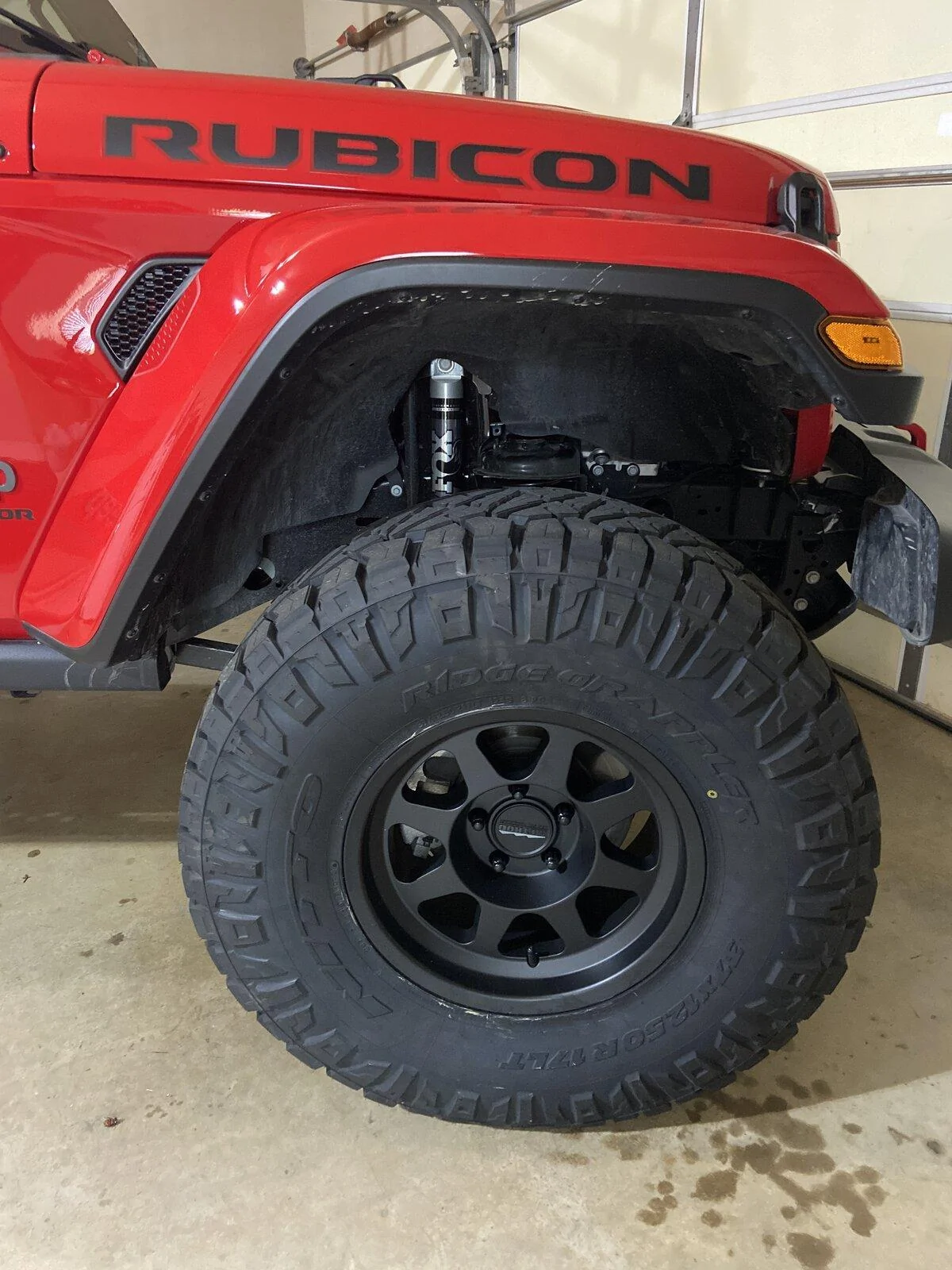

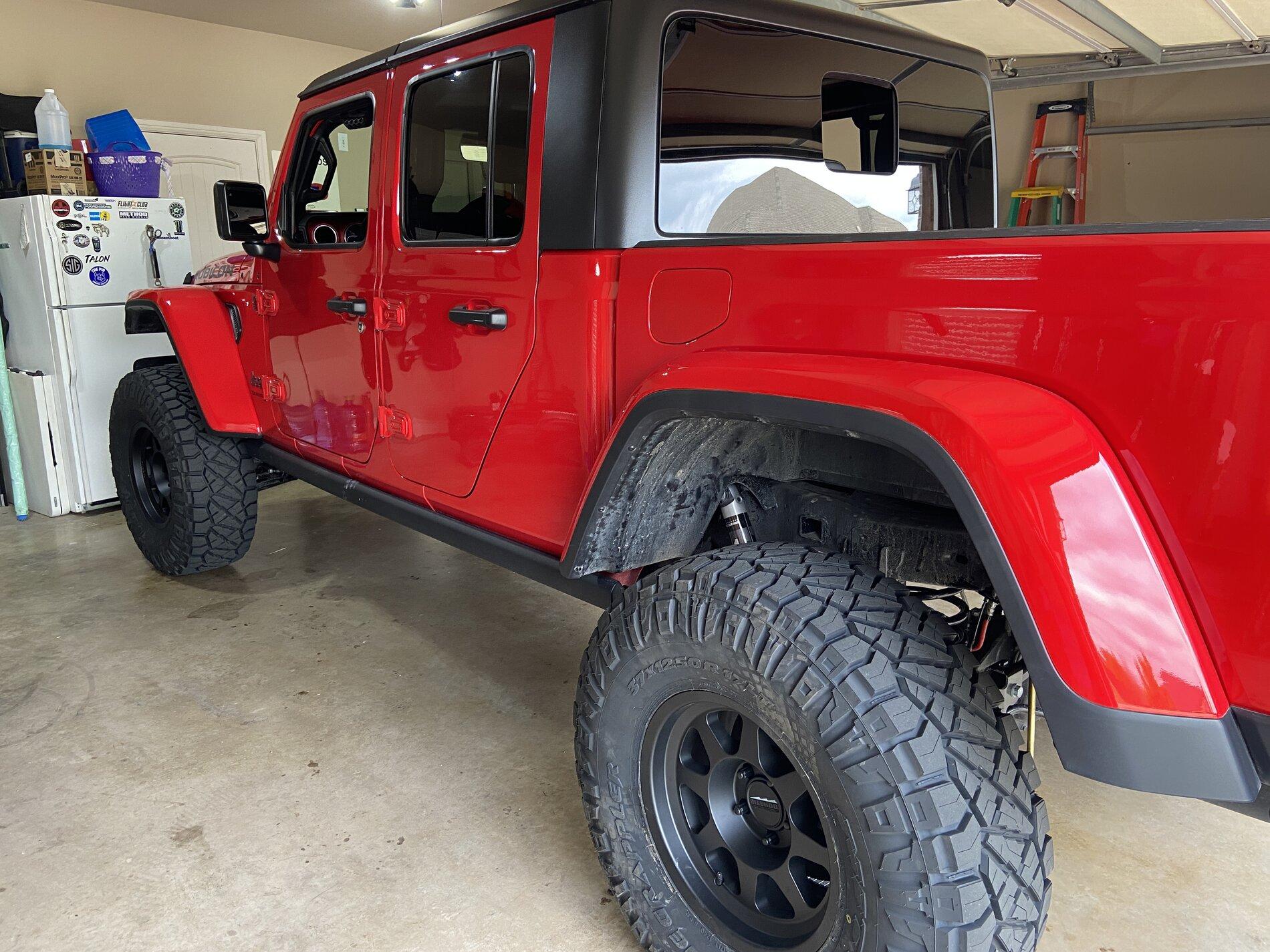

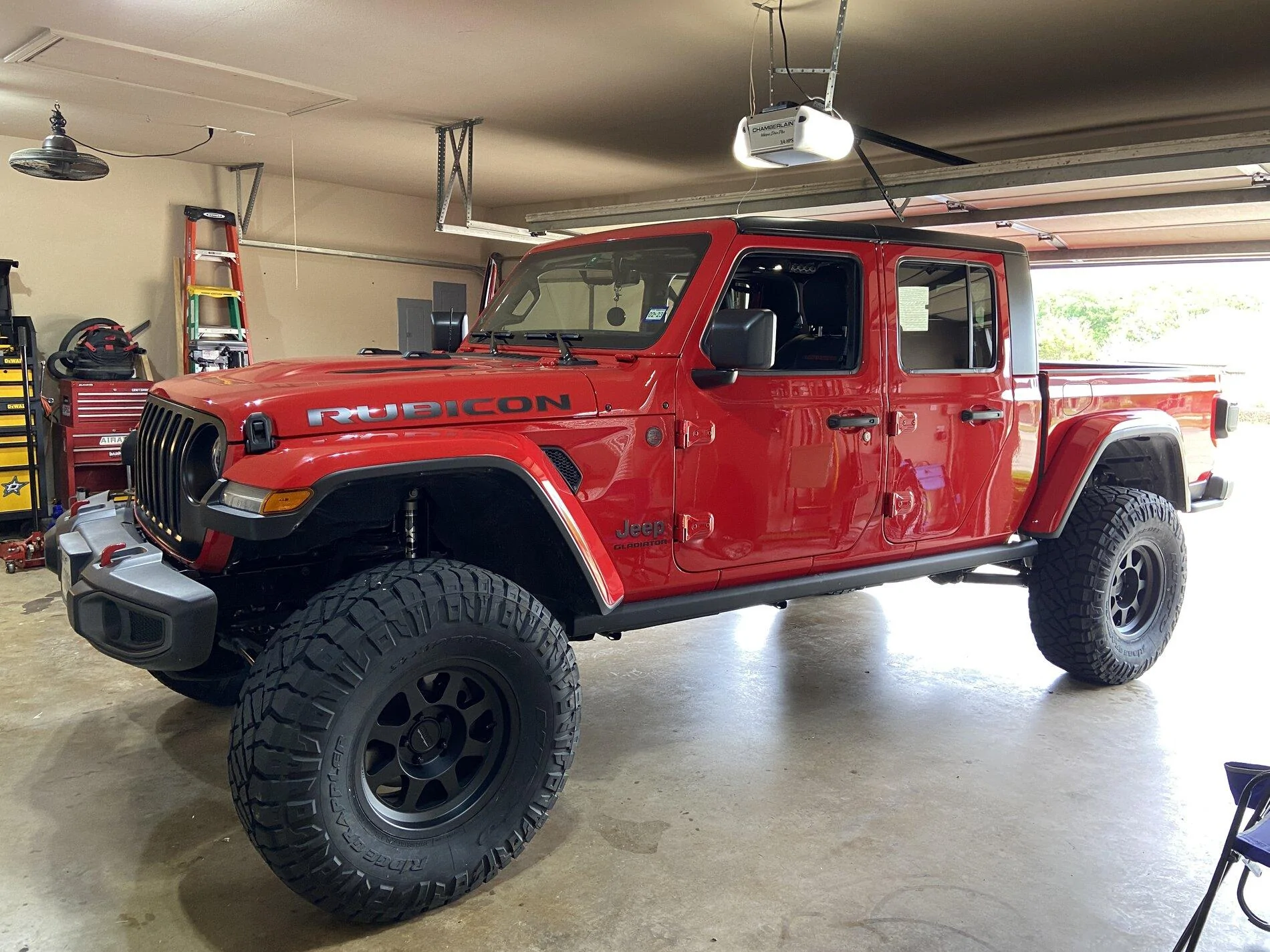

Just installed it and have a couple questions. Preferred rear driveshaft angle? Preferred Front caster angle? Should the wheels be perfectly centered in the wells using the lower control arms first? How critical is having your wheel centered in the well?. I see the bottom bump stops you provide are offset forward. My axle (wheel) is around 3/4” short of the centerline of the upper bump stop in that wheel well so my axle is not quite centered. Just getting it to that point put me pretty far off your recommended length and the springs are starting to bow so I’m afraid to go farther. Thanks in advance. It looks incredible. Very pleased I went with Clayton.







Sponsored



WanderingTrail

Well-Known Member
First Name
Ron
Joined
Nov 2, 2017
Threads
0
Messages
64
Reaction score
87
Location
Pensacola Fl
Website
www.wanderingtrail.com
Vehicle(s)
2012 JKU Rubicon
Occupation
SSHO

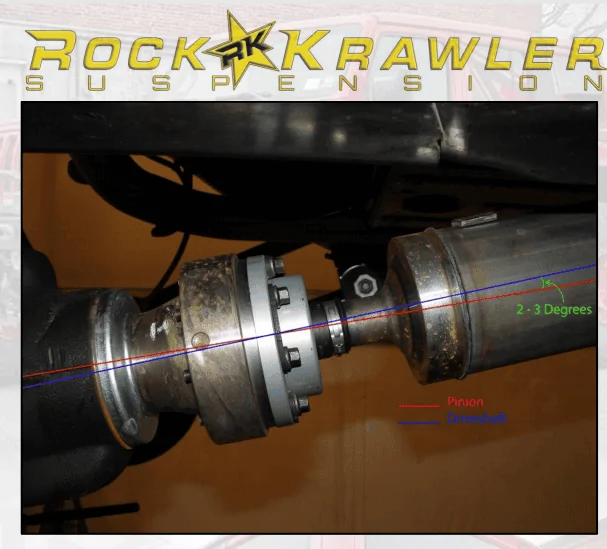

I have always set the rear pinion slightly lower at rest because the pinion will lift once you put a load on it due to torque. Hence, RockKrawlers picture is close to the way mine is set (I'm a little less than 2deg). My JK on a clayton lift has run this way for 9 years.

Ron

OP
OP
hockeymonkeymark

hockeymonkeymark

Well-Known Member
First Name
Mark
Joined
Feb 18, 2021
Threads
6
Messages
50
Reaction score
33
Location
Midlothian, TX
Vehicle(s)
2021 JT Rubicon
Occupation
Firefighter
I PM’d Clayton and he gave me some good advice. A little bow in the springs was to be expected. I started over with the lowers and got much of the spring bow out of it. Pinion back to 2.5 degrees. I ordered a rock jock carrier spacer to help with that angle. That way I can take even more bow out of it and a happier pinion angle. I’m chasing my caster around a little due to my crappy angle meter but I’m really close after driving on it for a couple days.





Sponsored

foxman350

Well-Known Member
First Name
Ronald
Joined
Jan 25, 2021
Threads
23
Messages
152
Reaction score
207
Location
Anchorage, AK
Vehicle(s)
2020 Gladiator Rubicon
I PM’d Clayton and he gave me some good advice. A little bow in the springs was to be expected. I started over with the lowers and got much of the spring bow out of it. Pinion back to 2.5 degrees. I ordered a rock jock carrier spacer to help with that angle. That way I can take even more bow out of it and a happier pinion angle. I’m chasing my caster around a little due to my crappy angle meter but I’m really close after driving on it for a couple days.

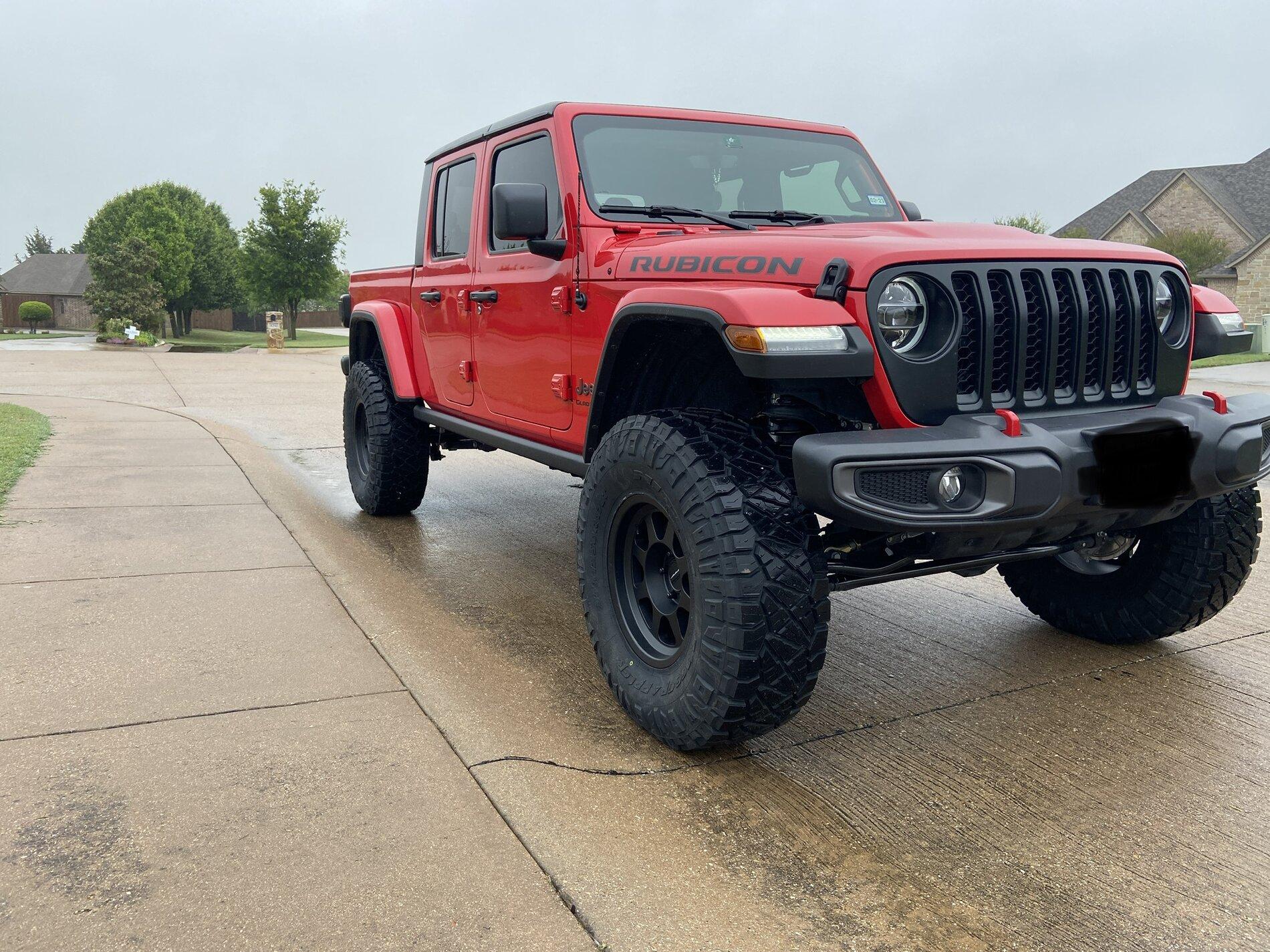

Jeep Gladiator 3.5” overland plus tweak questions ADF7D6E4-EA65-413B-97A1-296A9E6D5DAF


Jeep Gladiator 3.5” overland plus tweak questions ADF7D6E4-EA65-413B-97A1-296A9E6D5DAF

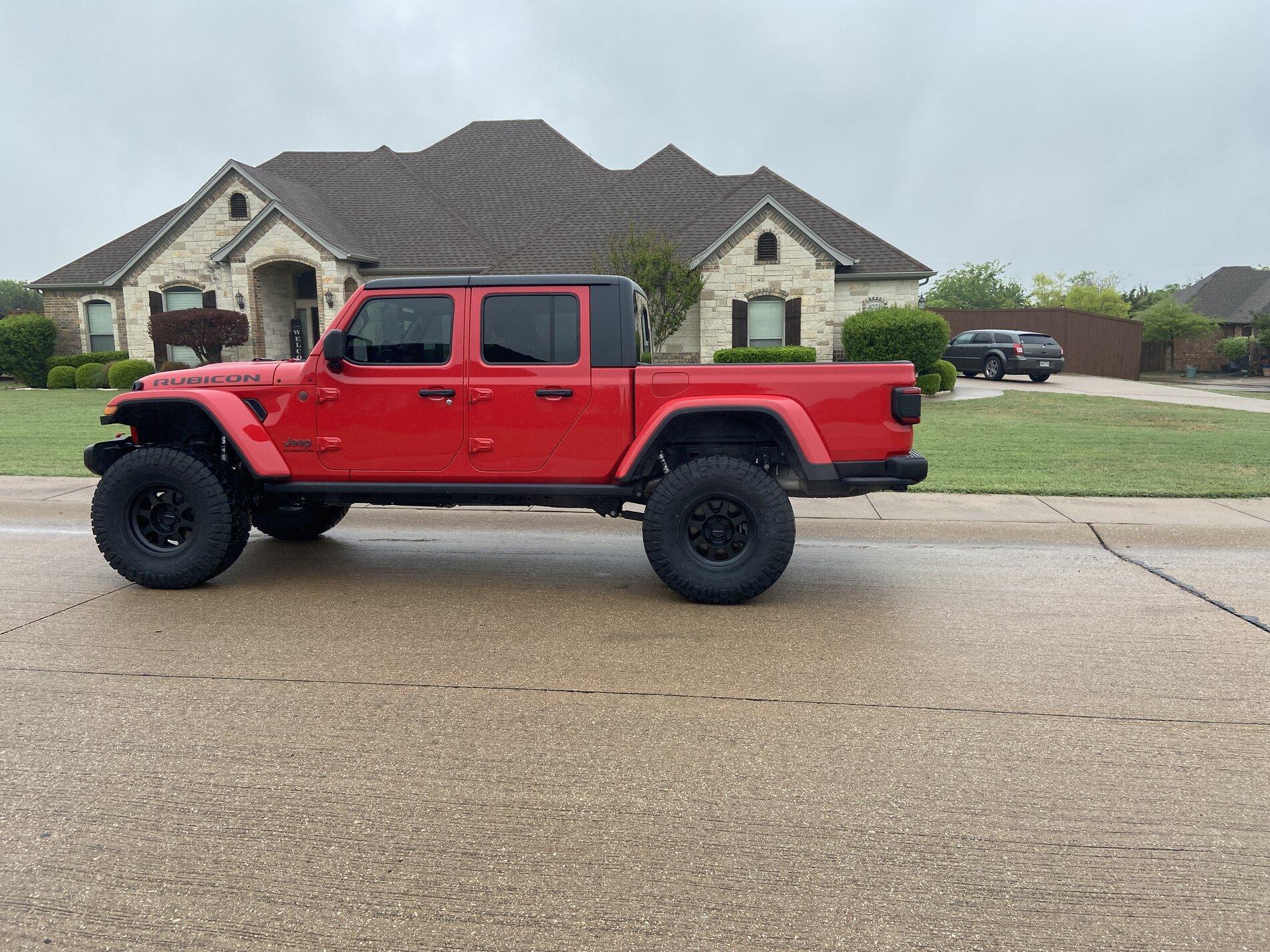

man that lift makes those 37’s look tiny!


TxSmitty

Well-Known Member
First Name
Josh
Joined
Mar 14, 2021
Threads
23
Messages
195
Reaction score
392
Location
Texas
Vehicle(s)
2020 Jeep Gladiator Rubicon
Vehicle Showcase
1
Be E A Utiful! That Gladiator Looks perfect! Love the red.


Juan

Member
First Name
Juan
Joined
Jul 15, 2022
Threads
2
Messages
11
Reaction score
24
Location
Phoenix
Vehicle(s)
2021 Rubicon Gladiator 3.0 EcoDiesel
I PM’d Clayton and he gave me some good advice. A little bow in the springs was to be expected. I started over with the lowers and got much of the spring bow out of it. Pinion back to 2.5 degrees. I ordered a rock jock carrier spacer to help with that angle. That way I can take even more bow out of it and a happier pinion angle. I’m chasing my caster around a little due to my crappy angle meter but I’m really close after driving on it for a couple days.

Jeep Gladiator 3.5” overland plus tweak questions ADF7D6E4-EA65-413B-97A1-296A9E6D5DAF


Jeep Gladiator 3.5” overland plus tweak questions ADF7D6E4-EA65-413B-97A1-296A9E6D5DAF
What lift do you have? is it 4.5" lift?

OP
OP
hockeymonkeymark

hockeymonkeymark

Well-Known Member
First Name
Mark
Joined
Feb 18, 2021
Threads
6
Messages
50
Reaction score
33
Location
Midlothian, TX
Vehicle(s)
2021 JT Rubicon
Occupation
Firefighter
It’s listed as the 3.5” Clayton lift but ended up just over 4”
