37” spare tire - list of tires that fit under the bed

txjeepers

Active Member
Joined
May 21, 2019
Threads
12
Messages
39
Reaction score
21
Location
Texas
Vehicle(s)
2022 JLURXR
Please sticky.
I’ve found various postings but nothing that has a list. A lot of people have gotten 37” tires in the spare area under the bed. Let’s list what we’ve gotten to fit.

Only for 37’s
Post the tire manufacturer, model and wheel manufacturer and model that you got to work in the factory spare location. Post a pic too if you want.

I’ve seen postings that the following 37’s fit.
BFG KM3
BFG KO2
Nitto Trail Grappler
Falken Wildpeak AT
Sponsored



MaximusDecimusMeridius

Well-Known Member
First Name
Drew
Joined
Mar 14, 2019
Threads
13
Messages
220
Reaction score
329
Location
Illinois
Vehicle(s)
2020 Jeep Gladiator Red LE, 2014 Sierra 6in lift, 2015 Ford Fusion
I still need to buy a spare but I am running MT 37in baja boss. I just installed the afe rock basher exhaust and removed the spare tire shroud...i dont think it will be a problem when i finally get a spare


Rampager

Member
First Name
Ron
Joined
Aug 3, 2019
Threads
1
Messages
16
Reaction score
42
Location
Bay Area, California
Vehicle(s)
2020 Jeep Gladiator Sport S

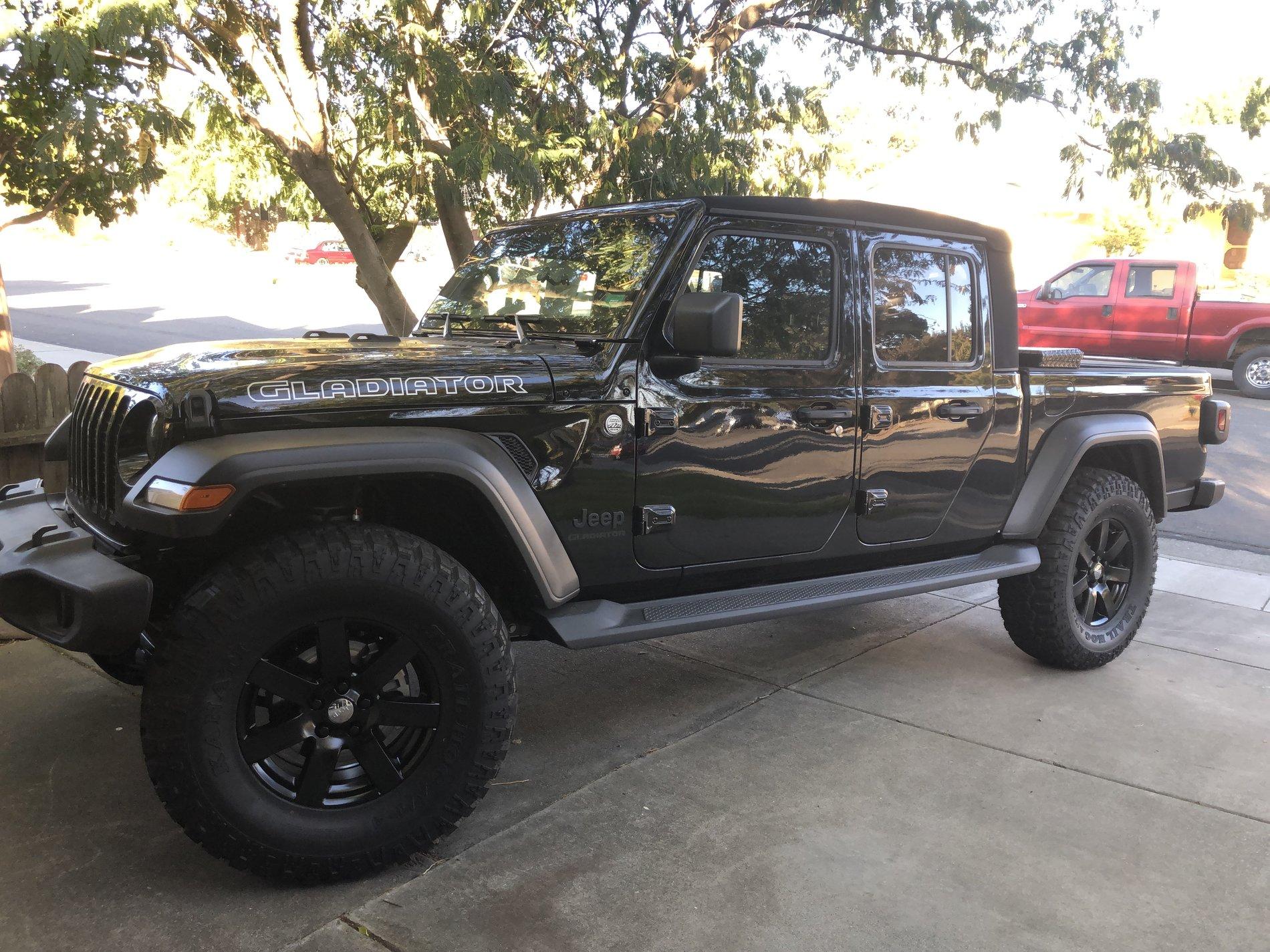

I’ve been running 37x12.5 R18 Kanati Trail Hog A/T’s on my Gladiator for last few months. Have them mounted on some 18” wheels from a 2016 Wrangler Sahara. After reading a few treads on here I ordered a 5th tire for a spare. It was a tight squeeze but fit.



sass JT

Banned
Banned
First Name
Bryan
Joined
Jun 12, 2019
Threads
31
Messages
1,688
Reaction score
2,879
Location
Colorado
Website
youtube.com
Vehicle(s)
2020 Jeep Gladiator Rubicon
Build Thread
Link
Occupation
MWD
I was able to snag an BFG KM2 that was used as a spare but “never” seen pavement. I threw it on the spare rim and it fits without airing it down.



Nolan

Active Member
First Name
Clay
Joined
Nov 8, 2019
Threads
2
Messages
41
Reaction score
39
Location
Townsend, GA
Vehicle(s)
08 Commander Overland, 20 Gladiator Rubicon
So far I have NOT been able to get my General Grabber X3 37x12.5R17 to fit (stock spare wheel.) There is not enough room between the trackbar and the receiver. I even aired down to 15psi and it wouldn't fit.

When I measure between the trackbar and receiver, there is about 37.25", which should be enough to fit my tire since they are actually 36.8". I'm going to try again, but I'm afraid it will hit the trackbar when off-road (which this is being built for) even if I get it up there.

Last edited:

Sponsored

HTXGladiator

Well-Known Member
First Name
Jason
Joined
Aug 7, 2019
Threads
5
Messages
405
Reaction score
432
Location
The Woodlands, TX
Vehicle(s)
2020 Gladiator Rubicon, 2014 HD XL1200X
Vehicle Showcase
1
So far I have NOT been able to get my General Grabber X3 37x12.5R17 to fit (stock spare wheel.) There is not enough room between the trackbar and the receiver. I even aired down to 15psi and it wouldn't fit.

When I measure between the trackbar and receiver, there is about 37.25", which should be enough to fit my tire since they are actually 36.8". I'm going to try again, but I'm afraid it will hit the trackbar when off-road (which this is being built for) even if I get it up there.
Get the Rock Krawler 4-link rear control system and you won't need a track bar! ;)


HTXGladiator

Well-Known Member
First Name
Jason
Joined
Aug 7, 2019
Threads
5
Messages
405
Reaction score
432
Location
The Woodlands, TX
Vehicle(s)
2020 Gladiator Rubicon, 2014 HD XL1200X
Vehicle Showcase
1
Except I'm going metalcloak. But i do like the idea of no rear trackbar
I've been bouncing between both websites (RK & MC). Not exactly ready to pull the trigger yet, but the track bar delete has me leaning toward RK, but probably with the 6-pak MC shocks.


Sponsored

Renegade

Well-Known Member
First Name
Zac
Joined
Sep 11, 2017
Threads
38
Messages
3,562
Reaction score
4,693
Location
Signal Mountain, TN
Vehicle(s)
2020 JT
Build Thread
Link
I put a Kenda 35x10.50r17 up there for my spare today. The tread width is about an inch more narrow than the 285/70r17 tire it replaced. It is still 2” smaller in diameter than the other 4, but it’s closer...




Last edited:

Geekjeep

Well-Known Member
Joined
Oct 20, 2019
Threads
23
Messages
238
Reaction score
100
Location
Florida
Vehicle(s)
Gladiator sport s
I can’t find the thread but can someone post the 37s that fit in the spare. Mostly interested if a 37x12.50 bfg Ko2 will fit. thanks!


NFRs2000NYC

Well-Known Member
Joined
May 11, 2019
Threads
0
Messages
47
Reaction score
49
Location
NYC/NJ
Vehicle(s)
2014 JKUR
Suprised that no tire company wants to capitalize and make a 37" donut. While you dont need a full size spare on a gladiator (just mount a whatever sized spare on the front, put it in 2wd, and limp off the trail (or disconnect the FAD plug before putting it into 4WD to have 3WD, it would be nice if there was a 37" donut we could buy.


WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Threads
54
Messages
1,944
Reaction score
2,663
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
3
Suprised that no tire company wants to capitalize and make a 37" donut. While you dont need a full size spare on a gladiator (just mount a whatever sized spare on the front, put it in 2wd, and limp off the trail (or disconnect the FAD plug before putting it into 4WD to have 3WD, it would be nice if there was a 37" donut we could buy.
Not sure how a donut would be better than the factory spare that came with the Gladiator. If you're imagining a 37" diameter donut (that would, I assume be narrower), the width is not the issue - it's the diameter. There's a heat shield under the Gladiator surrounding the spare tire and that would either have to be bent out of the way and/or removed and even then I'm not sure a 37" tire would fit under there. I think I saw one post where someone was talking about maybe it fitting but only when aired down. If that's true - IF - it's likely tire dependent as not all 37" tires are 37" in diameter and it would likely take a "small 37" to fit if it will.

I've got my factory spare under there until/if I find another, better option. I sure as heck don't want to carry a 37" spare in the bed of my truck


CG07SUT

Well-Known Member
First Name
Chris
Joined
Sep 8, 2019
Threads
1
Messages
57
Reaction score
51
Location
NEO
Vehicle(s)
2014 JKURX being replaced by Gladiator Rubicon
Occupation
Construction

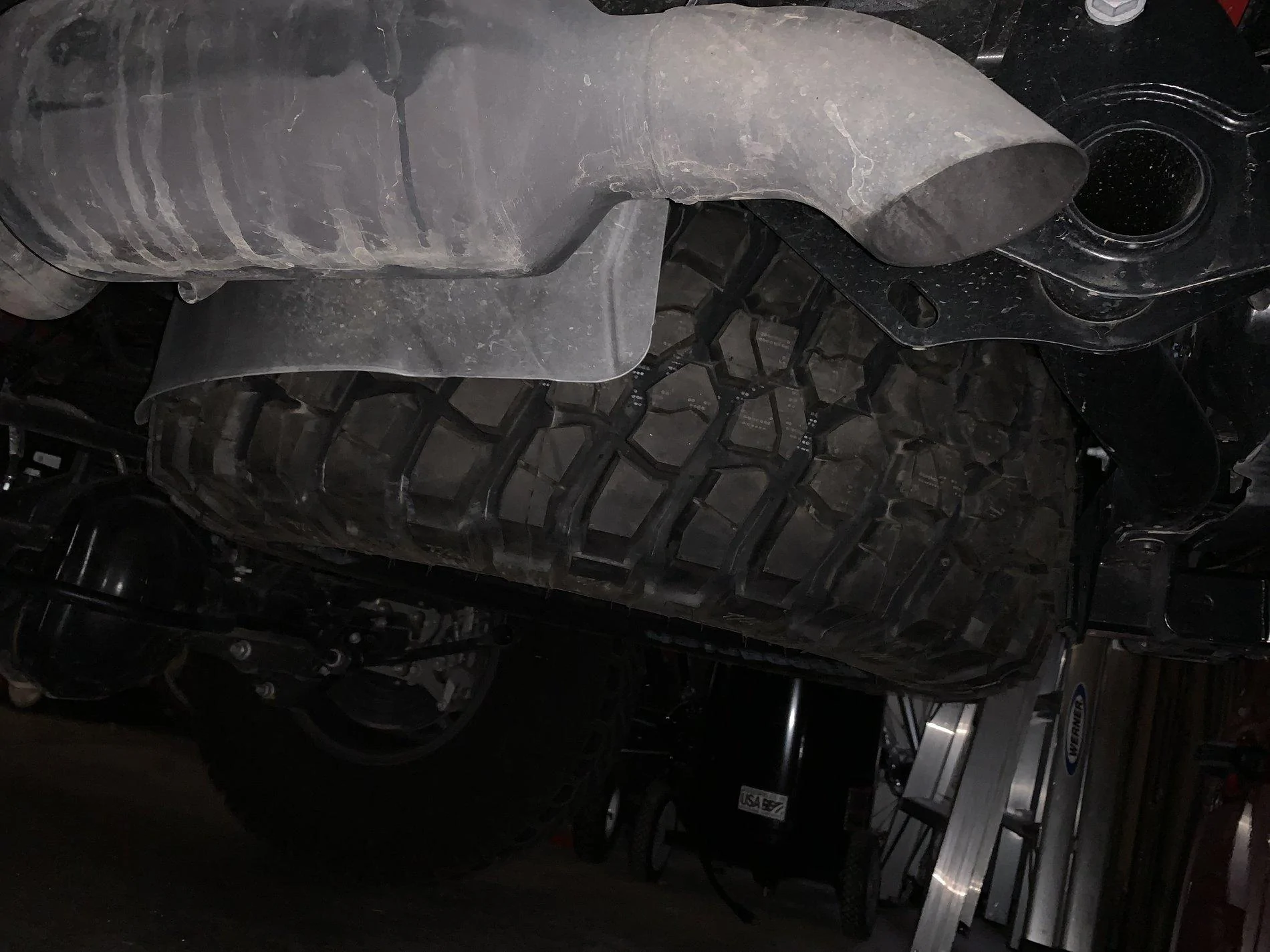

I’m sure that a KO2 will fit as I have my KM3 mounted there now, the spare is at full air pressure and fits tight. I did not need to modify anything for this to fit, no bending of the heat shield.
