Add an amplifier to the stock Uconnect system

Joined
Mar 6, 2020
Threads
69
Messages
458
Reaction score
975
Location
Guam
Website
www.youtube.com
Vehicle(s)
2020 Gladiator Sport S on 39's
Build Thread
Link
Occupation
Tool Man
  • Thread starter
  • Banned
  • #1


I tested all the wires with my multi meter. There is NOT a remote switch back here but there is power (12v) constant. The other wires were 3 volts which means they are CAN BUS, dont mess with 3 volt wires, they run to the vehicle Network system.

Seperate out the colored twisted pair in the B pillar.

Left Rear Sound Bar Grey/Green (+) and Grey/Dark Green (-)
Right Rear Sound Bar Dark Green/Green (+) and Dark Green/Grey (-)

I soldered the wires to the LOC (line out converter). I just removed about an 1/8 inch of insulation and soldered the LOC onto the two twisted pair.

I secured the Line out converter with velcro I had on hand, Slid it into place before I put the wires in the tray.

Wiring Harness put back in place. Its important to make sure everything in here is tight and out of the way of the seat belt moving around.

Finally the power to turn on any amplifier can come off the cigarette lighter (aux plug) on the dash. The panels literally pull right off, there is one screw holding it on after you pull of the dual climate control panel. Behind there use a wire tap to get your turn on power to the amplifer. Its fused, easily accessable, and only turns on when you go to acc or run.

Thats it, you can run an amp off your factory Uconnect system.
Happy trails buckaroo.
Sponsored


Last edited:

Swaggy_T

Member
First Name
Terrell
Joined
Oct 19, 2019
Threads
7
Messages
23
Reaction score
9
Location
Idaho
Vehicle(s)
2020 Jeep Gladiator
Occupation
USAF
What wire is the constant 12V

OP
OP
Brfertig [HACKED ACCOUNT]
Joined
Mar 6, 2020
Threads
69
Messages
458
Reaction score
975
Location
Guam
Website
www.youtube.com
Vehicle(s)
2020 Gladiator Sport S on 39's
Build Thread
Link
Occupation
Tool Man
  • Thread starter
  • Banned
  • #3
OP
OP
Brfertig [HACKED ACCOUNT]
Joined
Mar 6, 2020
Threads
69
Messages
458
Reaction score
975
Location
Guam
Website
www.youtube.com
Vehicle(s)
2020 Gladiator Sport S on 39's
Build Thread
Link
Occupation
Tool Man
  • Thread starter
  • Banned
  • #5

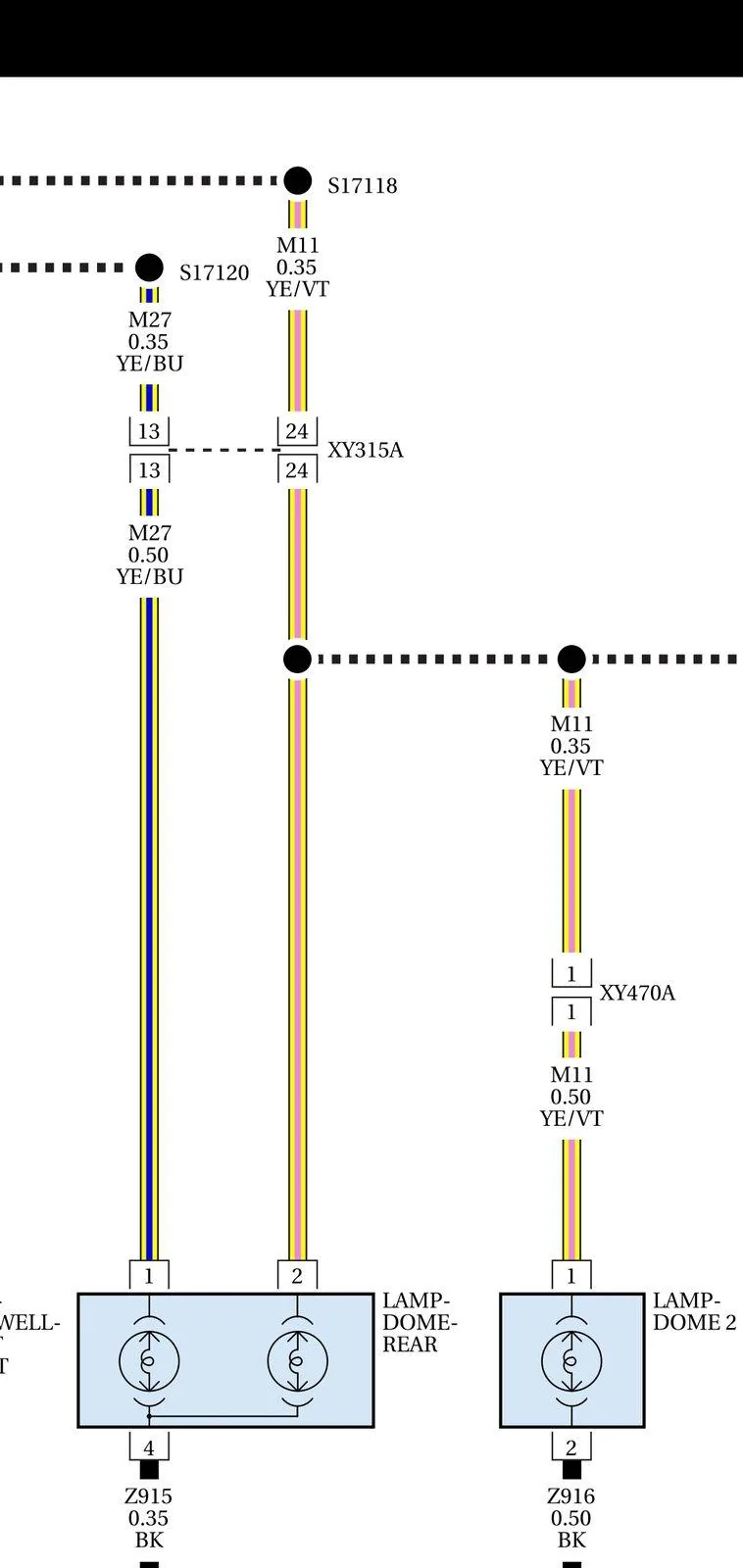

See photo.



Sponsored

Indavis01

Well-Known Member
First Name
Tim
Joined
Apr 7, 2020
Threads
19
Messages
232
Reaction score
244
Location
Houston, Texas
Vehicle(s)
2020 Gladiator Overland, 2016 Volvo Xc90 Polestar
Occupation
Finder of bad stuff and people.
Vehicle Showcase
1
Awesome thread- took a lot of searching to find, thank you for the pictures and clear explanations.

OP
OP
Brfertig [HACKED ACCOUNT]
Joined
Mar 6, 2020
Threads
69
Messages
458
Reaction score
975
Location
Guam
Website
www.youtube.com
Vehicle(s)
2020 Gladiator Sport S on 39's
Build Thread
Link
Occupation
Tool Man
  • Thread starter
  • Banned
  • #7
Awesome thread- took a lot of searching to find, thank you for the pictures and clear explanations.
You're welcome, forums are like that. Takes days to find something that requires 90 seconds worth of information.
