I just picked up a 1969 jeep J2000 in pretty good condition. I have two questions. First is how do I confirm a matching numbers motor? I was told it has the 350 Buick dauntless motor. Secondly did the 69 come with a factory air option? This truck has A/C.

thank you
Rick

Jeep Gladiator Advise/ original motor 7CEEB1B0-F660-4E49-9C41-CC27782A7D07
Sponsored



WILDHOBO

Well-Known Member
First Name
Dan
Joined
Sep 24, 2021
Threads
46
Messages
6,861
Reaction score
9,588
Location
Colorado
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Network Engineer
Vehicle Showcase
1
I just picked up a 1969 jeep J2000 in pretty good condition. I have two questions. First is how do I confirm a matching numbers motor? I was told it has the 350 Buick dauntless motor. Secondly did the 69 come with a factory air option? This truck has A/C.

thank you
Rick

I don’t have those answers, but that looks like a really fun project. Congrats.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
188
Messages
31,148
Reaction score
37,838
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
I just picked up a 1969 jeep J2000 in pretty good condition. I have two questions. First is how do I confirm a matching numbers motor? I was told it has the 350 Buick dauntless motor. Secondly did the 69 come with a factory air option? This truck has A/C.

thank you
Rick

You need to contact Shannon Halverson. He knows the old Jeeps very well.
Let's see if this paste works -

https://www.facebook.com/groups/1746170922352217/

He's admin of the FB group "AMC Races"

Jeep Gladiator Advise/ original motor 1675629019695


Jeep Gladiator Advise/ original motor 1675629045448


Jteakus

Well-Known Member
First Name
Teakus
Joined
Feb 19, 2022
Threads
12
Messages
941
Reaction score
1,389
Location
Oil City, LA
Vehicle(s)
2020 JLURD, 2022 JTRD
Build Thread
Link
Vehicle Showcase
1
Jealous


Uparms

Well-Known Member
First Name
Jay
Joined
Feb 23, 2019
Threads
89
Messages
939
Reaction score
715
Location
Delaware
Vehicle(s)
2023 JT, 2020 JT, 72 CJ5,2005 LJ, 2002 TJ, 92 YJ
Vehicle Showcase
1

Sponsored

Uparms

Well-Known Member
First Name
Jay
Joined
Feb 23, 2019
Threads
89
Messages
939
Reaction score
715
Location
Delaware
Vehicle(s)
2023 JT, 2020 JT, 72 CJ5,2005 LJ, 2002 TJ, 92 YJ
Vehicle Showcase
1

Uparms

Well-Known Member
First Name
Jay
Joined
Feb 23, 2019
Threads
89
Messages
939
Reaction score
715
Location
Delaware
Vehicle(s)
2023 JT, 2020 JT, 72 CJ5,2005 LJ, 2002 TJ, 92 YJ
Vehicle Showcase
1

Uparms

Well-Known Member
First Name
Jay
Joined
Feb 23, 2019
Threads
89
Messages
939
Reaction score
715
Location
Delaware
Vehicle(s)
2023 JT, 2020 JT, 72 CJ5,2005 LJ, 2002 TJ, 92 YJ
Vehicle Showcase
1
350[edit]
Jeep Gladiator Advise/ original motor 220px-1969_Buick_GS_350_small-block_V8_engine

A 350 in a 1969 Buick Gran Sport
Buick adopted the popular 350 cu in (5.7 L) size in 1968 for their final family of V8 engines, the 350, which was produced through 1980. Although it shared the displacement of the other GM small blocks, including the Chevrolet 350, Oldsmobile 350, and Pontiac 350 (although the Pontiac was technically a 354), the Buick blocks were of a substantially different proprietary company design. The Buick 350 featured the same 3.8 in (96.5 mm) bore as the 231 cu in (3.8 L) version of the Buick 90° V6 and retained the 3.85 in (97.8 mm) stroke of the previous 340 cu in (5.6 L) V8. The exact displacement is 349.31 cu in (5,724 cc).

The major differences of the 350 in comparison to other GM V8s are Buick's "deep-skirt" engine block construction, the use of cast iron with increased nickel content, an external oil pump, a forward-mounted distributor, under-square cylinder bore sizing, 3 in (76.2 mm) crankshaft main journals, and 6.385 in (162.2 mm) connecting rods. The Buick 350 also shares an integrated aluminum timing cover, which incorporates the oil pump mechanisms, leaving the oil filter exposed to oncoming air for added cooling. The engine garnered a reputation as rugged and durable,[17] and some of its design characteristics are found in other Buick-designed GM engines, such as the 231 cu in (3.8 L) V6 and its 3800 descendants. Of all the GM "350s", the Buick has the longest piston stroke. This design characteristic made the engine significantly wider than the others — essentially the same as the Buick big-blocks, which have the shortest stroke of the GM big-blocks.

The 350 was used by Kaiser-Jeep and AMC Jeep in the Jeep Gladiator and Wagoneer models from 1968–71;[18] in these applications, the engine was billed as the Dauntless V8.


Uparms

Well-Known Member
First Name
Jay
Joined
Feb 23, 2019
Threads
89
Messages
939
Reaction score
715
Location
Delaware
Vehicle(s)
2023 JT, 2020 JT, 72 CJ5,2005 LJ, 2002 TJ, 92 YJ
Vehicle Showcase
1

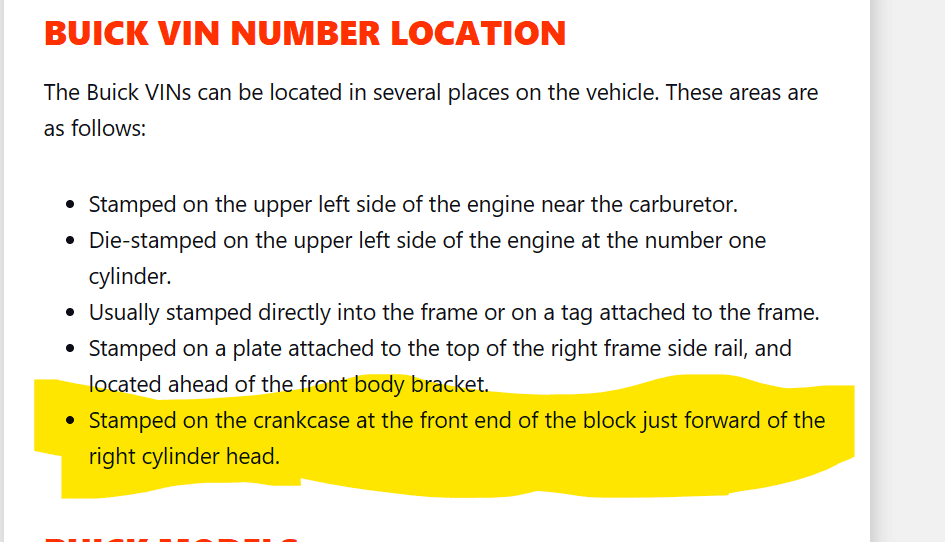

I have a 68 Buick 350. I think vin may be up around the water pump. I will go check my shop manual tomorrow night. You could also look at the engine block deck just behind the back of the heads. small wire brush in hand.
Jeep Gladiator Advise/ original motor 1675649968563
