Airbags, suspension upgrade or none of the above?

rinabean

Member
First Name
Rina
Joined
Feb 7, 2023
Threads
1
Messages
5
Reaction score
0
Location
San Francisco
Vehicle(s)
2020 Gladiator Sport
Occupation
Paramedic
Looking to purchase a Camper pop up for my 2020 Gladiator Sport. Will be on full time and add an approx. 500-600 of additional weight to the jeep.
Some say it should be fine and just keep an eye on the sag if any, others say get at least airbags with E rated tires.. some say spring and suspension upgrade
any tips, suggestions or personal experiences with camper tops weighing around 500-600lbs?

Thanks much 😊



Sponsored



darkhorse13

Well-Known Member
First Name
John
Joined
Jun 4, 2020
Threads
40
Messages
602
Reaction score
877
Location
Castle Rock, CO
Vehicle(s)
2020 JTR
Occupation
Data Analyst

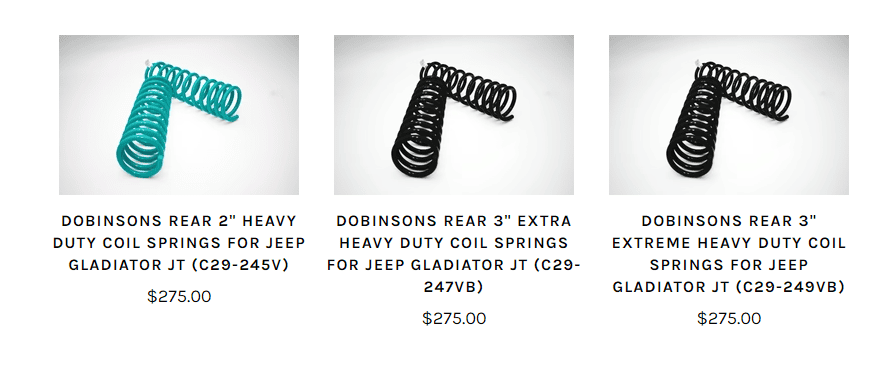

I don't feel like you need airbags with that amount of weight. I'm carrying 600lb-700lb constant load with no sag. You just need to find the appropriate springs. I recommend looking at AEV HD coils or Dobinson HD springs. Dobinsons in particular make a constant load springs capable of up to 1210lb constant load! I personally run Synergy 3" coils front and rear with a 3/4" Daystar rear spacer. I chose to also run a rear spacer because I like to have about a 1/4" rake before filling up my 20gal water tank and adding bikes to the back (then I sit level). I've also run Clayton springs before but you will need to get a 1" longer spring in the rear for that load. I ran the 2.5" up front and 3.5" in the rear with Clayton. IMO, Clayton springs are rather firm and paired with Falcon SP2 3.3 shocks they were a little too firm for my taste. My 37" Nitto Ridge Grapplers are D-Load I believe. I personally wouldn't run E Load.

There's a NEW option out in the market now by Accuair which is full air ride and leveling. I think it has very practical applications for overlanding folks with constantly changing loads = https://accuair.com/collections/jee...diator-air-suspension-system-ultimate-package

Here's a whole writeup that I did = https://www.jeepgladiatorforum.com/...stant-load-overland-build.55227/#post-1001532

I think I have another thread out here too somewhere about constant load. The one above is my most recent though.

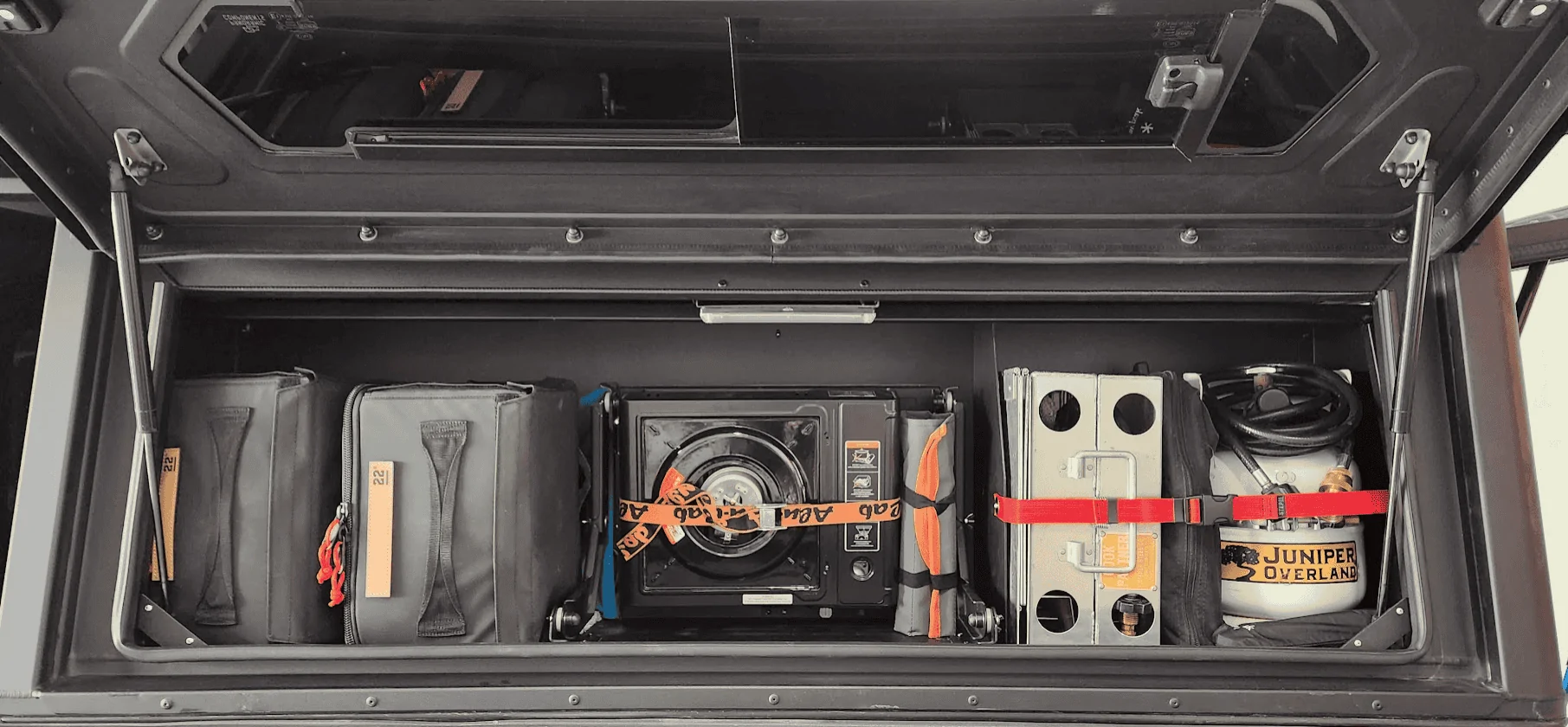

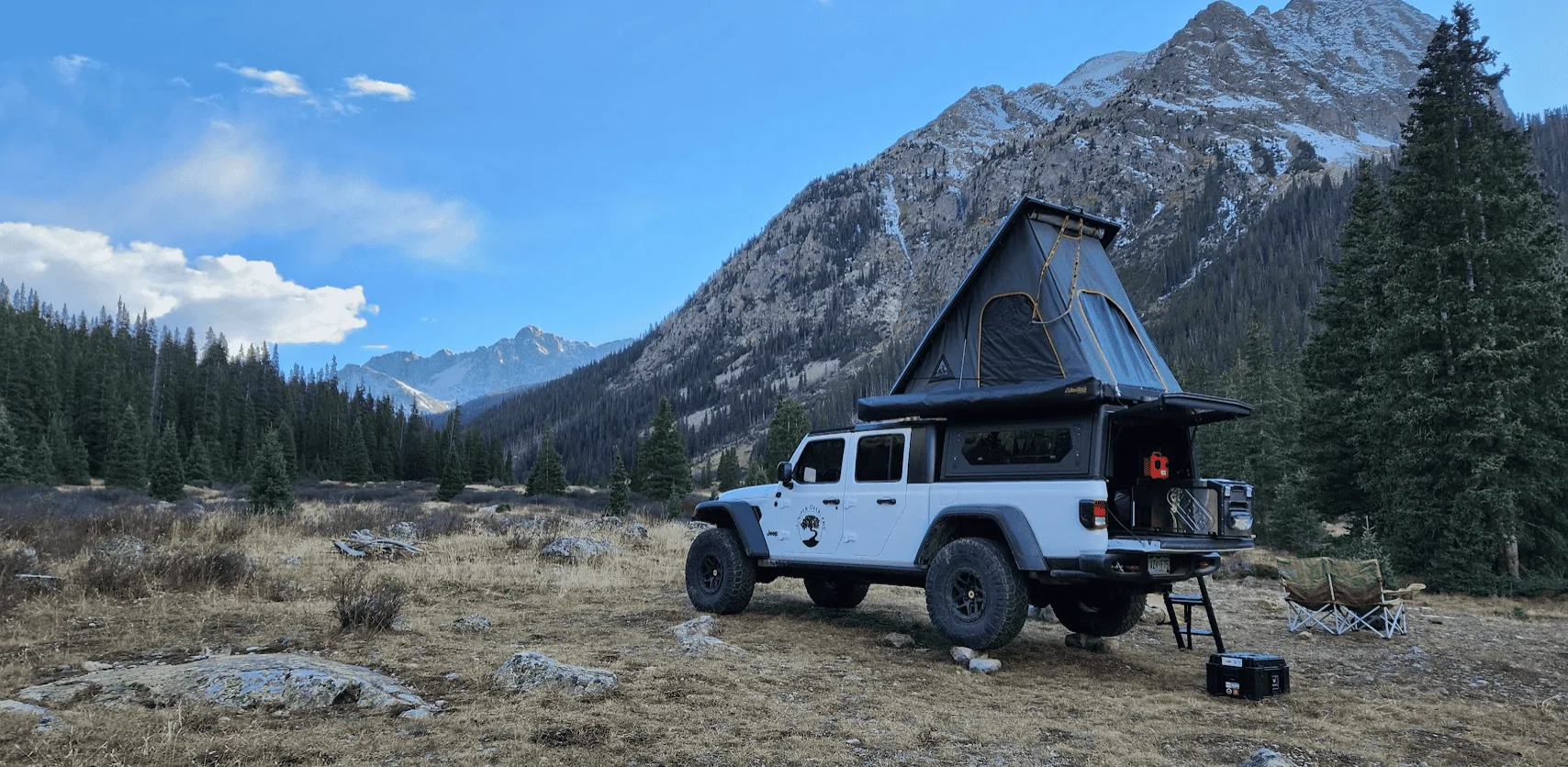

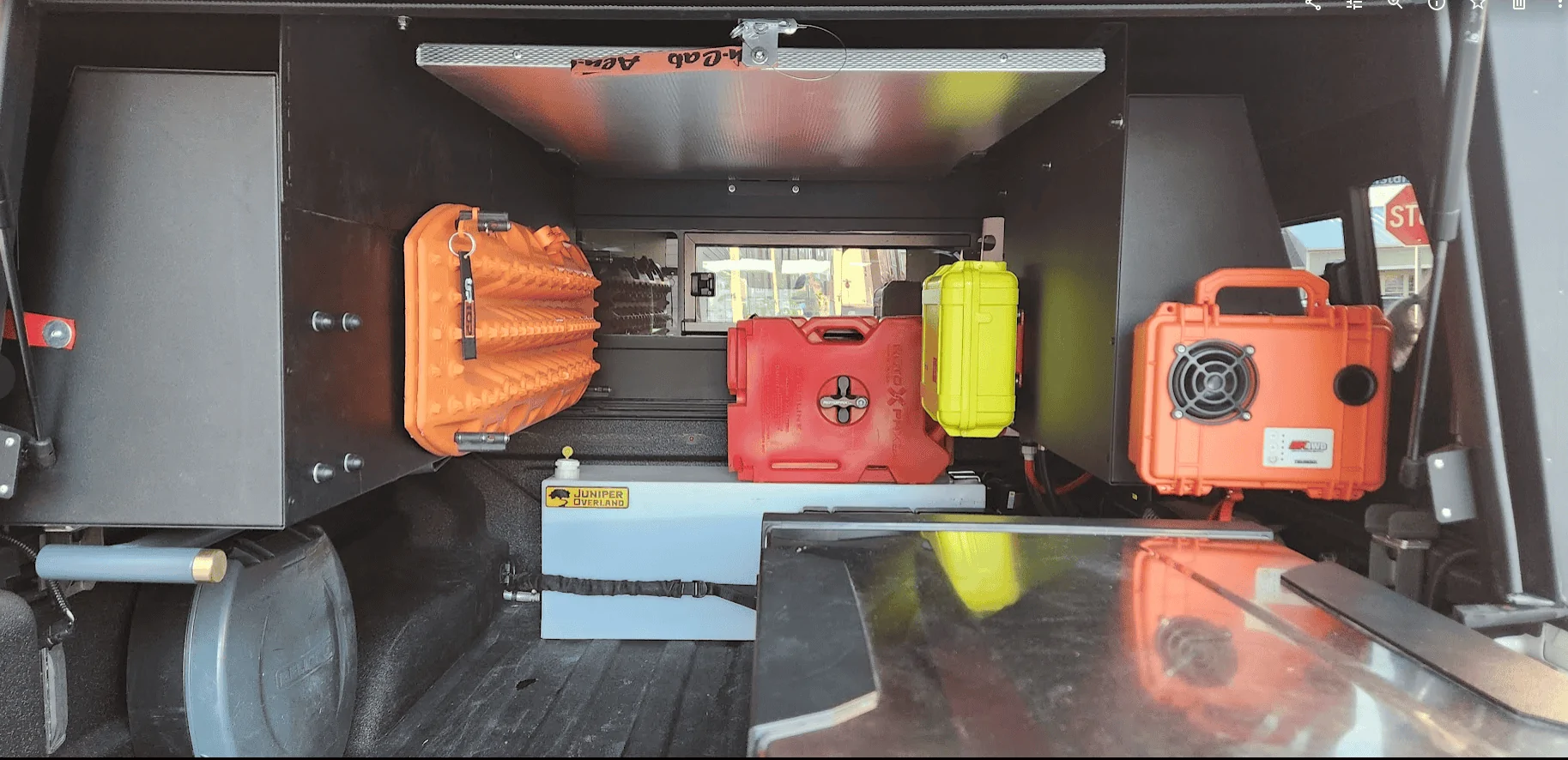

Here's some pics to give you an idea of what I carry... minus a 75lb bike rack and (2) 30lb-ish bikes sometimes.

AluCab Canopy = 137lb
AluCab Tent = 168lb
AluCab Shadow Awning = 53lb
ARB Fridge = 75lb
misc = Stove, Kitchen gear, propane, RotoPax, recovery gear = 125lb-ish

Jeep Gladiator Airbags, suspension upgrade or none of the above? 1675895079480

Jeep Gladiator Airbags, suspension upgrade or none of the above? 1675895205083

Jeep Gladiator Airbags, suspension upgrade or none of the above? 1675895246863

Jeep Gladiator Airbags, suspension upgrade or none of the above? 1675895296562

OP
OP
rinabean

rinabean

Member
First Name
Rina
Joined
Feb 7, 2023
Threads
1
Messages
5
Reaction score
0
Location
San Francisco
Vehicle(s)
2020 Gladiator Sport
Occupation
Paramedic
Thanks for the info
Ya, I think just some heavier rated springs might be suffice 😁
My tires are aftermarket and pretty beefy already- might be ok there also.
Appreciate the feedback and recommendations 🤙🏽


ecidiego

Well-Known Member
First Name
Chris
Joined
Nov 3, 2021
Threads
53
Messages
2,863
Reaction score
4,217
Location
San Diego
Vehicle(s)
2021 Gladiator Mojave
Occupation
IT
What is the rest of the payload? Wife and 3 kids? Solo? 500 lbs of gas water and coolers?


Sponsored

jeep1

Well-Known Member
First Name
Wayne
Joined
Feb 9, 2022
Threads
5
Messages
174
Reaction score
238
Location
Chilliwack, BC
Vehicle(s)
2020 JLUR, 2024 JLURX
The AEV 3" high capacity springs are rated for a constant +400-700lbs of load. They are a full set so more expensive ($598) than Dobinson's above but certainly look like a fit for your load.

I had set on for a while but with only a light rack and RTT, I'm probably only 250lbs without additional gear and the backend of my JT was almost 3" taller than the 3" lift (Rock Crawler ProX) that I'm running. Just too much lift for day to day use.

OP
OP
rinabean

rinabean

Member
First Name
Rina
Joined
Feb 7, 2023
Threads
1
Messages
5
Reaction score
0
Location
San Francisco
Vehicle(s)
2020 Gladiator Sport
Occupation
Paramedic
What is the rest of the payload? Wife and 3 kids? Solo? 500 lbs of gas water and coolers?
500lb with just the camper, then on outings, add 2 ppl, e mountain bikes or dirtbike, cooler and food, so maybe an extra 200-300 lbs?

OP
OP
rinabean

rinabean

Member
First Name
Rina
Joined
Feb 7, 2023
Threads
1
Messages
5
Reaction score
0
Location
San Francisco
Vehicle(s)
2020 Gladiator Sport
Occupation
Paramedic
The AEV 3" high capacity springs are rated for a constant +400-700lbs of load. They are a full set so more expensive ($598) than Dobinson's above but certainly look like a fit for your load.

I had set on for a while but with only a light rack and RTT, I'm probably only 250lbs without additional gear and the backend of my JT was almost 3" taller than the 3" lift (Rock Crawler ProX) that I'm running. Just too much lift for day to day use.
Full set meaning front also? Will def ask the shop about these- thanks


jeep1

Well-Known Member
First Name
Wayne
Joined
Feb 9, 2022
Threads
5
Messages
174
Reaction score
238
Location
Chilliwack, BC
Vehicle(s)
2020 JLUR, 2024 JLURX
Yes. Front and rear. No change in height in the front although they are certainly stiffer.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,083
Reaction score
34,566
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Look for a set of rear spring take-offs from someone with a MaxTow model.
I've got a pair on the shelves........... they were ok but when I put 500 pounds of trailer tongue weight on my truck, it wasn't enough.
Doubt I'll put them under the 2022 now.

500 pounds drops my Overland a LOT. So I put in air bags to handle the weight when towing. I can keep the truck nearly level that way and then drop the pressure back to 5 or 6 psi for normal driving.
I must say - it takes 30+ psi to hold up that 500 pounds of tongue weight. But - that's weight at the rear bumper, too - not in the bed. 500 in the bed wouldn't be nearly as bad.
