Another Phone Mounting idea

Freebooter

Well-Known Member
First Name
Brad
Joined
Aug 8, 2020
Messages
130
Reaction score
199
Location
Beaufort, NC
Vehicle(s)
2020 Mojave, 2020 124 Spider Abarth
Occupation
Almost Retired
I looked and looked how people mounted their phones. Decided on integrating two ideas. ProClip adjustable holder for small to medium case. I Phone XR with Otter case. Hooke Road phone dash mount drink holder.

https://www.proclipusa.com/product/511667-adjustable-holder-for-small-to-medium-cases?sSearch=511667
https://www.amazon.com/Hooke-Road-Support-Organizer-Wrangler/dp/B07RP4Q179

I used just the bracket on the phone/cup holder. Had to drill 4 holes to mount the ProClip adjustable base. Mounting the base in the truck took about 15 minutes. Be careful removing the central control board. The plastic is very soft and will dent and scratch very easily. I got the control board off enough to get my fingers behind it and just kept working the control board off. Just let it rest on the shifter. Used 10mm to remove the grab handle. Long bolts but very easy to remove. Have to remove cover on the right side to get to that bolt. The bracket just mounts behind the left side bolt. Very strong bracket. The control board just clips back in place. Again this plastic is very soft. Use your fingers. Finished mount is at a perfect angle for the driver. The phone will block the vent some but an acceptable trade off for me.

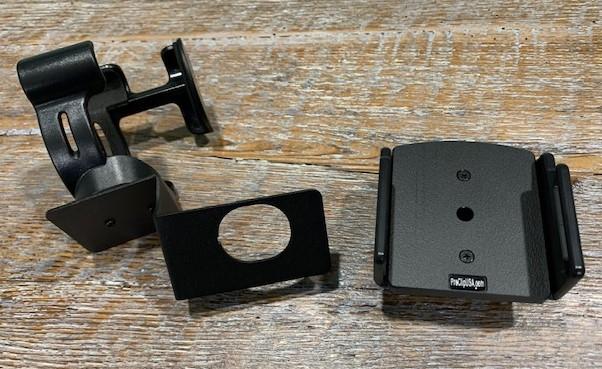

Phone 1.jpg

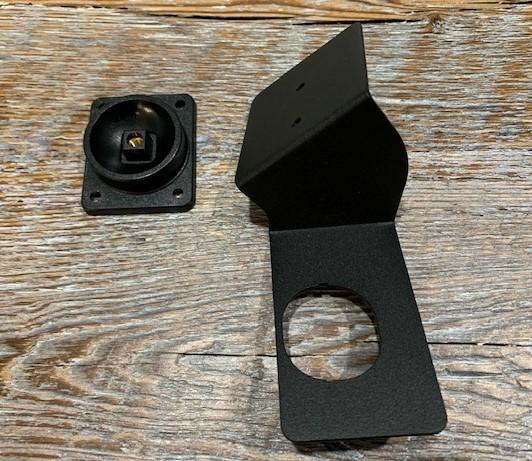

Phone 2.5.jpg

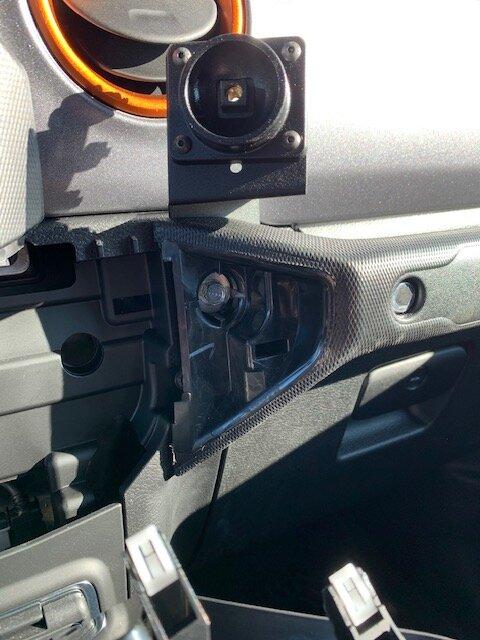

Phone 2.7.jpg

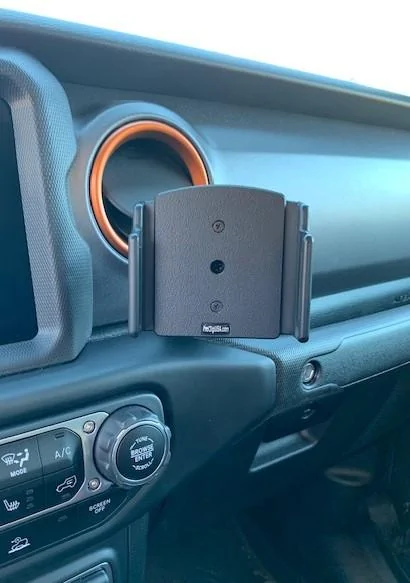

Phone 3.jpg

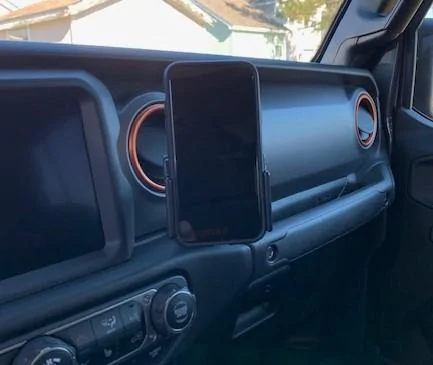

phone 4.jpg

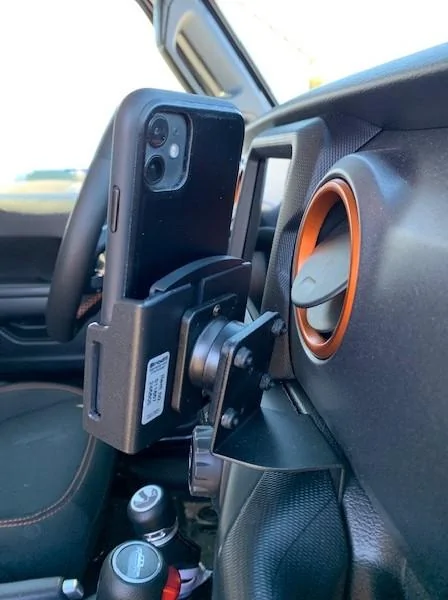

Phone 5.jpg

Last edited:

Readyt

Active Member
First Name
Ted
Joined
Jun 4, 2020
Messages
39
Reaction score
22
Location
McKinney, TX
Website
www.rimtyme.com
Vehicle(s)
2020 Jeep Gladiator Overland
Occupation
Franchise Business Consultant

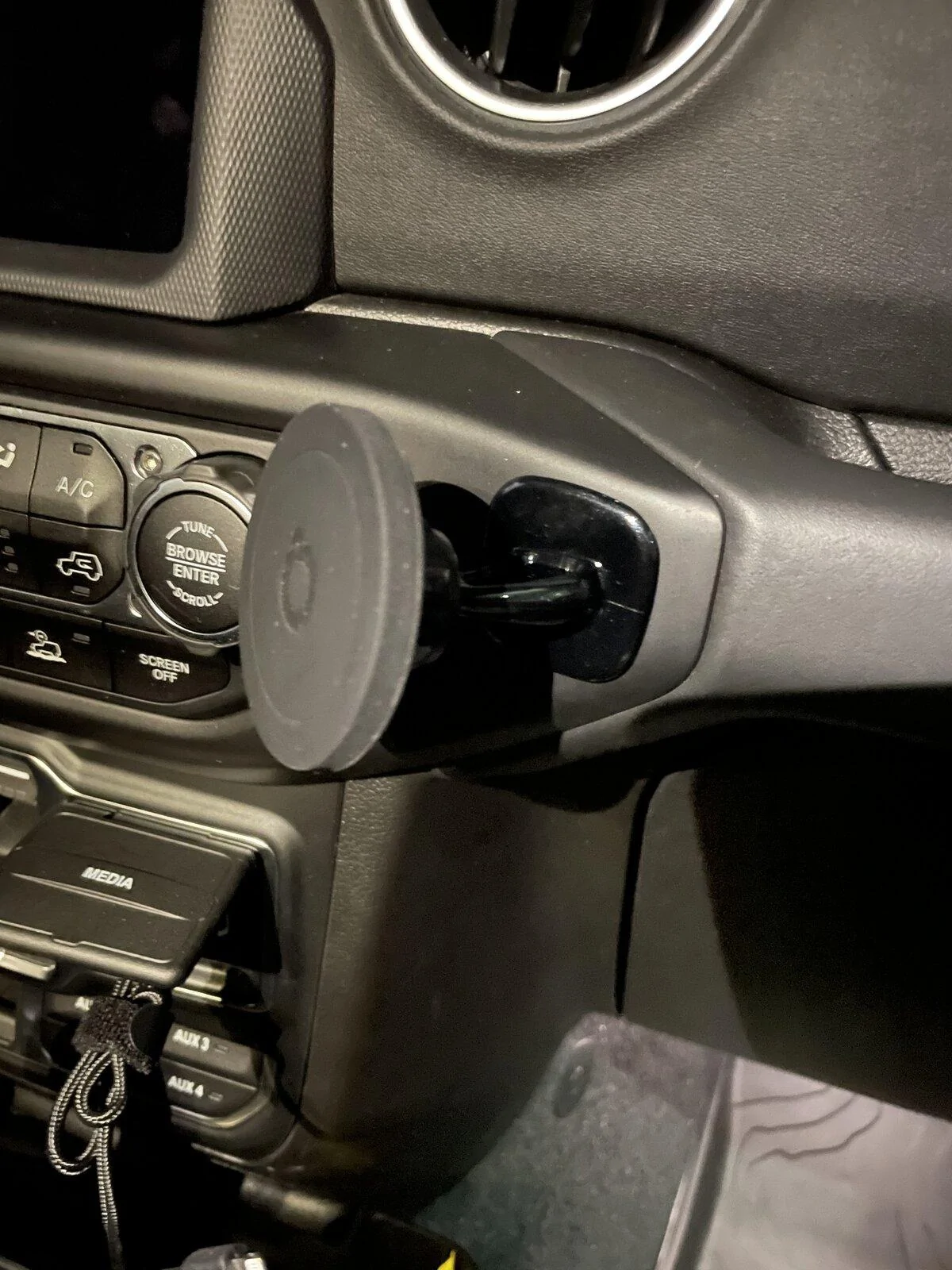

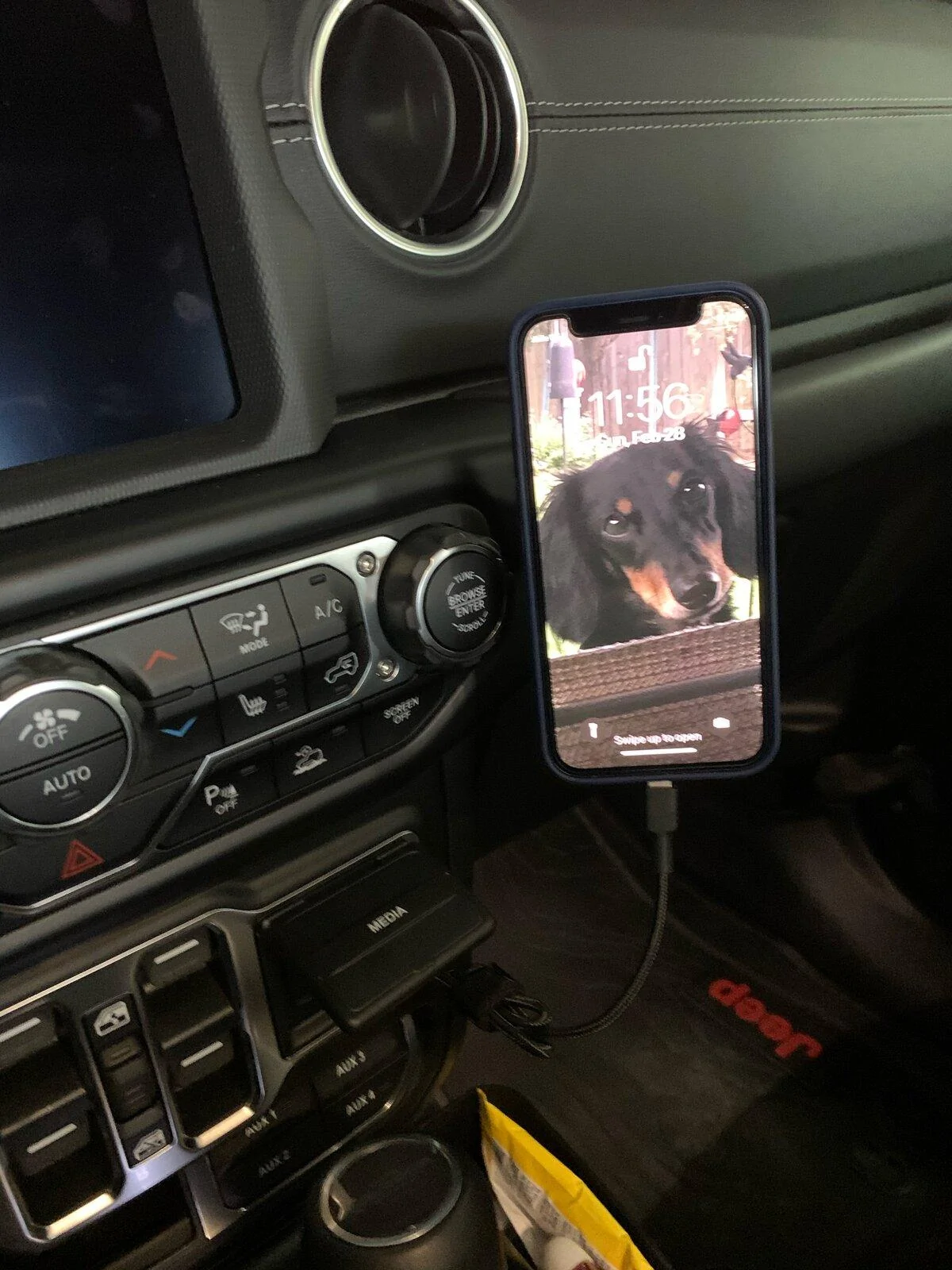

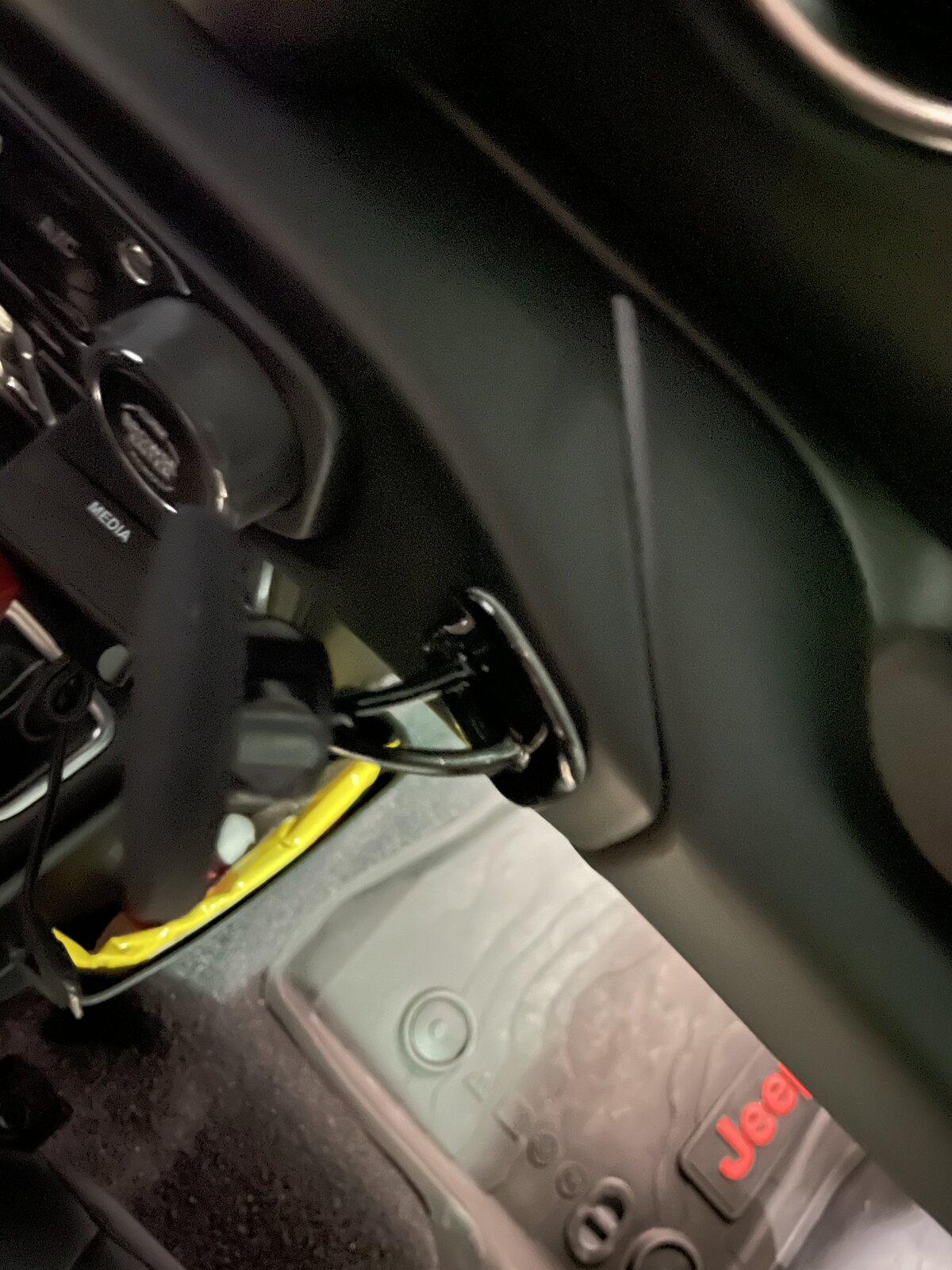

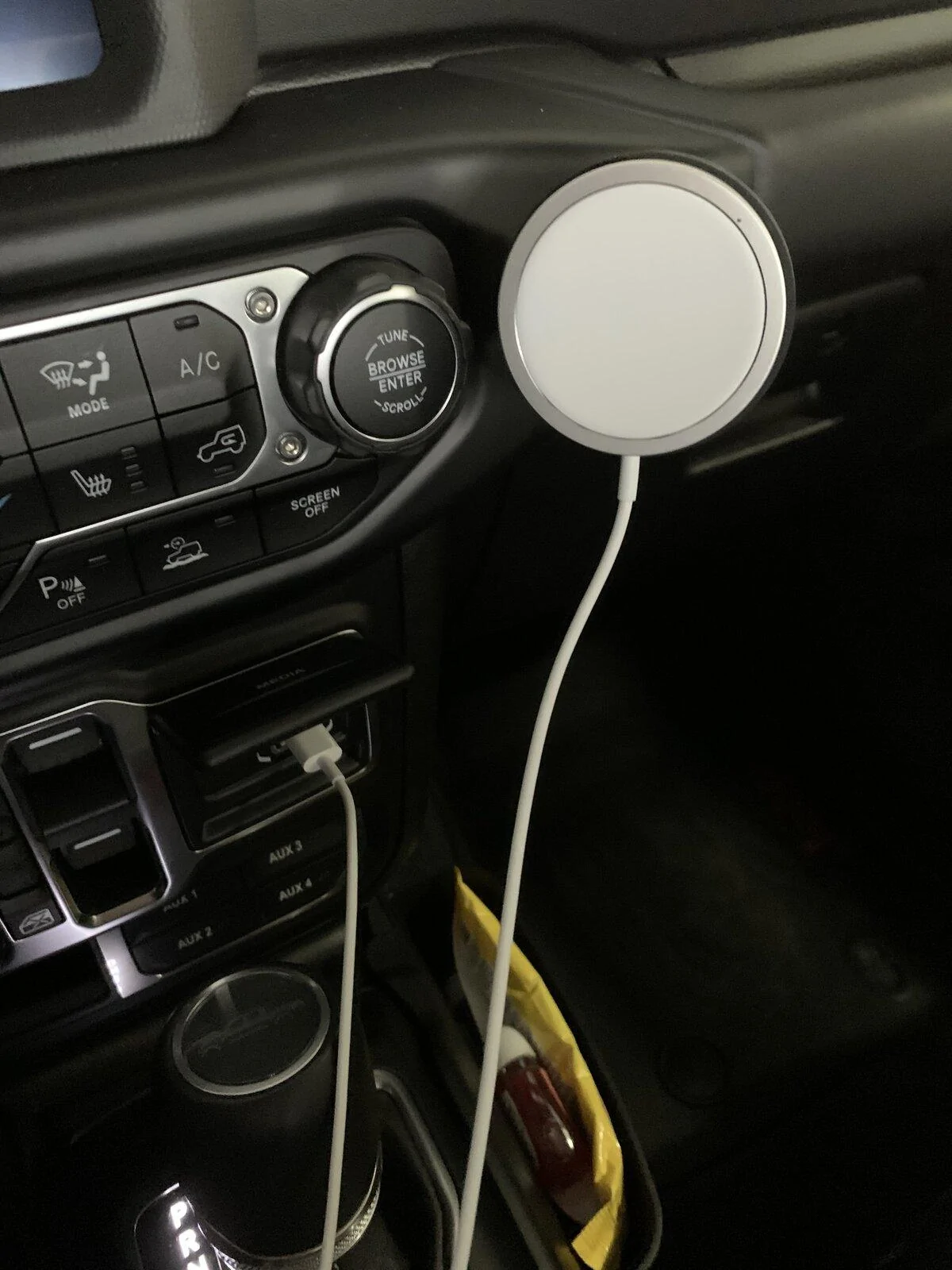

Here is what I did. Wanted something that would work with mag safe and use the new USB-C cable and be way less invasive than some of the other ideas. ...Similar to Summitsearche
All off Amazon
-Quarble Mag safe mount =$19

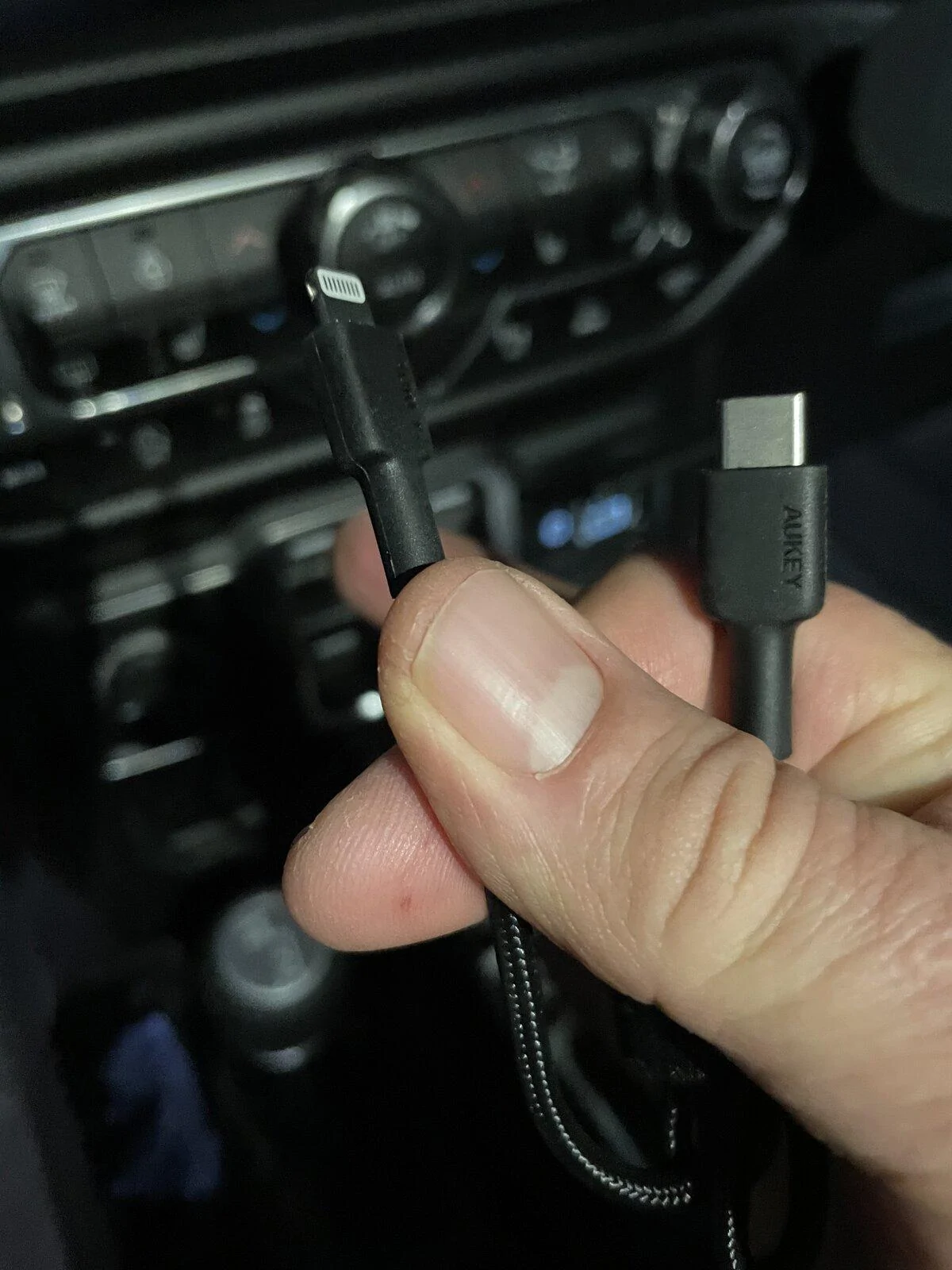

-12” Black and 12” Red USB-C cables=9,99 (6" would work)
ISB-C works faster and sounds better in Car Play.
All in, $34 with shipping and I can attach my MagSafe Apple charger if I just want to charge.
