Any tips on routing wire into under the hood fuse box?

Charliep

New Member
Joined
Sep 29, 2021
Threads
1
Messages
2
Reaction score
1
Location
Gulf Coast
Vehicle(s)
2021 Jeep Gladiator Mojave
As the title states, any tips for penetrating the fuse box to run a wire?

Sponsored



kevman65

Well-Known Member
Joined
Mar 8, 2020
Threads
44
Messages
3,022
Reaction score
4,141
Location
H
Vehicle(s)
J
Flip the lid over for the fuse box. You will see the cutout for the wire hookups on engine side.
There is a tab on either end of that cutout that can be trimmed out to allow wires to pass.


DAVECS1

Well-Known Member
First Name
David
Joined
Jan 24, 2020
Threads
56
Messages
1,861
Reaction score
2,515
Location
Peoria, IL
Vehicle(s)
2020 Gladiator Sport S Max Tow
If you dont want to pull the fuse block you can take the wheel liner out.


Lost_In_The_Woods

Well-Known Member
First Name
Eric
Joined
May 11, 2021
Threads
0
Messages
51
Reaction score
75
Location
Western WA
Vehicle(s)
2021 JT Rubicon Diesel
Occupation
Forester
Vehicle Showcase
1
One thing to keep in mind. For the 3.6, the fuse box sits on top of the auxiliary battery. I believe you have to pull the fuse box to get to the battery. Whatever you’re adding, you might want to include a quick disconnect to make it easier.


kevman65

Well-Known Member
Joined
Mar 8, 2020
Threads
44
Messages
3,022
Reaction score
4,141
Location
H
Vehicle(s)
J
One thing to keep in mind. For the 3.6, the fuse box sits on top of the auxiliary battery. I believe you have to pull the fuse box to get to the battery. Whatever you’re adding, you might want to include a quick disconnect to make it easier.
I used an Add-A-Circuit fuse tap, so just have to pull the tap out of the fuse slot and lay aside.


Sponsored

am1978

Well-Known Member
First Name
Adam
Joined
Jun 26, 2018
Threads
25
Messages
1,284
Reaction score
1,156
Location
MD
Vehicle(s)
2021 JTRD, 2018 JLU Sahara
Occupation
Homebrewer

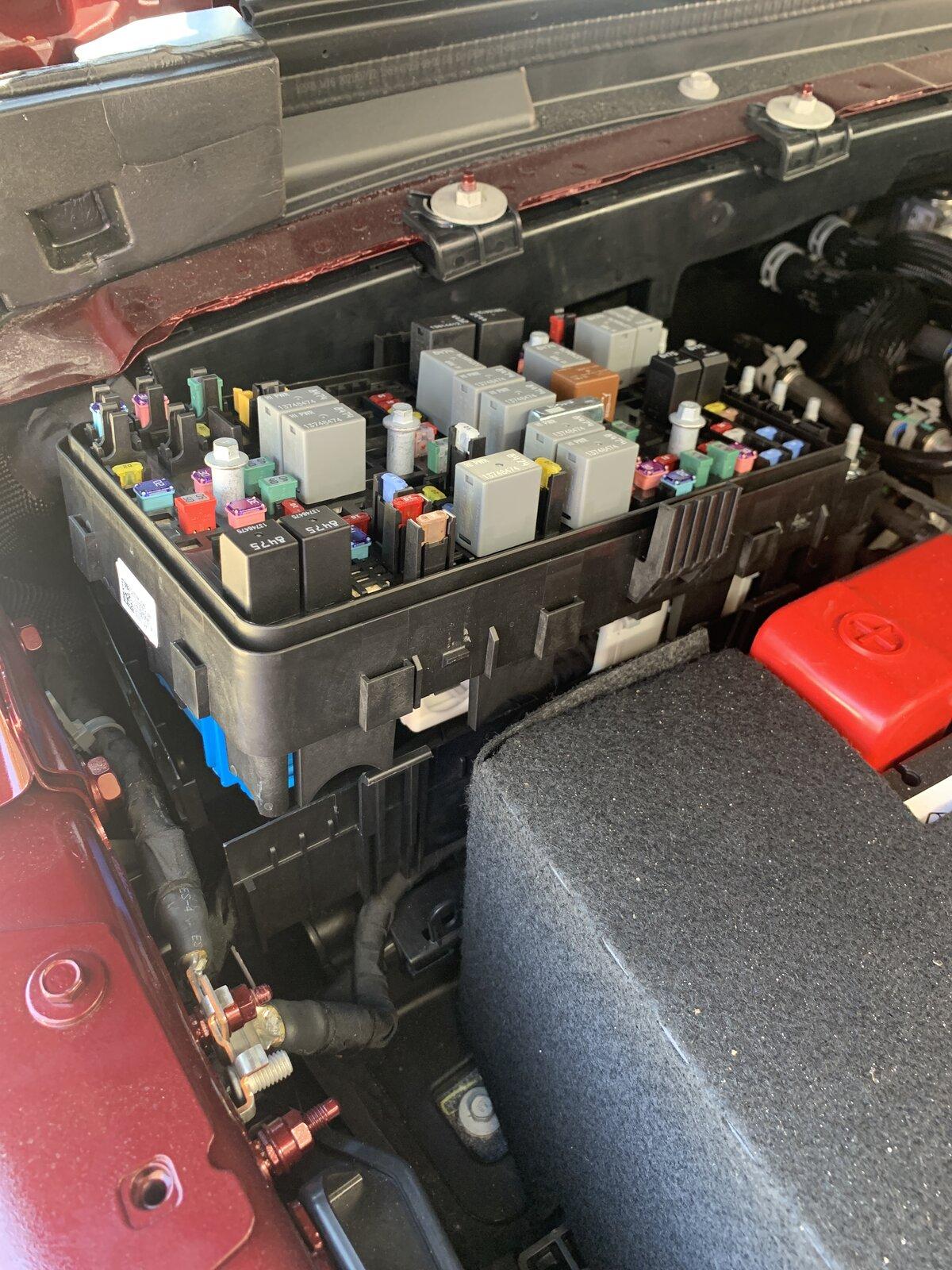

As the title states, any tips for penetrating the fuse box to run a wire?

Jeep Gladiator Any tips on routing wire into under the hood fuse box? image
Where are coming from and trying to go with that wire?

OP
OP

Charliep

New Member
Joined
Sep 29, 2021
Threads
1
Messages
2
Reaction score
1
Location
Gulf Coast
Vehicle(s)
2021 Jeep Gladiator Mojave
Running a wire for the DRL on my Oculus BiLED. Going to use an add a fuse on the top side. Trying to get from where the wire loom comes into the box and to the top of the fuse block. Currently have it tied into the AUX switch power but the halo runs anytime the Jeep is cranked.


ecidiego

Well-Known Member
First Name
Chris
Joined
Nov 3, 2021
Threads
53
Messages
2,863
Reaction score
4,217
Location
San Diego
Vehicle(s)
2021 Gladiator Mojave
Occupation
IT
Flip the lid over for the fuse box. You will see the cutout for the wire hookups on engine side.
There is a tab on either end of that cutout that can be trimmed out to allow wires to pass.

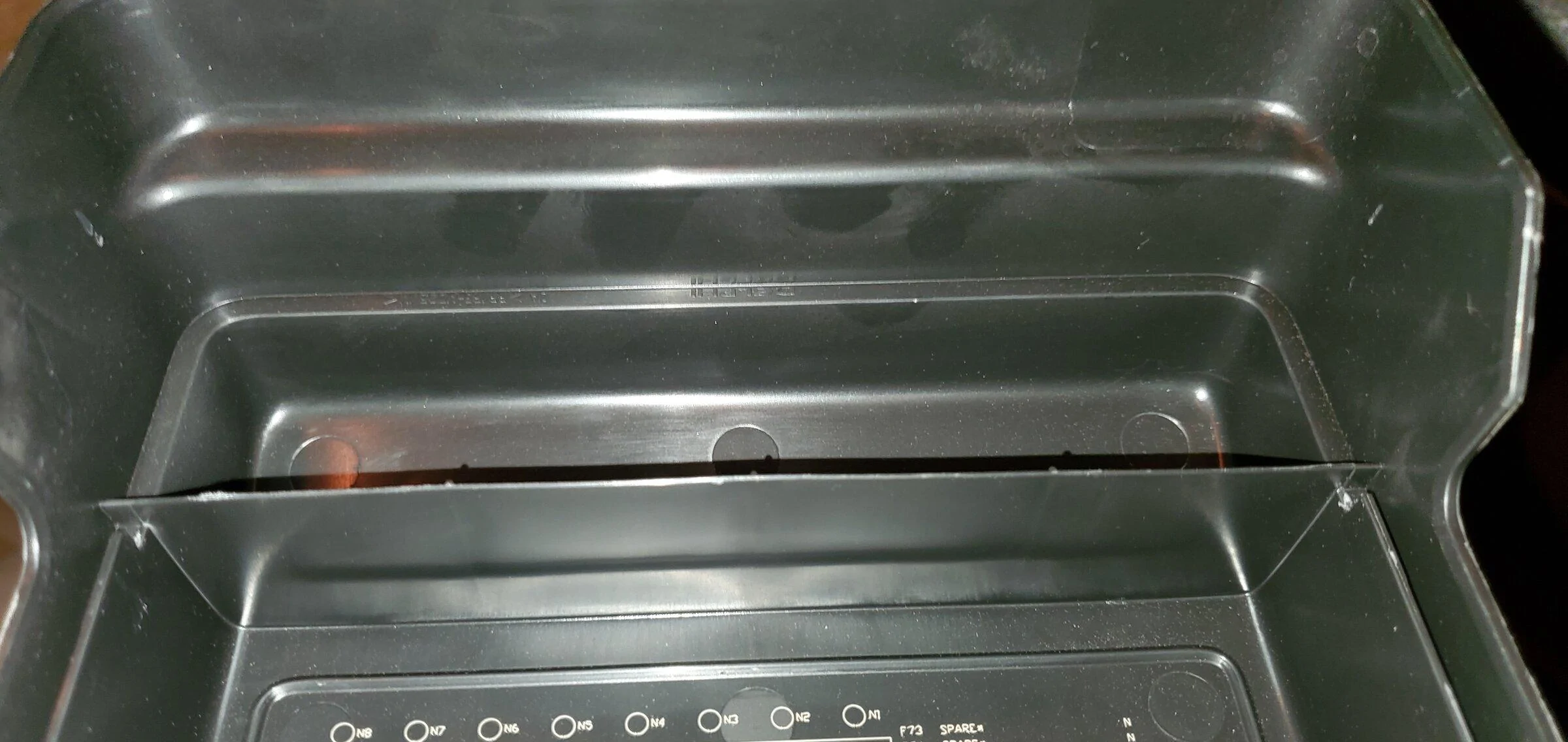

What cutout? I'm blind.

Jeep Gladiator Any tips on routing wire into under the hood fuse box? 20220331_213934


JP_Oracle

Peak Sponsor (Level 2)
First Name
JP
Joined
Jun 29, 2021
Threads
2
Messages
236
Reaction score
210
Location
ORACLE Lighting
Vehicle(s)
21 JTR
As the title states, any tips for penetrating the fuse box to run a wire?

Jeep Gladiator Any tips on routing wire into under the hood fuse box? 20220331_213934
Think you might be overthinking this a tad. Just run the wire around the front of the fusebox and lay it over the right side, connect the add-a-fuse, then close it. The wire doesn't cause an obstruction there.
