Anybody use this hole?

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
I searched but didn't find anything.

I posted this in another thread, but its unique enough that I thought i would start another in case others have seen or have used this hole themselves.

Far back corners of the bed, you can see daylight. I haven't gotten up into the truck to see if the bottom hole is threaded, but has anybody successfully mounted an eyelet back there for rigging stuff?

My 2 D rings in the back I had to take out when I installed some bed drawers (project not done yet, :CWL:) so I need another spot to winch from to pull deer up PLYWOOD onto my bed.

If you have photos/links of this hole being used, please post em. And don't go posting up sexual stuff, please, think of the children! :giggle::lipssealed::puke:

Jeep Gladiator Anybody use this hole? 1603989503225
Sponsored



Dewyaw

Well-Known Member
First Name
Jeff
Joined
Jul 23, 2020
Threads
15
Messages
383
Reaction score
475
Location
Houston
Vehicle(s)
2021 Jeep Gladiator Mojave, 2015 Jeep Wrangler Hard Rock; 1987 Jeep Wrangler Laredo; 1988 Porsche 911, 2005 Toyota Tacoma TRD Pro, 1994 Toyota Pickup 4x4. Not all at the same time.
That’s what she said.


Dewyaw

Well-Known Member
First Name
Jeff
Joined
Jul 23, 2020
Threads
15
Messages
383
Reaction score
475
Location
Houston
Vehicle(s)
2021 Jeep Gladiator Mojave, 2015 Jeep Wrangler Hard Rock; 1987 Jeep Wrangler Laredo; 1988 Porsche 911, 2005 Toyota Tacoma TRD Pro, 1994 Toyota Pickup 4x4. Not all at the same time.

Sponsored

GoVR46

Well-Known Member
First Name
David
Joined
Jun 5, 2020
Threads
18
Messages
598
Reaction score
1,251
Location
Arnold & San Francisco CA.
Vehicle(s)
2020 Gator Rubicon, 2014 Highlander, 2007 BMW 335i (725 whp)
I searched but didn't find anything.

I posted this in another thread, but its unique enough that I thought i would start another in case others have seen or have used this hole themselves.

Far back corners of the bed, you can see daylight. I haven't gotten up into the truck to see if the bottom hole is threaded, but has anybody successfully mounted an eyelet back there for rigging stuff?

My 2 D rings in the back I had to take out when I installed some bed drawers (project not done yet, :CWL:) so I need another spot to winch from to pull deer up PLYWOOD onto my bed.

If you have photos/links of this hole being used, please post em. And don't go posting up sexual stuff, please, think of the children! :giggle::lipssealed::puke:

Tonneau covers.
Exactly.




OP
OP
steffen707

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
Tonneau covers.
do you know of a specific one that uses that hole, is it the mopar one? Wonder if something just sticks into it to align something, or if they actually secure it from both sides.


Sponsored

OP
OP
steffen707

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
ohh, just saw this. So the bottom hole is threaded. I'll have to investigate the backside of the top hole. see if its accessible at all.


punk'n

Well-Known Member
Joined
Jul 10, 2020
Threads
3
Messages
508
Reaction score
1,038
Location
East Coast
Vehicle(s)
R.I.P '20 Overland (totaled) Welcome home '21 Rubi
I also think it was a tonneau bracket mounting location. Some owners reported the hole was empty and others indicated it was threaded (do not know if is a nut welded in place, backing plate etc.)

It has been mentioned that you can get a bolt in the hole and (with some difficulty)a nut on the back. Or use a rivnut and thread in whatever you want.

OP
OP
steffen707

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
Late to the party, but.

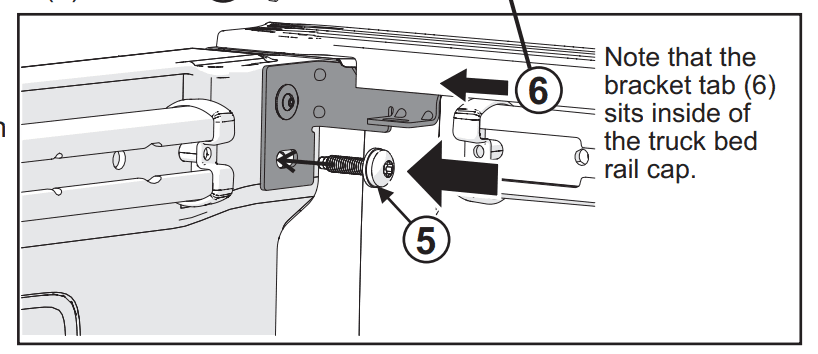

The bottom threaded hole is M8x1.25, the top hole is a guide, they are used by the factory tonneau cover.


Jeep Gladiator Anybody use this hole? Screen Shot 2020-10-29 at 12.24.49 PM
Jeep Gladiator Anybody use this hole? 1603992499083

OP
OP
steffen707

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
I also think it was a tonneau bracket mounting location. Some owners reported the hole was empty and others indicated it was threaded (do not know if is a nut welded in place, backing plate etc.)

It has been mentioned that you can get a bolt in the hole and (with some difficulty)a nut on the back. Or use a rivnut and thread in whatever you want.
DUH, i forget rivnuts exist sometimes. That might be a good option for me. Maybe even drill the hole slightly bigger for a bigger rivnut!

Go rivnut that hole! :facepalm:
