Anyone Looking For Aftermarket Cargo Management DIY?

Nick

Well-Known Member
Joined
Feb 14, 2019
Threads
8
Messages
86
Reaction score
136
Location
Leonardtown, MD
Vehicle(s)
04 Explorer Sport Track, 04 Suzuki VL800, 06 Lincoln Zephyr, 16 Jeep Renegade

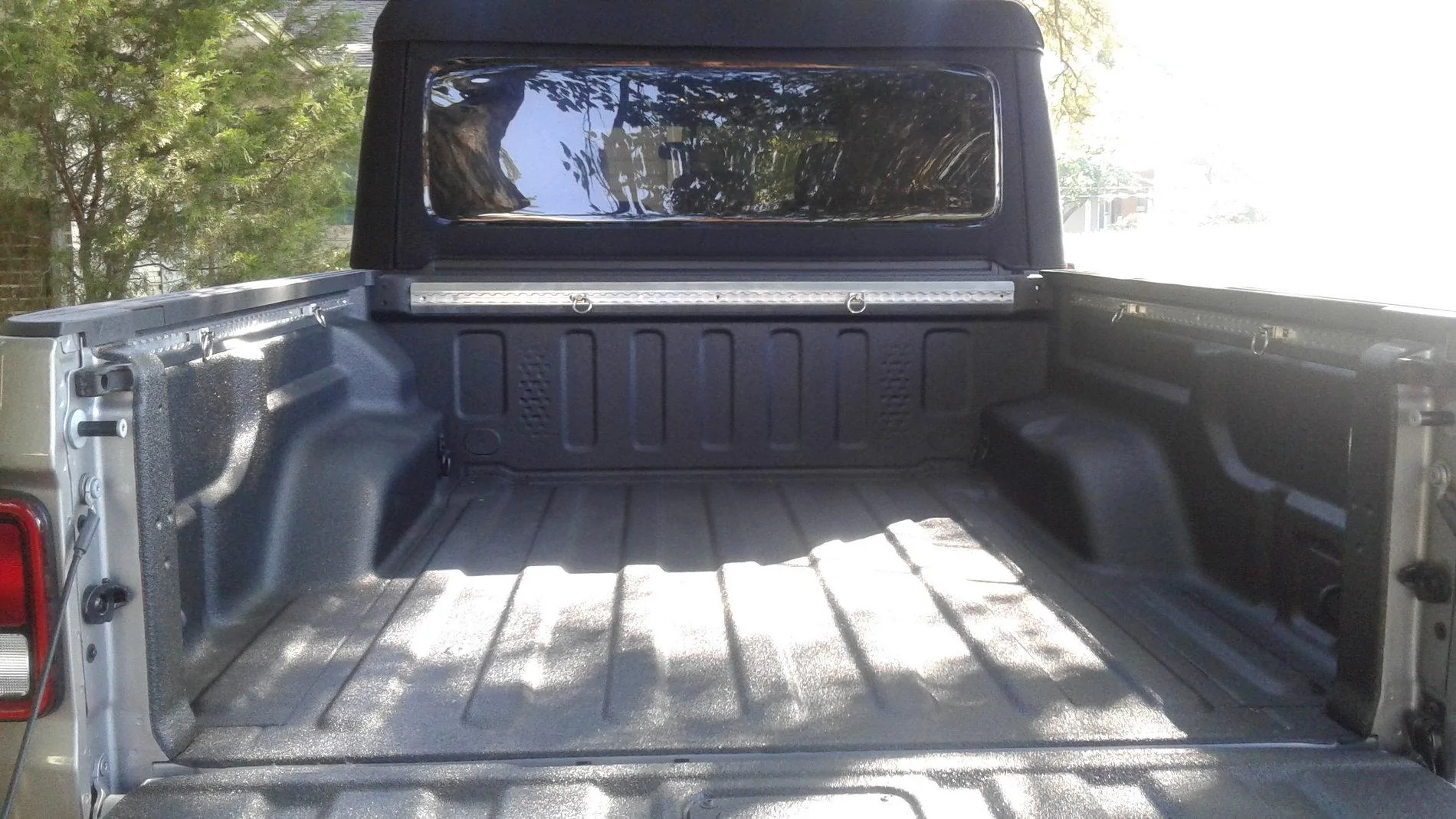

I put this together for $150 with a dozen tie down rings.

Cargo Management.jpg
Sponsored



Moriarty

Well-Known Member
First Name
Ken
Joined
Apr 27, 2019
Threads
0
Messages
101
Reaction score
148
Location
Stagecoach, NV
Vehicle(s)
2020 JTR Gobi gas, 2022 JT Willys Gobi gas

WhiteJT8541

Well-Known Member
First Name
Rob
Joined
Aug 6, 2019
Threads
4
Messages
310
Reaction score
373
Location
Ohio
Vehicle(s)
2020 Gladiator Sport
Occupation
LEO
Is that L-track?
It appears to be. Wonder how well the holes on it lined up with the holes in the bed. OP any input on it. What size bolts did you use to attach it to the bed?


Moriarty

Well-Known Member
First Name
Ken
Joined
Apr 27, 2019
Threads
0
Messages
101
Reaction score
148
Location
Stagecoach, NV
Vehicle(s)
2020 JTR Gobi gas, 2022 JT Willys Gobi gas
It appears to be. Wonder how well the holes on it lined up with the holes in the bed. OP any input on it. What size bolts did you use to attach it to the bed?
I posted thread sizes here

https://www.jeepgladiatorforum.com/...gladiator-welded-bed-bolts.20573/#post-317075

Trail Rail system bolts are M6x1.0 (4 per side and 4 along the front) this does not include the nut certs on the sides near the top of the tailgate. The front corner bolts use by the factory tonneau cover are M8x1.25. Hope this helps, length of bolts depends on your project.

Last edited by a moderator:

Sponsored

WhiteJT8541

Well-Known Member
First Name
Rob
Joined
Aug 6, 2019
Threads
4
Messages
310
Reaction score
373
Location
Ohio
Vehicle(s)
2020 Gladiator Sport
Occupation
LEO
OP
OP
Nick

Nick

Well-Known Member
Joined
Feb 14, 2019
Threads
8
Messages
86
Reaction score
136
Location
Leonardtown, MD
Vehicle(s)
04 Explorer Sport Track, 04 Suzuki VL800, 06 Lincoln Zephyr, 16 Jeep Renegade
The stuff is called S Line O Track. Unfortunately the holes don't line up. I drilled and countersunk to the Jeep hole pattern. I found the screws at ACE Hardware, they are 6MX1, the stock thread for the Jeep rail system. I would have preferred to use the O Track holes but didn't have the tool to install the rivnuts.

OP
OP
Nick

Nick

Well-Known Member
Joined
Feb 14, 2019
Threads
8
Messages
86
Reaction score
136
Location
Leonardtown, MD
Vehicle(s)
04 Explorer Sport Track, 04 Suzuki VL800, 06 Lincoln Zephyr, 16 Jeep Renegade

Uparms

Well-Known Member
First Name
Jay
Joined
Feb 23, 2019
Threads
73
Messages
838
Reaction score
640
Location
Delaware
Vehicle(s)
2023 JT, 2020 JT, 72 CJ5,2005 LJ, 2002 TJ, 92 YJ
Vehicle Showcase
1
Great Job. Maybe remove, scuff and put a coat of black on it, if paint will hold up?? Thanks for the DIY Nick!!


Sponsored

MrKnowitall

Well-Known Member
First Name
Guenther
Joined
Oct 4, 2018
Threads
0
Messages
468
Reaction score
343
Location
Detroit
Vehicle(s)
14 JKU-R
Well done. I figured L-track should fit right in there. For a low-key look, you can get it black, too. For mounting stuff, you can get aluminum (cheap!) or 304 Stainless Unistrut. Several sizes of structural aluminum t-slot would work well, too.


h4281776

Active Member
First Name
Glenn
Joined
Jun 4, 2019
Threads
3
Messages
33
Reaction score
73
Location
Southern PA
Website
www.etubeandwire.com
Vehicle(s)
2020 White Gladiator Rubicon
I put this together for $150 with a dozen tie down rings.

Cargo Management.jpg

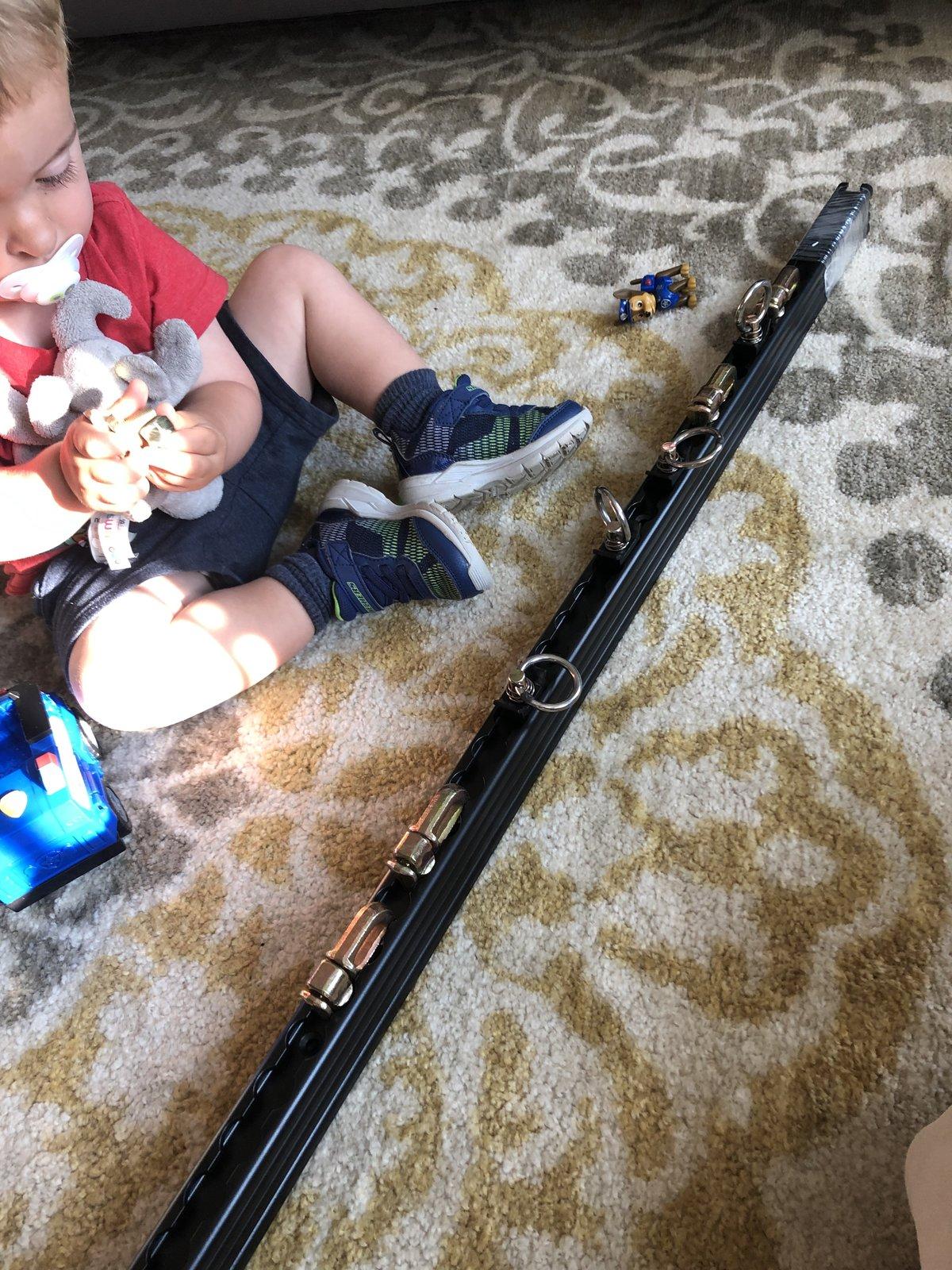

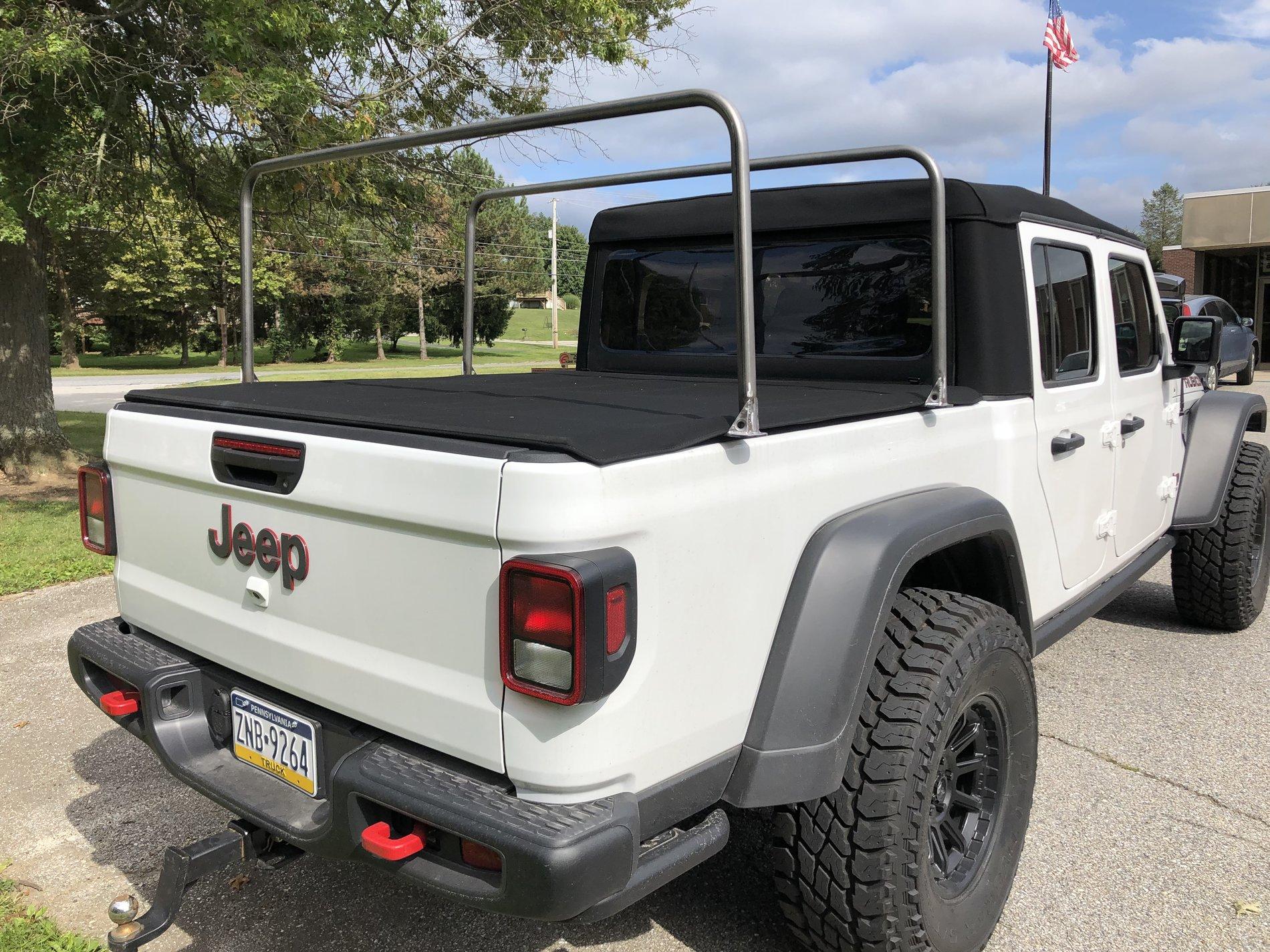

I used the black anodized L track from US Cargo. I believe they’re listed under the motorcycle tie down kits. I had to drill and 82deg countersink all but 2 holes. It turned out nice and like you I spent around $175ish. I like the options they have for fasteners. I’m using the treaded stud ones to fasten a bed rack.





Lucky1

Well-Known Member
First Name
Shawn
Joined
Aug 29, 2019
Threads
1
Messages
216
Reaction score
253
Location
PA
Vehicle(s)
2020 gladiator max tow - 2011 honda odyssey
I used the black anodized L track from US Cargo. I believe they’re listed under the motorcycle tie down kits. I had to drill and 82deg countersink all but 2 holes. It turned out nice and like you I spent around $175ish. I like the options they have for fasteners. I’m using the treaded stud ones to fasten a bed rack.



What size pipe did you use, and how well did it work out? I am contemplating something similar though not as high, too mount a roof top carrier from a car.


ZEROVIZ

Member
First Name
John
Joined
Nov 12, 2019
Threads
4
Messages
22
Reaction score
0
Location
Wayne, NJ
Vehicle(s)
2020 Jeep Gladiator
Lucky1....
Is that the stock bed cover?...if not what brand? and is it a exact match to the OE Soft Top?


Lucky1

Well-Known Member
First Name
Shawn
Joined
Aug 29, 2019
Threads
1
Messages
216
Reaction score
253
Location
PA
Vehicle(s)
2020 gladiator max tow - 2011 honda odyssey
Lucky1....
Is that the stock bed cover?...if not what brand? and is it a exact match to the OE Soft Top?
That's not my truck. I am still trying to choose a cover! Leaning on the rugged ridge soft roll up. I was trying to get info on the rack he has!
