Anyone using a Dc to Dc charger for a second battery?

SelfmodJT

Well-Known Member
First Name
Jon
Joined
Jan 20, 2021
Threads
32
Messages
682
Reaction score
763
Location
Pennsylvannia
Vehicle(s)
2021 jeep JT Willys, 2005 350z con
Juat curious if anyone has this setup? Any issues because of the smart alternator or issues with the ESS?
Sponsored



ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,084
Reaction score
34,569
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
You mean a third battery? There's two already............... the main battery and then the aux for the electronics when the engine is down.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,084
Reaction score
34,569
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
It's late, the cats are even sleeping..........


Sponsored

OP
OP

SelfmodJT

Well-Known Member
First Name
Jon
Joined
Jan 20, 2021
Threads
32
Messages
682
Reaction score
763
Location
Pennsylvannia
Vehicle(s)
2021 jeep JT Willys, 2005 350z con
Thought i would go this route instead of a battery isolater. Any thoughts shadow?


Kevin_D

Well-Known Member
First Name
Kevin
Joined
Oct 18, 2020
Threads
50
Messages
2,328
Reaction score
3,074
Location
Inland Northwest
Vehicle(s)
2021 Sport S, 1971 J4000, a bunch of other stuff
Lol, you know what i mean.
:scratches head

Thought i would go this route instead of a battery isolater. Any thoughts shadow?
So you want to take a 12V battery, stuff in a DC-to-DC converter, and use it to charge another 12V battery?
That's REALLY inefficient.
What's wrong with an isolator, or even just use a couple of diodes?

Kevin

OP
OP

SelfmodJT

Well-Known Member
First Name
Jon
Joined
Jan 20, 2021
Threads
32
Messages
682
Reaction score
763
Location
Pennsylvannia
Vehicle(s)
2021 jeep JT Willys, 2005 350z con
What's wrong with using a dc to dc charger for second, I mean third battery in the bed to take the load off the alternator? I dont have the upgraded alternator. How is that inefficient? And if I want to add solar panels down the road it seems like the better route.

  • Like
Reactions: Oak
OP
OP

SelfmodJT

Well-Known Member
First Name
Jon
Joined
Jan 20, 2021
Threads
32
Messages
682
Reaction score
763
Location
Pennsylvannia
Vehicle(s)
2021 jeep JT Willys, 2005 350z con
:scratches head


So you want to take a 12V battery, stuff in a DC-to-DC converter, and use it to charge another 12V battery?
That's REALLY inefficient.
What's wrong with an isolator, or even just use a couple of diodes?

Kevin
Any what is a dc to dc convertor? Please explain mr electrical engineer.


bsteg7

Well-Known Member
Joined
Feb 19, 2021
Threads
15
Messages
57
Reaction score
41
Location
Norcal
Vehicle(s)
Sold my JKUR and just got a JTR.
Occupation
Work
Juat curious if anyone has this setup? Any issues because of the smart alternator or issues with the ESS?

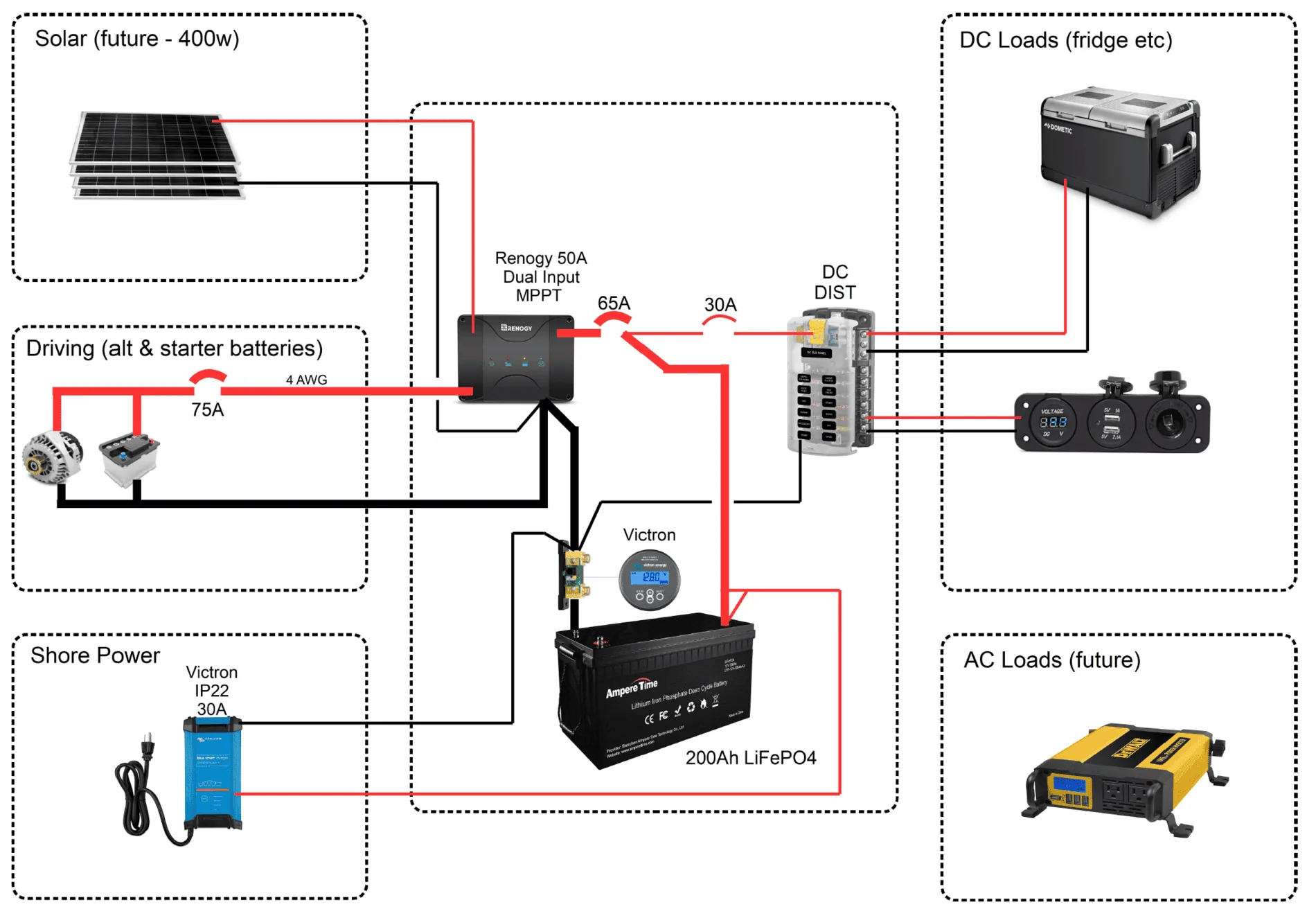

Actually a common and contemporary setup for those running a fridge, lights, air, water and other RV like DC loads. Here is the setup I am building but I went with and SOK LiFePO instead of the cheaper Amperetime as depicted. I have a Renogy DC to DC because it has dual inputs and accommodates the Gladiator's smart alternator.

I have heard there are folks out there that have smoked their smart alternator not realizing it is smart and LiFePO's can suck some serious amperes on charge.

PS. Extremely efficient but not designed as third starter battery. This setup 'saves' your starter batteries for starting.

Jeep Gladiator Anyone using a Dc to Dc charger for a second battery? 1630475874674


Sponsored

OP
OP

SelfmodJT

Well-Known Member
First Name
Jon
Joined
Jan 20, 2021
Threads
32
Messages
682
Reaction score
763
Location
Pennsylvannia
Vehicle(s)
2021 jeep JT Willys, 2005 350z con
Actually a common and contemporary setup for those running a fridge, lights, air, water and other RV like DC loads. Here is the setup I am building but I went with and SOK LiFePO instead of the cheaper Amperetime as depicted. I have a Renogy DC to DC because it has dual inputs and accommodates the Gladiator's smart alternator.

I have heard there are folks out there that have smoked their smart alternator not realizing it is smart and LiFePO's can suck some serious amperes on charge.

PS. Extremely efficient but not designed as third starter battery. This setup 'saves' your starter batteries for starting.

Jeep Gladiator Anyone using a Dc to Dc charger for a second battery? 1630475874674
So I did some research on that charger, what is the best connection for that blue wire for ignition that senses the voltage? Getting different answers.


bsteg7

Well-Known Member
Joined
Feb 19, 2021
Threads
15
Messages
57
Reaction score
41
Location
Norcal
Vehicle(s)
Sold my JKUR and just got a JTR.
Occupation
Work
So I did some research on that charger, what is the best connection for that blue wire for ignition that senses the voltage? Getting different answers.
Mine is still in the box, just got my battery yesterday. Not sure what you mean by blue wire. The IGN lead is red with a green connector. The manual simply states connect the IGN to an ignition source. I will probably connect mine to the ignition lead from the factory 4 aux switch option but any lead that is hot when the ignition is on should work fine.

It doesn't say it senses voltage. I think it simply tells the unit the ignition is 'on'. This is probably because the smart alternator often drops charging to low voltage near 12v under acceleration and therefor the Renogy unit would not be able to tell if the car is on or not. You don't use the IGN lead with a traditional 'dumb' alternator because its obvious to the unit the engine is started because the voltage jumps from 12v to 14v.

OP
OP

SelfmodJT

Well-Known Member
First Name
Jon
Joined
Jan 20, 2021
Threads
32
Messages
682
Reaction score
763
Location
Pennsylvannia
Vehicle(s)
2021 jeep JT Willys, 2005 350z con
Mine is still in the box, just got my battery yesterday. Not sure what you mean by blue wire. The IGN lead is red with a green connector. The manual simply states connect the IGN to an ignition source. I will probably connect mine to the ignition lead from the factory 4 aux switch option but any lead that is hot when the ignition is on should work fine.

It doesn't say it senses voltage. I think it simply tells the unit the ignition is 'on'. This is probably because the smart alternator often drops charging to low voltage near 12v under acceleration and therefor the Renogy unit would not be able to tell if the car is on or not. You don't use the IGN lead with a traditional 'dumb' alternator because its obvious to the unit the engine is started because the voltage jumps from 12v to 14v.
Ok, for some reason on article I read said to connect to the actual ignition circuit? Someone used the cigarette lighter wire and it didnt work right for some reason? Maybe cause it an accessory wire and it shows power even when the car is off in the run position?

OP
OP

SelfmodJT

Well-Known Member
First Name
Jon
Joined
Jan 20, 2021
Threads
32
Messages
682
Reaction score
763
Location
Pennsylvannia
Vehicle(s)
2021 jeep JT Willys, 2005 350z con
I guess using a switch is the best option.


Blade1668

Well-Known Member
First Name
Darrell
Joined
Jan 7, 2020
Threads
11
Messages
2,344
Reaction score
2,119
Location
N. AL.
Vehicle(s)
90XJ, 91XJ, 91MJ, 05 LJ, 20 JT
Build Thread
Link
Vehicle Showcase
1
Well I've started with wiring that system (Renogy Dual Input DC-DC 30A) in mine to charge the LiPo battery to run my fridge freezer and other stuff, right now it's just powering my radio. I've not hooked it in to Jeep electric system yet. It would have been done a few days back but I've been tied up with some other problems as of late.
A big thanks to "Dan G. Of the road chose me" who is a member here. I was about to install a different company solar charge controller MPPT type. "It will be going into my RV now"
The trigger wire needs to be hooked to a engine running circuit only it's recommended to not be the 12 v power port due to being on in acc mode too. As you have found out. I'm thinking about trying to use the 5th wire from Aux switch group in cab as a test to save me from needing to run another wire up to engine compartment.
