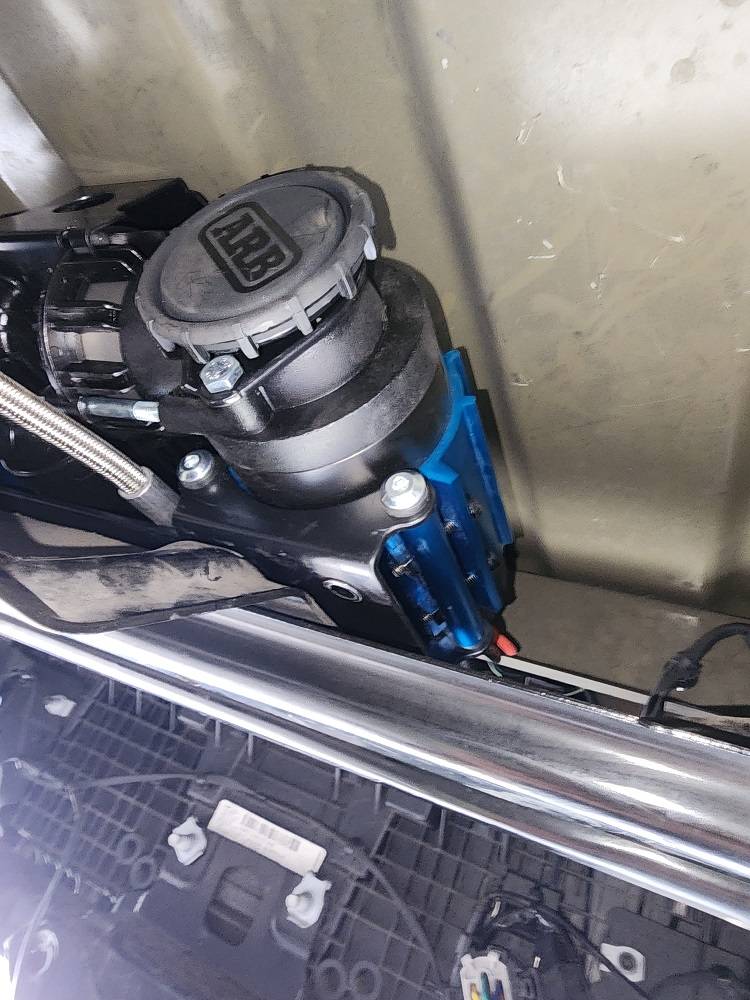

ARB Twin Compressor Installed -- mounted under bed, above spare

[Waltzforzizi]

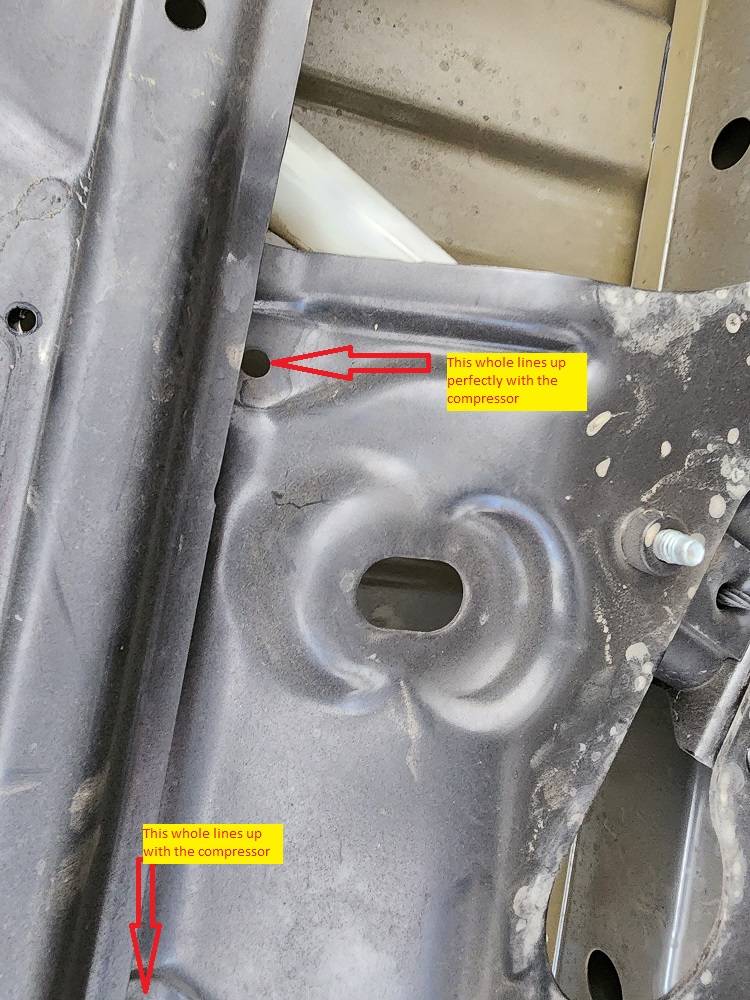

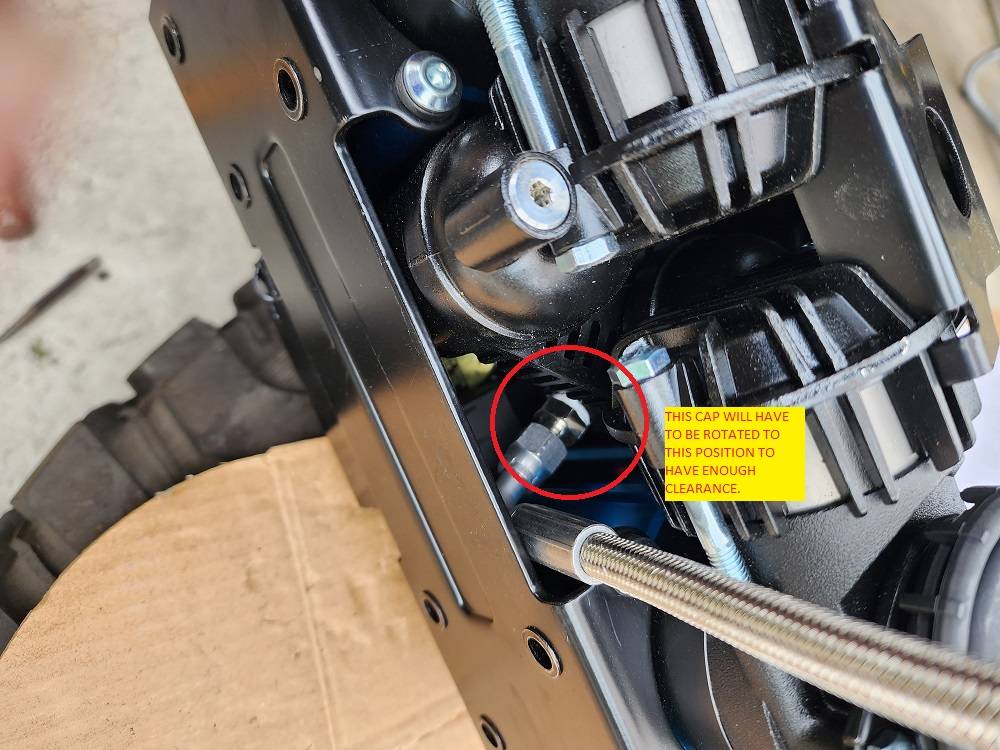

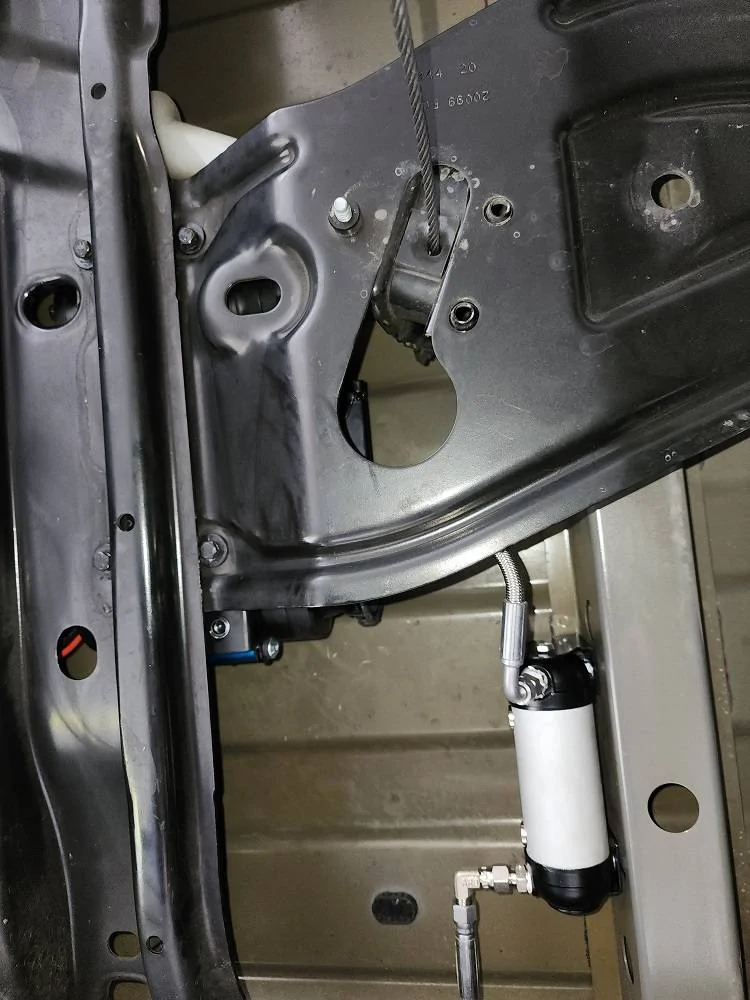

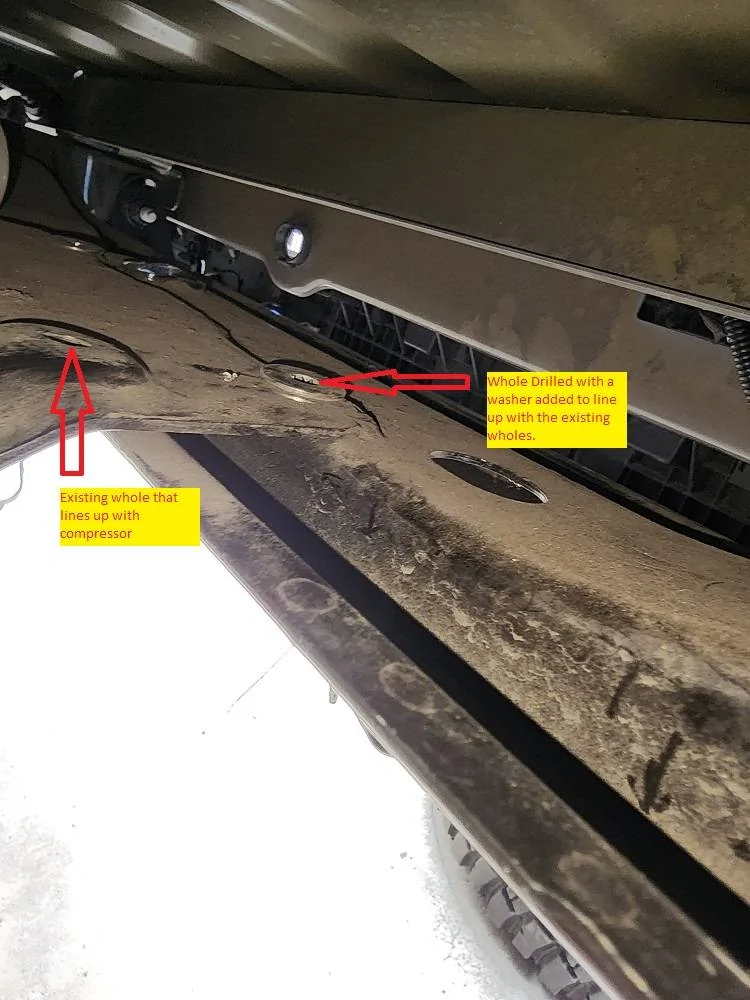

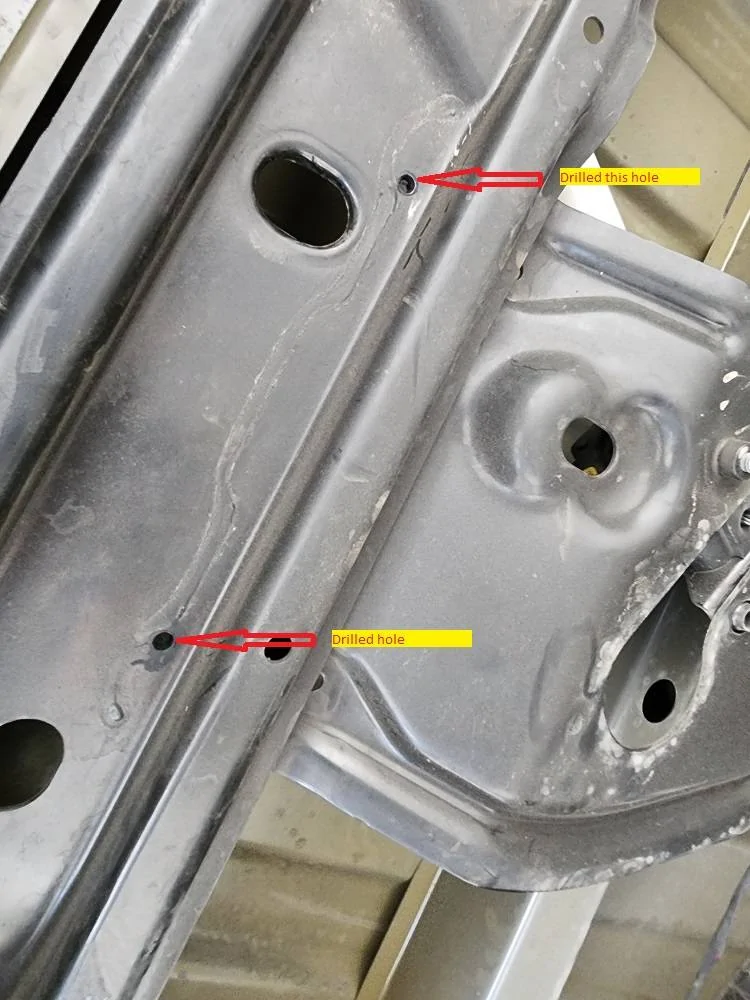

I found this was mentioned in multiple post, but no one ever had any pictures. I just went and mounted it, I'm not saying this is the correct way for everyone, but it works for me. Here are some pictures to help if anyone was thinking about doing it themselves.

Sponsored



[amiyank]

what about mud and road salt? Although looking at the shape of your gladiator you are not in the northern states.



[ToJTornottoJT]

what about mud and road salt? Although looking at the shape of your gladiator you are not in the northern states.

I have been looking at this too. I put a white cardboard box in that exact area and drove around for a couple weeks. Very, very little water, mud, or dust gets up there for some reason. It doesn't even get wet in a creek crossing.



[Waltzforzizi]

I live in in the desert, so it's not really an issue for me.



[Waltzforzizi]

I think i might add a rubber isolator between the frame and the compressor. I think I can fit a 1/4 rubber sheet in between the mounting plate and the frame, any thoughts anyone?



[SSinGA]

Hole = an opening through something; gap; aperture:

Whole = comprising the full quantity, amount, extent, number, etc., without diminution or exception; entire, full, or total:



[sharpsicle]

How is that for serviceability? Looks difficult to get to if/when something goes wrong and it needs attention.



[Waltzforzizi]

How is that for serviceability? Looks difficult to get to if/when something goes wrong and it needs attention.

Just have to lower the tire and its right there



[SSinGA]

Good idea! Have been thinking about moving mine from underneath the passenger seat. Would be nice to have the hose connection point in the bed. I don't need the spare under there, so lots of room for activities.



[Waltzforzizi]

Hole = an opening through something; gap; aperture:

Whole = comprising the full quantity, amount, extent, number, etc., without diminution or exception; entire, full, or total:

Well I didn't feel like making corrections and I'm to old to give an f. I'm pretty sure you everyone gets it...Fair enough?



[Waltzforzizi]

Good idea! Have been thinking about moving mine from underneath the passenger seat. Would be nice to have the hose connection point in the bed. I don't need the spare under there, so lots of room for activities.

I put an ARB connector at the left side of the bed near the tailgate, the hole that is there is just the right size, so no drilling needed.



[Waltzforzizi]

Well I didn't feel like making corrections and I'm to old to give an f. I'm pretty sure you everyone gets it...Fair enough?

I just realized I spelled it "whole" not just once but several times, ok that deserves a facepalm



[SSinGA]

I just realized I spelled it "whole" not just once but several times, ok that deserves a facepalm

You got it right twice!



[Waltzforzizi]

You got it right twice!

Lol yes sir



[SSinGA]

I put an ARB connector at the left side of the bed near the tailgate, the hole that is there is just the right size, so no drilling needed.

got a pic?
