ARE Bed Cap Topper weight requires upgrading to taller rear springs / spring spacers?

cwilliamson

Active Member
First Name
Chris
Joined
Dec 7, 2021
Threads
6
Messages
34
Reaction score
32
Location
South Carolina
Vehicle(s)
2021 Rubicon Gladiator
Occupation
Law Enforcement
I am waiting for my ARE Top to come in. I have read that due to the weight you may need to get taller rear springs or some spring spacers to adjust for the weight.

Anyone with an ARE top have to do this?


First Name
Eric
Joined
Aug 23, 2022
Threads
3
Messages
22
Reaction score
43
Location
Susanville, CA
Vehicle(s)
2021 Jeep Gladiator
Occupation
Physician
I am waiting for my ARE Top to come in. I have read that due to the weight you may need to get taller rear springs or some spring spacers to adjust for the wait. Anyone with an ARE top have to do this?
Not me. My truck still has its somewhat endearing stinkbug stance after getting the top on.



Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Threads
25
Messages
3,574
Reaction score
3,295
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland - 2013 Nissan Leaf SV
Vehicle Showcase
1
It depends on how much weight you are going to add, and how you want it to look. My Overland now sits level with no rake. I added a RSI cap with a rack and table, which weighs 250 pounds, and carry a bunch of stuff in the bed and back seat. I found a set of Max Tow springs that I plan to put on the rear.



OP
OP
cwilliamson

cwilliamson

Active Member
First Name
Chris
Joined
Dec 7, 2021
Threads
6
Messages
34
Reaction score
32
Location
South Carolina
Vehicle(s)
2021 Rubicon Gladiator
Occupation
Law Enforcement
They said 12 weeks. I called at 10 weeks to make sure they did not forget me and they told me two more weeks. And at 12 weeks it showed up.
🙁 I was hoping it wouldn’t take that long they told me up to 16 weeks


bd100

Well-Known Member
Joined
May 31, 2022
Threads
11
Messages
116
Reaction score
101
Location
USA Midwest
Vehicle(s)
JT, WK2, ole' Ram
I don't notice a change in stance but I do notice a little more sideways rocking when going over the driveway curb on an angle. Stiffer shocks may be called for.


cuellar13

Well-Known Member
First Name
Marty
Joined
Mar 25, 2021
Threads
13
Messages
444
Reaction score
665
Location
Tampa Bay, Florida
Vehicle(s)
2020 JTR, 2021 Bronco Big Bend, 1966 GMC Stepside
Occupation
Director of Recruitment for Pharma/Biotech/Device Consulting Firm
I'm running a RC 3.5" lift and have an ARE topper- mine sits level.


rharr

Well-Known Member
Joined
May 6, 2021
Threads
15
Messages
786
Reaction score
852
Location
Tucson, AZ
Vehicle(s)
21 JTRD 3" RKK lift, (former) 95 XJ 5sp 8" lift
I had a little squat butt, when i ran my cap and my crap in the back and more squat when fully loaded for camping. I was running rock krawler 3" springs front and back. I have since swapped the rear springs for rock krawler 4.5" rear springs and it now has a little rake with a mild load and levels out fully packed.

My recommendation is if you are running a cap and plan to have fair load in the back often add 1.5" inches to the back either through spacers or taller springs.


Alaskantinbender

Well-Known Member
First Name
Jim
Joined
Jul 1, 2019
Threads
10
Messages
124
Reaction score
139
Location
Alaska, Arizona
Vehicle(s)
2020 Launch edition
Occupation
Aircraft Mechanic
I am waiting for my ARE Top to come in. I have read that due to the weight you may need to get taller rear springs or some spring spacers to adjust for the wait. Anyone with an ARE top have to do this?

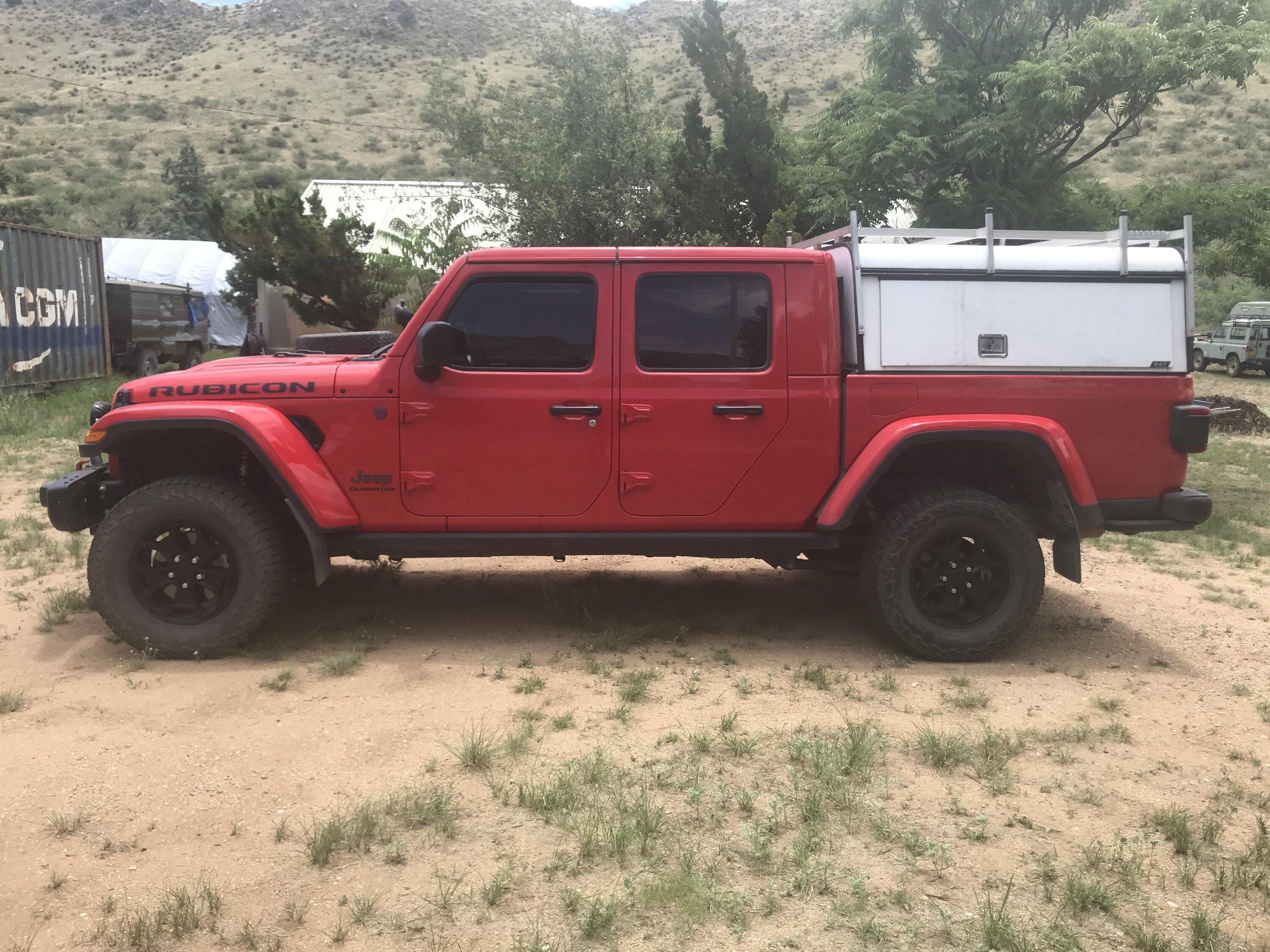

I don't think you will need to change anything for just the weight of the topper. I have an aluminum contractor topper and didn't have any notable rear height change. Possibly an inch or so? I estimate the topper at about 170 pounds or so because of the doors. The truck does have a 2 inch spacer lift.




Jade330i

Member
Joined
May 12, 2021
Threads
0
Messages
19
Reaction score
45
Location
Charleston, SC
Vehicle(s)
2021 Gladiator / 2016 Sahara / 1974 CJ5
Fox lift on mine and my rig sits level...no issues. Still allows me to haul whatever I need and keep stuff locked up and out of the elements. Picked mine up second-hand for $1,900 about a year ago.

I love this cap!







dcmdon

Well-Known Member
First Name
Don
Joined
Mar 31, 2021
Threads
54
Messages
3,093
Reaction score
3,522
Location
Boston Metro-West, Northern NH
Vehicle(s)
.
Most people here piss and moan about the RAKE.

Which I never got. Its a pickup truck. Its supposed to have rake.

My truck is about level now with the cap.

OP
OP
cwilliamson

cwilliamson

Active Member
First Name
Chris
Joined
Dec 7, 2021
Threads
6
Messages
34
Reaction score
32
Location
South Carolina
Vehicle(s)
2021 Rubicon Gladiator
Occupation
Law Enforcement
Fox lift on mine and my rig sits level...no issues. Still allows me to haul whatever I need and keep stuff locked up and out of the elements. Picked mine up second-hand for $1,900 about a year ago.

I love this cap!





Looks good can’t wait to get mine


Escape.idiocracy

Well-Known Member
First Name
Rich
Joined
Jan 23, 2022
Threads
14
Messages
377
Reaction score
371
Location
PNW
Vehicle(s)
Jt
Occupation
Hitchhiker

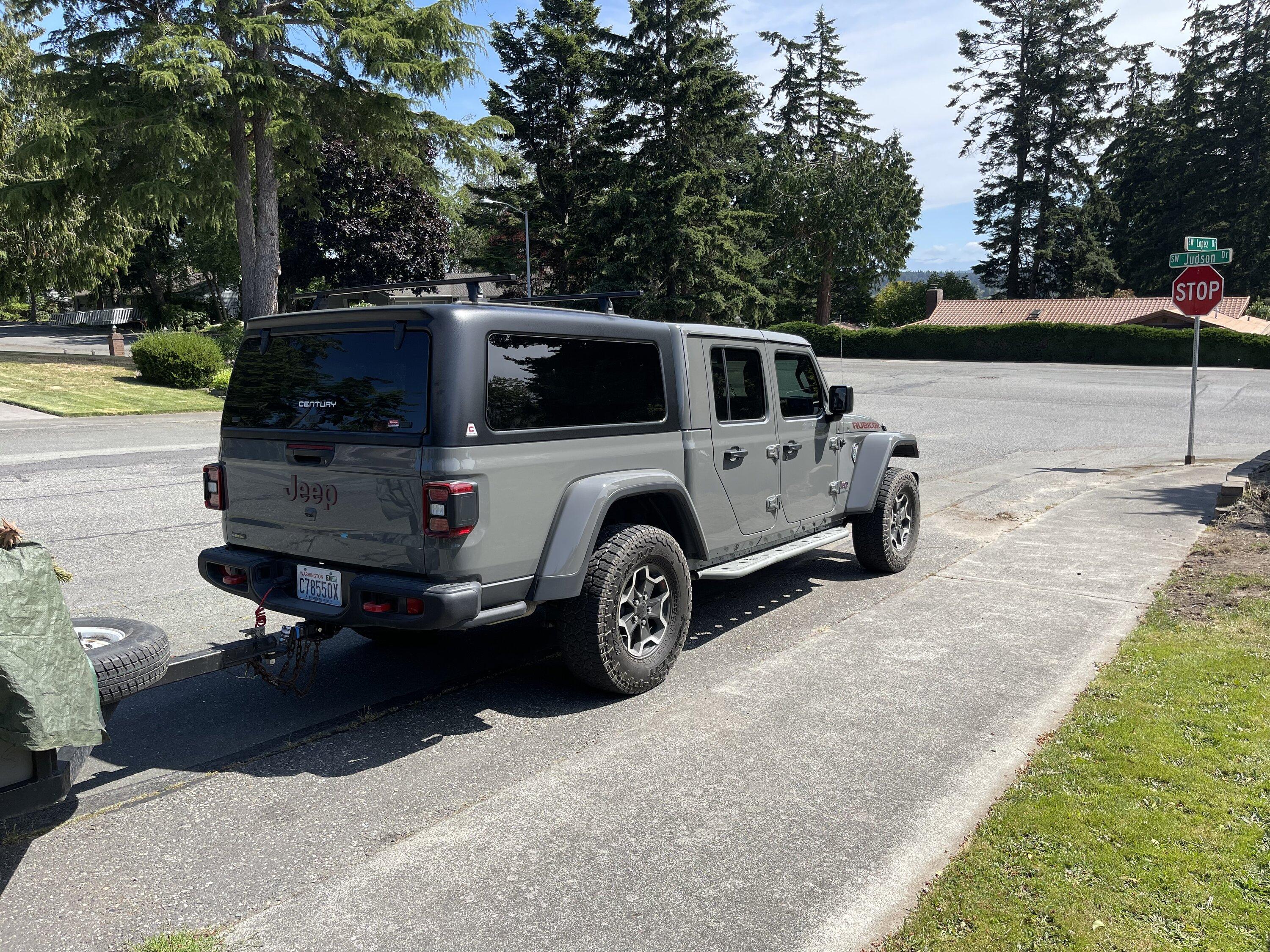

Decked system and the canopy…. Sits fine- squats when it has a small trailer with weight….

more irritating than any “potential”rear lift height- factory springs/ shocks are way too soft with just the canopy and decked system…. Highway speeds the rear pogo’s and bucks in the direction of the track bar… dangerously?? No not at all…. But it sure is annoying. Personally can’t wait to get the suspension redone to fix this nonsense.. heaven for bud it’s even remotely used as a “truck”.



Rick_Jame55

Active Member
First Name
Rickel
Joined
Oct 17, 2020
Threads
1
Messages
31
Reaction score
36
Location
Colorado
Vehicle(s)
2021 Gladiator
Occupation
QA Inspector
I am waiting for my ARE Top to come in. I have read that due to the weight you may need to get taller rear springs or some spring spacers to adjust for the weight.

Anyone with an ARE top have to do this?
I did not have to add anything due to the camper top. But I will add that I have the MOPAR 2" lift. But nothing other than that.
