Aux switches backlit when the headlights are on?

kcmudbug

Member
First Name
TJ
Joined
Dec 6, 2023
Threads
6
Messages
20
Reaction score
7
Location
KC
Vehicle(s)
2023 Gladiator, 2006 Unlimited
Are your factory aux switch buttons backlit like the rest of the buttons on your dash? I had the ones on my new jeep installed by the dealer and they don't light up. The dealer says they're not supposed to be back lit, but I could swear the ones I've seen in the past lit up at night with the headlights on.
Sponsored



Hootbro

Well-Known Member
Joined
Apr 13, 2019
Threads
36
Messages
6,702
Reaction score
11,263
Location
Delaware
Vehicle(s)
2022 Gladiator Rubicon

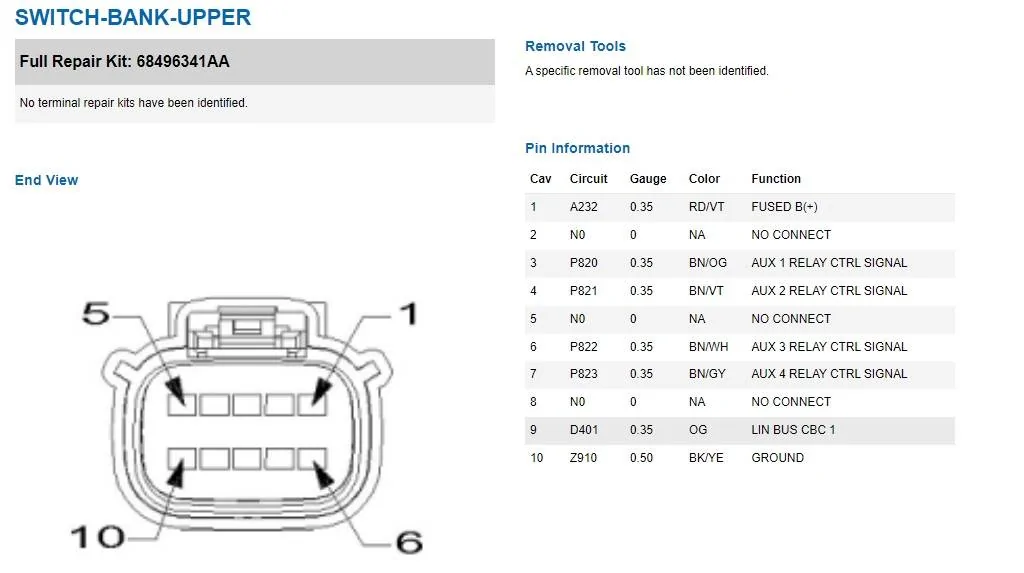

Does not appear it is wired for interior lighting. Looked at the Upfitter and interior wiring diagram in addition to the pin out for the connector. Nothing there to imply it is wired for a light circuit for the legends but there should be a indicator led when activated.
Jeep Gladiator Aux switches backlit when the headlights are on? Switch Bank

Last edited:

Minty JL

Well-Known Member
First Name
Jeremy
Joined
May 15, 2019
Threads
14
Messages
2,913
Reaction score
4,205
Location
Ft Meade, MD - AOR
Vehicle(s)
23 XC90 - 23 JTM - 19 JLUR - 04 355 ZQ8
Occupation
USA(R), DoD Field Ops Engineer
Kinda lame they're not backlit


GeneralMaximus

Well-Known Member
Joined
Sep 12, 2023
Threads
2
Messages
239
Reaction score
392
Location
Las Vegas
Vehicle(s)
JTM
i just went out and checked. They DO light up when the headlights are on. Aux 1, Aux 2, etc… letters/number are all backlit


Sponsored

Killroy Was Here

Well-Known Member
First Name
Dave
Joined
Dec 19, 2020
Threads
8
Messages
408
Reaction score
964
Location
NW Ohio
Vehicle(s)
2021 Gladiator Mojave
i just went out and checked. They DO light up when the headlights are on. Aux 1, Aux 2, etc… letters/number are all backlit.
My aux switches are also backlit whenever the park or headlights are on.
Truck is a '21 Mojave with the switch option installed on the assembly line.

Last edited:

ecidiego

Well-Known Member
First Name
Chris
Joined
Nov 3, 2021
Threads
55
Messages
2,917
Reaction score
4,331
Location
San Diego
Vehicle(s)
2021 Gladiator Mojave
Occupation
IT
Are your factory aux switch buttons backlit like the rest of the buttons on your dash? I had the ones on my new jeep installed by the dealer and they don't light up. The dealer says they're not supposed to be back lit, but I could swear the ones I've seen in the past lit up at night with the headlights on.
They're back-lit. Dealer, as usual, is full of shit and knows nothing about the products they sell.

Did they 'forget' to program the BCM for them?

Here's an old thread with the same BS from a dealer...

https://www.jlwranglerforums.com/forum/threads/dealer-aux-switch-install-total-mess.63211/


jwilson2899

Well-Known Member
First Name
Jeff
Joined
Nov 11, 2019
Threads
18
Messages
800
Reaction score
941
Location
Front Royal, VA
Vehicle(s)
2020 Gladiator Rubicon Launch Edition
Occupation
System Engineer
Vehicle Showcase
1
Does not appear it is wired for interior lighting. Looked at the Upfitter and interior wiring diagram in addition to the pin out for the connector. Nothing there to imply it is wired for a light circuit for the legends but there should be a indicator led when activated.
Jeep Gladiator Aux switches backlit when the headlights are on? Switch Bank
They only light up when the circuit is active. No back lighting.
Both of these are incorrect. The Aux switches are indeed backlit at night. If they are not backlit, then either something went wrong when the flash to activate them, or there’s a wiring/connector issue. Take it back and make them fix it.


Vtur

Well-Known Member
Joined
Mar 6, 2021
Threads
11
Messages
1,148
Reaction score
1,199
Location
Norcal
Vehicle(s)
JTOD
Mine is also added after as a kit and they do light up woth parking or headlight.

They also dims with the rest of the interior lights/buttons. Try to rotate one of the dimming wheels by the headlight knob.


Hootbro

Well-Known Member
Joined
Apr 13, 2019
Threads
36
Messages
6,702
Reaction score
11,263
Location
Delaware
Vehicle(s)
2022 Gladiator Rubicon
Both of these are incorrect. The Aux switches are indeed backlit at night. If they are not backlit, then either something went wrong when the flash to activate them, or there’s a wiring/connector issue. Take it back and make them fix it.
Then I stand corrected. They must be internally lit and controlled from the LIN Bus signal as there is no external light control signal I can find on either the upfitter or interior light circuit schematics.


Attachments


Sponsored

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
183
Messages
30,353
Reaction score
36,266
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Yep.

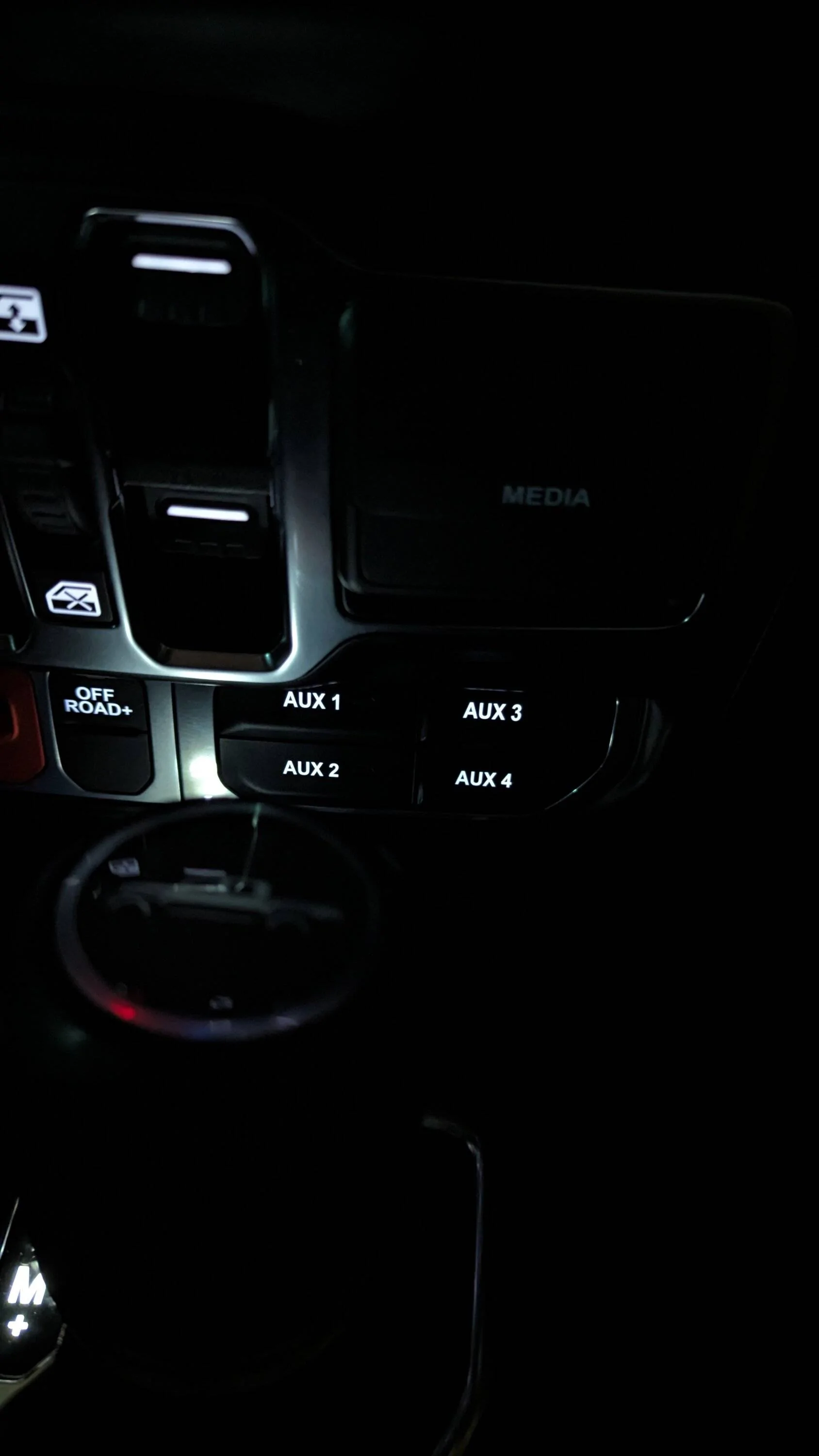

21 Mojave - nothing on the switches. They all light up.

Jeep Gladiator Aux switches backlit when the headlights are on? PXL_20240225_222216505
Probably only a Mojave thing.
They screwed up and made my Overland switches and our Rubicon switches light as well. Probably a factory defect.


ecidiego

Well-Known Member
First Name
Chris
Joined
Nov 3, 2021
Threads
55
Messages
2,917
Reaction score
4,331
Location
San Diego
Vehicle(s)
2021 Gladiator Mojave
Occupation
IT
Are your factory aux switch buttons backlit like the rest of the buttons on your dash? I had the ones on my new jeep installed by the dealer and they don't light up. The dealer says they're not supposed to be back lit, but I could swear the ones I've seen in the past lit up at night with the headlights on.
Your dealer pisses me off so bad I made this video for you. My switches were installed by me after the fact. They are OEM.
