Nice work! I’ve been considering something similar, so good to see others working on it.

OP
OP
fonzie

fonzie

Well-Known Member
First Name
Alfonso
Joined
Jun 28, 2019
Threads
14
Messages
115
Reaction score
95
Location
McKinney, TX
Vehicle(s)
2018 JLU, 2020 JT, 1996 Bronco

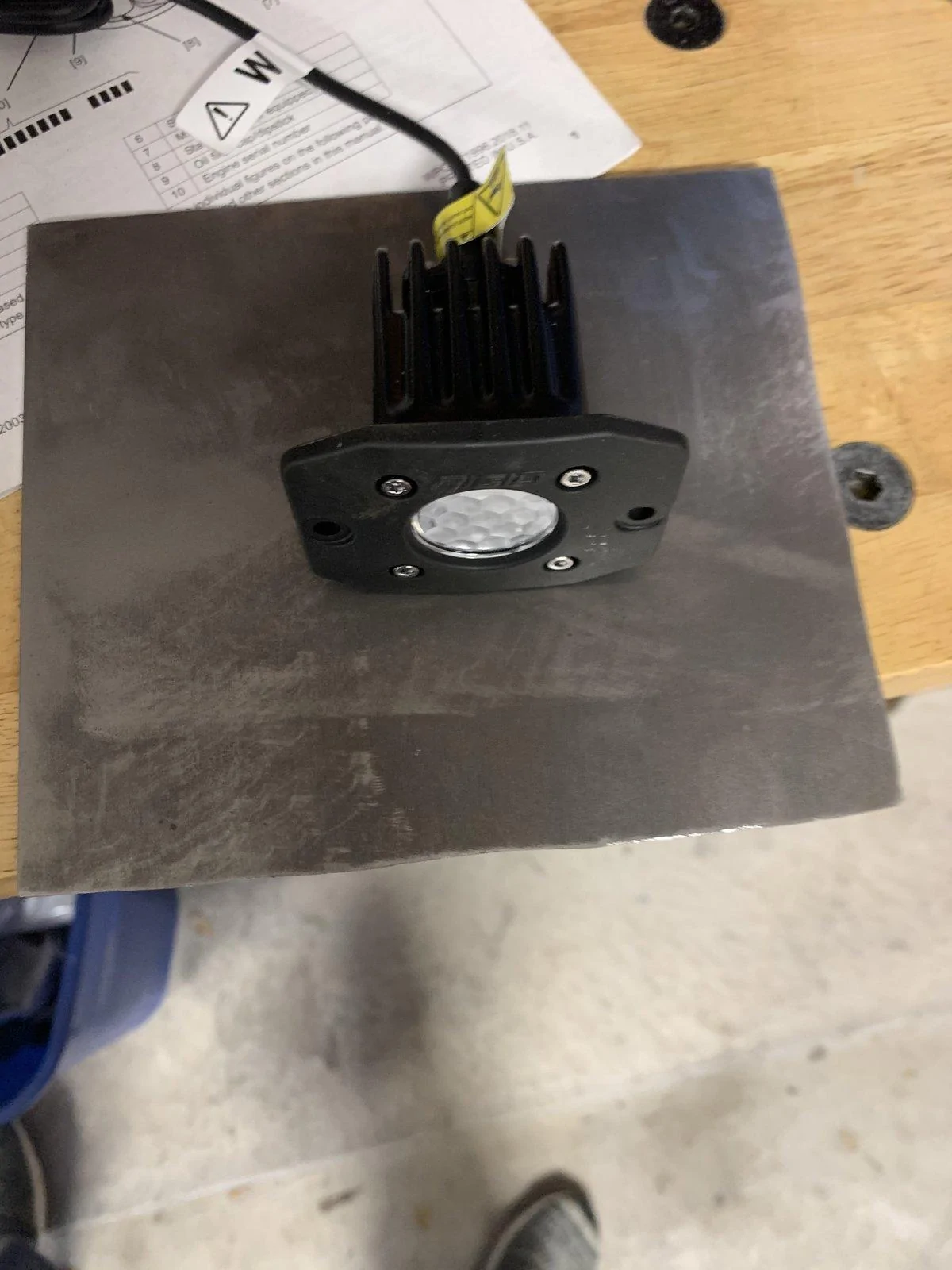

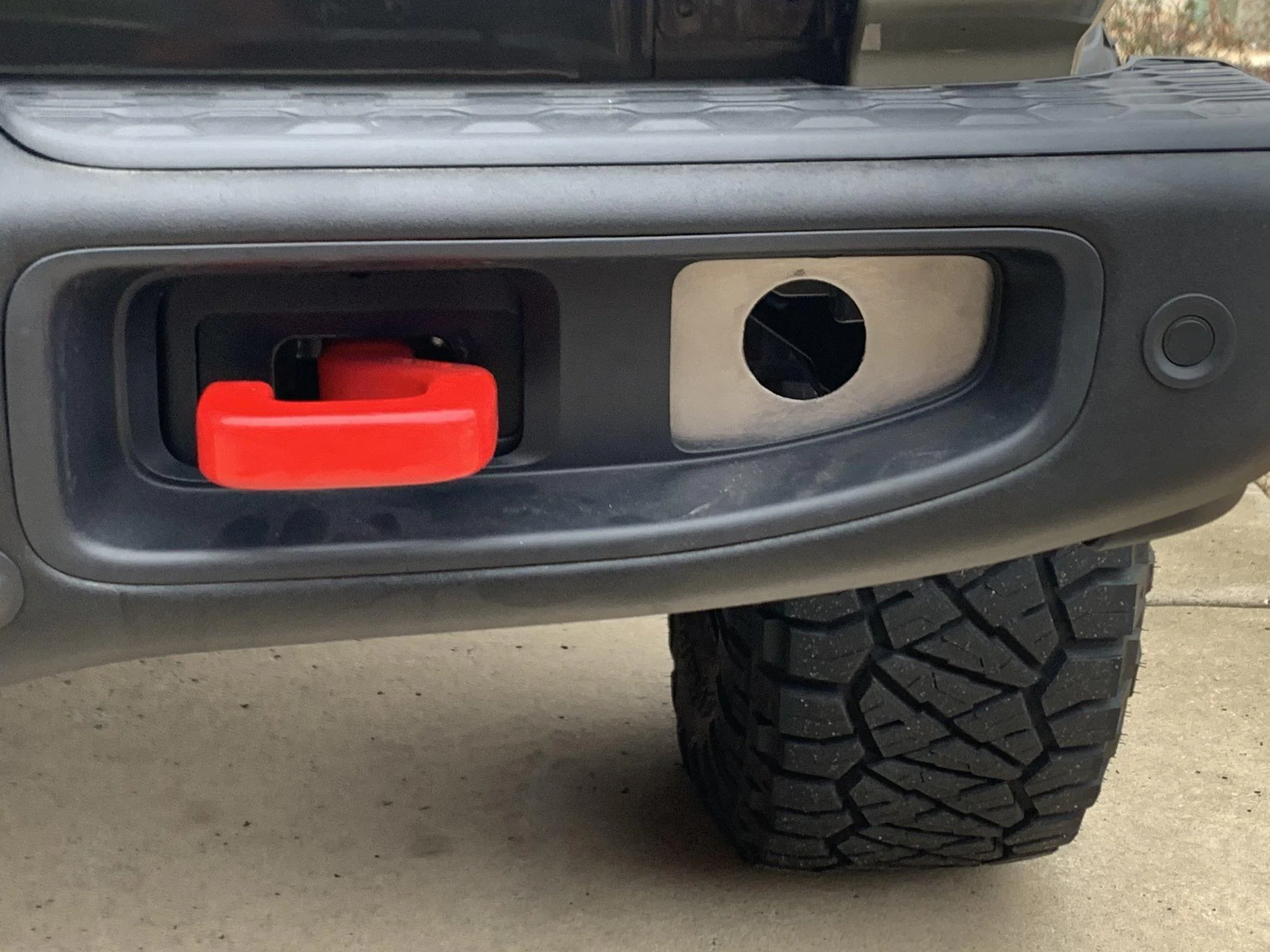

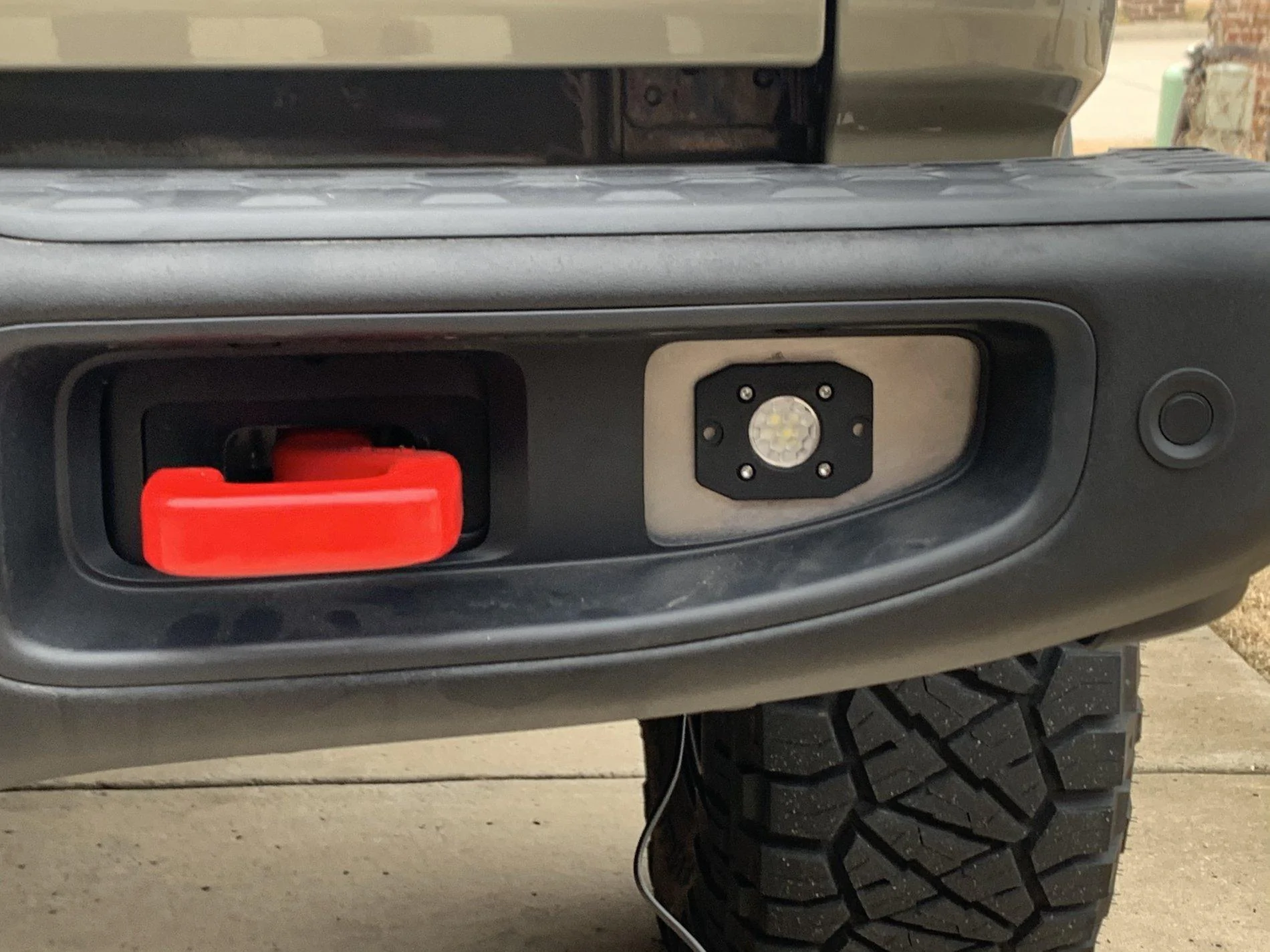

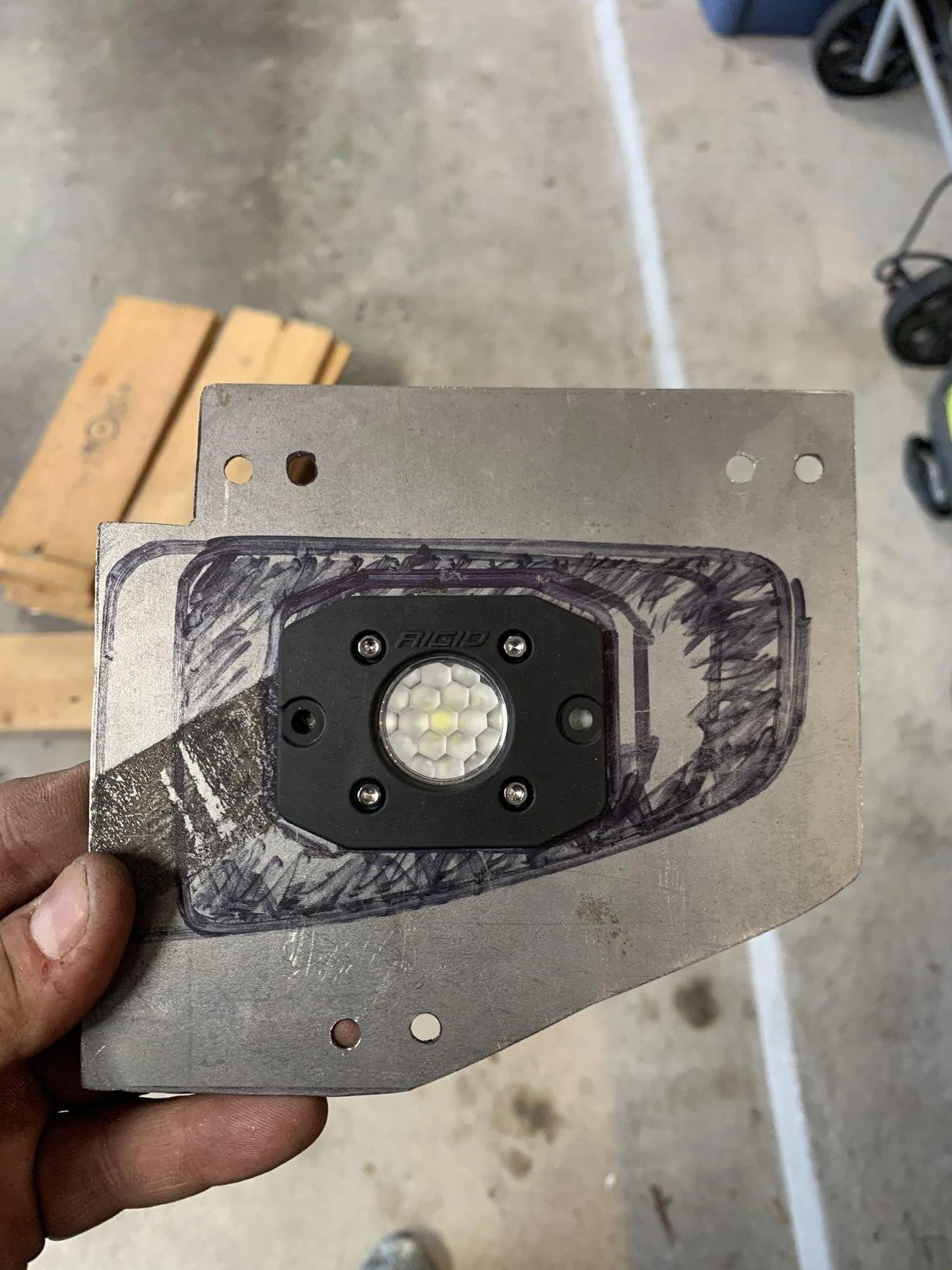

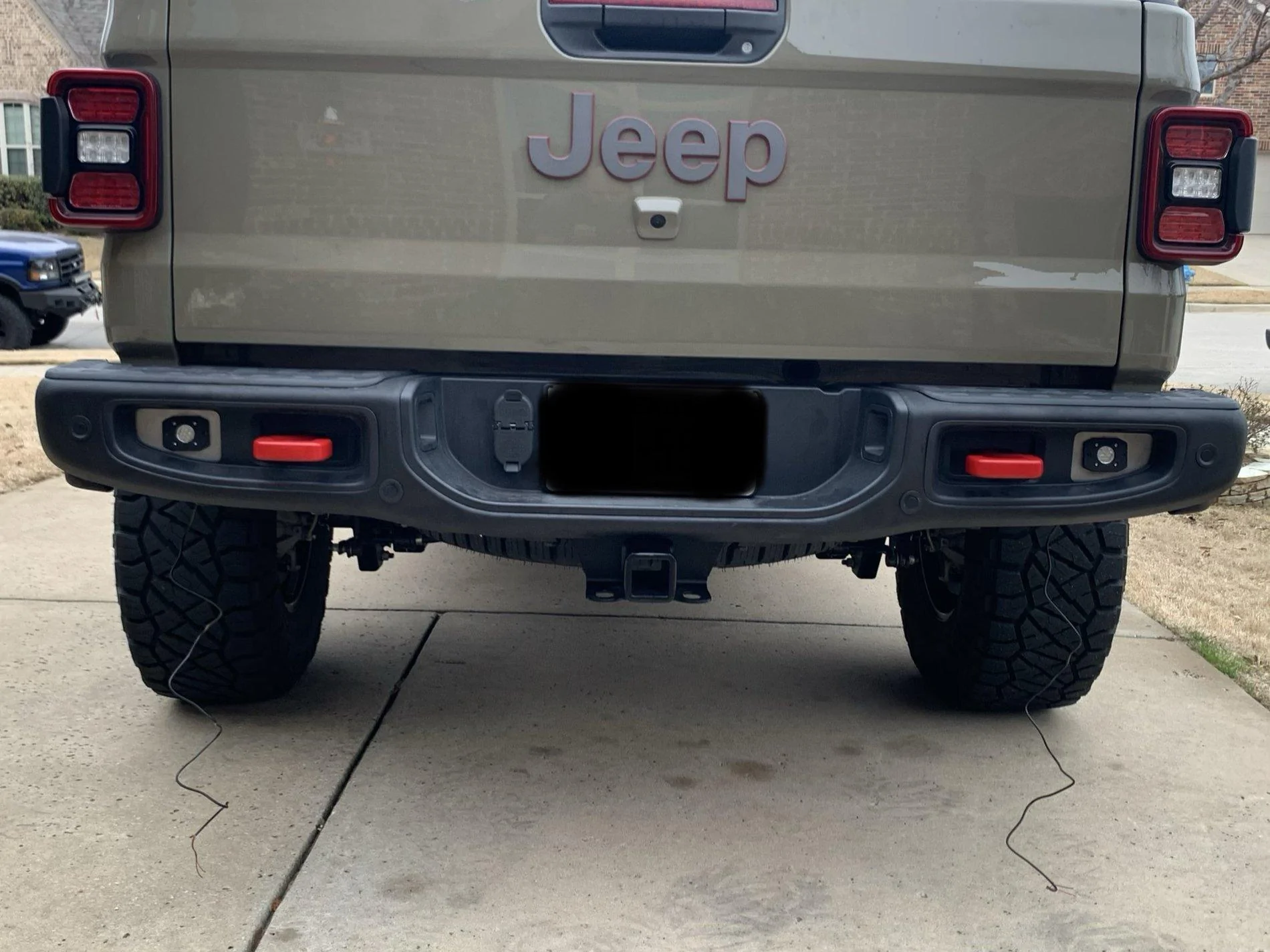

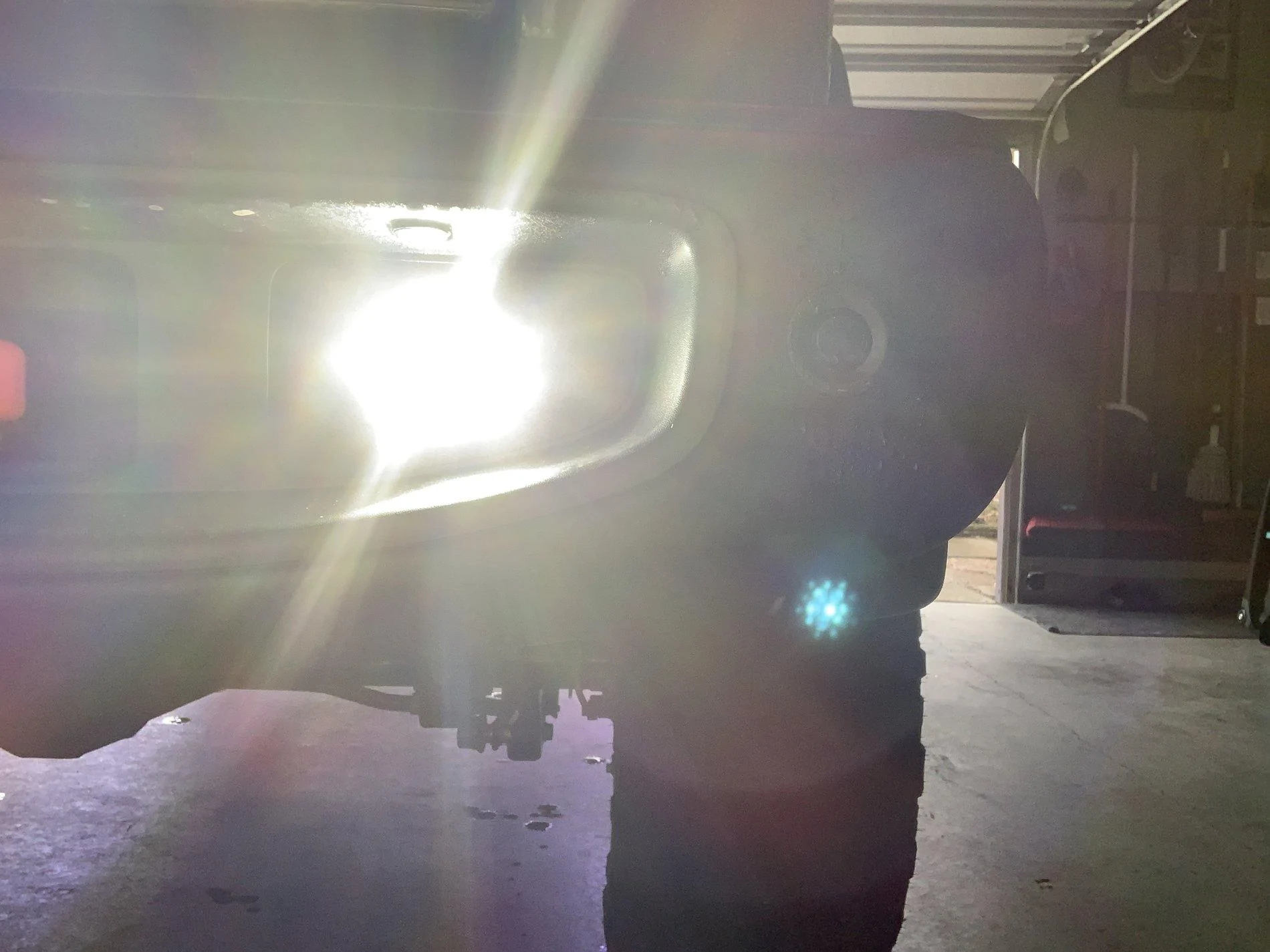

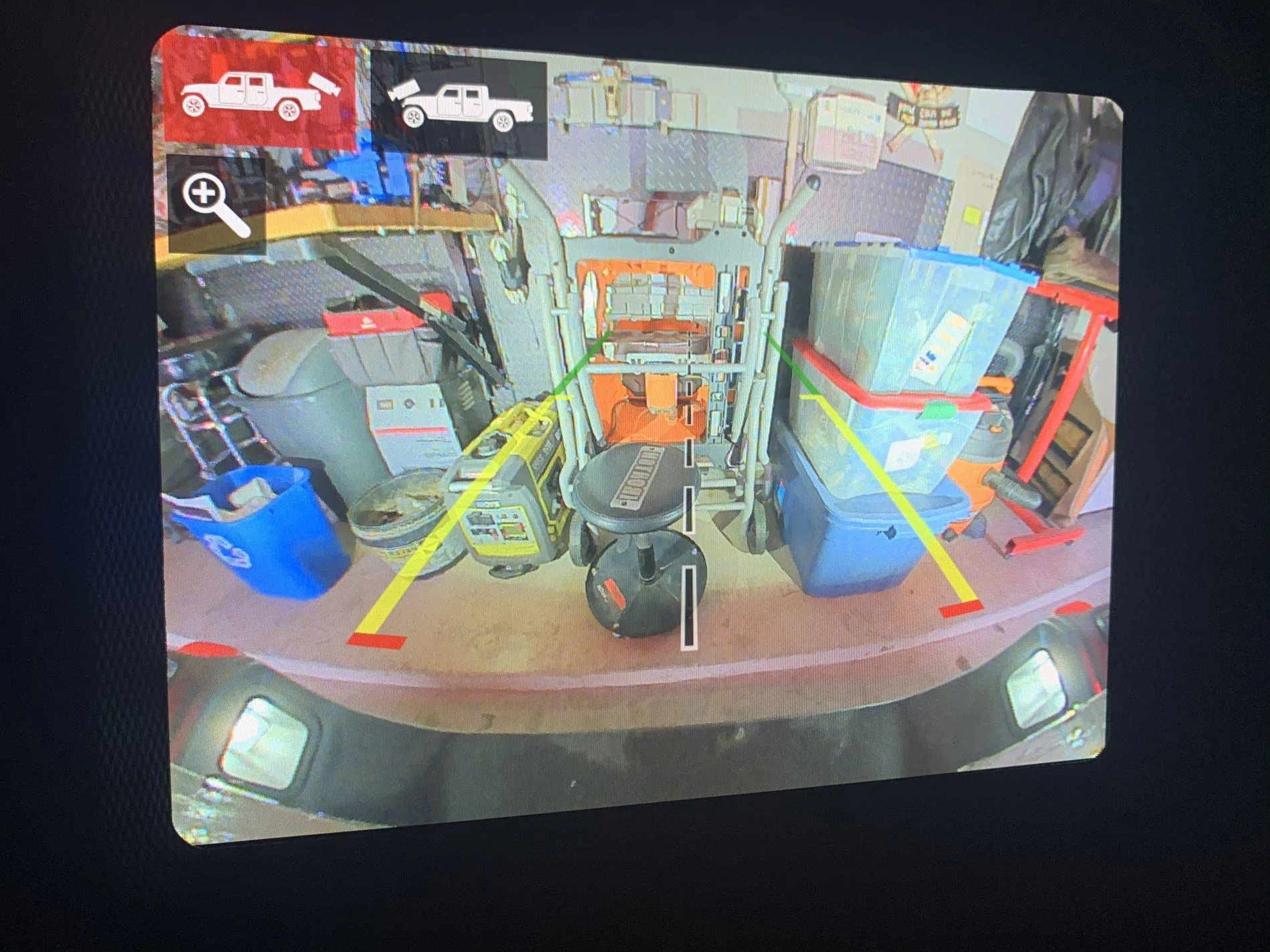

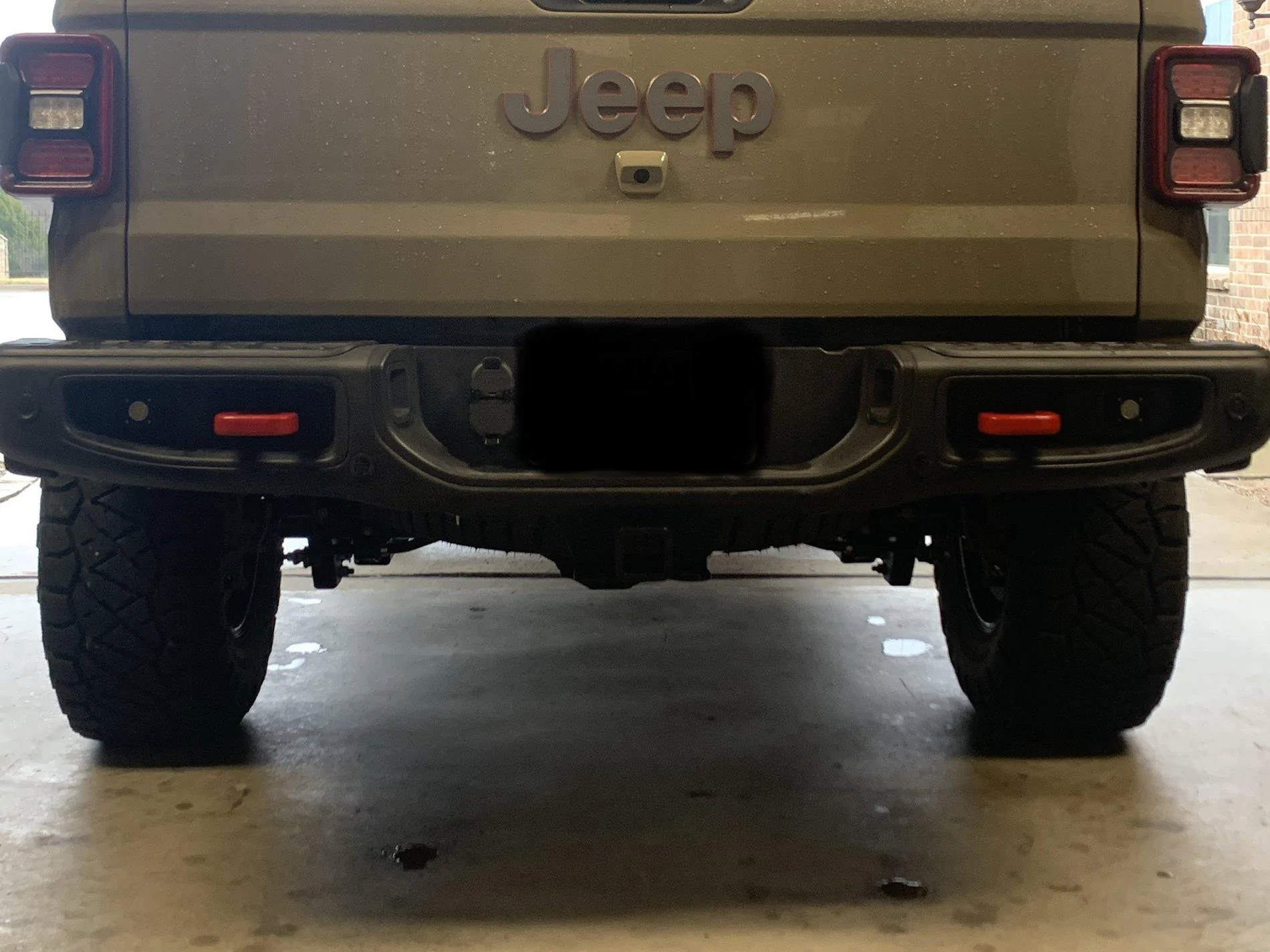

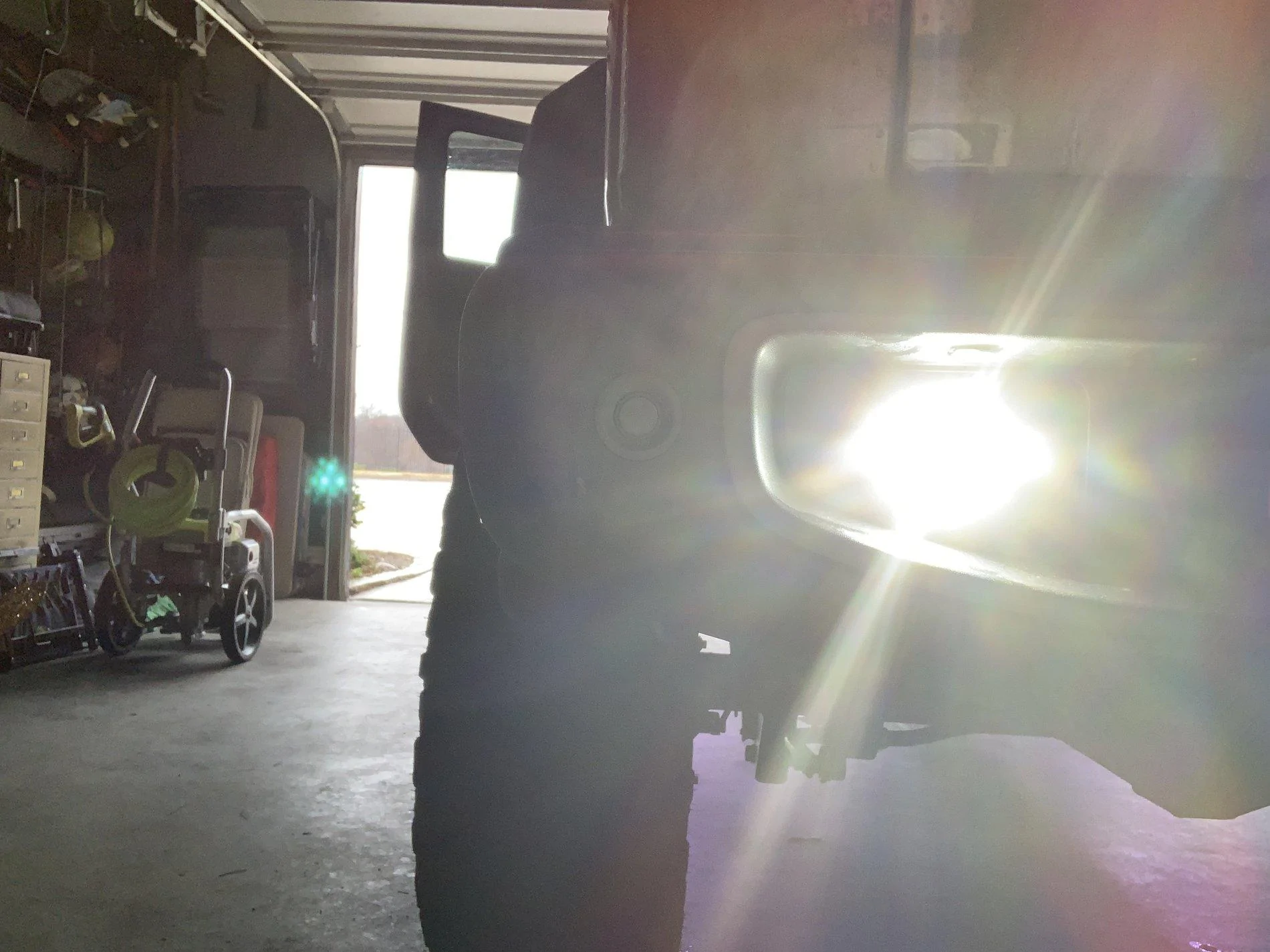

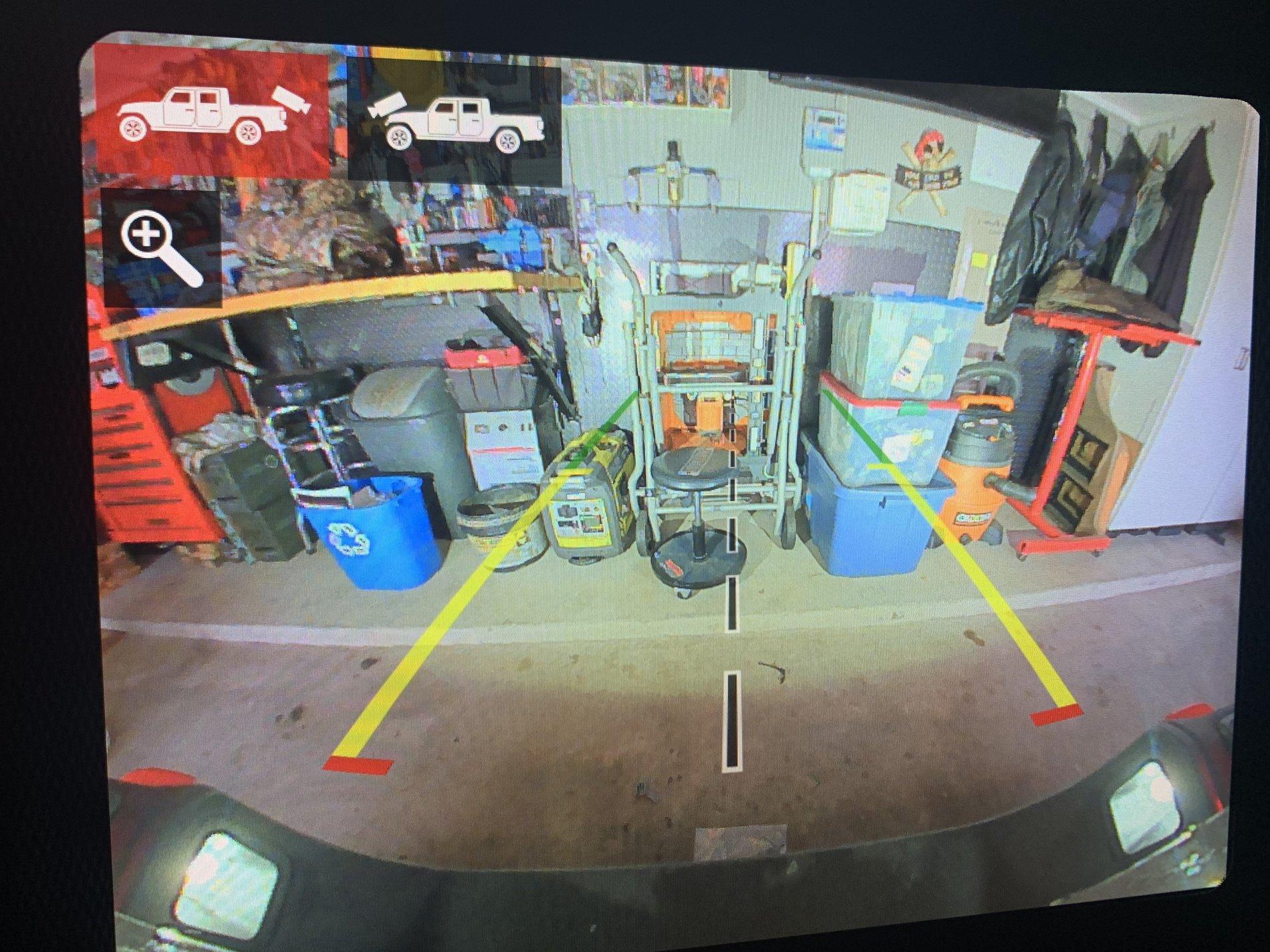

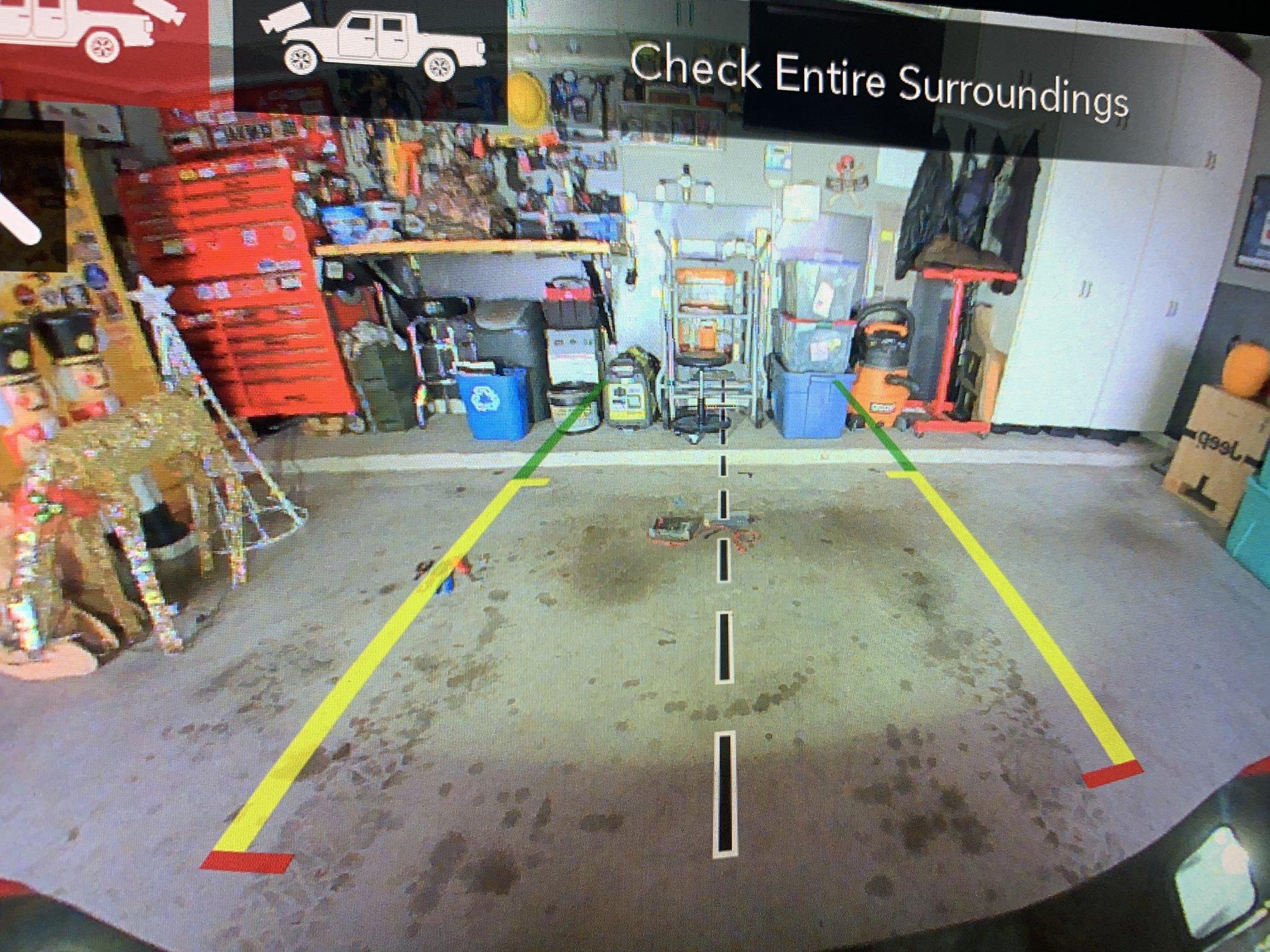

As you know, very hard to get pics solo of the reverse lights but here are a few! Its overcast outside and garage lights are off, door open but I can see a tremendous improvement in light visibility. Going hunting tonight so I’ll get more in the pitch dark when I get to the lease!!!













Sponsored

Tim

Well-Known Member
First Name
Tim
Joined
Jul 30, 2019
Threads
14
Messages
335
Reaction score
381
Location
New Jersey
Vehicle(s)
2020 JTR
Nice work! I have a few questions. First, what exactly is the metal you used to replace the red reflector pieces and where did you get it? How did you wire in the lights? Tap the reverse lights? Aux switch? Relay?

Thanks!

OP
OP
fonzie

fonzie

Well-Known Member
First Name
Alfonso
Joined
Jun 28, 2019
Threads
14
Messages
115
Reaction score
95
Location
McKinney, TX
Vehicle(s)
2018 JLU, 2020 JT, 1996 Bronco

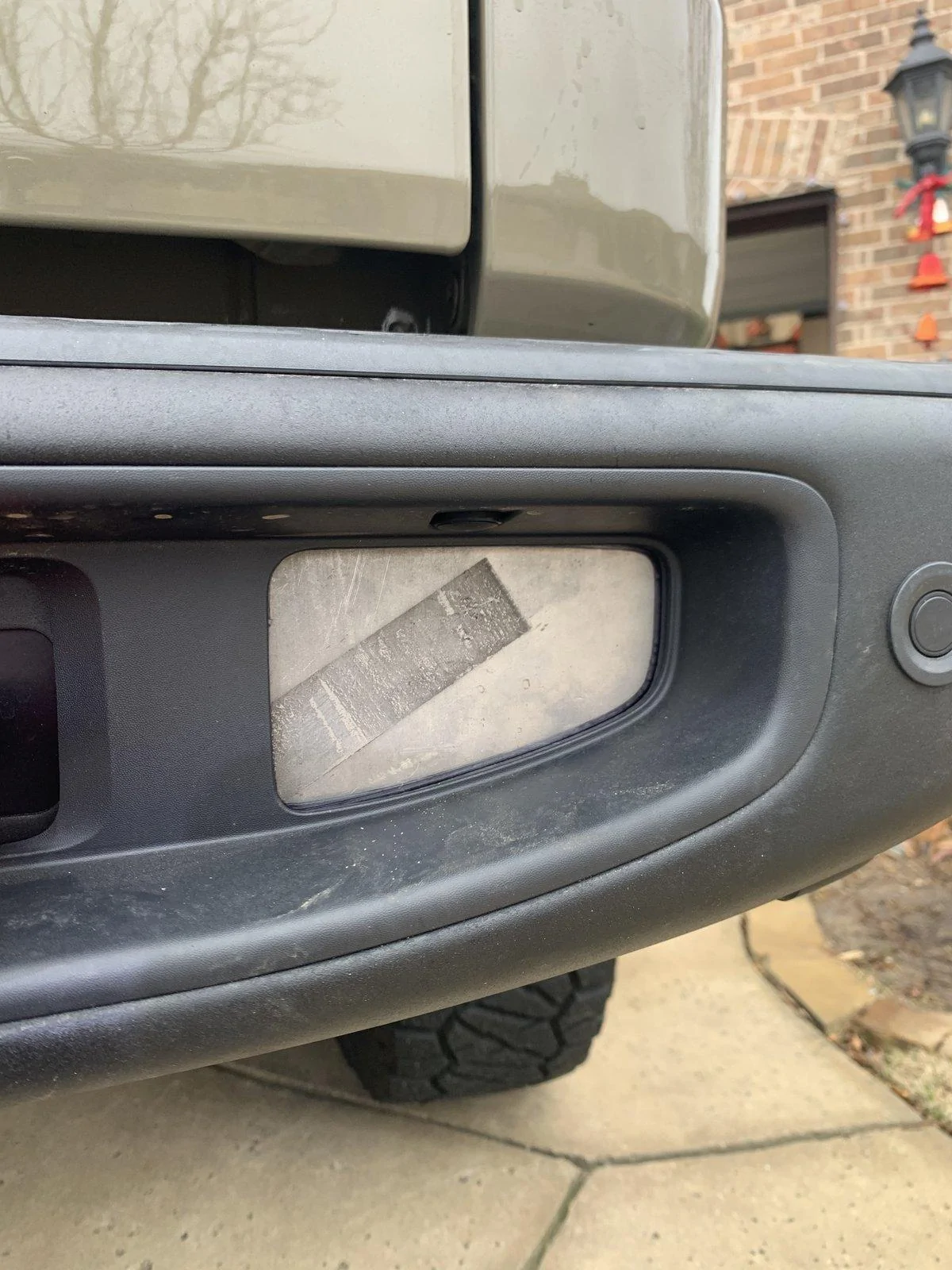

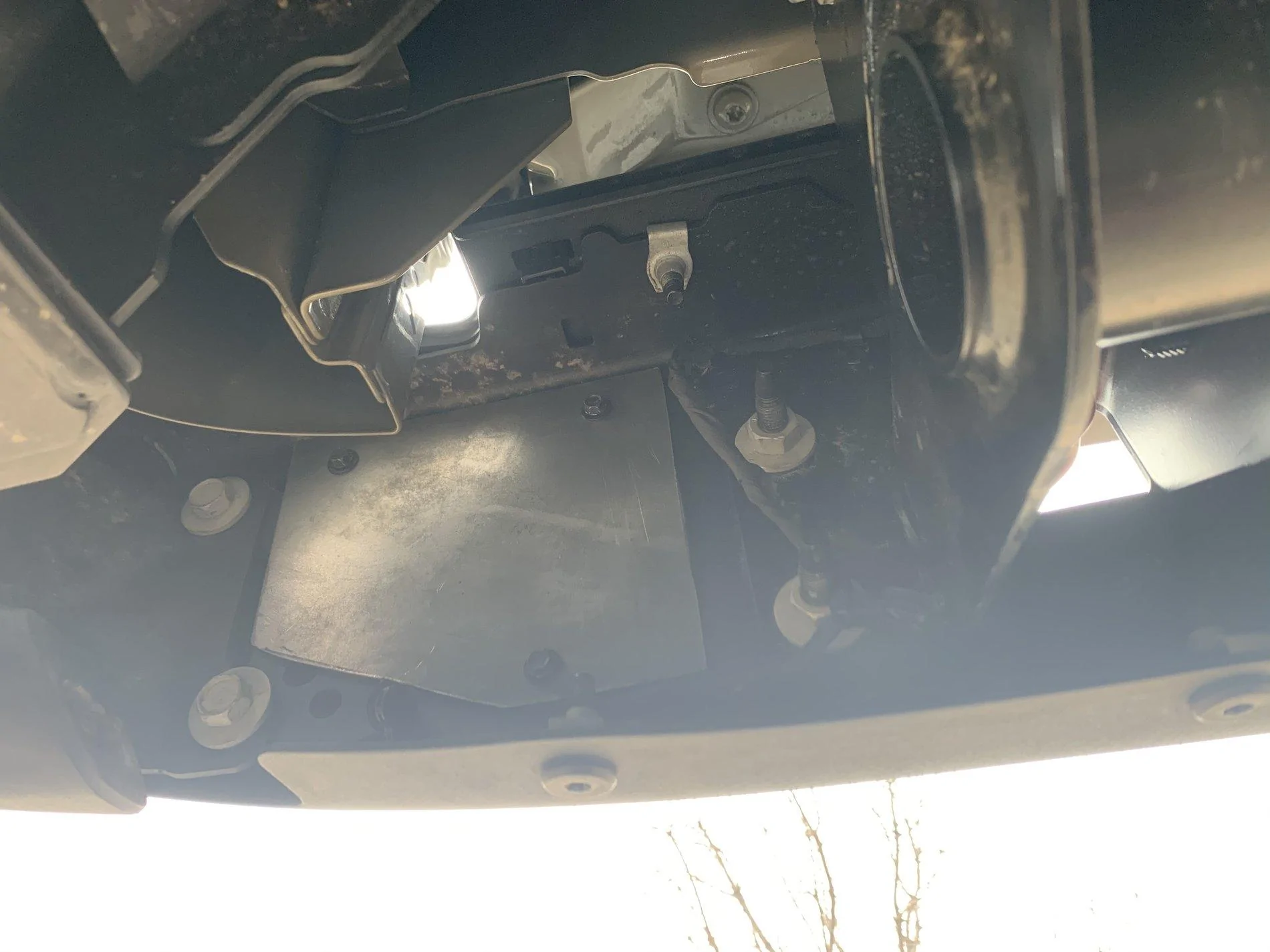

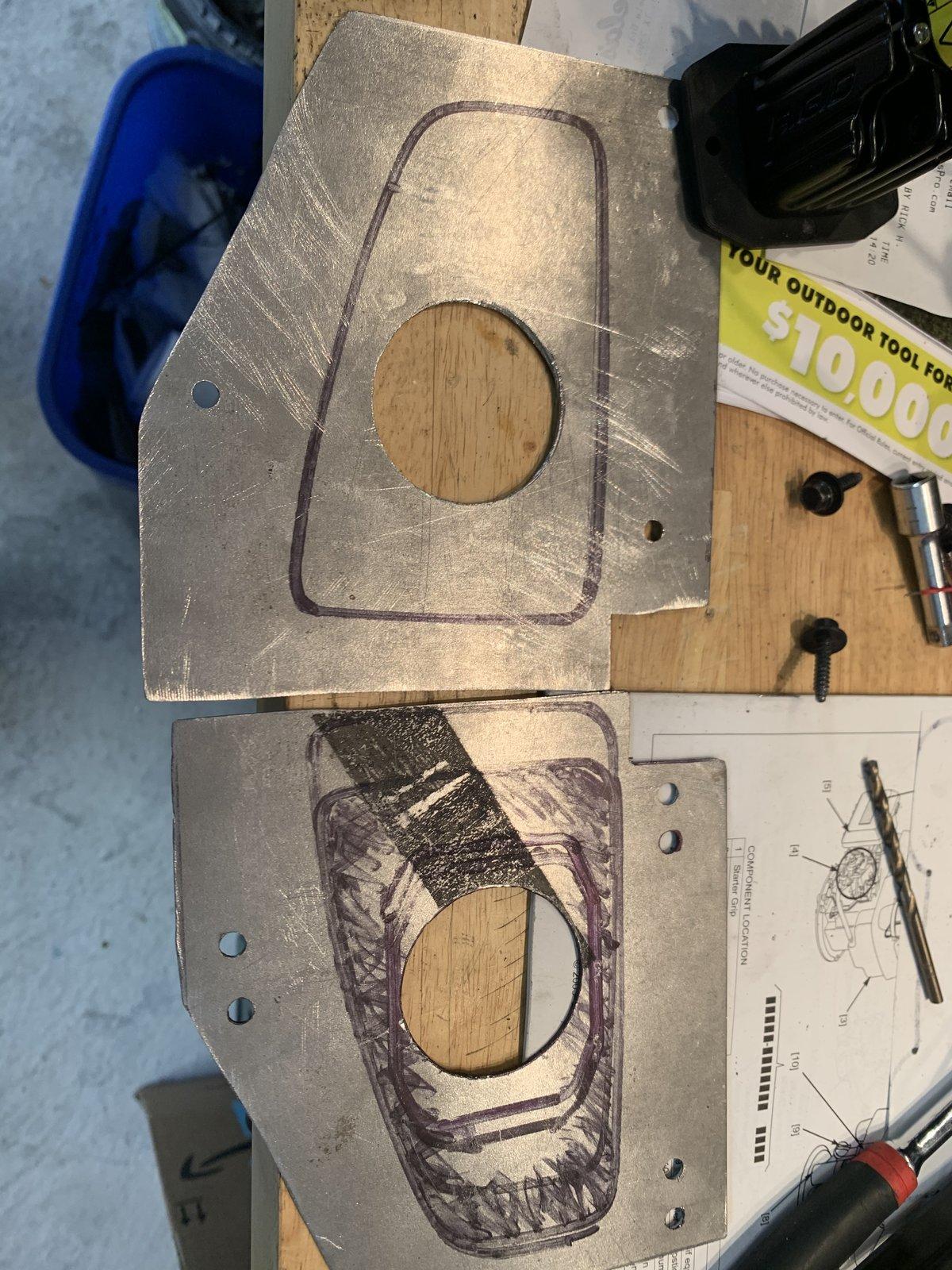

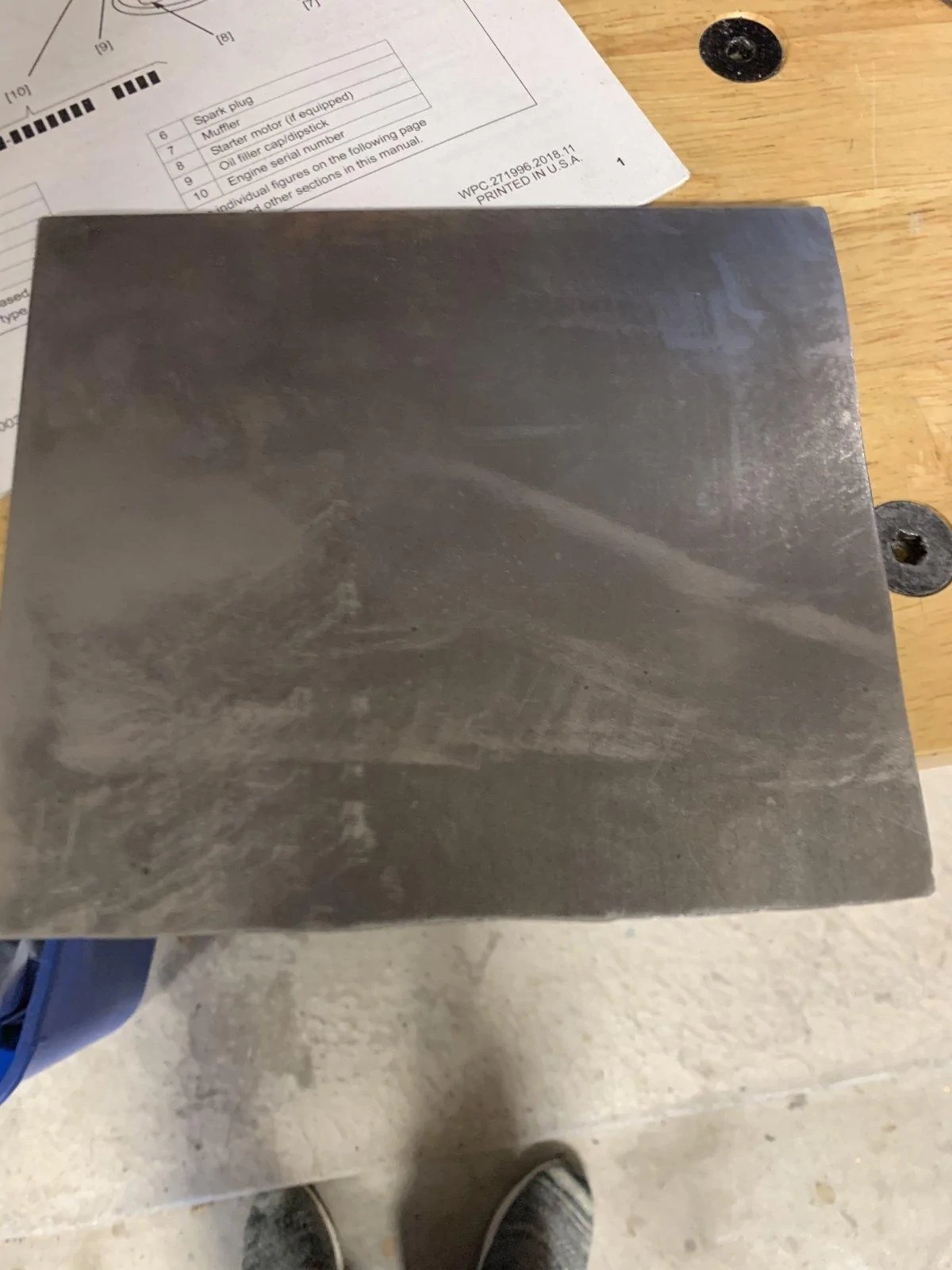

I bought a 16ga steel plate at HomeDepot and tapped the reverse wire at the trailer harness. I also wired them to one of my aux wires and wired in diodes so that I dont get feedback thru the lines!

Last edited:
OP
OP
fonzie

fonzie

Well-Known Member
First Name
Alfonso
Joined
Jun 28, 2019
Threads
14
Messages
115
Reaction score
95
Location
McKinney, TX
Vehicle(s)
2018 JLU, 2020 JT, 1996 Bronco

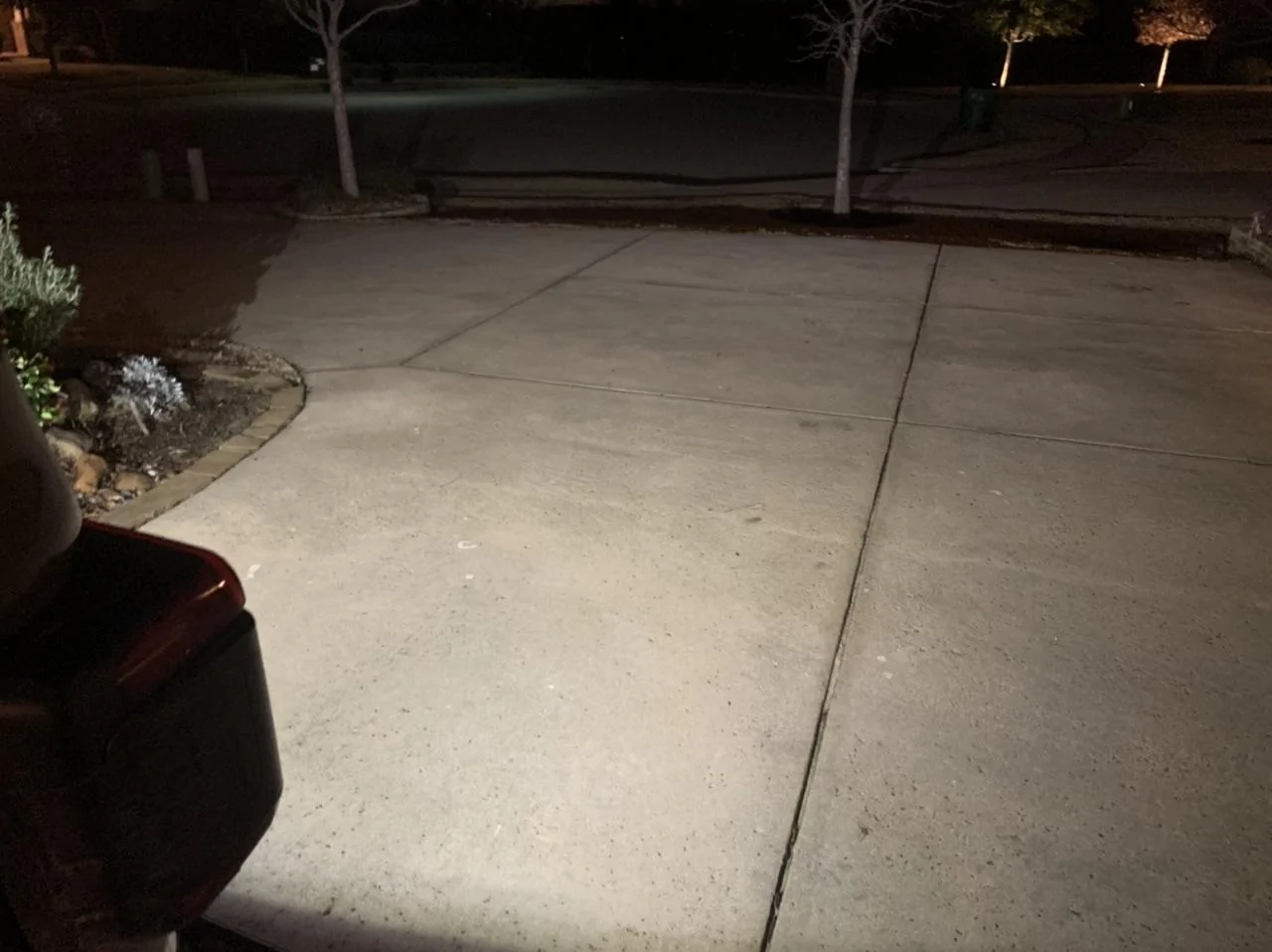

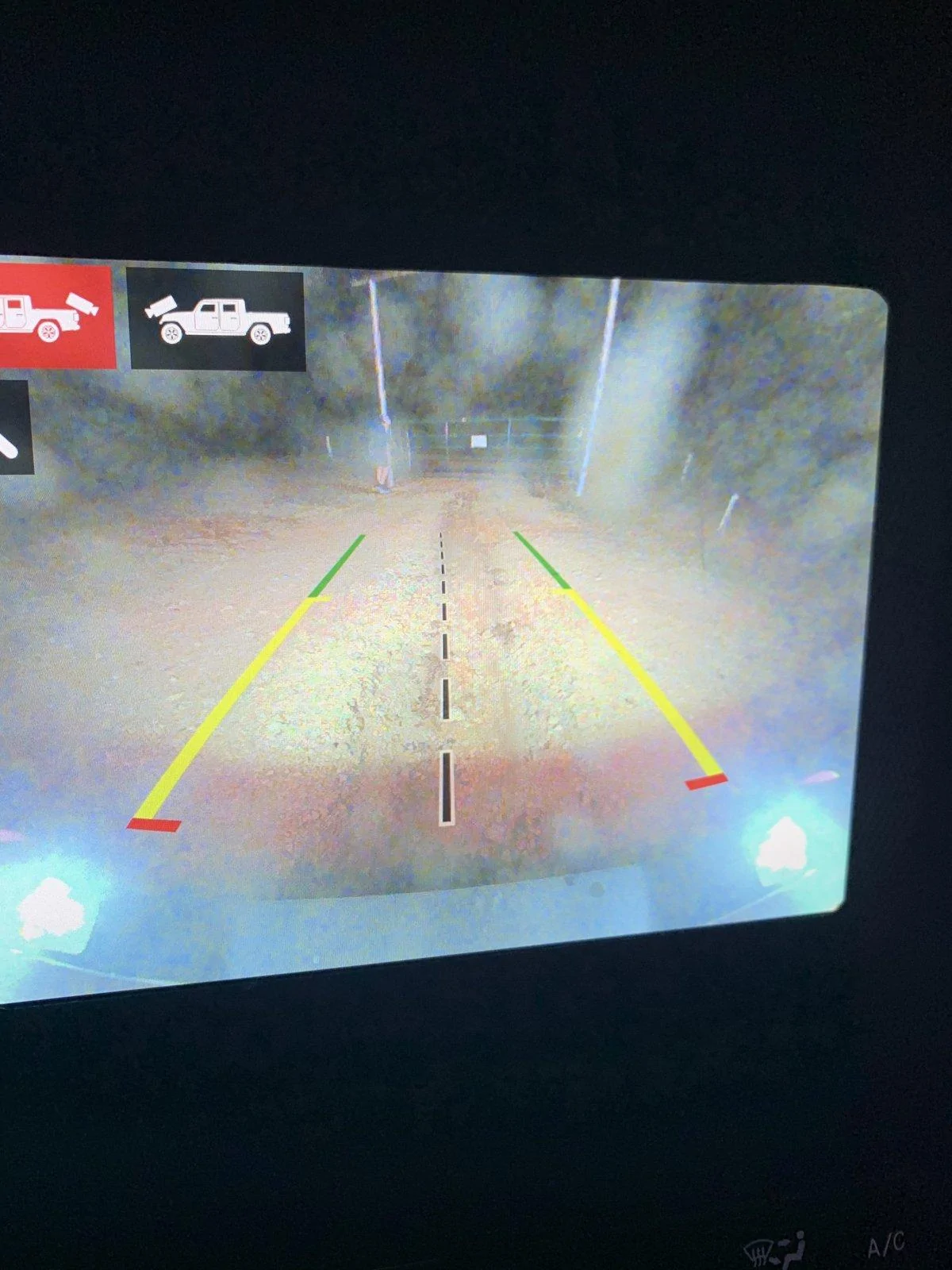

Night pic! Sorry camera dirty due to weather...


arosen1997

Well-Known Member
First Name
Aaron
Joined
Nov 29, 2019
Threads
9
Messages
235
Reaction score
343
Location
Boise
Vehicle(s)
Jeep Gladiator Sport S
Build Thread
Link
Occupation
LAV Turret Technician
I might have to do this one


Punkngladiator

Well-Known Member
First Name
Colin
Joined
Aug 22, 2019
Threads
11
Messages
127
Reaction score
106
Location
Alberta
Vehicle(s)
2016 Tacoma gone soon 2020 gladiator on its way
Which rigid lights are those? Thx.


Sponsored

WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Threads
54
Messages
1,944
Reaction score
2,663
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
3
I also wired them to one of my aux wires and wired in diodes so that I dont get feedback thru the lines!

Love what you're doing! If you could provide info on this (wiring into both reverse and aux and which diodes and how you wired them in) I would greatly appreciate it...

"I also wired them to one of my aux wires and wired in diodes so that I dont get feedback thru the lines!"

OP
OP
fonzie

fonzie

Well-Known Member
First Name
Alfonso
Joined
Jun 28, 2019
Threads
14
Messages
115
Reaction score
95
Location
McKinney, TX
Vehicle(s)
2018 JLU, 2020 JT, 1996 Bronco
Well, I tap
Love what you're doing! If you could provide info on this (wiring into both reverse and aux and which diodes and how you wired them in) I would greatly appreciate it...

"I also wired them to one of my aux wires and wired in diodes so that I dont get feedback thru the lines!"
Well, I tapped into the reverse light on the trailer harness (center wire) and just ran a wire from the engine bay for the aux wire and just tapped one of the LED + wires. I put a 5A 60v diode for the aux wire on the connection in the engine bay and the other on the tap for the reverse wire. On the diode, the end with the gray stripe goes towards the lights. Thats it...


OneTraveler

Well-Known Member
Joined
Nov 28, 2018
Threads
3
Messages
240
Reaction score
348
Location
Alaska
Vehicle(s)
15 Cherokee Trailhawk; 20 Gladiator Rubicon
Well, I tap

Well, I tapped into the reverse light on the trailer harness (center wire) and just ran a wire from the engine bay for the aux wire and just tapped one of the LED + wires. I put a 5A 60v diode for the aux wire on the connection in the engine bay and the other on the tap for the reverse wire. On the diode, the end with the gray stripe goes towards the lights. Thats it...
Just to be clear, you ran ran the AUX so you could turn the lights on manually as well (instead of only when in reverse?
