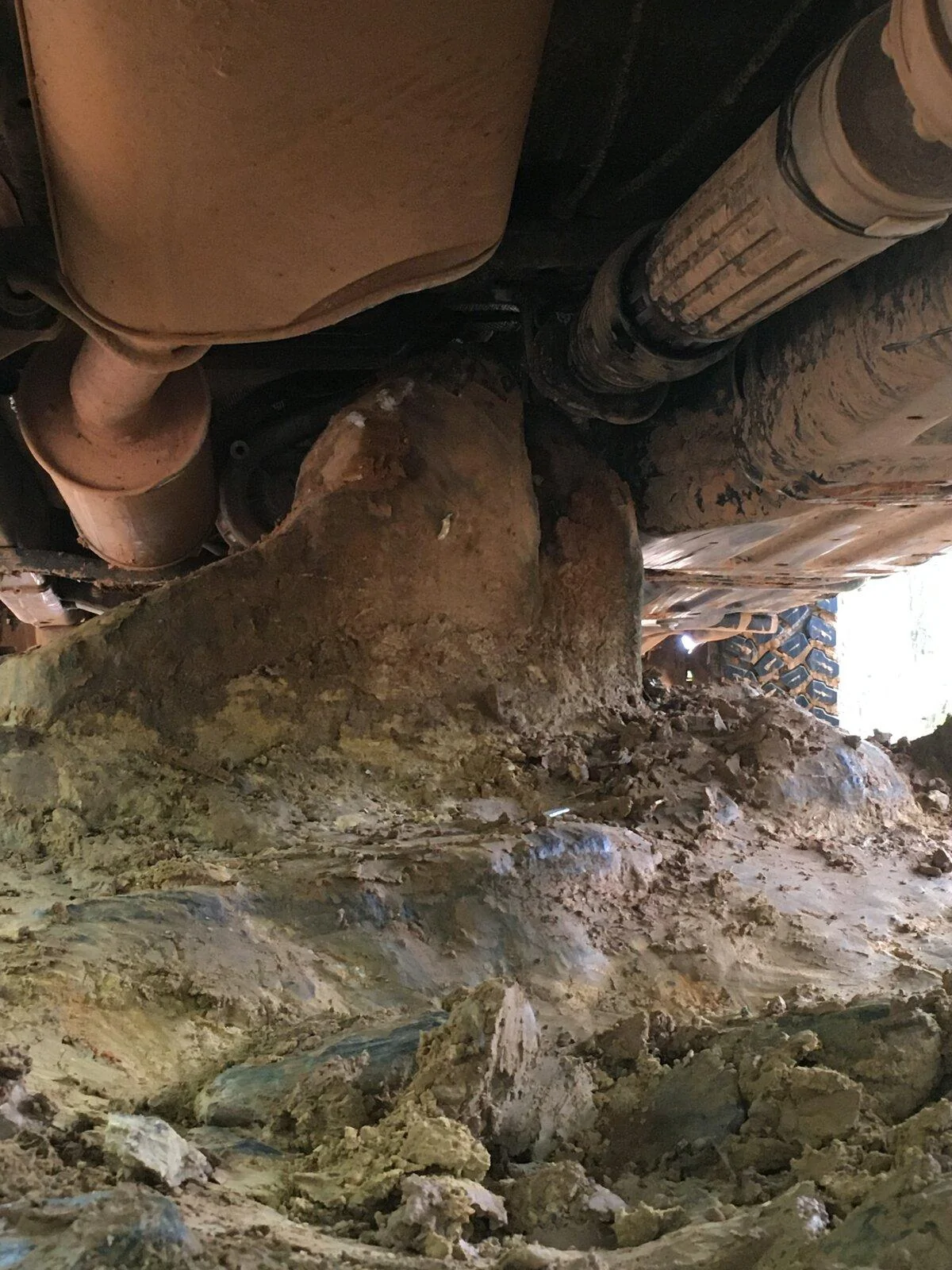

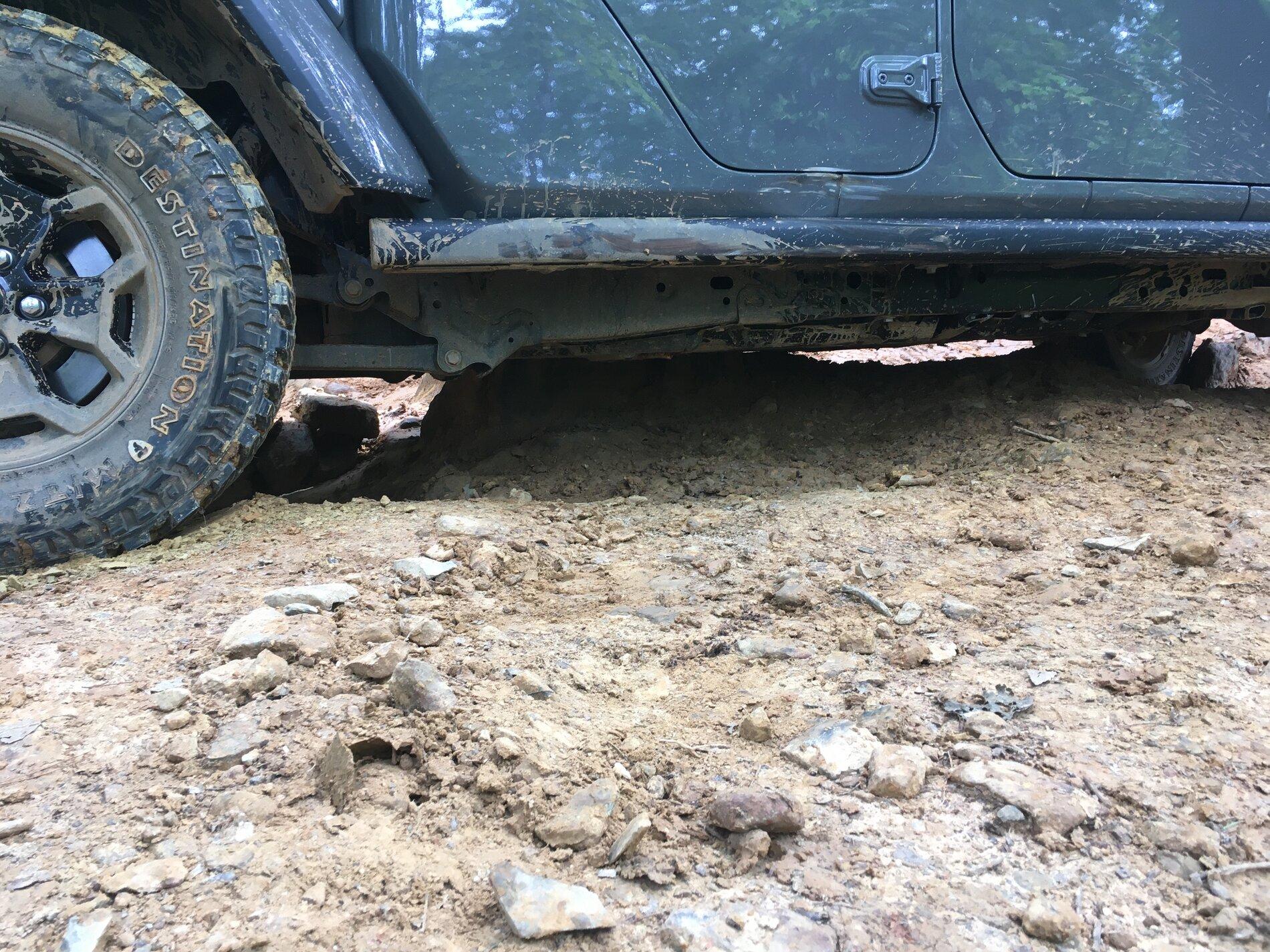

My son and I got turtled on this shark fin rock last weekend. Dented the muffler, bent skid a plate, and knocked weights off the rear drive shaft. It took 3 hours and a lot of help from passersby to get us off that rock!

So, as a noobie JT owner (and first off-road vehicle), I am wondering should I take it to the dealership to have it checked out, estimated for damage, and repaired? Or should I take it to my local 4W/off-road shop?

Again, I can’t thank the Jeep community enough for all the help!





Advertisement



Rokon

Well-Known Member
First Name
Bob
Joined
Jun 18, 2019
Messages
405
Reaction score
546
Location
Maine
Vehicle(s)
Gladiator Rubicon
Skid plate and exhaust dings are no real issues. The driveshaft however is. Loss of weights means it is no longer balanced and the possibility of it being bent is there.
Are you noticing any vibration? May only be apparent at a particular speed range. A shop that does custom driveshaft work can check it and rebalance.
Or replace with OEM. Even a small dent in the driveshaft tube is bad.


MPMB

Well-Known Member
First Name
Michael
Joined
Apr 30, 2021
Messages
285
Reaction score
339
Location
Washington
Vehicle(s)
'21 JTR - SG
Occupation
Check your inbox.
You need to get the driveshaft taken care of. Missing weights mean out of balance and you stand the high possibility of ruining seals at the pinion and also on the transfer case.
This.

Fix/check the driveshaft.


XJADDICTION

Well-Known Member
Joined
Dec 16, 2017
Messages
518
Reaction score
864
Location
TN
Vehicle(s)
2020 JT SS Max Tow 2005 WK Hemi
What would a driveshaft vibration feel like?

Maybe a slight "thump" on deceleration without brakes?

Usually you feel a constant vibration, could be speed related or if it’s bad enough it is constantly vibrating.

Even if you can’t feel it that shaft will be out of balance and is worth checking.

You also should check the CV under boot at the front, the carrier bearing for the two piece shaft in the rear, all u-joints as well; ball joints, Trac-bar for looseness and bends, tie-rod ends.

Definitely worth an experienced shop or a trusted dealer to look it over.


MrFahrenheit

Well-Known Member
First Name
Mike
Joined
Jan 6, 2020
Messages
298
Reaction score
461
Location
Minnesota
Vehicle(s)
2020 FC Red Gladiator Rubicon
Build Thread
Link
Dealer would replace items and not fix them. It would be on your dime regardless. Anything that you actually want repaired I would either just do it yourself or take it to a local shop as they probably have lower shop rates. But like others have said, the only thing worthwhile to do might be to take the driveshaft to a driveline shop and have it rebalanced.


PyrPatriot

Well-Known Member
Joined
Oct 27, 2019
Messages
2,430
Reaction score
1,444
Location
Kentucky, USA
Vehicle(s)
JT Sport S Sing-Grey - 18k miles since 11/2019; Honda Element 170k miles since 2006
Dealer would replace items and not fix them. It would be on your dime regardless. Anything that you actually want repaired I would either just do it yourself or take it to a local shop as they probably have lower shop rates. But like others have said, the only thing worthwhile to do might be to take the driveshaft to a driveline shop and have it rebalanced.
Depends. If that's on a public road of some sorts his insurance might cover the cost


Jeeperjamie

Well-Known Member
First Name
Jamie
Joined
Feb 12, 2020
Messages
2,802
Reaction score
2,595
Location
Kannapolis nc
Vehicle(s)
2020 jeep gladiator
Occupation
Weyerhaeuser
Take it to the dealership and see what happens. I had something similar happen on my JKU but I came down on a tree and it did something to the driveshaft, not sure what but it had some serious vibration going on after that happened. I played dumb and took it in to the dealership to be checked out and they replaced the driveshaft under warranty. You never know.


jac04

Well-Known Member
First Name
Jeff
Joined
Apr 20, 2021
Messages
63
Reaction score
63
Location
CT
Vehicle(s)
2021 Mojave
A stock driveshaft isn't too bad price wise, around $400-$600 depending on what model you have. Tom Woods offers a straight shaft for about $1000, but you have to replace flanges on both ends, which is a PITA on the diff end if you want to re-set pinion preload by the book. Spicer offers a bolt-in upgraded shaft for about $1500, it is p/n 10132305.


JoseQ_80

Well-Known Member
First Name
Jose
Joined
Nov 19, 2020
Messages
176
Reaction score
217
Location
VA
Vehicle(s)
2021 Gladiator Sport 80th Anniversary Bright White
Occupation
Highway Engineer
Not judging cause I'm still learning but:
1. Did you not see this rock?
2. Did you see it and try to straddle it?
3. Did you see it and try to put a tire right over it?
4. Was going around it not an option?
