Bed kitchen - how to secure?

jeepstertim

Well-Known Member
First Name
Tim
Joined
May 31, 2021
Threads
23
Messages
226
Reaction score
736
Location
UK/ Qatar
Vehicle(s)
JTR, Audi SQ5, Audi A3, Smart Roadster Brabus,
Build Thread
Link
I know lots are/ have installed kitchens or pull-out drawers and I'm hoping someone may have found a solution for the question "how can I secure this without drilling holes the bed floor"....

I have the 4 ties down loops and no trail rail system. This is for long distance overlanding and I think ratchet straps will compromise the rest of the bed.

Really welcome your ideas/ pictures as how you have achieved it.
Sponsored



Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
34
Messages
1,997
Reaction score
2,871
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
I have not built my kitchen slide for the bed yet, managed to get most of the parts, fridge, stove , sink and four foot drawer glides together. I'm planning on sleeping on a 26" wide platform in bed with the kitchen slide under part of it, I was thinking of using rachet straps one at the front of bed to the two low tie downs, not really blocking other uses, and was thinking of going from drivers side rear low tie down, up and over and then go under lower edge of tailgate and attach to a mounting point, or what ever is there that works. ....There ya go !.....Jack


RubiNewbCB

Well-Known Member
First Name
Chris
Joined
Jun 1, 2022
Threads
6
Messages
403
Reaction score
422
Location
757, VA
Vehicle(s)
22 JTRD, 07 Mustang GT, 05 Hoe, 90 Fox body 393W
Occupation
USN Seabee (1994-2021Ret.) / Current status DoD Contractor
Just an idea... Use flat bar steel, drill for the bolt holes of where the Utilitracs would mount, measure to depth of bed, bend at 90° and then across for bottom length you would need for mounting your kitchen or bed frame, then drill your mounting holes in the flatbar steel. Mount your cabinets, then mount to the upper holes under the bed rail. Also use tensioner to mount to the tie-down loops. Could also make a complete U out of the steel and mount on both sides of the bed walls. Then align your lower mount hardware to the divets in the bed for clearance.


QuintusMaximus

Well-Known Member
Joined
Sep 7, 2022
Threads
4
Messages
108
Reaction score
64
Location
California
Vehicle(s)
2020 JL, 2022 JT
If it won't be mounted long term, you could also look into a "hitchenette." That keeps the bed space free. Some really cool examples if you do a search.


Sponsored

OP
OP
jeepstertim

jeepstertim

Well-Known Member
First Name
Tim
Joined
May 31, 2021
Threads
23
Messages
226
Reaction score
736
Location
UK/ Qatar
Vehicle(s)
JTR, Audi SQ5, Audi A3, Smart Roadster Brabus,
Build Thread
Link
Just an idea... Use flat bar steel, drill for the bolt holes of where the Utilitracs would mount, measure to depth of bed, bend at 90° and then across for bottom length you would need for mounting your kitchen or bed frame, then drill your mounting holes in the flatbar steel. Mount your cabinets, then mount to the upper holes under the bed rail. Also use tensioner to mount to the tie-down loops. Could also make a complete U out of the steel and mount on both sides of the bed walls. Then align your lower mount hardware to the divets in the bed for clearance.
I like this, could also give me dedicated chair and table stowage under the kitchen if I put my 90 degrees short of the bed, got me thinking.

OP
OP
jeepstertim

jeepstertim

Well-Known Member
First Name
Tim
Joined
May 31, 2021
Threads
23
Messages
226
Reaction score
736
Location
UK/ Qatar
Vehicle(s)
JTR, Audi SQ5, Audi A3, Smart Roadster Brabus,
Build Thread
Link
If it won't be mounted long term, you could also look into a "hitchenette." That keeps the bed space free. Some really cool examples if you do a search.
Nice idea but the JTR will be heavy enough and I think I'd be putting too much weight so far after the rear axle. I might also worry about security in some of the 'light-fingered' parts of the drive home!


Mules

Well-Known Member
First Name
Mike
Joined
Aug 27, 2020
Threads
4
Messages
1,032
Reaction score
2,789
Location
St. Louis MO
Vehicle(s)
'20 Gladiator, '93 Landcruiser, '77 CJ, '88 Bronco
Occupation
Engineer
Vehicle Showcase
1
I know lots are/ have installed kitchens or pull-out drawers and I'm hoping someone may have found a solution for the question "how can I secure this without drilling holes the bed floor"....

I have the 4 ties down loops and no trail rail system. This is for long distance overlanding and I think ratchet straps will compromise the rest of the bed.

Really welcome your ideas/ pictures as how you have achieved it.
My solution is to use the 2x8 slots in the back of the Gladiator's bed. It's been holding the furniture for 6 months of driving with no tie downs. You could add some turnbuckles to the strap locations if you wanted.

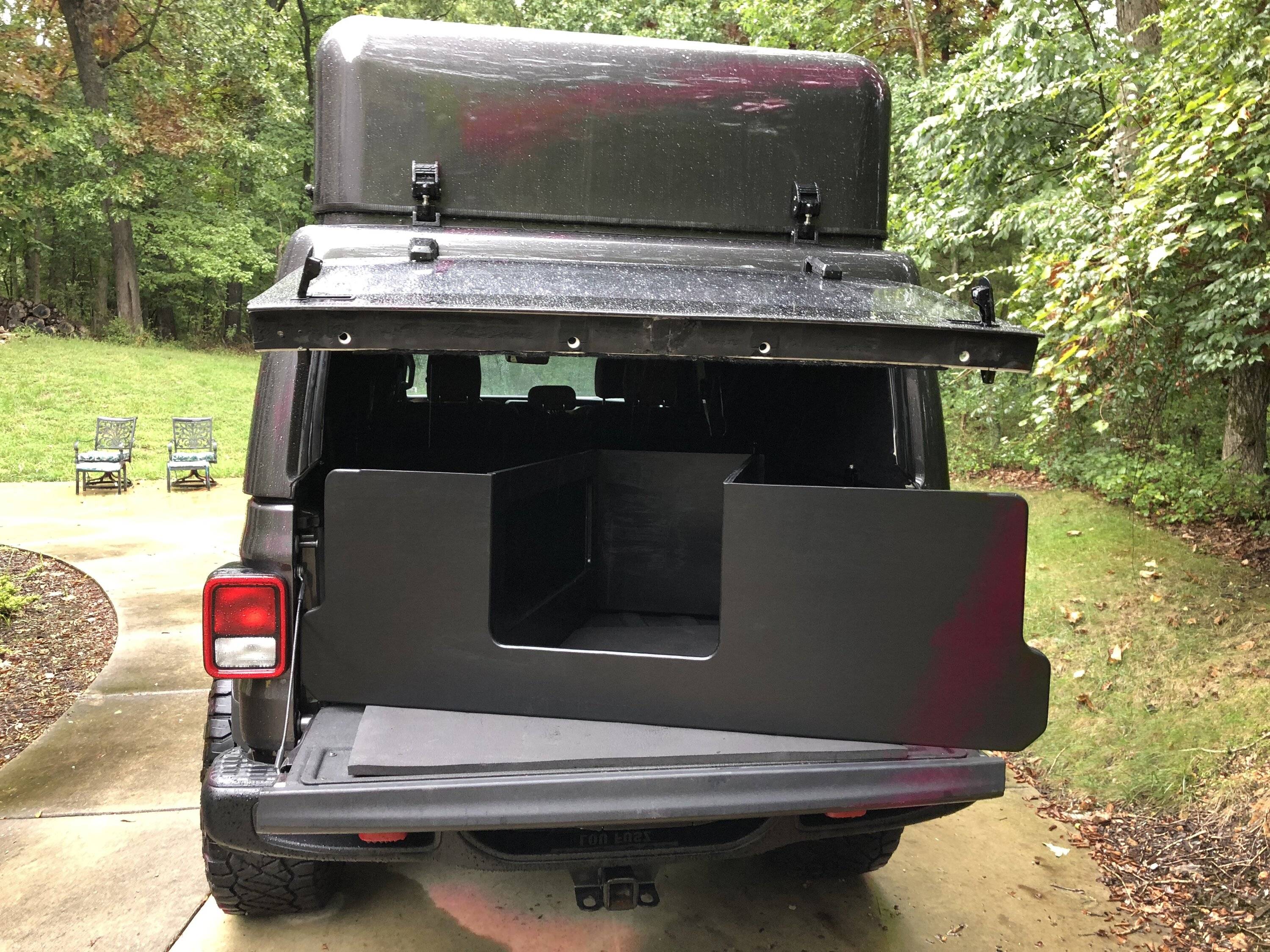

Jeep Gladiator Bed kitchen - how to secure? IMG_7222.JPG

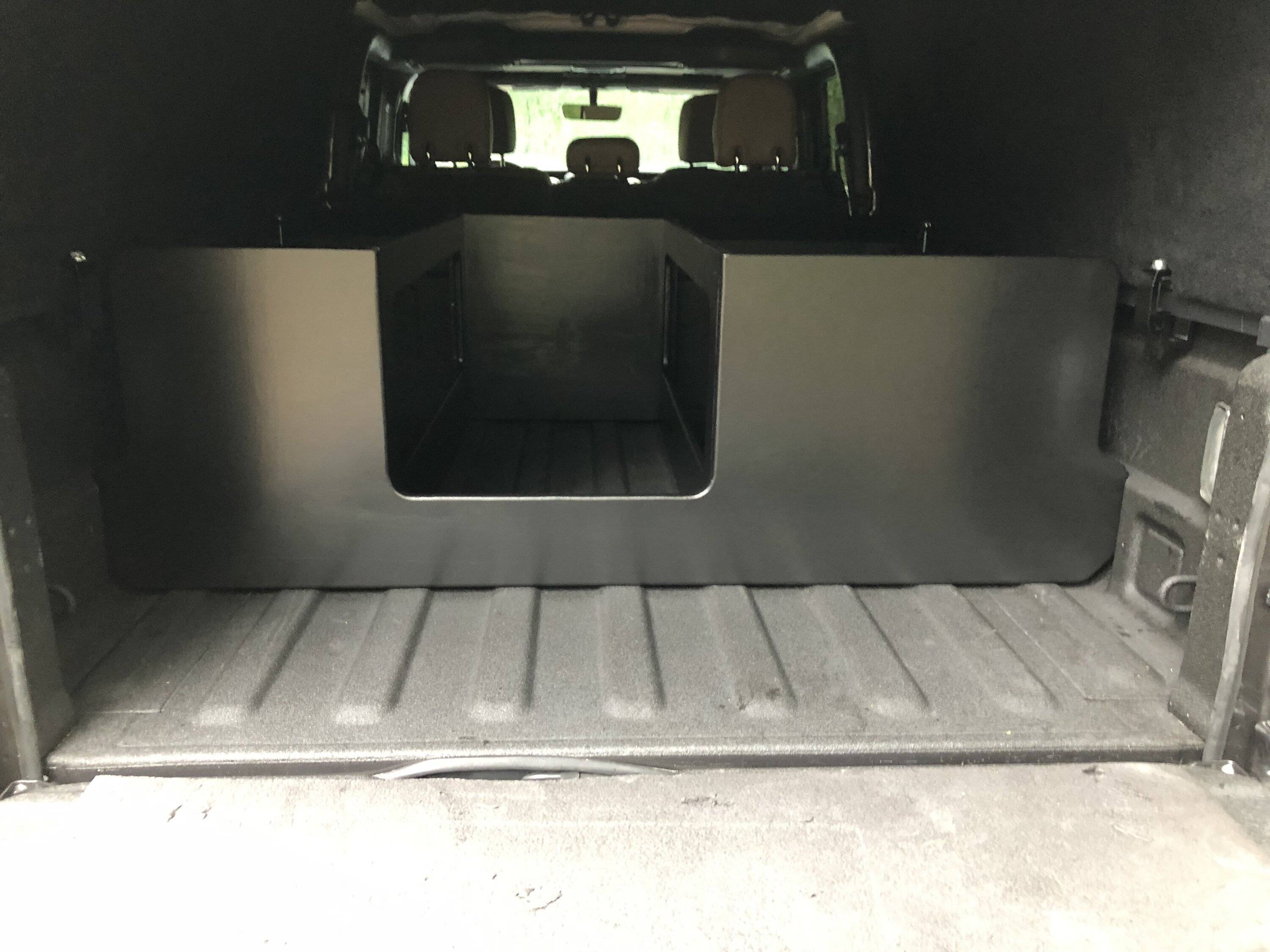

Jeep Gladiator Bed kitchen - how to secure? IMG_7223.JPG

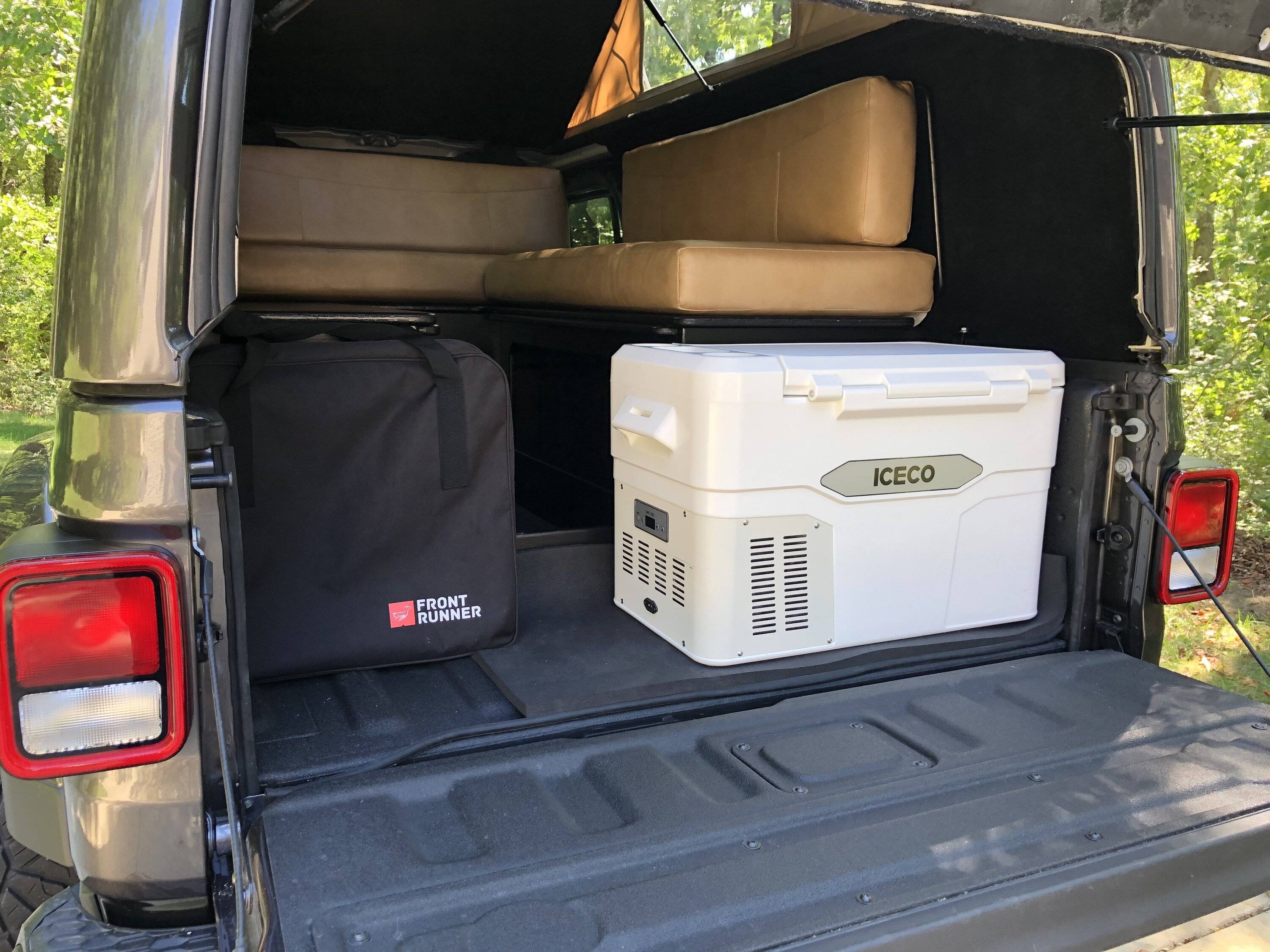

Jeep Gladiator Bed kitchen - how to secure? IMG_7256 3.JPG

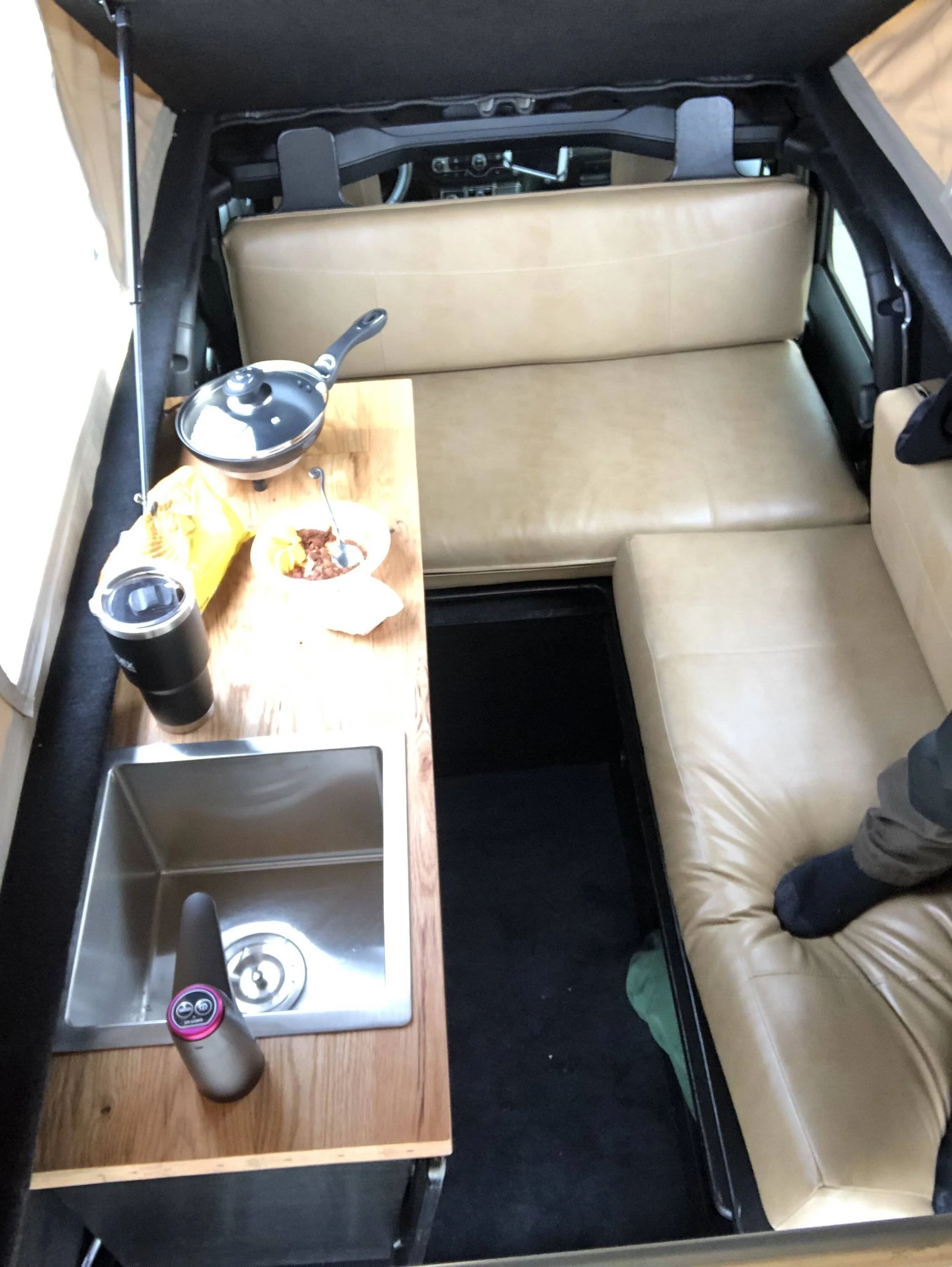

Jeep Gladiator Bed kitchen - how to secure? IMG_7864.JPG


MSFTMatt

Well-Known Member
First Name
Matt
Joined
Dec 9, 2023
Threads
26
Messages
190
Reaction score
202
Location
Monterey, CA
Vehicle(s)
2016 F150
Occupation
Firefighter
Reviving this thread to see if anyone has updated this situation. I’ll be building/installing a drawer that’ll be about half the width of the bed. Toying with nutserts into bed, turnbuckles to the tie down anchors in corners or maybe something else?


RubiNewbCB

Well-Known Member
First Name
Chris
Joined
Jun 1, 2022
Threads
6
Messages
403
Reaction score
422
Location
757, VA
Vehicle(s)
22 JTRD, 07 Mustang GT, 05 Hoe, 90 Fox body 393W
Occupation
USN Seabee (1994-2021Ret.) / Current status DoD Contractor

Sponsored

RubiNewbCB

Well-Known Member
First Name
Chris
Joined
Jun 1, 2022
Threads
6
Messages
403
Reaction score
422
Location
757, VA
Vehicle(s)
22 JTRD, 07 Mustang GT, 05 Hoe, 90 Fox body 393W
Occupation
USN Seabee (1994-2021Ret.) / Current status DoD Contractor

HooliganActual

Well-Known Member
First Name
Robert
Joined
Jun 27, 2020
Threads
6
Messages
1,101
Reaction score
2,557
Location
10 miles from the Sun
Vehicle(s)
2020 Gladiator Rubicon
Occupation
Retired
Reviving this thread to see if anyone has updated this situation. I’ll be building/installing a drawer that’ll be about half the width of the bed. Toying with nutserts into bed, turnbuckles to the tie down anchors in corners or maybe something else?
First of all I put a about half dozen nutserts through the bed. You can see them in the below pic:

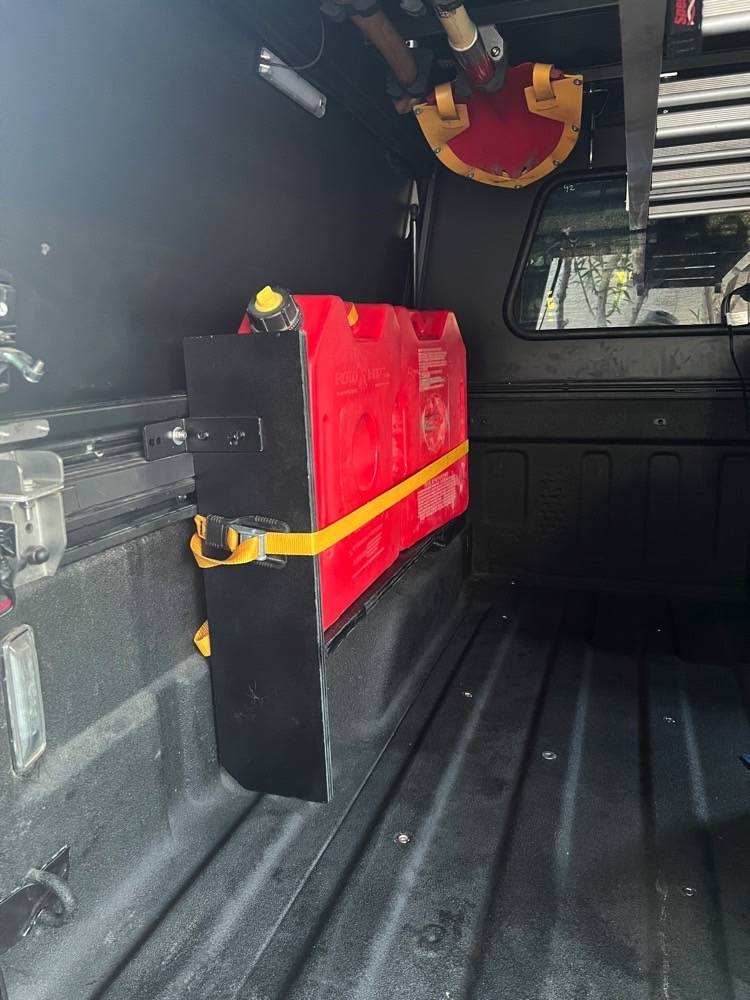

Jeep Gladiator Bed kitchen - how to secure? 42_FuelStora


FWIW, you can also see the way I am utilizing the over wheel well space to store extra fuel. The strap was just temporarily holding them. In the final iteration, they are actually held in place by the kitchen.

Next, I bolted a piece of 3/8" plywood down with the nutserts. I didn't want that extra 25-30# but the way my kitchen is built, it can't support itself on the bed ridges...I needed a flat base:
Jeep Gladiator Bed kitchen - how to secure? 43_KitchenPlatform

Ignore the piece at the front of the bed. It's from a previous concept I had that didn't work. Currently, that front piece is not there.

What is there now is my kitchen and fridge:

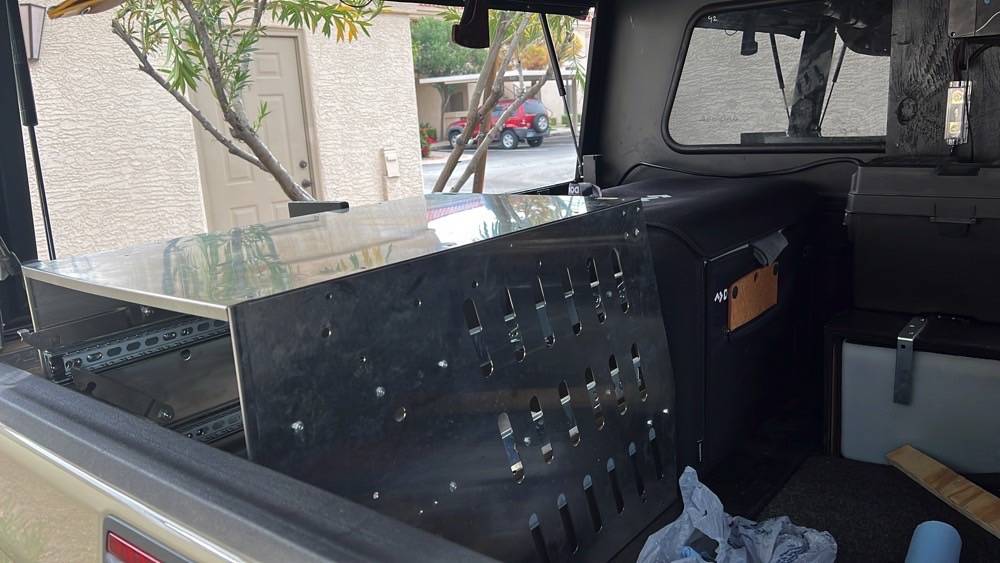

Jeep Gladiator Bed kitchen - how to secure? 43b_KitchenPlatform


The kitchen was actually built for the back of my Wrangler but has been repurposed to the Gladiator. I drilled the plywood and installed wood nuts on the downside face that I can just bolt the kitchen down to. The fridge was a bit more elaborate but does use the inset nuts in the base of the fridge rather than tie down straps on the handles:

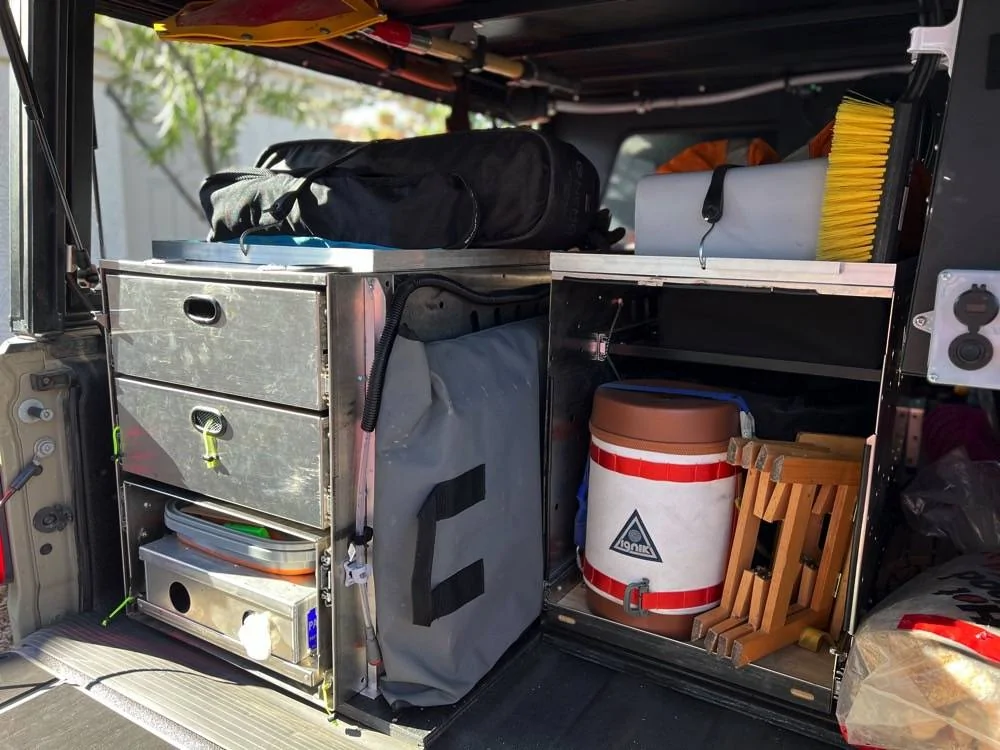

Jeep Gladiator Bed kitchen - how to secure? 45_KitchenStowed

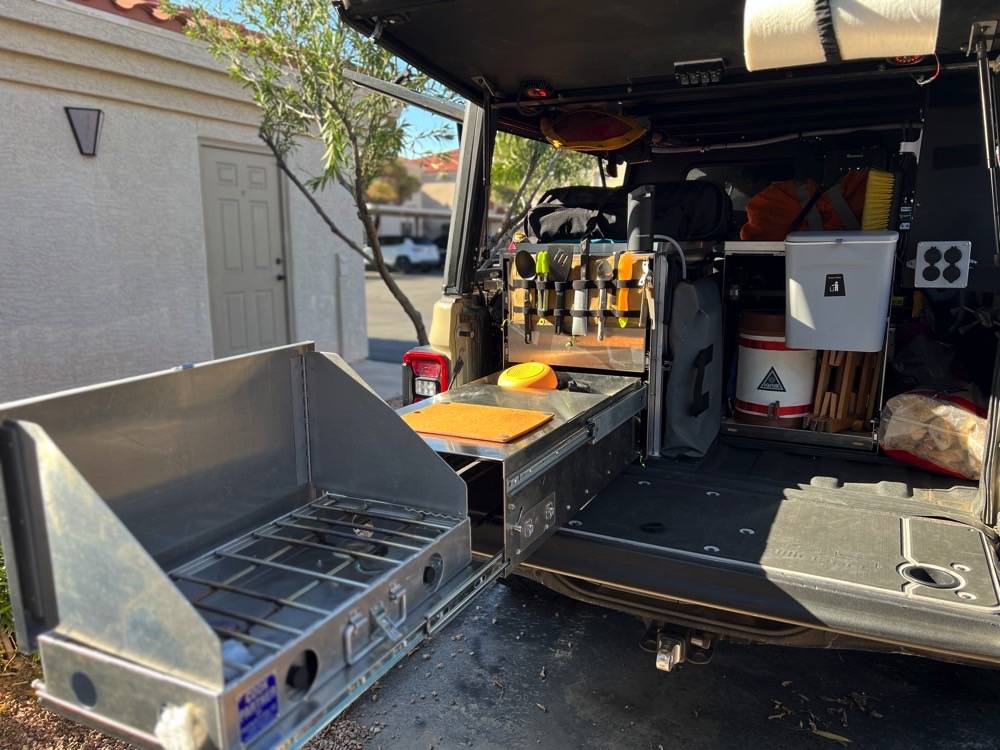

Jeep Gladiator Bed kitchen - how to secure? 46_KitchenExtended


Access to the fridge is from the side and isn't terribly annoying:

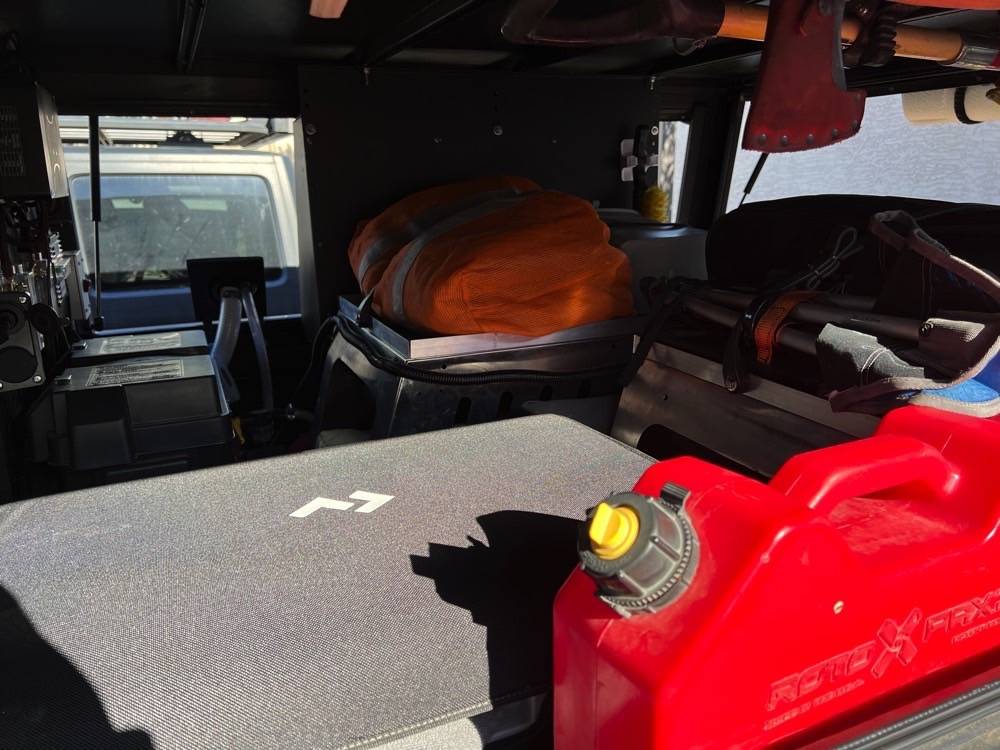

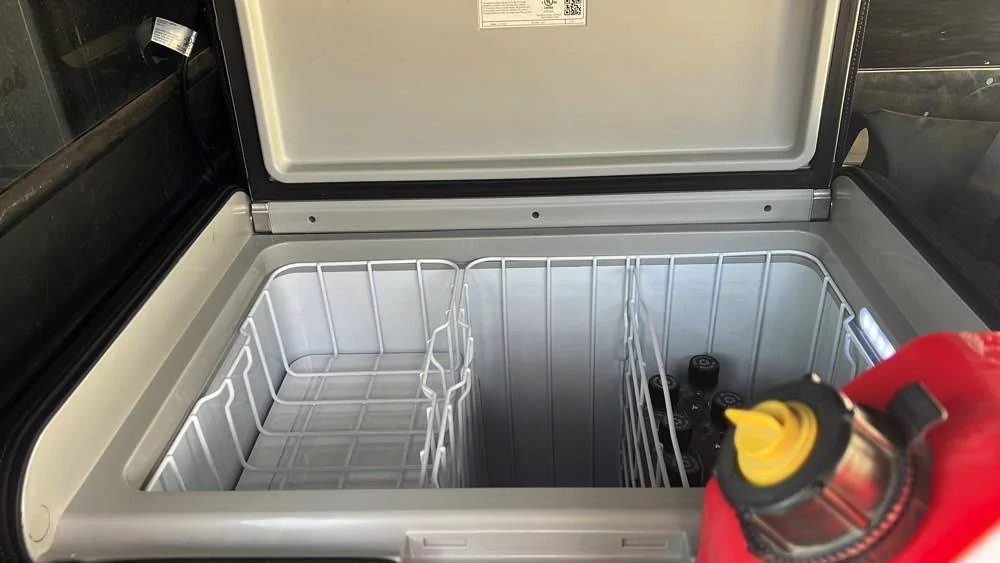

Jeep Gladiator Bed kitchen - how to secure? 44a_FridgeSetu
