Bed Liner in Bolt Holes

FLUndertaker

Well-Known Member
Joined
Aug 9, 2020
Threads
83
Messages
1,049
Reaction score
1,229
Location
Oklahoma
Vehicle(s)
2020 Jeep Gladiator Sport, 1986 Jeep CJ7
What’s the best and easiest way to clean out sprayed in bed liner from the nut holes in the bed so a rail system can be installed? Will a simple tap work or is this going to a bigger job?
Sponsored



SaveTheJeeps

Active Member
First Name
Tim
Joined
Nov 13, 2019
Threads
1
Messages
28
Reaction score
10
Location
Hopkinton, MA
Vehicle(s)
1958 CJ5, 1967 Jeepster Convertible, 1974 CJ5, 1986 CJ7, 2013 JKU

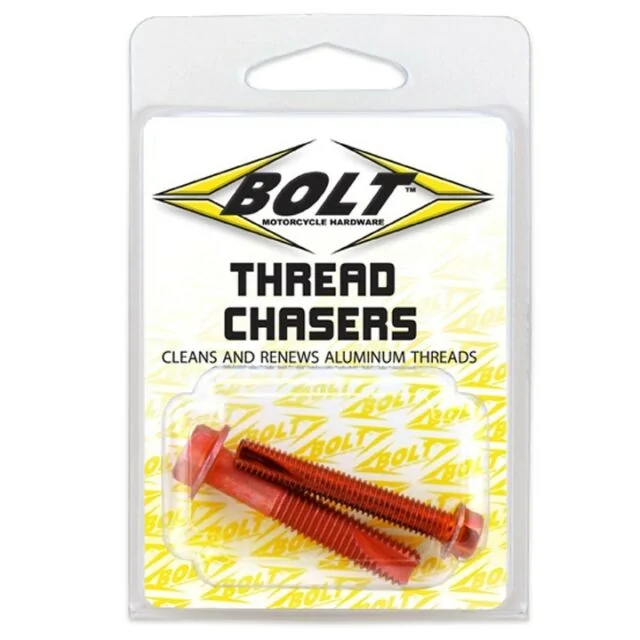

Got a trail rail system for xmas and installed it last week. Each threaded hole had bed liner gunk. As was suggested in a post on this topic, I got a thread chaser but first I used a little pick (like a dentist tool) to pick as much material from the threads as I could. What worked best for me was to first pick out as much gunk as possible, then start the bolt into the threaded hole a bit and then use the thread chaser.

Be patient! Good luck.


MrZappo

Well-Known Member
First Name
Tom
Joined
Aug 9, 2020
Threads
13
Messages
777
Reaction score
1,855
Location
Granger, Indiana
Vehicle(s)
Gladiator Mojave
Occupation
Computer Consultant
I used a thread cutter. Worked perfect. Just be careful.


Empty Pockets

Well-Known Member
First Name
Mark
Joined
Sep 19, 2019
Threads
17
Messages
477
Reaction score
739
Location
Atlanta
Vehicle(s)
Gladiator Sport S, Sting Ray, 6 Speed (YES!)
You can cross thread a tap just like you can a bolt. And the results are even uglier! But the tap should get it out nicely. Keep it lubed, keep it clean and keep it straight.

I ran bolts partially into all the holes before taking it to the sprayer. And I told him that I wanted to be able to use the holes down the road. He took extra care to get it right. Line-X in Lawrenceville GA.


robd1438

Well-Known Member
First Name
Rob
Joined
Dec 2, 2020
Threads
26
Messages
159
Reaction score
149
Location
Portland CT
Vehicle(s)
2021 Gladiator Rubicon
Build Thread
Link
Just ran into this tonight too, shame Mopar doesn't protect the hole when they spray the bed. Also my kit was short 2 screws (seems to be a trend looking at the reviews on here and quadratec). Now I need to find 2 more!


Sponsored

johnparjr

Well-Known Member
First Name
John
Joined
Sep 5, 2020
Threads
36
Messages
1,174
Reaction score
1,394
Location
New Caney, TX
Vehicle(s)
2020 Jeep Gladiator Mojave
My Line X guy did a great job limiting the gunk in the holes so all I did for one that had a little more was take the bolt in and out a little at a time about 5-6 times and it was all good


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
34
Messages
1,906
Reaction score
2,709
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
I did it yesterday, took a razor around the opening of each hole until I saw all the wall around , then used a very thin screwdriver cleaned a bit then ran a bolt in and out twice ,all eight holes took maybe 45minutes. Used a rachet not impact gun or anything that would not give any feel. Just take your time.....Jack


Rummie

Well-Known Member
First Name
Troy
Joined
May 25, 2019
Threads
80
Messages
660
Reaction score
1,364
Location
Siesta Key, Florida
Website
www.siestakeyrum.com
Vehicle(s)
20 JT, 15 JKU, 22 BMW 4, Challenger R/T
Build Thread
Link
Occupation
Rum
Vehicle Showcase
3

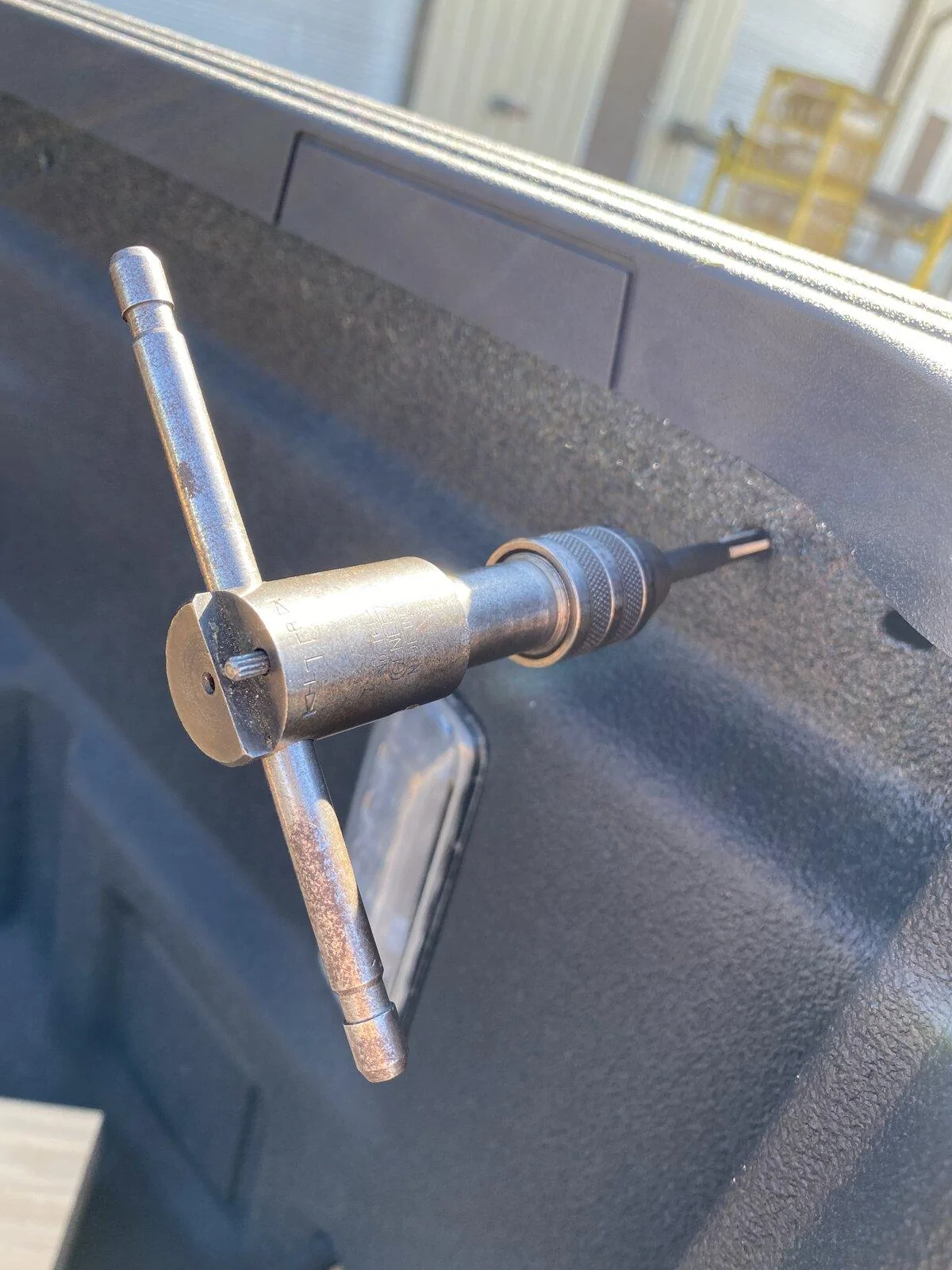

Tap. Keep it straight and go slow and easy. Should work fine. Did for me.

Jeep Gladiator Bed Liner in Bolt Holes IMG_0086 2 (1).JPG


Deleted member 30519

I still don't know how you guys got these botls tightened by hand. I cleaned the holes up pretty good but could barely get the bolt more than a quarter of a ways in. I ended up using my drill and even with that it was pia to get it snug.


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
34
Messages
1,906
Reaction score
2,709
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
Were you using metric bolts? Coarse or fine thread? They did not go in hard at all.....Jack

Last edited:

Sponsored

Sespe

Well-Known Member
Joined
Sep 17, 2019
Threads
9
Messages
247
Reaction score
498
Location
California
Vehicle(s)
Sport S
Occupation
Retired Firefighter
I cut an allen wrench down and chucked it in my drill. Used a spare bolt to run in and out a couple times, then used a new bolt for the attachment. Factory bedliner.


Ohio JKU

Well-Known Member
First Name
Josh
Joined
Sep 24, 2020
Threads
5
Messages
268
Reaction score
487
Location
Ohio
Vehicle(s)
2015 JKU
Occupation
PM Construction
I ran into this installing my folding cover... I have spare bolts, so i matched up the size... I was able to start them by hand at least far enough not to cross thread... then Ran them in/out a few times with my cordless impact.... then proceeded to install the kit / bolts.

mine was factory... a tap as per the above would be better, but not necessary if you take care.

In the past to fix threads ive taken a bolt and ground slots in the threads with a dremmel making a “poor mans” tap


mazeppa

Well-Known Member
First Name
y= x/0
Joined
Feb 11, 2018
Threads
20
Messages
877
Reaction score
1,456
Location
ICBM complex at Kodlosk
Vehicle(s)
2021 JTR Panda
Occupation
knife sharpening snob

Clay

Well-Known Member
First Name
Clay
Joined
Oct 19, 2020
Threads
17
Messages
305
Reaction score
322
Location
Clay, Alabama
Vehicle(s)
2020 Jeep Gladiator Overland
Occupation
Retired LEO
The local Line-X didn't take any precaution, so I had to work at getting the threads clean.
