Bed rails and utility outlet installed.

wwcenturion

Well-Known Member
First Name
Darrell
Joined
Mar 18, 2021
Threads
5
Messages
48
Reaction score
39
Location
Tusclaoosa AL
Vehicle(s)
2021 JT
Occupation
Project Manager
Both ideas from here.

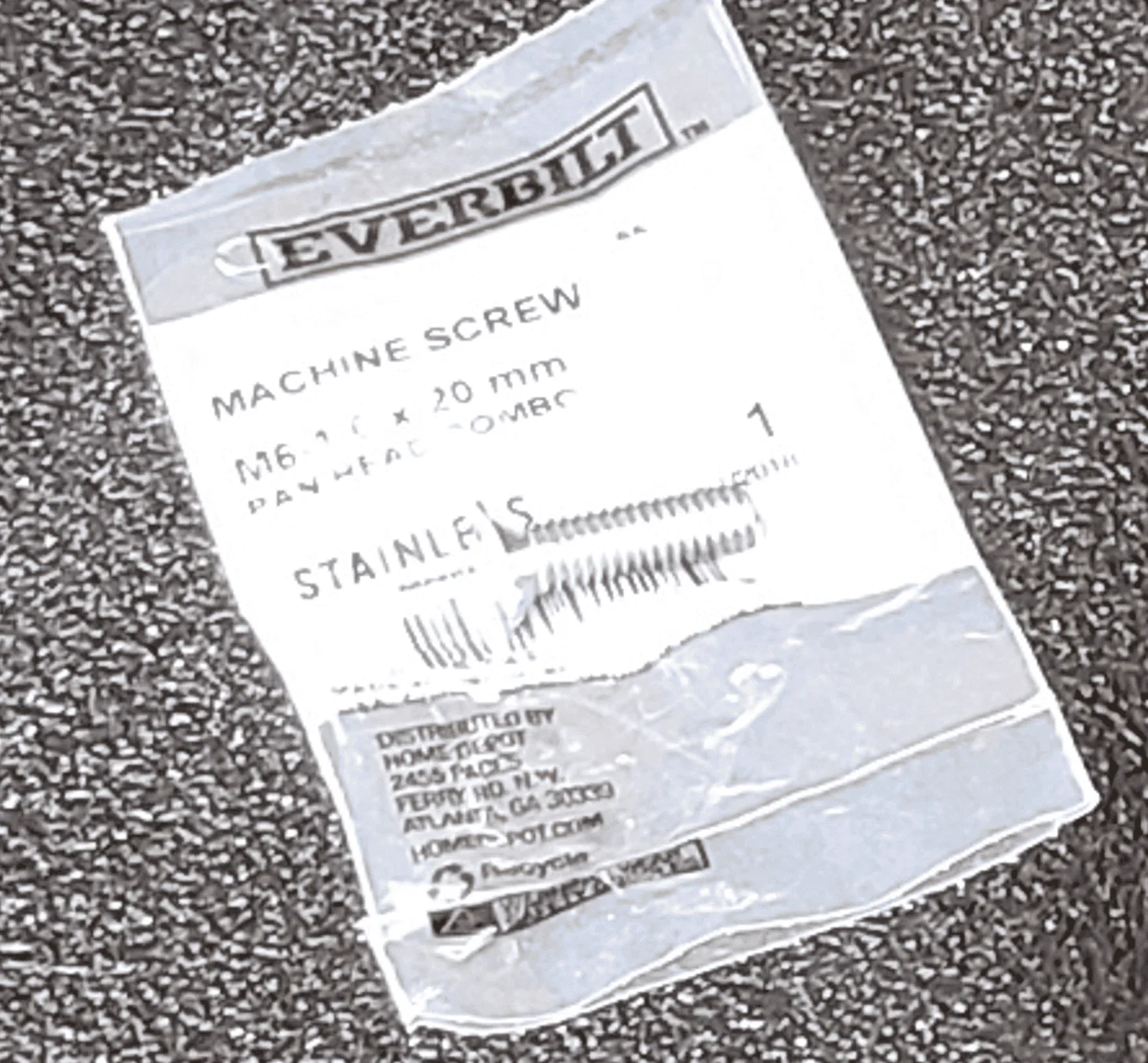

Had to clean out the holes with an M6 tap bit attached to my drill. Rails from Amazon ($105 for two with hardware).

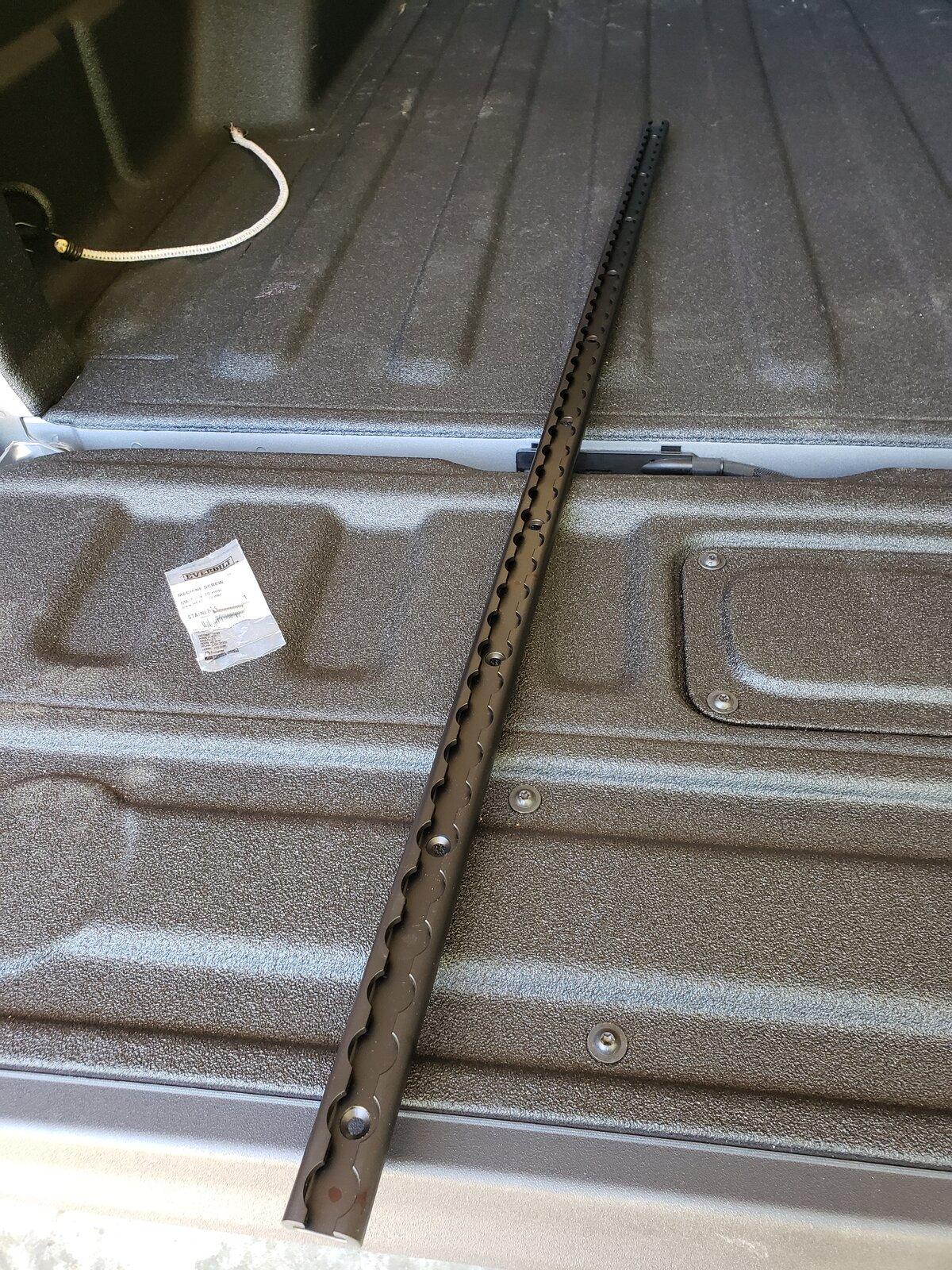

Jeep Gladiator Bed rails and utility outlet installed. 20210417_124734

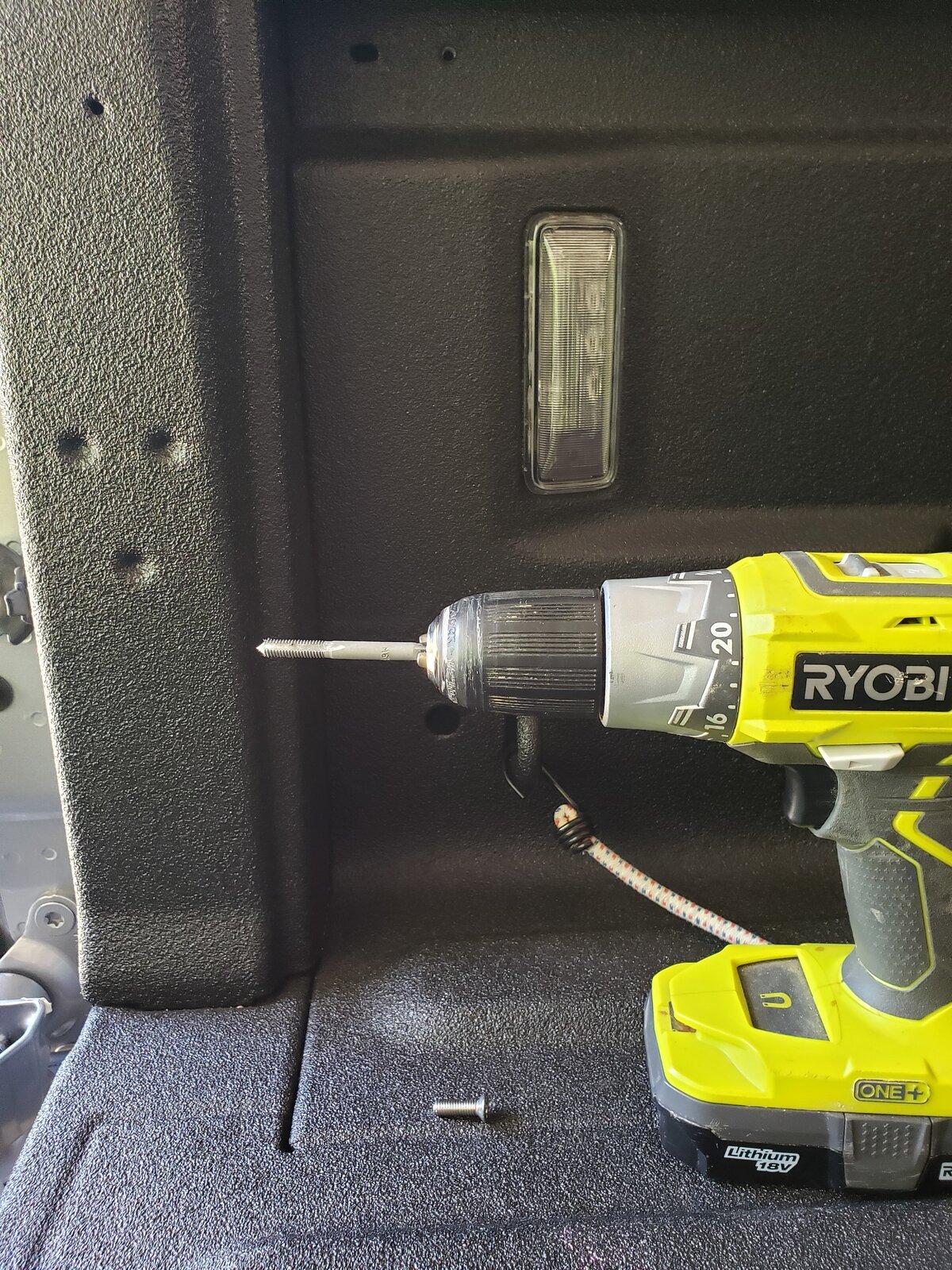

Jeep Gladiator Bed rails and utility outlet installed. 20210417_124205

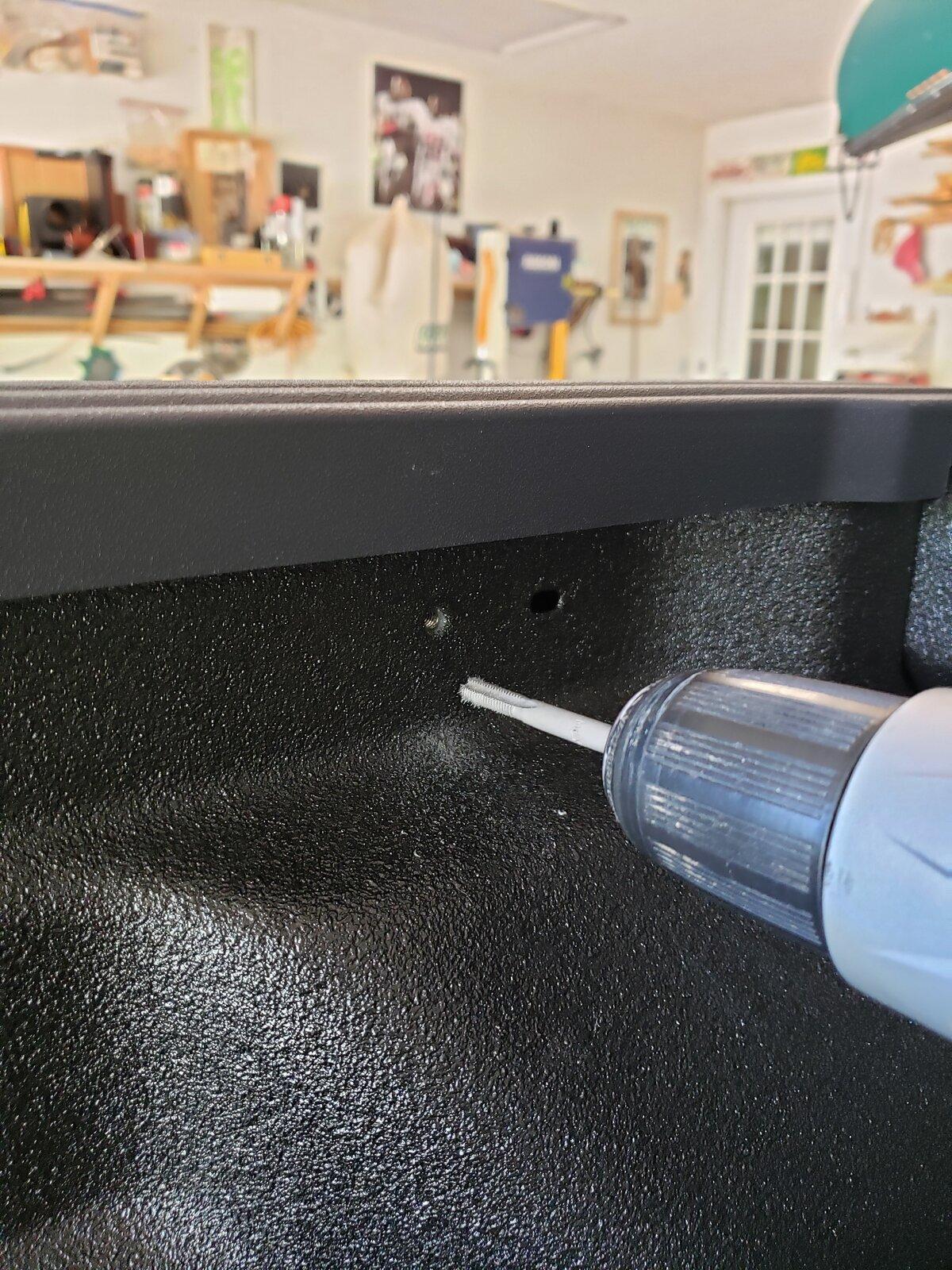

Jeep Gladiator Bed rails and utility outlet installed. 20210417_123930

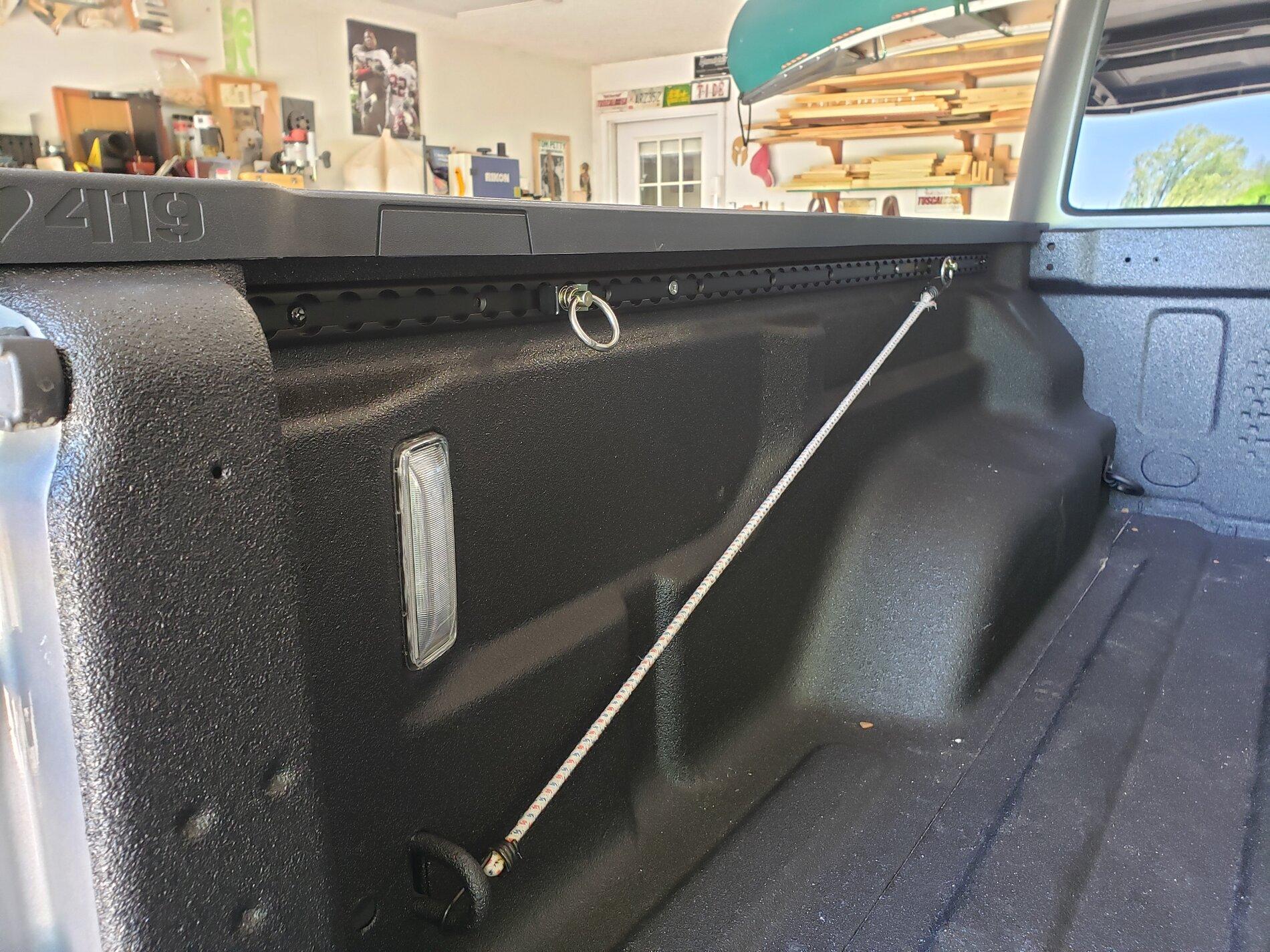

Jeep Gladiator Bed rails and utility outlet installed. 20210417_134536

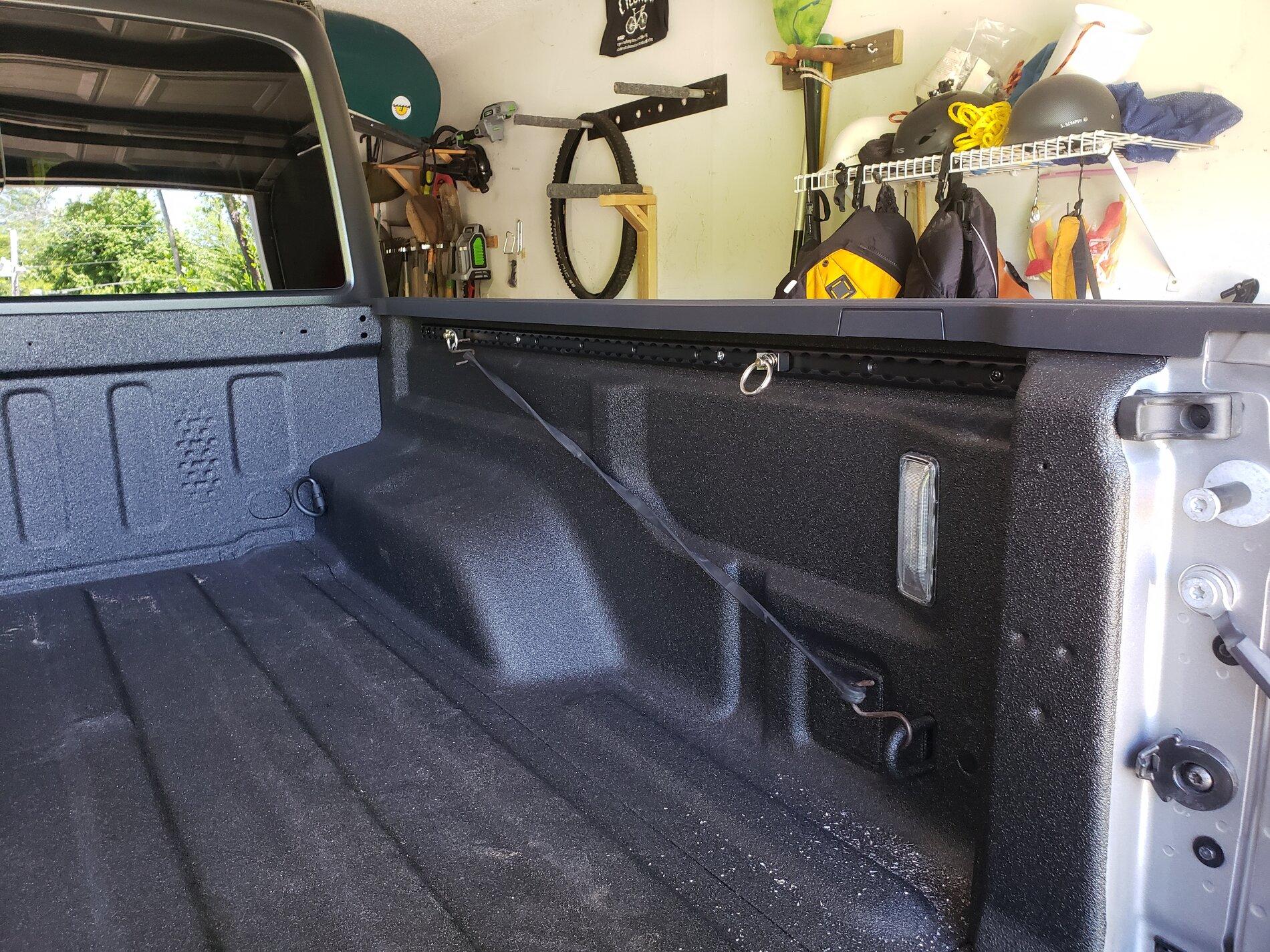

Jeep Gladiator Bed rails and utility outlet installed. 20210417_134527



4 in 1 Charger Socket Panel, 12V 4.2A Dual USB Charger Socket Power Outlet, LED Voltmeter, Cigarette Lighter Socket, LED Lighted ON Off Rocker Toggle Switch. Marine grade. Ran 14 gauge wire directly to battery. Used in-line fuse close to the battery connection.

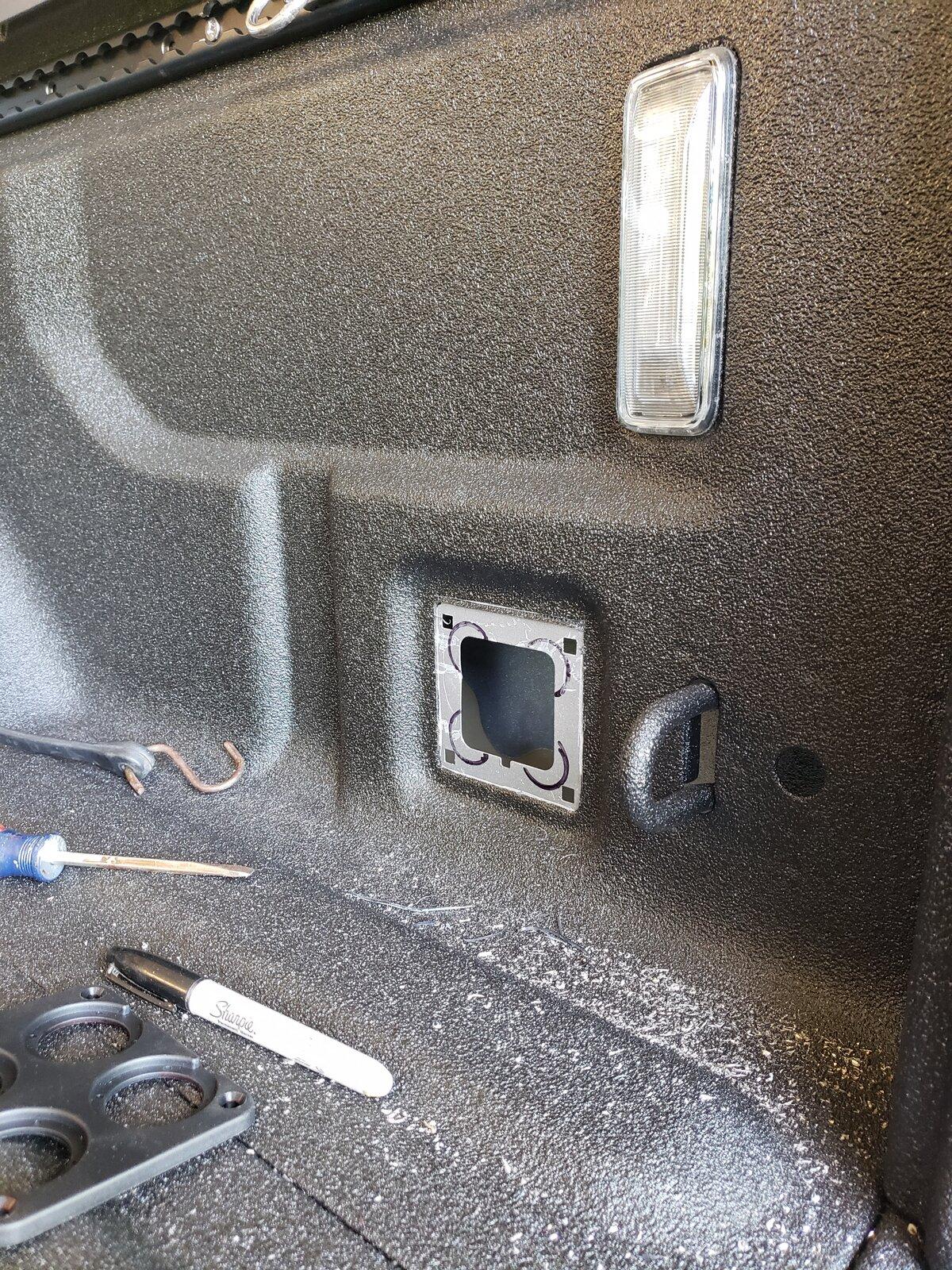

Jeep Gladiator Bed rails and utility outlet installed. 20210417_142408

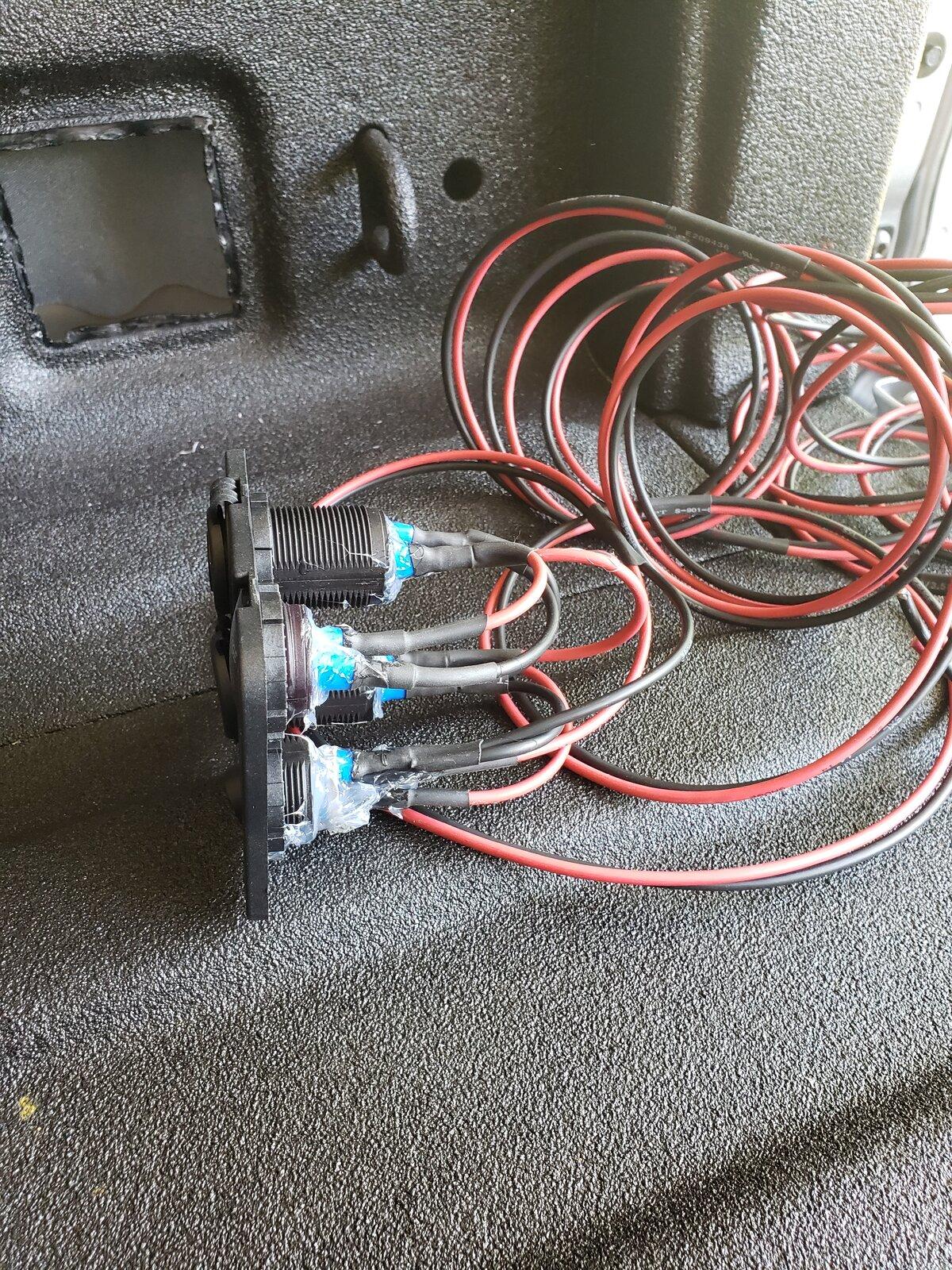

Jeep Gladiator Bed rails and utility outlet installed. 20210418_114615

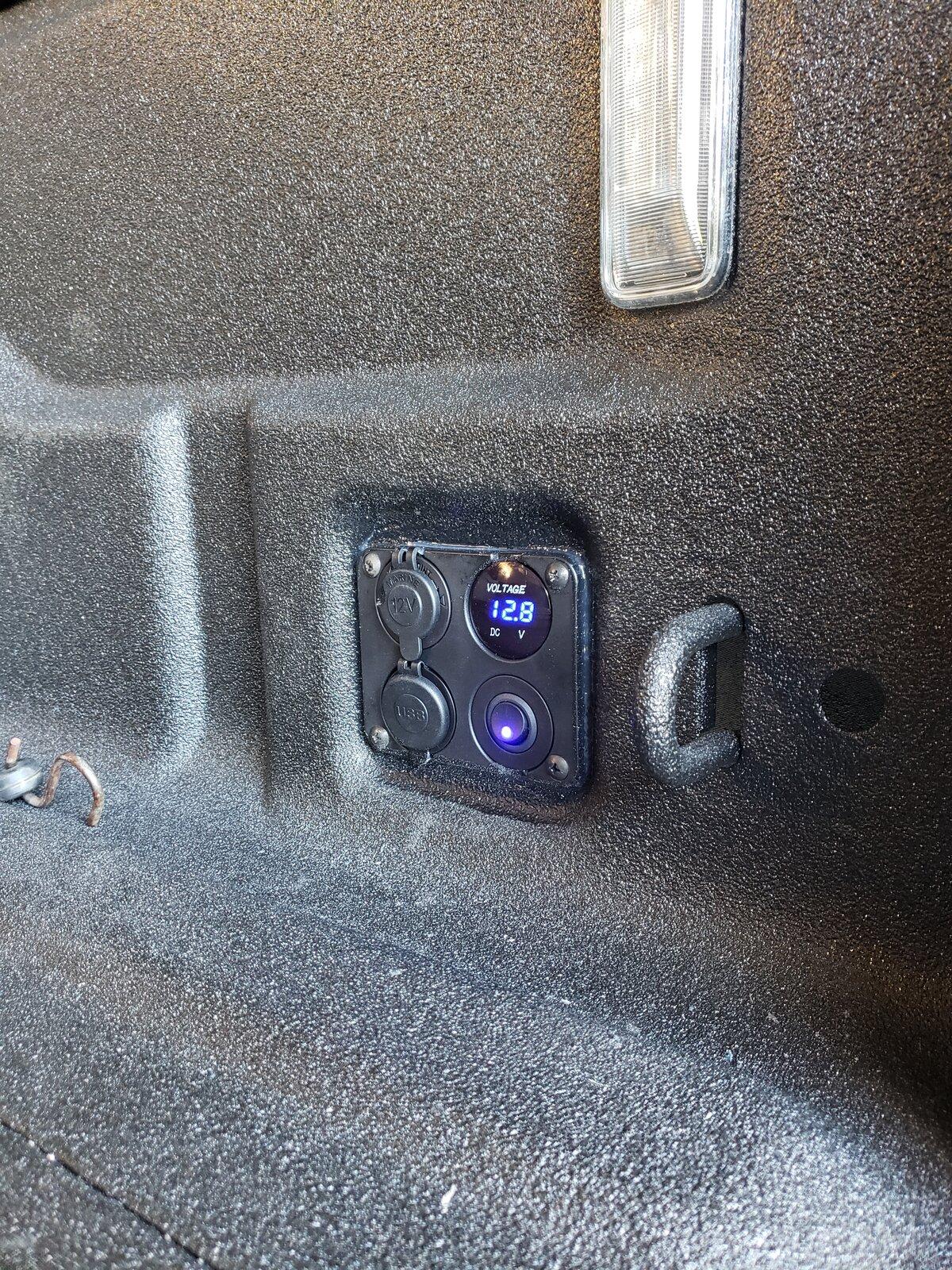

Jeep Gladiator Bed rails and utility outlet installed. 20210418_165043

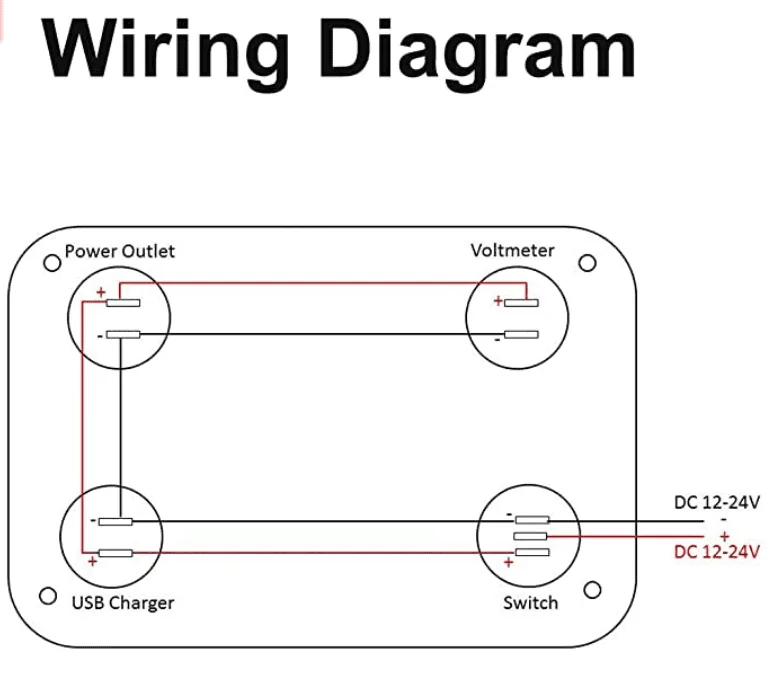

Jeep Gladiator Bed rails and utility outlet installed. 1618859924861



Parts:

Linkstyle 4 in 1 Charger Socket Panel - $17.49

US Cargo Control Black Powder Coated Aluminum L Track Tie Down System - $109


Sponsored


Last edited:

MawkStar

Member
Joined
Jun 14, 2020
Threads
1
Messages
14
Reaction score
12
Location
Raleigh, NC
Vehicle(s)
2020 Gladiator Overland
Power and ground come into the rocker, then you just jumper to the other devices in series or parallel?


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
32
Messages
1,867
Reaction score
2,662
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
Looks that way ,ground goes to switch to light the on indicator, wonder what kind of amps that switch is rated to carry. Neat thing is you can plug a heavy like a air compressor in and watch the volts to see if there is much voltage drop.....Jack

OP
OP
wwcenturion

wwcenturion

Well-Known Member
First Name
Darrell
Joined
Mar 18, 2021
Threads
5
Messages
48
Reaction score
39
Location
Tusclaoosa AL
Vehicle(s)
2021 JT
Occupation
Project Manager
OP
OP
wwcenturion

wwcenturion

Well-Known Member
First Name
Darrell
Joined
Mar 18, 2021
Threads
5
Messages
48
Reaction score
39
Location
Tusclaoosa AL
Vehicle(s)
2021 JT
Occupation
Project Manager
Looks that way ,ground goes to switch to light the on indicator, wonder what kind of amps that switch is rated to carry. Neat thing is you can plug a heavy like a air compressor in and watch the volts to see if there is much voltage drop.....Jack
Updated Op with diagram and links.


Sponsored

OP
OP
wwcenturion

wwcenturion

Well-Known Member
First Name
Darrell
Joined
Mar 18, 2021
Threads
5
Messages
48
Reaction score
39
Location
Tusclaoosa AL
Vehicle(s)
2021 JT
Occupation
Project Manager
Power and ground come into the rocker, then you just jumper to the other devices in series or parallel?
Updated Op with diagram and links.


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
32
Messages
1,867
Reaction score
2,662
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
You could wire the two charging outlets hot all the time and have the switch turn the volymeter on if you want to check battery condition.


poltergiest

Well-Known Member
First Name
Steve
Joined
Jul 10, 2021
Threads
2
Messages
47
Reaction score
36
Location
Florida/Ontario
Vehicle(s)
'21 Mojave
Both ideas from here.

Had to clean out the holes with an M6 tap bit attached to my drill. Rails from Amazon ($105 for two with hardware).

Jeep Gladiator Bed rails and utility outlet installed. 1618859818096


Jeep Gladiator Bed rails and utility outlet installed. 1618859818096


Jeep Gladiator Bed rails and utility outlet installed. 1618859818096


Jeep Gladiator Bed rails and utility outlet installed. 1618859818096



Jeep Gladiator Bed rails and utility outlet installed. 1618859818096



4 in 1 Charger Socket Panel, 12V 4.2A Dual USB Charger Socket Power Outlet, LED Voltmeter, Cigarette Lighter Socket, LED Lighted ON Off Rocker Toggle Switch. Marine grade. Ran 14 gauge wire directly to battery. Used in-line fuse close to the battery connection.

Jeep Gladiator Bed rails and utility outlet installed. 1618859818096


Jeep Gladiator Bed rails and utility outlet installed. 1618859818096


Jeep Gladiator Bed rails and utility outlet installed. 1618859818096


Jeep Gladiator Bed rails and utility outlet installed. 1618859818096



Parts:

Linkstyle 4 in 1 Charger Socket Panel - $17.49

US Cargo Control Black Powder Coated Aluminum L Track Tie Down System - $109
Did you have to drill any new holes in the track? or just use what they gave you?

OP
OP
wwcenturion

wwcenturion

Well-Known Member
First Name
Darrell
Joined
Mar 18, 2021
Threads
5
Messages
48
Reaction score
39
Location
Tusclaoosa AL
Vehicle(s)
2021 JT
Occupation
Project Manager
Did you have to drill any new holes in the track? or just use what they gave you?
Yes, I had to drill a couple holes in the track to get it to line up with the pre-drilled/threaded holes in the bed.


Sponsored

swink55

Member
First Name
Andrew
Joined
Jul 16, 2020
Threads
2
Messages
22
Reaction score
9
Location
Manassas, VA
Vehicle(s)
2020 Gladiator Sport S
Occupation
First responder
Not a bad idea. looks good in the bed. I’m trying to see if I can get a 110 outlet for an air compressor so when I air down I can air back up quick. Was it pretty simple to run wire to the battery?

OP
OP
wwcenturion

wwcenturion

Well-Known Member
First Name
Darrell
Joined
Mar 18, 2021
Threads
5
Messages
48
Reaction score
39
Location
Tusclaoosa AL
Vehicle(s)
2021 JT
Occupation
Project Manager
Not a bad idea. looks good in the bed. I’m trying to see if I can get a 110 outlet for an air compressor so when I air down I can air back up quick. Was it pretty simple to run wire to the battery?
Very easy. Placed the in-line fuse closer to the battery.


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
32
Messages
1,867
Reaction score
2,662
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
How big an air compressor are you planning to run on the 400watt inverter outlet? It can not be very big at all check the amp rating of your compressor, 400watts is good for at most 3.3 amps, and there will be a inrush motor load on startup that still might trip off inverter…….Jack


swink55

Member
First Name
Andrew
Joined
Jul 16, 2020
Threads
2
Messages
22
Reaction score
9
Location
Manassas, VA
Vehicle(s)
2020 Gladiator Sport S
Occupation
First responder
How big an air compressor are you planning to run on the 400watt inverter outlet? It can not be very big at all check the amp rating of your compressor, 400watts is good for at most 3.3 amps, and there will be a inrush motor load on startup that still might trip off inverter…….Jack
Just a cheap pancake one from HF. Enough to fill tires. It just requires a normal outlet


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
32
Messages
1,867
Reaction score
2,662
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
A normal outlet in your home supplies 15 amps the inverter supplied outlet in the gladiator supplies 3.3 amps, just check the rating before spending your money. I think a 12V air compressor with a high duty rating is sort of the way to go, BUT, I have no idea what a cheap HF compressor draws amp wise, and I guess you can always just try it…….Jack
