Billie Bars + JCR > chocolate + peanut butter

Alans17

Well-Known Member
First Name
Alan
Joined
Oct 17, 2020
Threads
59
Messages
933
Reaction score
1,220
Location
DFW
Vehicle(s)
Gladiator Sport S Max Tow

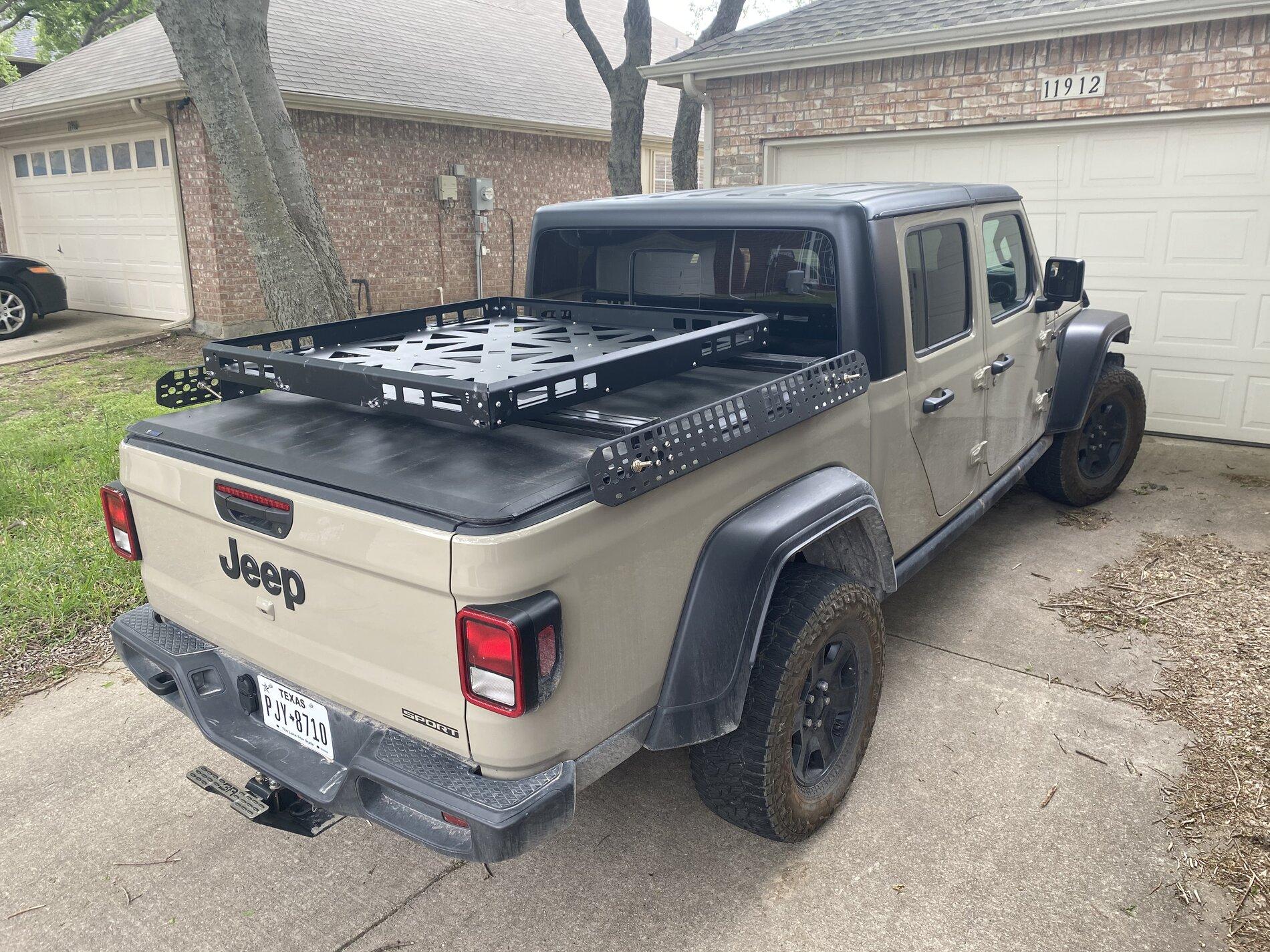

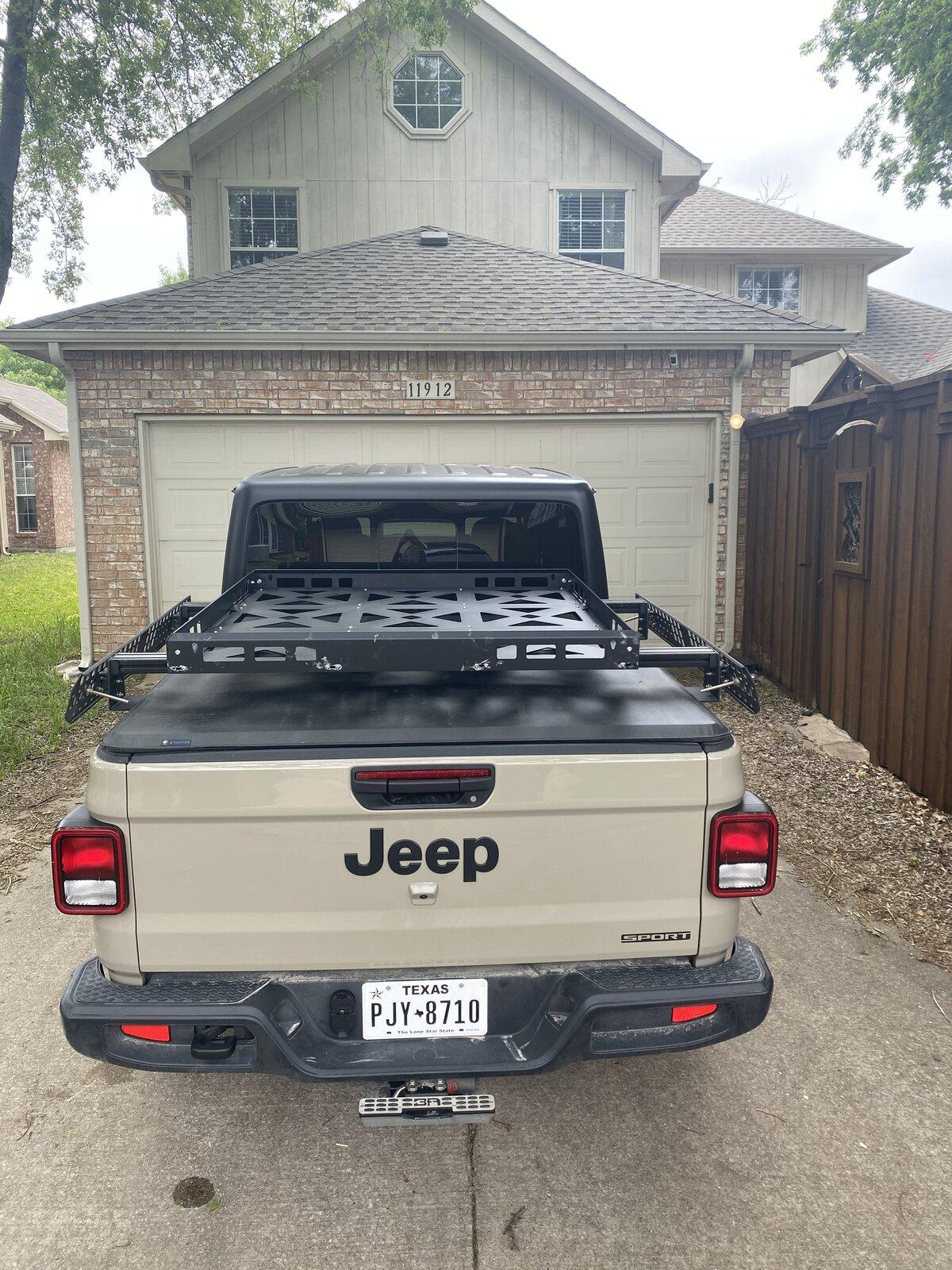

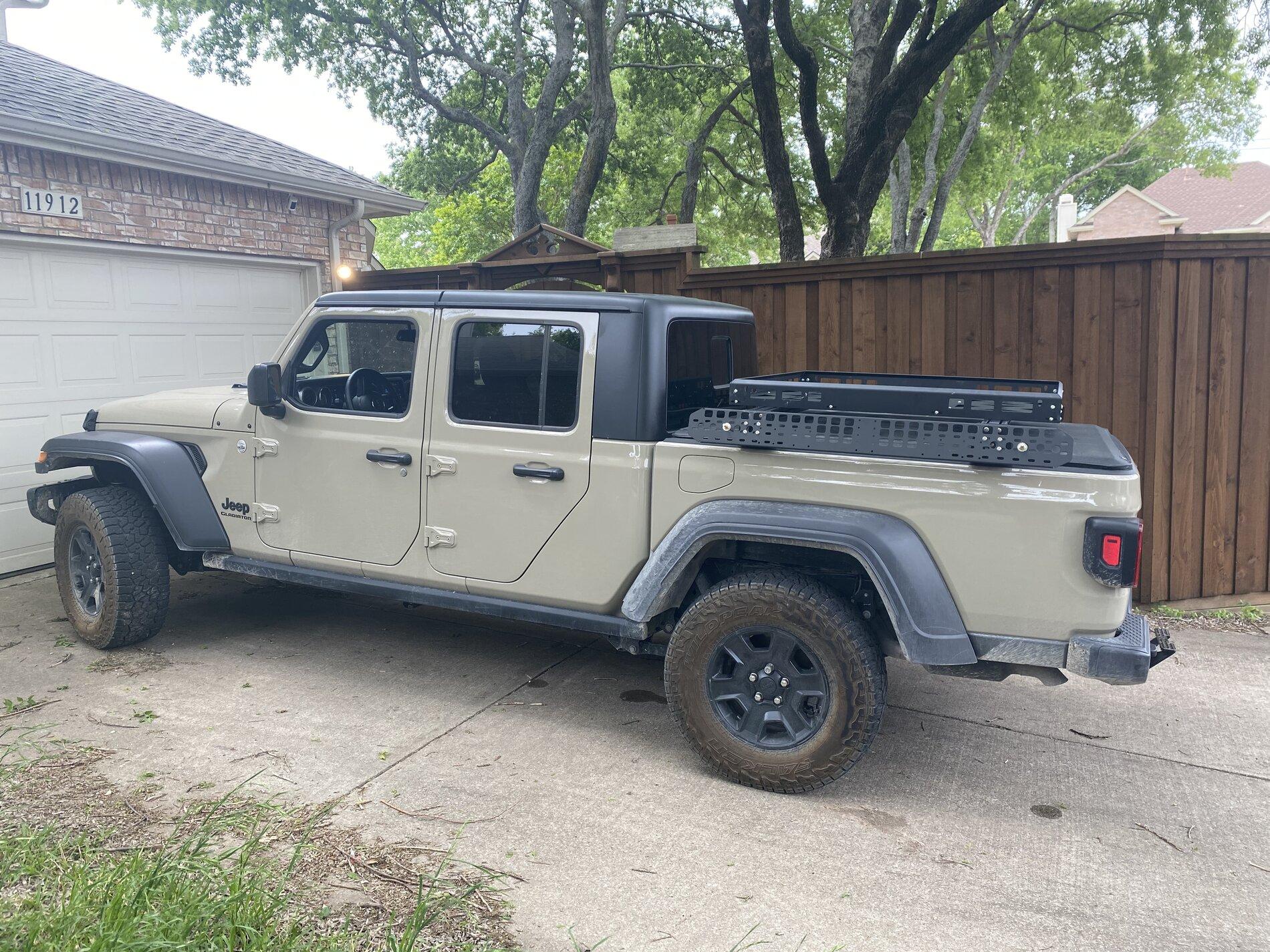

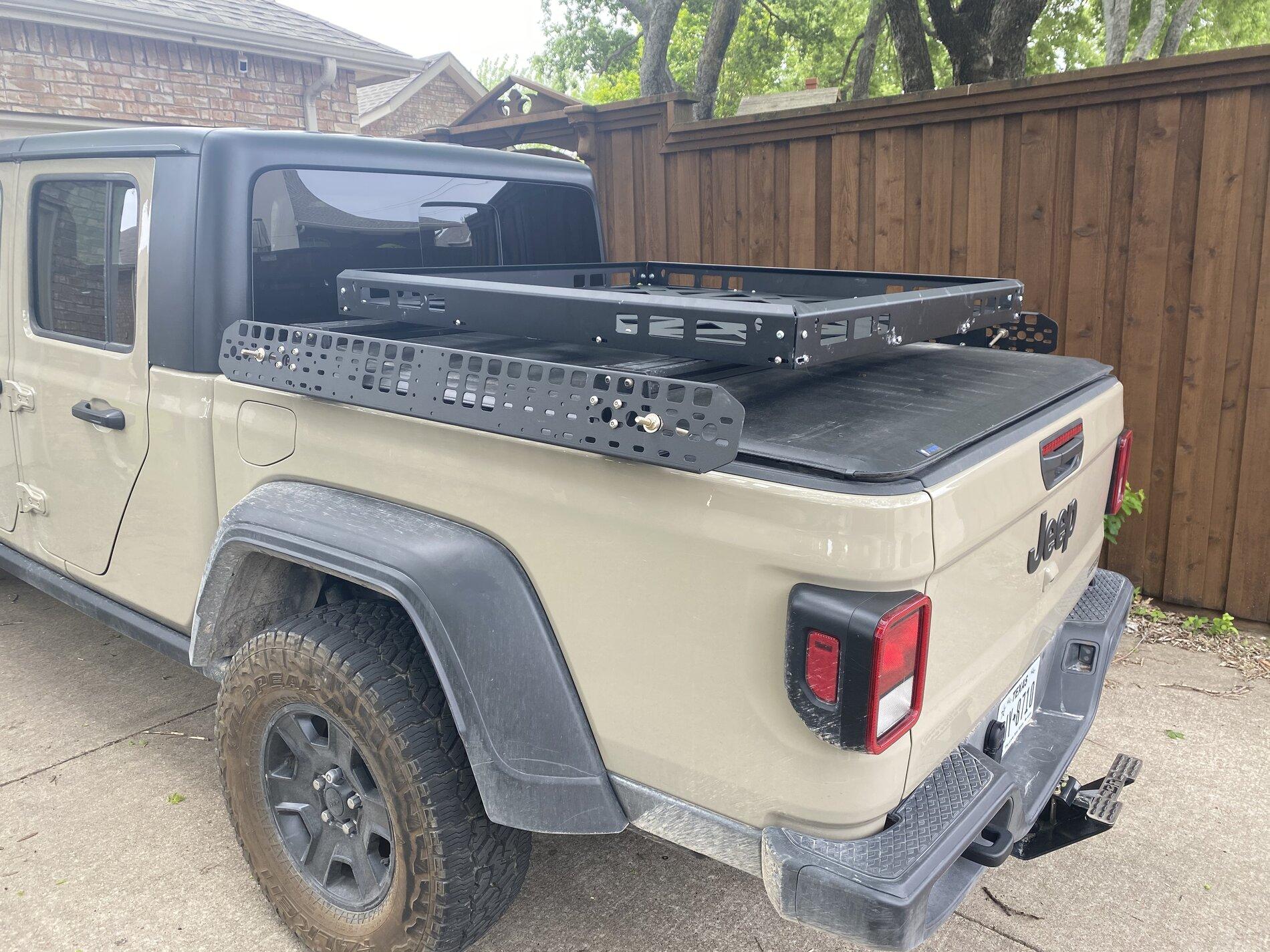

Here’s a test fit of the @JcrOffroad Universal Basket on top of @BillieBars w/ molle panels. I feel like these products were made for each other!

I’m planning on adding a hinge to the forward bar so that the whole basket can swing up and out of the way for loading and unloading.

Here’s what I’m liking so far about this setup...
  • It’s low profile enough to (partially) still see out the back when empty
  • It’s easy to remove when I want full bed access
  • The low profile and large basket offer tamper resistance for the soft tonneau cover
  • It’s sturdy enough to stand on
  • I should still be able to get my hard top off without a hoist with minimal effort
  • Mounting should appear mostly invisible since both use aluminum extrusions.







Sponsored



Reasons

Well-Known Member
Joined
Apr 5, 2019
Threads
18
Messages
295
Reaction score
165
Location
NC
Vehicle(s)
KL Cherokee Trailhawk, JT Gladiator RUBICON
Occupation
Enabler
I have the same soft tonneau cover and am actually trying to sell it due to the lack of security it provides. However, this setup provides options for me to expand my storage while minimizing the threat of thieves cutting the cover and trying to take out my large tool box or other items. All the while cheaper than purchasing a Diamondback SE cover.

You, my friend, just saved me a few hundred dollars by going this route. Please keep us updated with your hinge solution. I am going to copy your setup.


Reasons

Well-Known Member
Joined
Apr 5, 2019
Threads
18
Messages
295
Reaction score
165
Location
NC
Vehicle(s)
KL Cherokee Trailhawk, JT Gladiator RUBICON
Occupation
Enabler
Will the tonneau cover fit under the front cross bar when when folded.
Here’s a test fit of the @JcrOffroad Universal Basket on top of @BillieBars w/ molle panels. I feel like these products were made for each other!

I’m planning on adding a hinge to the forward bar so that the whole basket can swing up and out of the way for loading and unloading.

Here’s what I’m liking so far about this setup...
  • It’s low profile enough to (partially) still see out the back when empty
  • It’s easy to remove when I want full bed access
  • The low profile and large basket offer tamper resistance for the soft tonneau cover
  • It’s sturdy enough to stand on
  • I should still be able to get my hard top off without a hoist with minimal effort
  • Mounting should appear mostly invisible since both use aluminum extrusions.

Jeep Gladiator Billie Bars + JCR > chocolate + peanut butter 00CDF0A9-6F11-4305-B88C-A77594A17391


Jeep Gladiator Billie Bars + JCR > chocolate + peanut butter 00CDF0A9-6F11-4305-B88C-A77594A17391


Jeep Gladiator Billie Bars + JCR > chocolate + peanut butter 00CDF0A9-6F11-4305-B88C-A77594A17391


Jeep Gladiator Billie Bars + JCR > chocolate + peanut butter 00CDF0A9-6F11-4305-B88C-A77594A17391
When you fold your tri-fold tonneau cover to the front, will the tri-fold stack fit under the front crossbar?

OP
OP
Alans17

Alans17

Well-Known Member
First Name
Alan
Joined
Oct 17, 2020
Threads
59
Messages
933
Reaction score
1,220
Location
DFW
Vehicle(s)
Gladiator Sport S Max Tow
Will the tonneau cover fit under the front cross bar when when folded.

When you fold your tri-fold tonneau cover to the front, will the tri-fold stack fit under the front crossbar?
I don’t have a tri-fold. It’s a soft roll-up. But even that won’t roll up the traditional way without hitting. I have to unhook it, pull the back all the way to the front underneath the crossbars, and then roll it up, there. I’d have better clearance to just roll as normal except the cover bows up in the middle (thus reducing clearance). It’s a process.

I expect that once I install the hinge, I’d be easily able to lift the whole thing and then fold a tri-fold as you describe. At least for the first fold.


Reasons

Well-Known Member
Joined
Apr 5, 2019
Threads
18
Messages
295
Reaction score
165
Location
NC
Vehicle(s)
KL Cherokee Trailhawk, JT Gladiator RUBICON
Occupation
Enabler
I don’t have a tri-fold. It’s a soft roll-up. But even that won’t roll up the traditional way without hitting. I have to unhook it, pull the back all the way to the front underneath the crossbars, and then roll it up, there. I’d have better clearance to just roll as normal except the cover bows up in the middle (thus reducing clearance). It’s a process.

I expect that once I install the hinge, I’d be easily able to lift the whole thing and then fold a tri-fold as you describe. At least for the first fold.
Please keep us posted on your solution for a hinge.
