Bluetooth speaker charger port

pughboy2

Well-Known Member
First Name
Daniel
Joined
Sep 13, 2019
Threads
23
Messages
89
Reaction score
51
Location
Gadsden, AL
Vehicle(s)
2020 Gladiator Sport S
Has anyone pulled the port? Reason I’m asking is I was stupid enough to order the charge port. It’s a simple swap-out with the cargo tray behind the rear seat. It had a pretty simple 4-wire plug coming out of the back but I can’t see the male end of the plug on the harness behind the panel. It may be tucked behind a panel I’ve not removed or not be there at all but if I could see where it came from it would make finding it (if it’s there) much easier in lieu of pulling the whole back panel. I have the alpine sub for what that’s worth.
Sponsored



Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Threads
29
Messages
5,152
Reaction score
5,403
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland - 2013 Nissan Leaf SV
Vehicle Showcase
1
Has anyone pulled the port? Reason I’m asking is I was stupid enough to order the charge port. It’s a simple swap-out with the cargo tray behind the rear seat. It had a pretty simple 4-wire plug coming out of the back but I can’t see the male end of the plug on the harness behind the panel. It may be tucked behind a panel I’ve not removed or not be there at all but if I could see where it came from it would make finding it (if it’s there) much easier in lieu of pulling the whole back panel. I have the alpine sub for what that’s worth.
If it wasn't ordered from the factory with the bluetooth charger, the plug is not likely to be on the harness to connect it.

OP
OP
pughboy2

pughboy2

Well-Known Member
First Name
Daniel
Joined
Sep 13, 2019
Threads
23
Messages
89
Reaction score
51
Location
Gadsden, AL
Vehicle(s)
2020 Gladiator Sport S
I just looked under the hood and I do have the fuse for that circuit installed. I’ve gotten the wiring harness diagram and it’ll be easy enough to power the circuit. Just wanted to use what was there if it was an option.


Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Threads
29
Messages
5,152
Reaction score
5,403
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland - 2013 Nissan Leaf SV
Vehicle Showcase
1
I just looked under the hood and I do have the fuse for that circuit installed. I’ve gotten the wiring harness diagram and it’ll be easy enough to power the circuit. Just wanted to use what was there if it was an option.
Hopefully, you'll get lucky and it will be under there. Look at the length of the power wire on the charger tray, and go that distance on the harness. If it's there, it may be taped over.

Joined
Mar 5, 2020
Threads
4
Messages
1,954
Reaction score
2,403
Location
Lake Martin, Alabama
Vehicle(s)
2020 Jeep Gladiator Rubicon
Vehicle Showcase
1
Keep us updated, I’ve got the same 8.4” Alpine system w/ sub, and I’ve been curious to know if the plug is under there, too.


Sponsored

BobR

New Member
First Name
Bob
Joined
Jul 26, 2020
Threads
0
Messages
4
Reaction score
2
Location
Massachusetts
Vehicle(s)
2020 Jeep Gladiator Rubicon
Occupation
Armed Security
I have the JT, but I didn’t get the speaker as an option so I don’t have the charger behind the seat. Is everything there to install the charger if I bought it?

OP
OP
pughboy2

pughboy2

Well-Known Member
First Name
Daniel
Joined
Sep 13, 2019
Threads
23
Messages
89
Reaction score
51
Location
Gadsden, AL
Vehicle(s)
2020 Gladiator Sport S
Plug was not there. I ran power and tapped the plug on the charge port. I don’t have stereo sound on the speaker when docked but that’s not really why I wanted it anyway


MavCanada

Member
First Name
Mav
Joined
Aug 9, 2020
Threads
0
Messages
6
Reaction score
8
Location
Ontaio
Vehicle(s)
2020 Gladiator, 2008 Wrangler Unlimited
Occupation
Military
Did anyone have images of this?


Rainman6412

New Member
First Name
Douglas
Joined
Jan 5, 2021
Threads
0
Messages
1
Reaction score
0
Location
Enterprise, AL
Vehicle(s)
2021 Jeep Gladiator, 2018 Mercedes GLC, 1966 CJ5,
Occupation
Pilot
Plug was not there. I ran power and tapped the plug on the charge port. I don’t have stereo sound on the speaker when docked but that’s not really why I wanted it anyway

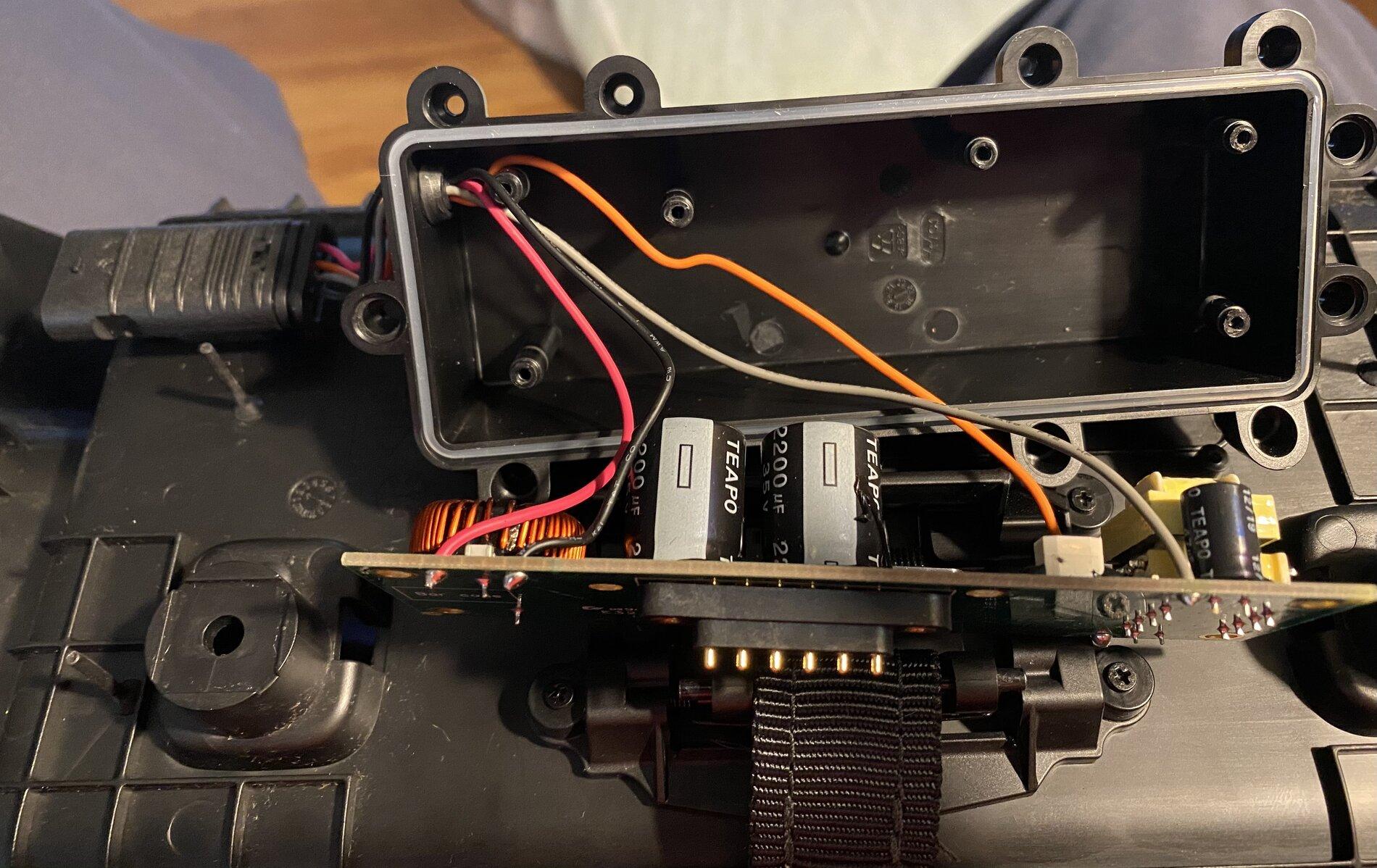

If I understand you correctly, you connected the red and black wire for power and didn’t connect anything to the orange and gray wire. Is it possible for you to explain where you connected it or even better a photo of where you connected it
Jeep Gladiator Bluetooth speaker charger port F5967E6F-13B8-41F2-AB98-D3266C6F2B1A
. Like you I’m not plan on using it when it’s in the vehicle, I just want to keep it charged.


PDACPA

Active Member
First Name
PDA
Joined
Jul 24, 2023
Threads
4
Messages
40
Reaction score
30
Location
Florida
Vehicle(s)
2022 Gladiator Rubicon Diesel 2012 Chevy Avalanche
Reviving and old thread. I just want to keep it charged as mine did not come with the speaker. I found a good deal on the speaker and would order the dock if i can just use it to keep it charged.
