Budget LED Headlights??

mersinery

Active Member
First Name
J
Joined
Nov 5, 2023
Threads
4
Messages
25
Reaction score
14
Location
MD
Vehicle(s)
Jeep Gladiator Sport S
Deciding on whether to upgrade the full headlight housing or just go with some LED bulbs. I've looked at some previous posts about doing it correctly and upgrading the entire assembly and then there are those who have had success with upgrading the led bulbs.

For those who have upgraded the entire headlight housing, did you go with one from amazon or did you go with the Oracles/Diode Dynamics/etc. big names?

Any issues with the budget options? Any issues with the Oracle or Diode Dynamic options?
Sponsored



Idlethunder

Well-Known Member
First Name
David
Joined
Mar 22, 2022
Threads
9
Messages
385
Reaction score
358
Location
Oklahoma
Vehicle(s)
2022 Gladiator Rubicon
Deciding on whether to upgrade the full headlight housing or just go with some LED bulbs. I've looked at some previous posts about doing it correctly and upgrading the entire assembly and then there are those who have had success with upgrading the led bulbs.

For those who have upgraded the entire headlight housing, did you go with one from amazon or did you go with the Oracles/Diode Dynamics/etc. big names?

Any issues with the budget options? Any issues with the Oracle or Diode Dynamic options?
For 22 months I ran LED bulbs in the halogen housings on my Rubicon and they worked great for me. Some people have reported the bulbs flickering or bulb out errors on the dash but I had neither of those issues. To be honest, I only had them installed a couple of months before buying Jscan for a misfire issue and once I had it, I did change the headlight setting to LED. These are the bulbs I used: https://www.amazon.ca/Firehawk-Headlight-Japanese-Brightness-Visibility/dp/B08HHGKZHV?th=1

I'll attach a couple of pictures showing how well they worked. Two weeks ago during their sale, I bought a set of Diode Dynamics Elite headlights so I'll also show a picture of them. The LED bulbs were a huge jump from the halogens then the Elite lights was another huge jump over the LED bulbs.

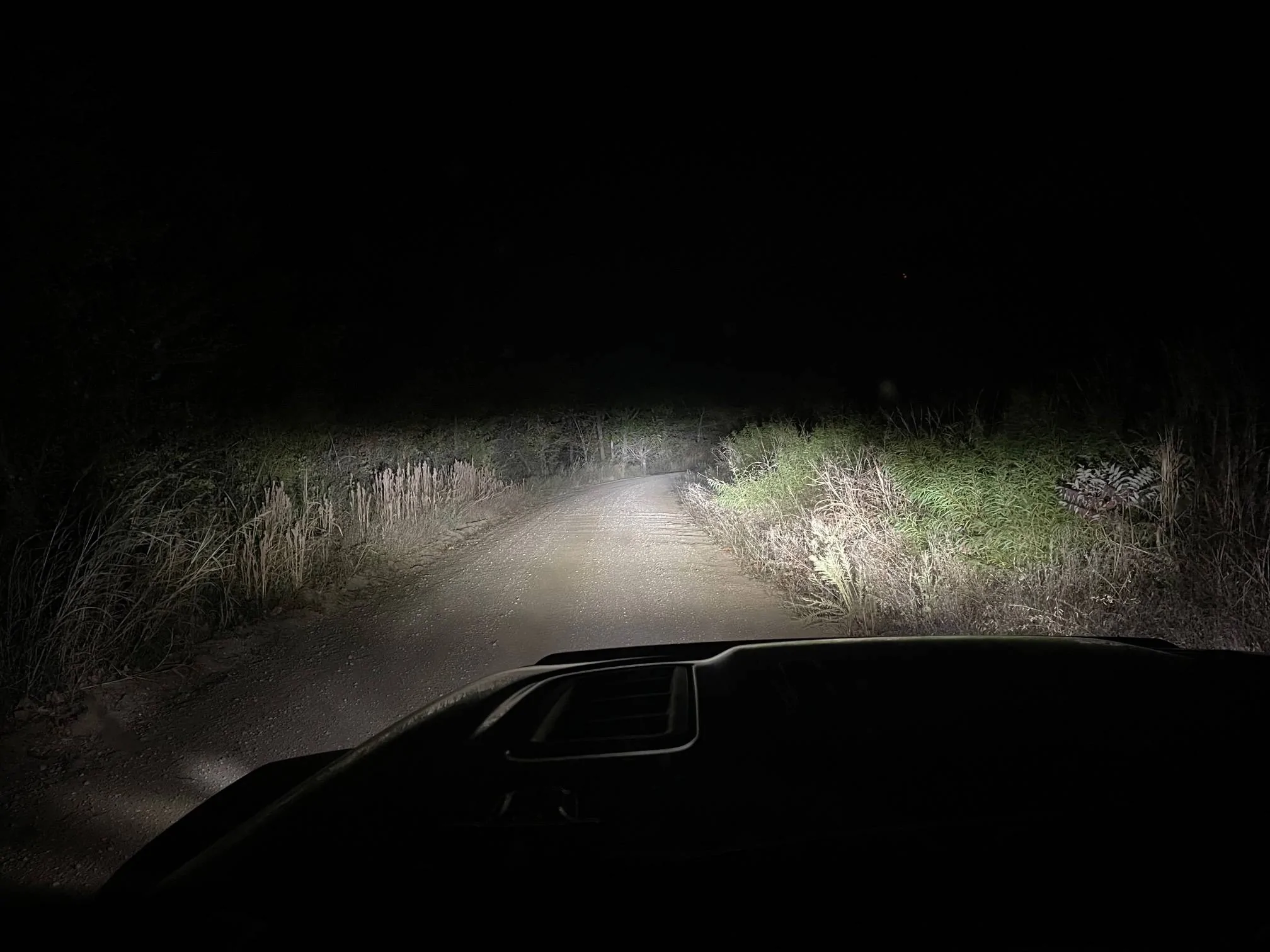

Jeep Gladiator Budget LED Headlights?? LED Bulb High Beam

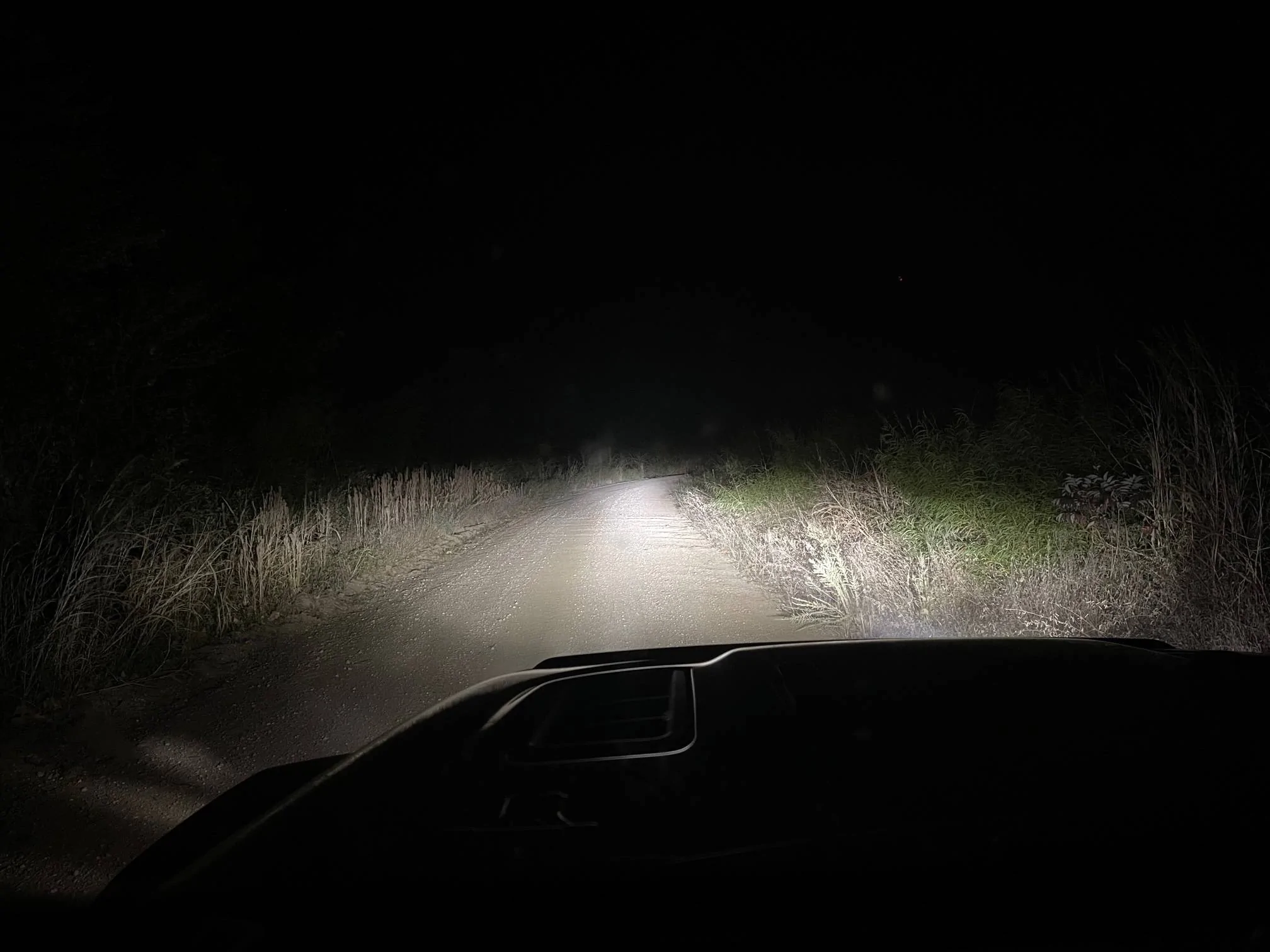

Jeep Gladiator Budget LED Headlights?? LED Bulb Low Beam


Jeep Gladiator Budget LED Headlights?? Diode Dynamics


Jefe1018

Well-Known Member
Joined
Mar 4, 2020
Threads
35
Messages
2,341
Reaction score
3,774
Location
NV
Vehicle(s)
21 JT Rubi Ecodiesel
Build Thread
Link
I got a steal on here for some unopened oracles. It has been two years and they still look new and work amazing, I like the look too.

OP
OP

mersinery

Active Member
First Name
J
Joined
Nov 5, 2023
Threads
4
Messages
25
Reaction score
14
Location
MD
Vehicle(s)
Jeep Gladiator Sport S
For 22 months I ran LED bulbs in the halogen housings on my Rubicon and they worked great for me. Some people have reported the bulbs flickering or bulb out errors on the dash but I had neither of those issues. To be honest, I only had them installed a couple of months before buying Jscan for a misfire issue and once I had it, I did change the headlight setting to LED. These are the bulbs I used: https://www.amazon.ca/Firehawk-Headlight-Japanese-Brightness-Visibility/dp/B08HHGKZHV?th=1

I'll attach a couple of pictures showing how well they worked. Two weeks ago during their sale, I bought a set of Diode Dynamics Elite headlights so I'll also show a picture of them. The LED bulbs were a huge jump from the halogens then the Elite lights was another huge jump over the LED bulbs.

Jeep Gladiator Budget LED Headlights?? Diode Dynamics


Jeep Gladiator Budget LED Headlights?? Diode Dynamics


Jeep Gladiator Budget LED Headlights?? Diode Dynamics
That last pic is crazy! Looks like I might need to save up for the Elite headlights!


Camaroboi13

Well-Known Member
First Name
Justin
Joined
Aug 22, 2022
Threads
7
Messages
866
Reaction score
1,202
Location
SoCal
Vehicle(s)
87 XJ Pioneer, 17 WK2 3.6, 18 JLU 3.6, 22 JTOD 3.0
Occupation
LEO - Life in Chino

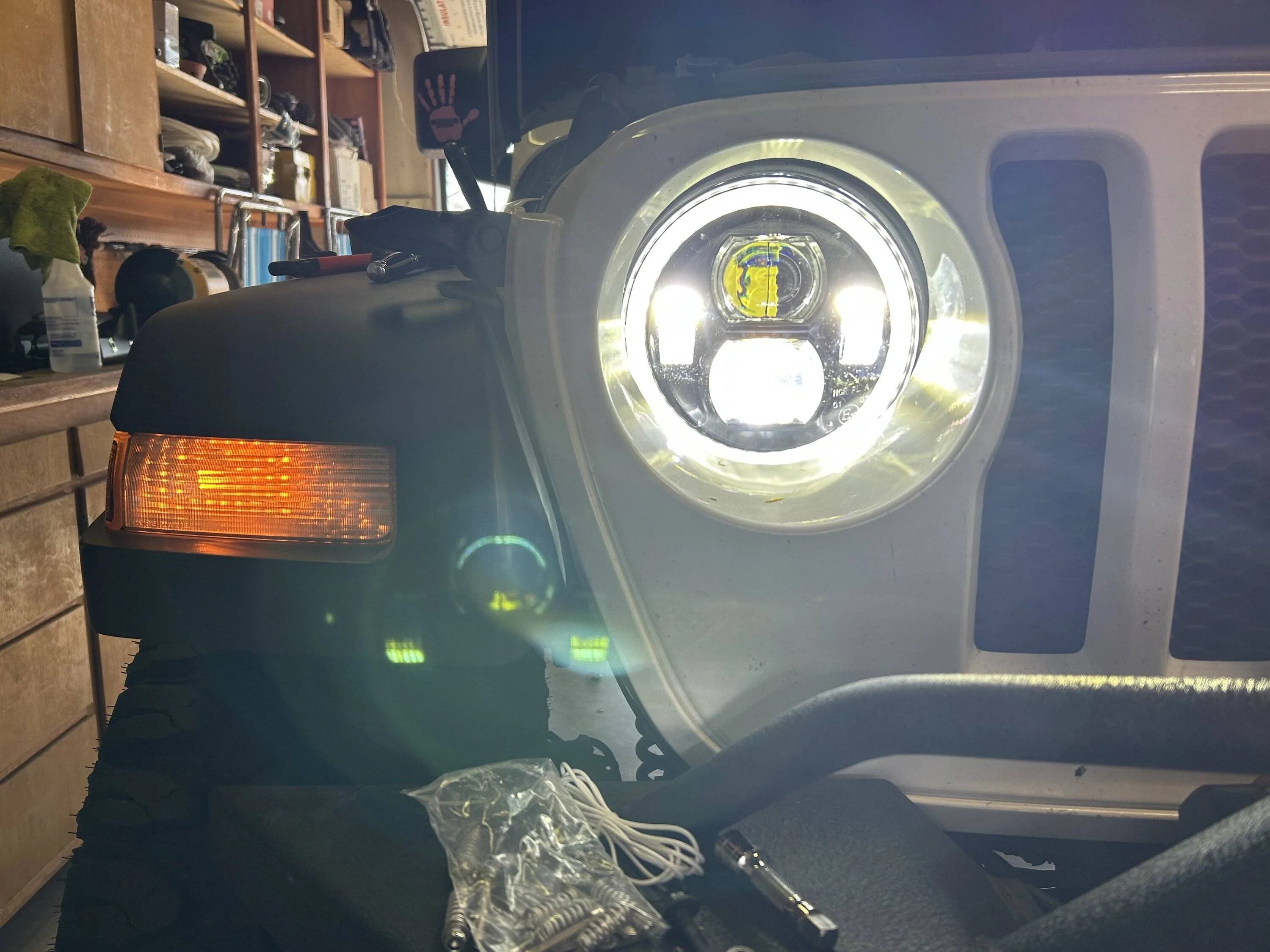

Jeep Gladiator Budget LED Headlights?? IMG_3437

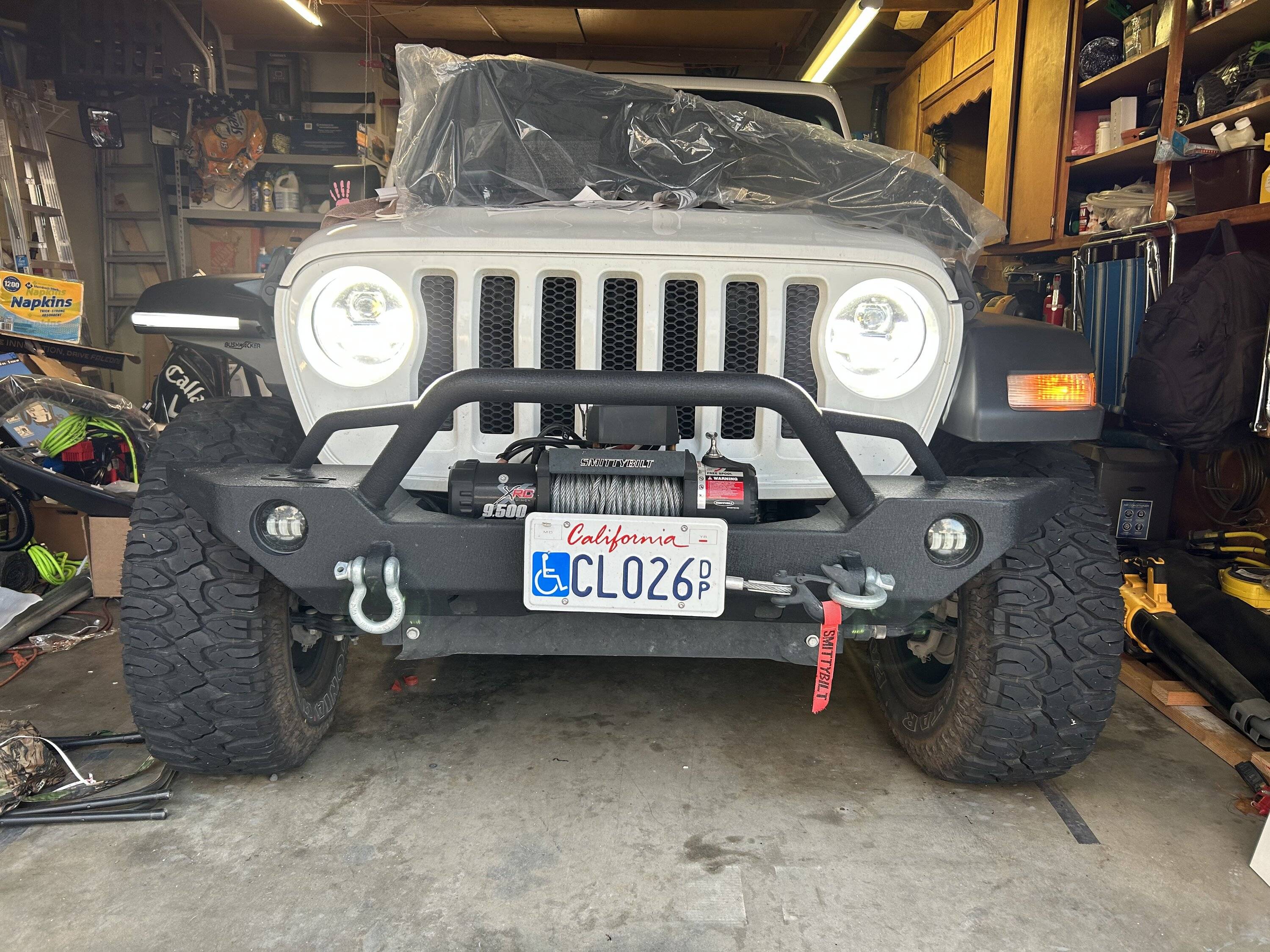

Jeep Gladiator Budget LED Headlights?? IMG_3822

Amazon specials in my wife’s JLU. Some hot spots but light years ahead of led bulbs in halogen housings. Once I added the bushwhacker fenders it almost looks like it came with the led package.


Sponsored

DailyMoparGuy

Well-Known Member
First Name
Scott
Joined
Mar 6, 2021
Threads
4
Messages
1,171
Reaction score
2,241
Location
Worcester, MA
Vehicle(s)
2021 Gladiator Sport S 3.6L
Occupation
Engineer
LoyoLED. Been running mine for 2 years or so now. Been flawless. They mostly sell the 7” headlights for JLs but include a bracket to fit on JTs

They have 2 different 9” headlights specifically for the JT last time I checked though.

Great customer service, highly recommend.


Britton

Active Member
First Name
Britton
Joined
Jun 14, 2022
Threads
1
Messages
26
Reaction score
6
Location
Weatherford Texas
Vehicle(s)
2022 JT Gladiator
Occupation
Real Estate Consultant
I have been running these since April with no issues whatsoever.
Z-OFFROAD DOT Approved 9 Inch LED Headlights w/White Halo DRL Compatible with Jeep Wrangler JL 2018-2022 Jeep Gladiator JT Hi/Lo Beam Adjustable Headlamp Replacement https://a.co/d/bCQYptn


darkhorse13

Well-Known Member
First Name
John
Joined
Jun 4, 2020
Threads
39
Messages
586
Reaction score
866
Location
Castle Rock, CO
Vehicle(s)
2020 JTR
Occupation
Data Analyst
Sorry I don't have a "budget" recommendation for you. For me, this is a "buy once, cry once" type of purchase. Headlights are a huge safety component IMO and my original OEM halogens were terrible. I personally believe the Diode Dynamics LED offering is the BEST on the market currently. You can save some money by just doing the Elite version as the projectors are the same as the Max version.

Here's some of my comparison posts if you want to kill some time :)

https://www.jeepgladiatorforum.com/...oculus-9-vs-morimoto-mled-2-0-retrofit.39346/

https://www.jeepgladiatorforum.com/...lights-from-diode-dynamics.64314/post-1094429


ORACLE Terry

Peak Sponsor (Level 2)
First Name
Terry
Joined
Aug 31, 2023
Threads
26
Messages
144
Reaction score
78
Location
New Orleans, LA
Vehicle(s)
Gladiator, Wrangler JL, Bronco, RAM TRX
Deciding on whether to upgrade the full headlight housing or just go with some LED bulbs. I've looked at some previous posts about doing it correctly and upgrading the entire assembly and then there are those who have had success with upgrading the led bulbs.

For those who have upgraded the entire headlight housing, did you go with one from amazon or did you go with the Oracles/Diode Dynamics/etc. big names?

Any issues with the budget options? Any issues with the Oracle or Diode Dynamic options?
We have several offerings from the Oracle Jeep JL/JT 7" High Powered LED Headlights and the Oracle Oculus Bi-LED Headlight for Jeep JL / JT. These are user installable and safely light up the trail or highway in front of you. We are currently running a gift card promotion to sweeten the deal.

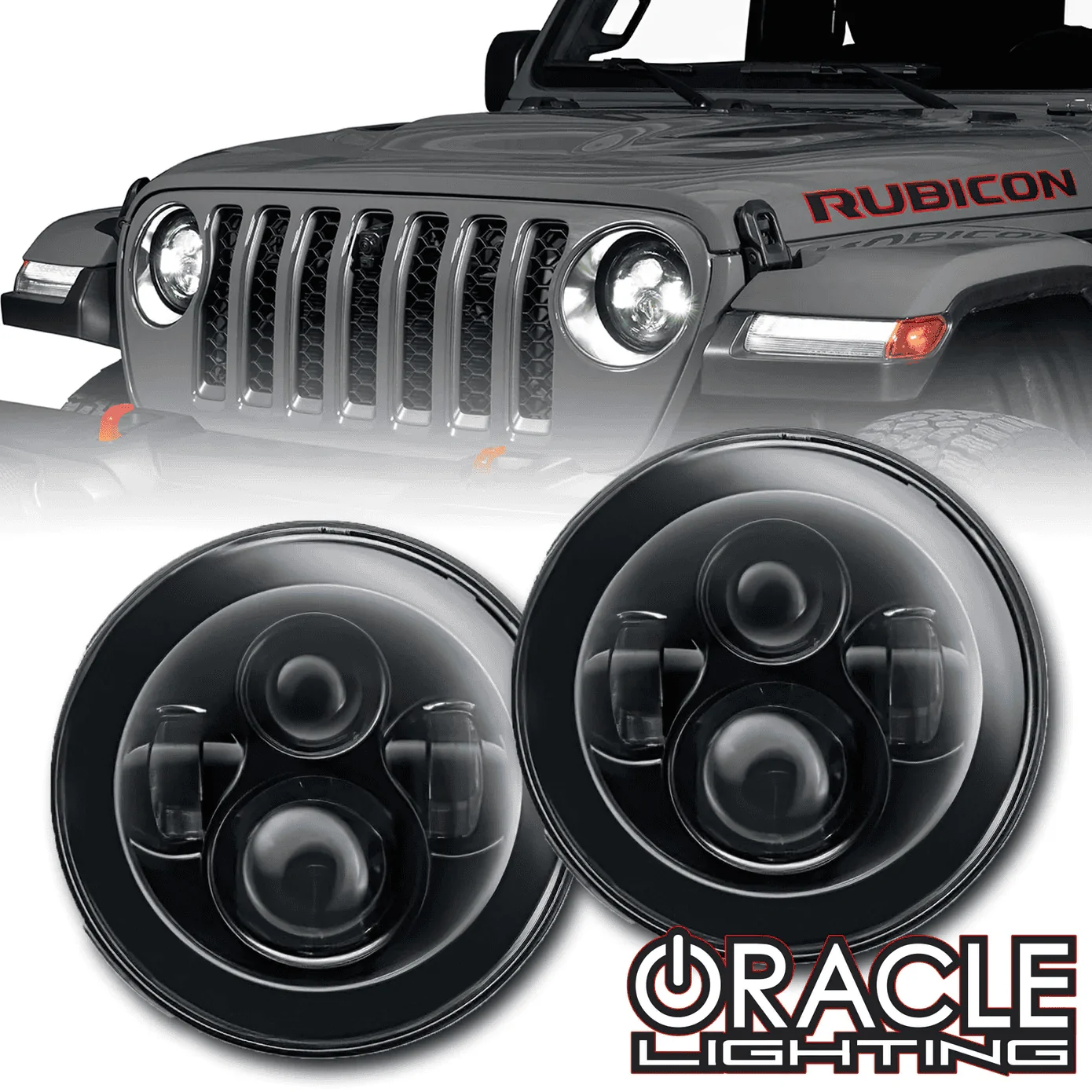

7" High Powered LED Headlights Here:
Jeep Gladiator Budget LED Headlights?? 1701973115881

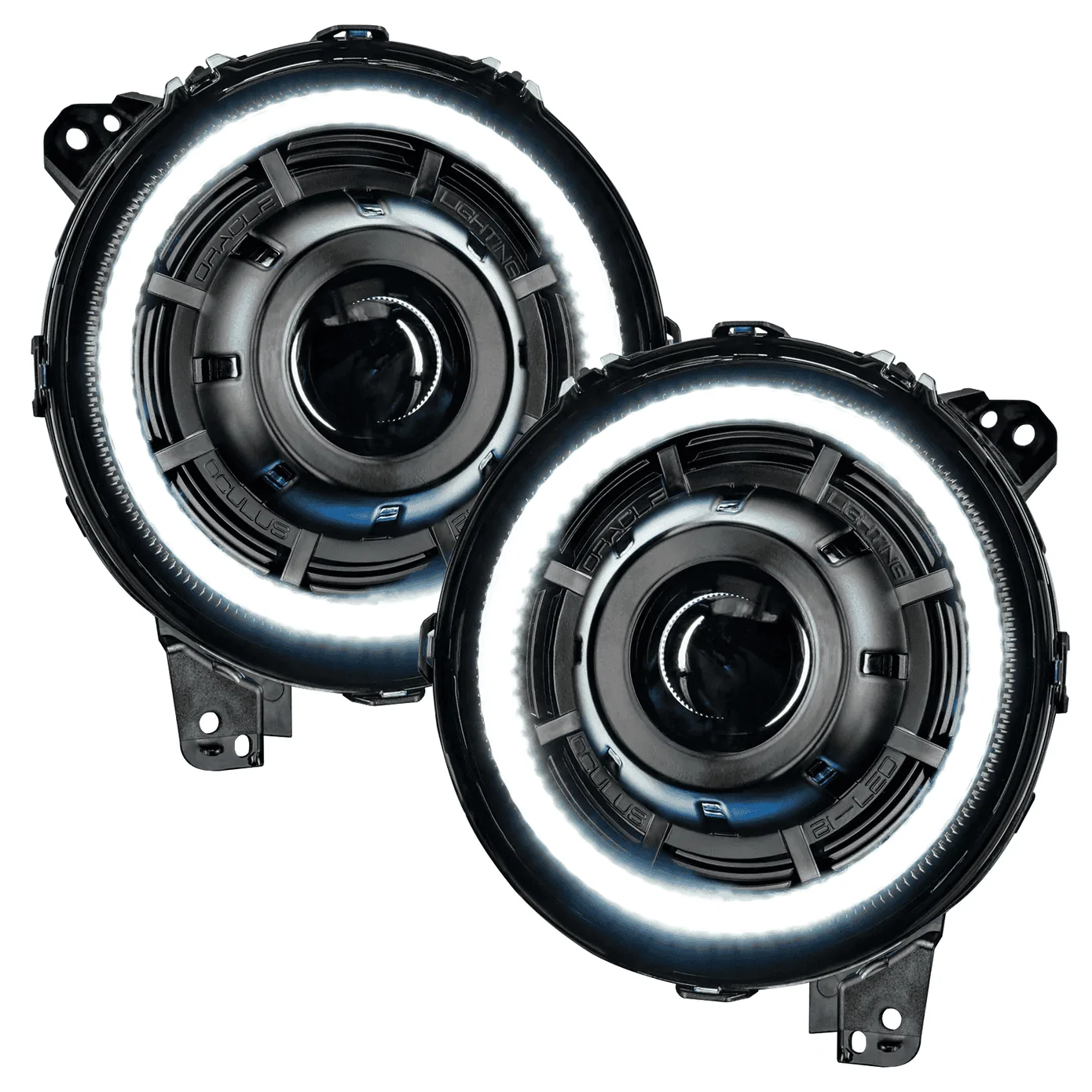

Oracle Bi-LED Oculus Here:
Jeep Gladiator Budget LED Headlights?? 1701972840270



Spend $300 and you get a $30 Oracle Lighting eGift Card when you use code: GIVE30
Jeep Gladiator Budget LED Headlights?? giftcard-promo-c-JT


Idlethunder

Well-Known Member
First Name
David
Joined
Mar 22, 2022
Threads
9
Messages
385
Reaction score
358
Location
Oklahoma
Vehicle(s)
2022 Gladiator Rubicon
That last pic is crazy! Looks like I might need to save up for the Elite headlights!
I was completely happy with the LED bulbs and really didn’t intend to upgrade. The reason I did was after reading so many good things about the Diode Dynamics Elite lights here on the forum I wanted to try them myself. When I called during their black Friday sale I told the guy that I wanted to try them but would probably return them. He said that was fine and that they have a satisfaction guarantee with a 30 day return policy. It took a little work to get the lights dialed in hieght wise but after using them for 2 weeks, I'm keeping them.


Sponsored

JRobes

Well-Known Member
Joined
Oct 27, 2019
Threads
10
Messages
915
Reaction score
1,415
Location
South Dakota
Vehicle(s)
2020 JT Sport S Max Tow, 2004 WJ Overland
Occupation
Enginerd
I also went from halogen bulb, to Beamtech LED bulbs (which work well), to DD Elites (non-max) and have been very happy with the Elites so far. Definitely some install headaches with them, but was worth the cost and effort. I think I got mine for around $650 from Northridge 4x4 when they were running a sale. I also have the DD SS3 Pro fog lights and am completely happy with both sets, and don't find myself wishing I had gone any other direction.

Last edited:

ErrngeElise

Well-Known Member
First Name
John
Joined
Mar 7, 2022
Threads
6
Messages
120
Reaction score
100
Location
Central FL
Vehicle(s)
Lotus Elise, '21 JTR 6MT
Occupation
Engineer
I would highly recommend the Diode Dynamics Elite headlights. They aren't budget units, but "buy once cry once." They are just better built. The 8 year warranty is nice too.

My truck came with the OEM LED and those were pretty good, very good compared to the halogens, but even still the DD units are soooo much better. The cutoff is crisp, more output, and they are feature packed (I sprung for the Elite Max). The cutoff is key. I was getting high beams flashed at me with the OEM ones a few times over the few weeks after I got the truck but before putting the DD units in. The OEM LEDs seemed to be aligned correctly, but I guess people thought they made too much glare? I don't know, but it hasn't happened yet with the DD.

They are a bit of a bear to get aligned. If you get them, I recommend trying to align the driver's side first and when you are happy with that, then make the passenger side match that while facing a wall. The reason is that you can just barely reach the adjuster on the drivers side. The passenger side basically requires you to remove the headlight or the air intake filter housing to access the adjuster.


msiminoff

Member
First Name
Mark
Joined
Nov 28, 2023
Threads
2
Messages
11
Reaction score
2
Location
Silicon Valley, CA
Vehicle(s)
2023 Gladiator Mojave
I was also recently in the market for budget headlights... and mostly interested in on-road performance (I have DD Pro's in the bumper and a 50" RC light bar, so off-road lighting is covered). Aftyer reading lots of reviews I finally settled on some cheap-o True Mods from Amazon.
I'm shocked at how much I like them, especially for the price! They're plenty bright, have nice looking halos (connected to my #4 Aux switch), and an acceptable cut-off.
Images below are low and high beams at 25' from the wall
-Mark

Jeep Gladiator Budget LED Headlights?? LowBeam.JPG


Jeep Gladiator Budget LED Headlights?? HighBeam.JPG

OP
OP

mersinery

Active Member
First Name
J
Joined
Nov 5, 2023
Threads
4
Messages
25
Reaction score
14
Location
MD
Vehicle(s)
Jeep Gladiator Sport S
I was also recently in the market for budget headlights... and mostly interested in on-road performance (I have DD Pro's in the bumper and a 50" RC light bar, so off-road lighting is covered). Aftyer reading lots of reviews I finally settled on some cheap-o True Mods from Amazon.
I'm shocked at how much I like them, especially for the price! They're plenty bright, have nice looking halos (connected to my #4 Aux switch), and an acceptable cut-off.
Images below are low and high beams at 25' from the wall
-Mark

Jeep Gladiator Budget LED Headlights?? HighBeam.JPG


Jeep Gladiator Budget LED Headlights?? HighBeam.JPG
Was it plug and play or did you have to change the settings to LED using a Tazer or Jscan?


msiminoff

Member
First Name
Mark
Joined
Nov 28, 2023
Threads
2
Messages
11
Reaction score
2
Location
Silicon Valley, CA
Vehicle(s)
2023 Gladiator Mojave
....did you have to change the settings to LED using a Tazer or Jscan?
True Mods claims that their headlights are plug & play. However I already had the Tazer Mini in the JT when I installed them, so no surprise; I haven't had any hyper-flash or bulb-out issues.
As a quick test I turned OFF the LED headlight setting in Tazer this morning and I still didn't have any issues. So I'm gonna say that they're truly plug & play.

That said one of the Amazon reviews did mention a high beam issue that may have been related to CANBUS stuff. YMMV.
