Building a Mojavicon: Adding Lockers and Swaybar to a Mojave

Beowulf

Well-Known Member
Joined
Dec 24, 2017
Messages
157
Reaction score
83
Location
Colorado
Vehicle(s)
Jeep Wrangler Rubicon Unlimited
I really like all the updates to the Mojave, but still want the OEM sway bar disconnect and front locker.

What are the chances, the wiring harness is the same? Also, wondering if the fox reservoir location would impede the installation of the OEM swaybar disconnect.

Items needed?
Most likely need

All in I'm guessing around $2500 or less to add everything to have a Mojavicon.

Let's hear your thoughts on doing this. Let's not do a debate on Rubicon vs Mojave, there are other threads for that. I just want to discuss the creating this combo.



mopar-77072413-locker-switch-harness-jeep-wrangler-unlimited-rubicon-jl-jlu-tabletop-main.jpg








Advertisement


Joined
Mar 5, 2020
Messages
1,965
Reaction score
2,247
Location
Lake Martin, Alabama
Vehicle(s)
2020 Jeep Gladiator Rubicon
Vehicle Showcase
1
You'll probably need a master install kit for shimming and setting backlash on the front diff with the new locker and gear set. Every ring & pinion spacing is different, no matter how precisely and consistently they're forged and milled. You could luck-up, and it could be a perfect drop-in, and when you paint the gears, everything is getting 100% contact... But the odds of that are VERY slim.

OP

Beowulf

Well-Known Member
Joined
Dec 24, 2017
Messages
157
Reaction score
83
Location
Colorado
Vehicle(s)
Jeep Wrangler Rubicon Unlimited
  • Thread starter
  • Thread Starter
  • #3
You'll probably need a master install kit for shimming and setting backlash on the front diff with the new locker and gear set. Every ring & pinion spacing is different, no matter how precisely and consistently they're forged and milled. You could luck-up, and it could be a perfect drop-in, and when you paint the gears, everything is getting 100% contact... But the odds of that are VERY slim.

I had planned on regearing anyways when I go with 37s.


capercrew02

Well-Known Member
First Name
Steven
Joined
May 26, 2018
Messages
187
Reaction score
245
Location
Corona,Ca
Vehicle(s)
Jeep WJ, BMW i3, Red JTR.
Following closely, but additionally, the locker switch you are showing is for a jlu, not the gladiator that also has the Offroad plus button.


Bjeepz

Well-Known Member
First Name
B
Joined
Nov 21, 2019
Messages
149
Reaction score
72
Location
Canada
Vehicle(s)
2020 Overland
I would skip the factory disconnect setup and go with an anti rock setup for simplicity and cost. There are also the JKS flex connects that ppl seem to like.


Jimmy

Active Member
Joined
Nov 17, 2019
Messages
42
Reaction score
39
Location
CO
Vehicle(s)
1994 Land Rover Discovery, 2009 Toyota Tacoma
This was the first thing I thought of when I read about the Mojave! Add the swaybar and front locker... and if the transfer case gearing isn't low enough for the wheeling I do, then throw in a Rubicon case too. I suspect it's easier to do this than to take a Rubicon and swap in the stronger frame, front steering knuckles, hydraulic bump stops, etc.


ACAD_Cowboy

Well-Known Member
First Name
Francis
Joined
May 1, 2019
Messages
1,023
Reaction score
1,303
Location
NY
Vehicle(s)
15 jkur

Sorbs

Well-Known Member
First Name
Brian & Sunny
Joined
Aug 3, 2018
Messages
771
Reaction score
1,300
Location
Colorado Springs
Vehicle(s)
2020 Gladiator LE, 2018 2dr JLR 6-SPD, 2015 Hellcat Challenger
Vehicle Showcase
1
I had planned on regearing anyways when I go with 37s.
I’m running 37’s at 6,000’ altitude. No issues and I get 20 miles per gallon. Save your money. As a matter of fact, buy a Rubicon and put remote reservoir shocks on it. There, saved you thousands, and you have a better Mojave.


jwilson2899

Well-Known Member
First Name
Jeff
Joined
Nov 11, 2019
Messages
518
Reaction score
588
Location
Front Royal, VA
Vehicle(s)
2020 Gladiator Rubicon Launch Edition, 2004 Wrangler Unlimited
Occupation
System Engineer
Vehicle Showcase
1
One thing I’m curious of is it looks like the front shock reservoirs are mounted where the sway bar disconnect motor would go. I’m wondering if that was part of the reason disconnect isn’t available on the Mojave.

OP

Beowulf

Well-Known Member
Joined
Dec 24, 2017
Messages
157
Reaction score
83
Location
Colorado
Vehicle(s)
Jeep Wrangler Rubicon Unlimited
  • Thread starter
  • Thread Starter
  • #11
One thing I’m curious of is it looks like the front shock reservoirs are mounted where the sway bar disconnect motor would go. I’m wondering if that was part of the reason disconnect isn’t available on the Mojave.

I’m wondering the same thing, but it would not be hard to mount that reservoir somewhere else.


WhatExit?

Banned
First Name
Dan
Joined
Sep 13, 2018
Messages
2,094
Reaction score
3,483
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
2
I’m running 37’s at 6,000’ altitude. No issues and I get 20 miles per gallon. Save your money. As a matter of fact, buy a Rubicon and put remote reservoir shocks on it. There, saved you thousands, and you have a better Mojave.

@Sorbs is right on target. I've said this before - buy and start with the Rubicon and modify it. You'll likely replace the shocks anyway so you're on your way to the Mojave (it means "Must-have Gladiator" around here :LOL: )

OP

Beowulf

Well-Known Member
Joined
Dec 24, 2017
Messages
157
Reaction score
83
Location
Colorado
Vehicle(s)
Jeep Wrangler Rubicon Unlimited
  • Thread starter
  • Thread Starter
  • #13
I’ve thought about, but just want to try something different.


Sal

Well-Known Member
First Name
Carlos
Joined
Jul 13, 2019
Messages
245
Reaction score
254
Location
Miami
Vehicle(s)
Gladiator
I

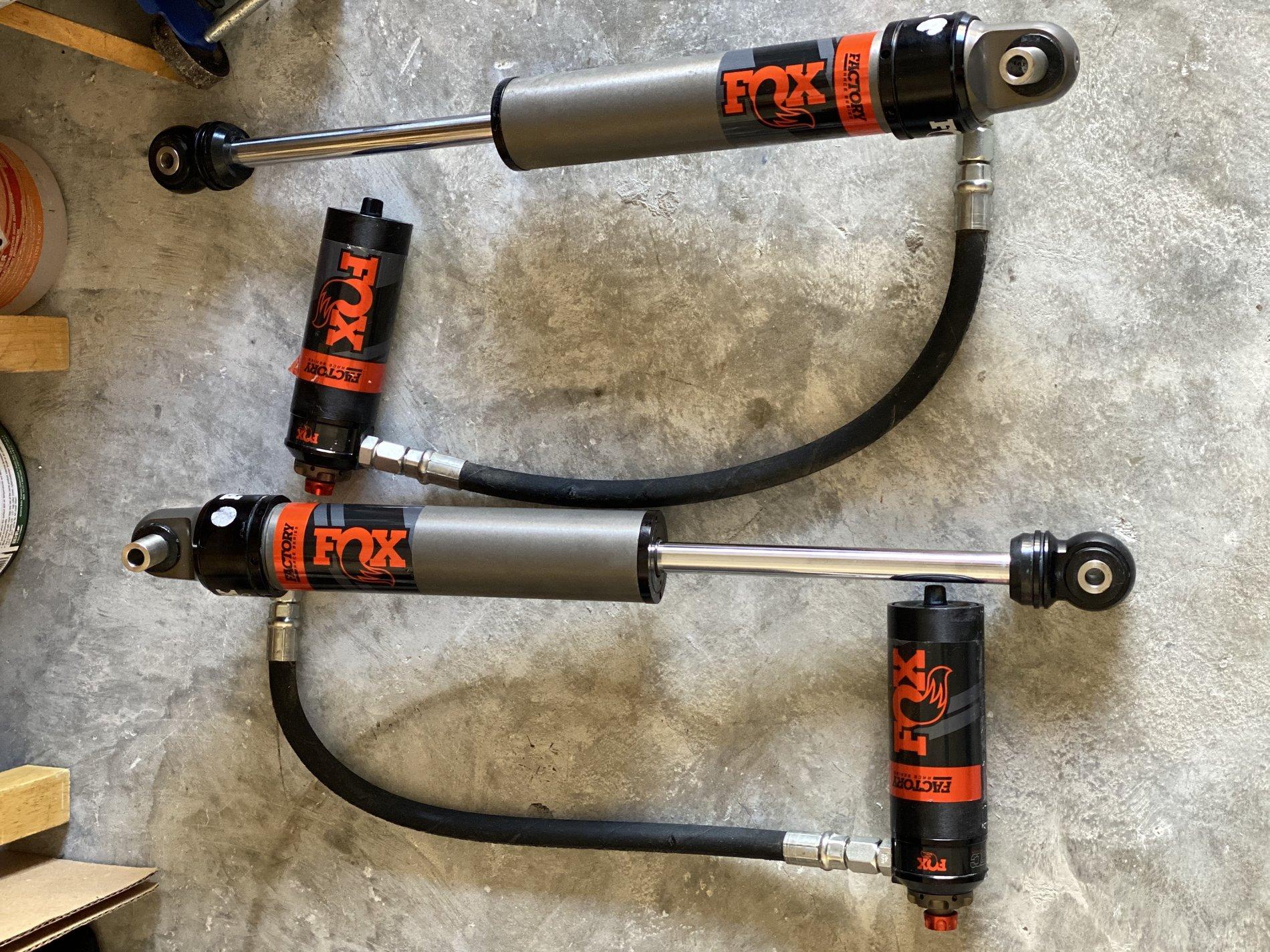

I’m running 37’s at 6,000’ altitude. No issues and I get 20 miles per gallon. Save your money. As a matter of fact, buy a Rubicon and put remote reservoir shocks on it. There, saved you thousands, and you have a better Mojave.
agree with this. This is for sale btw



Len

Well-Known Member
First Name
Len
Joined
Aug 21, 2019
Messages
150
Reaction score
132
Location
Virginia
Vehicle(s)
Jeep
I wish Jeep would combine the Mojave and the Rubi, that would be the ultimate machine. I also believe that the Mojave has a wider stance so you may have to take that into consideration as well. Good luck and let us know how it works out. I would love to see that build.
