Hey all! We've been talking about this for a while and for something seemingly simple, it took longer than expected to iron out the details to my satisfaction and get things into production. Anyway, here's what you need to know about our BuiltRight Utility Rail System!

Why?
This is simple. For those of us whose Gladiators didn't come with the trail rail kit from the factory, the only available option if you want to take advantage of an awesome feature is to purchase the Mopar kit separately. I did this right away and the truth is, it's not a bad kit, even at the ~$400 price point. That being said, my first thought was that I could probably accomplish the same or better functionality for nearly half the price. Here were the goals:

1. Fit using only the factory-provided mounting features in the bed
2. Match the depth of the Mopar kit, so that most/all accessories would fit both systems
3. Allow accessories to be easily attached without sliding a t-slot nut in from one end
4. Cost around $200 complete

The Result?
I made a quick video last night (below) but the bottom line is, the Gladiator utility rail kit turned out great! Part of the challenge was that standard strut channel wasn't the right depth, nor did the slots/holes line up well or at all. I ended up having to custom order 2000ft of plain steel extrusion (my wallet didn't appreciate that) and then cut it to length and cut the correct bolt pattern, but the finished product is fantastic. We finished each piece with a durable black texture powdercoat inside and out and have custom injection-molded plastic caps for each end of each rail.

Functionally, the strut channel characteristics are fantastic. Strut channel hardware can be used for easy installation and configuration of attachments and accessories. I'll be adding my bike fork adapter tonight and will post pictures.

Pricing, ordering and shipping?
Since part of the goal was to get costs as low as possible, I wanted to wait until I had the first production run nearly complete before setting pricing and taking payment. Well, we're there! Pleased to announce that we were able to produce and package the entire kit and hit an MSRP of $230 with discounted pre-ordering open immediately. Each kit includes the following:
  • (2x) Side Rail
  • (1x) Front Rail
  • (6x) End Cap
  • (12x) M6x1.0 Bolt
We're still waiting on the injection molding tooling for the black plastic end caps, which could take 3-4 more weeks and then we can shoot the parts and get everything shipped. The first week of December is our current target ship date.

I think that covers most of it! If I missed anything or you have questions, let me know! We have a couple kits out to SEMA builds and one kit out to @steffen707 as a thank you for his awesome and unsolicited video about our product packaging, so you guys will hopefully see some more installed photos and reviews shortly.

Matt Beenen
Engineering










(red caps are 3d printed prototypes)

(red caps are 3d printed prototypes)



Advertisement




Mkcagle

Well-Known Member
First Name
Michael
Joined
Jul 27, 2019
Messages
309
Reaction score
208
Location
Biloxi, MS
Vehicle(s)
2020 Jeep JT Gladiator Sport S w/max tow
Will this work with Rough Country hard folding tonneau cover installed?


steffen707

Well-Known Member
Joined
Jan 28, 2018
Messages
8,243
Reaction score
8,025
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
I think that covers most of it! If I missed anything or you have questions, let me know! We have a couple kits out to SEMA builds and one kit out to @steffen707 as a thank you for his awesome and unsolicited video about our product packaging, so you guys will hopefully see some more installed photos and reviews shortly.
HOLY SH*T! Thanks bud! :like:

I'll try to make a better video this time.

You coming out with some snazzy easily movable tie downs like the MOPAR one has?


steffen707

Well-Known Member
Joined
Jan 28, 2018
Messages
8,243
Reaction score
8,025
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
where can we buy the spring loaded strut nuts? what bolt thread do you recommend to work with your bedside racks as well?

are they 1 1/2" strut channel? looks like the nuts from the racks are 1 3/8" wide with 1/4" 20thread holes?

Last edited:

abugarcias

Active Member
First Name
Reuben
Joined
Mar 21, 2019
Messages
41
Reaction score
24
Location
Colorado Springs, CO
Vehicle(s)
2020 Jeep Gladiator Rubicon
Do you have tie down points for sale that fit in the track or know of any others currently for sale that would fit?

OP
BuiltRight

BuiltRight

Rock Sponsor (Level 1)
First Name
Matt
Joined
May 27, 2019
Messages
123
Reaction score
300
Location
CT
Vehicle(s)
2020 Gladiator
  • Thread starter
  • Thread Starter
  • #6
Will this work with Rough Country hard folding tonneau cover installed?
That's a good question - I'll try to confirm. If the cover fits with the OEM Mopar rails, it'll fit with ours, though.
HOLY SH*T! Thanks bud! :like:

I'll try to make a better video this time.

You coming out with some snazzy easily movable tie downs like the MOPAR one has?
Yes! See below!
where can we buy the spring loaded strut nuts? what bolt thread do you recommend to work with your bedside racks as well?

are they 1 1/2" strut channel? looks like the nuts from the racks are 1 3/8" wide with 1/4" 20thread holes?
You can find them at most hardware stores. Look near the electrical boxes and such. The 1/4in nuts that we include with the panels will work great, but I believe the panels will accept a 3/8in bolt just fine as well!

Don't need a better video - you're first one was great. Don't worry about being fancy, just be genuine!
Do you have tie down points for sale that fit in the track or know of any others currently for sale that would fit?

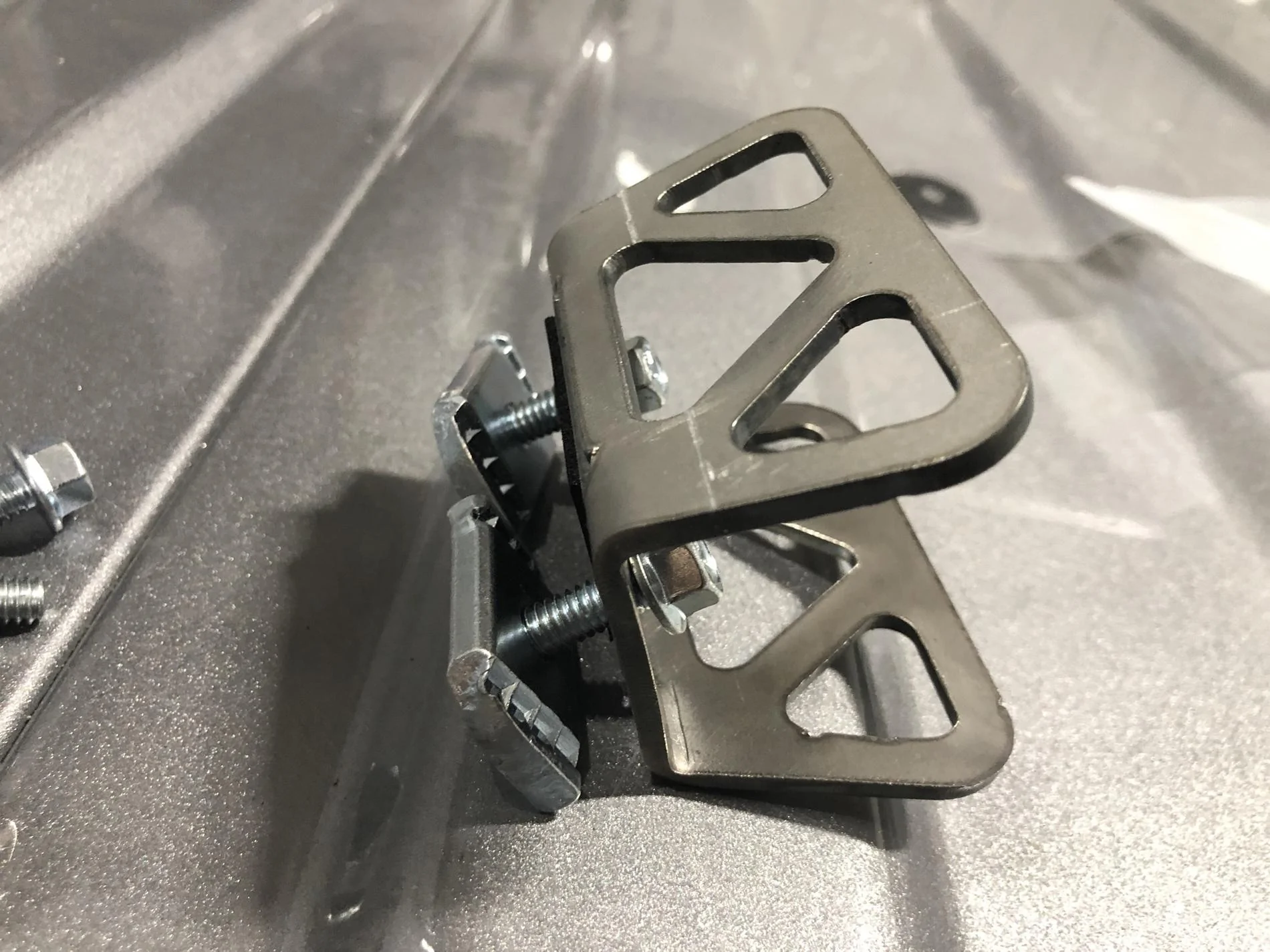

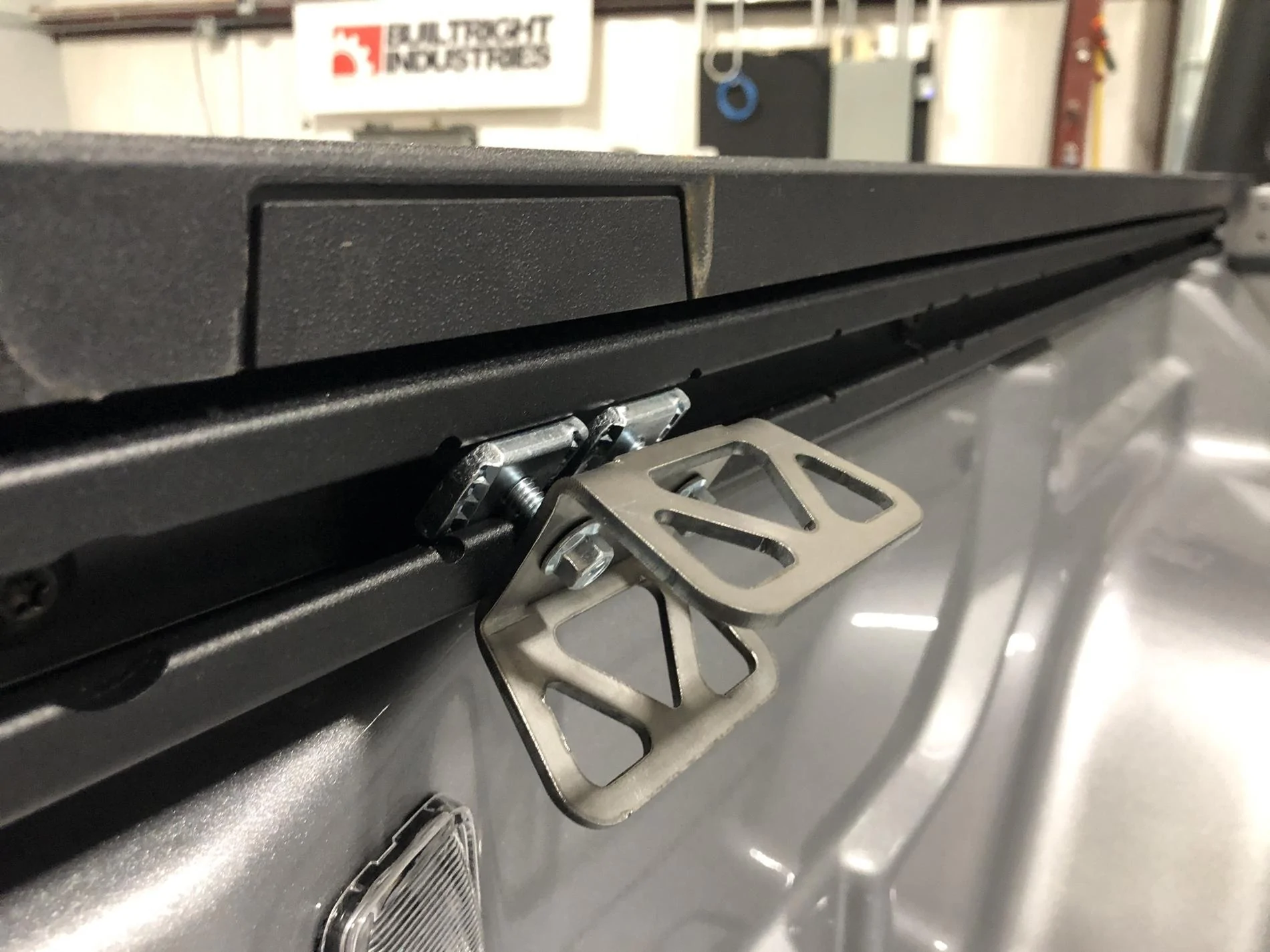

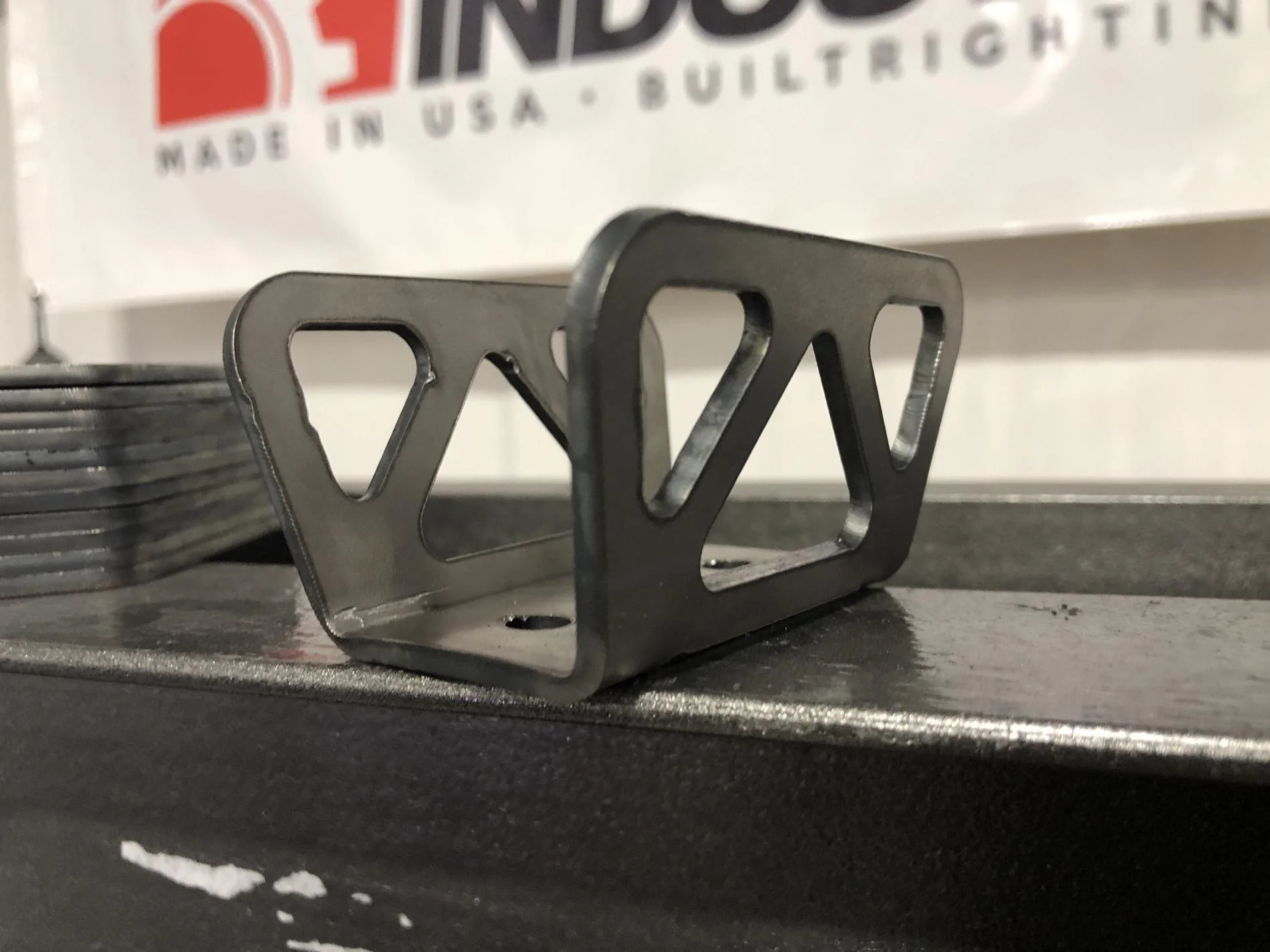

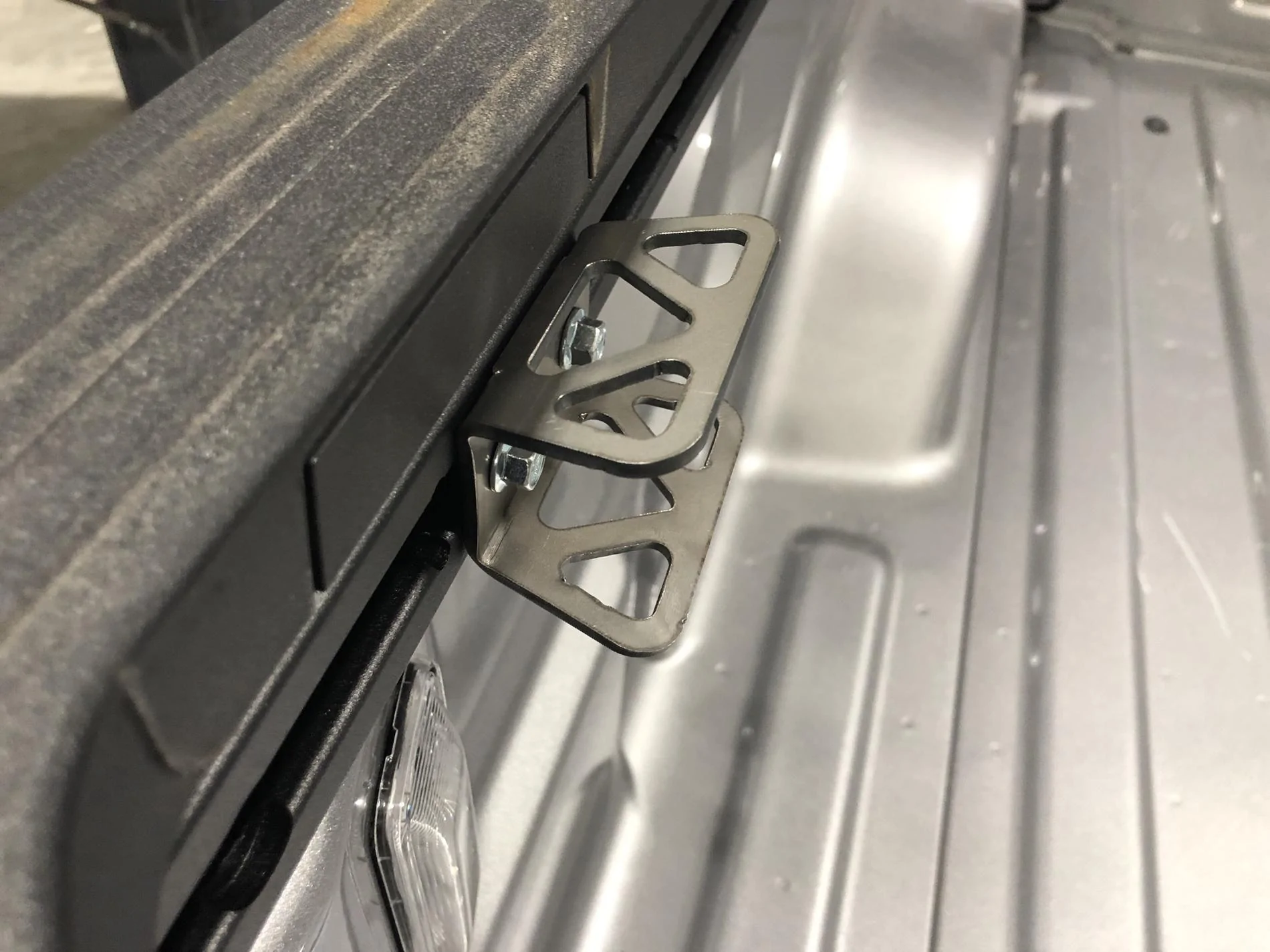

Tie downs coming for sure! Here's one I've been kicking around (this is plasma cut, but production would be done on the laser for clean edges and then tumbled to round the sharp edges). Will be making some changes from here, but you get the idea.

Any special requests or ideas? Attachments on my 'wish list' include maxtrax mounts, spare tire mounts and a bike rack solution.

Matt









abugarcias

Active Member
First Name
Reuben
Joined
Mar 21, 2019
Messages
41
Reaction score
24
Location
Colorado Springs, CO
Vehicle(s)
2020 Jeep Gladiator Rubicon
That's a good question - I'll try to confirm. If the cover fits with the OEM Mopar rails, it'll fit with ours, though.

Yes! See below!

You can find them at most hardware stores. Look near the electrical boxes and such. The 1/4in nuts that we include with the panels will work great, but I believe the panels will accept a 3/8in bolt just fine as well!

Don't need a better video - you're first one was great. Don't worry about being fancy, just be genuine!

Tie downs coming for sure! Here's one I've been kicking around (this is plasma cut, but production would be done on the laser for clean edges and then tumbled to round the sharp edges). Will be making some changes from here, but you get the idea.

Any special requests or ideas? Attachments on my 'wish list' include maxtrax mounts, spare tire mounts and a bike rack solution.

Matt







Those look stout! Would they have quick release knobs instead of the bolt so you could move them around easily? Bike fork mount would be nice along with hi lift mount.

OP
BuiltRight

BuiltRight

Rock Sponsor (Level 1)
First Name
Matt
Joined
May 27, 2019
Messages
123
Reaction score
300
Location
CT
Vehicle(s)
2020 Gladiator
  • Thread starter
  • Thread Starter
  • #8
Those look stout! Would they have quick release knobs instead of the bolt so you could move them around easily? Bike fork mount would be nice along with hi lift mount.
Yea, could certainly use thumb screws instead of bolts. Wonder if I could come up with a clever quarter-turn option as well. I'll kick that around a bit!

Matt


Tim

Well-Known Member
First Name
Tim
Joined
Jul 30, 2019
Messages
130
Reaction score
127
Location
New Jersey
Vehicle(s)
2020 JTR
I'll drop in another vote for a bike mount.


dwcarr

New Member
First Name
Dustin
Joined
Aug 31, 2019
Messages
3
Reaction score
2
Location
Alpharetta, Ga
Vehicle(s)
Gladiator Sport S
Awesome. I just placed my order. I hope you can meet your early December target so I am ready for our Christmas trip.

Now I need advice on how to get 4 bikes and 2 Kayaks mounted.

OP
BuiltRight

BuiltRight

Rock Sponsor (Level 1)
First Name
Matt
Joined
May 27, 2019
Messages
123
Reaction score
300
Location
CT
Vehicle(s)
2020 Gladiator
  • Thread starter
  • Thread Starter
  • #11
Awesome. I just placed my order. I hope you can meet your early December target so I am ready for our Christmas trip.

Now I need advice on how to get 4 bikes and 2 Kayaks mounted.
Awesome!


steffen707

Well-Known Member
Joined
Jan 28, 2018
Messages
8,243
Reaction score
8,025
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
What about a spring loaded strut stud with a plastic knob?


steffen707

Well-Known Member
Joined
Jan 28, 2018
Messages
8,243
Reaction score
8,025
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
Or a plastic knob with 1/4" stud?

download (6).jpeg


shopping (1).jpeg


steffen707

Well-Known Member
Joined
Jan 28, 2018
Messages
8,243
Reaction score
8,025
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"

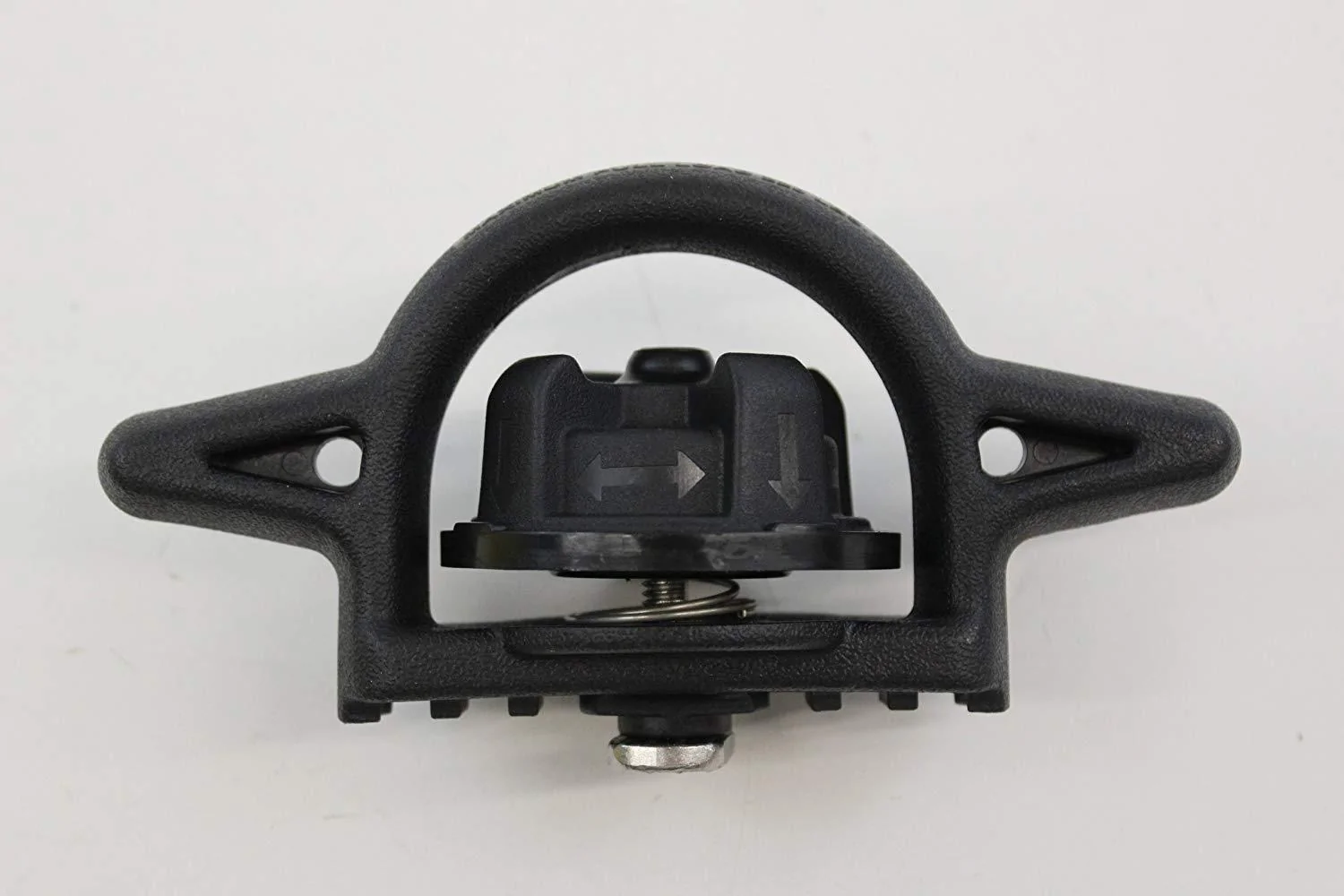

The tie down cleats for Toyota Tacoma fit the cargo rail system on the Gladiator
how about this,


plus this with a spring between the tie down and knob?


that would look similar to this, but not as plasticky.


Okay, i'll stop now. :giggle:
