Can anyone tell me the specs on the front shock bolts on a Sport/Overland/Rubicon VS. The mojave ?

Penecalea

Active Member
First Name
Andrew
Joined
Dec 18, 2020
Threads
6
Messages
35
Reaction score
73
Location
Pennsylvania 🌲
Vehicle(s)
2020 jeep gladiator

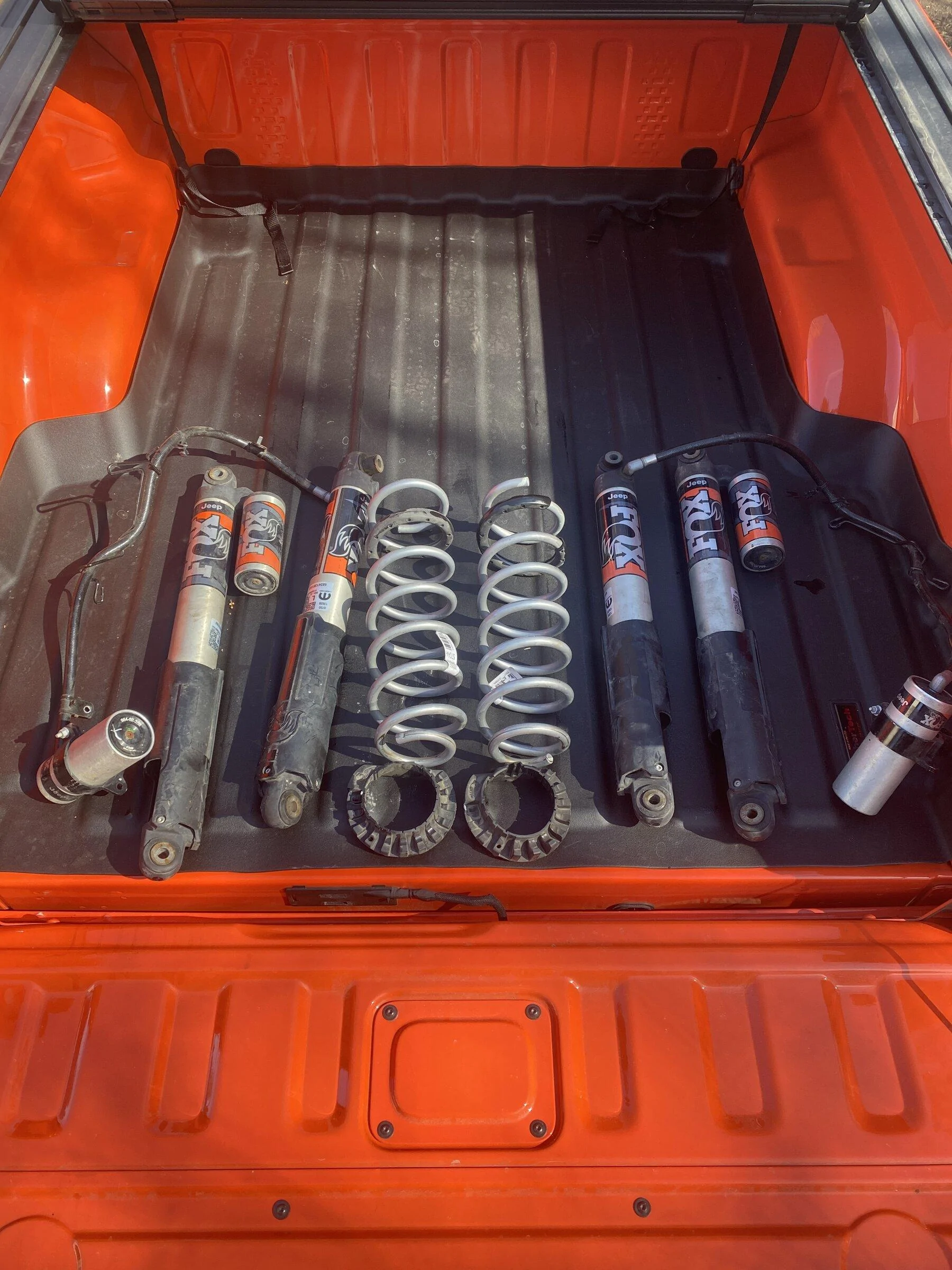

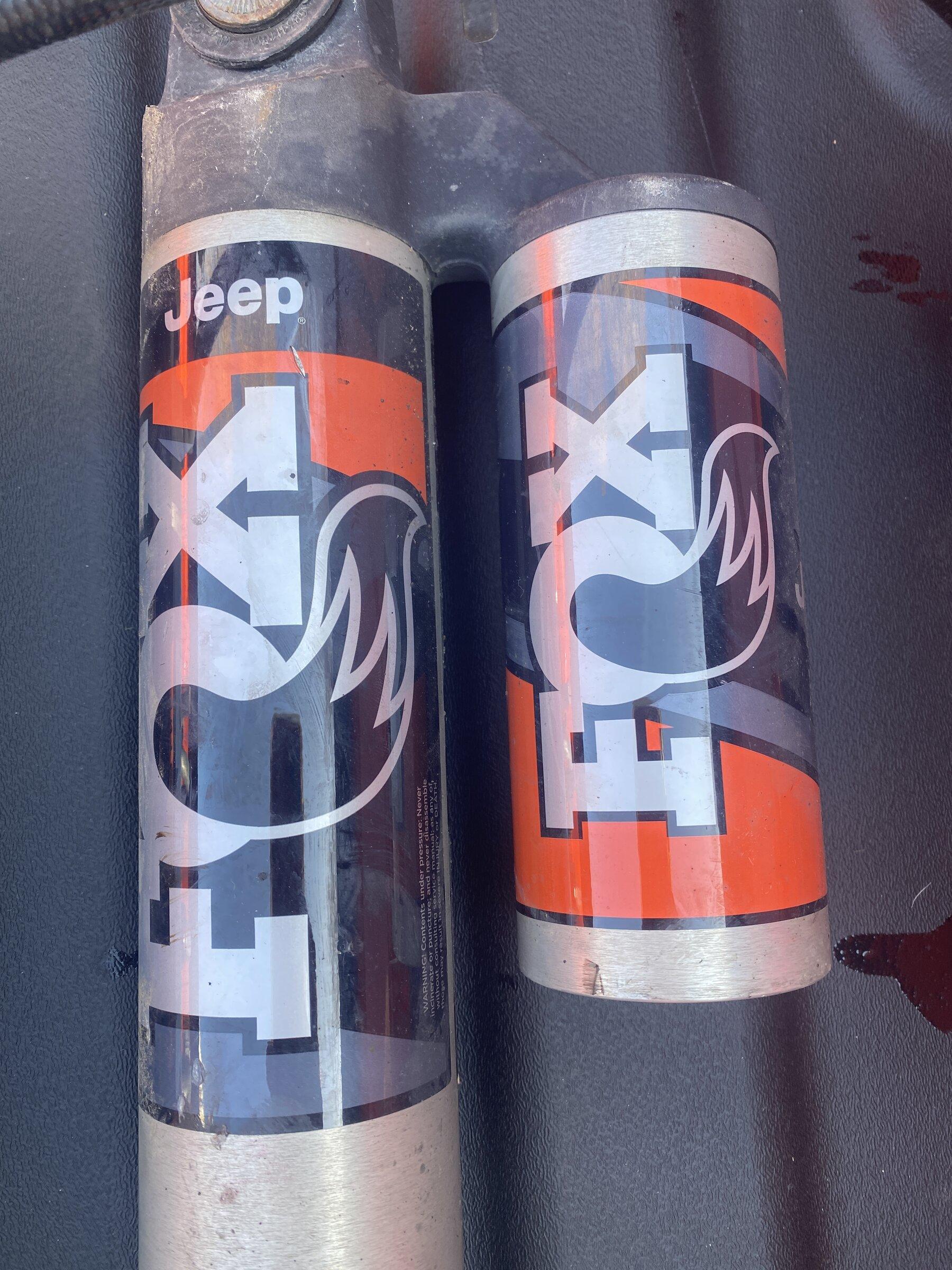

Okay guys and gals, I recently scored a Mojave take off suspension, shocks and springs and what to work on getting them on my truck. Everything I have read so far is that it will be 100% direct swap other then the one bolt on the front shocks being slightly larger on the Mojave. This leaves me with two options, either drill out my frame to accept the larger bolt of the Mojave, or make some type of bushing to make the sport/overland/rubicon bolts work. The main reason that I don't want to drill out my truck is if I ever want to go back to stock for a trade in or some other reason. So i am going to attempt to try to get some custom bushings made to fill the space and make the standard shock bolts work with Mojave shocks, to do this I am going to need some info, mainly the difference in diameter between the standard and Mojave shock bolts, can anyone shed some light on this ???


Last edited:

j.o.y.ride

Well-Known Member
Joined
May 26, 2020
Threads
88
Messages
2,666
Reaction score
3,409
Location
Foster City
Vehicle(s)
20 Gladiator Overland
good to not drill the frame for Mojave shocks, imo.

get a nice caliper and measure the different between the inner Mojave shock and inner stock shock. then you will know exactly.

OP
OP
Penecalea

Penecalea

Active Member
First Name
Andrew
Joined
Dec 18, 2020
Threads
6
Messages
35
Reaction score
73
Location
Pennsylvania 🌲
Vehicle(s)
2020 jeep gladiator
i am hoping someone already has measured, or has specs on the standard bolt so I don’t have to pull mine off, just to put it back on while I get the bushing made.


j.o.y.ride

Well-Known Member
Joined
May 26, 2020
Threads
88
Messages
2,666
Reaction score
3,409
Location
Foster City
Vehicle(s)
20 Gladiator Overland
Can you find CAD drawings or specs for any basic replacement from Fox 2.0 etc? Should be the same.


RFrich007

New Member
First Name
Rich
Joined
Mar 16, 2022
Threads
0
Messages
1
Reaction score
0
Location
Florida
Vehicle(s)
2021 Jeep Gladiator 2021 Jeep Wrangler
Occupation
Solar

Okay guys and gals, I recently scored a Mojave take off suspension, shocks and springs and what to work on getting them on my truck. Everything I have read so far is that it will be 100% direct swap other then the one bolt on the front shocks being slightly larger on the Mojave. This leaves me with two options, either drill out my frame to accept the larger bolt of the Mojave, or make some type of bushing to make the sport/overland/rubicon bolts work. The main reason that I don't want to drill out my truck is if I ever want to go back to stock for a trade in or some other reason. So i am going to attempt to try to get some custom bushings made to fill the space and make the standard shock bolts work with Mojave shocks, to do this I am going to need some info, mainly the difference in diameter between the standard and Mojave shock bolts, can anyone shed some light on this ???
Hey just wondering if you got an answer on this. I am on the same boat.



OP
OP
Penecalea

Penecalea

Active Member
First Name
Andrew
Joined
Dec 18, 2020
Threads
6
Messages
35
Reaction score
73
Location
Pennsylvania 🌲
Vehicle(s)
2020 jeep gladiator

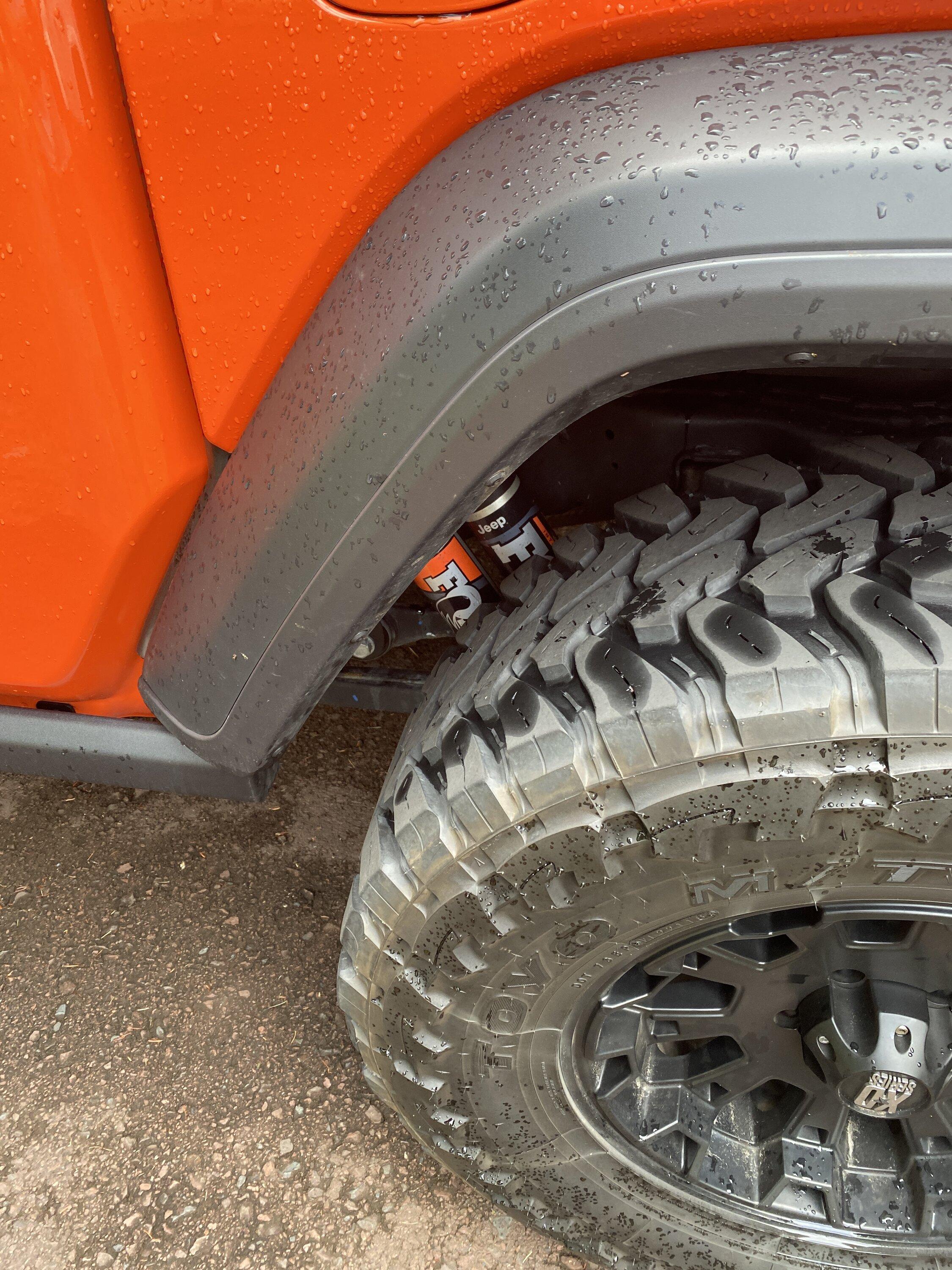

I ended up drilling out the frame mounts to accept the larger Mojave bolts. the ride is so much better and I haven’t looked back at all and regretted my decision. For now I have the only punkn “Mojave” out there




Hey just wondering if you got an answer on this. I am on the same boat.


JTzntz

Well-Known Member
First Name
Joel
Joined
Mar 23, 2020
Threads
6
Messages
215
Reaction score
266
Location
San Pedro, CA
Vehicle(s)
2020 Jeep Gladiator | 1993 Corrado SLC | 1992 GTI 16v

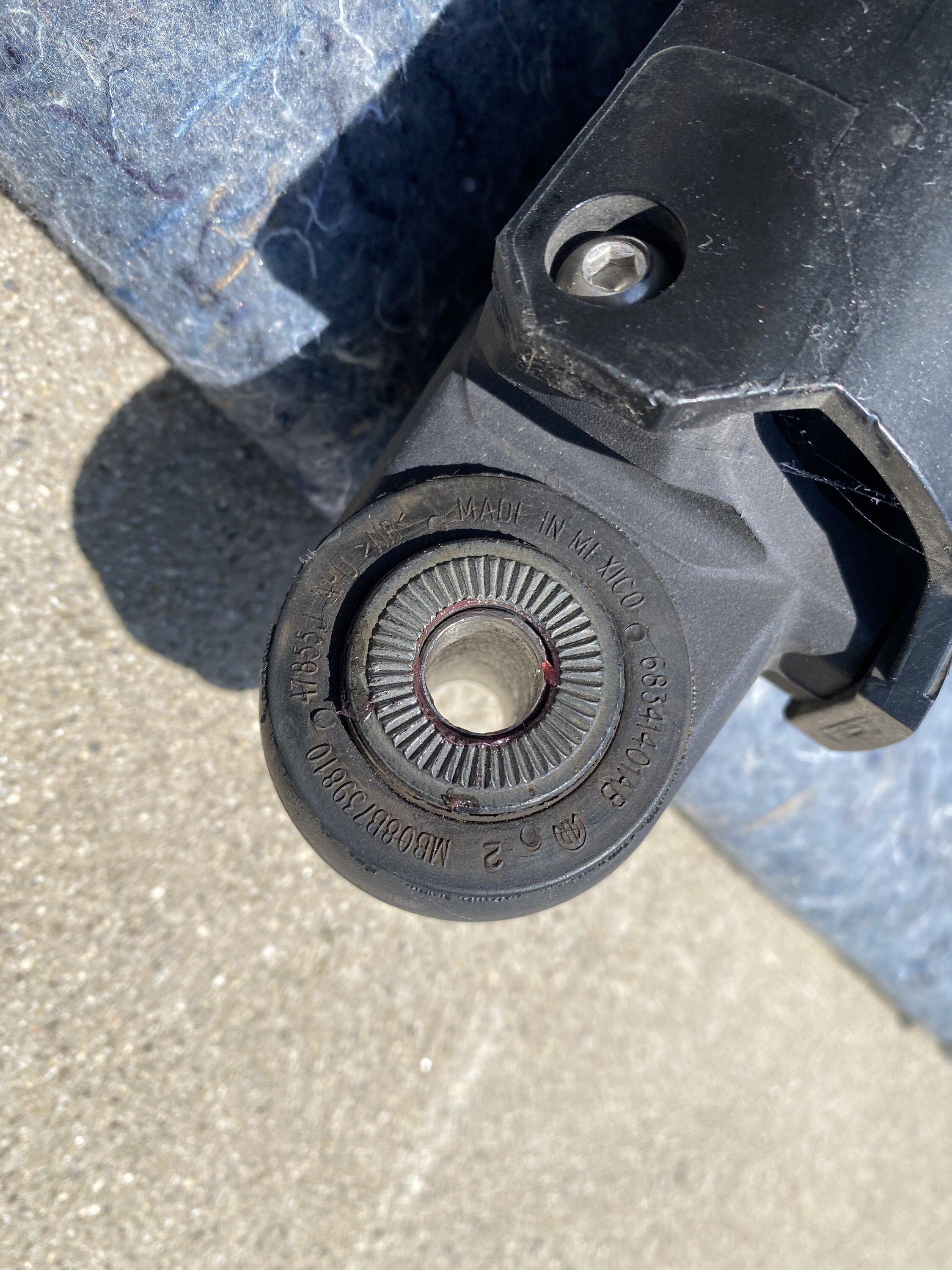

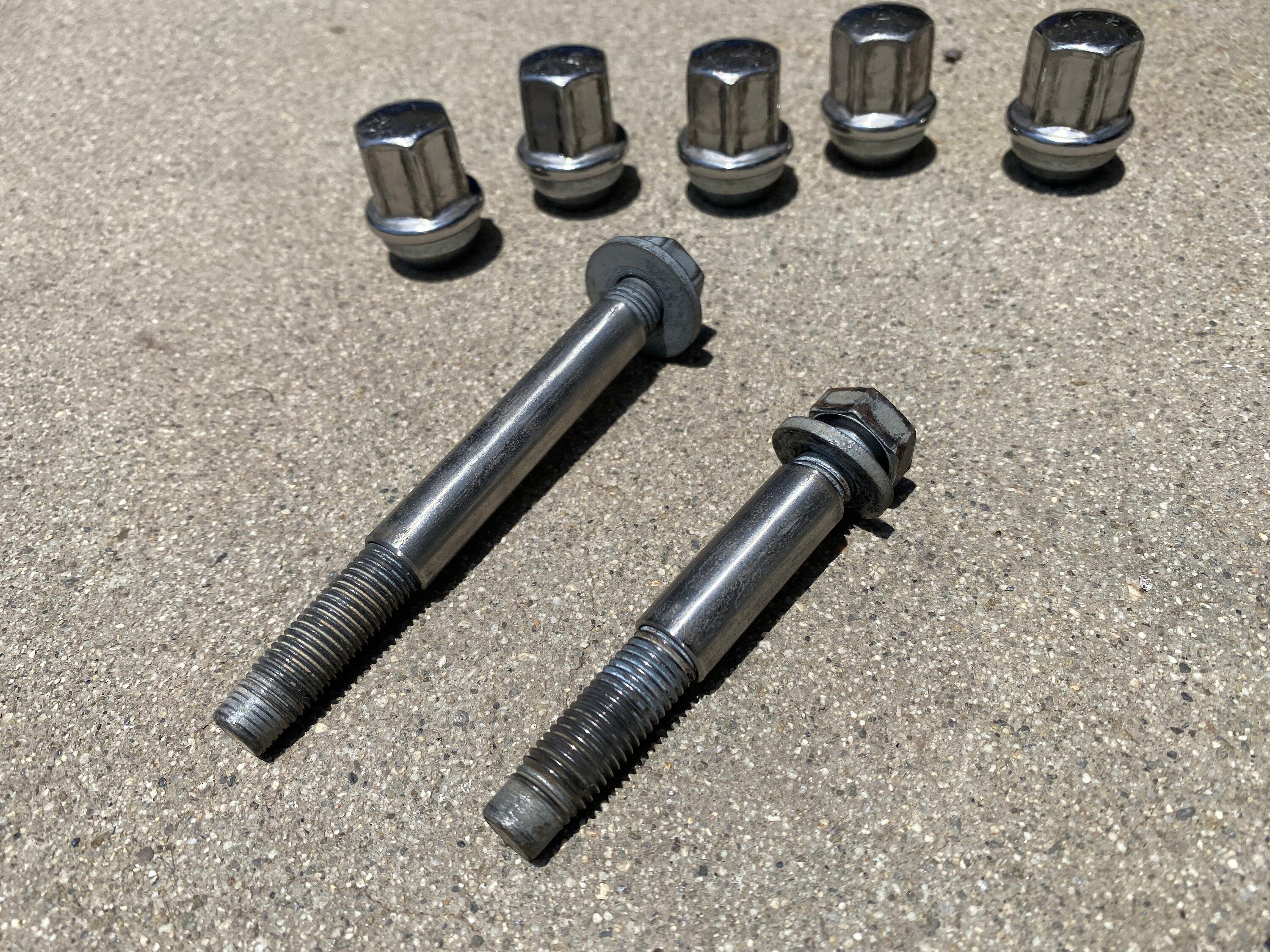

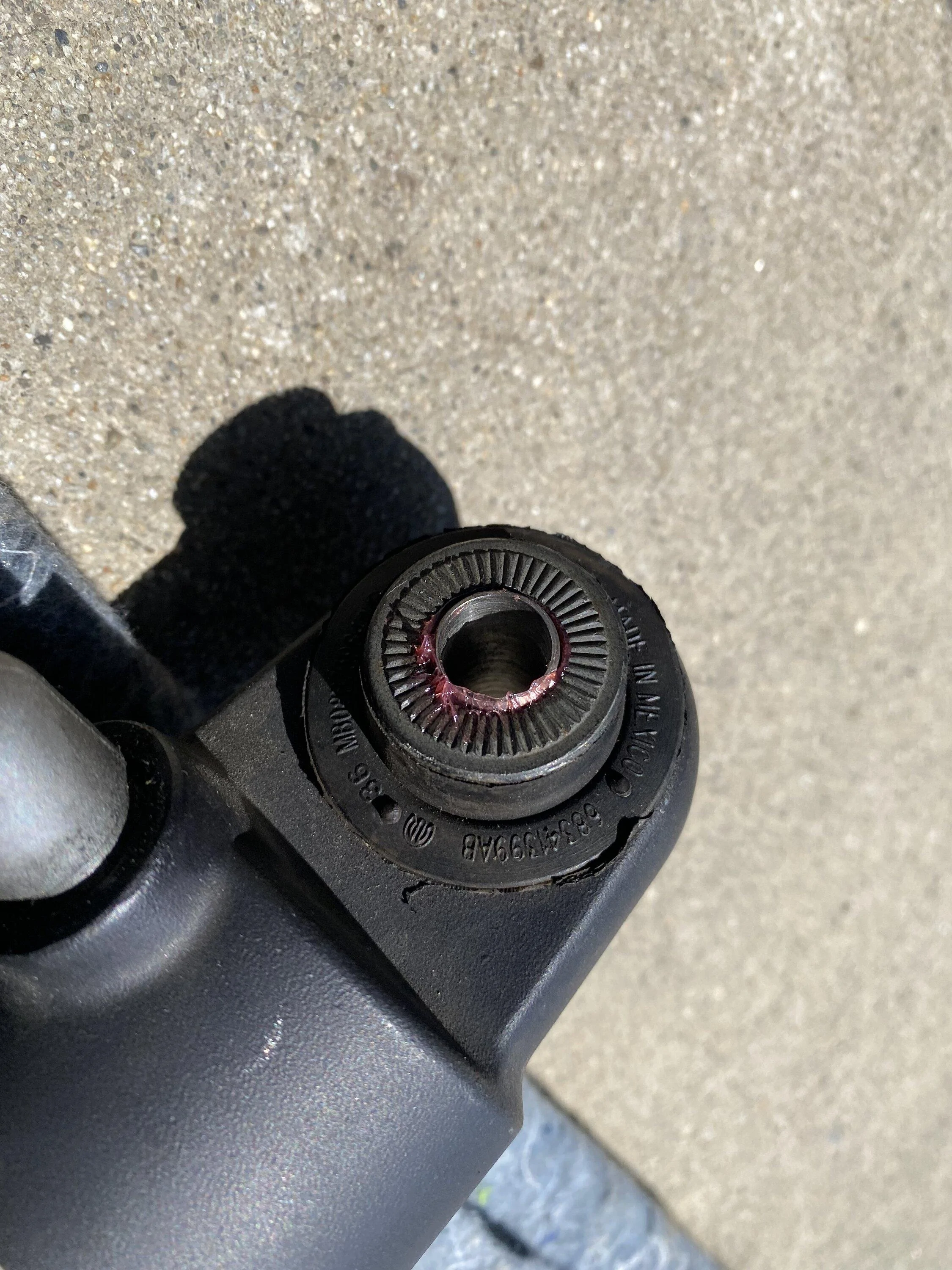

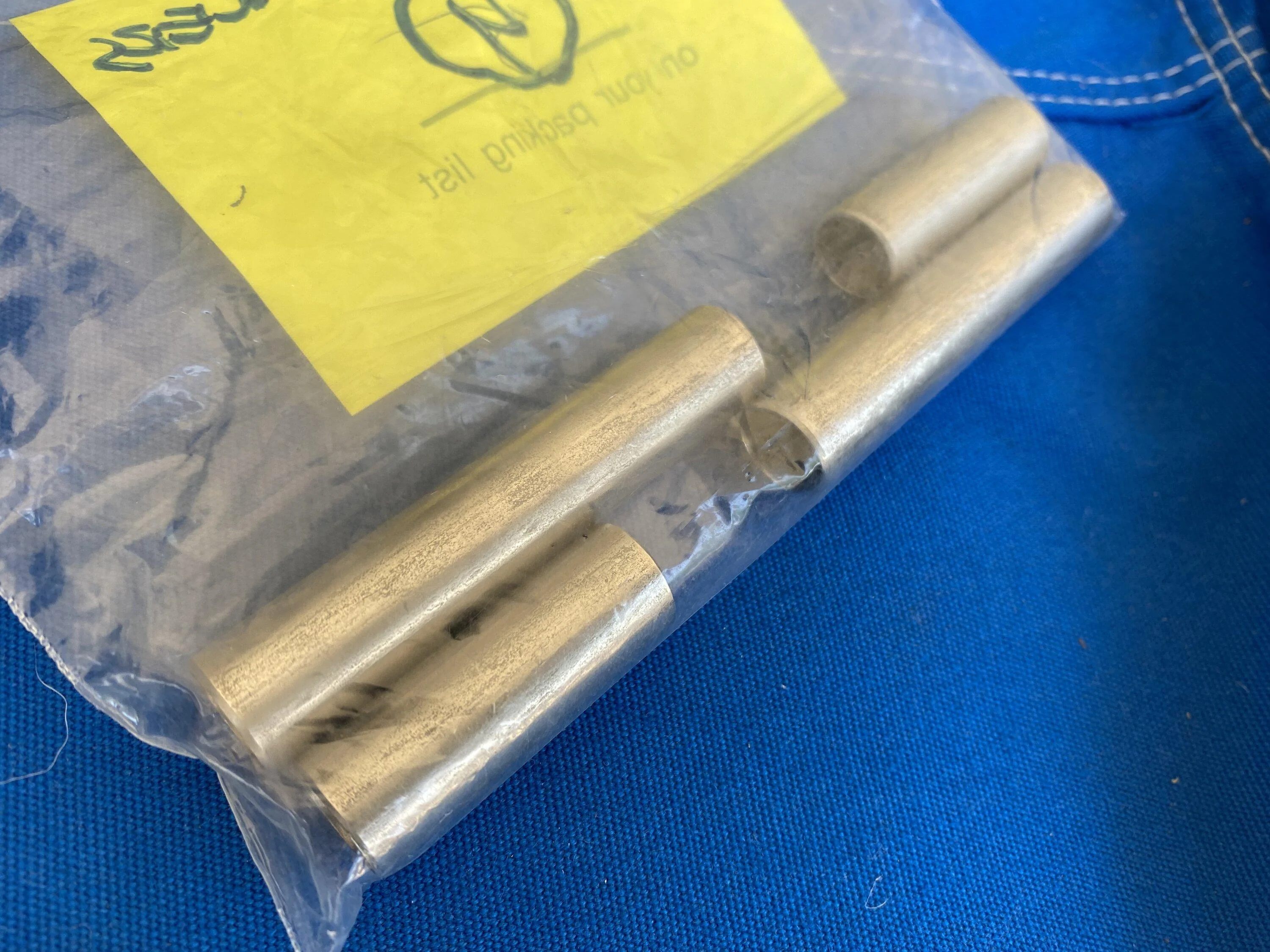

I had some stainless steel bushings/sleeves machined to take up the difference when using the stock, non-Mojave front shock upper and lower bolts. I didn’t want to drill out the holes. I wish I measured them before installing them. I just gave the fabricator the Mojave shock and the stock shock and asked him to make some solid sleeves.
