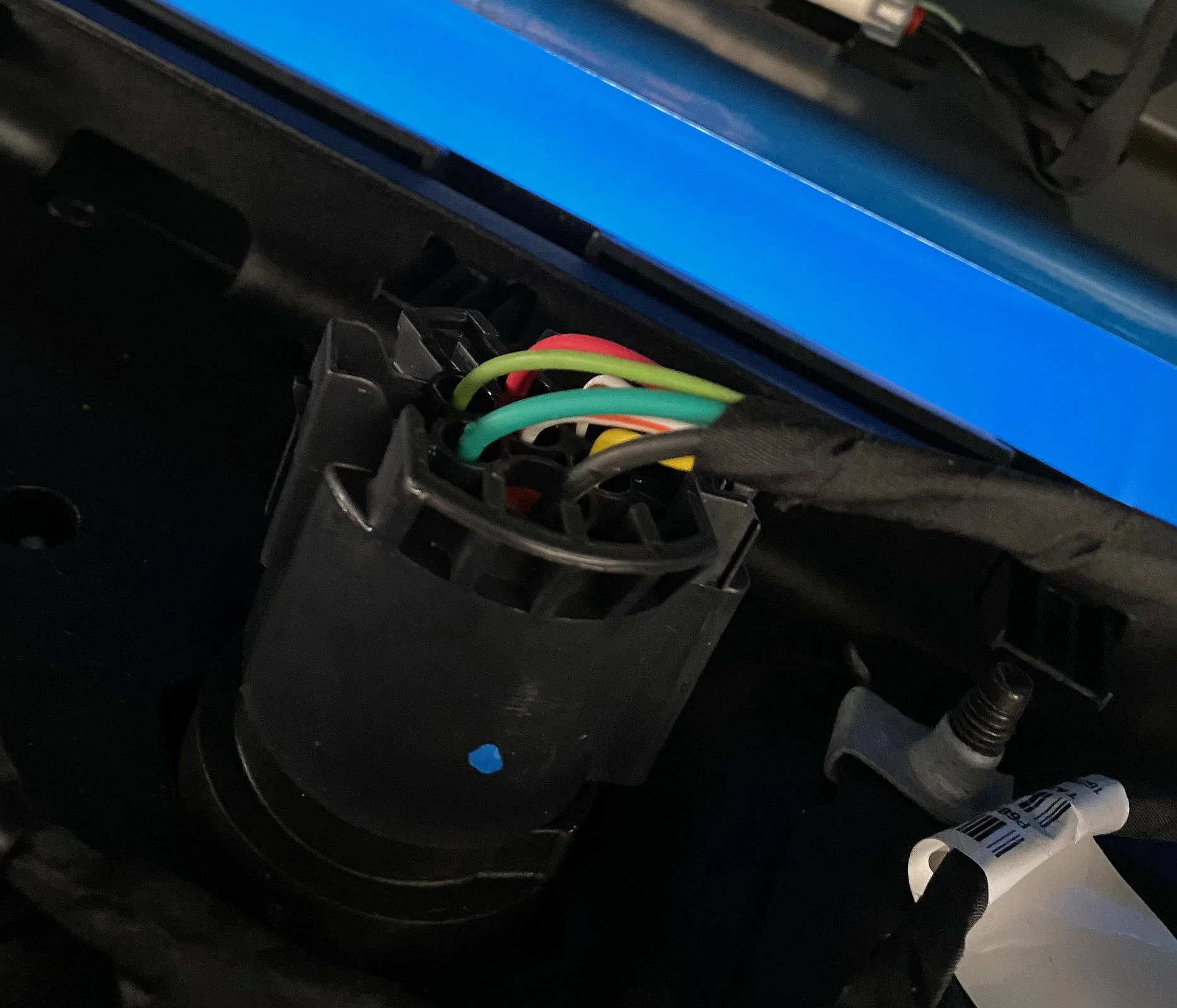

I have a factory installed USCAR socket on my Gladiator Rubicon and the wire colors going into the socket from behind are non-industry colors as you can see from the attached photo. I was expecting seven wires that would be green, red, white, blue, brown, black and yellow. Instead, I have a completely different color scheme that I can't make sense of. Does anyone know how these Jeep wire colors map to the USCAR standard?
Thanks,
PaulJoe
Thanks,
PaulJoe
