Coil Spring Part Numbers

[jayqwellin]

Dont know if this is posted elsewhere, but I thought others might benefit from a compilation of coil spring part numbers. Here is what I have found so far:

Rubicon w/hard top & metal mopar front bumper (or a Launch Edition Rubicon): FRONT--339AC & 340AC
REAR--450AB & 451AC

Another Rubicon spring combo that I know of:
FRONT--340AC & 343AC.
REAR--450AB & 451AC.

Max tow springs:
FRONT--335AB & 336AB
REAR--445AB and 444AB.

Sport NON-max tow springs:
FRONT--324AB & 325AB.
REAR--438AC & 439AC.

Overland springs:
FRONT--?
REAR--439 & 440

Mojave springs:
FRONT--68442570AA & 68442569AA
REAR--68442574AA & 68442575AA

Sponsored



[rigger 17]

Im I overthinking the spring swap for the sport model .I see 3 different part numbers for the rubicon front spring . I plan on purchasing from Mopar the springs .
My first thought would be to order two of the same of the longest rubicon springs / or go one step further and get 2 of the Mojave front springs because they claim it has more lift than the Rubicon !

I prefer a spring to level my Jeep to a spacer !

Any though that can help me .; TY



[Mac]

Dont know if this is posted elsewhere, but I thought others might benefit from a compilation of coil spring part numbers. Here is what I have found so far:

Rubicon w/hard top & metal mopar front bumper (or a Launch Edition Rubicon): FRONT--339AC & 340AC
REAR--450AB & 451AC

Another Rubicon spring combo that I know of:
FRONT--340AC & 343AC.
REAR--450AB & 451AC.

Max tow springs:
FRONT--335AB & 336AB
REAR--445AB and 444AB.

Sport NON-max tow springs:
FRONT--324AB & 325AB.
REAR--438AC & 439AC.

Overland springs:
FRONT--?
REAR--439 & 440

Mojave springs:
FRONT--68442570AA & 68442569AA
REAR--68442574AA & 68442575AA

Do you recall if the front Rubicon with 340AC and 343AC which side was which?



[jayqwellin]

Do you recall if the front Rubicon with 340AC and 343AC which side was which?

Higher number goes on the passenger side



[NPLCC7075]

Dont know if this is posted elsewhere, but I thought others might benefit from a compilation of coil spring part numbers. Here is what I have found so far:

Rubicon w/hard top & metal mopar front bumper (or a Launch Edition Rubicon): FRONT--339AC & 340AC
REAR--450AB & 451AC

Another Rubicon spring combo that I know of:
FRONT--340AC & 343AC.
REAR--450AB & 451AC.

Max tow springs:
FRONT--335AB & 336AB
REAR--445AB and 444AB.

Sport NON-max tow springs:
FRONT--324AB & 325AB.
REAR--438AC & 439AC.

Overland springs:
FRONT--?
REAR--439 & 440

Mojave springs:
FRONT--68442570AA & 68442569AA
REAR--68442574AA & 68442575AA



[NPLCC7075]

Rear spring numbers 450AB & 449AC, they are off a Rubicon with steel bumber and hardtop. I see this combination and 450AB & 451AC, what the difference?



[rigger 17]

thank you for the spring numbers



[BSchoeppel]

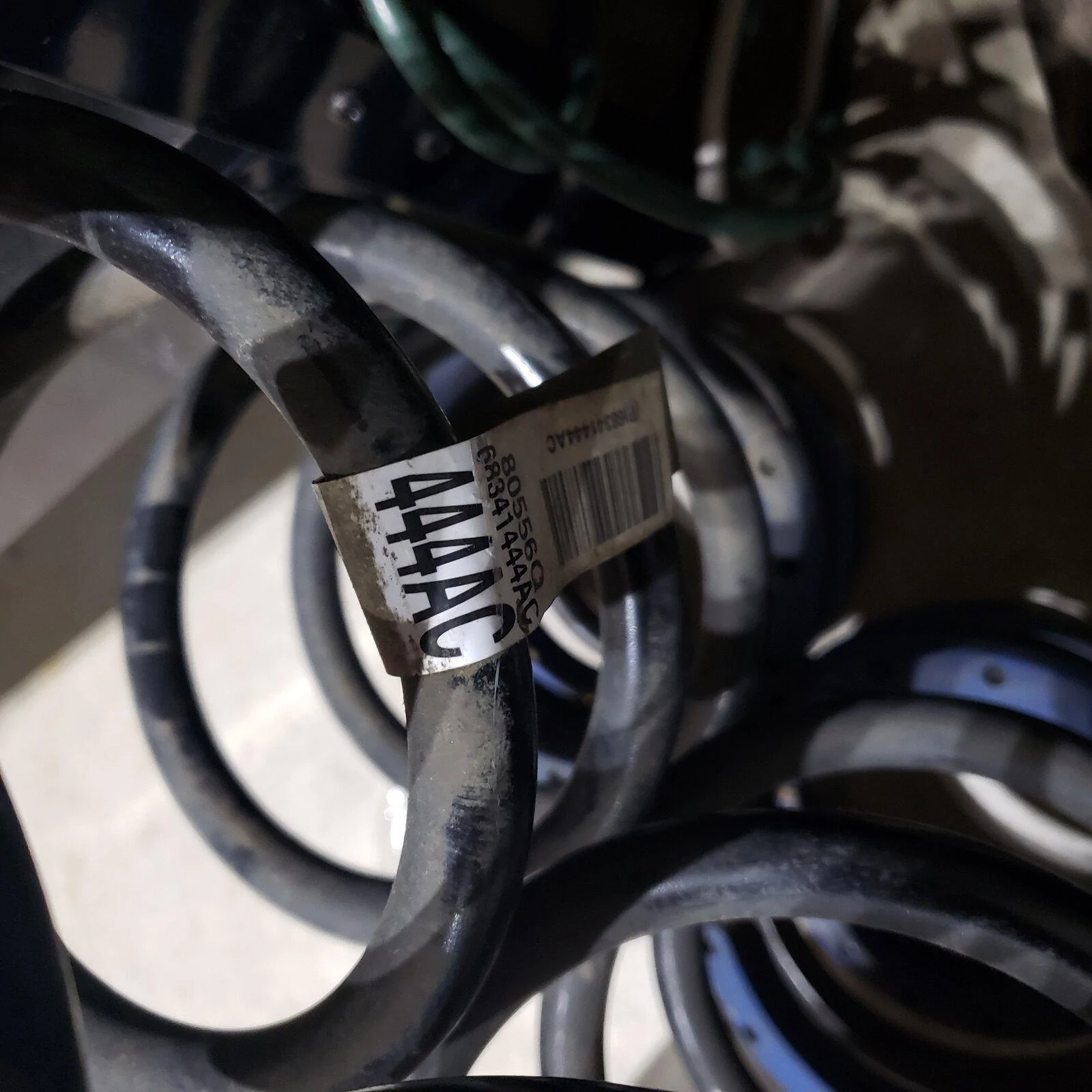

I picked up a set of sport s max tow and they are 445ab and 444ac. I'm curious if someone knows which code is for which side? These numbers don't match what's posted previously.



[Garemlin]

I picked up a set of sport s max tow and they are 445ab and 444ac. I'm curious if someone knows which code is for which side? These numbers don't match what's posted previously.

Higher number on the right passenger side.



[Gvsukids]

Rear spring numbers 450AB & 449AC, they are off a Rubicon with steel bumber and hardtop. I see this combination and 450AB & 451AC, what the difference?

With this combination, what were the front spring numbers?



[NewGladdyOWNR]

Just picked up a set of Rubicon take off shocks and coils and I am having difficulty finding which side these coils go to..

Front: 6362AA and 6363AA
Rear: 6210AA and 6211AA

Anyone have an idea if these are from a Rubicon with a plastic bumper or steel bumper? Which part number goes to which side?? HELP



[JoseQ_80]

These came off my 80th anniversary edition:

Possible Overland models use these same soft front Springs.



[NewGladdyOWNR]

Just picked up a set of Rubicon take off shocks and coils and I am having difficulty finding which side these coils go to..

Front: 6362AA and 6363AA
Rear: 6210AA and 6211AA

Anyone have an idea if these are from a Rubicon with a plastic bumper or steel bumper? Which part number goes to which side?? HELP

If anyone is wondering, these coils are from a rubicon hard top, plastic bumpers, and 3.6 gas engine. Higher numbers are for the passenger side. I hope this info helps someone one day.



[Sarge502]

If anyone is wondering, these coils are from a rubicon hard top, plastic bumpers, and 3.6 gas engine. Higher numbers are for the passenger side. I hope this info helps someone one day.

doing my take off install in about a week or so. Hopefully I have no issues been doing a lot of research and project like this I’ll be tackling on my own. Looking at some of the people I’ve seen do videos of their installs online though only makes me that much more confident lol.



[Sarge502]

Dont know if this is posted elsewhere, but I thought others might benefit from a compilation of coil spring part numbers. Here is what I have found so far:

Rubicon w/hard top & metal mopar front bumper (or a Launch Edition Rubicon): FRONT--339AC & 340AC
REAR--450AB & 451AC

Another Rubicon spring combo that I know of:
FRONT--340AC & 343AC.
REAR--450AB & 451AC.

Not 100% here and can’t speak for the other trims you mentioned but I think you got the descriptions backwards for the Rubicon springs.

Yes there are two different sets of rubi spring part numbers based mainly on if it came stock with the steel bumpers. But I believe the ones with steel bumpers are actually the front sets of 340ac & 343ac not the 339/340 combo you mentioned: Reason being I just purchased a set of rubi take offs from another user who didn’t have steel bumpers and I got the 339/340s front springs.
