Daylight running light wiring for Baja LP4 backlight

tcramer11

Member
First Name
todd
Joined
Oct 7, 2020
Messages
19
Reaction score
4
Location
Carbondale
Vehicle(s)
BMW X5, Cayenne
Total amateur on wiring. Got my LP4s hooked up to aux no issues. How do I tap into the DRLs to get the backlight on the LP4s to work. I thought I could tap into a fuse but I dont see any marked for DRLs. How do I determine what wire to tap into for each light or is it an option to do it at fuse

Thanks





Advertisement



GOCAMPN

Well-Known Member
First Name
Ethan
Joined
May 29, 2021
Messages
61
Reaction score
58
Location
Barnegat, NJ
Website
www.instagram.com
Vehicle(s)
Jeep Gladiator / Max Tow
Build Thread
Link
Occupation
Adventure Seeker
Vehicle Showcase
1
OP

tcramer11

Member
First Name
todd
Joined
Oct 7, 2020
Messages
19
Reaction score
4
Location
Carbondale
Vehicle(s)
BMW X5, Cayenne
  • Thread starter
  • Thread Starter
  • #3
OP

tcramer11

Member
First Name
todd
Joined
Oct 7, 2020
Messages
19
Reaction score
4
Location
Carbondale
Vehicle(s)
BMW X5, Cayenne
  • Thread starter
  • Thread Starter
  • #4

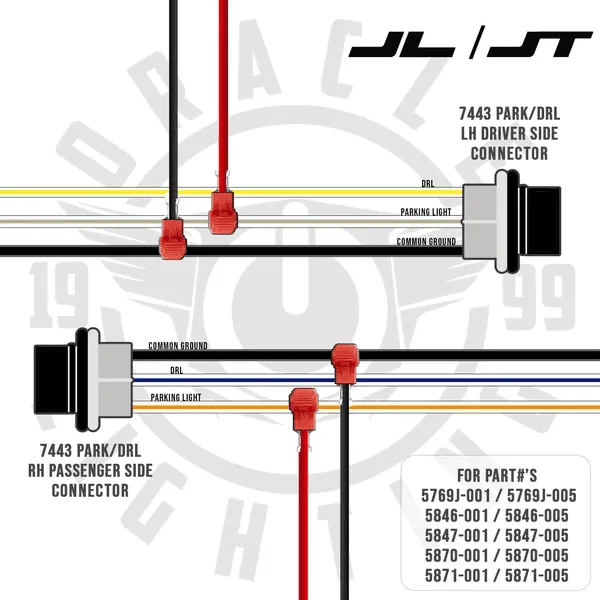

I also don't know for sure since I haven't done this yet, but here it says DRL can't be used for power but if you tap into the parking lights it will work. Specifically this is for putting marker lights in the grille, but I assume same idea.



ORACLE Lighting Pre-Runner Style LED Grill Light Kit for Jeep Gladiato (oraclelights.com)
One other question- so what triggers the LP4 backlighting to come on or off with set up above that taps into the parking light? Does that parking light operate off the same control as the DRL so I turn knob on light control for DRL and it controls it?


kevman65

Well-Known Member
First Name
Kevin
Joined
Mar 8, 2020
Messages
994
Reaction score
956
Location
Indiana
Vehicle(s)
2020 Gladiator Rubicon GCM
Add-A-Circuit fuse tap, 20 amp, F-52 in fuse box under hood.

F-52 is the fuse for cigarette lighter/12V supply in cab, it is a switched fuse, only on when ignition or accessory are on.
