Dear Forum, I need some help!

[GulfCoastJT]

Ok, so I’m in need of ya’ll’s knowledge. So I was taking my drivers door off of my ‘20 JT. When I removed the drivers door access panel for the wiring harness and I saw a plug hanging there. So could someone please Educate me and tell me what does this go to?
thanks in advance!

Sponsored



[361Sean]

Hmmm.... never noticed that when I took my doors off. Now I. Curious.



[Troybilt]

Just checked the wife lady’s 2019 JLUS. She has everything on her doos except keyless entry. There is no plug like that.



[Blknblu]

i looked this AM, and i may have the same cord, but it is tucked way underneath and heads to the firewall. I have an Overland with lots of options.

Bruce



[Rainman519]

doors off numerous times and have never seen a plug like that. '20JTR loaded.



[Neohiofan]

I think that’s what you plug a trailer brake controller into



[ADK Tiro]

I think that’s what you plug a trailer brake controller into

I’d be interested to know if that were the case.



[ShadowsPapa]

Book says gray 4 pin connector under dash to left of brake pedal.
At least that's what the owner manual says about "aftermarket brake controller connector"



[Alabama Mud Machine]

The wire colors look like speaker wire colors... But I've never pulled the doors off mine, so I have no idea.



[ADK Tiro]

Book says gray 4 pin connector under dash to left of brake pedal.
At least that's what the owner manual says about "aftermarket brake controller connector"

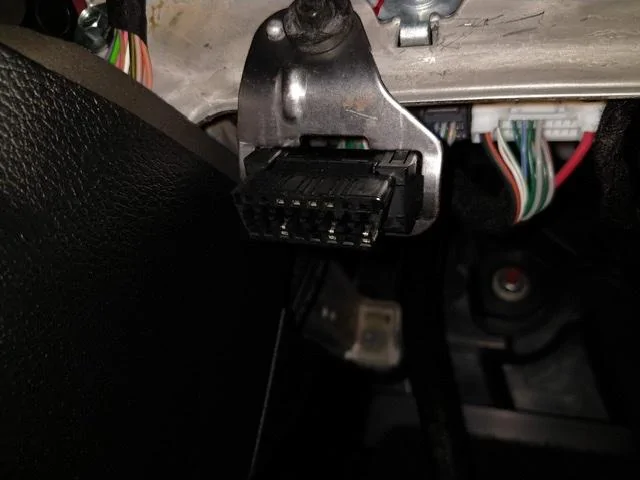

Yep. Except this is what my brake controller receptacle looks like:

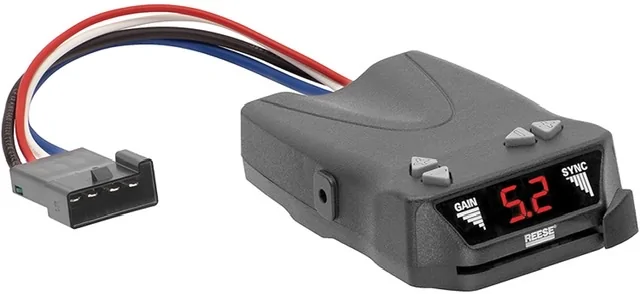

And this is black, not gray and looks more like It will receive this:

Though I have also seen brake controllers that have ends matching up to the OP’s picture.



[ADK Tiro]

Man, I LOVE the internet!

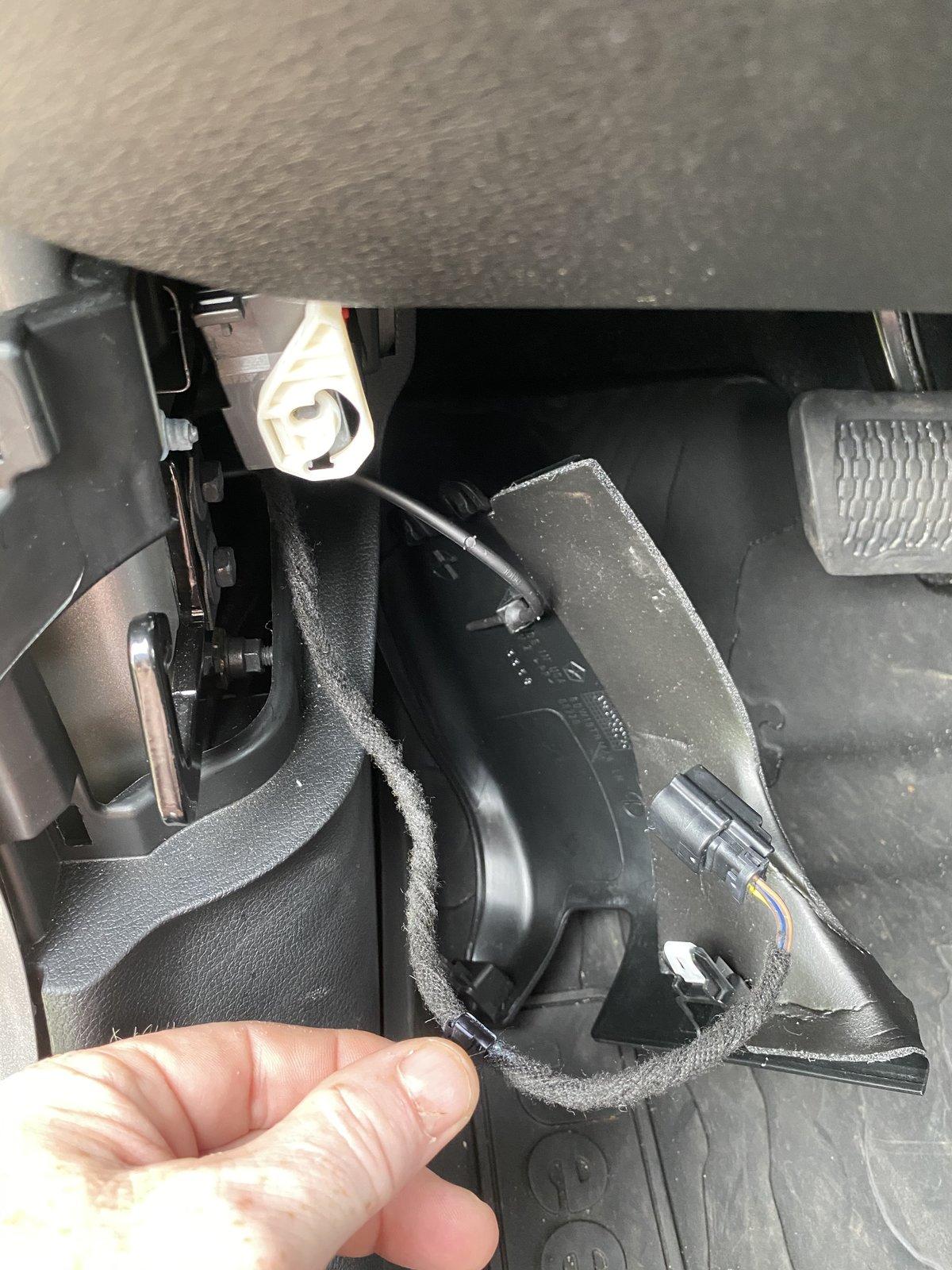

This video showed me I need to look behind what I thought was my brake controller:

https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=&ved=2ahUKEwis-NDPlpPrAhUehXIEHQwNChQQwqsBMAB6BAgNEAQ&url=https://www.youtube.com/watch?v=cgnfrGkGqPg&usg=AOvVaw1Cw1tHPUtQX0afPZ01Ldk9

Now, what was my picture of?



[relapsekg]

Yep. Except this is what my brake controller receptacle looks like:

And this is black, not gray and looks more like It will receive this:

That is the OBDII diagnostic port. AKA where you plug in a scan tool.



[ADK Tiro]

That is the OBDII diagnostic port. AKA where you plug in a scan tool.

Thanks!
