UsuallyLost

Active Member
First Name
Keith
Joined
May 22, 2021
Messages
37
Reaction score
59
Location
Central Illinois
Vehicle(s)
2021 JTR MT

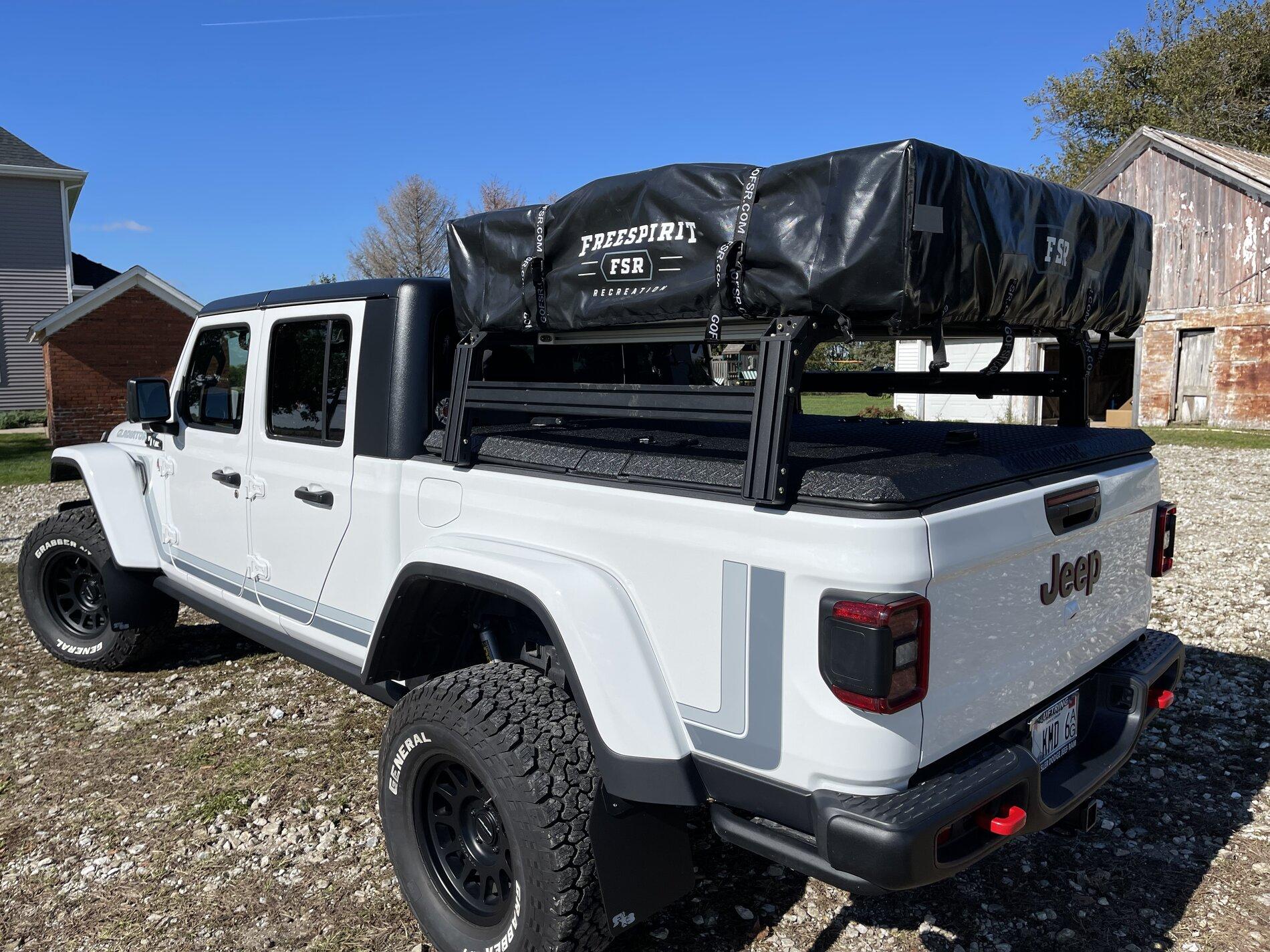

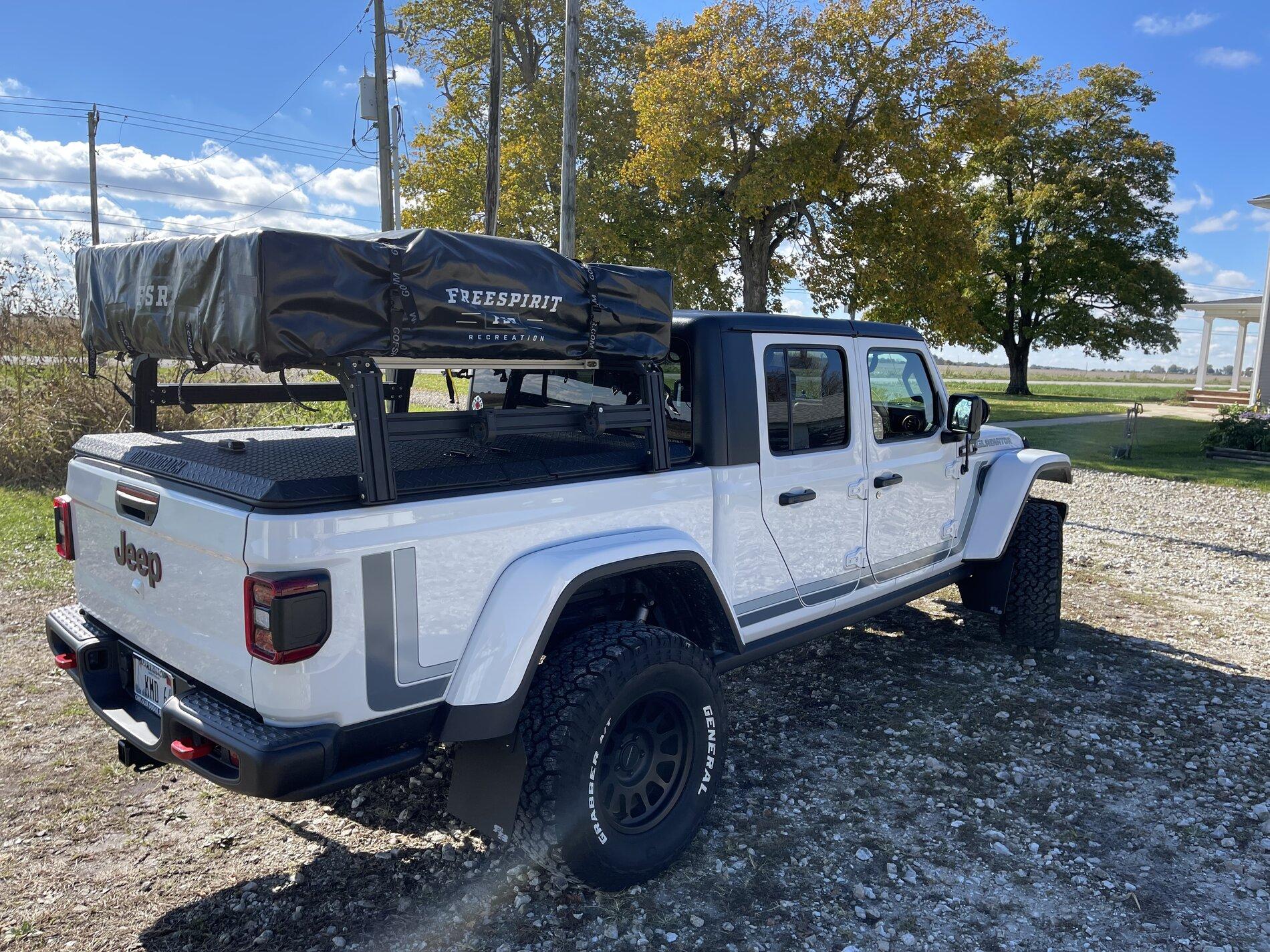

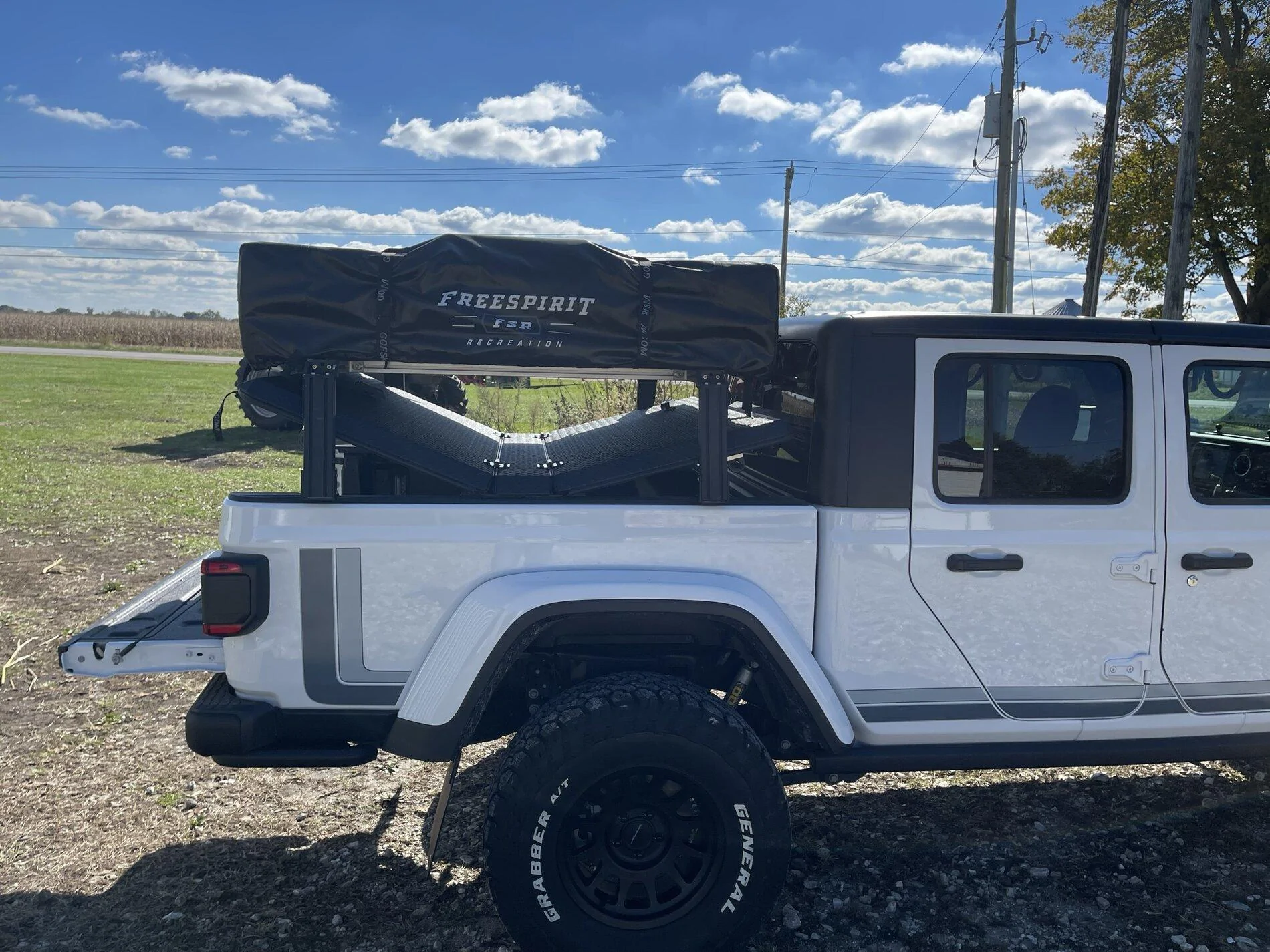

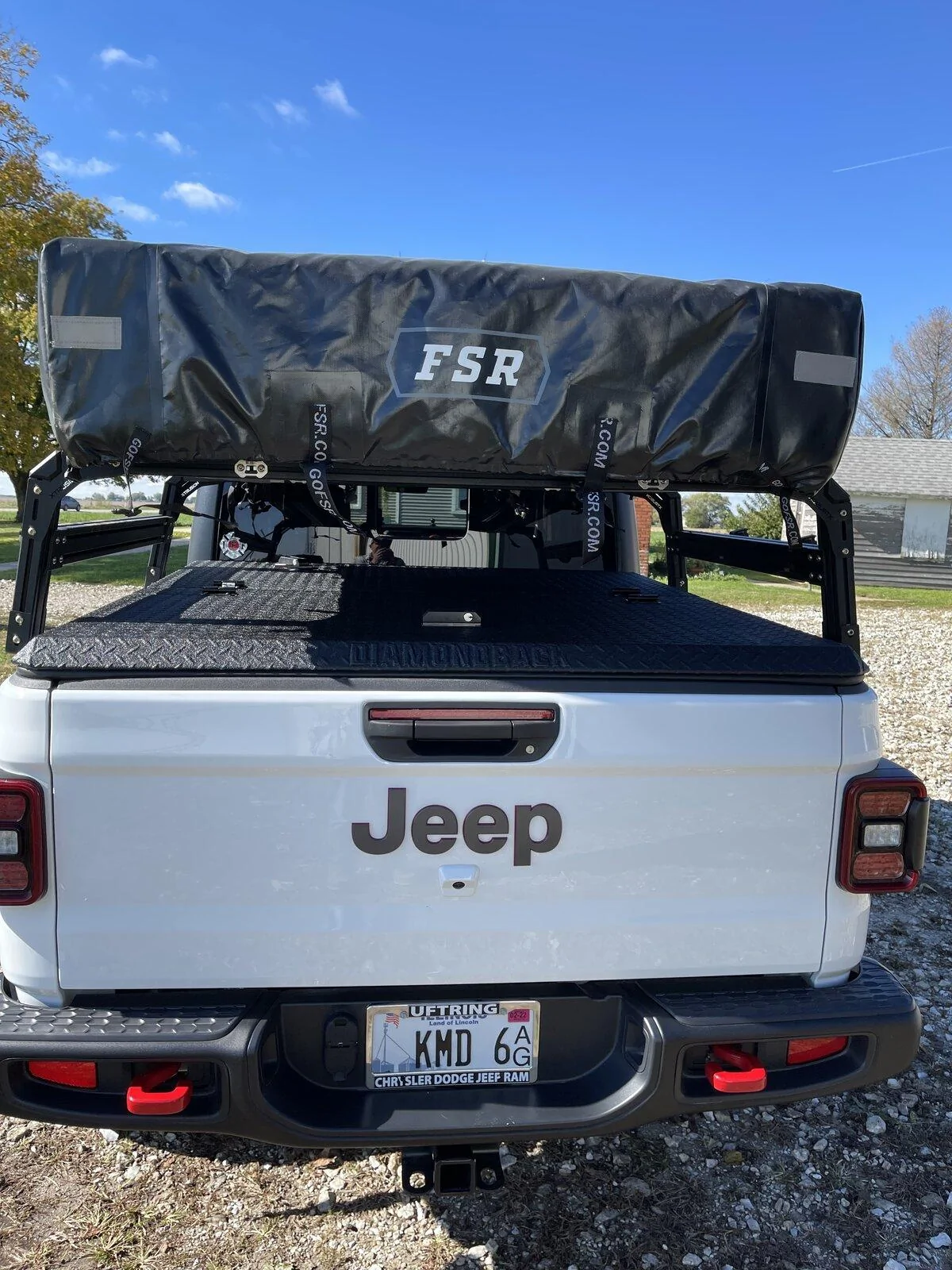

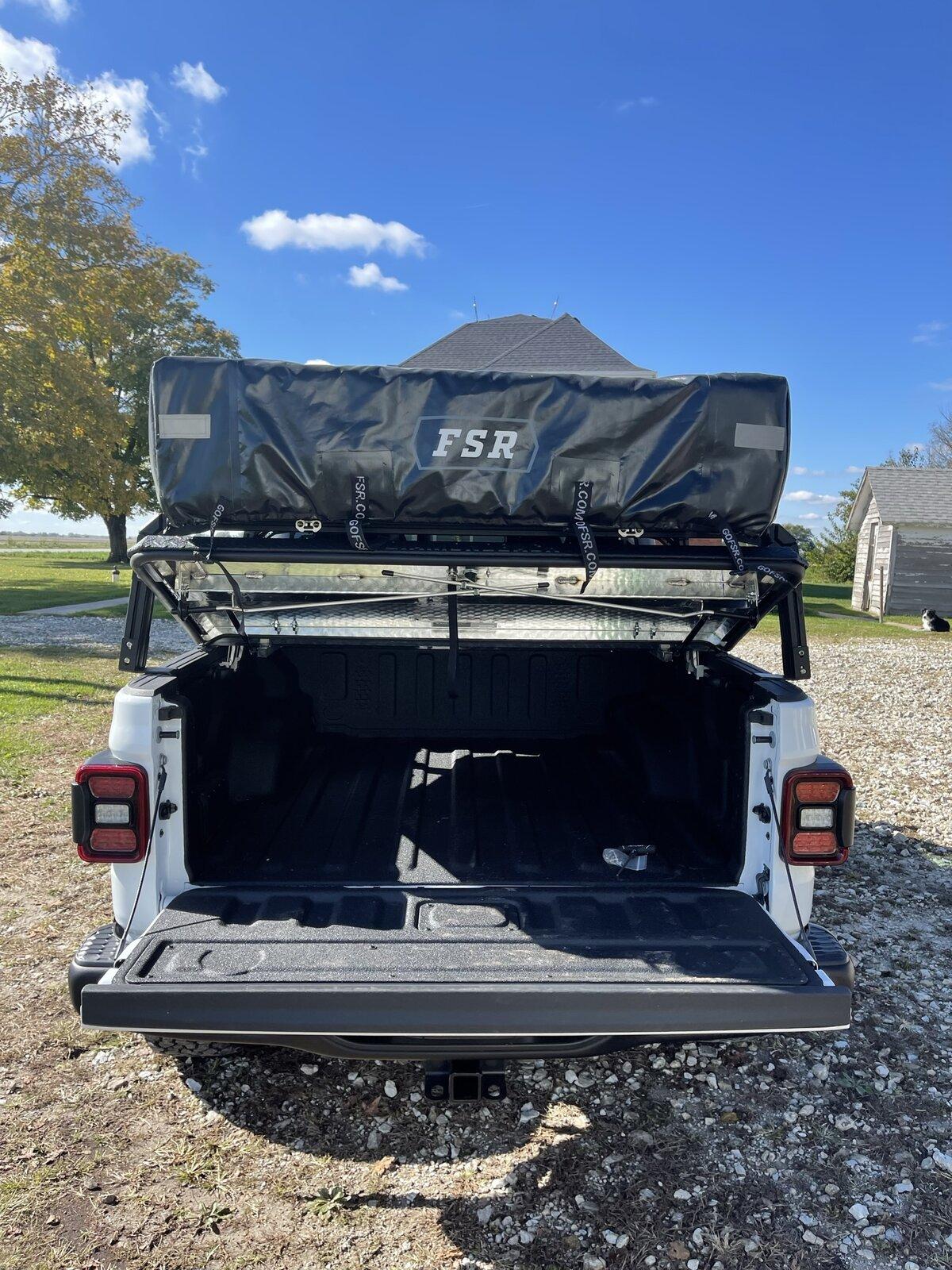

I paired my diamondback with an Xtrusion Overland bed rack. I can open the diamondback with the rack on. As you can see, my mid height rack limits how high the cover opens. A cab height rack would be better, I think. I don’t have the rack all the way set up but this should give an idea of how it works in case anyone wants a similar setup.

Advertisement



clweed

Well-Known Member
First Name
Lee
Joined
Apr 1, 2020
Messages
135
Reaction score
155
Location
Texas
Vehicle(s)
2020 Gladiator
I paired my diamondback with an Xtrusion Overland bed rack. I can open the diamondback with the rack on. As you can see, my mid height rack limits how high the cover opens. A cab height rack would be better, I think. I don’t have the rack all the way set up but this should give an idea of how it works in case anyone wants a similar setup.
What height is yours, I have the 15" extrusion overland ordered to use with my Diamondback. How is the seal around the extrusion brackets?

Lee


UsuallyLost

Active Member
First Name
Keith
Joined
May 22, 2021
Messages
37
Reaction score
59
Location
Central Illinois
Vehicle(s)
2021 JTR MT
I have the 15” rack height also. The back section opens more than wide enough to easily access the bed. The front is limited. The seal is ok around the brackets. It’s a little finicky to get just right but does seal up mostly.


Pookie

Well-Known Member
Joined
May 26, 2021
Messages
63
Reaction score
23
Location
Virginia
Vehicle(s)
Jeep Gladiator, Jeep Grand Cherokee
What's the difference between the rails and no rails version? Is it just the Cap Clamps or is the lock bar different too?
I believe it's the type of clamps you get with your cover. I have the no rails version and it seems to work well.


clweed

Well-Known Member
First Name
Lee
Joined
Apr 1, 2020
Messages
135
Reaction score
155
Location
Texas
Vehicle(s)
2020 Gladiator
I have the 15” rack height also. The back section opens more than wide enough to easily access the bed. The front is limited. The seal is ok around the brackets. It’s a little finicky to get just right but does seal up mostly.
Can you measure the clearance from the top of the diamondback to the bottom of the top bar? I am thinking of storing a Roam Case on top of the diamondback. I think they are 11 1/2" tall

Thanks,

Lee


UsuallyLost

Active Member
First Name
Keith
Joined
May 22, 2021
Messages
37
Reaction score
59
Location
Central Illinois
Vehicle(s)
2021 JTR MT
Can you measure the clearance from the top of the diamondback to the bottom of the top bar? I am thinking of storing a Roam Case on top of the diamondback. I think they are 11 1/2" tall

Thanks,

Lee

I don’t have the rack on the truck right now but I did measure as I want to do the same thing w a foam case. If I remember correctly there is 13” of clearance from the deck of the cover to the bottom of the rack. That doesn’t count the latch handles for the cover though. The 95 liter would probably work but will be pretty snug. The 83 will go no problem.


clweed

Well-Known Member
First Name
Lee
Joined
Apr 1, 2020
Messages
135
Reaction score
155
Location
Texas
Vehicle(s)
2020 Gladiator
I don’t have the rack on the truck right now but I did measure as I want to do the same thing w a foam case. If I remember correctly there is 13” of clearance from the deck of the cover to the bottom of the rack. That doesn’t count the latch handles for the cover though. The 95 liter would probably work but will be pretty snug. The 83 will go no problem.
Thank you, I appreciate the info


Rockabillyroy

Well-Known Member
Joined
Nov 8, 2020
Messages
302
Reaction score
287
Location
CA
Vehicle(s)
JT
Can you measure the clearance from the top of the diamondback to the bottom of the top bar? I am thinking of storing a Roam Case on top of the diamondback. I think they are 11 1/2" tall

Thanks,

Lee
Extra weight might defeat the struts. The ones that come with it are just strong enough for the lid.
