Diesel cooling options and ideas

Rusty PW

Well-Known Member
First Name
Russ
Joined
Jan 10, 2022
Threads
24
Messages
8,267
Reaction score
20,515
Location
Fayette Nam, Pennsyltucky
Website
www.youtube.com
Vehicle(s)
'22 JTRD, '11 370Z Nismo, '07 Honda VFR
Build Thread
Link
Occupation
Muff Diver

Primer Gray

Well-Known Member
First Name
Sean
Joined
Apr 10, 2023
Threads
1
Messages
76
Reaction score
187
Location
Thousand Oaks
Vehicle(s)
2021 Jeep Gladiator
Occupation
Industrial Designer
Ahhh. I see.

I routinely suffer with tunnel vision.


Primer Gray

Well-Known Member
First Name
Sean
Joined
Apr 10, 2023
Threads
1
Messages
76
Reaction score
187
Location
Thousand Oaks
Vehicle(s)
2021 Jeep Gladiator
Occupation
Industrial Designer

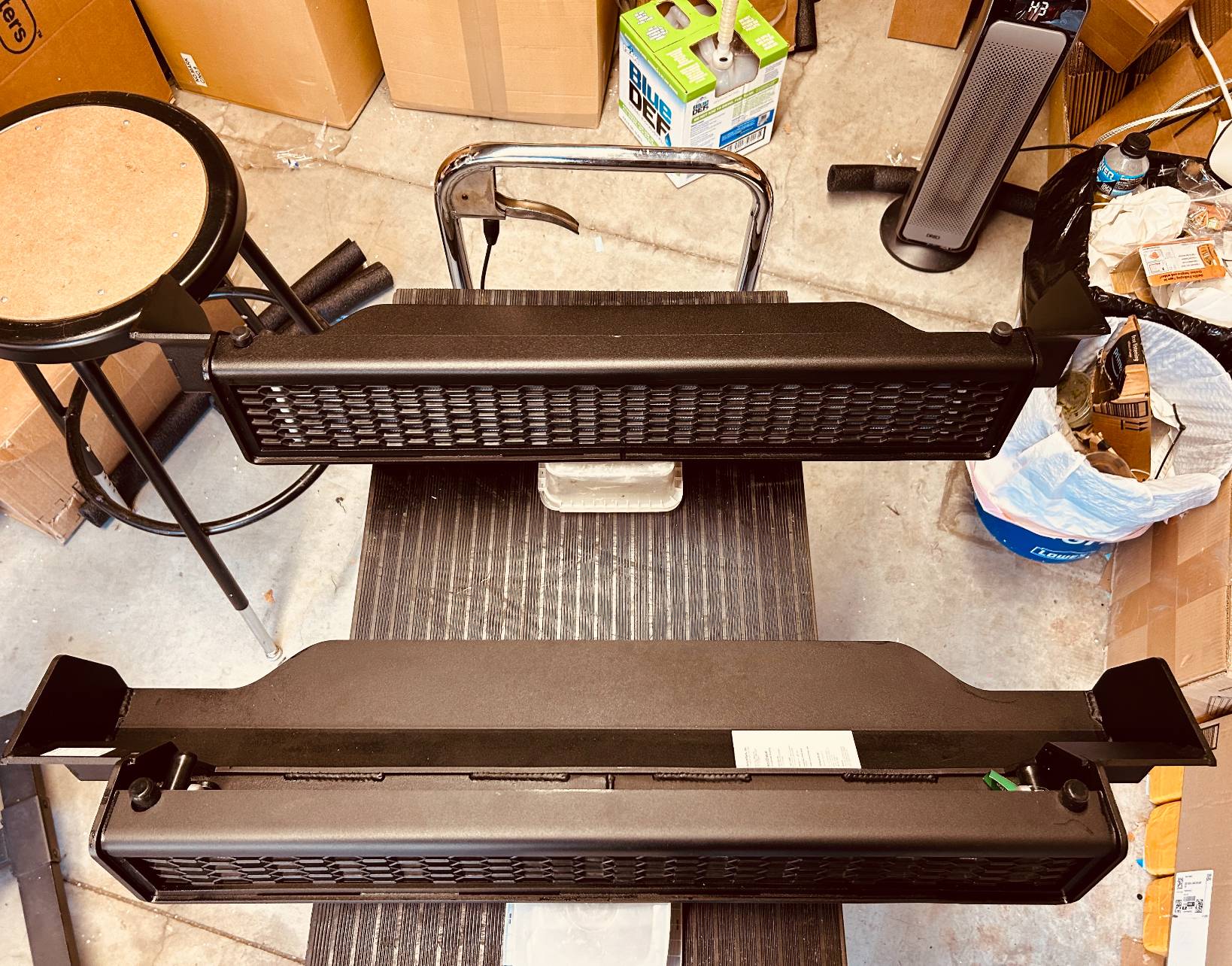

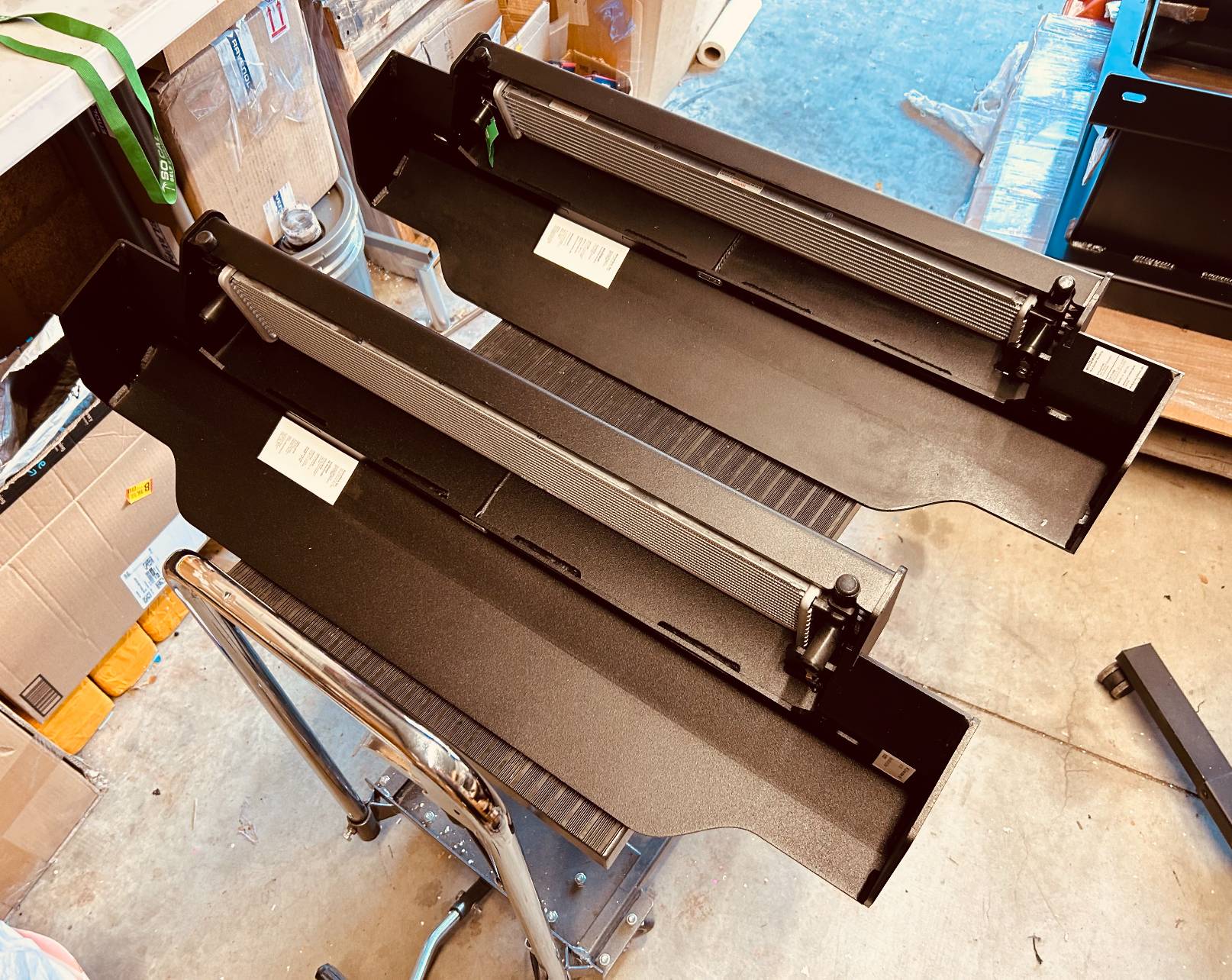

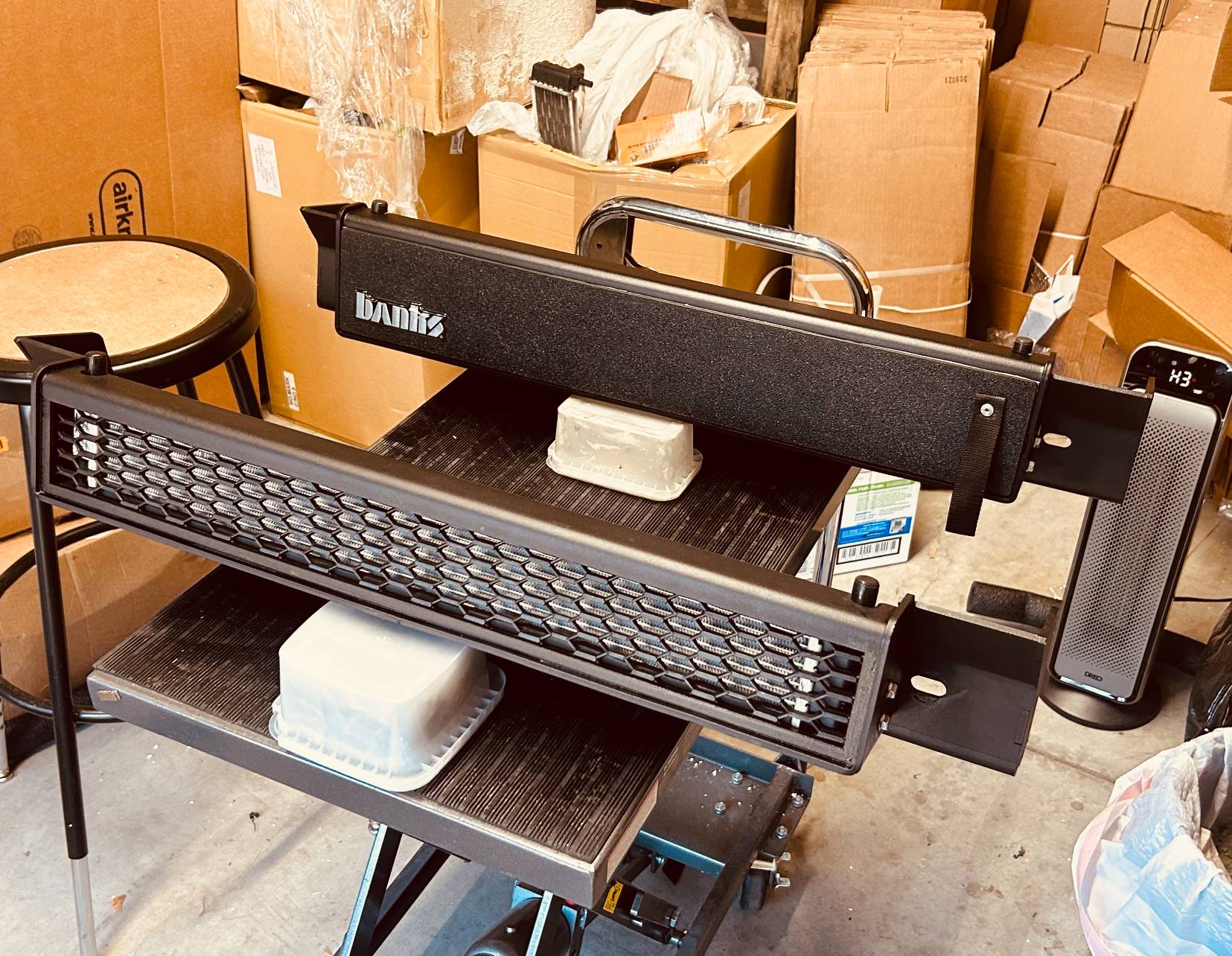

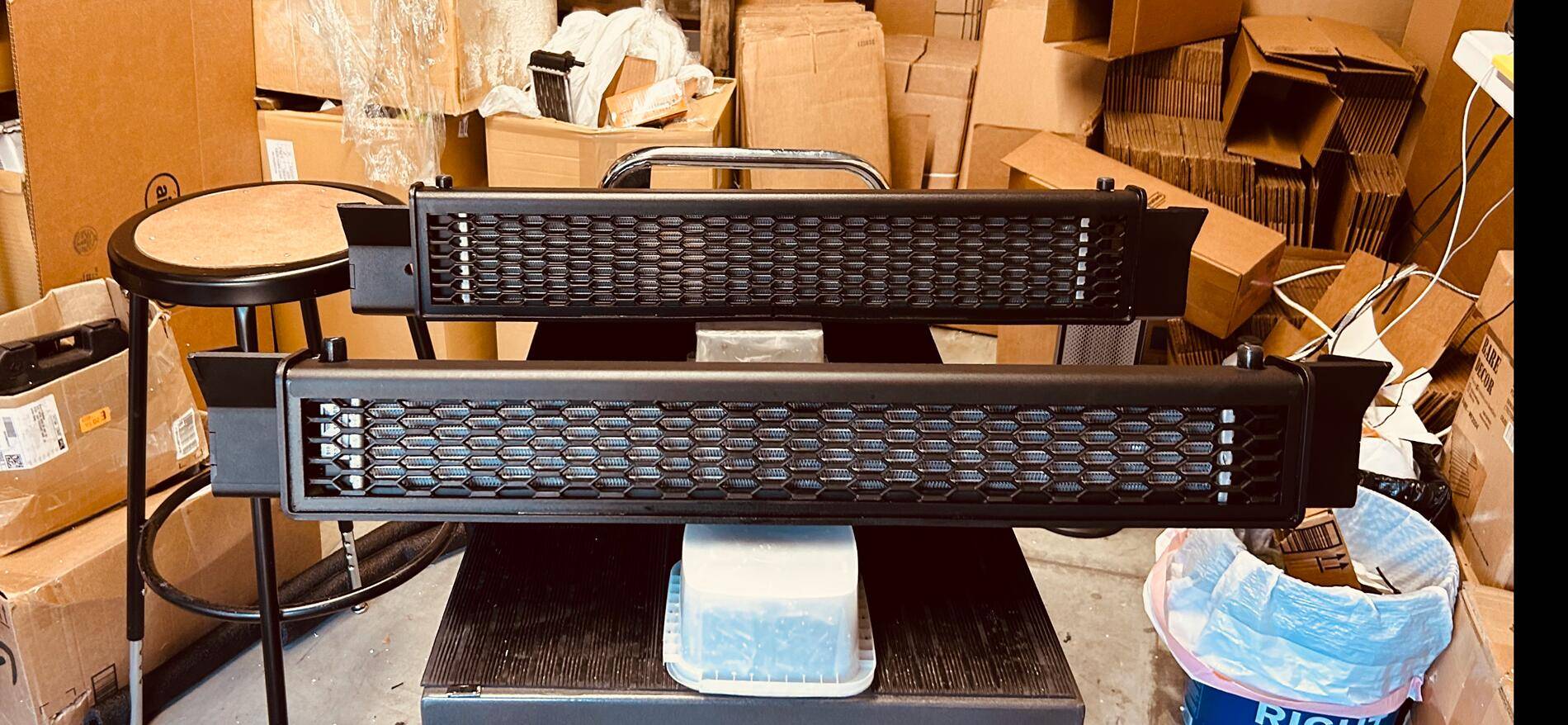

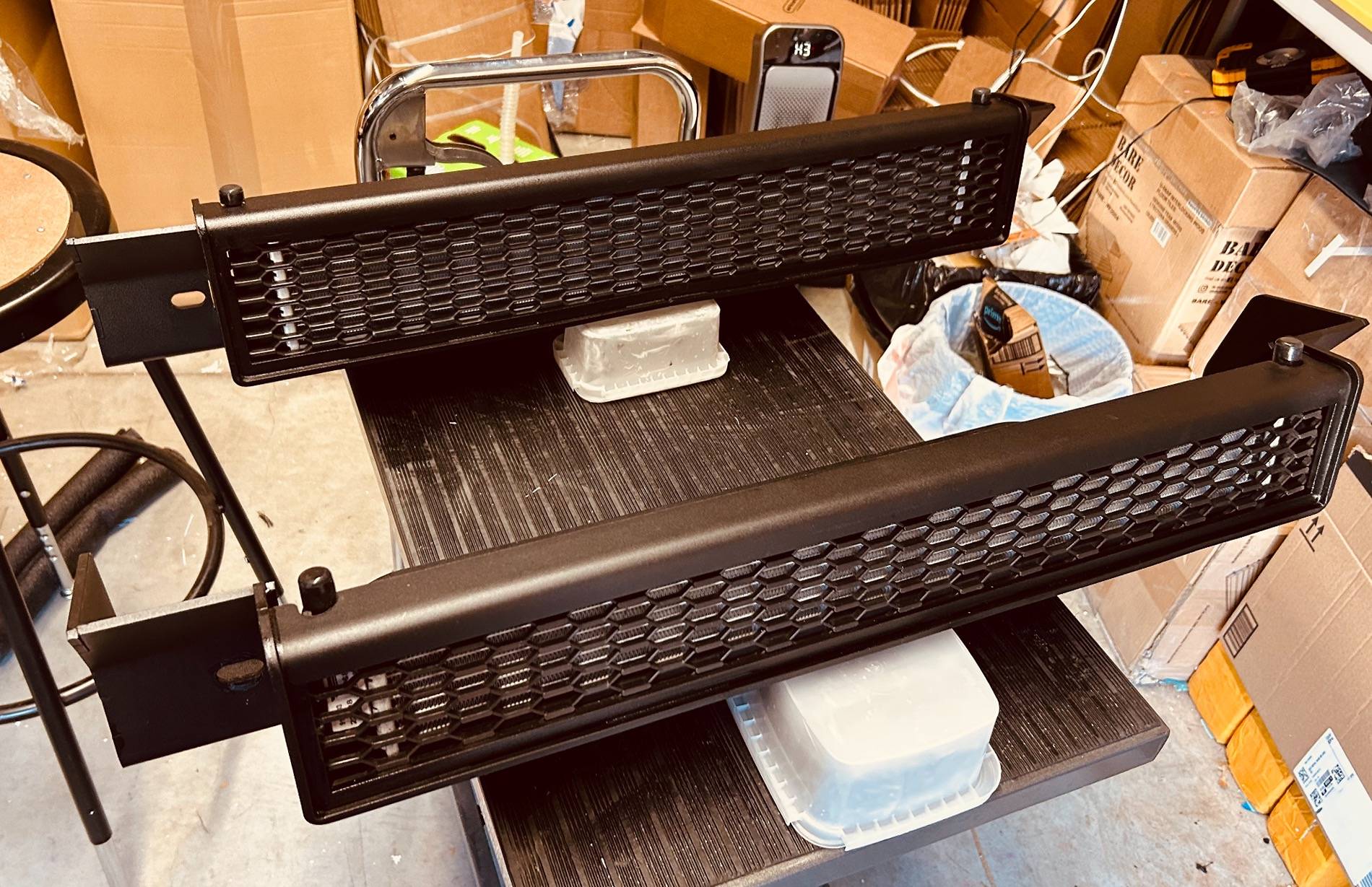

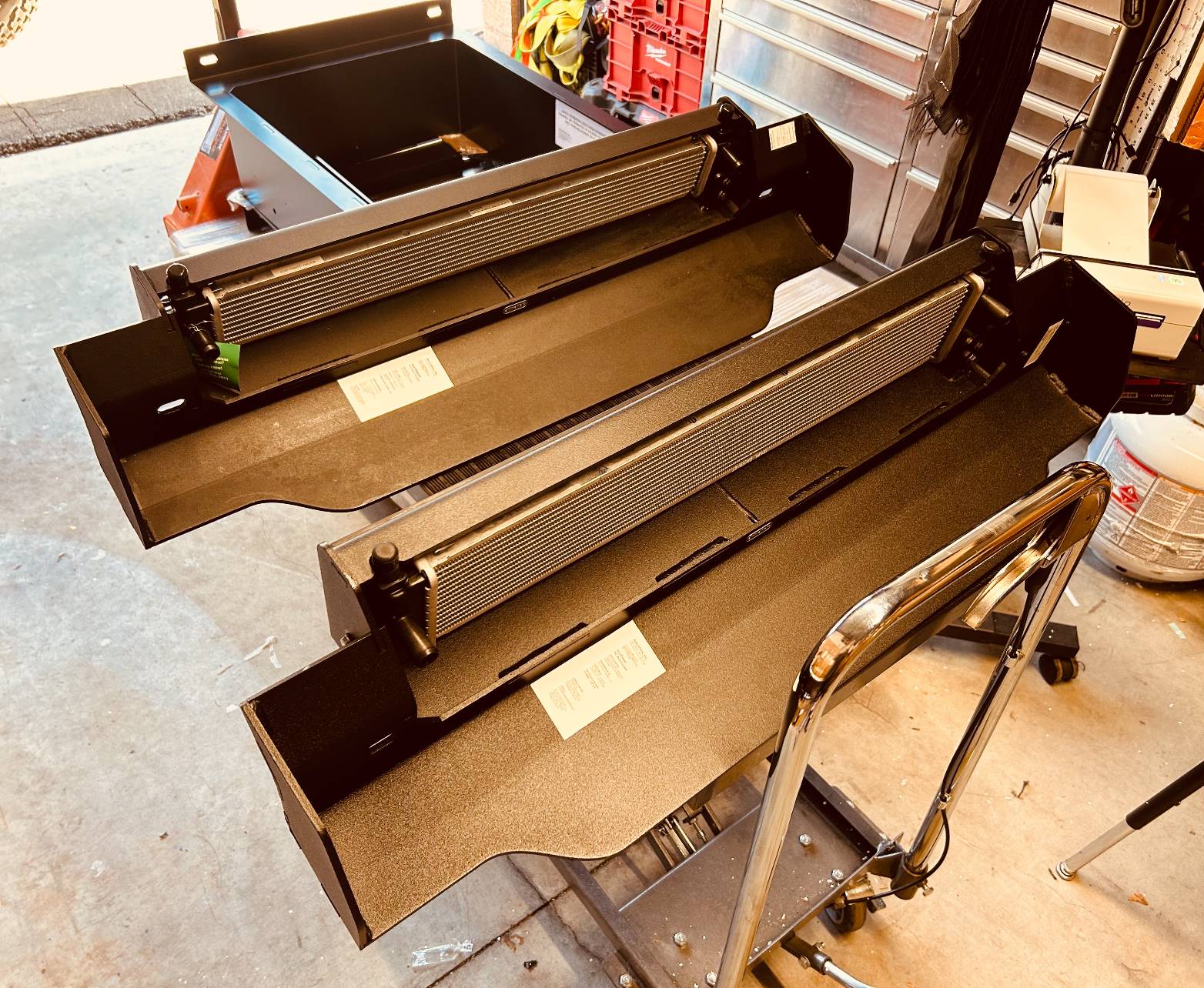

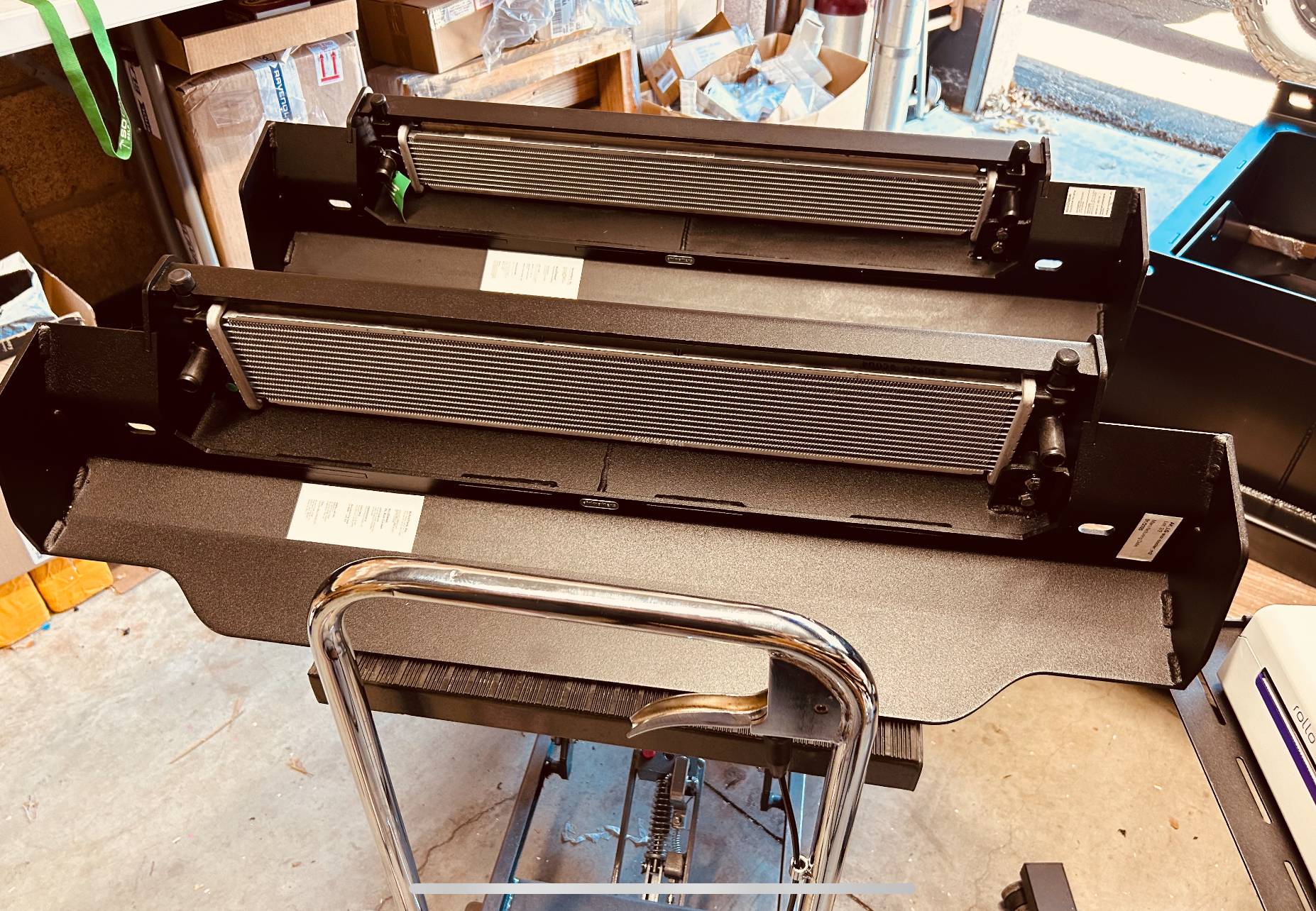

Just cleaned up the smaller original BPD assembly I was using on my truck and rebuilt it with a brand new cooler core.

Also have one of new larger assemblies built and ready for a home.

If anyone is interested in either one of these then please message me…

These are the last two available units — probably not going to be making any more of them.

Jeep Gladiator Diesel cooling options and ideas IMG_4074


Jeep Gladiator Diesel cooling options and ideas IMG_4084


Jeep Gladiator Diesel cooling options and ideas IMG_4078


Jeep Gladiator Diesel cooling options and ideas IMG_4082


Jeep Gladiator Diesel cooling options and ideas IMG_4080


Jeep Gladiator Diesel cooling options and ideas IMG_4076


Jeep Gladiator Diesel cooling options and ideas IMG_4073


VA6489

Active Member
First Name
Rob
Joined
Nov 2, 2017
Threads
1
Messages
29
Reaction score
29
Location
Dahlgren Va
Vehicle(s)
Ram 3500, 56 F100 4x4,
Just cleaned up the smaller original BPD assembly I was using on my truck and rebuilt it with a brand new cooler core.

Also have one of new larger assemblies built and ready for a home.

If anyone is interested in either one of these then please message me…

These are the last two available units — probably not going to be making any more of them.













Where does this mount?


wildtaco

Well-Known Member
First Name
Karol
Joined
Jan 4, 2023
Threads
12
Messages
428
Reaction score
720
Location
CT
Website
www.instagram.com
Vehicle(s)
23’ Diesel Rubicon Sarge Green
Build Thread
Link
Occupation
Engineer
Just cleaned up the smaller original BPD assembly I was using on my truck and rebuilt it with a brand new cooler core.

Also have one of new larger assemblies built and ready for a home.

If anyone is interested in either one of these then please message me…

These are the last two available units — probably not going to be making any more of them.













How much did you want for each of these?


Sponsored

Primer Gray

Well-Known Member
First Name
Sean
Joined
Apr 10, 2023
Threads
1
Messages
76
Reaction score
187
Location
Thousand Oaks
Vehicle(s)
2021 Jeep Gladiator
Occupation
Industrial Designer

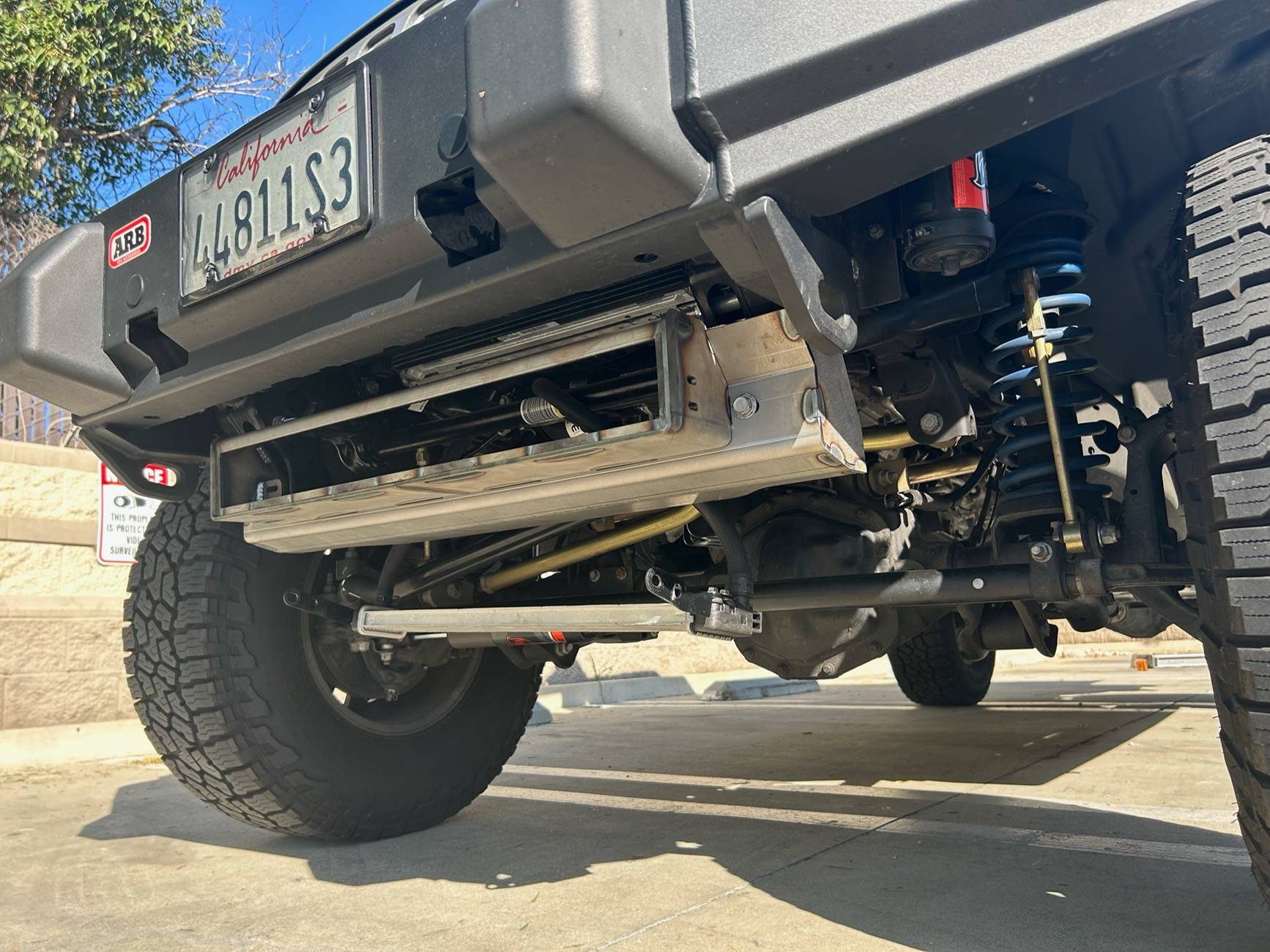

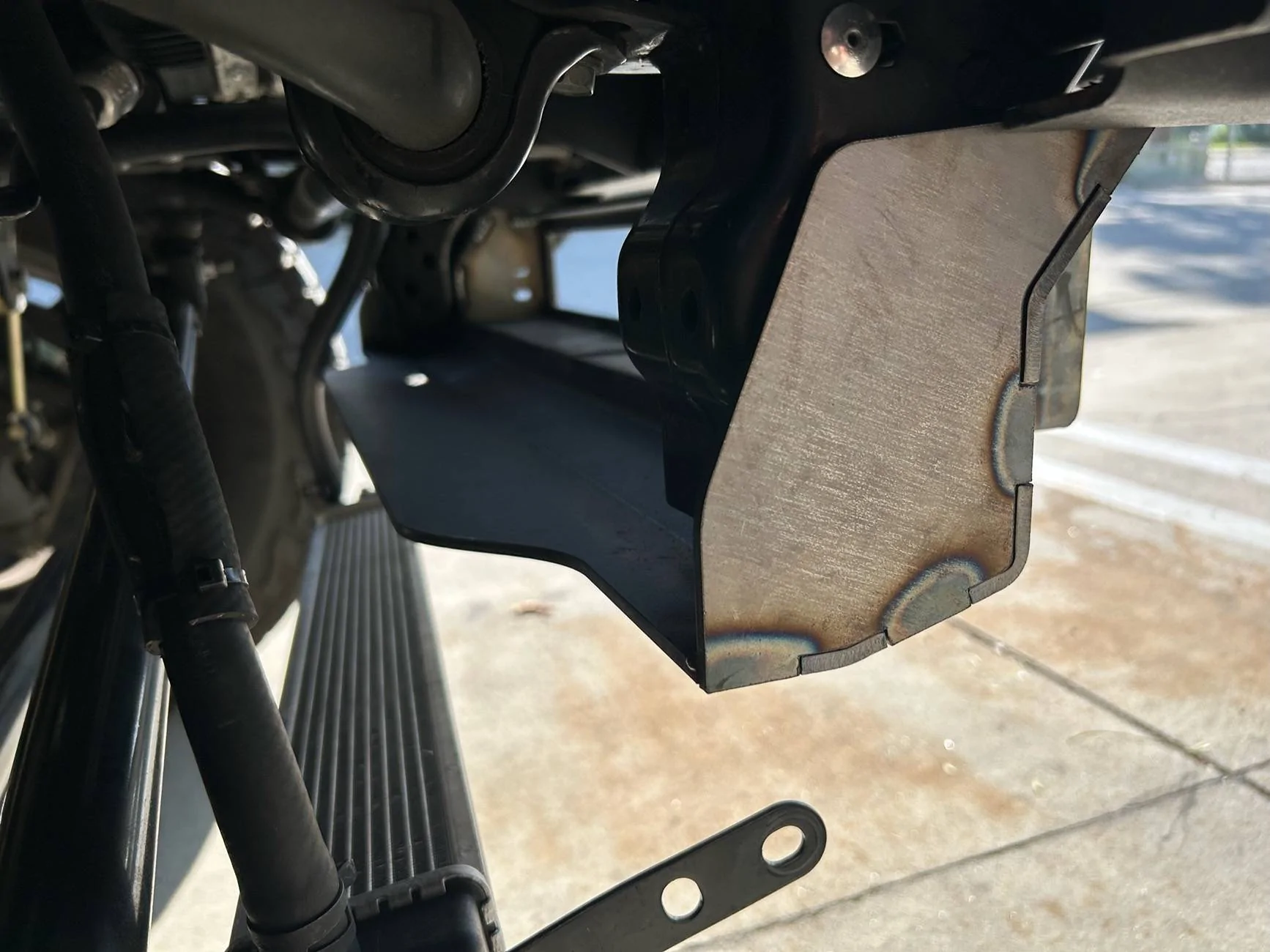

Mounts to the frame tusks beneath the front bumper (see picture).

The large unit is sold, another person has expressed interest in the remaining smaller unit but hasn’t finalized the purchase yet…

Small unit is $450 with a new core, 5/8 hose, and clamps.

Jeep Gladiator Diesel cooling options and ideas IMG_7538


Jeep Gladiator Diesel cooling options and ideas IMG_7542


CrazyCooter

Well-Known Member
First Name
Tony
Joined
Nov 1, 2020
Threads
11
Messages
2,121
Reaction score
2,261
Location
Far NorCal
Website
www.overlandvehicledynamics.com
Vehicle(s)
1991 JEEP YJ, 2021 JTR Ecodiesel
Occupation
Specialty Off Road Shop Owner
Mounts to the frame tusks beneath the front bumper (see picture).

The large unit is sold, another person has expressed interest in the remaining smaller unit but hasn’t finalized the purchase yet…

Small unit is $450 with a new core, 5/8 hose, and clamps.



Work of art right there!


PJZ

Well-Known Member
First Name
Patrick
Joined
Dec 16, 2021
Threads
13
Messages
325
Reaction score
445
Location
SoCal - The Valley
Vehicle(s)
2022 JTRD AEV370
Build Thread
Link
I picked up the larger one and it is even nicer up close than the pics show. Factory or better. Looking forward to installing. We are towing this weekend and should be able to tepeat this route soon after to see how much cooling improvement is gained. Thanks @Primer Gray! Cool dude and excellent engineering!


Jteakus

Well-Known Member
First Name
Teakus
Joined
Feb 19, 2022
Threads
14
Messages
1,100
Reaction score
1,680
Location
Oil City, LA
Vehicle(s)
2020 JLURD, 2022 JTRD
Build Thread
Link
Vehicle Showcase
1
I was out running errands today and watching the oil and coolant temps. Coolant hung out around 205 and oil temp stayed around 217. This was with 34 degree outside temp. I was thinking it would be of more benefit to cool the oil. Came up with this idea: Weld two fittings in oil pan one on each side and one higher than the other. Run a suction from low fitting through a pump, through a spin on filter housing (with one quart filter), to an air to fluid cooler then back to the pan through the other fitting, This would keep the engine oil pump out of the equation, add volume and cooling. What do all think?


Sponsored

Jteakus

Well-Known Member
First Name
Teakus
Joined
Feb 19, 2022
Threads
14
Messages
1,100
Reaction score
1,680
Location
Oil City, LA
Vehicle(s)
2020 JLURD, 2022 JTRD
Build Thread
Link
Vehicle Showcase
1
I was thinking it would keep extra load off the engine oil pump, move a lot more volume and keep all the plumbing down low between the frame rails. An added bonus would be another filter that would be cheap and easy to change.


Sweetums

Well-Known Member
Joined
Mar 30, 2023
Threads
21
Messages
1,188
Reaction score
2,599
Location
Utah
Vehicle(s)
'05 LJR, '21 JTDR, '00 VFR800, RSV4, '11 MTS 1200
I would think something that flat would make oil changes a challenge.


Jteakus

Well-Known Member
First Name
Teakus
Joined
Feb 19, 2022
Threads
14
Messages
1,100
Reaction score
1,680
Location
Oil City, LA
Vehicle(s)
2020 JLURD, 2022 JTRD
Build Thread
Link
Vehicle Showcase
1
Would it be better to try to cool the oil more or the coolant more to solve the overheat/derate problem? I guess both in a perfect world,
I was just trying to help with a workable solution.


biodiesel

Well-Known Member
Joined
Dec 8, 2018
Threads
14
Messages
1,406
Reaction score
1,663
Location
New Mexico
Vehicle(s)
2015 Ram 1500 Ecodiesel
I was thinking it would keep extra load off the engine oil pump, move a lot more volume and keep all the plumbing down low between the frame rails. An added bonus would be another filter that would be cheap and easy to change.

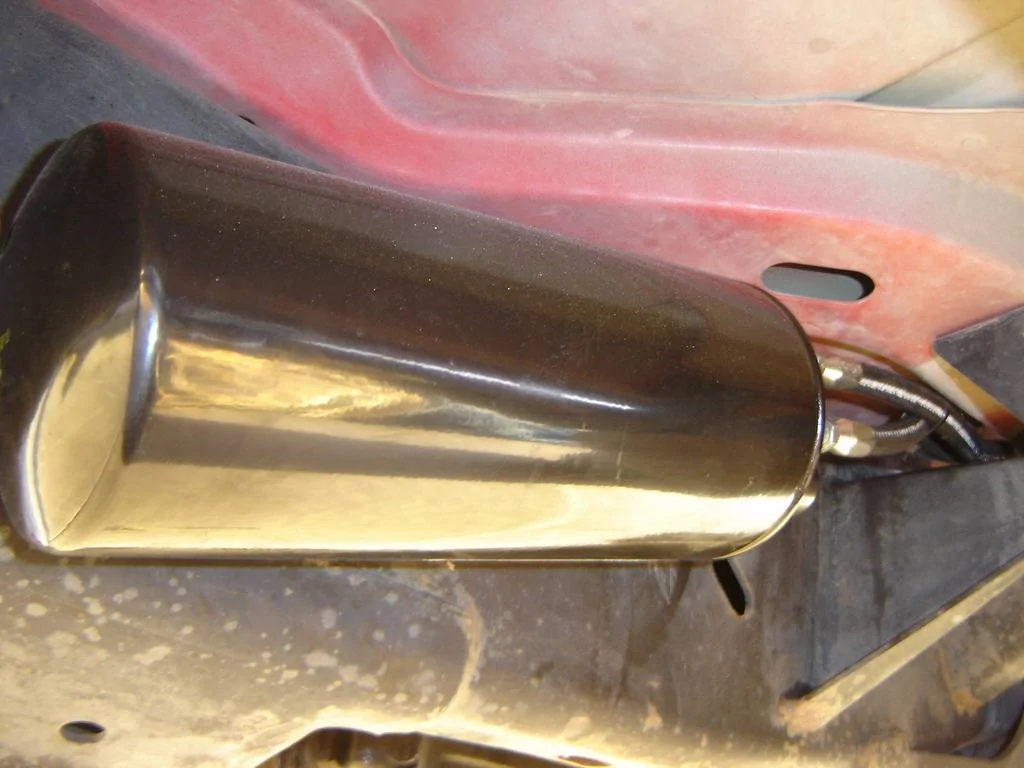

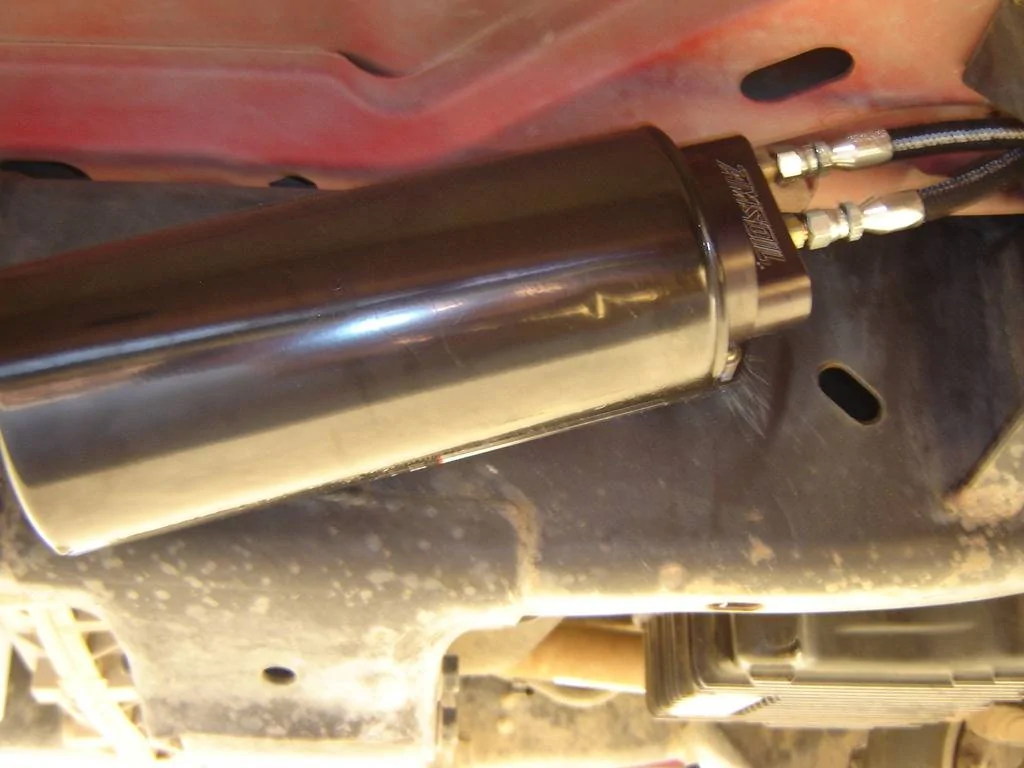

An oil bypass doesn't put any additional strain on the oil pump. It simply bypasses approximately 10% of the oil and sends it through a secondary filter. You could mount the oil filter anywhere, including on the frame rail. That's where I installed the bypass filter on my Ram Cummins.

Jeep Gladiator Diesel cooling options and ideas QQISoy8


Jeep Gladiator Diesel cooling options and ideas 7y5kM3t
