Diesel gladiator with 4.10 gears and 4/1 transfer case?

Phil3333

Well-Known Member
First Name
Phillip
Joined
Apr 19, 2021
Threads
39
Messages
191
Reaction score
189
Location
Utah
Vehicle(s)
Ram2500
Occupation
Heavy equipment operator
I thought the rubicon diesel didn't have them?


OP
OP
Phil3333

Phil3333

Well-Known Member
First Name
Phillip
Joined
Apr 19, 2021
Threads
39
Messages
191
Reaction score
189
Location
Utah
Vehicle(s)
Ram2500
Occupation
Heavy equipment operator
Ya I'm stupid:blush:. How do I find the invoice price on this jeep



CerOf

Well-Known Member
Joined
Jan 1, 2021
Threads
18
Messages
1,378
Reaction score
1,524
Location
Dallas
Vehicle(s)
‘21 JTRD
Ya I'm stupid:blush:. How do I find the invoice price on this jeep
Ask the dealer to show you.

Tell the dealer you’ll buy at x% below invoice. When you agree, they should show you the invoice. Invoice price, it seems, is about 10% less than sticker.


MoxiesDad

Well-Known Member
First Name
Al
Joined
Dec 31, 2020
Threads
1
Messages
65
Reaction score
81
Location
North Olmsted, OH
Vehicle(s)
2021 JTR, 2004 TJ Rubicon, 2014 Jeep Patriot
Occupation
Maintenance Mechanic
Ya I'm stupid:blush:. How do I find the invoice price on this jeep
Check the thread on JT monthly pricing sheets in the ordering section. It will list FWP (invoice price) and MSRP for the model and also all options. BTW invoice price is not 10% below MSRP.


dcmdon

Well-Known Member
First Name
Don
Joined
Mar 31, 2021
Threads
47
Messages
2,894
Reaction score
3,248
Location
Boston Metro-West, Northern NH
Vehicle(s)
.
Look at it this way. The diesel has a 4500 RPM(ish) redline. The gas 6 is somewhere around 6500.

So putting 4.11 gears would have the diesel turning too fast at highway speeds. I'm not saying it couldn't be done. But
1)its not necessary with all the low end torque, to multiply it so much.
2) streetability would suffer with reduced fuel economy and increased noise.

OP
OP
Phil3333

Phil3333

Well-Known Member
First Name
Phillip
Joined
Apr 19, 2021
Threads
39
Messages
191
Reaction score
189
Location
Utah
Vehicle(s)
Ram2500
Occupation
Heavy equipment operator
Look at it this way. The diesel has a 4500 RPM(ish) redline. The gas 6 is somewhere around 6500.

So putting 4.11 gears would have the diesel turning too fast at highway speeds. I'm not saying it couldn't be done. But
1)its not necessary with all the low end torque, to multiply it so much.
2) streetability would suffer with reduced fuel economy and increased noise.
Depends on tire size 4.10 with 40s might be the ticket


CerOf

Well-Known Member
Joined
Jan 1, 2021
Threads
18
Messages
1,378
Reaction score
1,524
Location
Dallas
Vehicle(s)
‘21 JTRD
Look at it this way. The diesel has a 4500 RPM(ish) redline. The gas 6 is somewhere around 6500.

So putting 4.11 gears would have the diesel turning too fast at highway speeds. I'm not saying it couldn't be done. But
1)its not necessary with all the low end torque, to multiply it so much.
2) streetability would suffer with reduced fuel economy and increased noise.
It’s a 10% difference.

So if I’m at 1800rpm at regular highway speeds with 3.73. This would put me at 1980. Not a huge difference.

Now, run a 35” tire and you are 6% over a stock 33” tire. The net rpm increase would only be ~4%. (10% difference going from 3.73 to 4.10 less the 6% increase of tire size)

The extra rolling resistance, wind resistance and weight of the larger tire would make 4.10 gears pretty darn comparable to stock.

  • Like
Reactions: Mac


CerOf

Well-Known Member
Joined
Jan 1, 2021
Threads
18
Messages
1,378
Reaction score
1,524
Location
Dallas
Vehicle(s)
‘21 JTRD
Depends on tire size 4.10 with 40s might be the ticket
I believe it would become boring.

the added weight + size would need more gear. I think 4.10 would be spot on for a daily driver on 37s.

If I’m on 40s, I’m certain to have a 3”+ lift, added wind resistance, and all that comes with it, I’d probably want 4.56.


dcmdon

Well-Known Member
First Name
Don
Joined
Mar 31, 2021
Threads
47
Messages
2,894
Reaction score
3,248
Location
Boston Metro-West, Northern NH
Vehicle(s)
.
It’s a 10% difference.

So if I’m at 1800rpm at regular highway speeds with 3.73. This would put me at 1980. Not a huge difference.

Now, run a 35” tire and you are 6% over a stock 33” tire. The net rpm increase would only be ~4%. (10% difference going from 3.73 to 4.10 less the 6% increase of tire size)

The extra rolling resistance, wind resistance and weight of the larger tire would make 4.10 gears pretty darn comparable to stock.
Except we aren't talking about add ons. We are talking about stock to stock.

A diesel with 373s is appropriate for stock ish sized wheels and will give more torque at the wheels than a gas engine with 4.11s.

I'm not saying if you put 37s on your jeep that 373s are ideal. Just like I wouldn't say that 4.11s with a gas engine and 37s wouldn't be ideal.

Jeep gears the truck to optimize it based on the wheels and tires that come on it. Not based on the idea that someone might put larger tires on it.


CerOf

Well-Known Member
Joined
Jan 1, 2021
Threads
18
Messages
1,378
Reaction score
1,524
Location
Dallas
Vehicle(s)
‘21 JTRD
Except we aren't talking about add ons. We are talking about stock to stock.

A diesel with 373s is appropriate for stock ish sized wheels and will give more torque at the wheels than a gas engine with 4.11s.

I'm not saying if you put 37s on your jeep that 373s are ideal. Just like I wouldn't say that 4.11s with a gas engine and 37s wouldn't be ideal.

Jeep gears the truck to optimize it based on the wheels and tires that come on it. Not based on the idea that someone might put larger tires on it.
Totally agree! Gas engine can’t put down the same torque. 3.73 in diesel vs 4.10 in gasser.
Torque1st GearT-CaseAxle RatioTotal
2604.7144.120,083.4
4424.7143.7331,060.75

Even if you get the gasser up to 300 torque with a super charger, or for fun, lets say 350, you're still at 27,035.4 to the ground.

For all out grunt, can't beat the diesel in the gladiator.


dcmdon

Well-Known Member
First Name
Don
Joined
Mar 31, 2021
Threads
47
Messages
2,894
Reaction score
3,248
Location
Boston Metro-West, Northern NH
Vehicle(s)
.
Ha. I thought about doing the math but was lazy. Thanks. Its more of a disparity than I though it would be.


rharr

Well-Known Member
Joined
May 6, 2021
Threads
12
Messages
723
Reaction score
799
Location
Tucson, AZ
Vehicle(s)
21 JTRD 3" RKK lift, (former) 95 XJ 5sp 8" lift

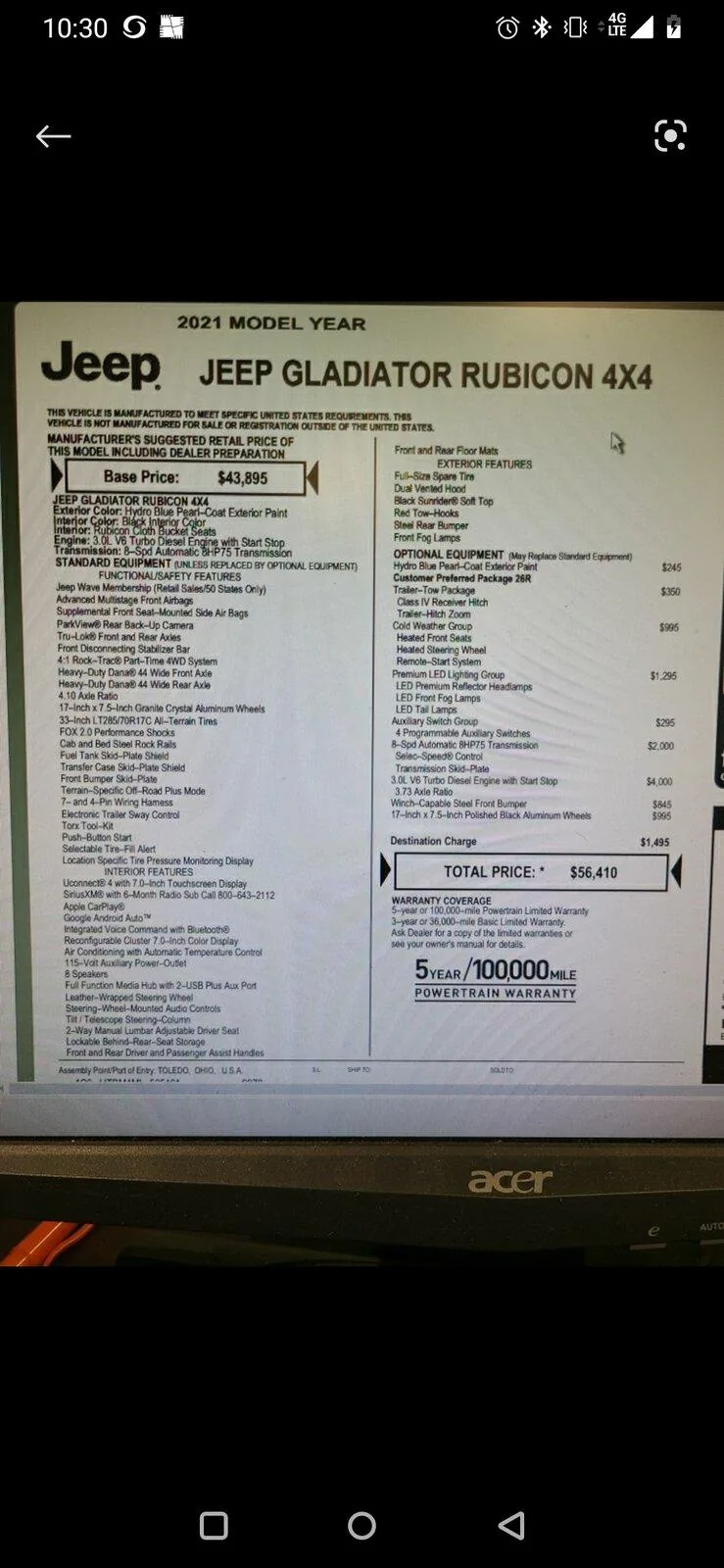

So is it true the JTRD comes with a 4:1 transfer case? My build sticker says it has it. Dealer was telling me it's the 2.73 trans case.....
