DIY Bed Rail System

[injaneer]

I know many of you have done this, and I have seen many threads on this. Thanks to all that have posted before. I am going to include my story here in case I can help someone with an idea or something a little different.

Over the past few weeks I have created my own custom bed rail system out of Unistrut from the local "home" stores.

I bought 2 10' pieces of unistrut and cut them a little over 5" for the top, and about 52" I think for the sides.

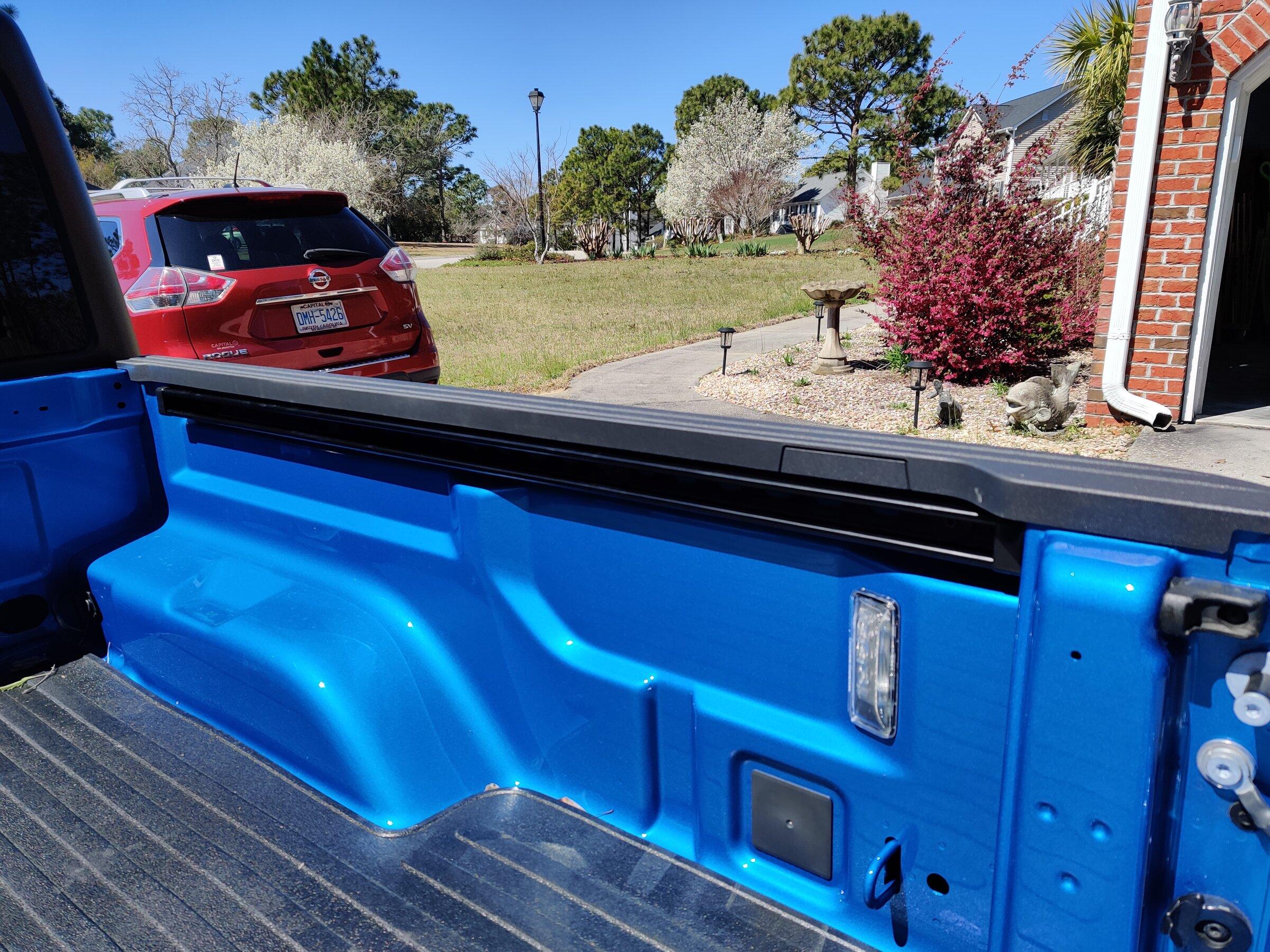

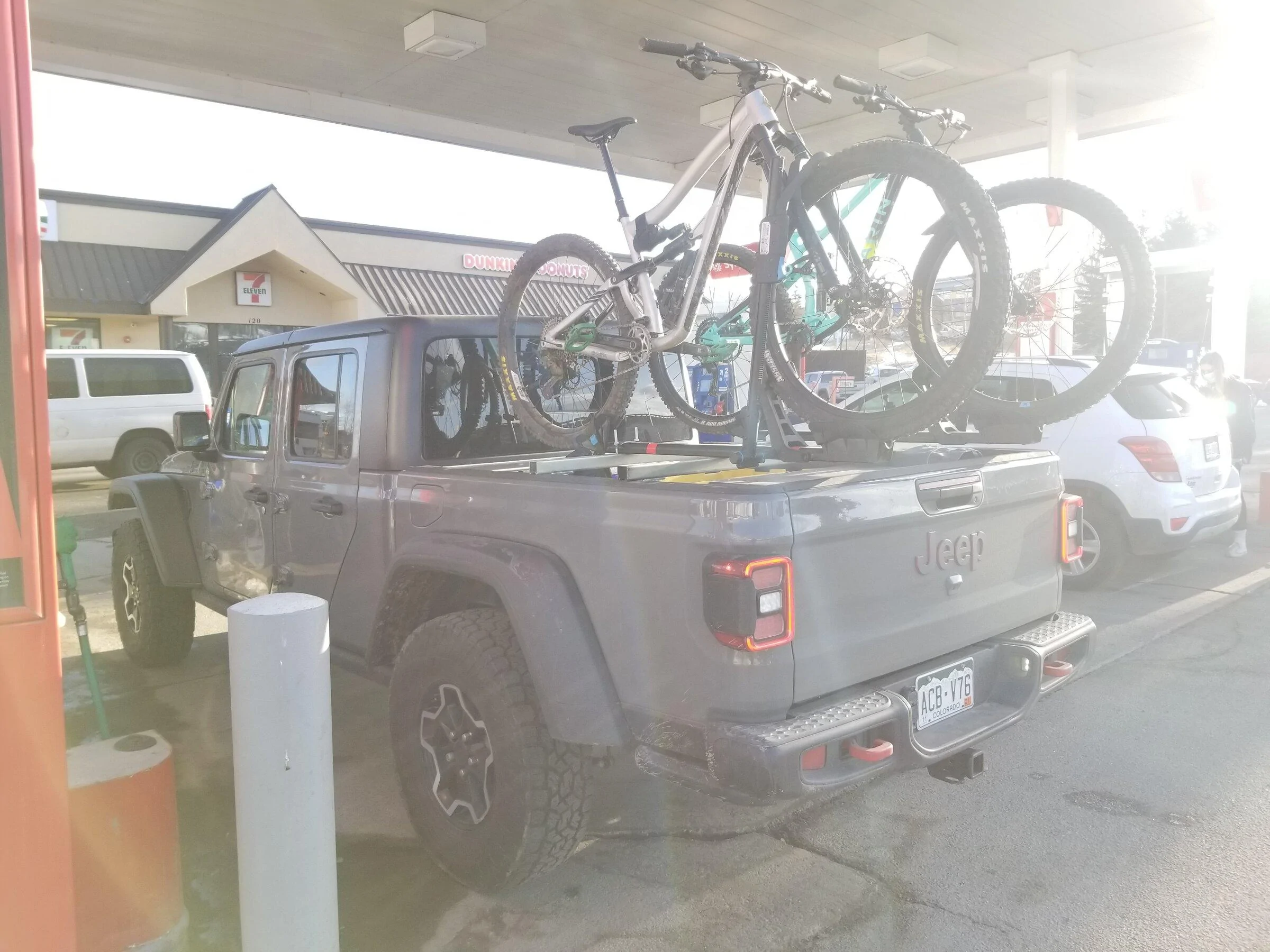

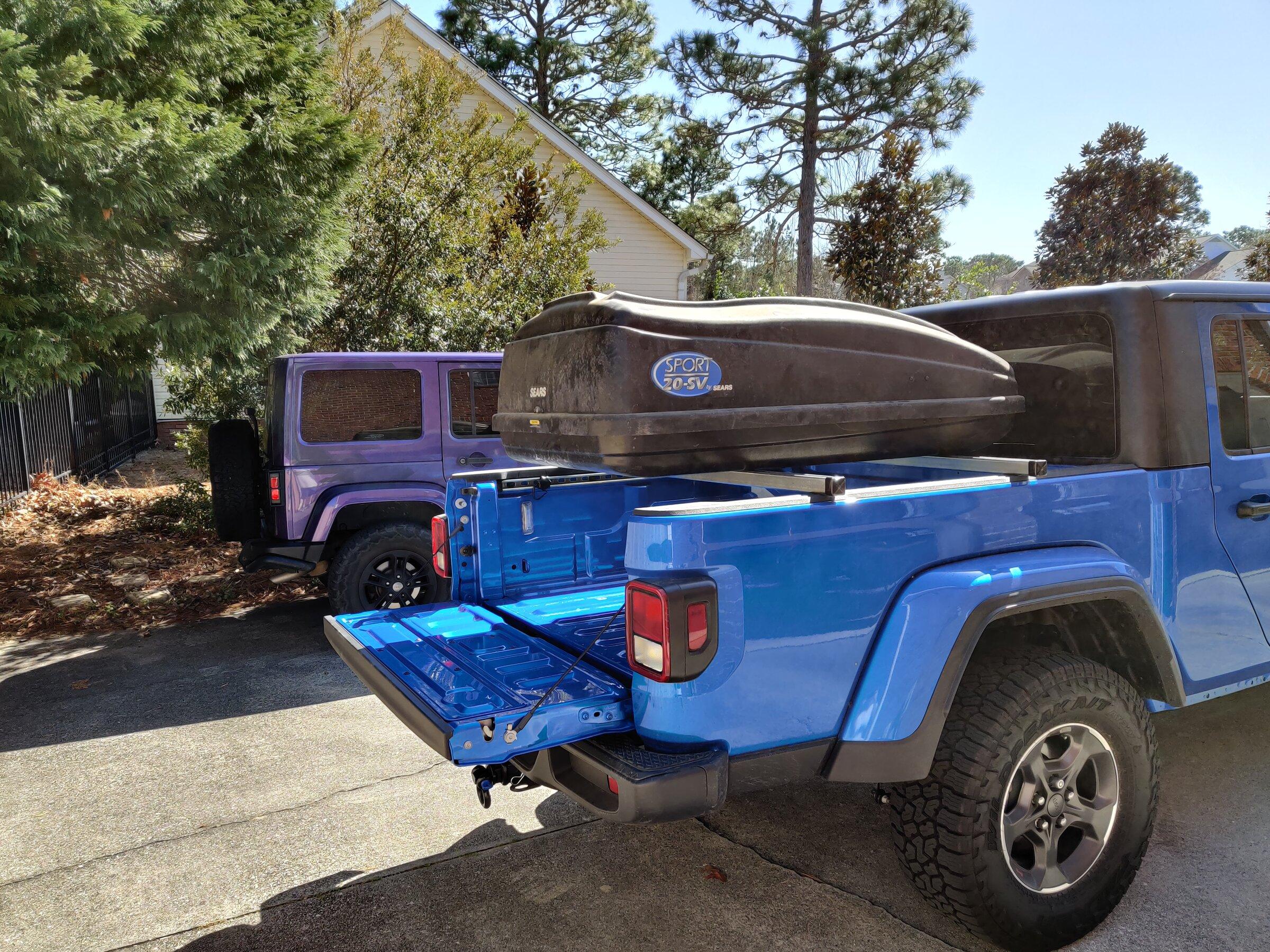

The two longer runs are to cross the bed for my storage rack, or for bikes, etc in the future.

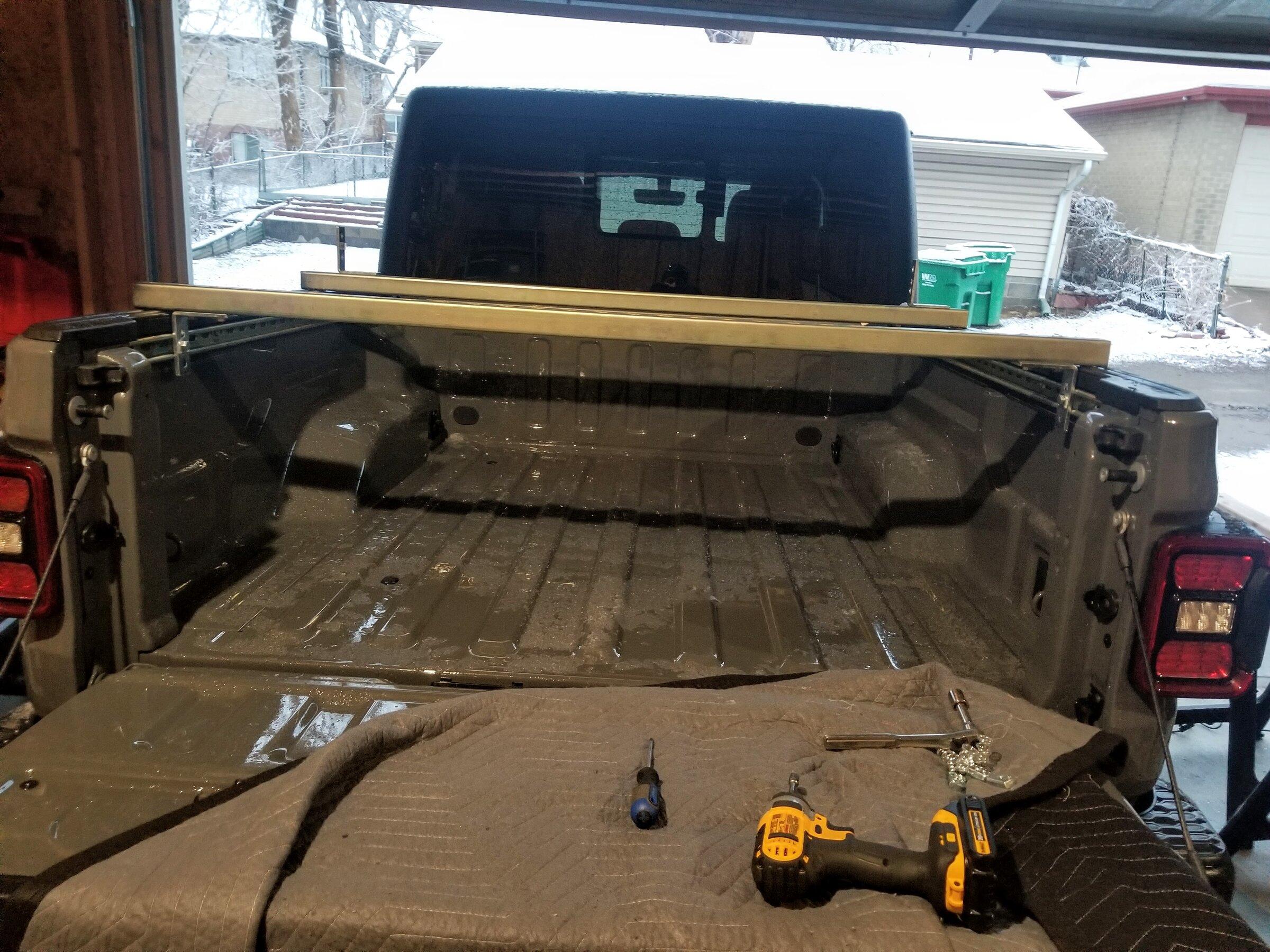

I used these L brackets and hand tight knobs to secure the cross rails, allowing me to move and adjust them, and to make them easy to secure and remove.

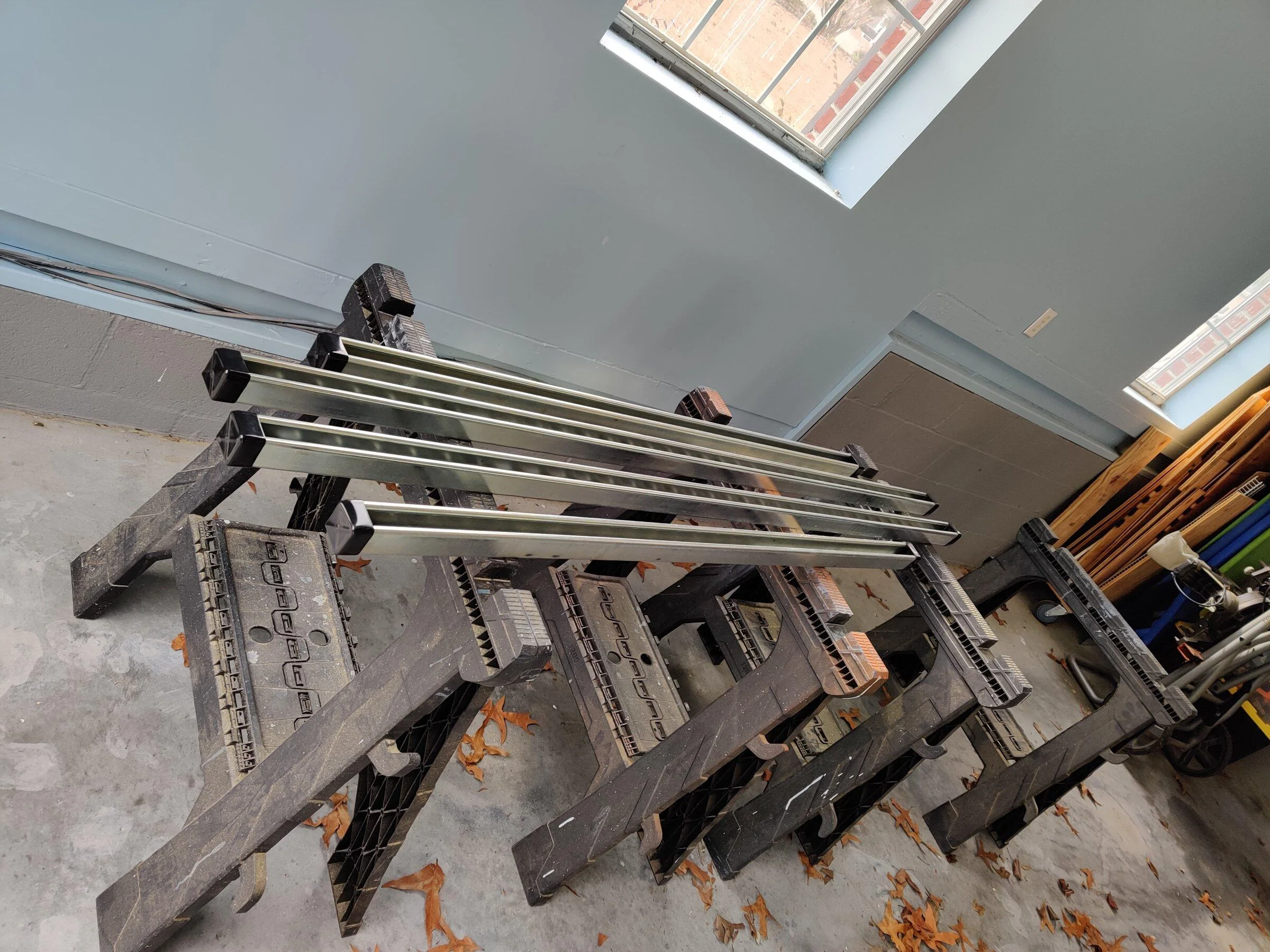

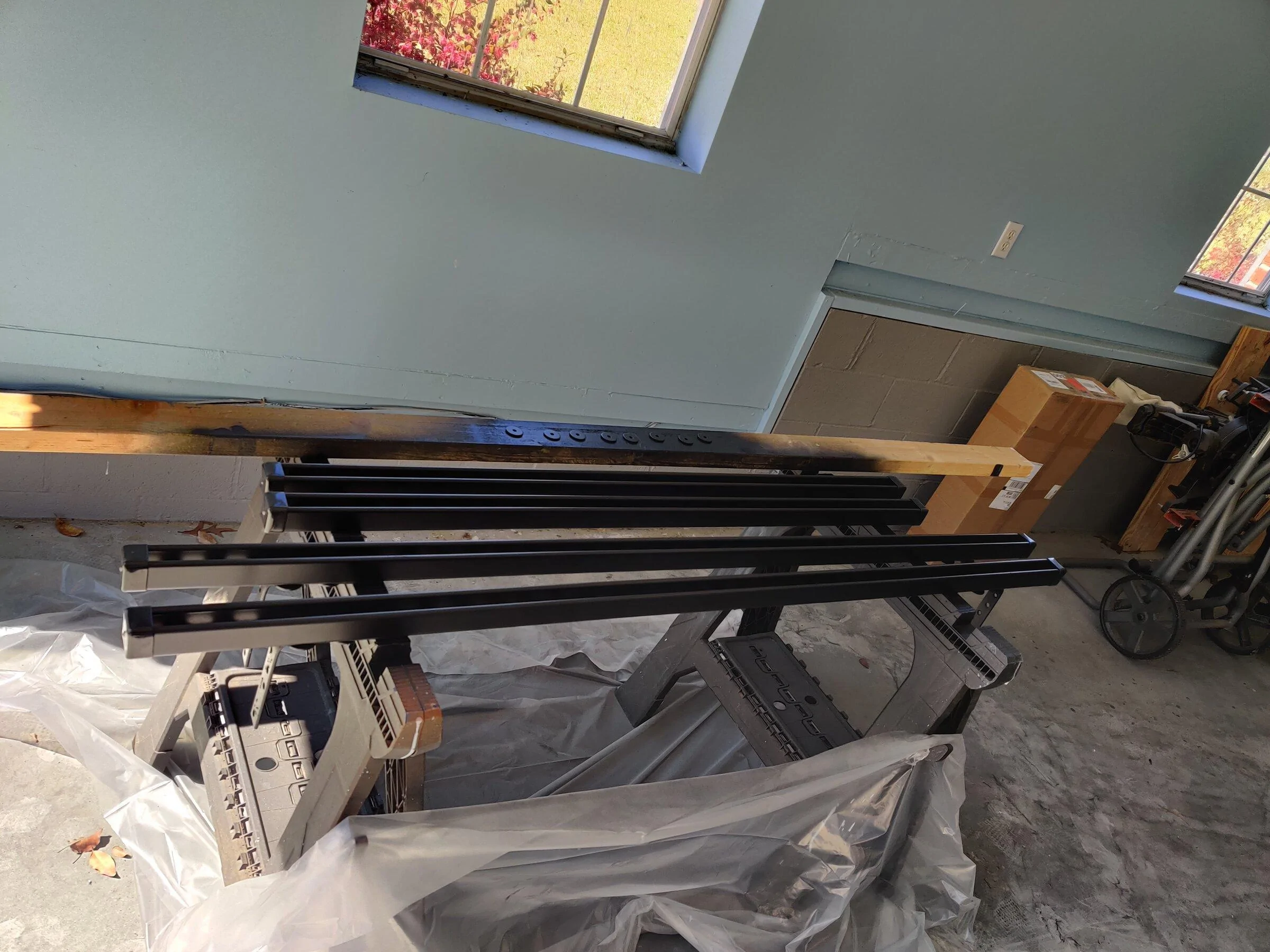

Painted it all black. And added clear coat.

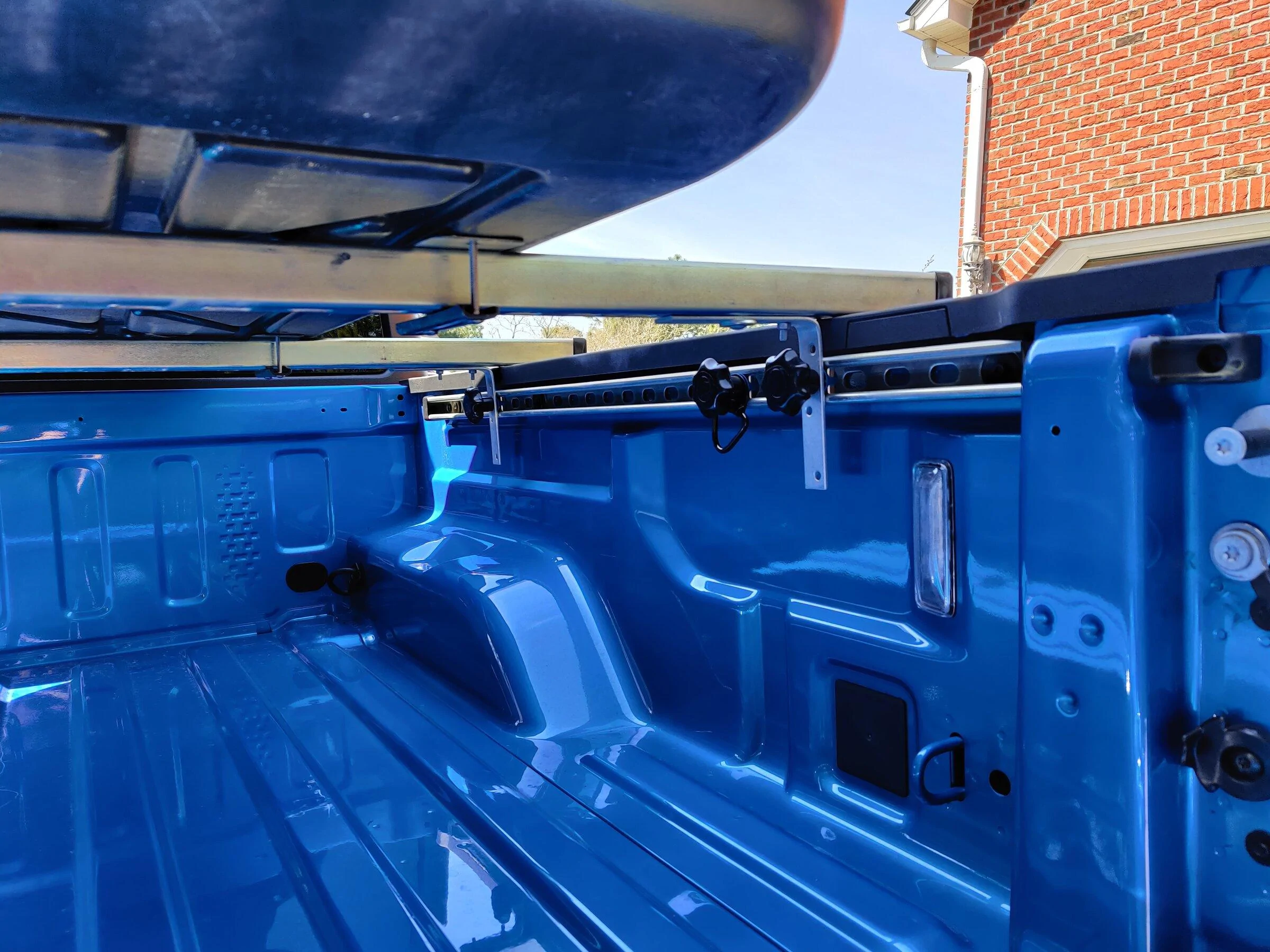

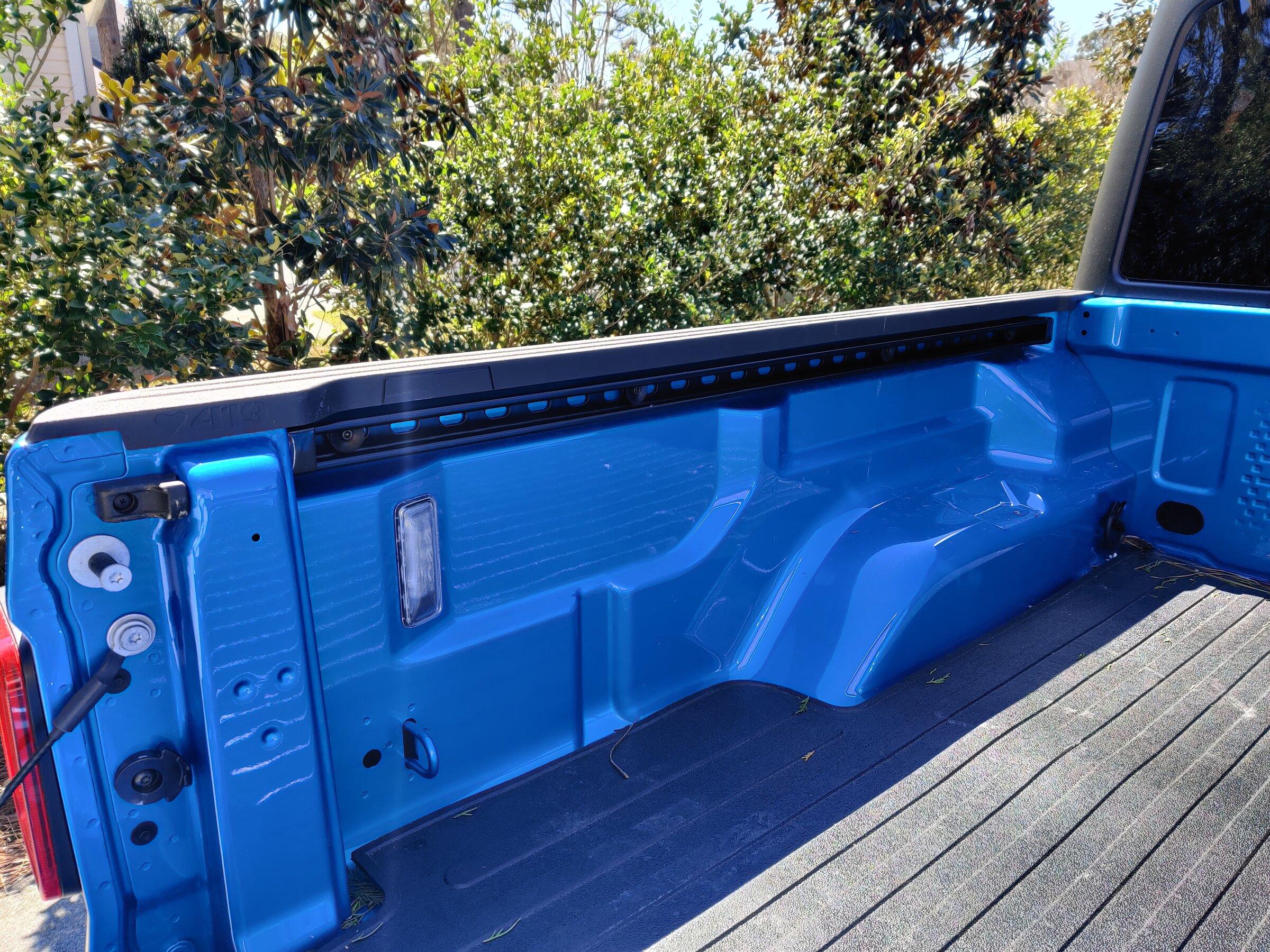

Installed.

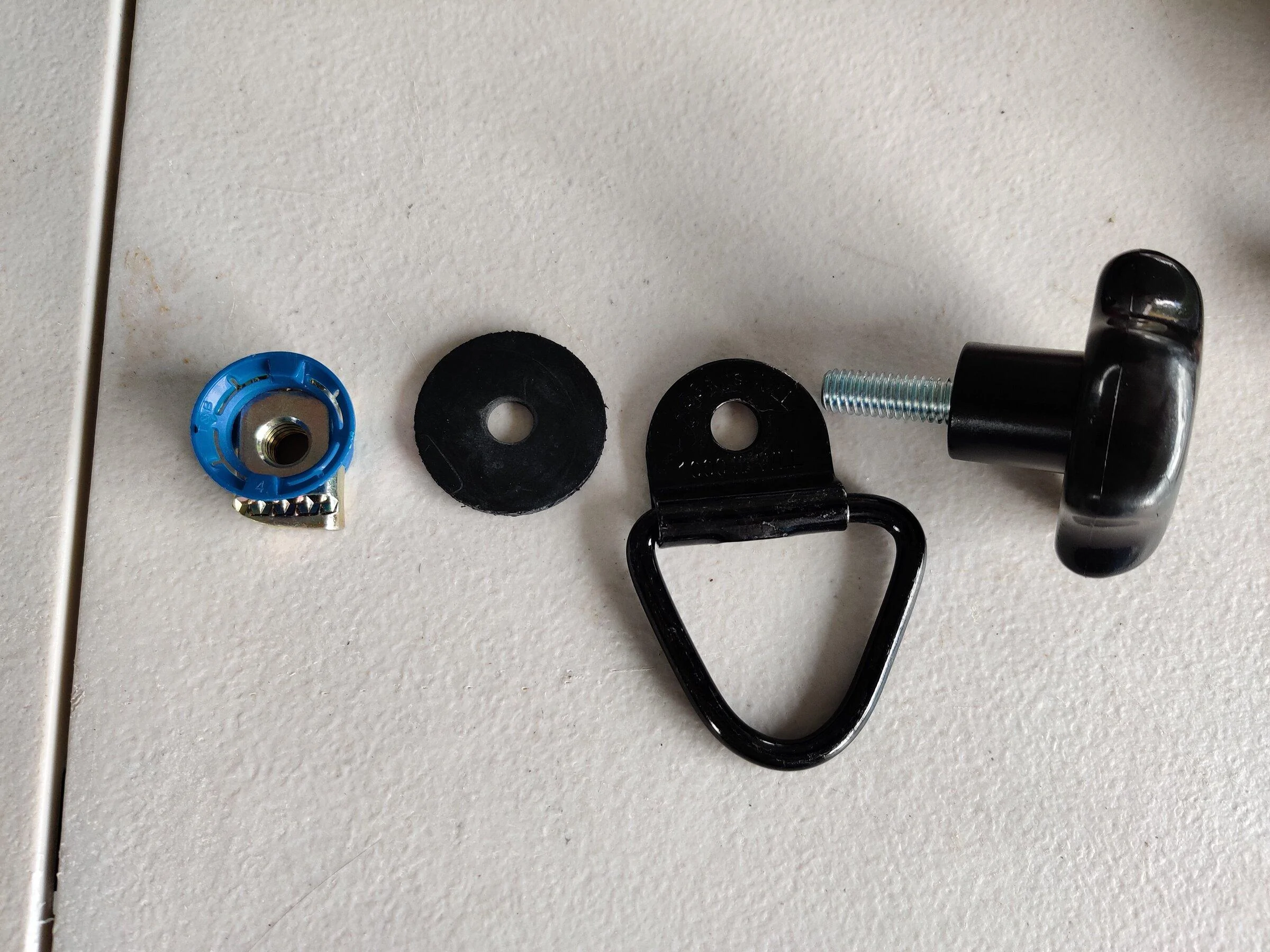

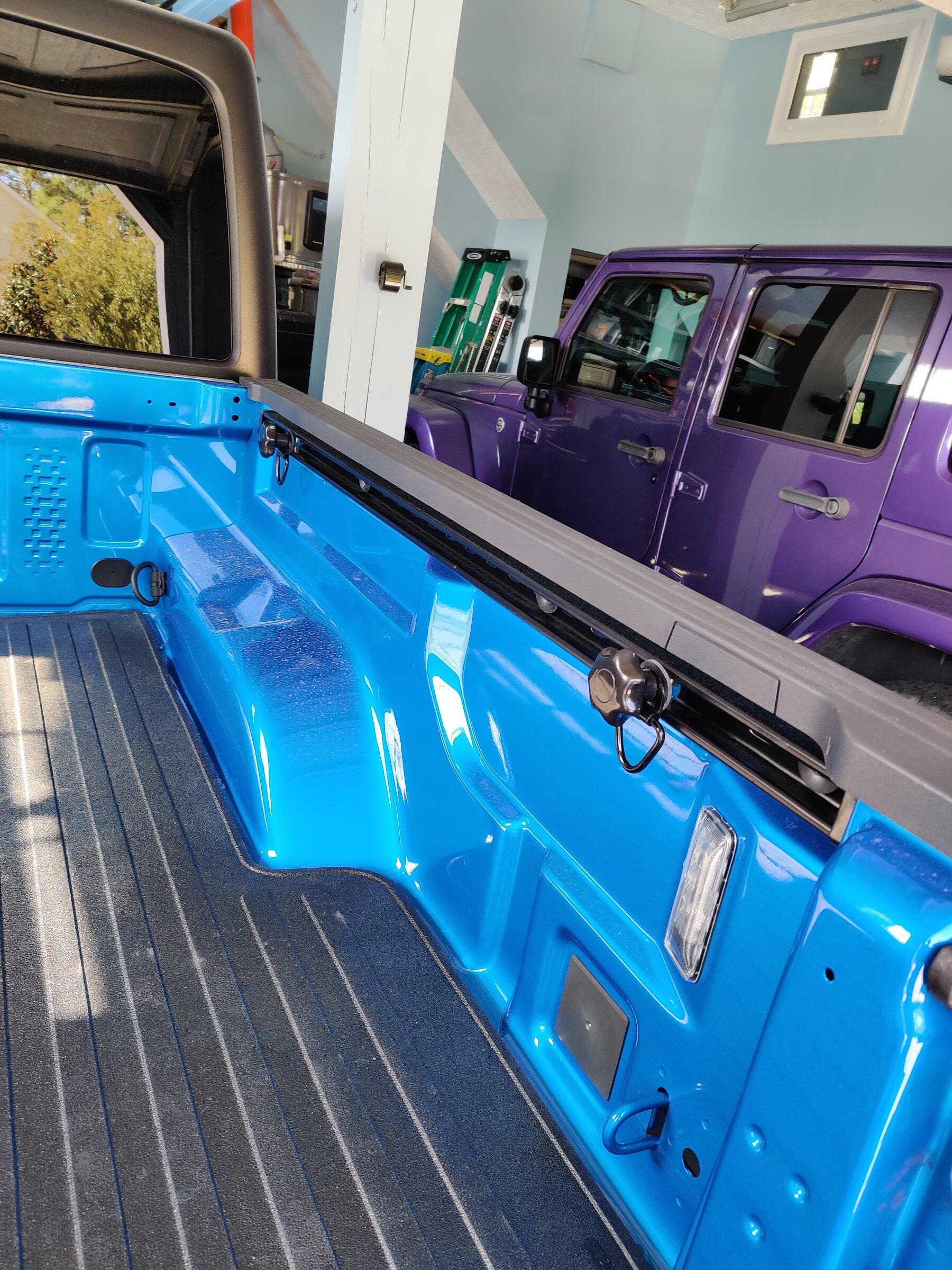

and made these tie down cleats.

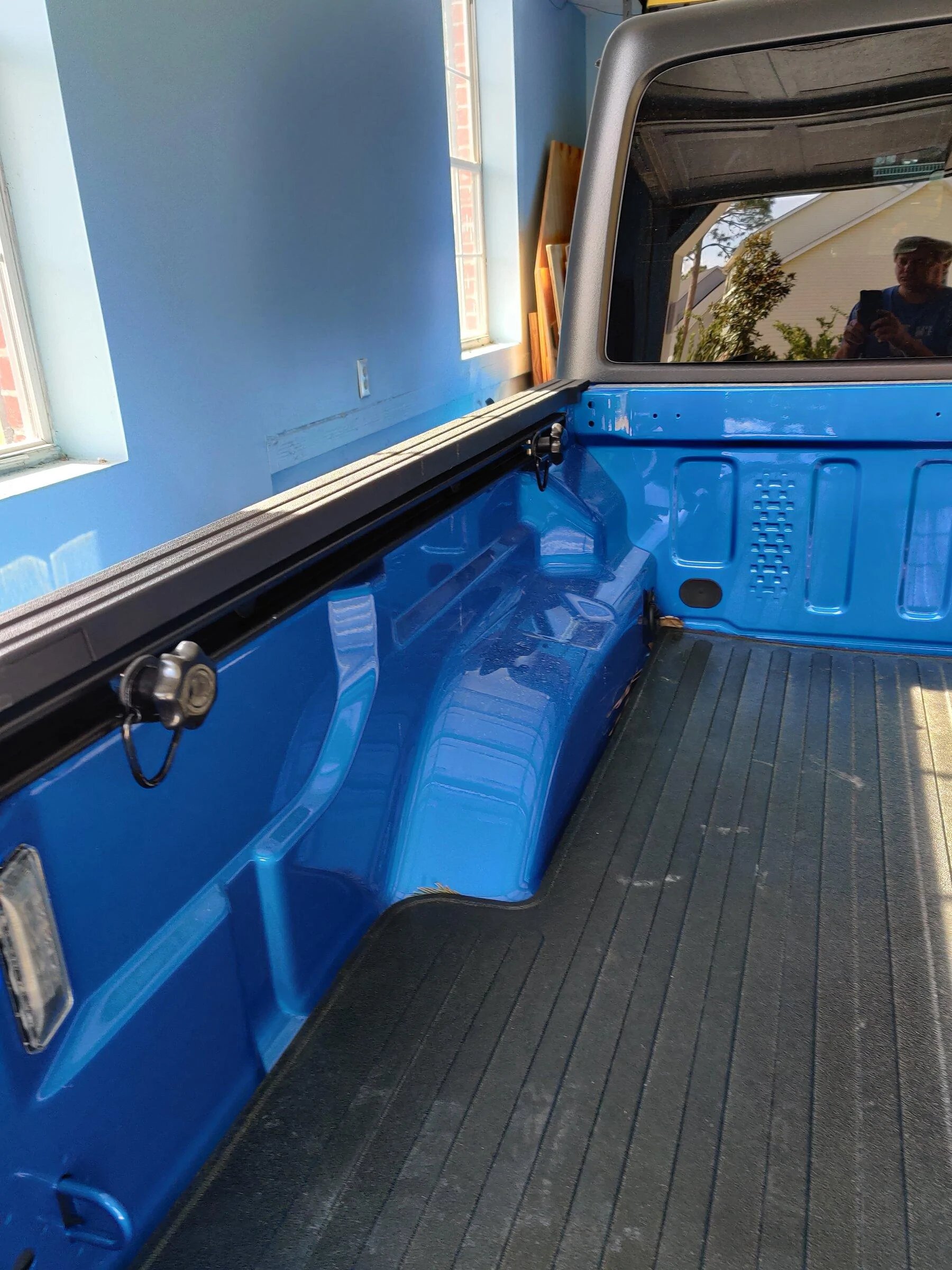

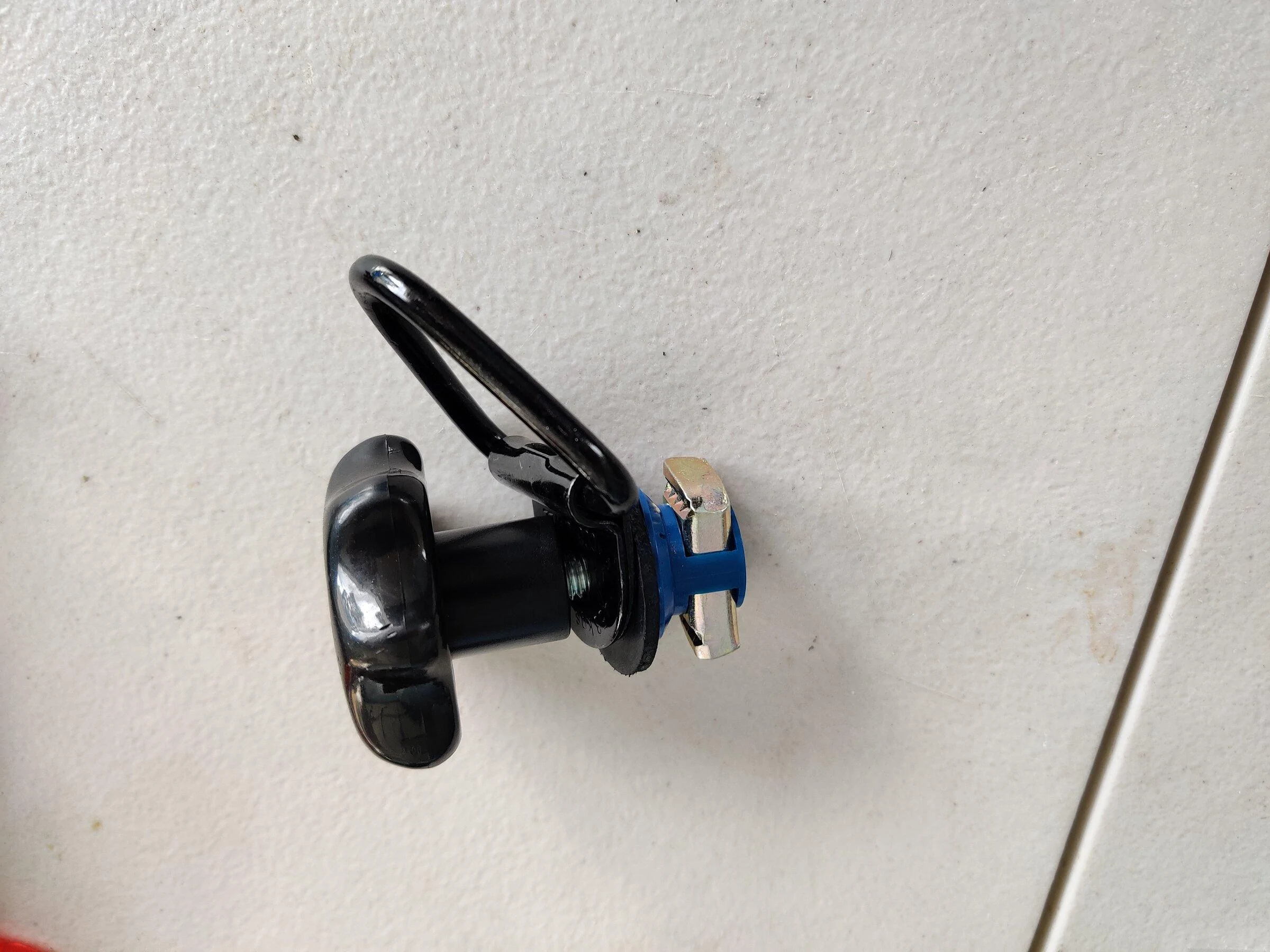

And tie down cleats installed.

Very pleased with the results, we will see how the paint/clear coat holds up.
