Finally got time to work on a door cart. Overall I wanted it to support 3 configurations:

- Front doors only with or without Freedom Panels
- All doors with or without Freedom Panels
- All doors and roof with or without Freedom Panels

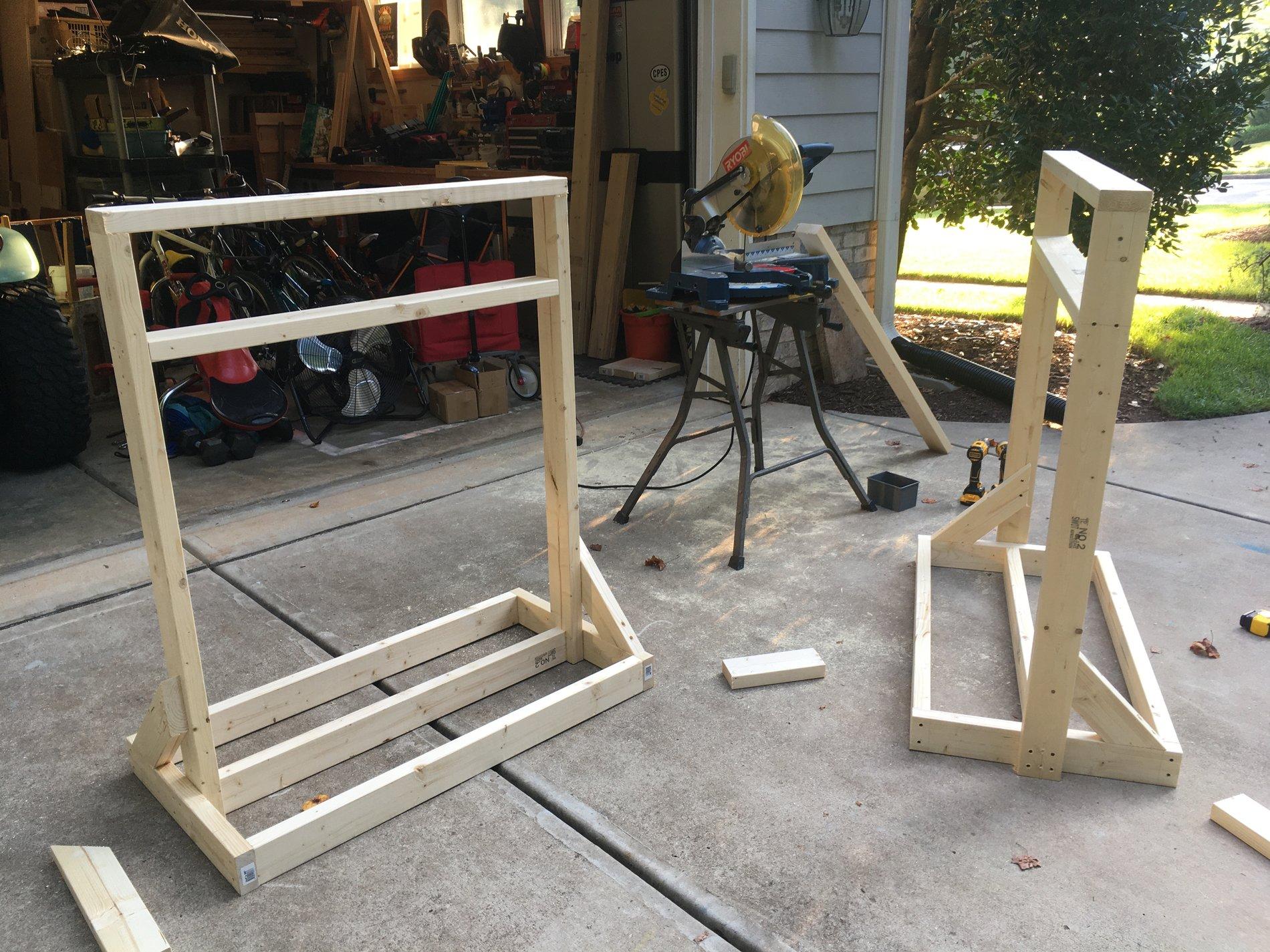

And it had to fit in a narrow spot in the garage. After researching a bunch of current options I made some plans and got started.

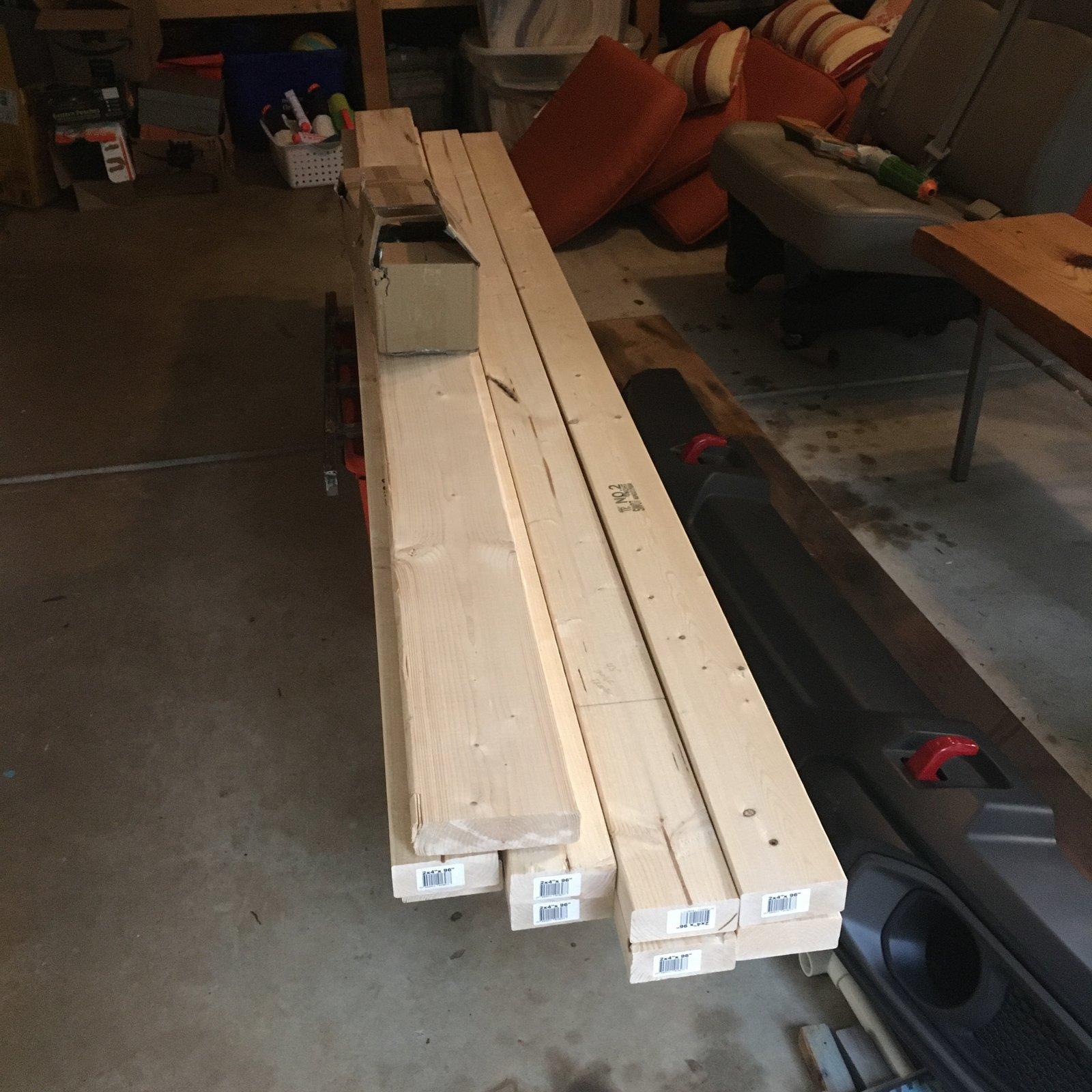

At first I seriously considered steel, but decided on lumber due to cost.

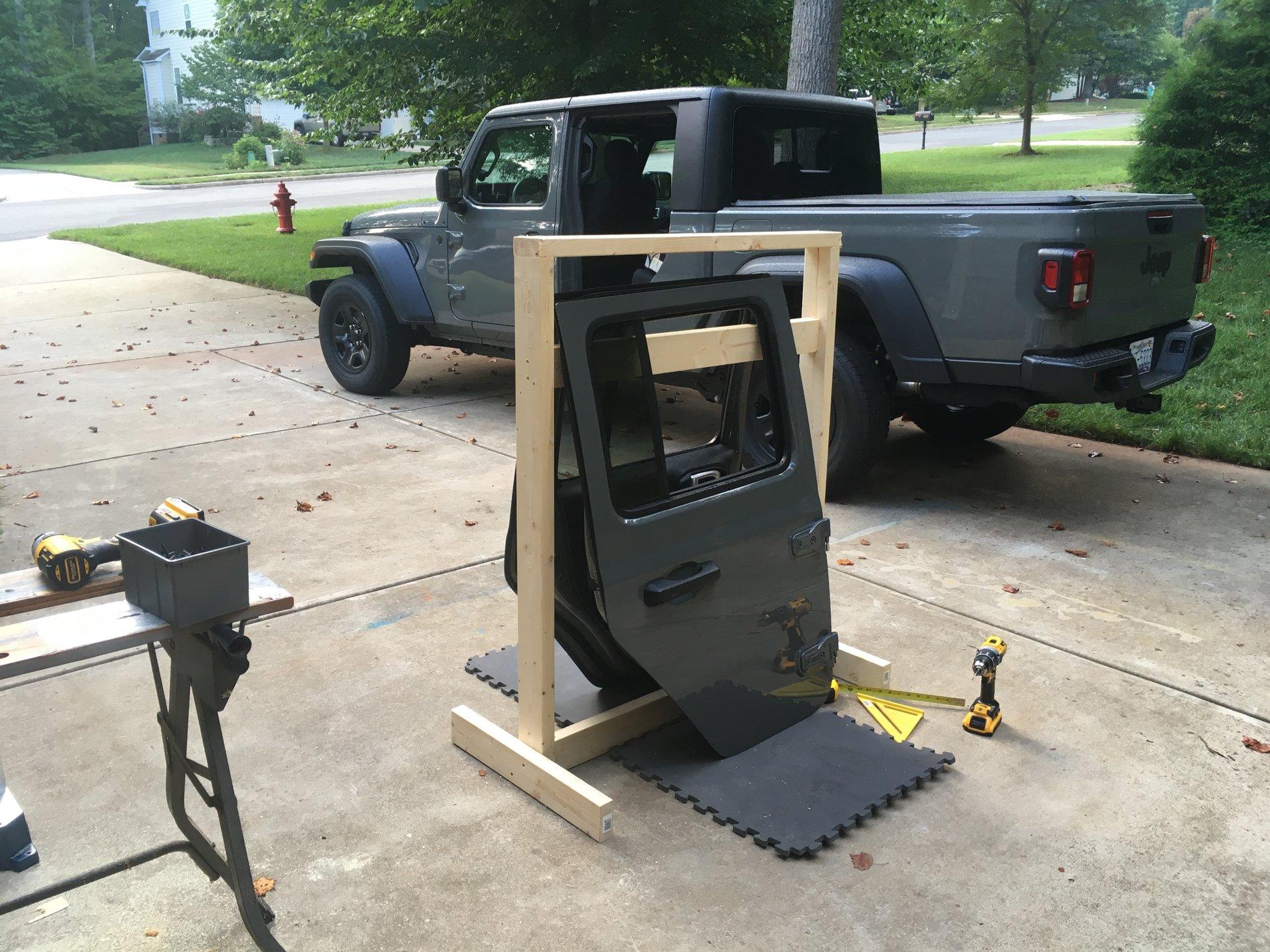

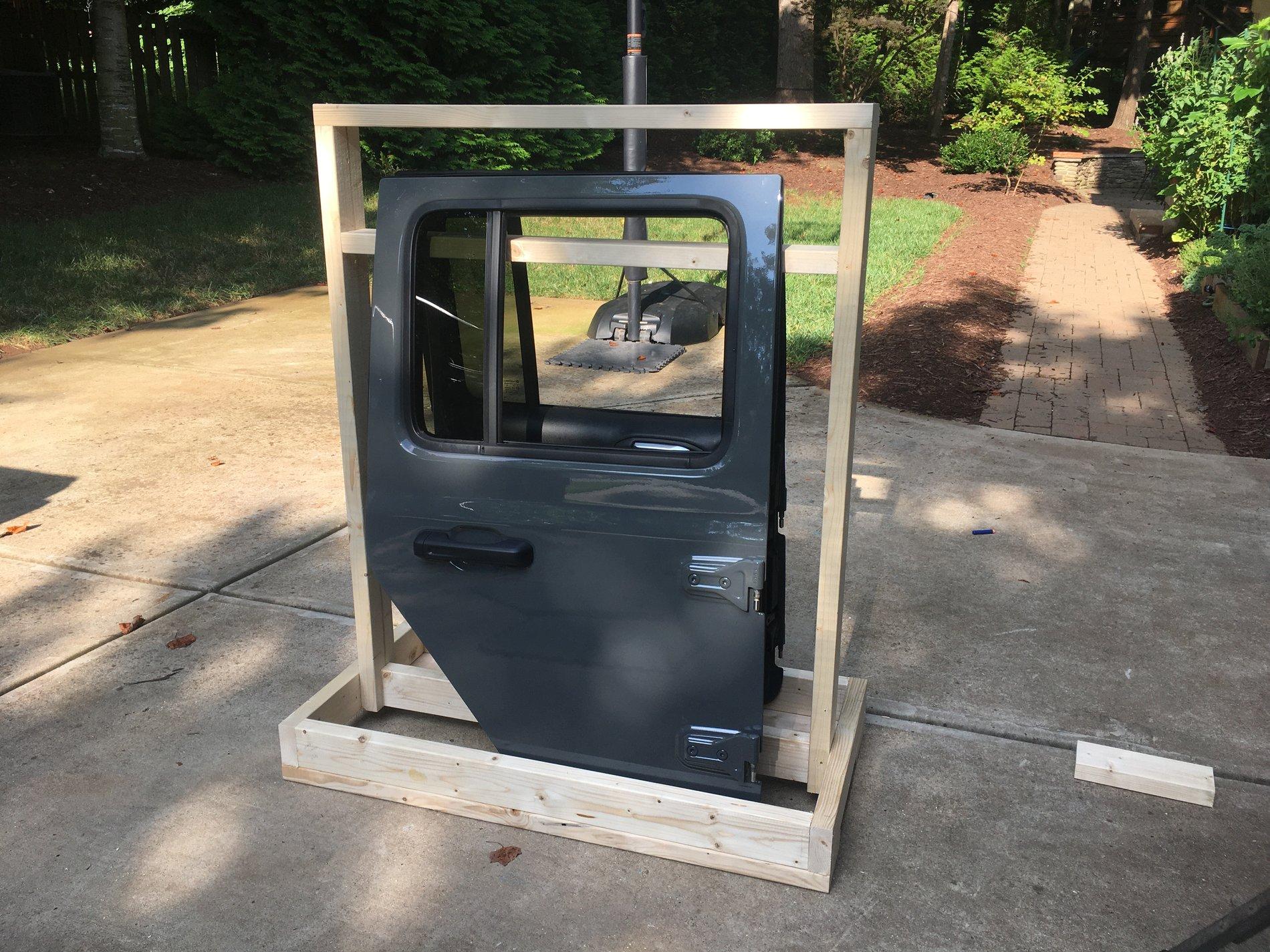

Did some testing of the design and found I needed a bit more space between the doors on the cart. I was also happy that the width was stable enough to hold a door without the other one on the cart.






My plan was to have a cart for the front doors and cart for the back.

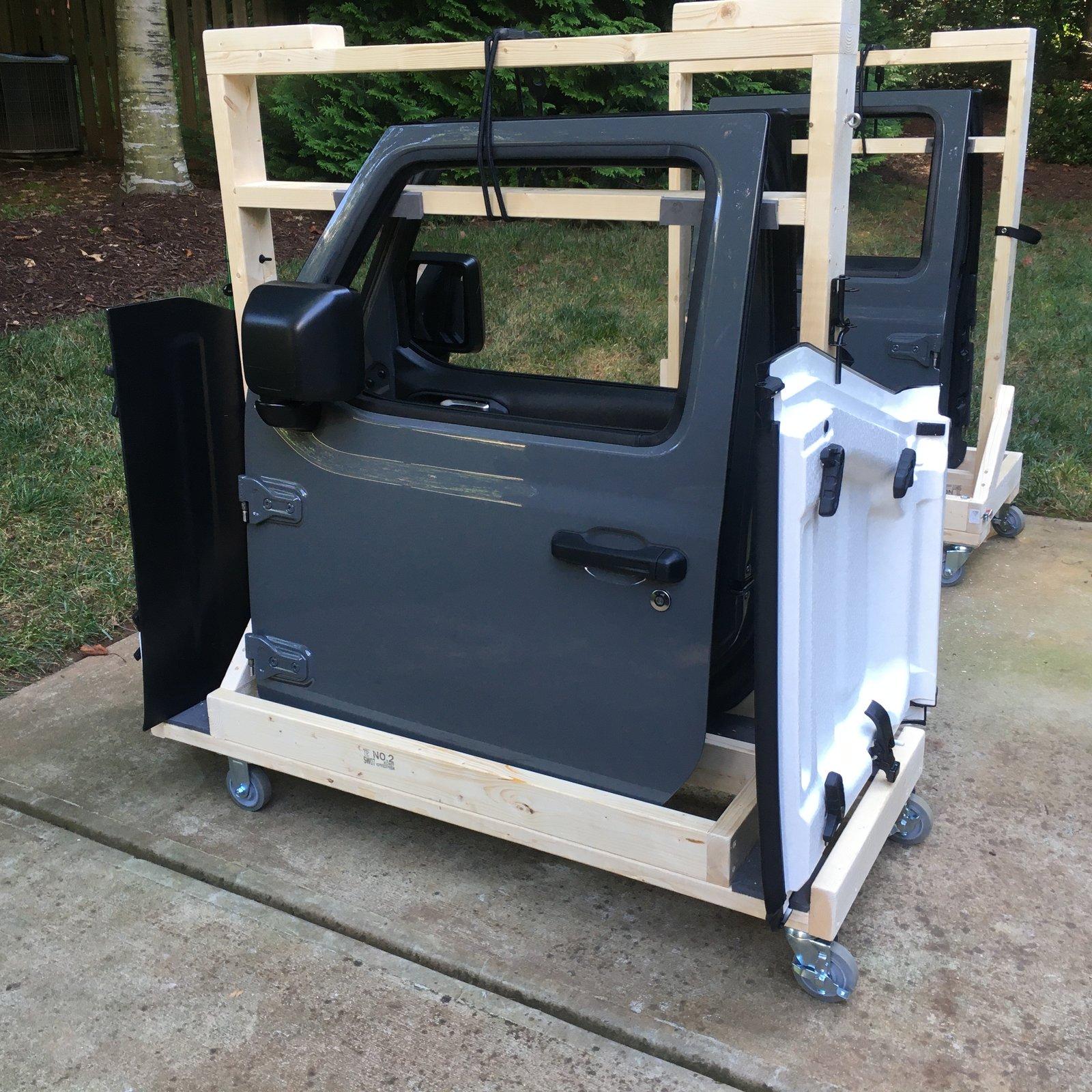

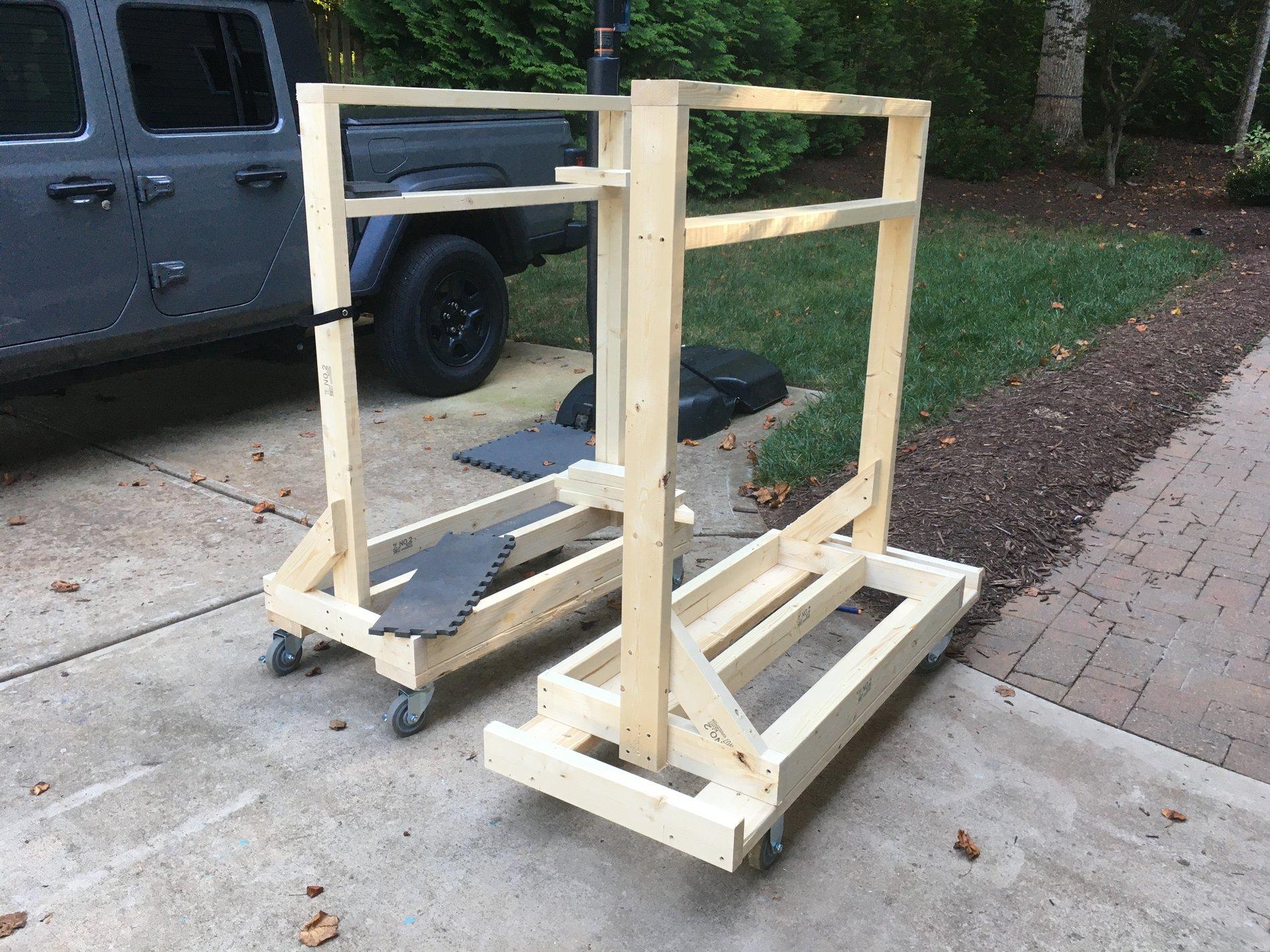

I added some 1/4" foam, 4" casters from Amazon and additional bracing. The front door cart has the additional spots for the Freedom Panels so that I can pull just that cart out when leaving the rear doors on.




The carts hold the doors quite well and are easy to roll in and out of the garage.

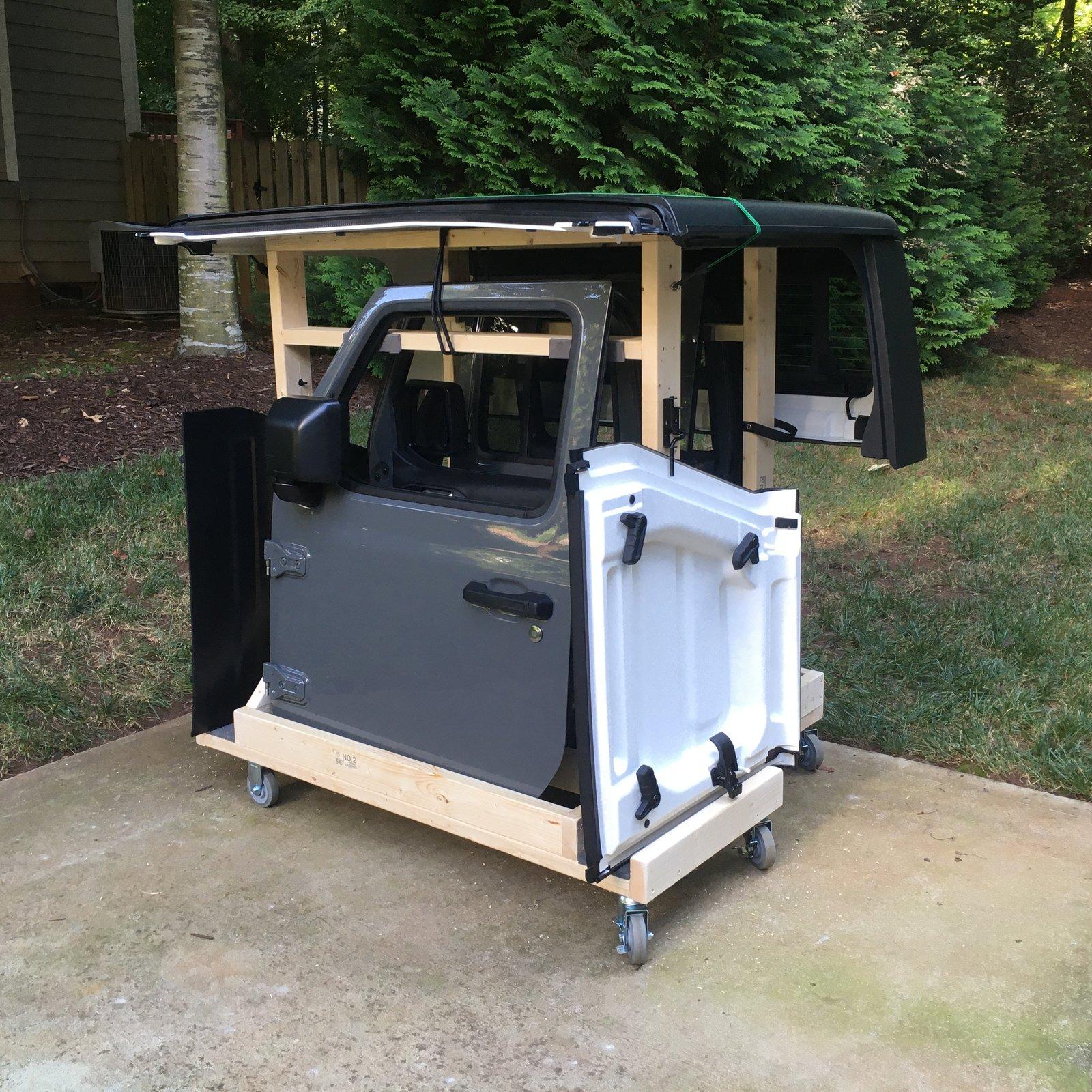

And finally the carts can be latched together to move all the doors together AND can store the roof on top.

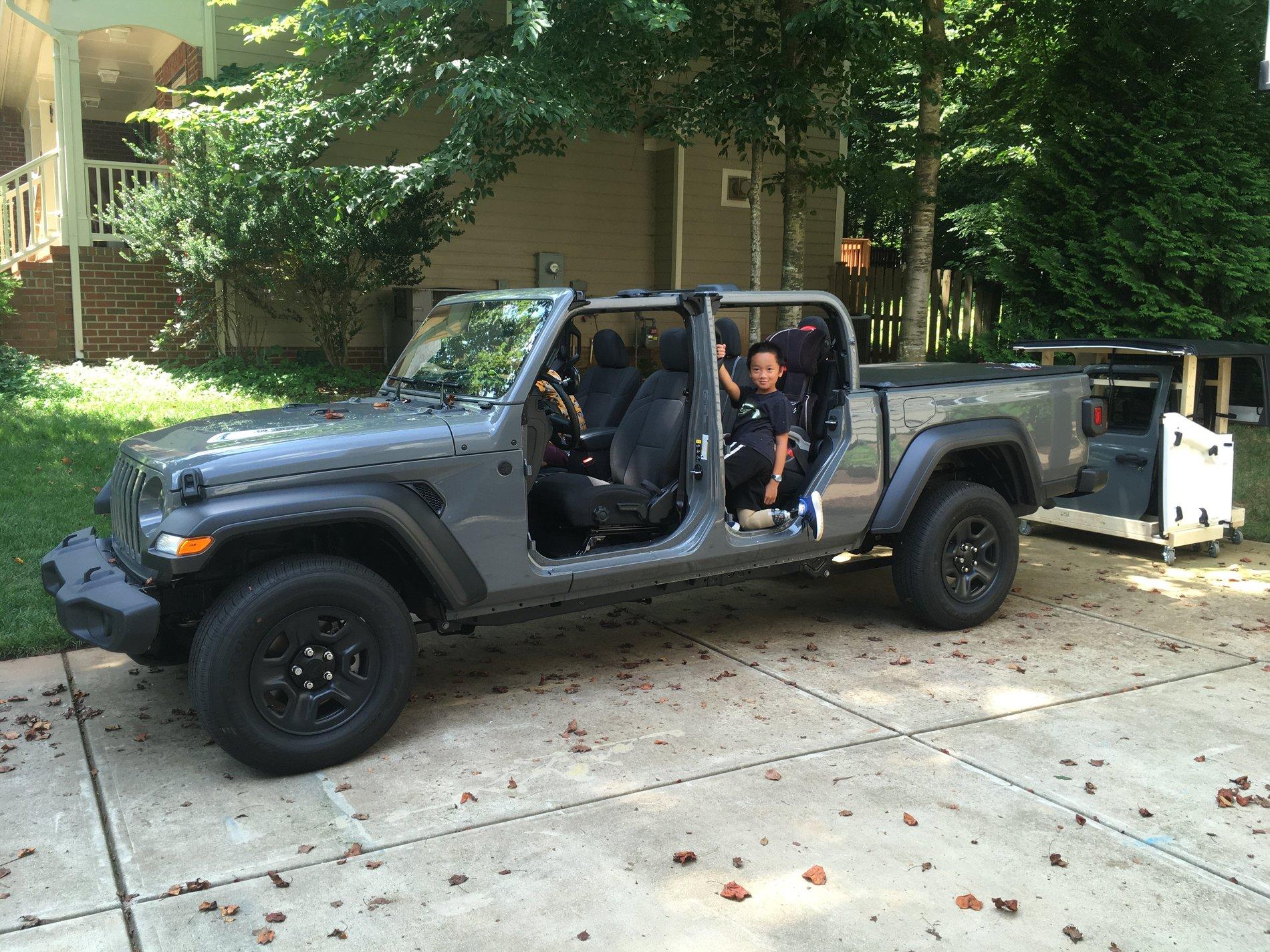

When it's loaded up I can leave it at the back of the drive or roll it into the garage. Pretty happy with the way it came together.




Advertisement




OP
-miko-

-miko-

Well-Known Member
First Name
Mike
Joined
May 27, 2019
Messages
76
Reaction score
115
Location
North Carolina
Vehicle(s)
1966 Toyota Land Cruiser, 1993 Volvo 240 wagon, 2008 Toyota Tundra, 2018 Nissan NV, 2020 Sting Grey Gladiator
Build Thread
Link
Occupation
Product Designer
  • Thread starter
  • Thread Starter
  • #2
And here's the 'as built' plans if others want to give them a try. I'd love to see how other folks evolve and improve the ideas.


Attachments

Up venture

Well-Known Member
First Name
Josh
Joined
Jun 11, 2019
Messages
252
Reaction score
406
Location
UP Michigan
Vehicle(s)
2020 Gladiator
Vehicle Showcase
2
I may have to build a version of this. :like:
I don't have a garage so finding a safe place for truck parts can be a challenge.

Great idea

OP
-miko-

-miko-

Well-Known Member
First Name
Mike
Joined
May 27, 2019
Messages
76
Reaction score
115
Location
North Carolina
Vehicle(s)
1966 Toyota Land Cruiser, 1993 Volvo 240 wagon, 2008 Toyota Tundra, 2018 Nissan NV, 2020 Sting Grey Gladiator
Build Thread
Link
Occupation
Product Designer
  • Thread starter
  • Thread Starter
  • #4
I may have to build a version of this. :like:
I don't have a garage so finding a safe place for truck parts can be a challenge.

Great idea
Exactly! If I don't have room in the garage I'm thinking a good tarp over the whole setup will be weatherproof enough. I might need to paint the wood for that but you could go with pressure treated for just a little more cost.


Jellygladiator

Well-Known Member
First Name
James
Joined
Jun 21, 2019
Messages
278
Reaction score
165
Location
Kentucky
Vehicle(s)
gladiator
Occupation
retired
do you have the measurements on the cut sheet, i think its a glitch i cant see any when i opened it

OP
-miko-

-miko-

Well-Known Member
First Name
Mike
Joined
May 27, 2019
Messages
76
Reaction score
115
Location
North Carolina
Vehicle(s)
1966 Toyota Land Cruiser, 1993 Volvo 240 wagon, 2008 Toyota Tundra, 2018 Nissan NV, 2020 Sting Grey Gladiator
Build Thread
Link
Occupation
Product Designer
  • Thread starter
  • Thread Starter
  • #6
do you have the measurements on the cut sheet, i think its a glitch i cant see any when i opened it
Good catch. I didn't add them but can later today.

OP
-miko-

-miko-

Well-Known Member
First Name
Mike
Joined
May 27, 2019
Messages
76
Reaction score
115
Location
North Carolina
Vehicle(s)
1966 Toyota Land Cruiser, 1993 Volvo 240 wagon, 2008 Toyota Tundra, 2018 Nissan NV, 2020 Sting Grey Gladiator
Build Thread
Link
Occupation
Product Designer
  • Thread starter
  • Thread Starter
  • #8

Attachments

Glad-inator

Member
First Name
Steve
Joined
Jul 23, 2020
Messages
14
Reaction score
6
Location
Minneola FL
Vehicle(s)
2020 Gladiator Rubicon
That’s pretty cool man. I wondered how I’d store all of that. Does the rear roof portion fit in the bed sideways? Always wondered that too. It’s been raining in FL so I haven’t been able to experiment myself.

OP
-miko-

-miko-

Well-Known Member
First Name
Mike
Joined
May 27, 2019
Messages
76
Reaction score
115
Location
North Carolina
Vehicle(s)
1966 Toyota Land Cruiser, 1993 Volvo 240 wagon, 2008 Toyota Tundra, 2018 Nissan NV, 2020 Sting Grey Gladiator
Build Thread
Link
Occupation
Product Designer
  • Thread starter
  • Thread Starter
  • #12
That’s pretty cool man. I wondered how I’d store all of that. Does the rear roof portion fit in the bed sideways? Always wondered that too. It’s been raining in FL so I haven’t been able to experiment myself.
So does the roof fit in the bed? I think so but not sure it'd ride well back there. It's a pretty awkward shape. Let us know if you try it.


kim_hates_olives

New Member
First Name
kim
Joined
May 19, 2020
Messages
4
Reaction score
4
Location
Alabama
Vehicle(s)
2017 Jeep Wrangler Sport Big Bear; 2020 Jeep Gladiator Rubicon
I may have to build a version of this. :like:
I don't have a garage so finding a safe place for truck parts can be a challenge.

Great idea
My doors are in a corner in the master bedroom right now
