DIY hardtop camper shell

OKStingRay

Member
First Name
Derek
Joined
Apr 10, 2021
Threads
1
Messages
23
Reaction score
42
Location
Oklahoma
Vehicle(s)
2021 Gladiator Sport Max Tow, 1987 YJ 5.2, 1987 XJ, 1950 Willys Pickup

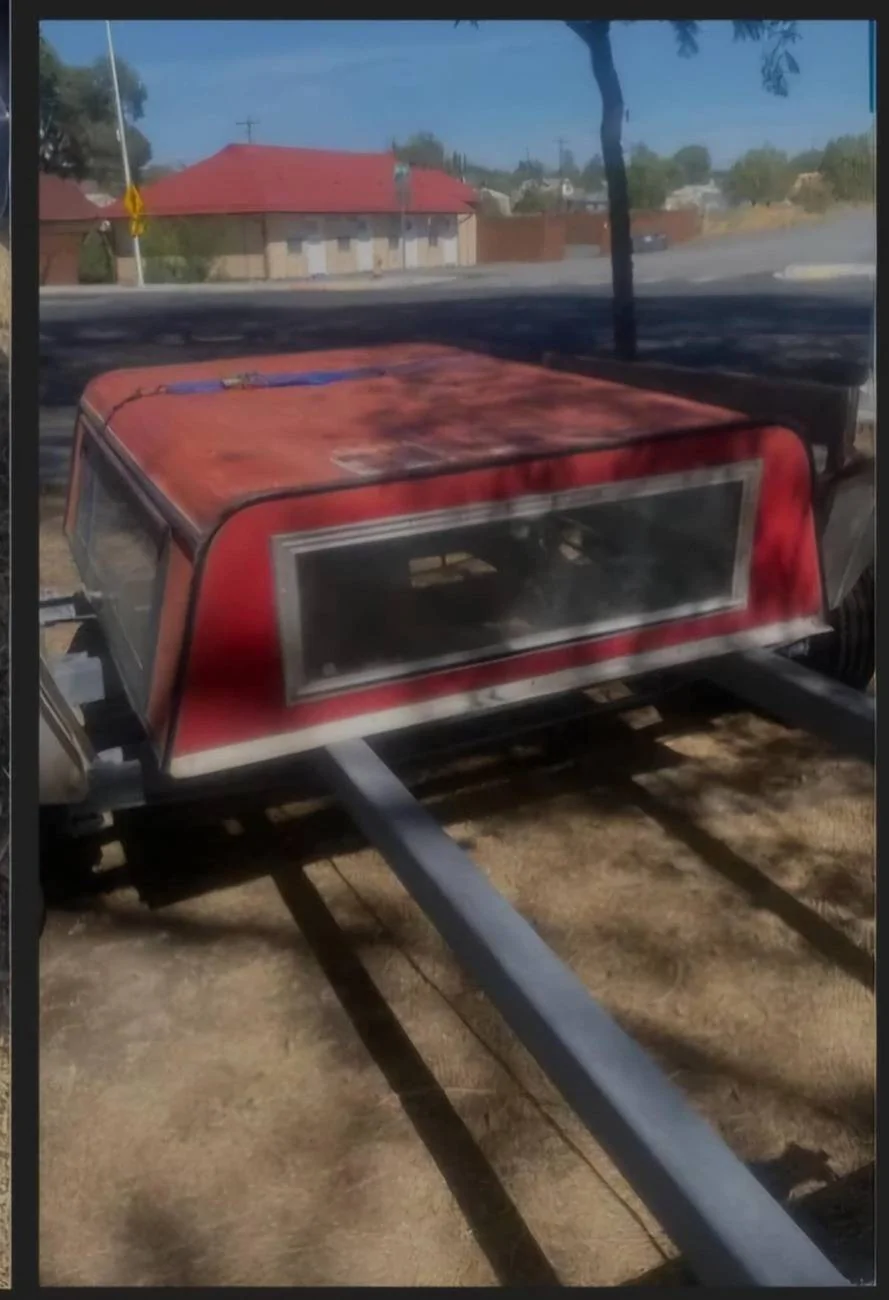

I have been wanting to get a camper shell for awhile now. I Just have not wanted the price tag that comes along with them. I want something heavy duty for a possible roof top tent build later this summer. So I found a 25 dollar s10 camper shell on Facebook market place and began to chop with a goal to keep this under 1k.

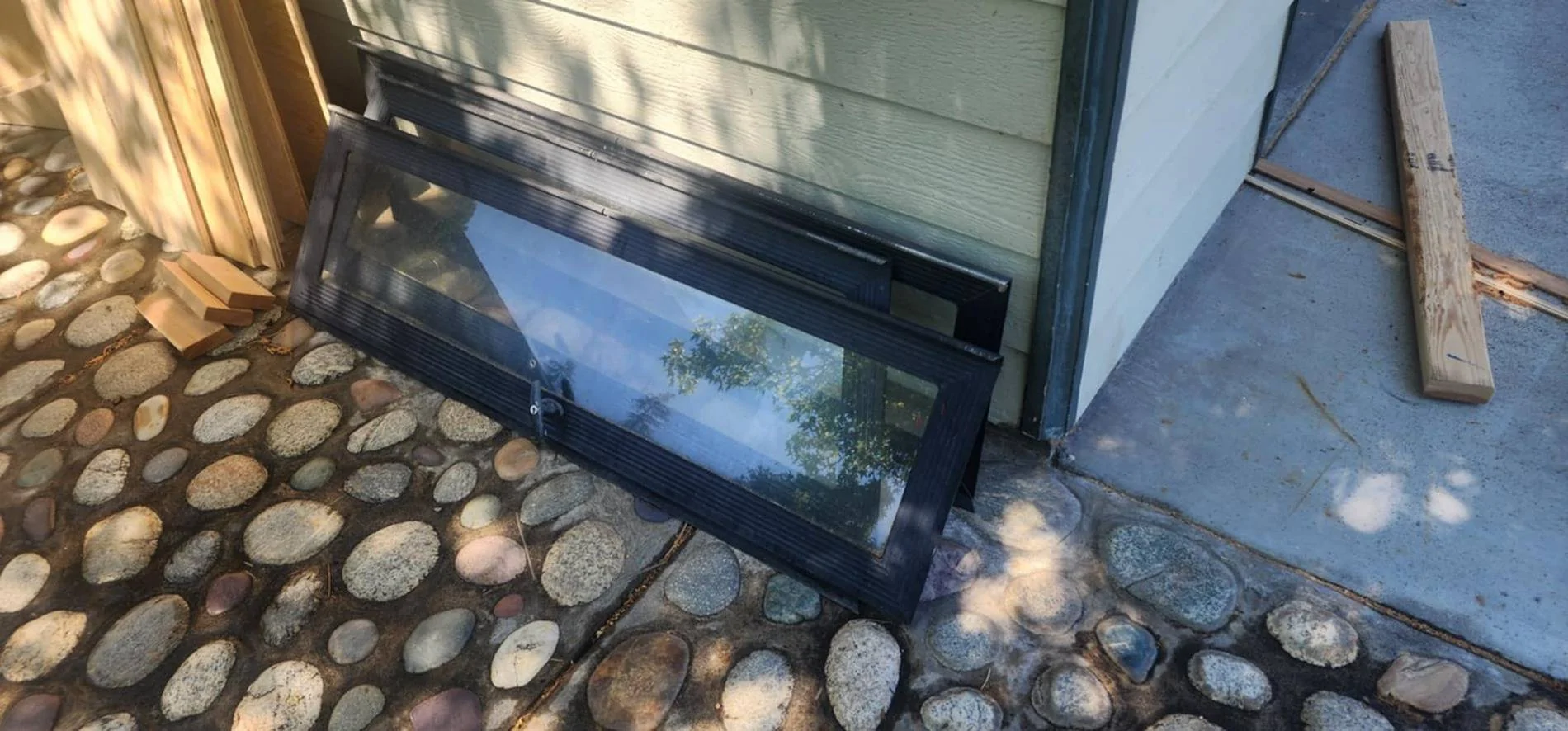

The plan is to shorten the frame, reuse the bed rail, front and rear sections, and the doors and window. Then use 3/4 plywood on the sides and 1/2 for the roof, reinforced with some 2x4's.

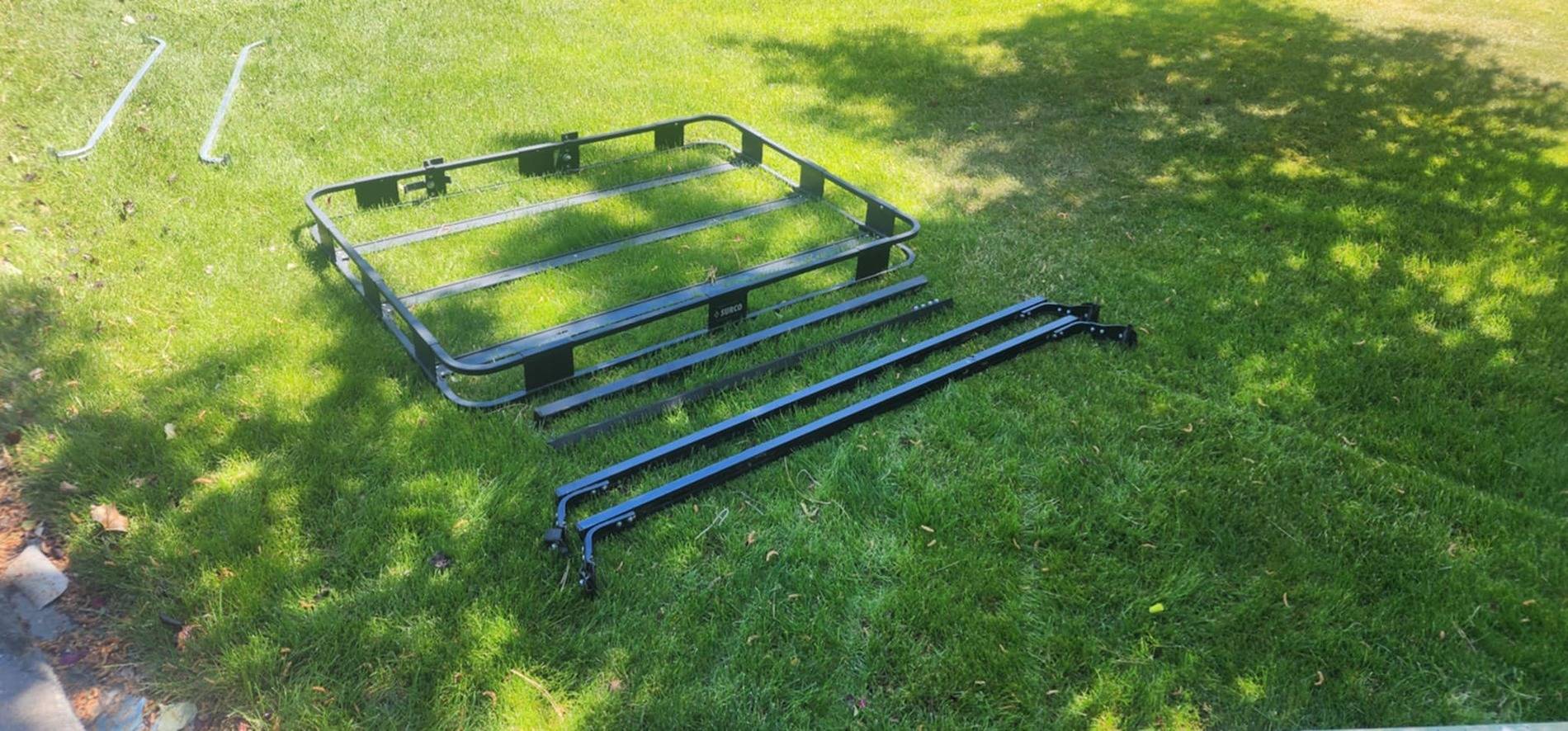

I have an old surco 45 x 60 roof rack basket sitting on an old XJ and will be using that. For the mounts I will be using some heavy duty 2x4 trailer stake pocket brackets. I will be spacing them out evenly 4 per side for my cross bars.

My main goal for this build is strength and functionality. It's not going to be winning beauty pagents, but im hoping I can make it look clean. I am coating everything in magnet paint's chassis saver and then black monstaliner.

Pictures coming soon.
Sponsored



Figmo

Well-Known Member
First Name
Figmo
Joined
Jun 28, 2021
Threads
3
Messages
180
Reaction score
320
Location
Missoula, MT
Vehicle(s)
2022 Gladiator Rubicon
sounds like it's gonna weigh a ton. looking forward to pics.

OP
OP
OKStingRay

OKStingRay

Member
First Name
Derek
Joined
Apr 10, 2021
Threads
1
Messages
23
Reaction score
42
Location
Oklahoma
Vehicle(s)
2021 Gladiator Sport Max Tow, 1987 YJ 5.2, 1987 XJ, 1950 Willys Pickup
sounds like it's gonna weigh a ton. looking forward to pics.
Yeah it is going to weigh a bit more than I'd like. But the S10 camper shell I found came with very large doors so there isn't going to be very much 3/4 plywood. I also ripped the 2x4s down some to save some weight. Trying to figure out how to post pictures now.

OP
OP
OKStingRay

OKStingRay

Member
First Name
Derek
Joined
Apr 10, 2021
Threads
1
Messages
23
Reaction score
42
Location
Oklahoma
Vehicle(s)
2021 Gladiator Sport Max Tow, 1987 YJ 5.2, 1987 XJ, 1950 Willys Pickup

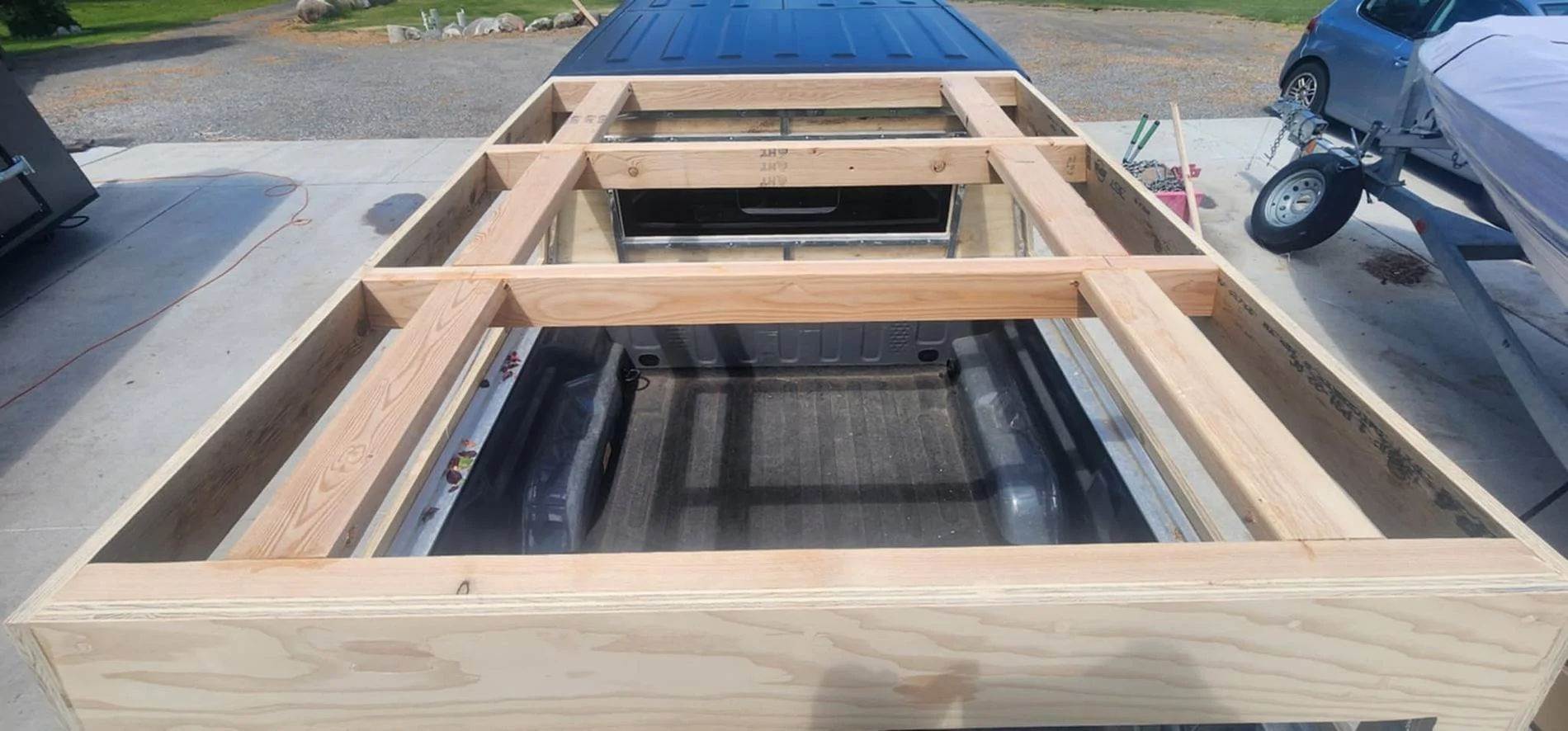

I should have the roof installed today. Then I will be rounding off the corners and edges and filling in the cracks and such with wood filler. Then It will paint prep and waiting for it to get here. Going to be about 12 hours or so worth of work when finished and around 600 bucks.


Sponsored

OP
OP
OKStingRay

OKStingRay

Member
First Name
Derek
Joined
Apr 10, 2021
Threads
1
Messages
23
Reaction score
42
Location
Oklahoma
Vehicle(s)
2021 Gladiator Sport Max Tow, 1987 YJ 5.2, 1987 XJ, 1950 Willys Pickup

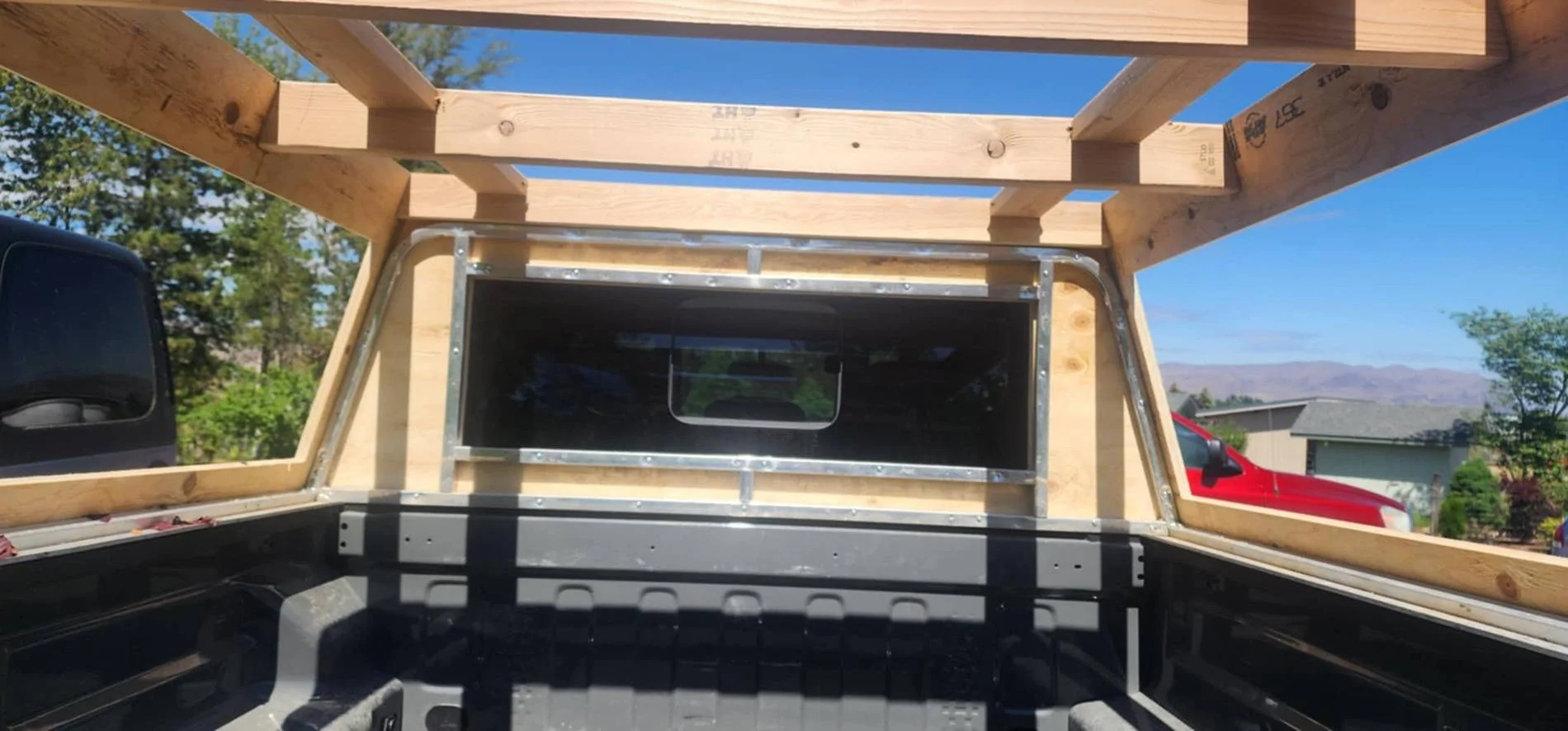

Jeep Gladiator DIY hardtop camper shell d382cf78-226e-43f0-8ba8-69d271a62545

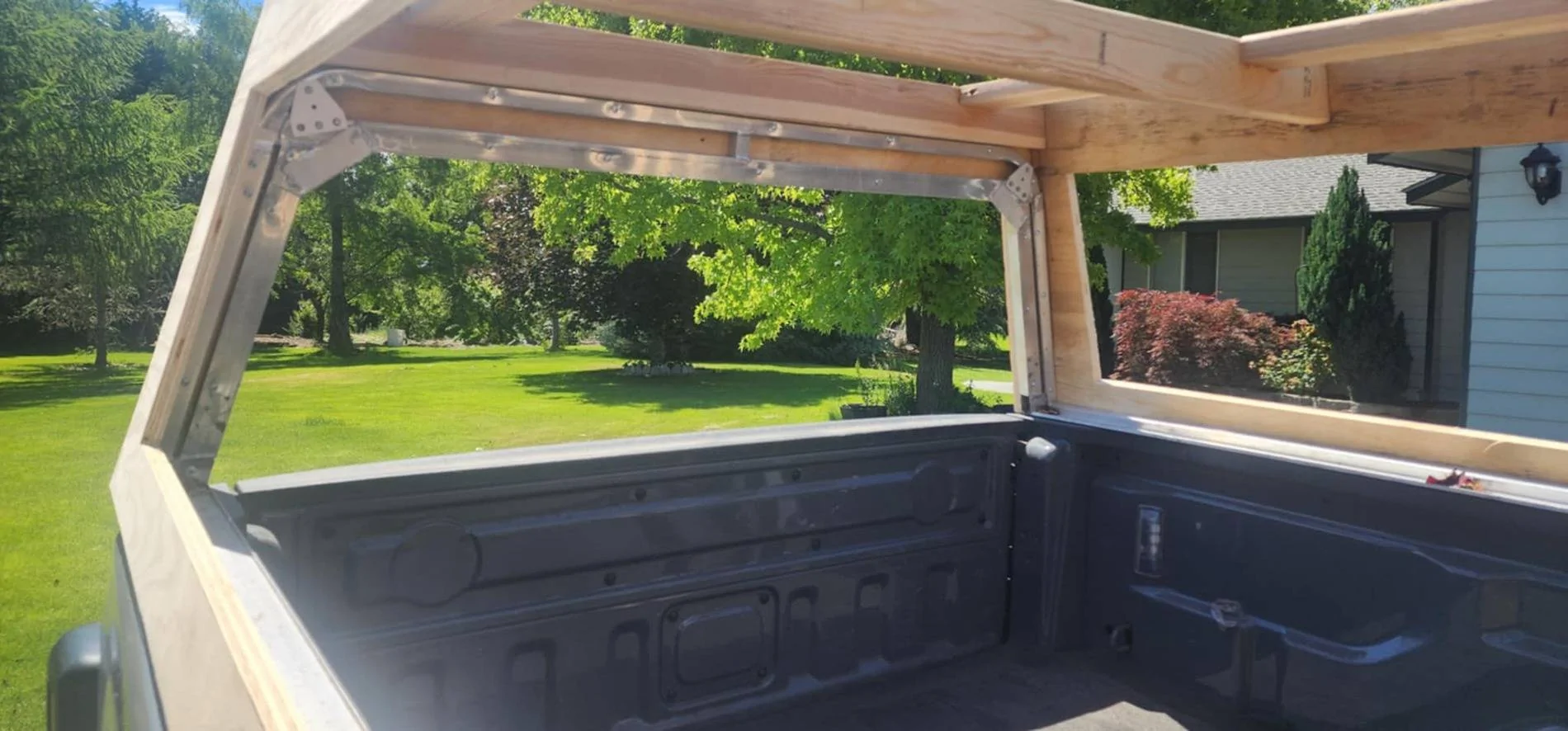

Jeep Gladiator DIY hardtop camper shell 2d81c69a-3871-4efd-adfa-becfd1d2c68e


Figmo

Well-Known Member
First Name
Figmo
Joined
Jun 28, 2021
Threads
3
Messages
180
Reaction score
320
Location
Missoula, MT
Vehicle(s)
2022 Gladiator Rubicon
I think it's looking good.

I hope you glued and screwed all those joints. There's gonna be a lot of lateral forces pushing and pulling this thing apart from every conceivable angle. (And probably a few you would never conceive of LOL)

OP
OP
OKStingRay

OKStingRay

Member
First Name
Derek
Joined
Apr 10, 2021
Threads
1
Messages
23
Reaction score
42
Location
Oklahoma
Vehicle(s)
2021 Gladiator Sport Max Tow, 1987 YJ 5.2, 1987 XJ, 1950 Willys Pickup
I think it's looking good.

I hope you glued and screwed all those joints. There's gonna be a lot of lateral forces pushing and pulling this thing apart from every conceivable angle. (And probably a few you would never conceive of LOL)
Yes everything was glued to oblivion and back. And most everything is screwed from the inside going through the aluminum tubing. Everything screwed from the outside has already been covered up with wood filler and sanded down so you can't see much.

OP
OP
OKStingRay

OKStingRay

Member
First Name
Derek
Joined
Apr 10, 2021
Threads
1
Messages
23
Reaction score
42
Location
Oklahoma
Vehicle(s)
2021 Gladiator Sport Max Tow, 1987 YJ 5.2, 1987 XJ, 1950 Willys Pickup
Do you know the name of the company that made the original S10 shell?
Sorry, I'm not sure. I looked when I bought it and didn't find any markings anywhere.


Sponsored

OP
OP
OKStingRay

OKStingRay

Member
First Name
Derek
Joined
Apr 10, 2021
Threads
1
Messages
23
Reaction score
42
Location
Oklahoma
Vehicle(s)
2021 Gladiator Sport Max Tow, 1987 YJ 5.2, 1987 XJ, 1950 Willys Pickup

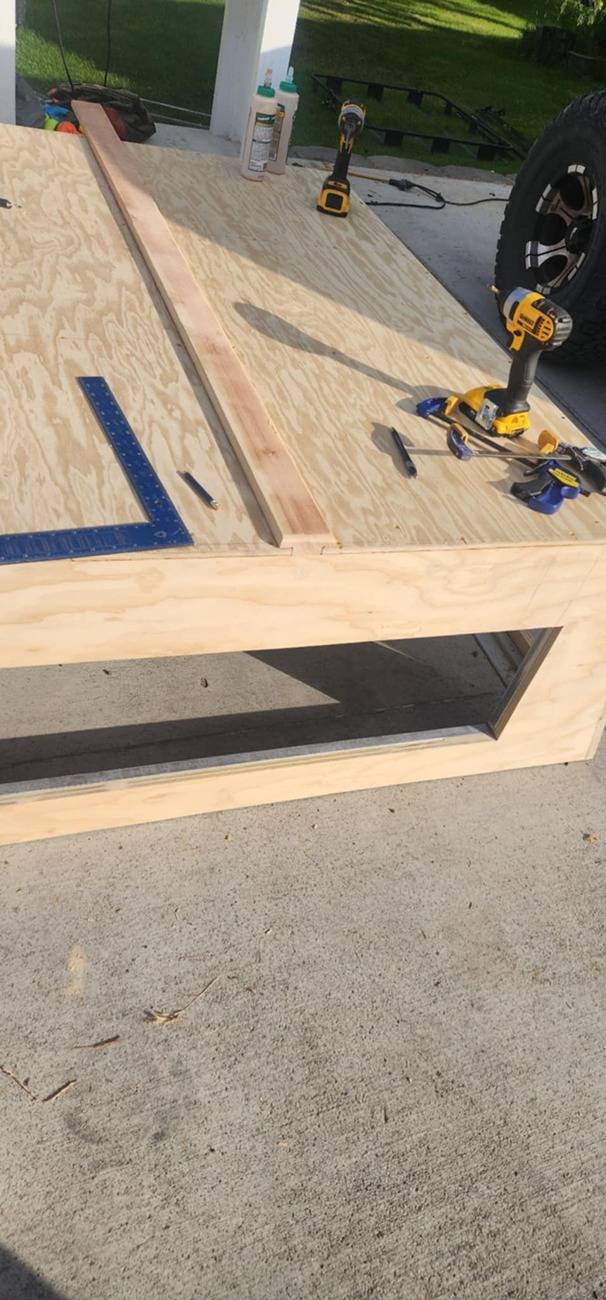

Roof was just a bit too wide for a full sheet of plywood, so I had to make a little T joint out of a 2x4. Coming together pretty well. I can easily put it on the jeep myself for now. Bed liner will add a bit more weight. Luckily the doors can easily slide off their frames so I can remove them while I install.
Jeep Gladiator DIY hardtop camper shell 3821bc62-d3b8-4bb1-b48c-843c08547518

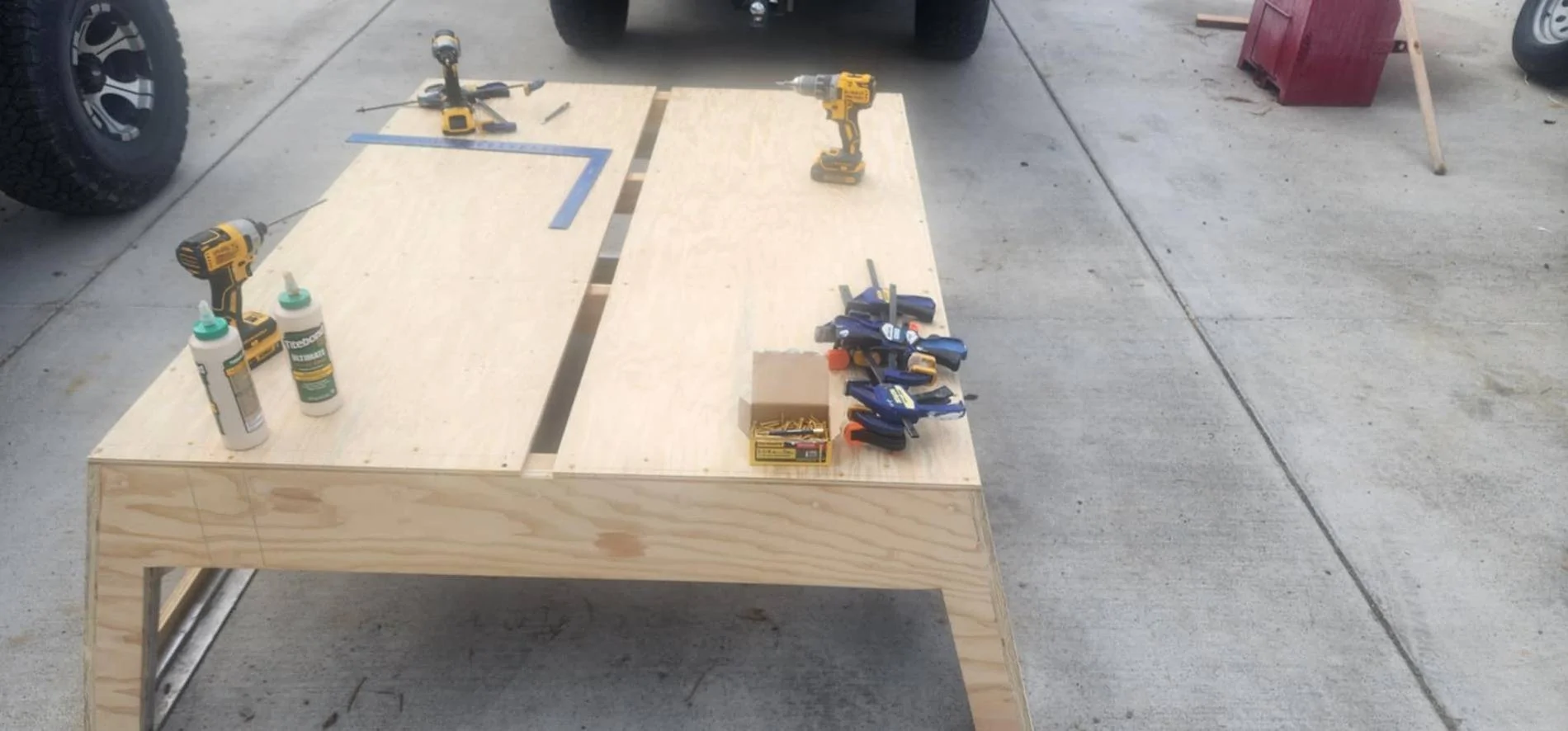

Jeep Gladiator DIY hardtop camper shell d01500b3-994c-495a-b2c7-e012811a5aba

OP
OP
OKStingRay

OKStingRay

Member
First Name
Derek
Joined
Apr 10, 2021
Threads
1
Messages
23
Reaction score
42
Location
Oklahoma
Vehicle(s)
2021 Gladiator Sport Max Tow, 1987 YJ 5.2, 1987 XJ, 1950 Willys Pickup
Love seeing these kinds of DIY projects!!!
Your jeep in your profile pic may be the coolest I have ever seen. I am EXTREMELY jealous. Makes me want to get my willys pickup put together.


professorkx

Well-Known Member
First Name
Rick
Joined
Jan 28, 2025
Threads
1
Messages
174
Reaction score
335
Location
idaho
Vehicle(s)
2024 Gladiator, other Jeeps, motorcycles and an Adventure Motorhome
Occupation
retired
Your jeep in your profile pic may be the coolest I have ever seen. I am EXTREMELY jealous. Makes me want to get my willys pickup put together.
When my wife came out to my shop and saw the 47 in this condition after some work with a sawzall , she knew I would be spending more money and time on another project, but is always in total support of these kinds of projects. A year later, we took the 47 for its first drive as a truck.

I get a lot of question from hard core Jeep folks wanting to know what model Jeep I have, as they have never seen one before…it’s one of one.

As I noted, I love quality DIY projects…everything doesn’t need to be bought off the shelf.

Jeep Gladiator DIY hardtop camper shell IMG_1526
