DIY Headliners

Michael@WeGo4WhlLow

Active Member
First Name
Michael
Joined
Jul 6, 2020
Threads
3
Messages
41
Reaction score
125
Location
Ovilla TX.
Vehicle(s)
2020 Gladiator Overland
Occupation
Area Director
Hello all, new to forum… Not new to Jeeping!!!

Just picked up my Gladiator a few weeks ago and have already started some work on it.

I’m a big fan doing all my MOD’s myself and off-road function over being a Mall Crawler, but my pockets are not the deep. It has taken me 8 years to get my JK set up right (I did not install the lockers and 4.88’s)… With that being said one of my very first MOD’s to the JK was Headliners. We lived in Phoenix at the time and the 110 degree heat was a killer in the hard top. Hothead liners and Mopar are great, just can’t afford them and pricey for just some foam/fabric!! The 8 year old headliners I made are still holding up well after 154,000 miles, so I thought I would make some up for the Gladiator….

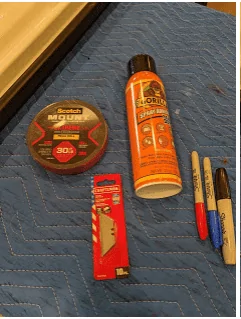

DIY head liner Parts List:

  • Scotch 1 in. x 11.1 yds. Permanent Double Sided Extreme Mounting Tape
  • https://www.homedepot.com/p/3M-Scot...ed-Extreme-Mounting-Tape-414-LONGDC/205507375
  • Spray Adhesive Gorilla
  • https://www.homedepot.com/p/Gorilla-14-oz-Spray-Adhesive-6301502/303508262
  • Poly Rigid Foam Insulation Board.
  • https://www.homedepot.com/p/R-Matte...-Rigid-Foam-Insulation-Board-754404/100572981
  • Double Reflective insulation roll (optional)
  • https://www.homedepot.com/p/Everbil...sulation-Staple-Tab-ADD04-610x7-5ST/307281309
  • Project fleece polyester batting
  • https://www.joann.com/fairfield-project-fleece-polyester-90in-batting-by-the-yard/16838559.html
  • Fabric, I bought 3 yard to do front and back… 2 yard could be close!! Etsy.com
  • https://www.etsy.com/market/national_park_fabric
  • Poster Board, New razor blades, Rubbing Alcohol, 150 grit sand paper and markers…
  • Jeep Gladiator DIY Headliners pic 1

    Step #1. Make template out of poster board of your freedom top panels. Leave about 1/8” clearance all around for the width of fabric and foam.
    Jeep Gladiator DIY Headliners pic2

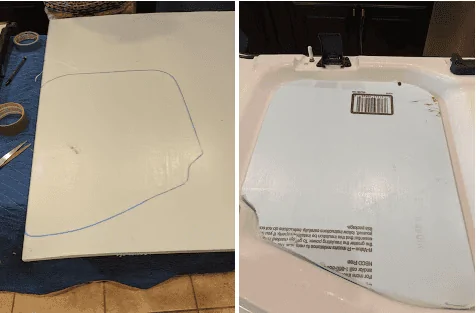

    Step #2. Set template on foam board and trace around edge to outline. Cut foam slowly with razor blade. I used 150 grit paper to smooth the edges out and to round the corners better. (Some other forums people are using X-Acto Knife, Jig saw, Molding saw) use whatever works for you….
    Jeep Gladiator DIY Headliners pic3

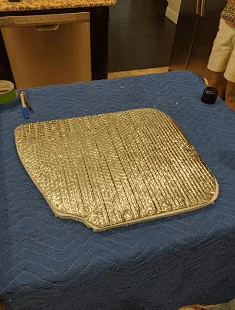

    Step #3. Use template again to cut out Double Reflective insulation and glue to foam board. Use the spray adhesive on both the foam board and insulation, let sit apart for 1-2 minutes and then press together. (Follow directions on Can)
    Jeep Gladiator DIY Headliners pic4

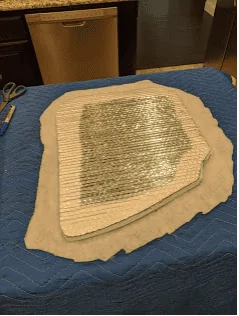

    Step #4. Lay fleece batting on table and place foam cut out on it. Cut the batting out leaving a 2-3 inch over hang to fold around the foam cut out. Spray adhesive on the foam side of the panel (the side that would face the driver/passenger) The Double Reflective insulation side faces up!!! Spray Adhesive on the batting, wait 1-2 minutes and press together.
    Jeep Gladiator DIY Headliners pic5

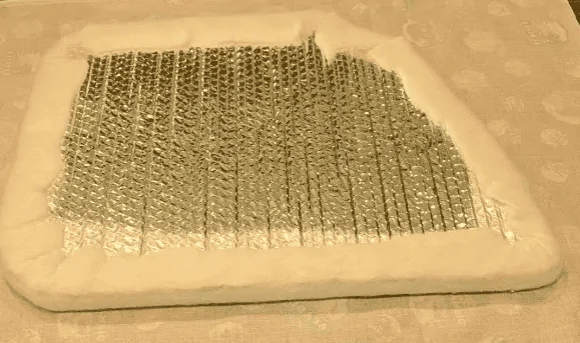

    Step #5. Spray adhesive on the panel around the edge. 2-3 inches around panel will do, also spray the batting and sides of the foam all the way around. Let sit 1-2 minutes and then pull batting around the edge. Do it slowly and make sure the corners do not bunch up. On the corners cut extra material out to get everything to lay flat.
    Jeep Gladiator DIY Headliners pic5.5

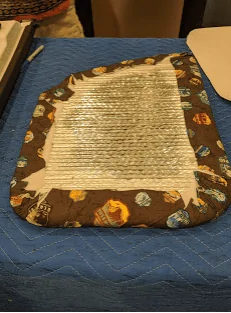

    Step #6. Lay fabric down on table and place panel on top. Cut out leaving 2-3 inches all the way around. Spray adhesive on batting side of panel and upside of fabric. Let sit 1-2 minutes and press together. Spray the adhesive around the panel sides and top leaving a 2-4 inch edge all the way around (Spray on top of batting). Let sit 1-2 minutes and then pull up around edge making sure the corners are not bunched up. Cut extra fabric out to make the corners ley flat and smooth.
    Jeep Gladiator DIY Headliners pic5
    Jeep Gladiator DIY Headliners pic6

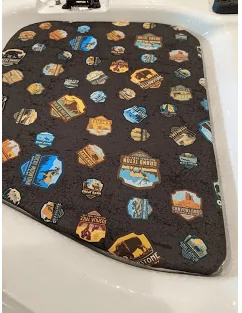

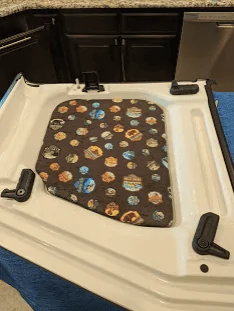

    Step #7. Clean freedom panel on the inside were the double sided tape will go using rubbing alcohol and dry with paper towel. I laid down 4 strips of double side tape for each panel. Press new headliner into freedom panel. (Sorry no pics)
    Jeep Gladiator DIY Headliners pic7
    Jeep Gladiator DIY Headliners pic8

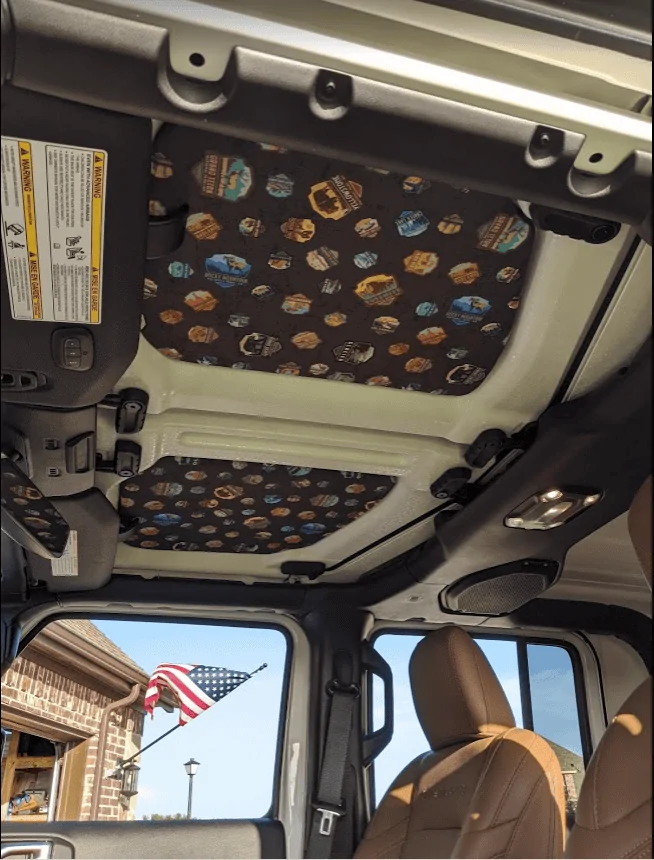

    Step #8. Install panel an enjoy the better sound and less heat!!!
    Jeep Gladiator DIY Headliners pic9

    I have not done the back yet, will update in the next few weeks when done. Please PM if I can help you get this done. I live south of Dallas and anyone can swing by my house to help get this done or any other great wrenching!!!
    Thanks, safe travel and remember “Getting lost is just bonus miles”.
    Michael G.

    Thanks
  • Jeep Gladiator DIY Headliners pic10

Sponsored



JohnFinx

Well-Known Member
First Name
Fin
Joined
Jun 12, 2020
Threads
24
Messages
204
Reaction score
532
Location
Lakeland Fl
Website
sites.google.com
Vehicle(s)
2020 Gladiator, 1988 Cherokee , 1969 Plymouth Satellite Conv
Occupation
Telecom engineer
Vehicle Showcase
2
How's the double sided tape holding up? In the Florida heat it eventually gets gooey and melts off, or dries up into a powder. Maybe I should buy better quality tape....

OP
OP
Michael@WeGo4WhlLow

Michael@WeGo4WhlLow

Active Member
First Name
Michael
Joined
Jul 6, 2020
Threads
3
Messages
41
Reaction score
125
Location
Ovilla TX.
Vehicle(s)
2020 Gladiator Overland
Occupation
Area Director
How's the double sided tape holding up? In the Florida heat it eventually gets gooey and melts off, or dries up into a powder. Maybe I should buy better quality tape....
John, the Scotch Permanent Double Sided Extreme Mounting Tape is holding up very well. It has held up my headliners in the JK for the past 3 years when I redid the fabric....


JohnFinx

Well-Known Member
First Name
Fin
Joined
Jun 12, 2020
Threads
24
Messages
204
Reaction score
532
Location
Lakeland Fl
Website
sites.google.com
Vehicle(s)
2020 Gladiator, 1988 Cherokee , 1969 Plymouth Satellite Conv
Occupation
Telecom engineer
Vehicle Showcase
2
John, the Scotch Permanent Double Sided Extreme Mounting Tape is holding up very well. It has held up my headliners in the JK for the past 3 years when I redid the fabric....
Cool. I'll have to get some of that. Thanks!


paclives777

Well-Known Member
First Name
Justin
Joined
Mar 10, 2021
Threads
54
Messages
167
Reaction score
14
Location
Arizona
Vehicle(s)
2021 Gladiator Mojave
Occupation
Store manager
Ever do the back? Don’t see an update.


Sponsored

The Crusader

Well-Known Member
First Name
Donald
Joined
Dec 19, 2020
Threads
8
Messages
378
Reaction score
531
Location
Texas
Vehicle(s)
Sting gray JTSD.
Occupation
Field Engineer
Hello all, new to forum… Not new to Jeeping!!!

Just picked up my Gladiator a few weeks ago and have already started some work on it.

I’m a big fan doing all my MOD’s myself and off-road function over being a Mall Crawler, but my pockets are not the deep. It has taken me 8 years to get my JK set up right (I did not install the lockers and 4.88’s)… With that being said one of my very first MOD’s to the JK was Headliners. We lived in Phoenix at the time and the 110 degree heat was a killer in the hard top. Hothead liners and Mopar are great, just can’t afford them and pricey for just some foam/fabric!! The 8 year old headliners I made are still holding up well after 154,000 miles, so I thought I would make some up for the Gladiator….

DIY head liner Parts List:

  • Scotch 1 in. x 11.1 yds. Permanent Double Sided Extreme Mounting Tape
  • https://www.homedepot.com/p/3M-Scot...ed-Extreme-Mounting-Tape-414-LONGDC/205507375
  • Spray Adhesive Gorilla
  • https://www.homedepot.com/p/Gorilla-14-oz-Spray-Adhesive-6301502/303508262
  • Poly Rigid Foam Insulation Board.
  • https://www.homedepot.com/p/R-Matte...-Rigid-Foam-Insulation-Board-754404/100572981
  • Double Reflective insulation roll (optional)
  • https://www.homedepot.com/p/Everbil...sulation-Staple-Tab-ADD04-610x7-5ST/307281309
  • Project fleece polyester batting
  • https://www.joann.com/fairfield-project-fleece-polyester-90in-batting-by-the-yard/16838559.html
  • Fabric, I bought 3 yard to do front and back… 2 yard could be close!! Etsy.com
  • https://www.etsy.com/market/national_park_fabric
  • Poster Board, New razor blades, Rubbing Alcohol, 150 grit sand paper and markers…
  • Jeep Gladiator DIY Headliners pic2

    Step #1. Make template out of poster board of your freedom top panels. Leave about 1/8” clearance all around for the width of fabric and foam.
    Jeep Gladiator DIY Headliners pic2

    Step #2. Set template on foam board and trace around edge to outline. Cut foam slowly with razor blade. I used 150 grit paper to smooth the edges out and to round the corners better. (Some other forums people are using X-Acto Knife, Jig saw, Molding saw) use whatever works for you….
    Jeep Gladiator DIY Headliners pic2

    Step #3. Use template again to cut out Double Reflective insulation and glue to foam board. Use the spray adhesive on both the foam board and insulation, let sit apart for 1-2 minutes and then press together. (Follow directions on Can)
    Jeep Gladiator DIY Headliners pic2

    Step #4. Lay fleece batting on table and place foam cut out on it. Cut the batting out leaving a 2-3 inch over hang to fold around the foam cut out. Spray adhesive on the foam side of the panel (the side that would face the driver/passenger) The Double Reflective insulation side faces up!!! Spray Adhesive on the batting, wait 1-2 minutes and press together.
    Jeep Gladiator DIY Headliners pic2

    Step #5. Spray adhesive on the panel around the edge. 2-3 inches around panel will do, also spray the batting and sides of the foam all the way around. Let sit 1-2 minutes and then pull batting around the edge. Do it slowly and make sure the corners do not bunch up. On the corners cut extra material out to get everything to lay flat.
    Jeep Gladiator DIY Headliners pic2

    Step #6. Lay fabric down on table and place panel on top. Cut out leaving 2-3 inches all the way around. Spray adhesive on batting side of panel and upside of fabric. Let sit 1-2 minutes and press together. Spray the adhesive around the panel sides and top leaving a 2-4 inch edge all the way around (Spray on top of batting). Let sit 1-2 minutes and then pull up around edge making sure the corners are not bunched up. Cut extra fabric out to make the corners ley flat and smooth.
    Jeep Gladiator DIY Headliners pic2
    Jeep Gladiator DIY Headliners pic2

    Step #7. Clean freedom panel on the inside were the double sided tape will go using rubbing alcohol and dry with paper towel. I laid down 4 strips of double side tape for each panel. Press new headliner into freedom panel. (Sorry no pics)
    Jeep Gladiator DIY Headliners pic2
    Jeep Gladiator DIY Headliners pic2

    Step #8. Install panel an enjoy the better sound and less heat!!!
    Jeep Gladiator DIY Headliners pic2

    I have not done the back yet, will update in the next few weeks when done. Please PM if I can help you get this done. I live south of Dallas and anyone can swing by my house to help get this done or any other great wrenching!!!
    Thanks, safe travel and remember “Getting lost is just bonus miles”.
    Michael G.

    Thanks
  • Jeep Gladiator DIY Headliners pic2

Jeep Gladiator DIY Headliners pic2
Looks great. Will 3/4" insulation clear the freedom panel latches?


Sespe

Well-Known Member
Joined
Sep 17, 2019
Threads
9
Messages
247
Reaction score
498
Location
California
Vehicle(s)
Sport S
Occupation
Retired Firefighter
Looks great. Will 3/4" insulation clear the freedom panel latches?
Short answer: Yes.

Long answer: Wow, here it is. This is the original thread I used to make my headliners, but I could not find it.

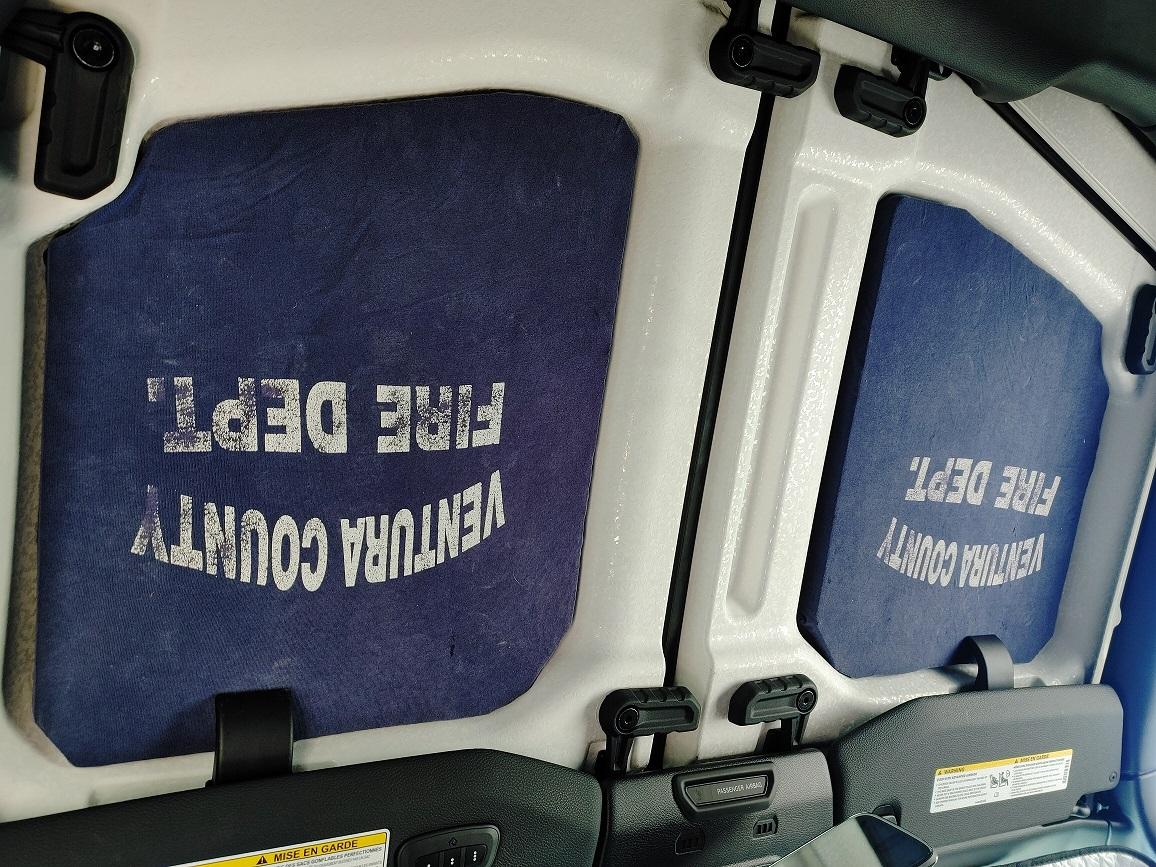

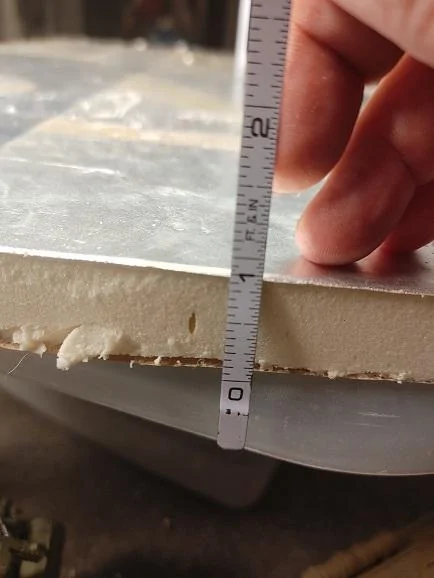

I just used 1" thick rigid insulation, it is what I had on hand. No reflectix. So far I am very happy, and the tape is holding fine from 34 degrees to 90+.
Jeep Gladiator DIY Headliners insulation

Jeep Gladiator DIY Headliners headliners
