End link is smoked

j.o.y.ride

Well-Known Member
Joined
May 26, 2020
Threads
96
Messages
2,940
Reaction score
3,884
Location
Foster City
Vehicle(s)
20 Gladiator Overland
I imagine the bearing is in the end link, And that is just simply unbolting the old one and putting a new one in. Or am I going to need to press the ball out?

If I just got a whole new metal cloak rod is it just a few bolts at that point or do I need a ball press?

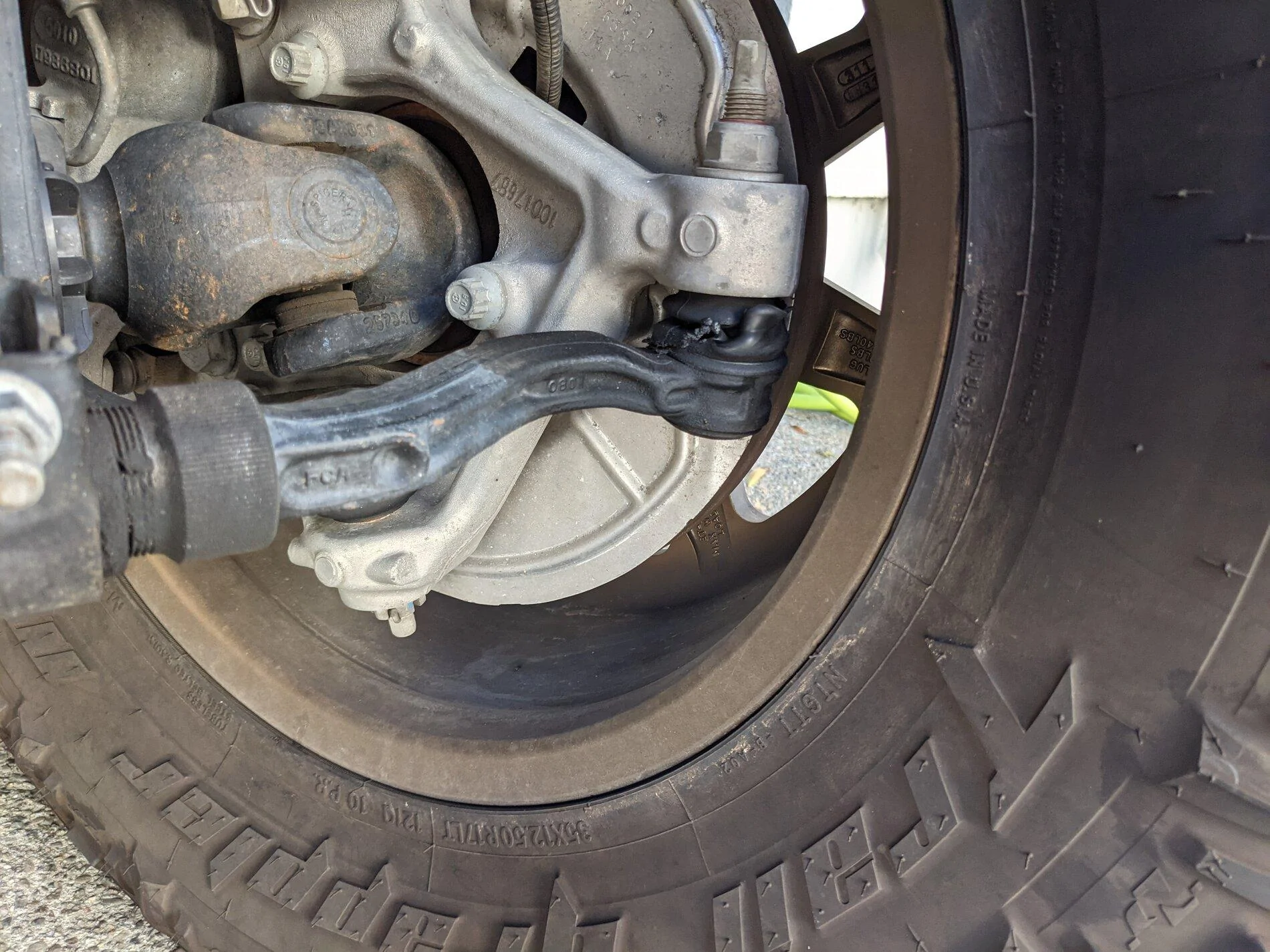

Jeep Gladiator End link is smoked PXL_20211027_183854250
Sponsored



bleda2002

Well-Known Member
Joined
May 11, 2021
Threads
23
Messages
2,331
Reaction score
3,747
Location
34655
Vehicle(s)
2021 JTR Firecracker Red
I imagine the bearing is in the end link, And that is just simply unbolting the old one and putting a new one in. Or am I going to need to press the ball out?

If I just got a whole new metal cloak rod is it just a few bolts at that point or do I need a ball press?

Jeep Gladiator End link is smoked PXL_20211027_183854250
Should just be able to change the tie rod end link.


Mojavematt

Active Member
First Name
Matt
Joined
Aug 11, 2021
Threads
3
Messages
38
Reaction score
18
Location
98258
Vehicle(s)
2021 Mojave gladiator
Should just be able to take the nut off and knock it out with a hammer. Its not really a press fit or anything.


Blade1668

Well-Known Member
First Name
Darrell
Joined
Jan 7, 2020
Threads
11
Messages
2,344
Reaction score
2,119
Location
N. AL.
Vehicle(s)
90XJ, 91XJ, 91MJ, 05 LJ, 20 JT
Build Thread
Link
Vehicle Showcase
1
A "pickle fork" tool is the cheap tool used to remove it by many. I've used on or 2 BF hammers tapping on both sides at same time popping them out.
Next question how many miles have you gone to wear out a tie rod end? The boot looks torn by something. Same as the jackass did replacing the steering gear box on mine.


kevman65

Well-Known Member
Joined
Mar 8, 2020
Threads
44
Messages
3,022
Reaction score
4,141
Location
H
Vehicle(s)
J
Factory tie rod end should come with ball joint pressed in.

After market tie rod bar install is simple. Put on jackstands, remove wheels, remove both nuts from ball joints, will drop right out. Measure center to center of OEM tie rod and set new tie rod to same measurement, install new tie rod to torque specified in instructions. Measure toe-in/toe-out and make any necessary adjustments.


Sponsored

Mojavematt

Active Member
First Name
Matt
Joined
Aug 11, 2021
Threads
3
Messages
38
Reaction score
18
Location
98258
Vehicle(s)
2021 Mojave gladiator
I normally just need a few good hammer whacks. But a pickle fork works as well.


Artsifrtsi

Well-Known Member
First Name
Jude
Joined
Apr 28, 2020
Threads
35
Messages
1,354
Reaction score
2,154
Location
Huntsville, AL
Vehicle(s)
2020 Gladiator Overland, 2005 Wrangler X
Build Thread
Link
Occupation
Resident Pompous A-Hole
Factory tie rod end should come with ball joint pressed in.

After market tie rod bar install is simple. Put on jackstands, remove wheels, remove both nuts from ball joints, will drop right out. Measure center to center of OEM tie rod and set new tie rod to same measurement, install new tie rod to torque specified in instructions. Measure toe-in/toe-out and make any necessary adjustments.
Except they should never just drop out. You will need a pickle fork, a tie rod end puller, or just a hammer to tap the end the tapered bolt goes through. Remember to leave the bolt loose, but on the threads to prevent it from just dropping out. Also, take measurements of the tie-rod before you start working, whether you are just replacing the end or the whole assembly, you'll want to go back exactly where it started.


kevman65

Well-Known Member
Joined
Mar 8, 2020
Threads
44
Messages
3,022
Reaction score
4,141
Location
H
Vehicle(s)
J
Except they should never just drop out. You will need a pickle fork, a tie rod end puller, or just a hammer to tap the end the tapered bolt goes through. Remember to leave the bolt loose, but on the threads to prevent it from just dropping out. Also, take measurements of the tie-rod before you start working, whether you are just replacing the end or the whole assembly, you'll want to go back exactly where it started.
Have you changed your tie rod bar on the JT yet? I have. No pickle fork needed. No hammer needed.


Renegade

Well-Known Member
First Name
Zac
Joined
Sep 11, 2017
Threads
38
Messages
3,562
Reaction score
4,693
Location
Signal Mountain, TN
Vehicle(s)
2020 JT
Build Thread
Link
I imagine the bearing is in the end link, And that is just simply unbolting the old one and putting a new one in. Or am I going to need to press the ball out?

If I just got a whole new metal cloak rod is it just a few bolts at that point or do I need a ball press?

Is the end bad, or is it just that the boot is torn? It's even simpler to just replace that boot if you have access to a replacement. I've got several in my garage from take-off JL/JT steering systems. I would give you one if you were close.


Sponsored

am1978

Well-Known Member
First Name
Adam
Joined
Jun 26, 2018
Threads
25
Messages
1,284
Reaction score
1,156
Location
MD
Vehicle(s)
2021 JTRD, 2018 JLU Sahara
Occupation
Homebrewer
A "pickle fork" tool is the cheap tool used to remove it by many. I've used on or 2 BF hammers tapping on both sides at same time popping them out.
Next question how many miles have you gone to wear out a tie rod end? The boot looks torn by something. Same as the jackass did replacing the steering gear box on mine.
LOL. BFH—haven’t seen that in a while.


rharr

Well-Known Member
Joined
May 6, 2021
Threads
20
Messages
1,262
Reaction score
1,661
Location
Tucson, AZ
Vehicle(s)
21 JTRD 3" RKK lift, (former) 95 XJ 5sp 8" lift
The correct way to hammer out a tappered fitting like the tie rod end is to loosen the nut most of the way but leave a few threads holding the nut. Then take a hammer and wack the side of the steering knuckle where the tie rod taper goes though. imagine wacking the outside of a donut if you had a stick through the middle. The shock of the hammer blow vibrates things enough to get the tappered bond to break loose and the tapper to drop out. The nut keeps the tie rod from dropping to the ground.

I have also seen these jeep tie rod end just drop out of the knuckle when the nut is undone.


bleda2002

Well-Known Member
Joined
May 11, 2021
Threads
23
Messages
2,331
Reaction score
3,747
Location
34655
Vehicle(s)
2021 JTR Firecracker Red
After looking more I think the boot is just torn.

Time for a Metalcloak! That's how it works right? $20 part goes bad so spend $450 fixing it.
Why spend 450 when you can step up to an rpm steering 2.5 ton solid 2" aluminum tie rod and spend even more. I'm dying to have an excuse to swap out my tie rod and drag link for a pair
