Extended Rear Brake Lines Rubbing on Tire

TreyK42

Well-Known Member
First Name
Trey
Joined
Jan 31, 2022
Threads
12
Messages
89
Reaction score
120
Location
Blanco, TX
Vehicle(s)
2021 JT Mojave Sting Gray
Occupation
Software Nerd
Hey all,

Installed EVO stainless front and rear brake lines over the weekend and after bleeding and a test drive I noticed that they are rubbing on the rear tires. I searched the forum and didn’t see anyone reporting this issue. Anyone run into this and come up with a solution?

I thought maybe a loose zip tie on the swaybar links so they could still travel when needed but I am not in love with that idea.

Thanks!
Sponsored



QuintusMaximus

Well-Known Member
Joined
Sep 7, 2022
Threads
4
Messages
108
Reaction score
64
Location
California
Vehicle(s)
2020 JL, 2022 JT
Let us know how it works. For obvious reasons, rubbing brake lines isn't something you can ignore.


RCKLNDR

Well-Known Member
First Name
Drew
Joined
Aug 27, 2019
Threads
16
Messages
428
Reaction score
706
Location
Pittsburgh
Vehicle(s)
Jeep
Def update with how they work. I installed the EVO lines in the rear a couple weeks ago and they sit closer to the tire than I’d like w/ a 4.75” BS wheel. When I switch to my steelies for winter, I’m thinking they’ll rub as well.

OP
OP
TreyK42

TreyK42

Well-Known Member
First Name
Trey
Joined
Jan 31, 2022
Threads
12
Messages
89
Reaction score
120
Location
Blanco, TX
Vehicle(s)
2021 JT Mojave Sting Gray
Occupation
Software Nerd
Def update with how they work. I installed the EVO lines in the rear a couple weeks ago and they sit closer to the tire than I’d like w/ a 4.75” BS wheel. When I switch to my steelies for winter, I’m thinking they’ll rub as well.
Yep. I’m running the AEV Borah’s and I’m right there with you. The retainers are supposed to be here on Thursday and I’ll take before and after pics and let you know how they do.

I watched The Ginger’s video from EPIC adventure outfitters and the final steps of putting a 392 in his gladiator and noticed that he was running the rear retainers on his as the camera panned across the rear suspension a couple of times.


Sponsored

OP
OP
TreyK42

TreyK42

Well-Known Member
First Name
Trey
Joined
Jan 31, 2022
Threads
12
Messages
89
Reaction score
120
Location
Blanco, TX
Vehicle(s)
2021 JT Mojave Sting Gray
Occupation
Software Nerd

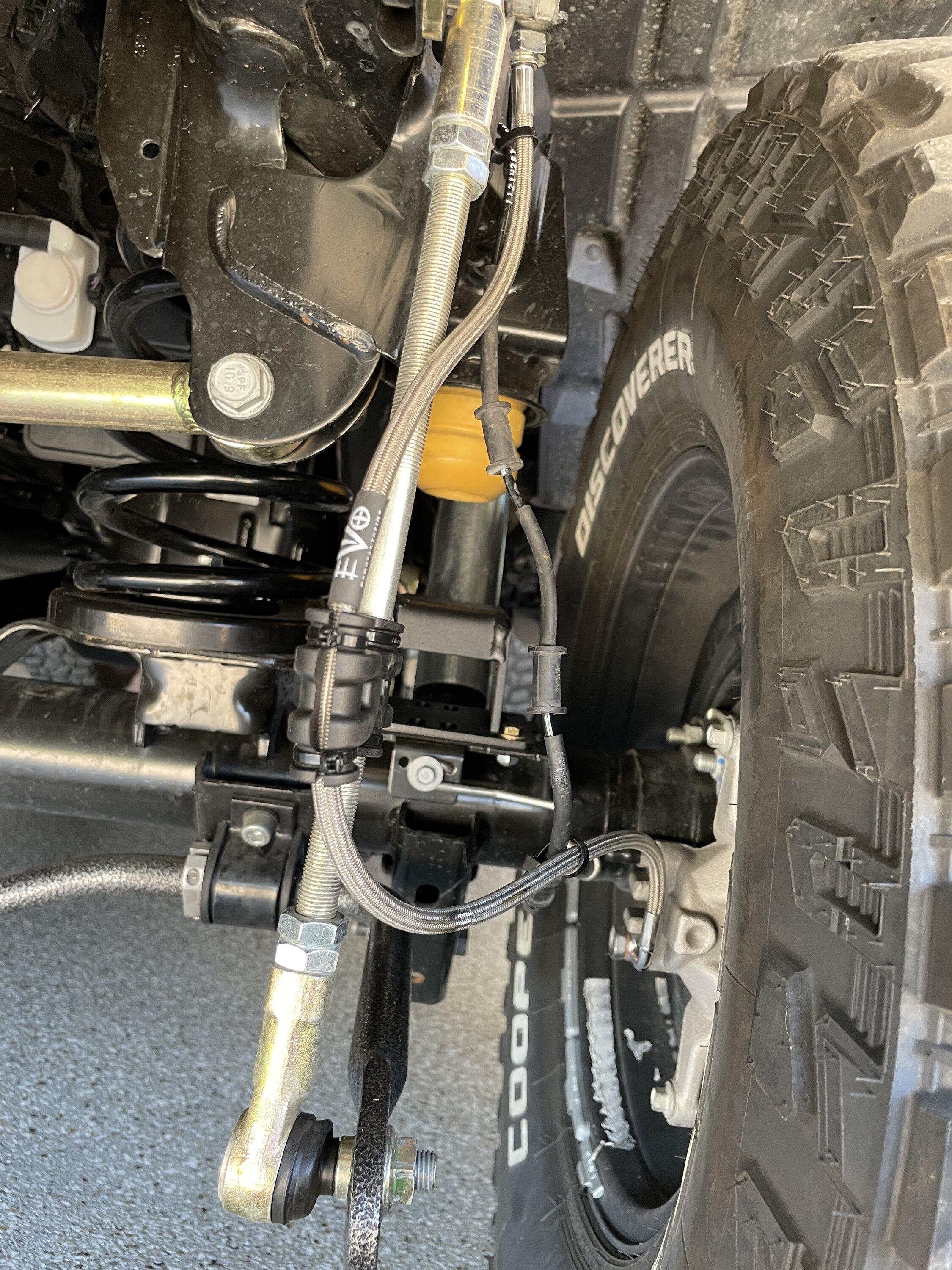

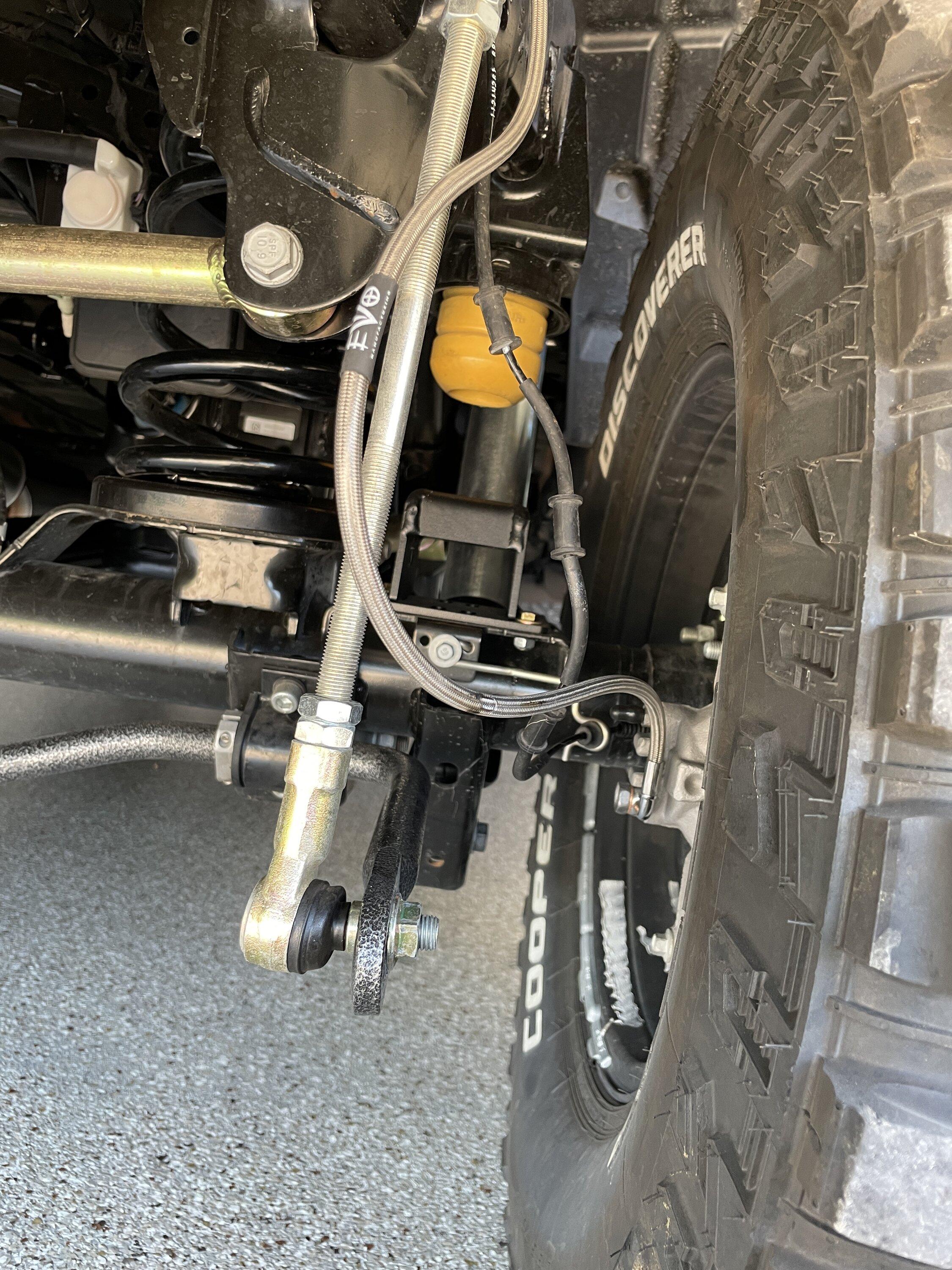

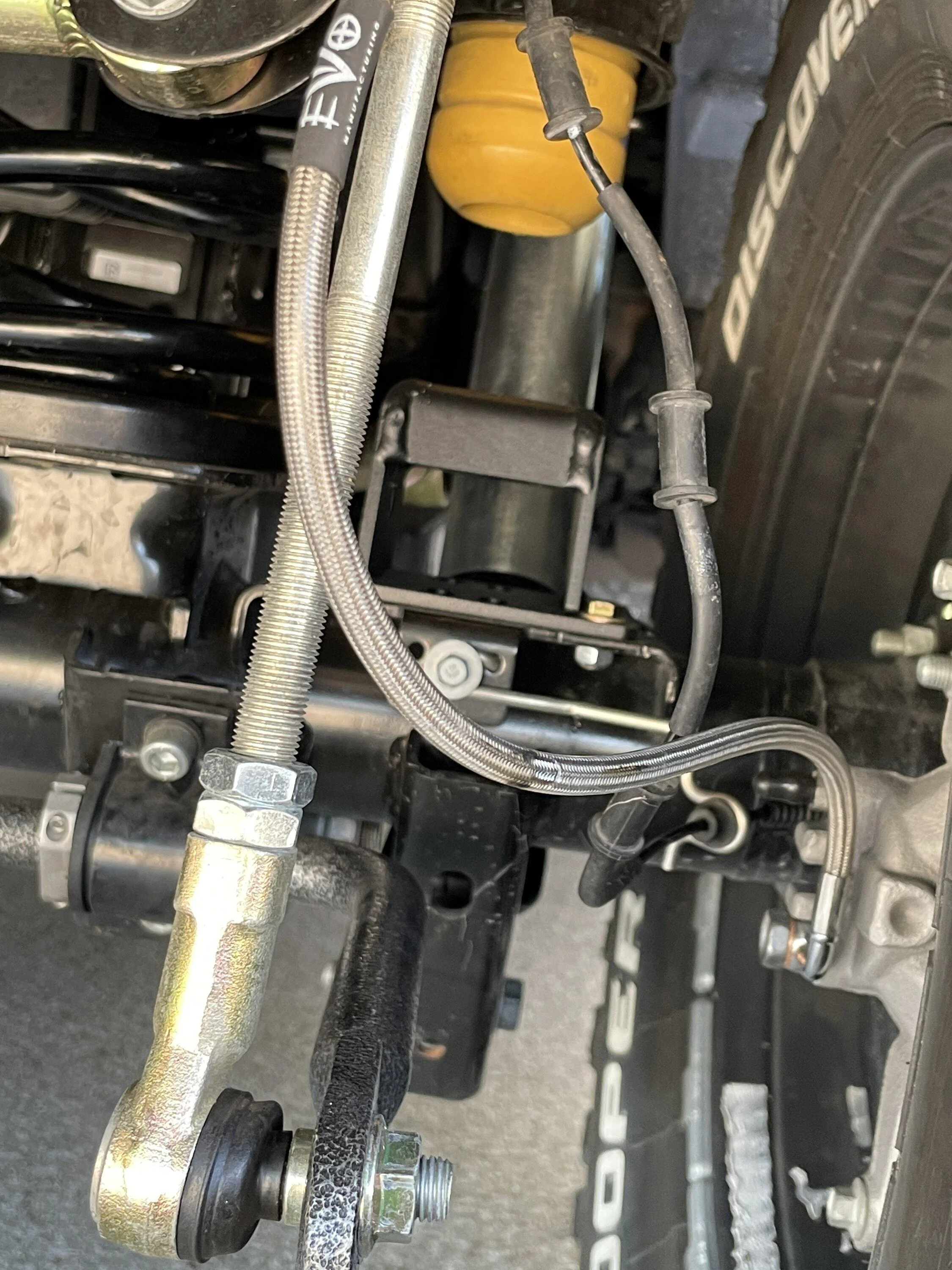

Just finished installing these. Probably one of the easiest and cheapest additions you could make (if you have extended lines) that could literally save your life. No way those lines will ever rub on the tire again. Before and after pics attached.







RCKLNDR

Well-Known Member
First Name
Drew
Joined
Aug 27, 2019
Threads
16
Messages
428
Reaction score
706
Location
Pittsburgh
Vehicle(s)
Jeep

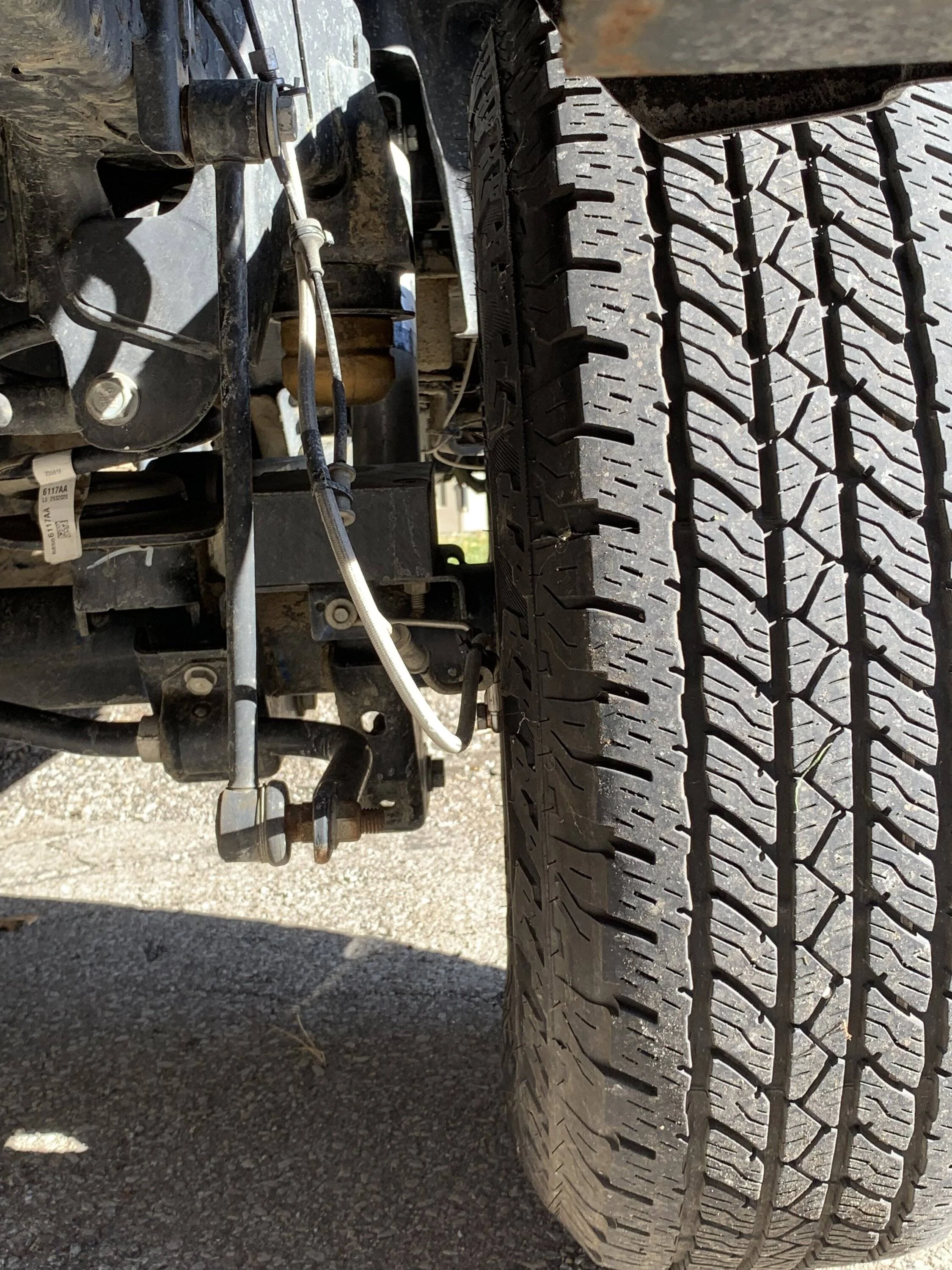

Just thought about this thread since I’m running some stock steelies for winter. They are definitely close but clear fine.
Jeep Gladiator Extended Rear Brake Lines Rubbing on Tire 95DBEECC-0028-4C80-B254-C3AD83F44CE4
