I‘m sure many of you remember the air up attachment that the wayout concept had on the drivers side cowl. Well Benny at @AllMoparParts.com has been searching for this on my behalf for 6 months and it finally showed up.
using the cowl from the Wrangler 4xe I believe this concept can be recreated with the help of @813fabrication.

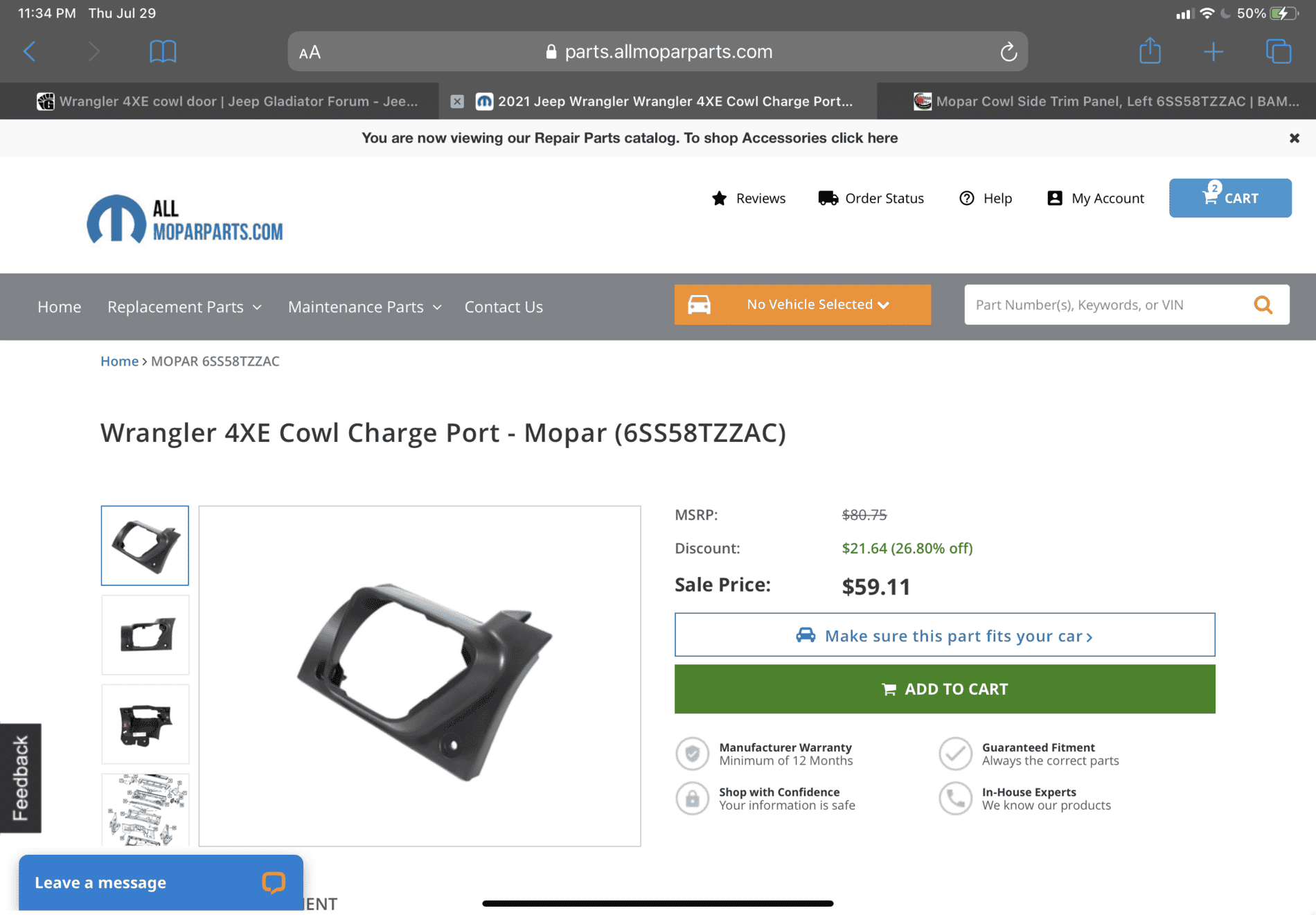

Jeep Gladiator External “air” concept from Wayout concept A90EF2E1-33DB-4A30-B263-353598DED102
Sponsored



Gladiator Overland

Well-Known Member
First Name
Stephen
Joined
Jun 26, 2019
Threads
25
Messages
310
Reaction score
230
Location
Appalachia
Website
linktr.ee
Vehicle(s)
2022 Jeep Gladiator Rubi Diesel. Toyota 4Runner
this interests me. especially with wanting to mount the arb compressor up in the front of the wheel well/ firewall.


AXISJT

Well-Known Member
First Name
Adam
Joined
Jun 11, 2021
Threads
10
Messages
304
Reaction score
240
Location
Tennessee
Vehicle(s)
TJ Wrangler, Gladiator ecodiesel sport
Occupation
Lab manager
Definitely want to see what can be done with this


Steak.Sauce

Well-Known Member
Joined
Mar 17, 2020
Threads
4
Messages
73
Reaction score
107
Location
Portland, OR
Vehicle(s)
2020 Jeep Gladiator
Finally. I've been hoping someone would work on developing this. I've been holding off on ordering brackets until I could get something like this.


Sponsored

Gladiator Overland

Well-Known Member
First Name
Stephen
Joined
Jun 26, 2019
Threads
25
Messages
310
Reaction score
230
Location
Appalachia
Website
linktr.ee
Vehicle(s)
2022 Jeep Gladiator Rubi Diesel. Toyota 4Runner

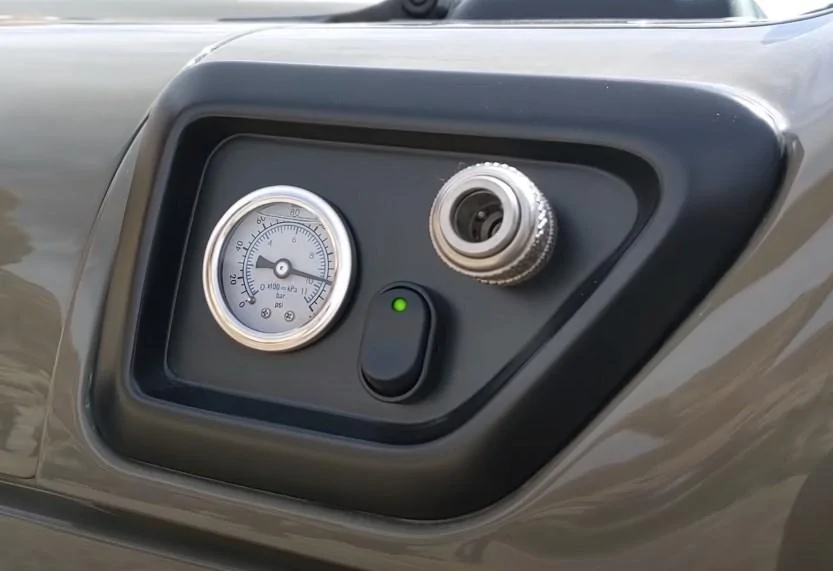

For reference here is a photo of the Wayout panel he is referring to.
Jeep Gladiator External “air” concept from Wayout concept wayout
Yes but having it protected by a door is even one step further than the way out concept.


Gatorized

Well-Known Member
Joined
Sep 13, 2019
Threads
6
Messages
1,663
Reaction score
1,535
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)
The Mojave and 4xe share the same cowl...


A 2

Well-Known Member
Joined
Jul 4, 2020
Threads
75
Messages
802
Reaction score
905
Location
N. San Diego
Vehicle(s)
2021 JTRD, 2020 JLU
Build Thread
Link
Occupation
Construction
Neat, looks like the way out concept has a custom body panel. Mopar looks like it would bolt to the oem and just need to cut a hole in the back?

following


Sponsored

dcmdon

Well-Known Member
First Name
Don
Joined
Mar 31, 2021
Threads
60
Messages
3,654
Reaction score
4,385
Location
Boston Metro-West, Northern NH
Vehicle(s)
.
For reference here is a photo of the Wayout panel he is referring to.

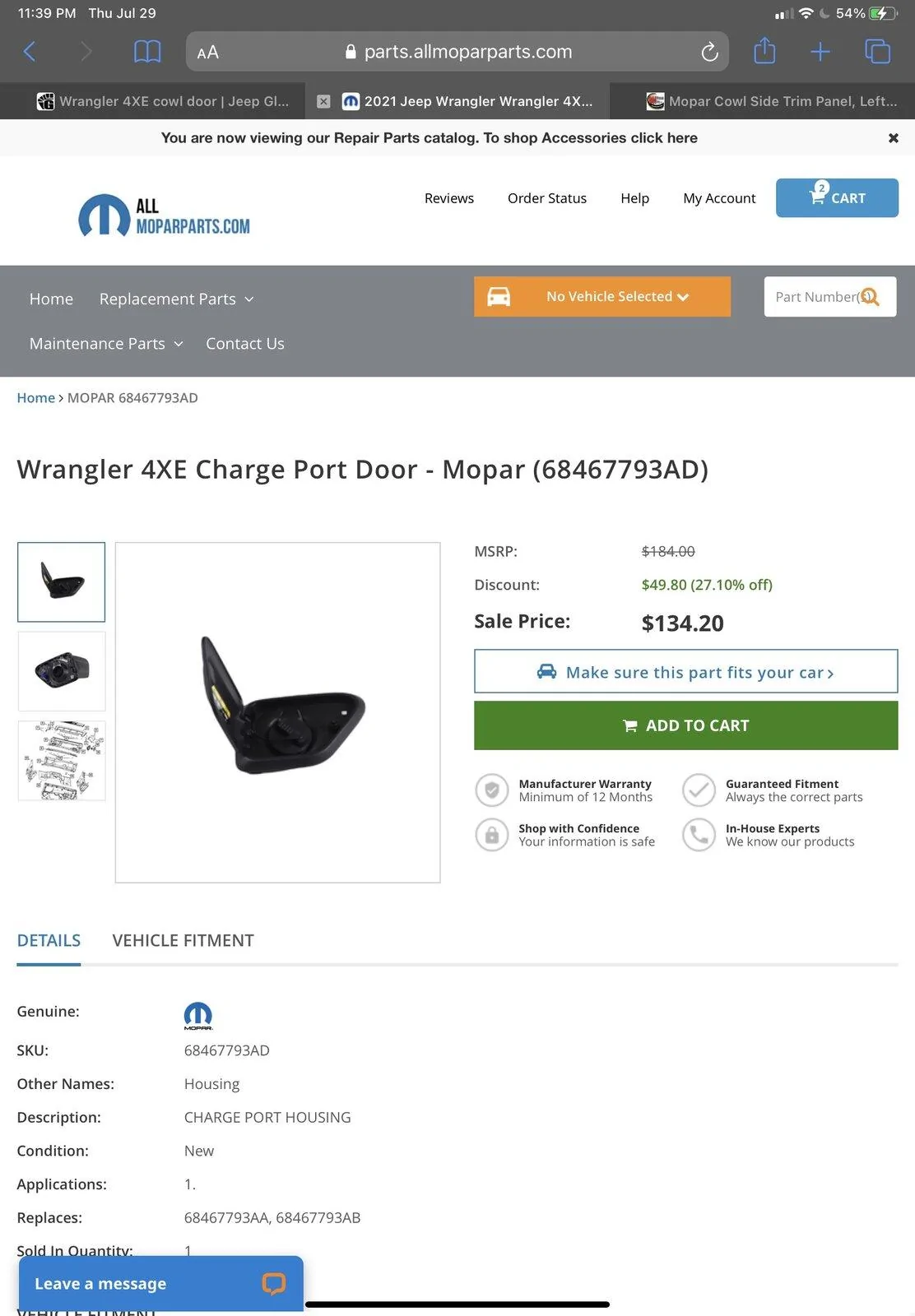

Jeep Gladiator External “air” concept from Wayout concept 07F7AAFE-3D19-404B-AD05-1CC9580F6EB2
That looks swell if you live in AZ.

But if you live in the snow belt, it will turn to crap in one winter.


Chance575

Well-Known Member
First Name
C
Joined
May 20, 2021
Threads
7
Messages
370
Reaction score
419
Location
Earth
Vehicle(s)
C
Occupation
D
You will also need a water separator for the winter. I had a low rider truck on air bags and the air lines would freeze with moisture in the lines.


Gladiator Overland

Well-Known Member
First Name
Stephen
Joined
Jun 26, 2019
Threads
25
Messages
310
Reaction score
230
Location
Appalachia
Website
linktr.ee
Vehicle(s)
2022 Jeep Gladiator Rubi Diesel. Toyota 4Runner

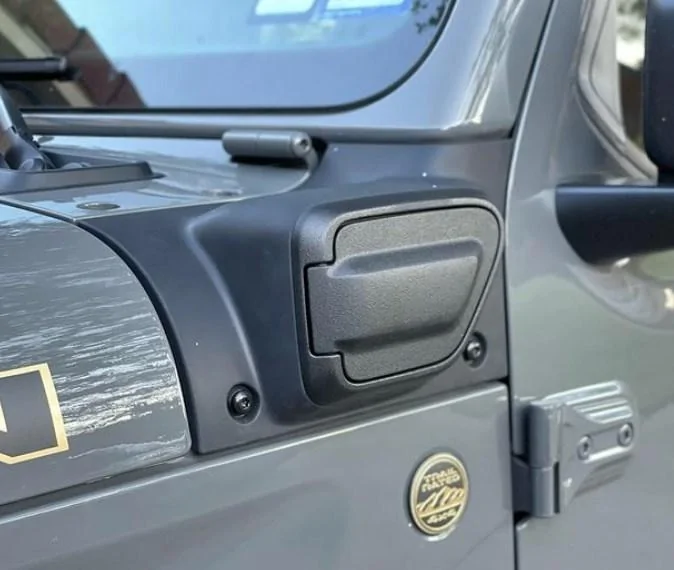

Here is the part number for the door.

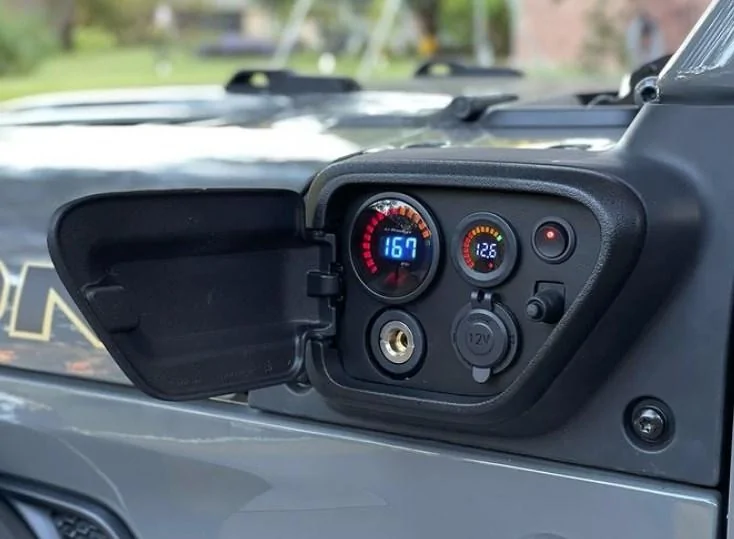

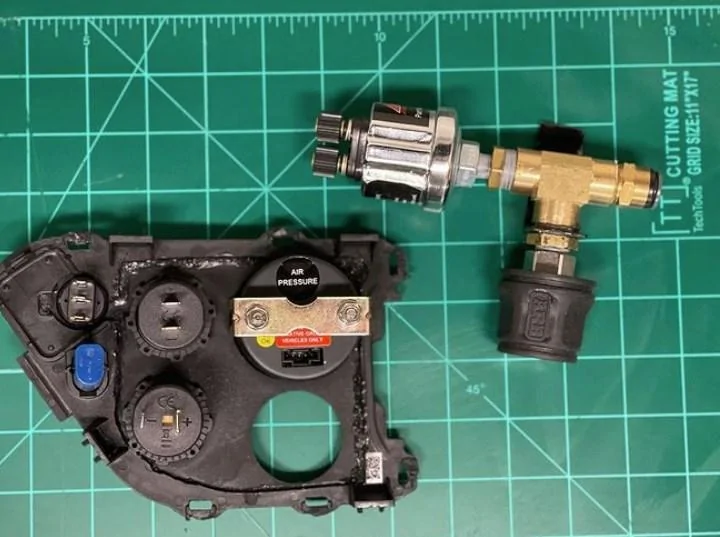

Jeep Gladiator External “air” concept from Wayout concept Ethree
Yes indeed this is the way to go. Though you would need to fill in the embossed 4xe on the door and refinish it to look good. I think foolsgold did this very thing with his version. I do think there is a market for this type of thing if someone makes some types of kits they would have a good product to fit the market.


Rockabillyroy

Well-Known Member
Joined
Nov 8, 2020
Threads
15
Messages
825
Reaction score
870
Location
CA
Vehicle(s)
JT
damn, that looks good. i'm considering re-locating my compressor. hahaha.
