factory Aux Switches

yrwins

Well-Known Member
First Name
Yrwins
Joined
Aug 27, 2020
Threads
19
Messages
81
Reaction score
65
Location
Texas
Vehicle(s)
N/a
Occupation
IT
hello guys, I'm still trying to figure out we’re is factory Aux Switches. The switch indicator lights come on and the switches are configurable and it is working good, but I don’t know we’re is fuse and relay. Does anyone know where is the factory Aux Switch relays and fuses are? wire 1, 2, 3, & 4,

Thanks for any info you might have.
Sponsored



bd100

Well-Known Member
Joined
May 31, 2022
Threads
27
Messages
516
Reaction score
485
Location
USA Midwest
Vehicle(s)
JT, WK2, ole' Ram
The fuses are in the fuse box, the relays in the power distribution center (I think). The wires under the hood are tucked between the battery (if 3.6L) and the side of the engine bay (not sure about diesel). The wires under the dash are above the passenger's left foot.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
hello guys, I'm still trying to figure out we’re is factory Aux Switches. The switch indicator lights come on and the switches are configurable and it is working good, but I don’t know we’re is fuse and relay. Does anyone know where is the factory Aux Switch relays and fuses are? wire 1, 2, 3, & 4,

Thanks for any info you might have.
What bd100 said..........
Don't go messing with the fuses unless it's just to replace bad ones because they are sized for the wiring and relay capability. Don't increase any fuse size.
Not sure why you need to know the relay placement but if you look at the inside of the lid for the fuse panel, it gives fuse and relay information right in front of you.

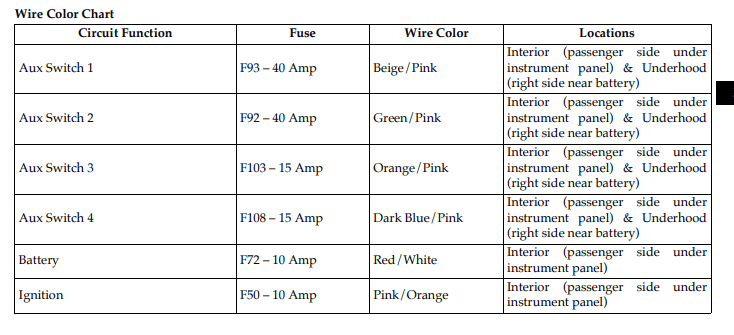

The wires are often wrapped up and hard to recognize. There will be 4 between battery and right fender with the gas engine (like already said) and there will be 6 inside (although I have yet to find my inside ones as they are hidden and wrapped up so well I've not yet found 'em)
There's the 4 for the switches, then an ignition sourced wire and a battery sourced wire, both fuses at 10 amps if I recall correctly.


XraytecH

Well-Known Member
First Name
Bernie
Joined
Jan 14, 2021
Threads
170
Messages
1,523
Reaction score
2,102
Location
South San Francisco
Vehicle(s)
2021 Jeep Gladiator Sport
Occupation
Xraytech
Vehicle Showcase
1
hello guys, I'm still trying to figure out we’re is factory Aux Switches. The switch indicator lights come on and the switches are configurable and it is working good, but I don’t know we’re is fuse and relay. Does anyone know where is the factory Aux Switch relays and fuses are? wire 1, 2, 3, & 4,

Thanks for any info you might have.

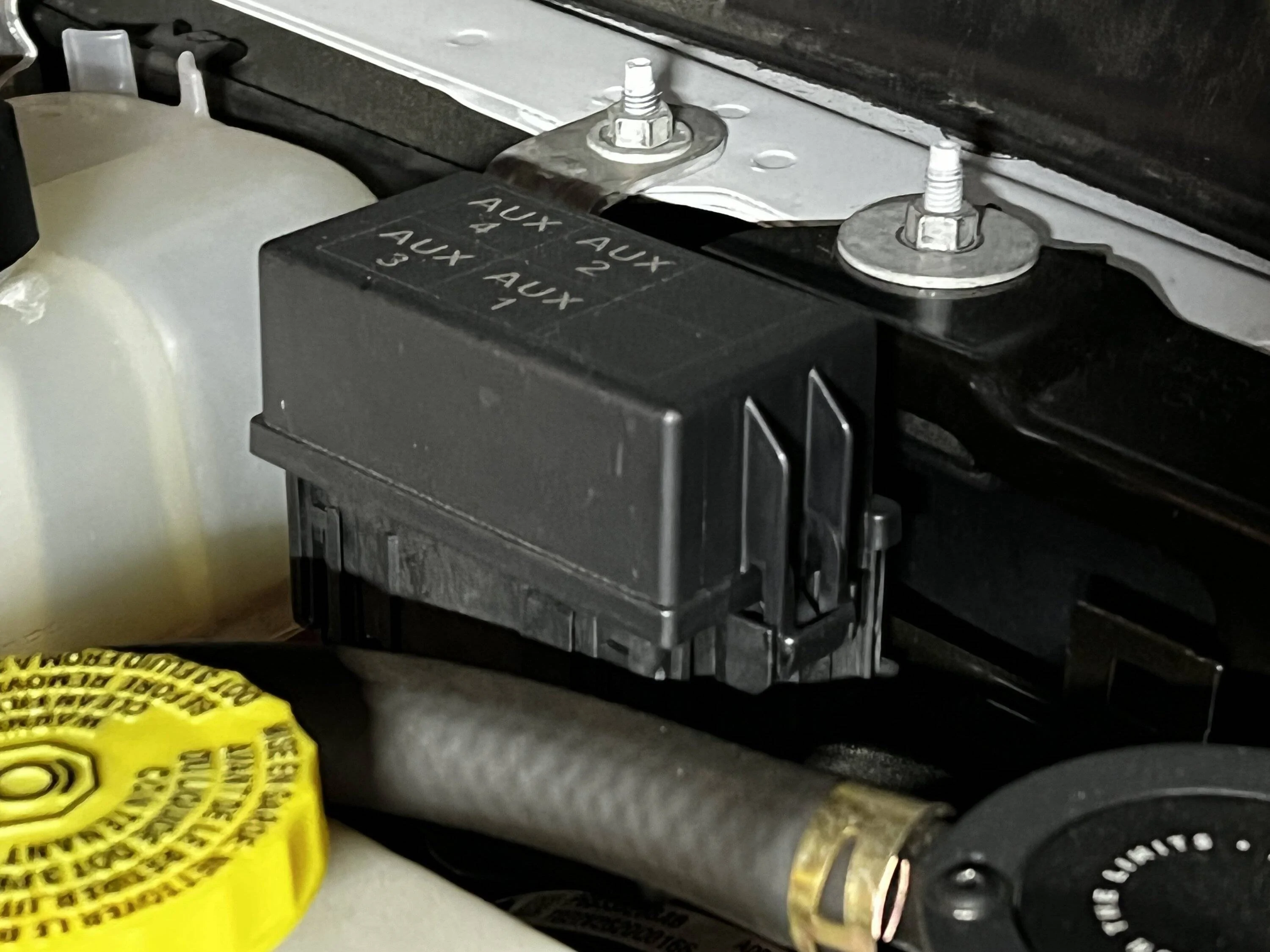

The relay box is on the driver side next to the coolant reservoir.
Jeep Gladiator factory Aux Switches D4922A47-FCD6-42C6-9533-648128E639CD

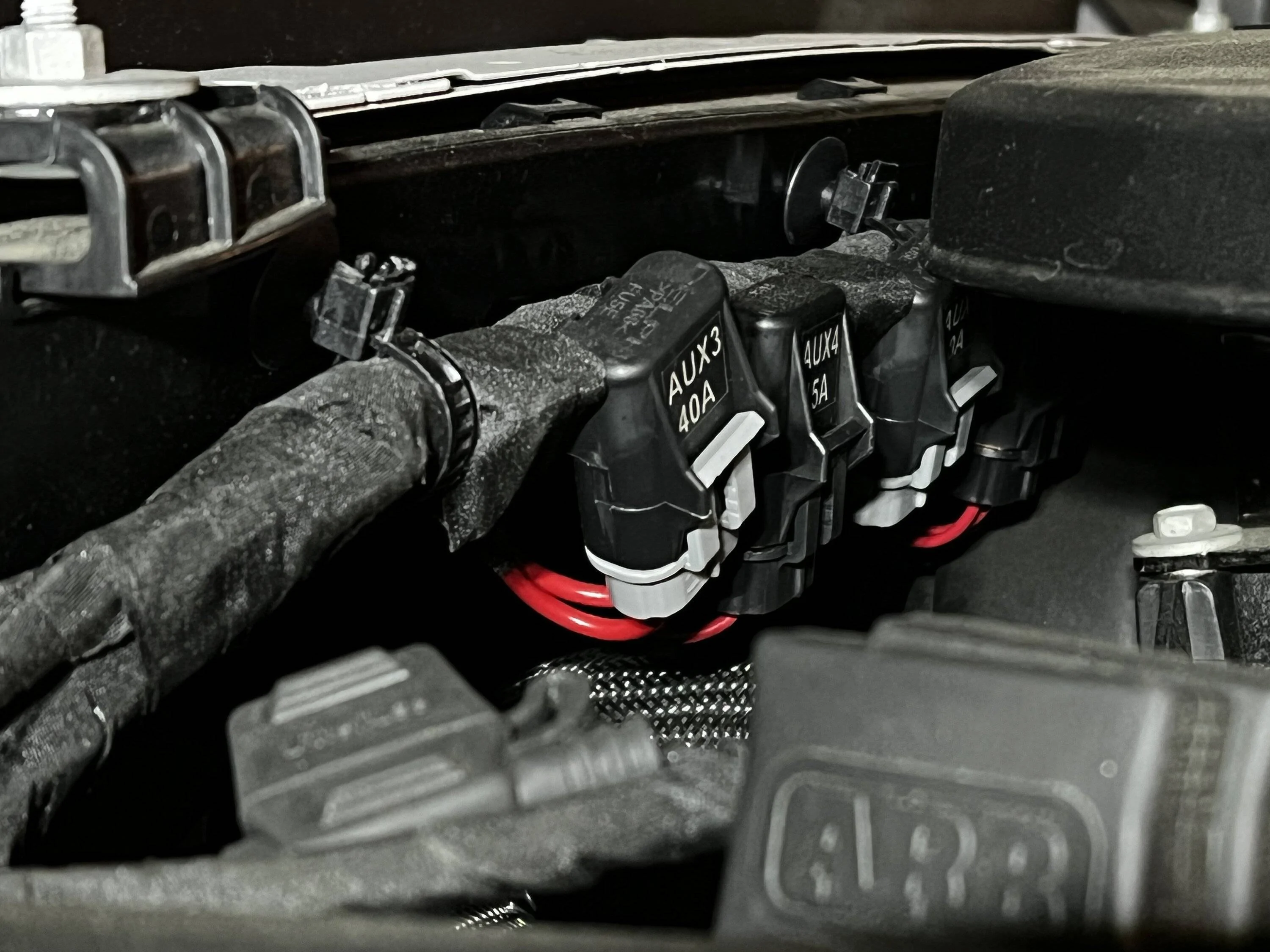

The fuses are behind the engine cover on the passenger side.
Jeep Gladiator factory Aux Switches 20E0A604-B78A-48FB-A267-71F1CD392CEF


bd100

Well-Known Member
Joined
May 31, 2022
Threads
27
Messages
516
Reaction score
485
Location
USA Midwest
Vehicle(s)
JT, WK2, ole' Ram
There are ground studs in the engine bay near the aux wires, and also in the foot well inside by the right passenger's foot, but I guess you have to remove some trim to get to the inside ones.


Sponsored

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
The relay box is on the driver side next to the coolant reservoir.


The fuses are behind the engine cover on the passenger side.
It is?
Not on mine. I've got my plow wiring there. (the aluminum bracket with the relays on it is what I installed for the plow)
My aux relays are in the fuse panel - spelled out in the fuse map under the cover of the PDC.

Jeep Gladiator factory Aux Switches 1676869632984


These are relays for my snow plow lighting operation -
Jeep Gladiator factory Aux Switches 1676870249562

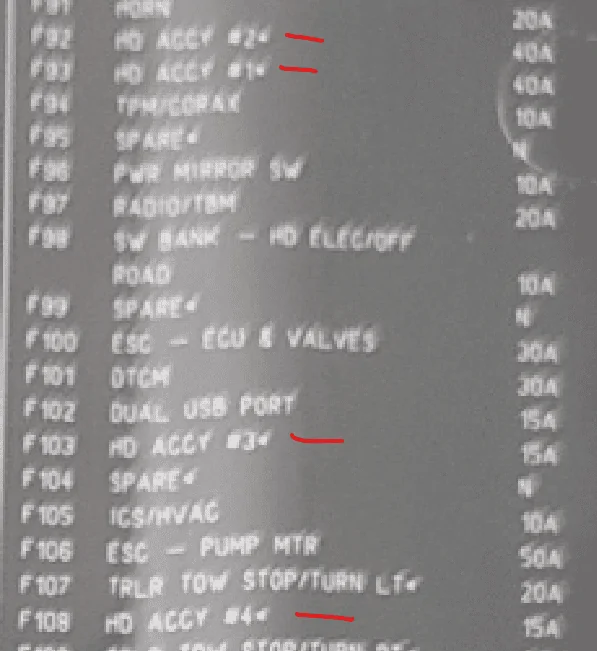

And my factory aux switch fuses are in the fuse panel - with the relays.

Jeep Gladiator factory Aux Switches 1676869843816


XraytecH

Well-Known Member
First Name
Bernie
Joined
Jan 14, 2021
Threads
170
Messages
1,523
Reaction score
2,102
Location
South San Francisco
Vehicle(s)
2021 Jeep Gladiator Sport
Occupation
Xraytech
Vehicle Showcase
1
It is?
Not on mine. I've got my plow wiring there. (the aluminum bracket with the relays on it is what I installed for the plow)
My aux relays are in the fuse panel - spelled out in the fuse map under the cover of the PDC.



These are relays for my snow plow lighting operation -


And my fuses are in the fuse panel -


NOW THIS IS INTERESTING

I installed my MOPAR auxiliary switches. I just assumed aux switches are the same from the factory and self/dealership installed.

What Trim Level is your JT?


Last edited:

chorky

Well-Known Member
First Name
Chad
Joined
Feb 26, 2022
Threads
154
Messages
2,979
Reaction score
3,046
Location
Montana
Website
www.youtube.com
Vehicle(s)
'06 TJ GE, '22 JTR
Build Thread
Link
Occupation
Forester
There are ground studs in the engine bay near the aux wires, and also in the foot well inside by the right passenger's foot, but I guess you have to remove some trim to get to the inside ones.
the ones on the inside are easy to access and no trim removal necessary. They are further to the left side of the passenger footwell and are taped up really well so theyre kinda hidden and sneaky. But down there there are the 4 aux wires but also a 10A always hot wire and a 10A ignition on wire.


bd100

Well-Known Member
Joined
May 31, 2022
Threads
27
Messages
516
Reaction score
485
Location
USA Midwest
Vehicle(s)
JT, WK2, ole' Ram
Yea, I was referring to the grounding studs on the side of the passenger foot well near the door, behind the trim. I wish they had made those easier to get at.


Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Threads
29
Messages
5,152
Reaction score
5,403
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland - 2013 Nissan Leaf SV
Vehicle Showcase
1
NOW THIS IS INTERESTING

I installed my MOPAR auxiliary switches. I just assumed aux switches are the same from the factory and self/dealership installed.

What Trim Level is your JT?

They have the same function, but the actual hardware and placement is different with a factory install. The two hot wires under the dash are also only included with the factory setup.


Sponsored

OP
OP
yrwins

yrwins

Well-Known Member
First Name
Yrwins
Joined
Aug 27, 2020
Threads
19
Messages
81
Reaction score
65
Location
Texas
Vehicle(s)
N/a
Occupation
IT
i find the answer thank you.


cafecito

Well-Known Member
First Name
Lucas
Joined
Mar 22, 2021
Threads
53
Messages
679
Reaction score
1,297
Location
Orlando, FL
Vehicle(s)
2021 Gladiator Mojave, Granite Crystal
Occupation
Corporate Tool
NOW THIS IS INTERESTING

I installed my MOPAR auxiliary switches. I just assumed aux switches are the same from the factory and self/dealership installed.

What Trim Level is your JT?

They're definitely not. I did this install on my Gladiator, and mine are visible from the engine bay (like in pic). My wife's Wrangler came with them from the factory, and her PDC and fuses are nowhere to be seen. They hide them away elsewhere at the factory.
