FI - Gas vs Diesel Components

  1. EPTJ

    EPTJ Active Member

    First Name:
    Eric
    Vehicle(s):
    2014 JGC Overland, 2014 JGC SRT, 2008 Dodge Ram 2500, 1999 Jeep Wrangler
    Joined:
    Apr 11, 2019
    Location:
    Michigan
    Posts:
    26
    Liked:
    20
    I am getting a gas Rubicon Gladiator, and coming from my SRT GC and Cummins Ram, I think I am going to miss the torque each one has. I do have a GC w/ the 3.6 and 8 speed, and it does well unloaded, but fell flat on its face when towing 2500 lbs in the WV mountains.

    I am contemplating a turbo or sc, vs an engine swap, but more interested in the drivetrain in the Rubicon's gas vs diesel. The diesel version has components rated for at least 442 ft-lbs of torque.

    Are the auto transmissions the same part #, rated for the same torque as the diesel?
    Are the Rubicon transfer cases the same part #, rated for the same torque as the diesel?
    Are the driveshafts and axles the same part #, rated for the same torque as the diesel?

    If the answers are Yes, is it safe to say that there is no weak link in the drive train (to 442 ft-lbs)? Is there something that I am not considering here? If the answer is No, would swapping drivelines from a diesel Gladiator to a gasser be that simple (although expensive)?

  2. smlobx

    smlobx Well-Known Member

    First Name:
    Eddie
    Vehicle(s):
    2014 EcoDiesel, 2016 F-350
    Joined:
    Jun 28, 2018
    Location:
    Smith Mt. lake, VA
    Posts:
    280
    Liked:
    369
    As far as I know the 8 speed ZF transmission is the same in the JT as the Ecodiesel.

  3. RedTRex

    RedTRex Well-Known Member

    First Name:
    Rick
    Vehicle(s):
    2013 JKU
    Joined:
    Aug 25, 2017
    Location:
    Jacksonville, FL
    Posts:
    1,409
    Liked:
    874
    May be similar but not same.... go to 2018 GC builder or 2018 Ram builder and the trans that goes with the 3.0 ecoD has a different sales code.....I do not know what the difference is though

    EPTJ... the xfer case and axles should remain the same

  4. RedTRex

    RedTRex Well-Known Member

    First Name:
    Rick
    Vehicle(s):
    2013 JKU
    Joined:
    Aug 25, 2017
    Location:
    Jacksonville, FL
    Posts:
    1,409
    Liked:
    874
    AHA....the power of the Google machine.

    8HP45 or 50 for 3.6L vs 8HP70 for Ecodiesel (and V8 engines) so trans changes for Torque output

    EPTJ likes this.
  5. OP
    OP
    EPTJ

    EPTJ Active Member

    First Name:
    Eric
    Vehicle(s):
    2014 JGC Overland, 2014 JGC SRT, 2008 Dodge Ram 2500, 1999 Jeep Wrangler
    Joined:
    Apr 11, 2019
    Location:
    Michigan
    Posts:
    26
    Liked:
    20
    Thanks, RedTRex, I didn't think to check out the GC and Ram diesel builder page. It would be nice if you could buy a kit to upgrade the auto to a 8HP70. I'll have to look into that, I'm sure I am not the first one to look into beefing up the 8HP45.

  6. RedTRex

    RedTRex Well-Known Member

    First Name:
    Rick
    Vehicle(s):
    2013 JKU
    Joined:
    Aug 25, 2017
    Location:
    Jacksonville, FL
    Posts:
    1,409
    Liked:
    874
    I believe these are the tq limits for the 8HP45

    1st 440nm
    2nd 440nm
    3rd 380nm
    4th 440nm
    5th 440nm
    6th 380nm (350nm at higher transmission fluid temp)
    7th 550nm
    8th 440nm

    so 3rd and 6th are the "weak" points

  7. RedTRex

    RedTRex Well-Known Member

    First Name:
    Rick
    Vehicle(s):
    2013 JKU
    Joined:
    Aug 25, 2017
    Location:
    Jacksonville, FL
    Posts:
    1,409
    Liked:
    874

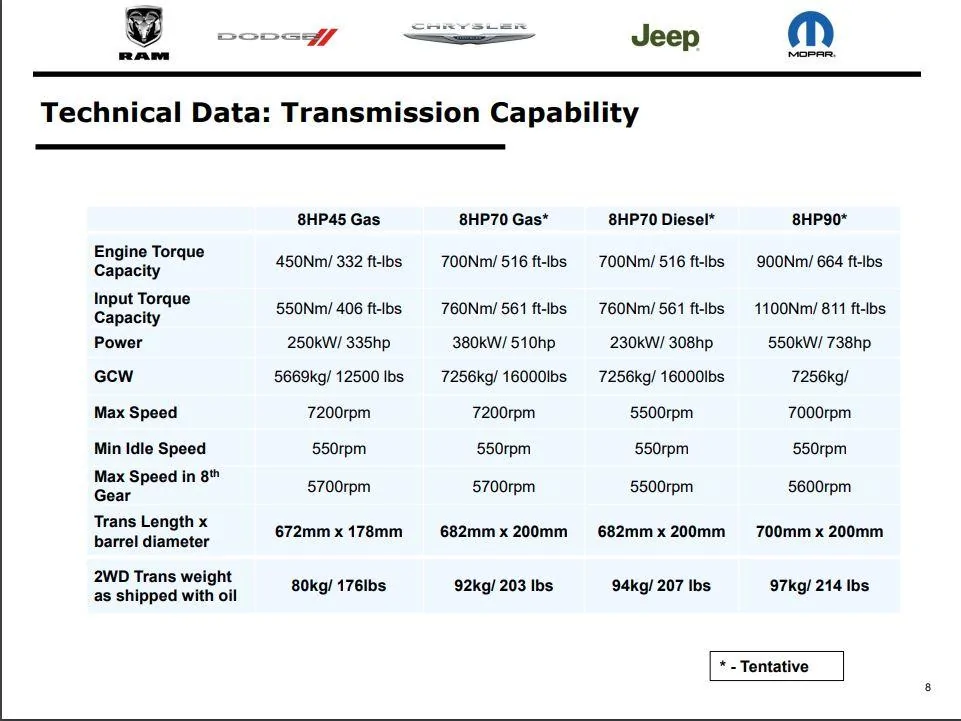

    8HP Specs.JPG

  8. Ole Cowboy

    Ole Cowboy Well-Known Member

    First Name:
    Don
    Vehicle(s):
    '19 F 350 King Ranch, 2 John Deeres
    Joined:
    May 10, 2019
    Location:
    Texas
    Posts:
    226
    Liked:
    227
    Sounds great, but the real question is...$$$

  9. RedTRex

    RedTRex Well-Known Member

    First Name:
    Rick
    Vehicle(s):
    2013 JKU
    Joined:
    Aug 25, 2017
    Location:
    Jacksonville, FL
    Posts:
    1,409
    Liked:
    874
    What sounds great amigo?

    Ole Cowboy likes this.
  10. Ole Cowboy

    Ole Cowboy Well-Known Member

    First Name:
    Don
    Vehicle(s):
    '19 F 350 King Ranch, 2 John Deeres
    Joined:
    May 10, 2019
    Location:
    Texas
    Posts:
    226
    Liked:
    227
    Nothing to compare to except my F 350s x 5 and each one was about $9k option, well know it won't be that high. Also noted the Block for the engine is made out of used charcoal briquets just like the FORD block...

  11. RedTRex

    RedTRex Well-Known Member

    First Name:
    Rick
    Vehicle(s):
    2013 JKU
    Joined:
    Aug 25, 2017
    Location:
    Jacksonville, FL
    Posts:
    1,409
    Liked:
    874
    LOL.
    So in the Grand Cherokee and RAM the EcoD was a $4K and $4.5k respectively option and auto trans was included. With the new diesel price war (think Ford is the first with small diesel as a no cost option) we shall see how Chevy and Ram compete. As for Jeep, who knows as they charge us a bundle for the trans

  12. Blown7

    Blown7 Well-Known Member

    Vehicle(s):
    1977 Hellcat powered CJ7..... 2007 Jeep SRT8...2018 Trackhawk
    Joined:
    Oct 18, 2018
    Location:
    CT
    Posts:
    98
    Liked:
    53
    Many variations of the 8 speed.. Trackhawk has the best so far Better than the Demon.
