Flummoxed by Serpentine Belt Replacement

ShrimpHappens

Well-Known Member
Joined
Jun 10, 2021
Threads
3
Messages
428
Reaction score
1,060
Location
Northwest AL
Vehicle(s)
'20 Sport S
Well guys, I'm borderline ashamed to admit that last week I was defeated by the serpentine belt.

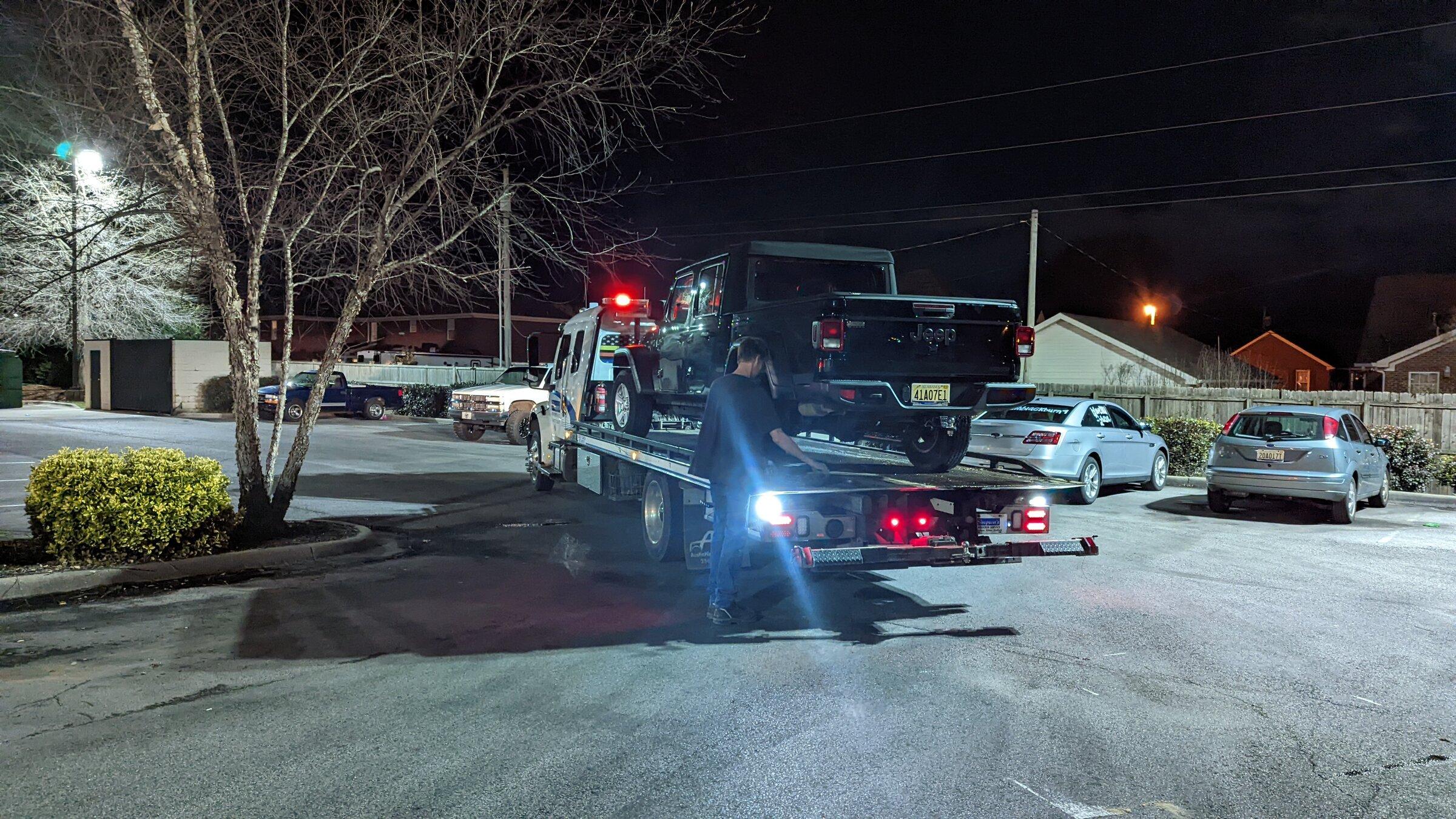

Jeep Gladiator Flummoxed by Serpentine Belt Replacement PXL_20220317_012436556


It snapped on me while driving, and I rolled into a Zaxby's. I'm no stranger to belts, so I got a ride to O'Reilly for a new one and the tensioner pulley loaner tool, expecting a <15 minute task. Got back to work on it, and...I couldn't freaking figure it out. I found the front of the engine to be hopelessly convoluted and inaccessible, especially in a Zaxby's parking when it's getting dark.

Of course I tried to Google it, but I still have yet to find anything, video or article, detailing how to replace the serpentine belt on a Gladiator or JL Wrangler. Had to admit defeat, have it towed to the dealer (see picture), and return the belt to O'Reilly.

I reckon y'all could take this as a cautionary tale that the replacing the serpentine belt may not be as simple as you think. But hey, it could just be me. Has anyone replaced theirs? Is it indeed an ordeal or did I misread it?
