    Has anyone mounted any flush mount flood lights in the rear bumper? I'm thinking maybe the two red reflectors in each corner could possibly be removed and would be a good spot to mount them. Maybe something like these? https://www.rigidindustries.com/d-series-pro-flood-diffused-flush-mount-black-2-lights-212513.html

    for the sport S owners out there, those of you that already have your trucks, can you see anything behind the reflectors that would prevent you mounting there? is it backed by steel in that area or is it plastic that could be easily cut with a hole saw?

  2. Jamie

    Jamie Member

    First Name:
    Jamie
    Vehicle(s):
    2020 Overland
    Joined:
    May 10, 2019
    Location:
    Poconos
    Posts:
    23
    Liked:
    5
    nc_oc=AQmQ8JDpw90yiHAVoLoofWDSqVTqDCIrcsd36EFr2Vq0fJbqgniMtH_7ENBJMznZNts&_nc_ht=scontent-lga3-1.jpg
    nc_oc=AQlQzsehfQDEFigXuPtt0JBltbl_xhxMkYfRzIh7pcJm4ZDJyxlbRlmE5ButNEHHJK0&_nc_ht=scontent-lga3-1.jpg

    not mine , saw this on another forum

  3. OP
    OP
    BrichJeepUtopia

    BrichJeepUtopia Well-Known Member

    Vehicle(s):
    2020 Gladiator Sport S
    Joined:
    Apr 3, 2019
    Location:
    Frisco, TX
    Posts:
    51
    Liked:
    105
    Great, thanks for the pics. Hard to tell if those are flush or surface mounted, but at least it looks like I'm on the right track for a good location.

  4. Jamie

    Jamie Member

    First Name:
    Jamie
    Vehicle(s):
    2020 Overland
    Joined:
    May 10, 2019
    Location:
    Poconos
    Posts:
    23
    Liked:
    5
    reading their post , He used rugged ridge lights and flushed them into the bumper

  5. mpinch

    mpinch Member

    First Name:
    Michael
    Vehicle(s):
    2020 Jeep Gladiator Overland (on order), 2013 BMW X3 (wifes), 2007 BMW 328XI Coupe, 1998 BMW 328IS Coupe, 2003 Triumph Speed Four
    Joined:
    Aug 7, 2019
    Location:
    Central NJ
    Posts:
    10
    Liked:
    4
    Occupation:
    Engineer

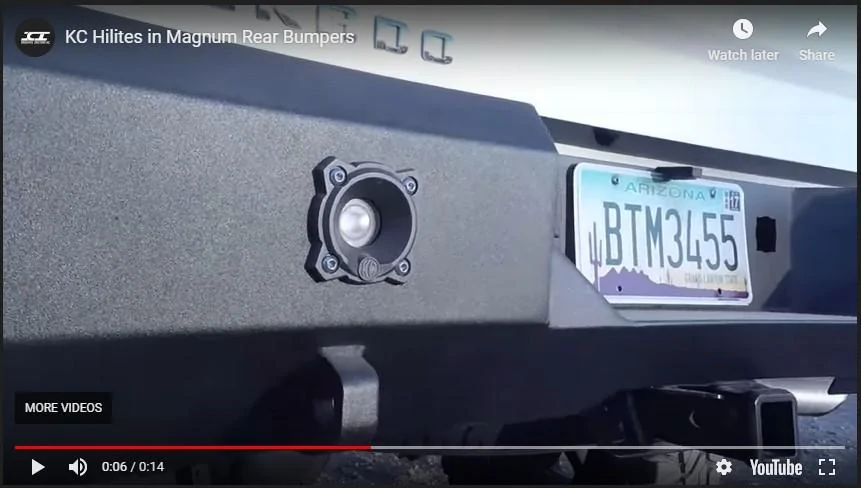

    Innovative Creations Inc (ICI) has Magnum Series Rear Bumpers that feature KC Hilites however I don't see that KC sells them separately. I really want a set to retro fit into my stock JT bumper but can't seem to find them anywhere. Here are the specs -

    LZR Flush Mount LED by KC HiLITES (In tandem with ICI)
    Light Specs:
    • 65MM/ 2.5" Flush Mount Flood
    • Single Bulb 10W/900 Lumen Cree LED
    • Aluminum Faceplate and Housing
    • 40 Degree Optic (works flawlessly with OE cameras and sensors)
    • KC Branded and Backed
    • 23 Year Warranty


  6. OP
    OP
    BrichJeepUtopia

    BrichJeepUtopia Well-Known Member

    Vehicle(s):
    2020 Gladiator Sport S
    Joined:
    Apr 3, 2019
    Location:
    Frisco, TX
    Posts:
    51
    Liked:
    105
  7. dwayneturner70

    First Name:
    Dwayne Turner
    Vehicle(s):
    2020 Jeep Gladiator Sport S
    Joined:
    Jun 24, 2019
    Location:
    Atlanta, GA
    Posts:
    16
    Liked:
    35
    How did they get the lights between the bumper?

  8. Mr._Bill

    Mr._Bill Well-Known Member

    First Name:
    Bill
    Vehicle(s):
    2020 Jeep Gladiator Overland 2013 Nissan Leaf SV
    Joined:
    Jul 22, 2019
    Location:
    North Las Vegas, NV
    Posts:
    529
    Liked:
    270
    Garage Profiles:
    1
    The red reflector is a removable panel. It's held in from the back with three screws.

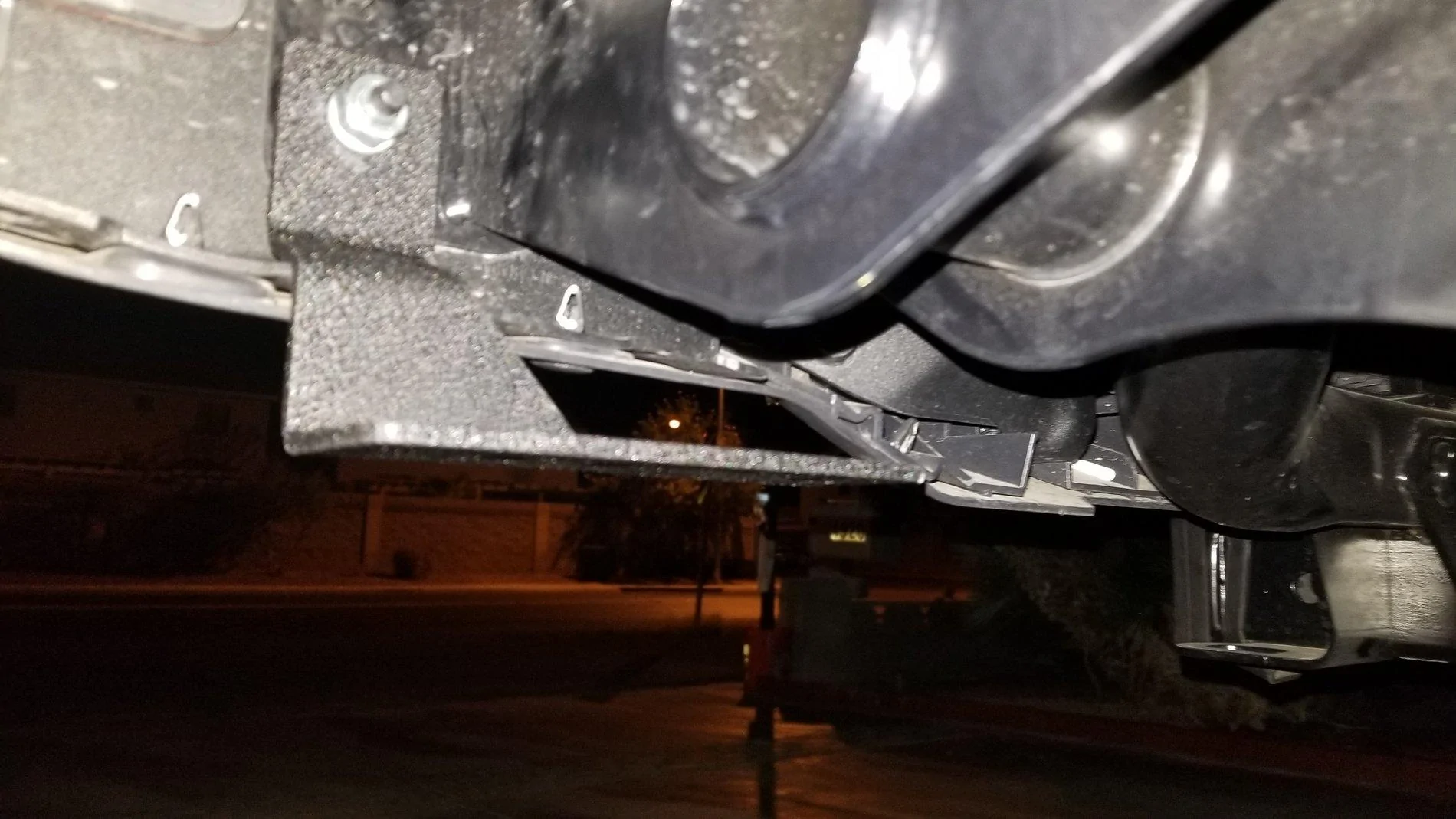

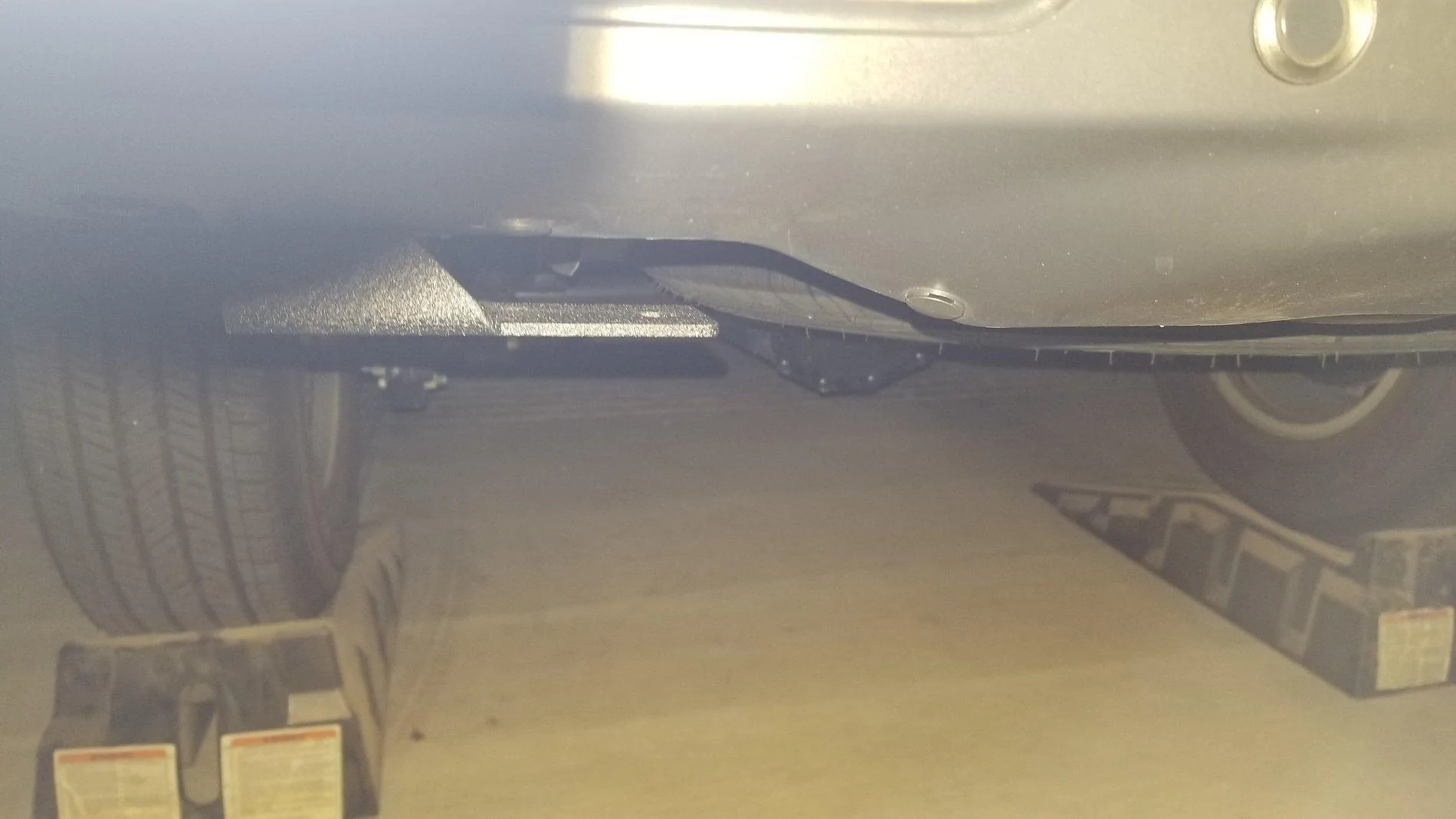

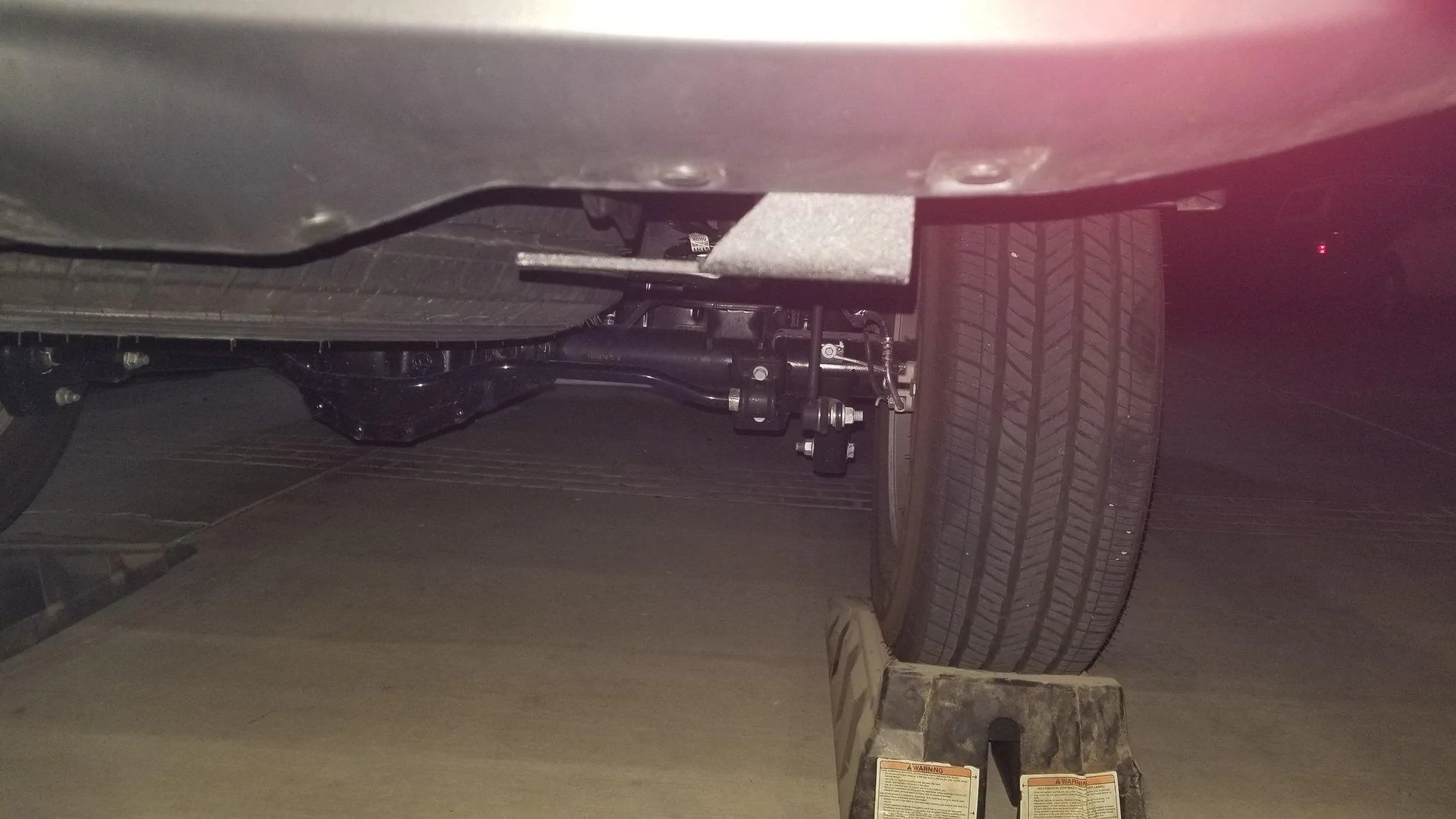

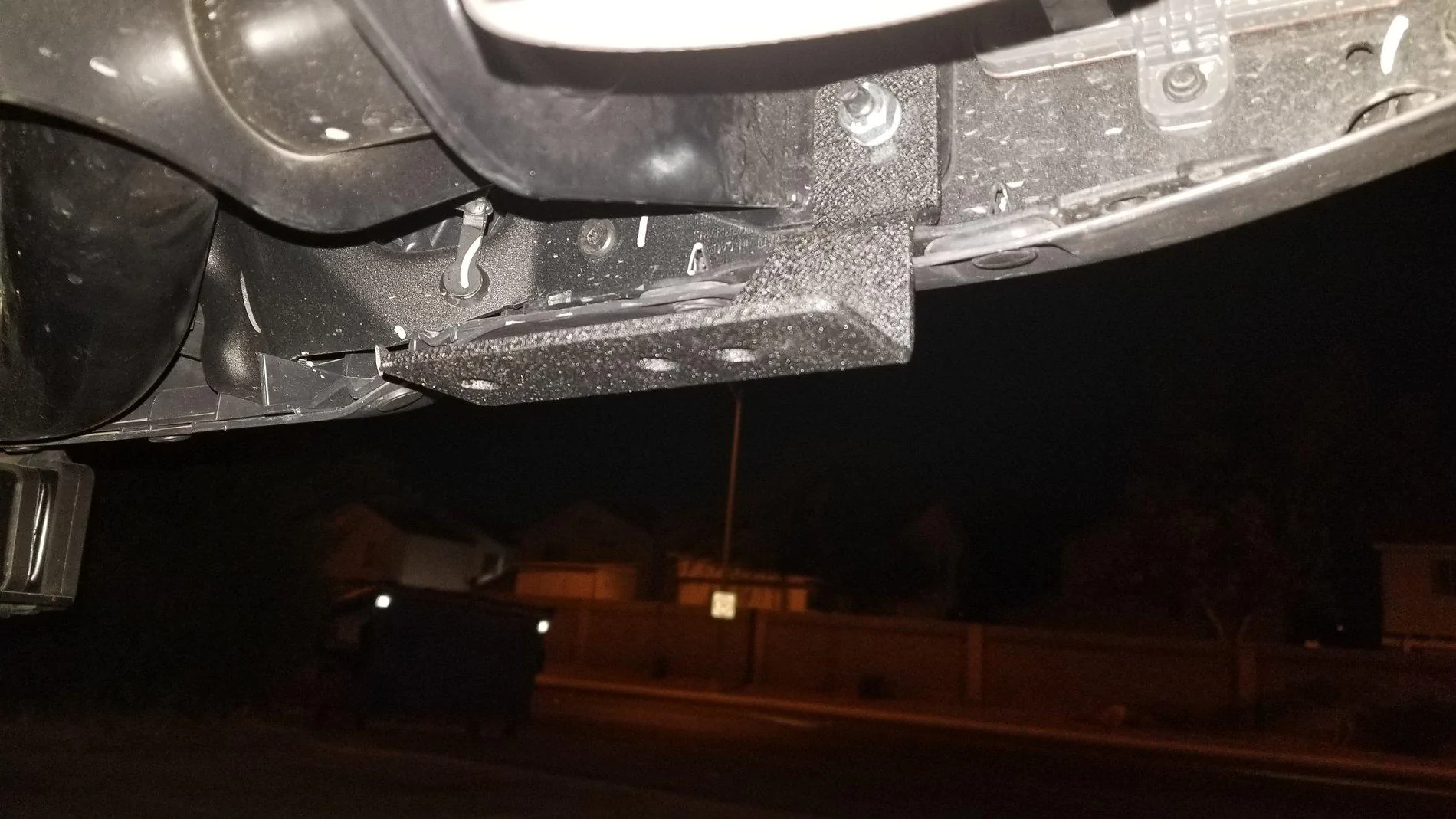

    I bought a set of the KC Backup Lights to mount in the rear. I found them on Amazon for $145. I went with some EAG Bumper mounts for $26. They fit great and go on easy. I just used a split washer and M10 nut to attach them to the lower bumper bolt. They hang down about an inch, and have three holes in them for attaching items.
    EAG 20W 2x2 LED Pod Light with... https://www.amazon.com/dp/B07QRF8WDR?ref=ppx_pop_mob_ap_share

    The description is a little misleading, but they clarify further down that it's only the brackets that are shipped.

    20191016_012605.jpg 20191016_012531.jpg 20191016_012421.jpg 20191016_012325.jpg

    TRI-JAB likes this.
  9. steffen707

    steffen707 Well-Known Member

    Vehicle(s):
    2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
    Joined:
    Jan 28, 2018
    Location:
    Middle Wisconsin
    Posts:
    7,902
    Liked:
    7,640
    what are the laws for reverse lights? can they be too big/bright?

  10. Oscar Indy

    Oscar Indy Moderator
    Staff Member Moderator

    First Name:
    Oscar
    Vehicle(s):
    JTR
    Joined:
    Aug 21, 2019
    Location:
    Utah
    Posts:
    1,132
    Liked:
    1,052
    No white light emiting from rear of vehicle when driving. Some guys use 50in light bars for back up lights.
    When I do my rack I'll probably put a 10 or 20in single row on both sides and the back. I'll tie it's activation into the reverse as well.

    steffen707 likes this.
  11. Punkngladiator

    Punkngladiator Well-Known Member

    First Name:
    Colin
    Vehicle(s):
    2016 Tacoma gone soon 2020 gladiator on its way
    Joined:
    Aug 22, 2019
    Location:
    Alberta
    Posts:
    96
    Liked:
    78
    Awesome funny how we all think the same

  12. steffen707

    steffen707 Well-Known Member

    Vehicle(s):
    2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
    Joined:
    Jan 28, 2018
    Location:
    Middle Wisconsin
    Posts:
    7,902
    Liked:
    7,640
    you mean when driving forward?

    Oscar Indy likes this.
  13. Oscar Indy

    Oscar Indy Moderator
    Staff Member Moderator

    First Name:
    Oscar
    Vehicle(s):
    JTR
    Joined:
    Aug 21, 2019
    Location:
    Utah
    Posts:
    1,132
    Liked:
    1,052
    Yeah. Reverse lights are fine but a broken tail light where red lens is gone and white light is shining backwards is probably cause for a stop and a ticket.

    steffen707 likes this.
  14. Mr._Bill

    Mr._Bill Well-Known Member

    First Name:
    Bill
    Vehicle(s):
    2020 Jeep Gladiator Overland 2013 Nissan Leaf SV
    Joined:
    Jul 22, 2019
    Location:
    North Las Vegas, NV
    Posts:
    529
    Liked:
    270
    Garage Profiles:
    1

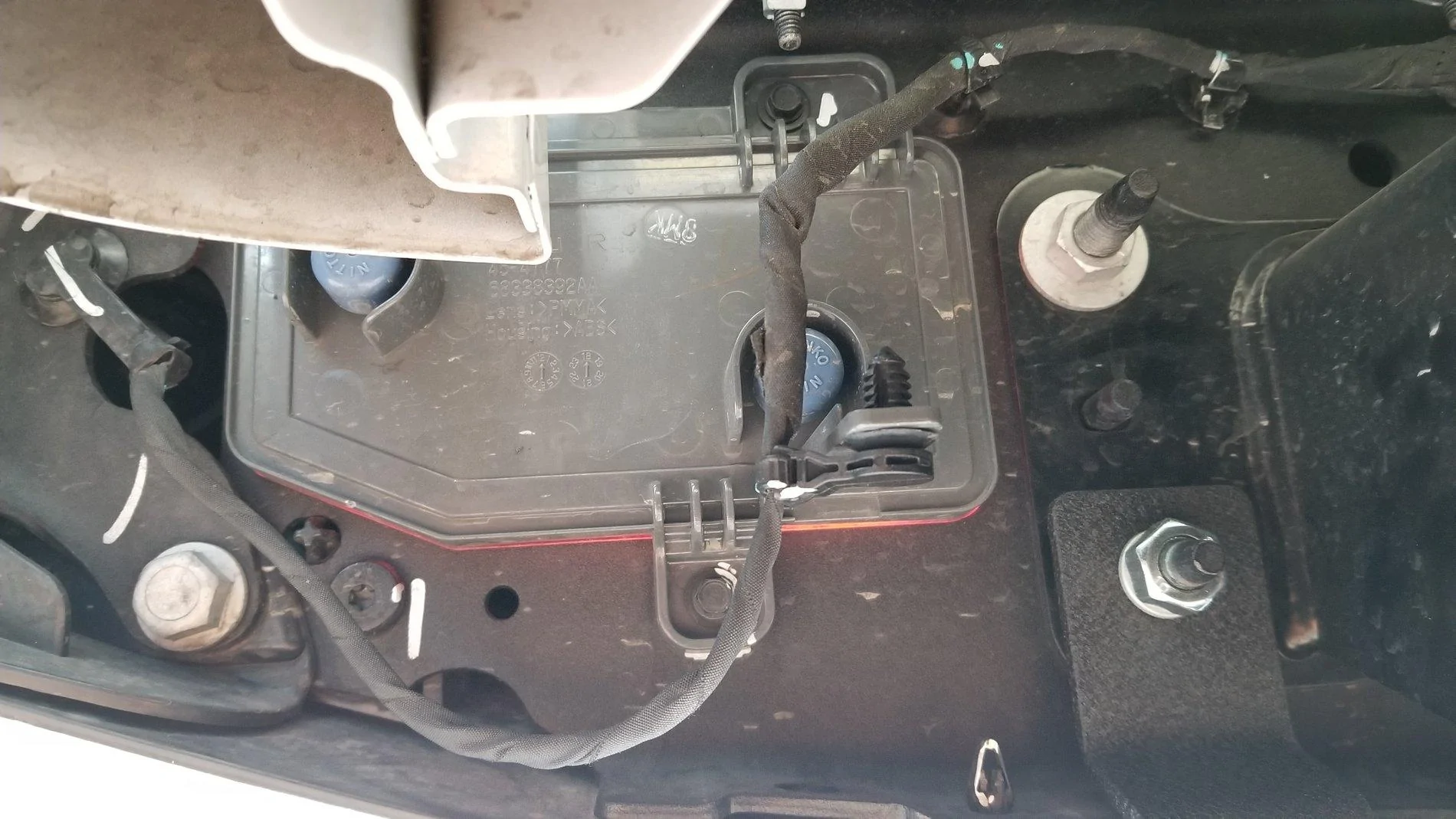

    Here's a picture of the reflector from the back. There's just three small bolts holding it on. It has a hanger on the back that holds some of the wiring.


    WhatExit? and steffen707 like this.
  15. steffen707

    steffen707 Well-Known Member

    Vehicle(s):
    2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
    Joined:
    Jan 28, 2018
    Location:
    Middle Wisconsin
    Posts:
    7,902
    Liked:
    7,640
    cool, @Troybilt has a plan to make a bracket to attach a light to those mounting holes. This looks very do-able.
