Flushing Brake Fluid

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
183
Messages
30,451
Reaction score
36,426
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
cus the truck is only 6m old. So i would have to do this every 20k or 6m. Plus the ABS bleed is a bitch, and i'd rather not do it twice a year
Every two years has always been the rule - well, it used to be more frequently, but with the loss of drum brakes and far better sealed systems, 2 years is what the brake manufacturers recommend.

Not sure how they can suggest a brake fluid flush on miles alone.

I'd have to look at "the book" to see what's in the owners manual, but it's typically TIME based.
Sponsored



WK2JT

Well-Known Member
First Name
Darren
Joined
Mar 11, 2020
Threads
18
Messages
677
Reaction score
683
Location
Highlands Ranch, CO
Vehicle(s)
JTC
Vehicle Showcase
1
I installed speed bleeders and it makes the job super easy and fast. Shadowspapa probably knows off the top of his head, 5.1 has a higher boiling point, but is more hygroscopic… or something like that.


aFatBird

Well-Known Member
First Name
Steven
Joined
Nov 7, 2022
Threads
8
Messages
132
Reaction score
202
Location
Los Angeles
Vehicle(s)
2022 Jeep Gladiator Rubicon EcoDiesel
aFatbird mentioned Dot 5. That's who I was referring to.

I've used Motul 600 for years in my Grand Cherokee and Power Wagon. When i started to do track days with the bike, and then with the car. I switched to Castrol SRF.
My fault there, didn't notice it was 5.1

OP
OP
PuddleJumper

PuddleJumper

Well-Known Member
First Name
Cortlund
Joined
Jan 17, 2024
Threads
42
Messages
1,506
Reaction score
1,674
Location
Alexandria, Virginia
Vehicle(s)
23' JTM, 22' JTR, 22' F56S,
Build Thread
Link
Occupation
Lockheed Martin ASW Test Technician
Vehicle Showcase
1
Just had a brake flush on my wife’s Jag. Indy shop charged a hundred bucks. Honestly to me I’d be wondering why you need a brake flush so early.
Service writer said Jeep calls for a brake flush every 20k. I haven’t check my manual to see if that’s true. But
noted. thx

OP
OP
PuddleJumper

PuddleJumper

Well-Known Member
First Name
Cortlund
Joined
Jan 17, 2024
Threads
42
Messages
1,506
Reaction score
1,674
Location
Alexandria, Virginia
Vehicle(s)
23' JTM, 22' JTR, 22' F56S,
Build Thread
Link
Occupation
Lockheed Martin ASW Test Technician
Vehicle Showcase
1
I installed speed bleeders and it makes the job super easy and fast. Shadowspapa probably knows off the top of his head, 5.1 has a higher boiling point, but is more hygroscopic… or something like that.
speed bleeders?


Sponsored

OP
OP
PuddleJumper

PuddleJumper

Well-Known Member
First Name
Cortlund
Joined
Jan 17, 2024
Threads
42
Messages
1,506
Reaction score
1,674
Location
Alexandria, Virginia
Vehicle(s)
23' JTM, 22' JTR, 22' F56S,
Build Thread
Link
Occupation
Lockheed Martin ASW Test Technician
Vehicle Showcase
1
Every two years has always been the rule - well, it used to be more frequently, but with the loss of drum brakes and far better sealed systems, 2 years is what the brake manufacturers recommend.

Not sure how they can suggest a brake fluid flush on miles alone.

I'd have to look at "the book" to see what's in the owners manual, but it's typically TIME based.
thats what i thought. i bled the ABS module with Jscan last night and the brakes feel like new. They said my fluid was dirty but it looks like super clear oil to me. If it was amber or yellow or brown then yeah i'd want to flush it. But how tf does fluid go bad before pads do?!


Hootbro

Well-Known Member
First Name
Don
Joined
Apr 13, 2019
Threads
38
Messages
6,754
Reaction score
11,403
Location
Delaware
Vehicle(s)
2022 Gladiator Rubicon
Service writer said Jeep calls for a brake flush every 20k. I haven’t check my manual to see if that’s true.
Ironically, the owners manual does not state or list anything on brake fluid service interval, just inspection of fluid levels, pads and rotors.

I have seen recommendations from 20K-50K miles or every 2-3 years. I tend to make it part of my 30K mile major service routine.

OP
OP
PuddleJumper

PuddleJumper

Well-Known Member
First Name
Cortlund
Joined
Jan 17, 2024
Threads
42
Messages
1,506
Reaction score
1,674
Location
Alexandria, Virginia
Vehicle(s)
23' JTM, 22' JTR, 22' F56S,
Build Thread
Link
Occupation
Lockheed Martin ASW Test Technician
Vehicle Showcase
1
Ironically, the owners manual does not state or list anything on brake fluid service interval, just inspection of fluid levels, pads and rotors.
my gut says its fine. I find it hard to believe fluid fails before pads do. Unless its contaminated with water, but i have a feeling you'd find out real quick if it did, as soon as the brakes get hot. I do agree tho that DOT3 should be changed every 2 years if you can swing it. But i have seen people run for a decade on the fluid their vehicle came with. I think I'll actually flush when it starts to discolor. its still clear as it stands.


Hootbro

Well-Known Member
First Name
Don
Joined
Apr 13, 2019
Threads
38
Messages
6,754
Reaction score
11,403
Location
Delaware
Vehicle(s)
2022 Gladiator Rubicon
my gut says its fine. I find it hard to believe fluid fails before pads do. Unless its contaminated with water, but i have a feeling you'd find out real quick if it did, as soon as the brakes get hot. I do agree tho that DOT3 should be changed every 2 years if you can swing it. But i have seen people run for a decade on the fluid their vehicle came with. I think I'll actually flush when it starts to discolor. its still clear as it stands.
Unless you are race tracking, steep downgrade braking or doing heavy towing, most people will never know a brake fluid degradation issue for a long time if ever.

Your gut is probably right and it is fine. If you want to be anal and exactly know, you can buy brake fluid moisture test strips or buy a little electronic pen that checks the moisture content. I have and use the electronic pen below when checking mine.

https://www.amazon.com/Diagnostic-Indicators-Hydraulic-Moisture-Analyzer/dp/B0C53278WB


Volt0

Well-Known Member
First Name
Tim
Joined
Apr 27, 2022
Threads
20
Messages
442
Reaction score
484
Location
MidMo
Vehicle(s)
JTM,JTHA
I’ve never heard of flushing the brake fluid. Looking back on some of my older, high mileage vehicles, that brake fluid was pretty dark until I bled out a moderate amount. It just happened b/c, well, for no more often than I performed pad replacement, I kind of fumbled around with the bleeding procedure. Is the degradation of the fluid mostly a function of the heat dissipation near the calipers?


edit: as in, is it more common to flush in the southern/hotter states?


Sponsored

Hootbro

Well-Known Member
First Name
Don
Joined
Apr 13, 2019
Threads
38
Messages
6,754
Reaction score
11,403
Location
Delaware
Vehicle(s)
2022 Gladiator Rubicon
Is the degradation of the fluid mostly a function of the heat dissipation near the calipers?
Degradation of the brake fluid is mainly from the absorption of moisture due to being hygroscopic in nature. When the fluid heats up from heat dissipation from the mechanical friction of the brakes themselves, the more moisture content in the brake fluid will reach a quicker boiling point which equals steam that thereby makes the pedals fade and reduces the hydraulic action force applied.

So in theory, heated brakes are not truly the cause of fluid degradation, just a symptom contributor of already moisture degraded fluid,

OP
OP
PuddleJumper

PuddleJumper

Well-Known Member
First Name
Cortlund
Joined
Jan 17, 2024
Threads
42
Messages
1,506
Reaction score
1,674
Location
Alexandria, Virginia
Vehicle(s)
23' JTM, 22' JTR, 22' F56S,
Build Thread
Link
Occupation
Lockheed Martin ASW Test Technician
Vehicle Showcase
1
Unless you are race tracking, steep downgrade braking or doing heavy towing, most people will never know a brake fluid degradation issue for a long time if ever.

Your gut is probably right and it is fine. If you want to be anal and exactly know, you can buy brake fluid moisture test strips or buy a little electronic pen that checks the moisture content. I have and use the electronic pen below when checking mine.

https://www.amazon.com/Diagnostic-Indicators-Hydraulic-Moisture-Analyzer/dp/B0C53278WB
I do ford water a lot, I wheel a lot, I tow a lot. So it warrants a check with strips at least. I’ll give it a go.


Minty JL

Well-Known Member
First Name
Jeremy
Joined
May 15, 2019
Threads
14
Messages
2,925
Reaction score
4,226
Location
Ft Meade, MD - AOR
Vehicle(s)
23 XC90 - 23 JTM - 19 JLUR - 04 355 ZQ8
Occupation
USA(R), DoD Field Ops Engineer
Every two years has always been the rule - well, it used to be more frequently, but with the loss of drum brakes and far better sealed systems, 2 years is what the brake manufacturers recommend.

Not sure how they can suggest a brake fluid flush on miles alone.

I'd have to look at "the book" to see what's in the owners manual, but it's typically TIME based.
^^ Yup, I stick to the 24mos or 24k miles rule


SoK66

Well-Known Member
First Name
Jerry
Joined
Nov 15, 2020
Threads
4
Messages
129
Reaction score
95
Location
Durango, CO
Vehicle(s)
2021 Jeep Gladiator Sport (3)
Occupation
Land Tours Manager, Jeep Tour Guide
Service writer said Jeep calls for a brake flush every 20k. I haven’t check my manual to see if that’s true. But

noted. thx
There is no brake fluid change requirement in the factory recommended service schedule. A good rule of thumb is every five years.

I would NOT try Dot 5. There is no real benefit to it and if you dont thoroughly flush the system, which is virtually impossible, you'll have an expensive mess on your hands. Just go with DOT 3.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
183
Messages
30,451
Reaction score
36,426
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
I’ve never heard of flushing the brake fluid. Looking back on some of my older, high mileage vehicles, that brake fluid was pretty dark until I bled out a moderate amount. It just happened b/c, well, for no more often than I performed pad replacement, I kind of fumbled around with the bleeding procedure. Is the degradation of the fluid mostly a function of the heat dissipation near the calipers?


edit: as in, is it more common to flush in the southern/hotter states?
Trained (and some of that factory training) - we were taught (and this came from Bendix, Wagner, and others) that you flush every two years. I took some ASE tests years ago and seem to recall it being mentioned there as well.
Of course, things have gotten more complex, and hopefully, more "sealed" since then, and the use of different materials in cylinders, calipers, pads and so on would help so today they recommend using test strips or an electronic test device.

Just like we were taught in college when it was more of a "1 to 2" years recommendation, before coming down to 2 years and now "test the fluid" - Bendix to this day still says pull all fluid out of the reservoir and wipe it totally clean of all debris before flushing.
More than one tech has ruined parts by simply flushing and ended up pushing debris through the system, locking up parts down the line.

I can tell you from not only college training, but other sources, such as GM and Ford factory training, that yes, they recommend flushing and yes, even to this day - but it's now more a matter of testing than time.
It was never ever about miles when we were trained (I have some training direct from Bendix - although a tad dated these days) It was always about time.
Brake fluid isn't sensitive to how many miles you've driven, it breaks down over time and absorbs moisture over time - thus, the time factor "every 2 years".

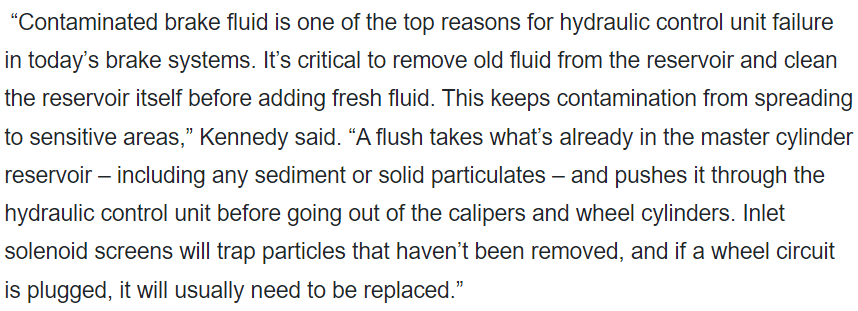

This is from an article, the fellow - Kennedy - is a technical trainer from Bendix Corp. -

Jeep Gladiator Flushing Brake Fluid 1711027571473-uv


Brake fluid contains "chemicals" like most of our other fluids - and those break down with time (heat as well so a lot of wheeling and mountain driving may mean sooner flushes)

Don't just pop the pressure adapter onto the master cylinder reservoir - use something like a turkey baster to get the old fluid out and clean the reservoir.

With drum brakes, the system wasn't quite as sealed and the residual pressure check valve in the master cylinder could eventually lose the pressure held in the lines going to the wheel cylinders and changes in atmospheric pressure (lows and highs moving through) meant that some air with moisture could move into the wheel cylinders so it was really bad in those days.
Still no system is 100% perfect, and with heat and so on, even today, the fluid can and will break down.
(The brake lines in my F250 rotted out from the inside out - that thing had problems!)
