Focal Speakers

rvillano8188

Well-Known Member
First Name
Rob
Joined
May 20, 2019
Threads
38
Messages
799
Reaction score
761
Location
Long Island, NY
Vehicle(s)
2020 Punk'n JT Rubi, 2018 VW Tiguan SEL
Occupation
Financial Services

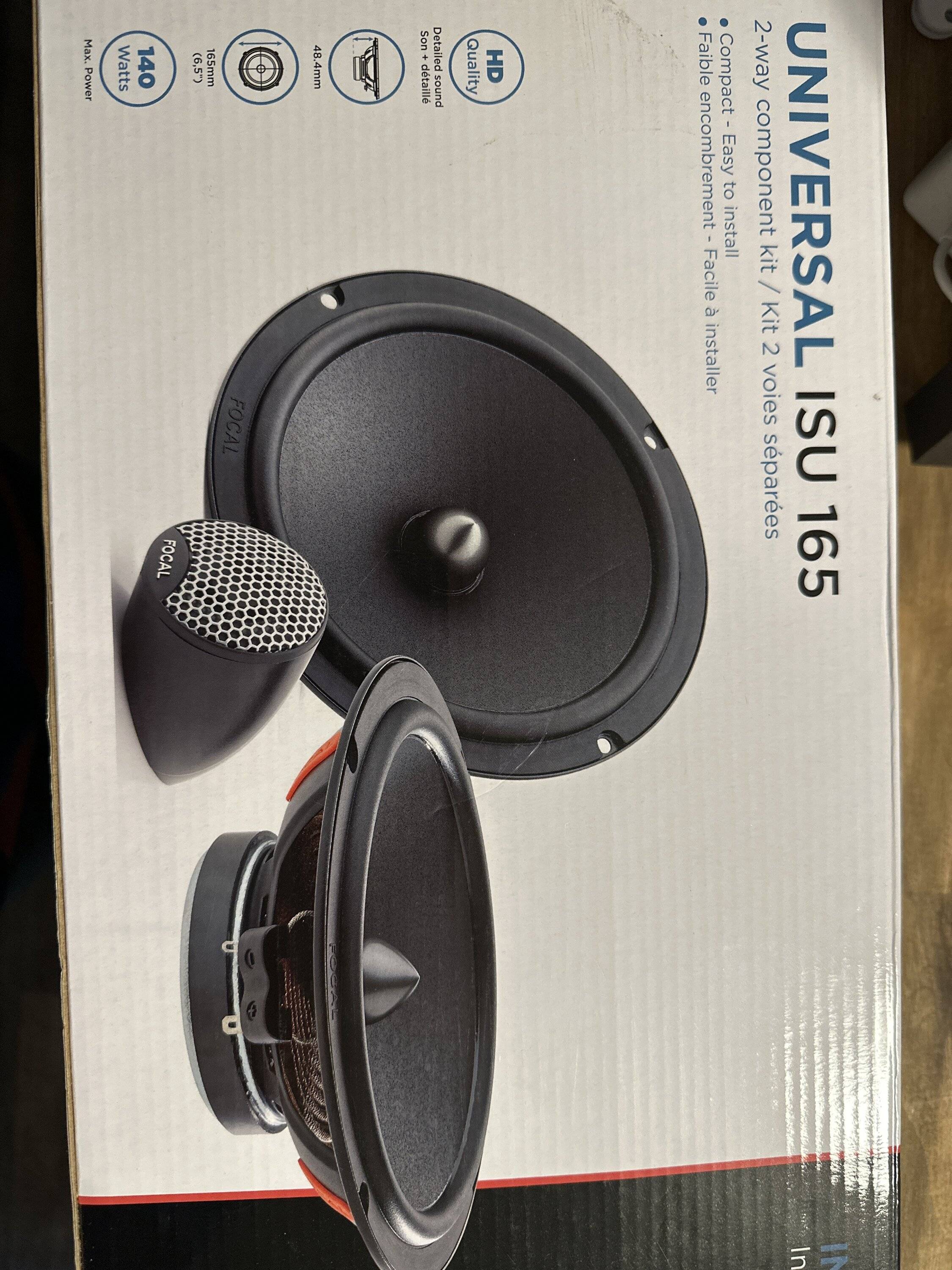

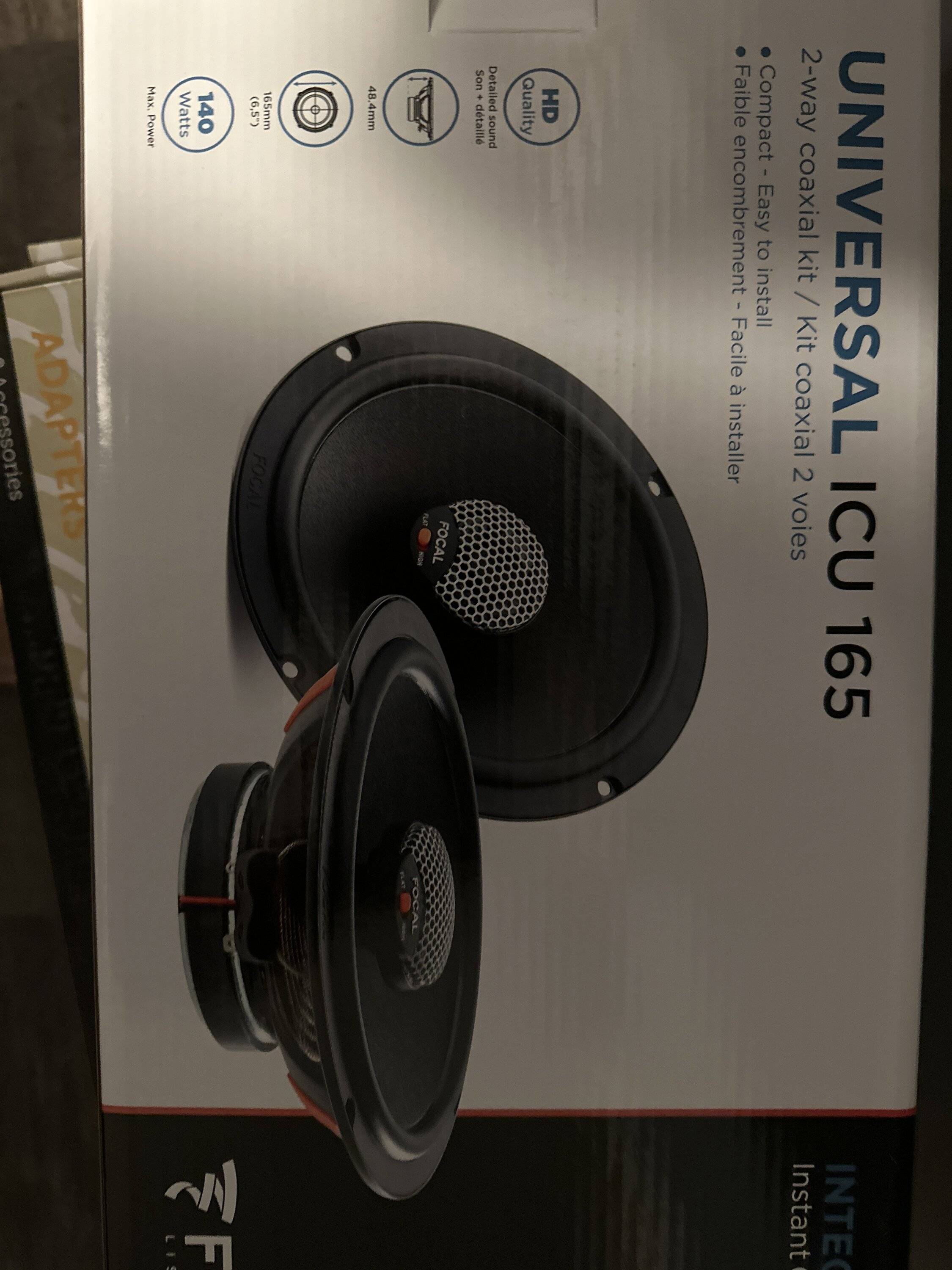

Hey all, time to upgrade the premium sound system speakers. Got a few shops advice and landed on the Focal ISU 165’s and the ICU 165’s with some Metra adapters for the larger speakers.

anyone run these yet and what were the thoughts? For now I’m gonna plug and play and maybe go amp in the future but I wanted to do something now to improve quality without spending 3k.



Sponsored



kennyglm

Well-Known Member
First Name
kenny
Joined
Jun 11, 2022
Threads
18
Messages
205
Reaction score
174
Location
easton pa
Vehicle(s)
2021 gladiator
I have the focal flax series. I like them but at times i feel there might be a hair to much tweeter noise. i also run the focal 1200.5 amp


kooltoys

Well-Known Member
First Name
Tony
Joined
Dec 19, 2020
Threads
18
Messages
426
Reaction score
283
Location
Central Florida
Vehicle(s)
21 JTD, 90 300zx TT, 07 Nightrain, MB 3.0L Diesel
Occupation
AV Design/Programming
I have the focal flax series. I like them but at times i feel there might be a hair to much tweeter noise. i also run the focal 1200.5 amp
does the xover have tweeter adjustments? some have +/-3 db settings


kennyglm

Well-Known Member
First Name
kenny
Joined
Jun 11, 2022
Threads
18
Messages
205
Reaction score
174
Location
easton pa
Vehicle(s)
2021 gladiator
does the xover have tweeter adjustments? some have +/-3 db settings
i dont know to be honest with you i didnt do the install but the amp has all that stuff. I listen to spotify it may be the app to.

OP
OP
rvillano8188

rvillano8188

Well-Known Member
First Name
Rob
Joined
May 20, 2019
Threads
38
Messages
799
Reaction score
761
Location
Long Island, NY
Vehicle(s)
2020 Punk'n JT Rubi, 2018 VW Tiguan SEL
Occupation
Financial Services
does the xover have tweeter adjustments? some have +/-3 db settings
I noticed that on this set I bought. Gonna have to play with it to see which I like better but nice option to have


Sponsored

kooltoys

Well-Known Member
First Name
Tony
Joined
Dec 19, 2020
Threads
18
Messages
426
Reaction score
283
Location
Central Florida
Vehicle(s)
21 JTD, 90 300zx TT, 07 Nightrain, MB 3.0L Diesel
Occupation
AV Design/Programming
I noticed that on this set I bought. Gonna have to play with it to see which I like better but nice option to have
also make sure your treble in the Eq settings is flat(or close to it) before adjusting the xover itself

OP
OP
rvillano8188

rvillano8188

Well-Known Member
First Name
Rob
Joined
May 20, 2019
Threads
38
Messages
799
Reaction score
761
Location
Long Island, NY
Vehicle(s)
2020 Punk'n JT Rubi, 2018 VW Tiguan SEL
Occupation
Financial Services
So little update, I haven’t gotten to the fronts yet, but I finished up the soundbar swap.

Now I’m definitely a novice, so maybe I’m overthinking it or maybe I messed up somewhere.

So there’s a 2 harnesses, one for the tweeter that got pulled out and 1 for the 2.5 that I replaced with the 6.5 that has the integrated tweeter.

I used the metra adapter that came with the kit, and connected the speaker harness to that, and then to the 6.5. The tweeter connection didn’t have anything to connect to so it’s in the subwoofer, wrapped so it doesn’t rattle.

Im only getting what sounds like lows/bass out of the speaker. Is that intentional? Is there some sort of adapter that I didn’t buy to connect both connections to the 6.5?

Probably should leave these things to the pros, but I wanted to learn, so now im here asking for community input.


jebiruph

Well-Known Member
First Name
Jerry
Joined
Dec 9, 2018
Threads
15
Messages
633
Reaction score
593
Location
IA
Vehicle(s)
2018 Wrangler JL 2019 Cherokee KL 2020 Gladiator JT
Do you have a base system or the premium Alpine system?

OP
OP
rvillano8188

rvillano8188

Well-Known Member
First Name
Rob
Joined
May 20, 2019
Threads
38
Messages
799
Reaction score
761
Location
Long Island, NY
Vehicle(s)
2020 Punk'n JT Rubi, 2018 VW Tiguan SEL
Occupation
Financial Services
Do you have a base system or the premium Alpine system?
Alpine, which is why I feel like there’s a missing something going on.


jebiruph

Well-Known Member
First Name
Jerry
Joined
Dec 9, 2018
Threads
15
Messages
633
Reaction score
593
Location
IA
Vehicle(s)
2018 Wrangler JL 2019 Cherokee KL 2020 Gladiator JT
The Alpine system is designed so the high frequency signals go to the tweeters and lower frequency signals go to the mid range. Your coax speaker as installed is only getting the lower frequency signal. There are lots of threads on Alpine system upgrades.

OP
OP
rvillano8188

rvillano8188

Well-Known Member
First Name
Rob
Joined
May 20, 2019
Threads
38
Messages
799
Reaction score
761
Location
Long Island, NY
Vehicle(s)
2020 Punk'n JT Rubi, 2018 VW Tiguan SEL
Occupation
Financial Services
The Alpine system is designed so the high frequency signals go to the tweeters and lower frequency signals go to the mid range. Your coax speaker as installed is only getting the lower frequency signal. There are lots of threads on Alpine system upgrades.
Yea I’ve scoured them but I’m yet to find something to detail a resolution on a speaker with integrated tweeter so I can get both highs and lows. Seems like people are using just the metra adapter for lows that either came with the pods or bought one separately on Amazon but I already have that
