Fox 2.5 Remote Reservoir shock install Fab Fours stubby bumper

Cobblecrazy

Active Member
Joined
May 6, 2021
Threads
9
Messages
29
Reaction score
22
Location
Northern Nevada
Vehicle(s)
2021 Jeep Gladiator Rubicon
I am installing a set of Fox 2.5's on my 2021 Gladiator Rubicon EcoDiesel. I have a Fab Fours stubby bumper already installed. There is a little difference between the bumper and the frame mount. I figure a spacer would even out the mounting surface, but I was wondering if anyone has this configuration, and specifically wondering how they secured the mount for the remote reservoir. Just want to make sure I'm not putting the reservoir too far out where it can get damaged.
Sponsored


Last edited:
OP
OP

Cobblecrazy

Active Member
Joined
May 6, 2021
Threads
9
Messages
29
Reaction score
22
Location
Northern Nevada
Vehicle(s)
2021 Jeep Gladiator Rubicon
This might better illustrate the question.

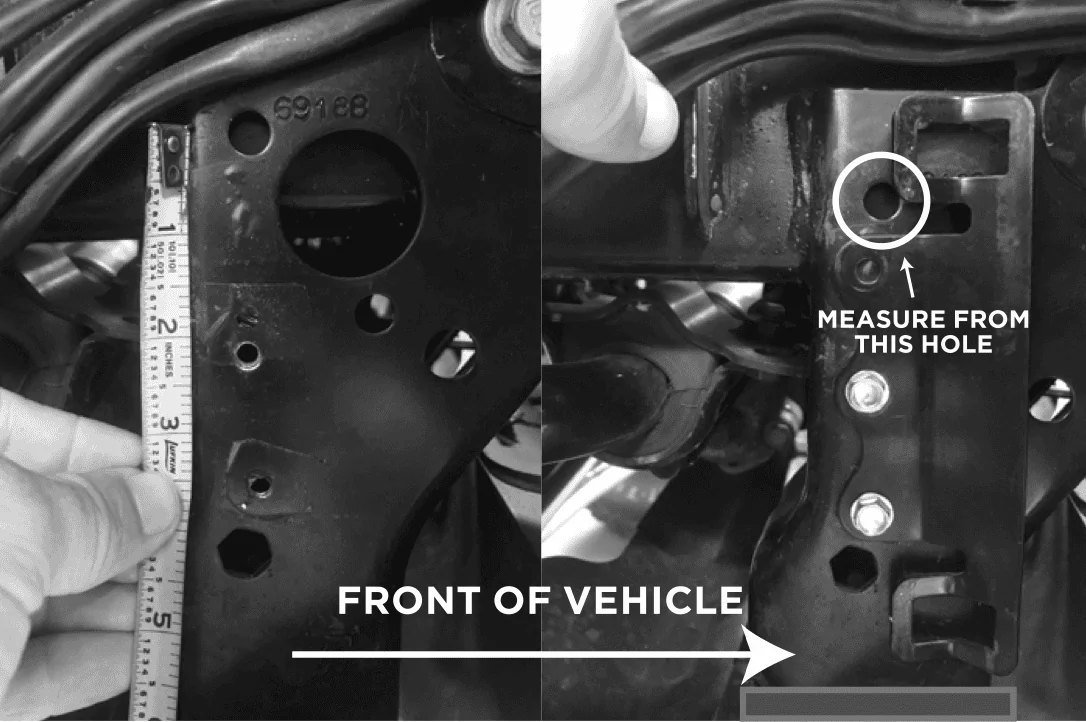

From the Fox website
Jeep Gladiator Fox 2.5 Remote Reservoir shock install Fab Fours stubby bumper Screen Shot 2022-01-25 at 4.47.46 PM

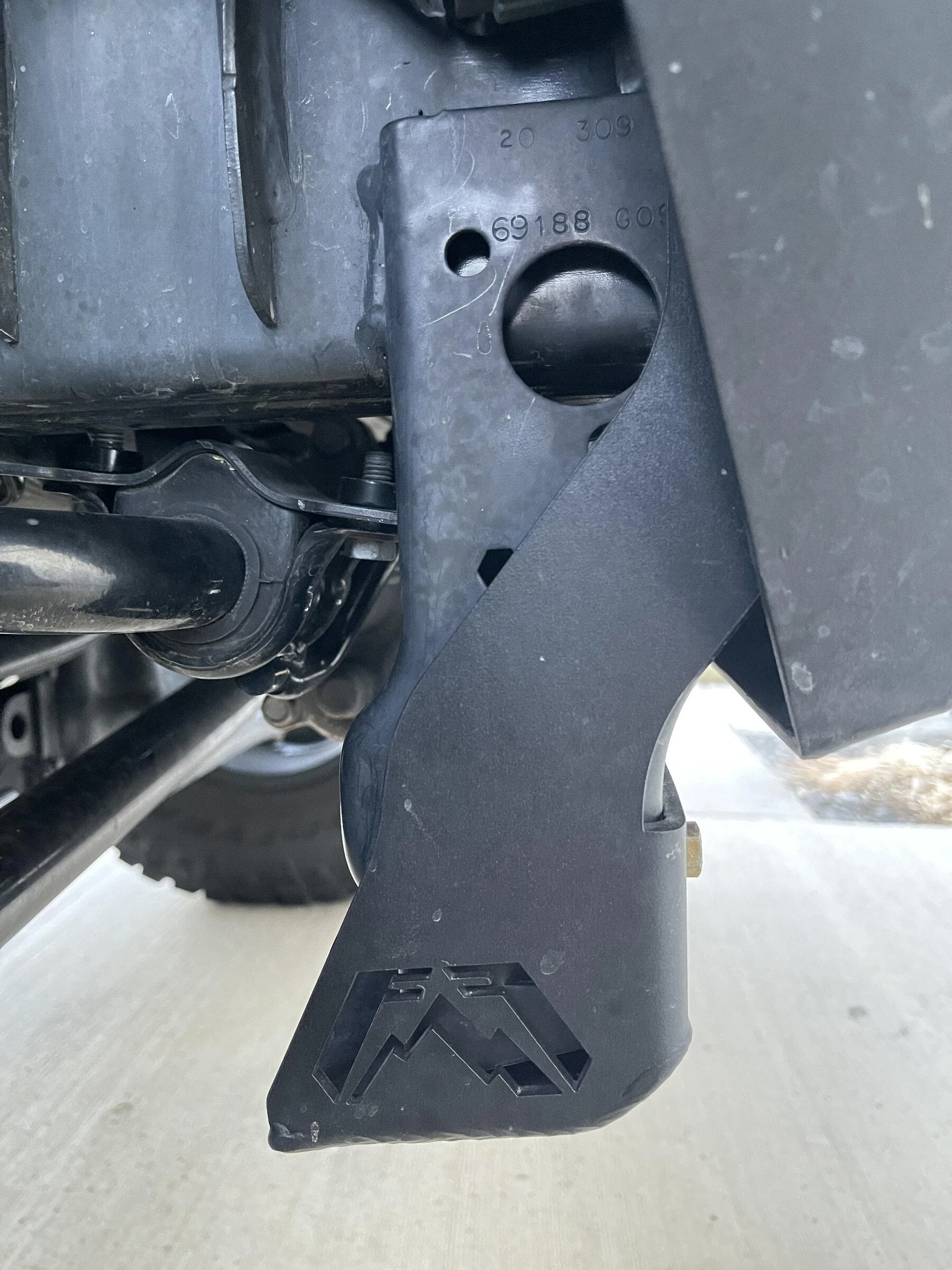

My Bumper and the same mounting location
Jeep Gladiator Fox 2.5 Remote Reservoir shock install Fab Fours stubby bumper IMG_0879


DAVECS1

Well-Known Member
First Name
David
Joined
Jan 24, 2020
Threads
56
Messages
1,861
Reaction score
2,515
Location
Peoria, IL
Vehicle(s)
2020 Gladiator Sport S Max Tow

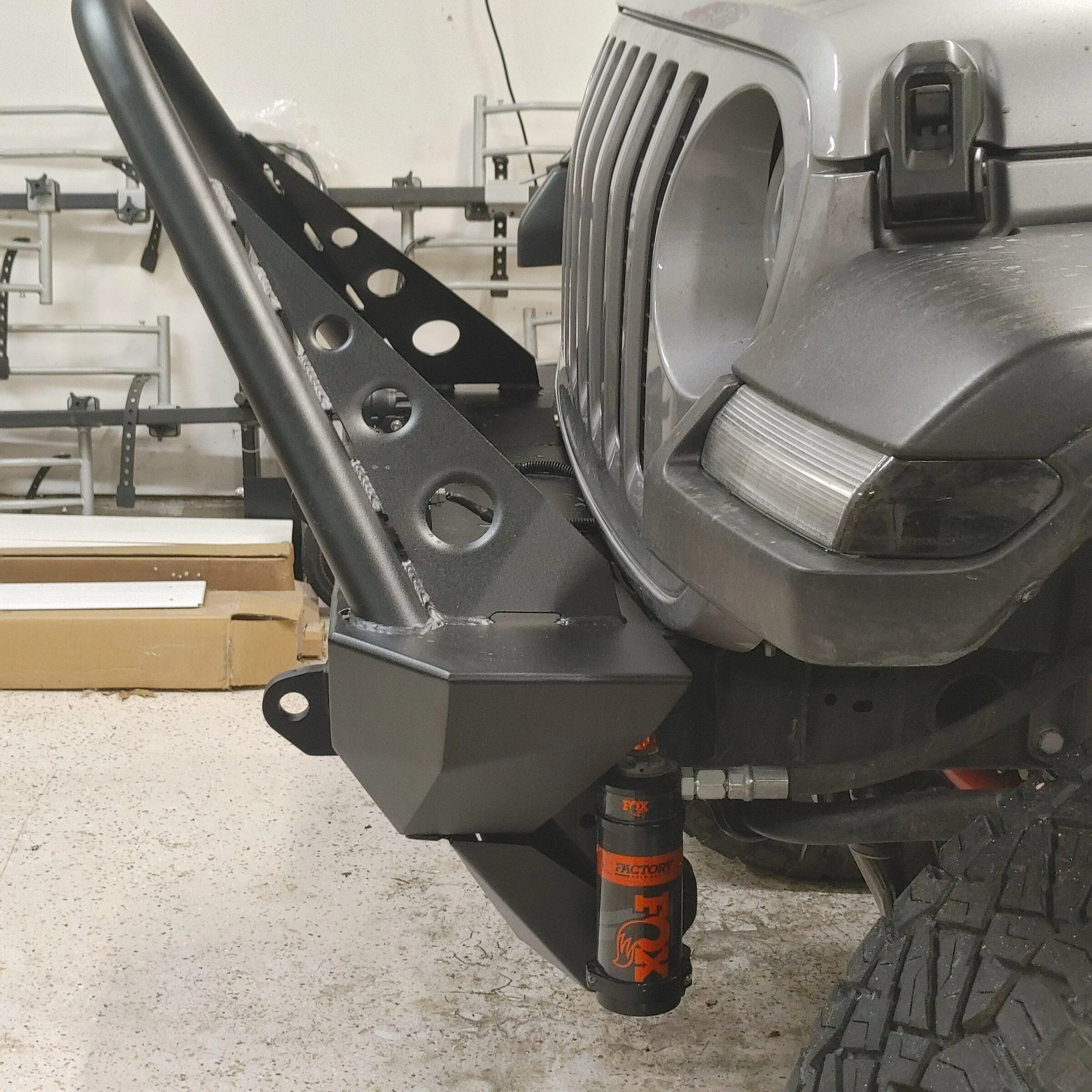

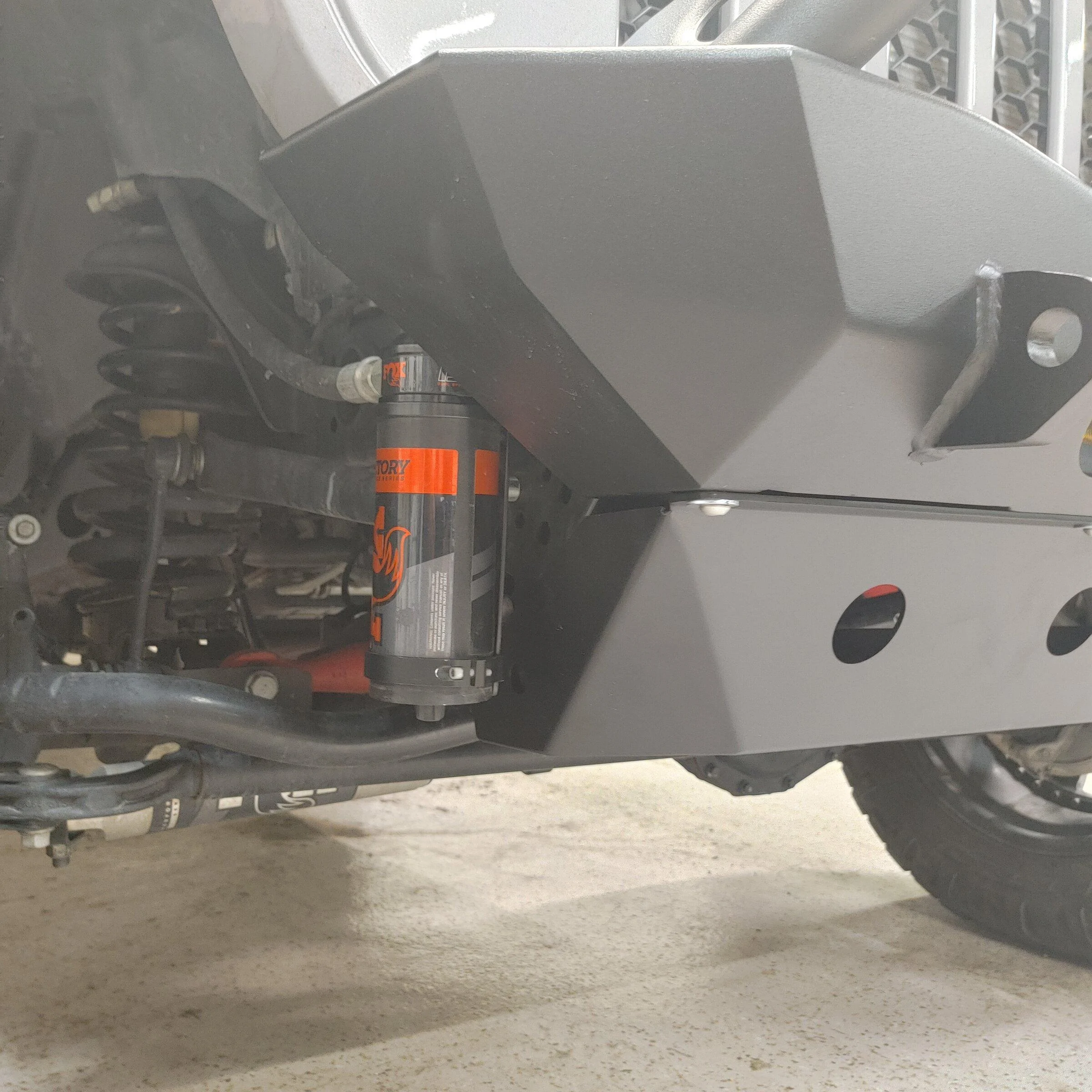

I ended up tapping the fram for some M6 bolts and then using aluminum spacers. Thinking about making a guard for them, but have not done that yet.

Jeep Gladiator Fox 2.5 Remote Reservoir shock install Fab Fours stubby bumper 0108222004d_HDR


Jeep Gladiator Fox 2.5 Remote Reservoir shock install Fab Fours stubby bumper 0108222004b_HDR

OP
OP

Cobblecrazy

Active Member
Joined
May 6, 2021
Threads
9
Messages
29
Reaction score
22
Location
Northern Nevada
Vehicle(s)
2021 Jeep Gladiator Rubicon

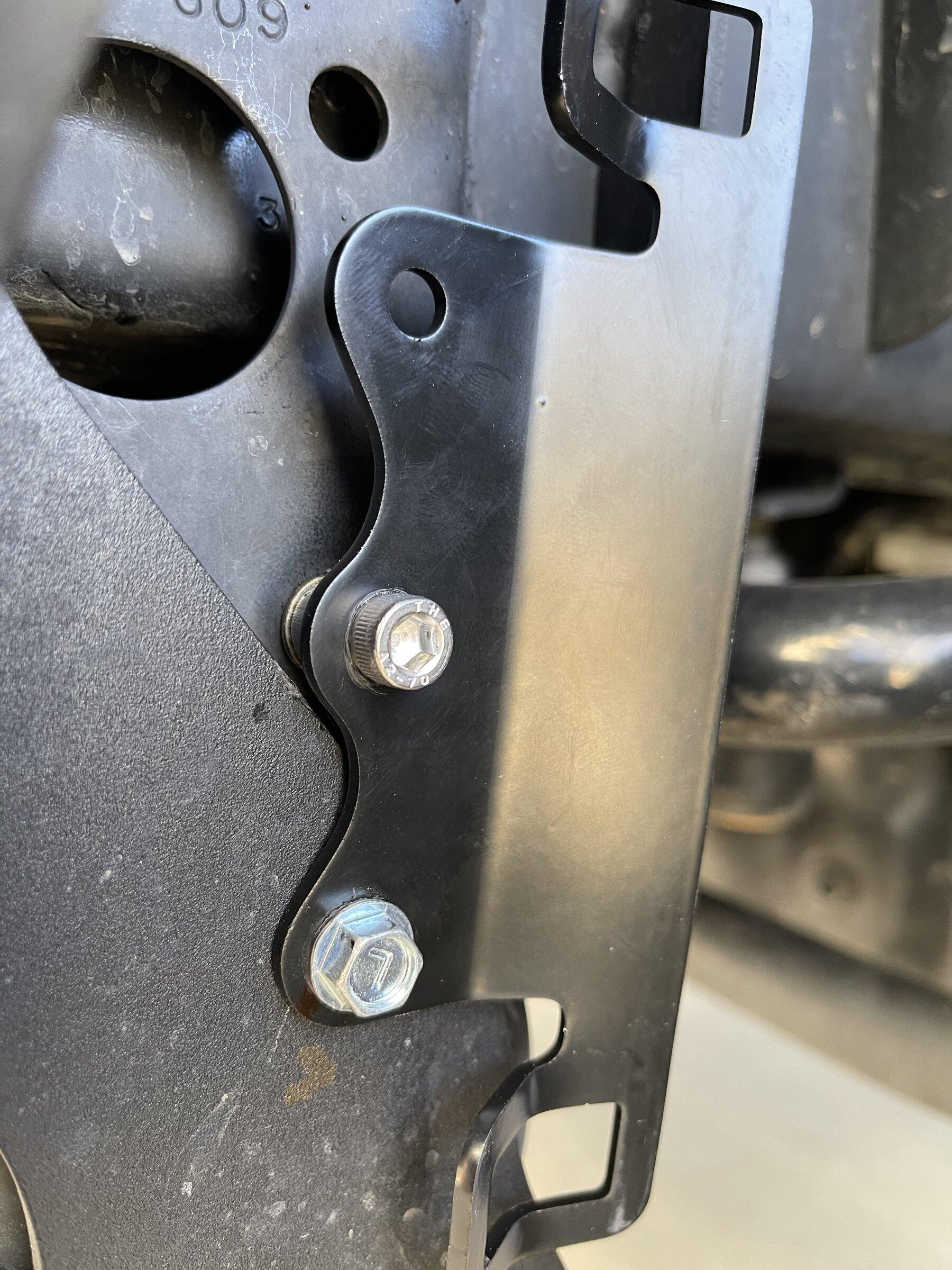

I ended up drilling through the plating of the lower protector and then the frame. I used the self threading screw on this hole. On the middle hole I used a rivet nut insert and a spacer and M6 stainless bolt.
Jeep Gladiator Fox 2.5 Remote Reservoir shock install Fab Fours stubby bumper 6C4A4025-E810-49C4-8F38-2D32A18925F0
